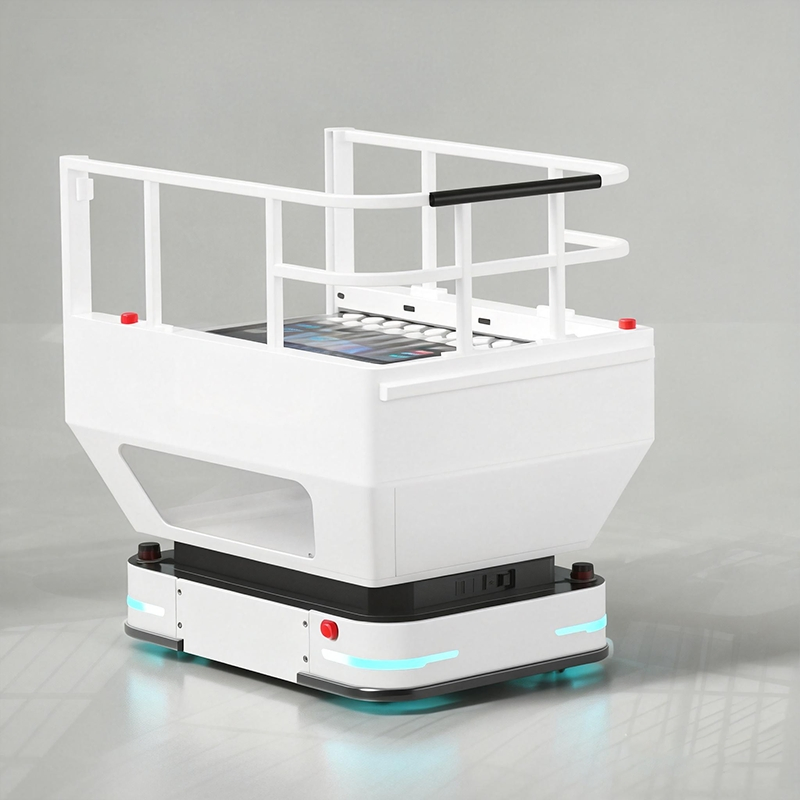

Automated Guided Vehicle Chassis 400kg, Dual Laser

1 / 5

Automated Guided Vehicle Chassis 400kg, Dual Laser

Customization:	Available
Control Mode:	Point to Point Control
Drive Mode:	Electric

Send Inquiry

Product Description

Basic Specifications

Model NO.

3400G

Load Capacity

400 kg

Type

AGV (Automated Guided Vehicle)

Navigation

Hybrid: Dual-Laser SLAM & QR Code

Battery

Lithium Iron Phosphate Battery

Moving Speed

0-2.0m/S

Charging

Manual / Auto Charging

Dimensions

775*540*260mm

Walking

Forward, Steer, Back

Origin

China

Core Features & Safety

🛡️

Advanced Safety

Equipped with Collision Avoidance System, Emergency Stop Button, Obstacle Detection Sensors, and Safety Laser Scanner.

📡

360° Coverage

Front and Rear Dual Lasers provide full 360° obstacle avoidance and environmental awareness.

🔊

Alarm System

Integrated Light Indicators and Voice Prompts for real-time status and safety alerts.

Product Visualization

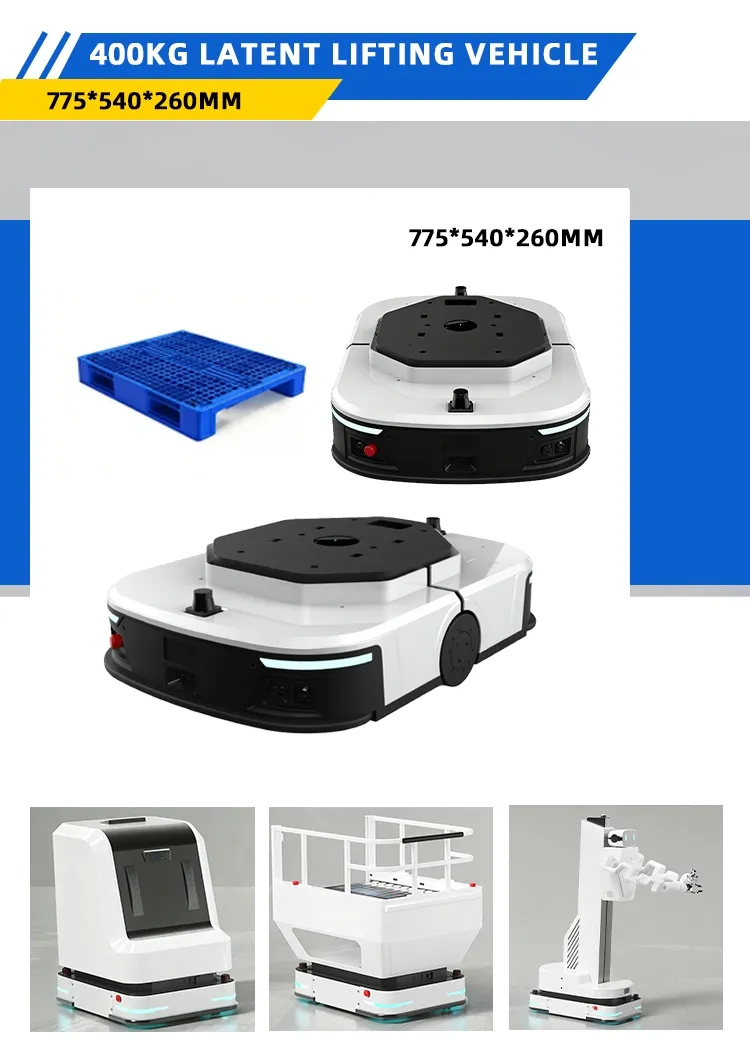

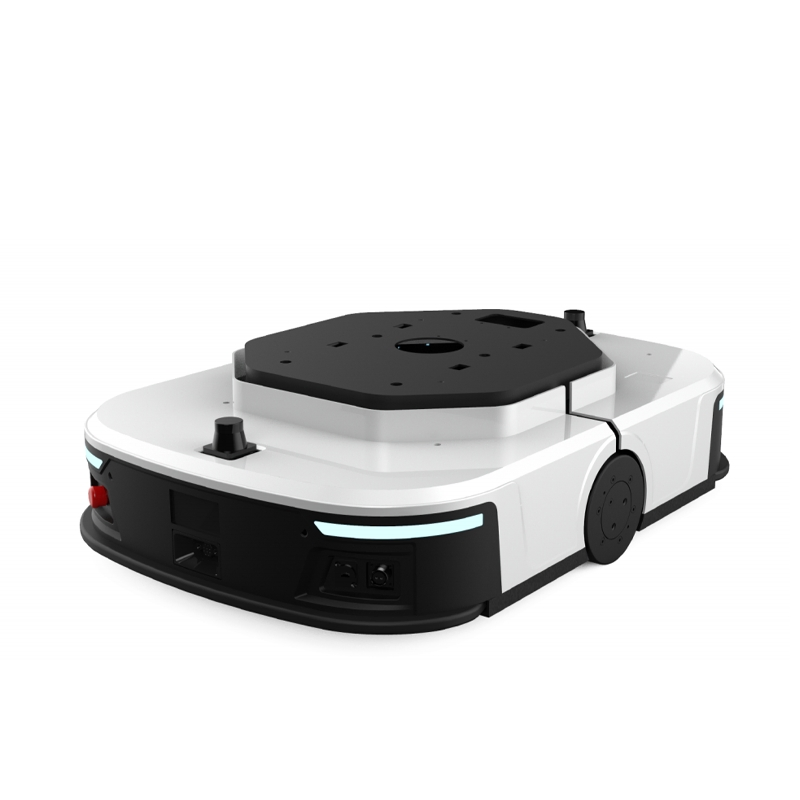

400kg Latent Chassis Vehicle
A high-performance material handling solution with hybrid navigation and dual LiDAR support.

Frequently Asked Questions

What is the maximum load capacity of the 3400G model?

The 3400G model has a standard load capacity of 400kg, making it ideal for various material handling tasks.

What navigation technology does this AGV use?

It utilizes a sophisticated Hybrid Navigation system combining Dual-Laser SLAM and QR Code positioning for high accuracy.

How does the vehicle ensure safety during operation?

Safety is managed via front and rear dual lasers (360° coverage), obstacle detection sensors, an emergency stop button, and collision avoidance systems.

What are the charging options for the battery?

The vehicle supports both Manual Charging and Auto Charging methods for flexible operation.

What is the maximum travel speed?

The AGV can move at a controlled speed ranging from 0 to 2.0 meters per second.

What type of battery is installed?

It is equipped with a high-durability Lithium Iron Phosphate (LiFePO4) battery.
