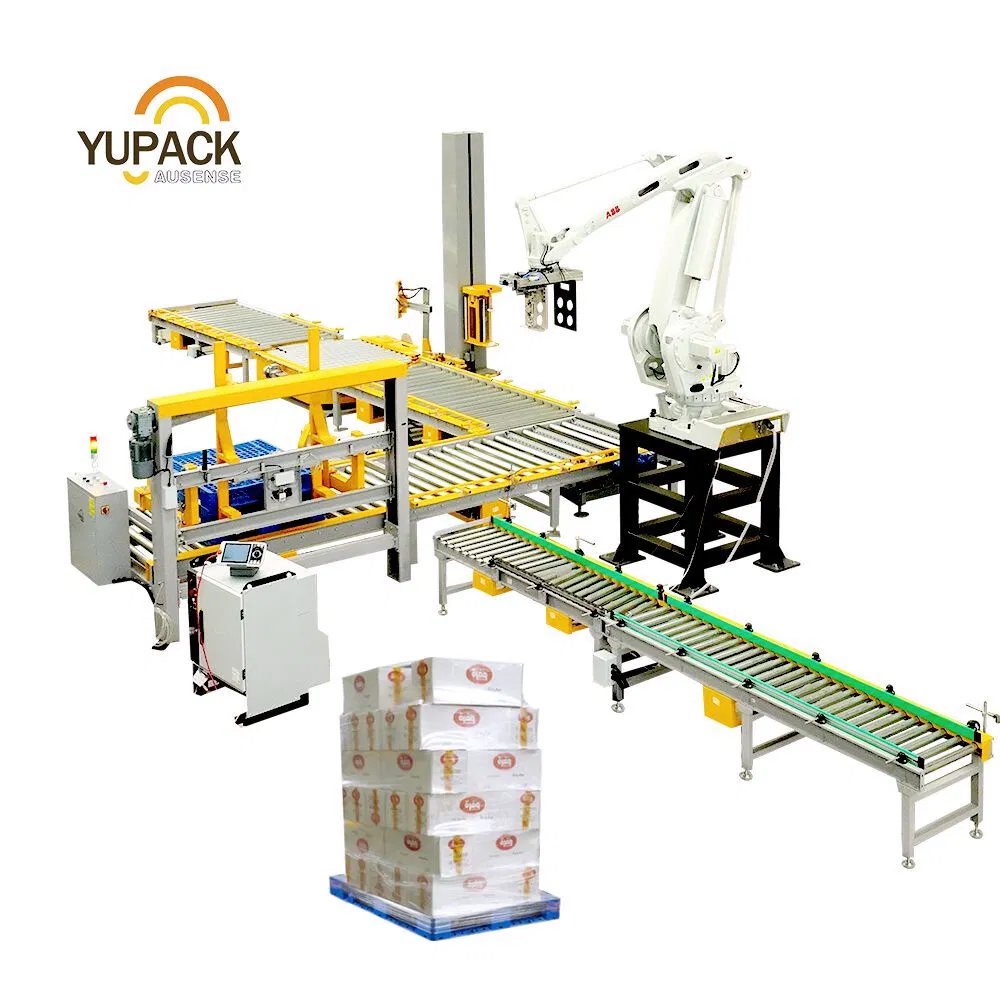

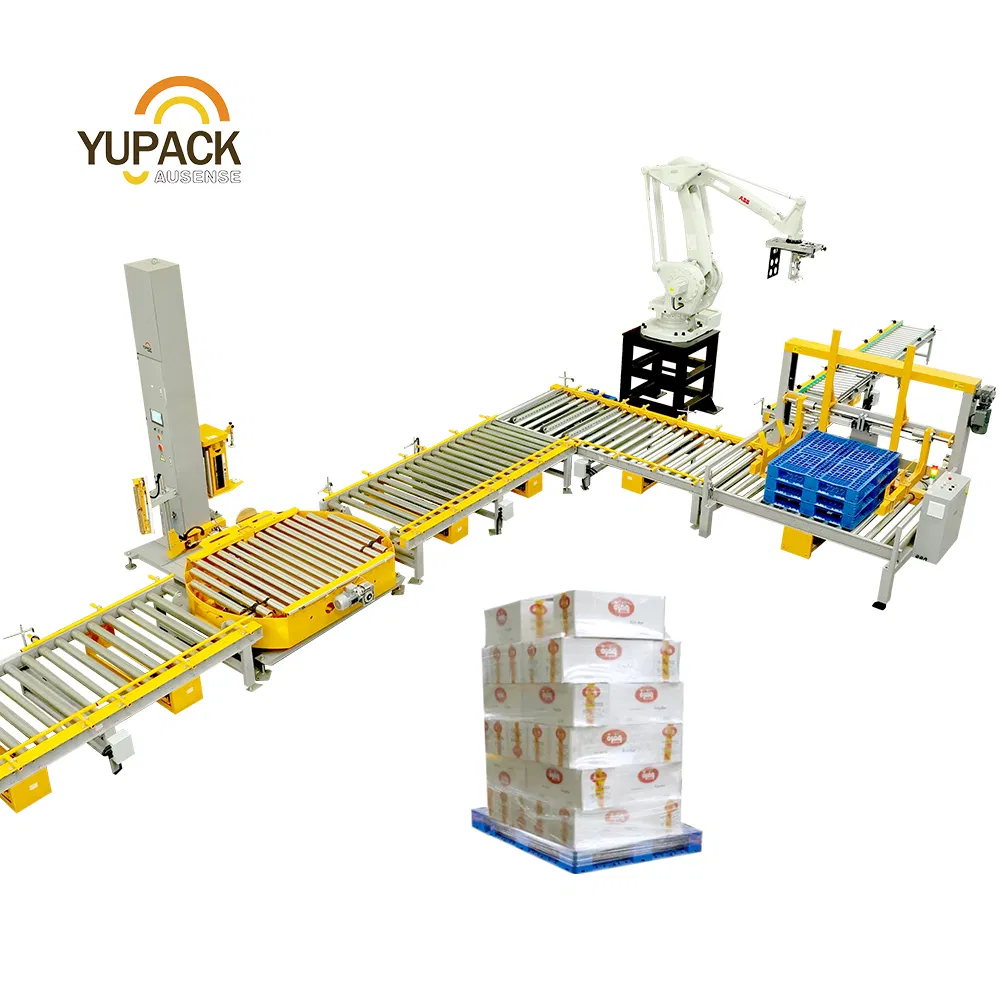

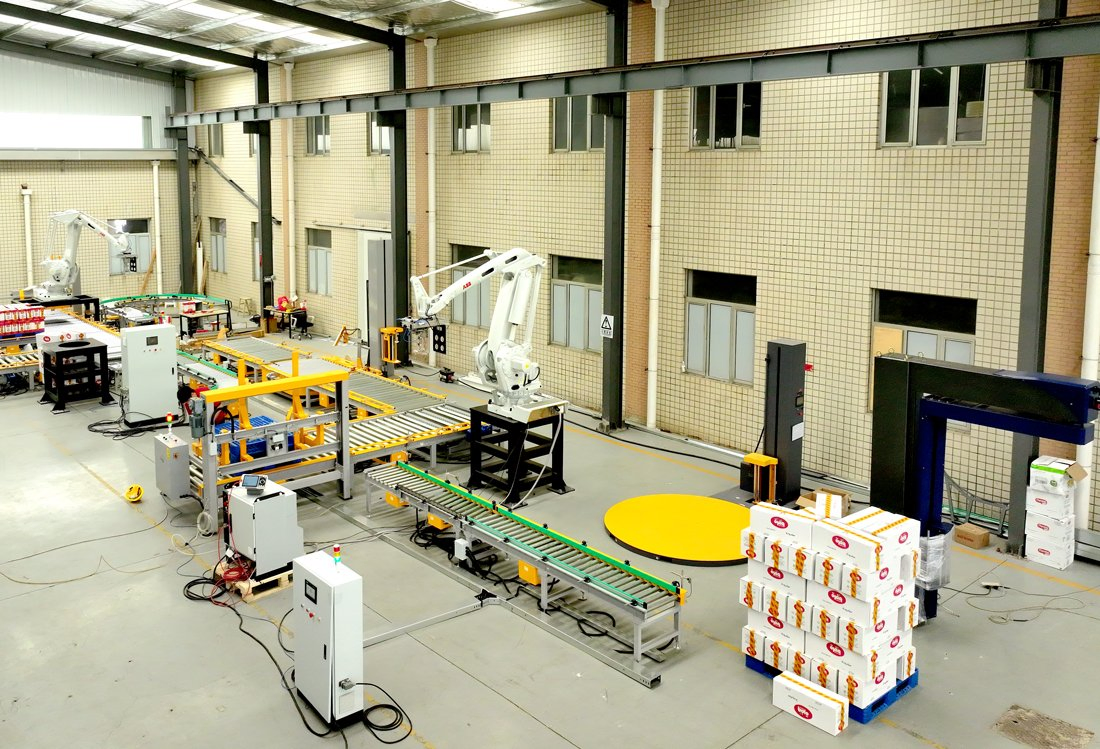

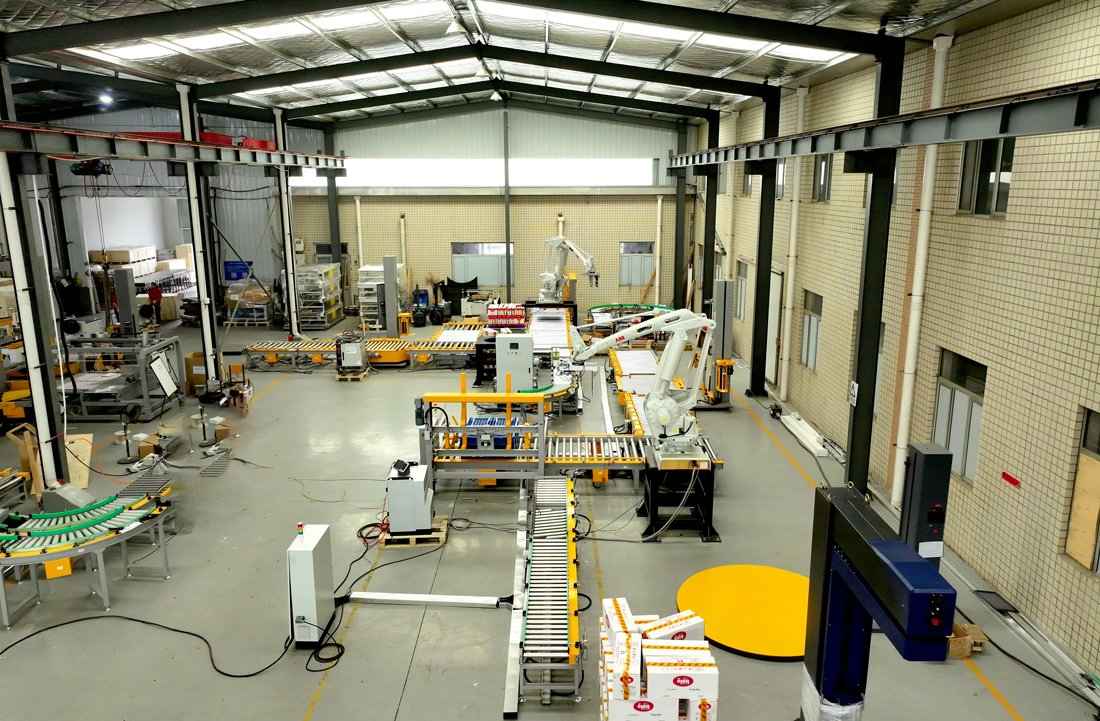

Complete Packaging Line Stretch Wrapper Robotic Palletizing System with Motorized Conveyors Pallet Dispenser

1 / 5

Complete Packaging Line Stretch Wrapper Robotic Palletizing System with Motorized Conveyors Pallet Dispenser

Customization:	Available
Type:	Palletizer
Automatic Grade:	Automatic

Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.

YPK

Driven Type

Electric

Packaging

Cartons

Packaging Material

Plastic

Forming Species

Pallet

Forming Function

Palletizer

Material Type

Catbon Steel

Machine Size

L2000*W2100*H1800mm

Net Weight

500kg

Power

9kw

Voltage

380V 50Hz 3pH (Customizable)

Condition

New

Certification

ISO, CE

After-Sales Service

Online Support

Warranty

1 Year

Transport Package

Sea Standard Wooden Case

HS Code

8422309090

Production Capacity

50 Set Per Month

📋

Product Description

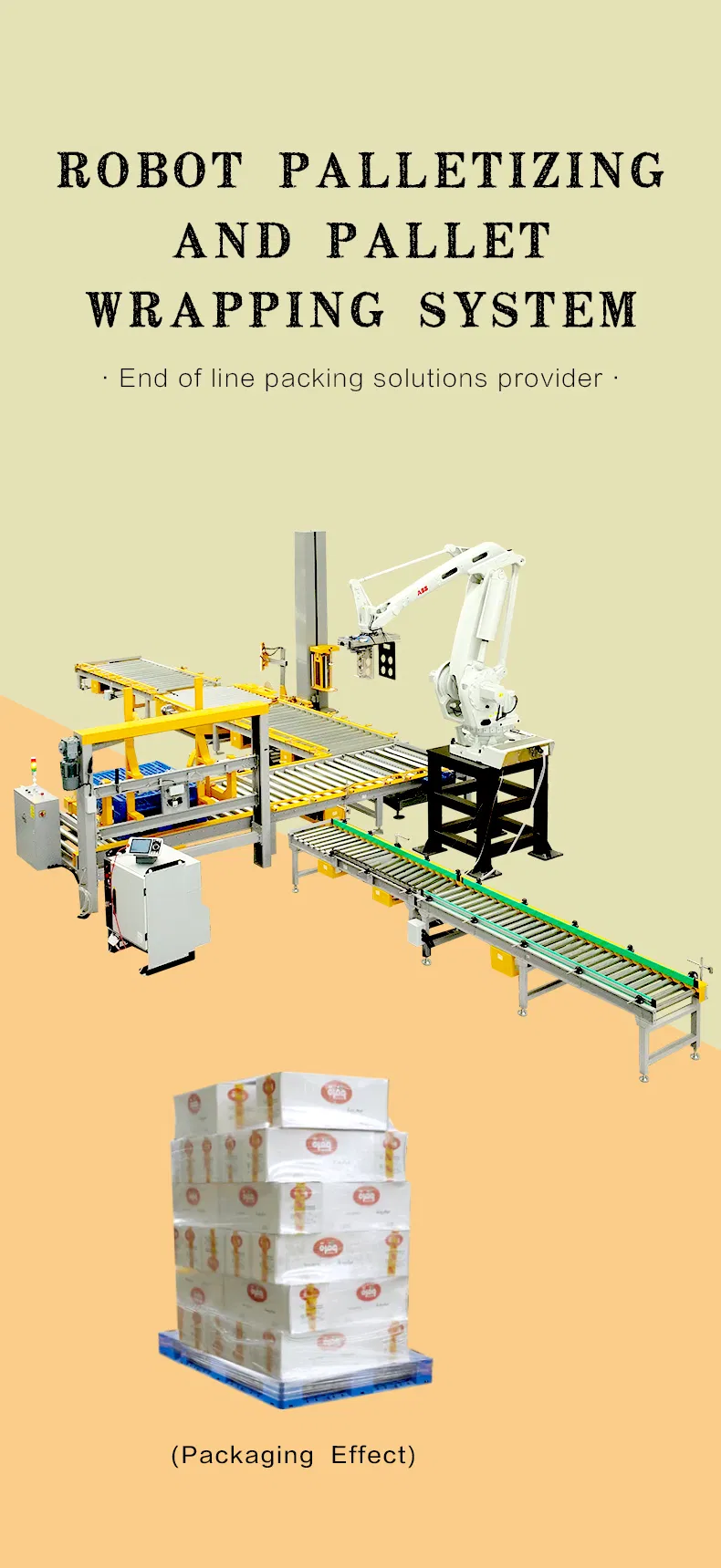

Robot Palletizing and Pallet Wrapping System is a fully automated end-of-line packing solution designed to efficiently palletize products and securely wrap pallet loads for storage and transportation. This integrated system is widely used in food and beverage, pharmaceuticals, chemicals, building materials, daily necessities, and logistics industries where high productivity, load stability, and consistent packaging quality are required.

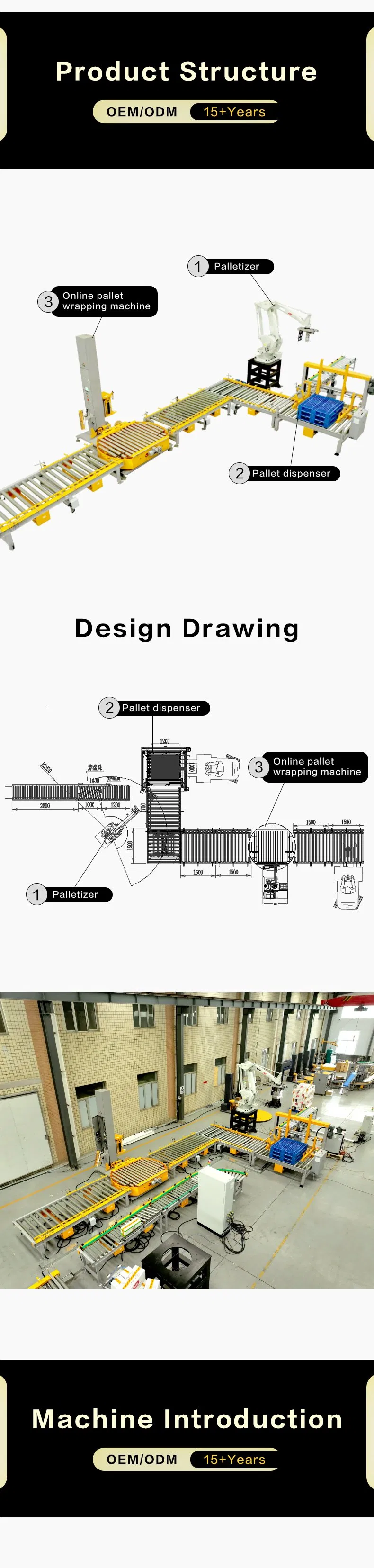

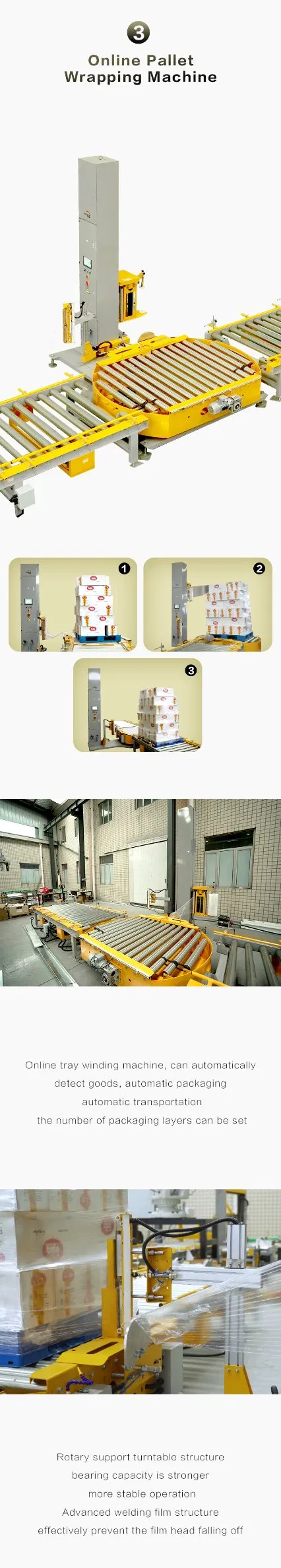

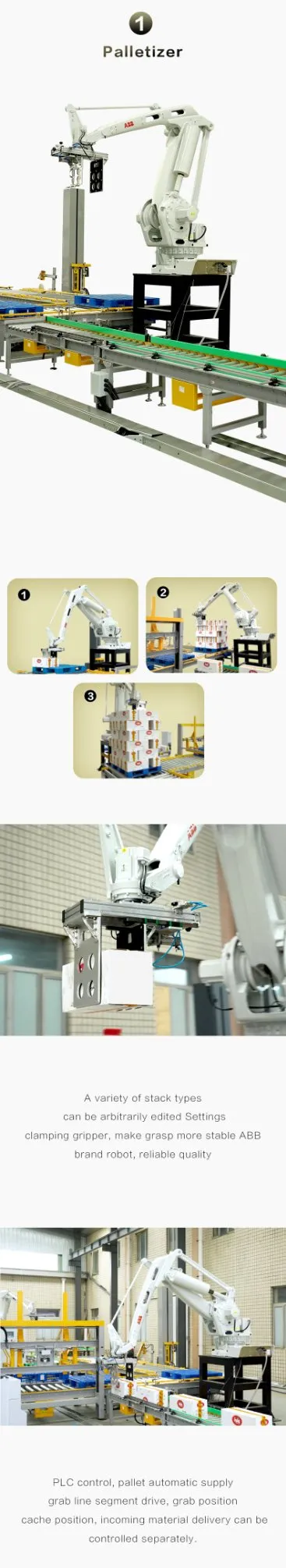

The system combines an industrial robot palletizer with an automatic pallet wrapping machine to form a synchronized and intelligent packaging line. The robot palletizer accurately stacks cartons, cases, bags, or bundles onto pallets according to preset patterns, ensuring stable and uniform pallet loads. Once palletizing is completed, the pallet wrapping machine applies stretch film evenly around the load, providing excellent protection against dust, moisture, and shifting during handling and transport.

Controlled by a centralized PLC system with a user-friendly HMI interface, the Robot Palletizing and Pallet Wrapping System allows operators to easily adjust palletizing patterns, pallet dimensions, wrapping layers, and operating speeds. Intelligent sensors and automatic detection systems ensure precise positioning, smooth material flow, and reliable continuous operation. The system can be seamlessly integrated with conveyors, strapping machines, and AGV systems to create a fully automated end-of-line packaging solution.

📊

Technical Parameters

Category	Parameter	Specifications	Remarks
Basic Performance	Palletizing Speed	10-30 bags/min	Weight and complexity dependent
	Load Capacity	10-50 kg/bag	Heavy-duty up to 100kg
	Accuracy	± 0.5mm ~ ± 1mm	Laser-assisted to ± 0.3mm
Structure	Degrees of Freedom	4-6 Axis	Articulated/Truss Optional
Structure	Working Radius	2-4m	Expandable rail available
Control System	Programming Mode	Teaching pendant/PLC	Support ROS adaptation
Control System	Communication	Modbus TCP/EtherCAT	-
Fixture	Grasping Method	Pneumatic/Vacuum	Non-slip design
Fixture	Bag Size	300-1000mm (L)	Customizable fixture
Safety	Standards	ISO 10218/TS 15066	Emergency stop, light curtains
Environment	Temperature	0°C - 45°C	IP54 / IP65 Optional

🖼️

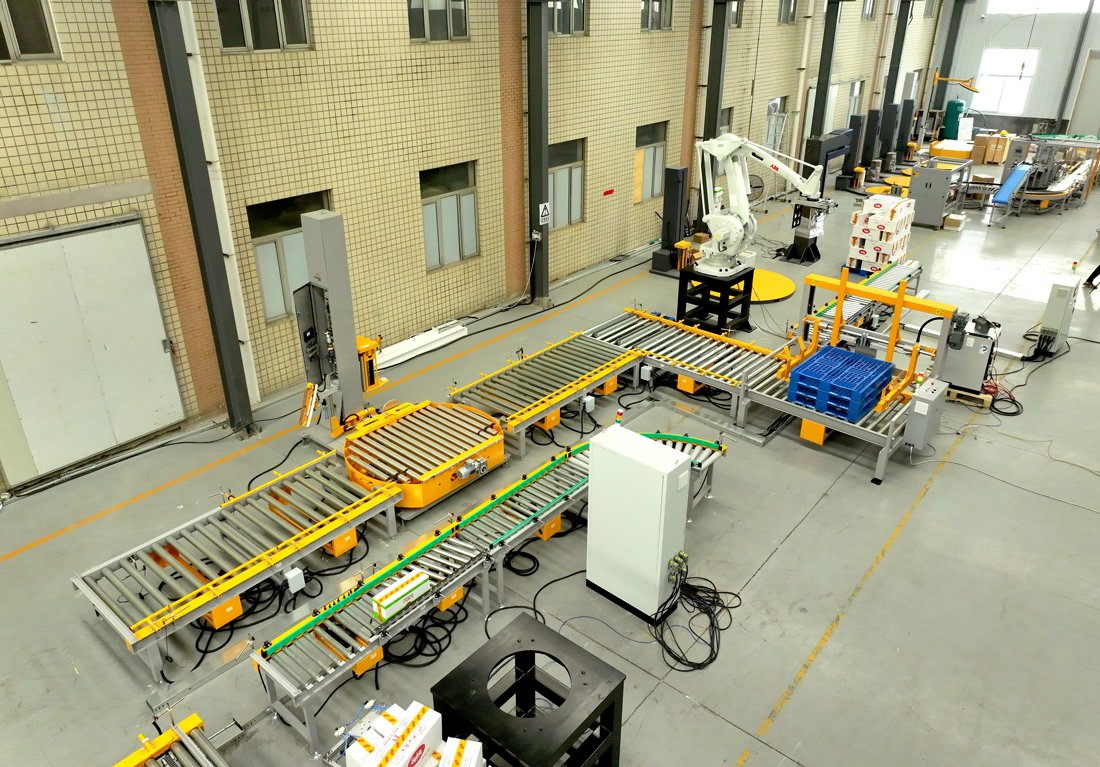

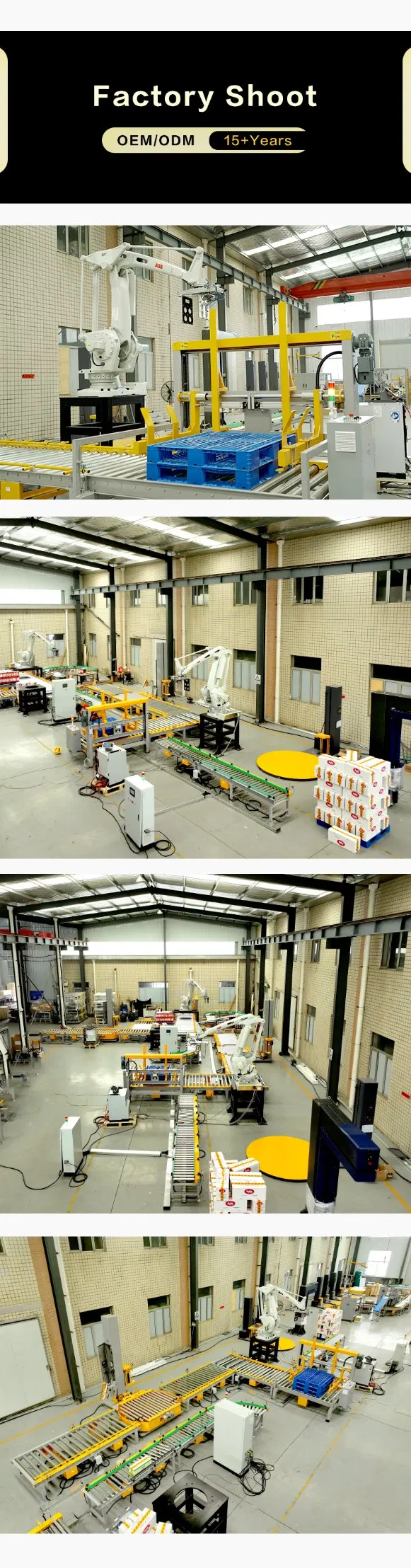

Equipment Showcase

❓

Frequently Asked Questions

What types of products can the system handle?

The system is versatile and can handle cartons, cases, bags, bundles, and pallets. It is widely used in food, beverage, chemical, and building material industries.

Is the palletizing pattern customizable?

Yes, the system is controlled by a centralized PLC with a user-friendly HMI, allowing operators to easily adjust and preset palletizing patterns and dimensions.

What safety features are included?

The system includes comprehensive safety features such as safety fences, light curtains, emergency stop devices, and collision detection systems to ensure compliant operation.

Can this system be integrated with existing production lines?

Absolutely. It can be seamlessly integrated with conveyors, strapping machines, and AGV systems to form a fully automated end-of-line packaging solution.

What is the advantage of combined palletizing and wrapping?

Integrating both processes ensures that pallet loads are immediately secured after stacking, which improves load stability, protects against moisture/dust, and significantly reduces manual labor.

What are the power requirements for the system?

The standard system operates on 380V 50Hz 3pH, but the voltage and power configurations can be customized based on your facility's requirements.
