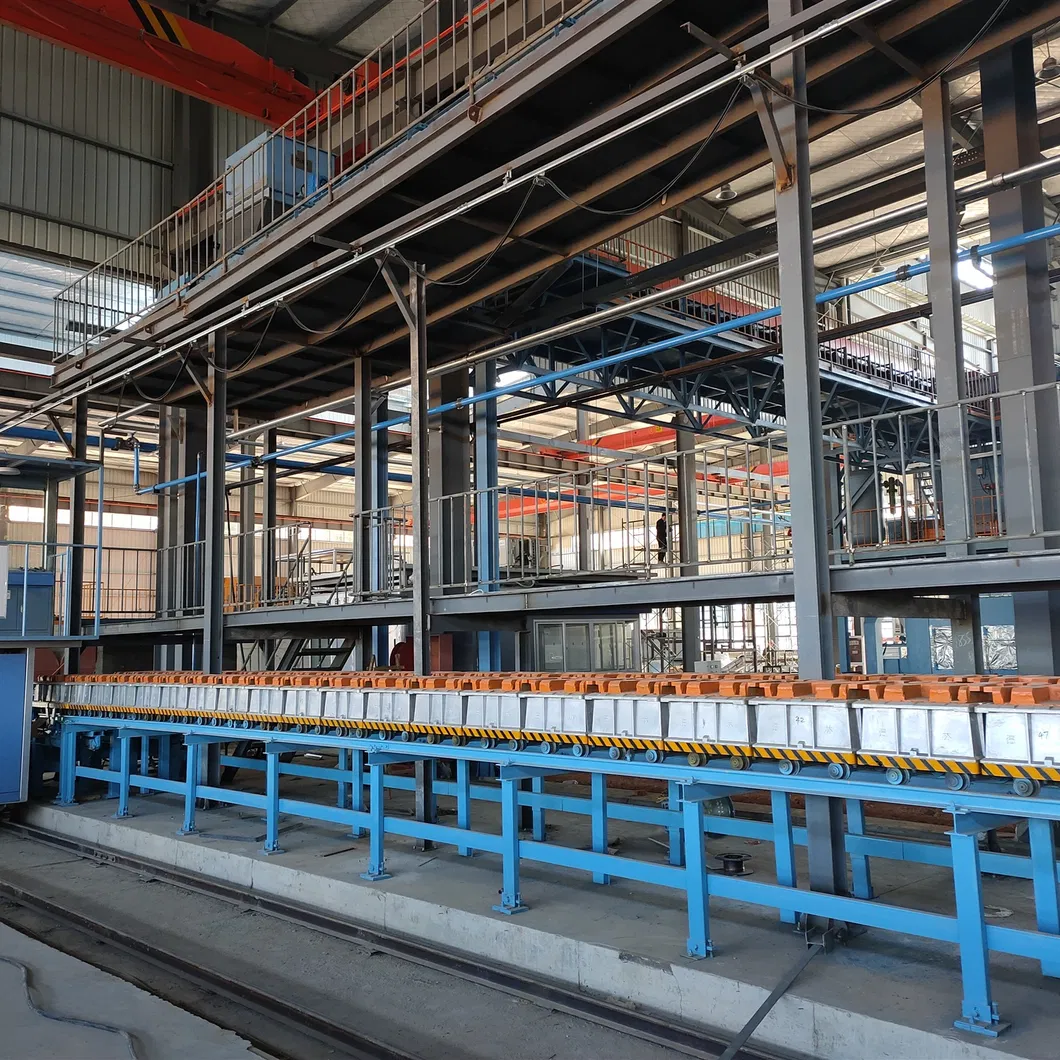

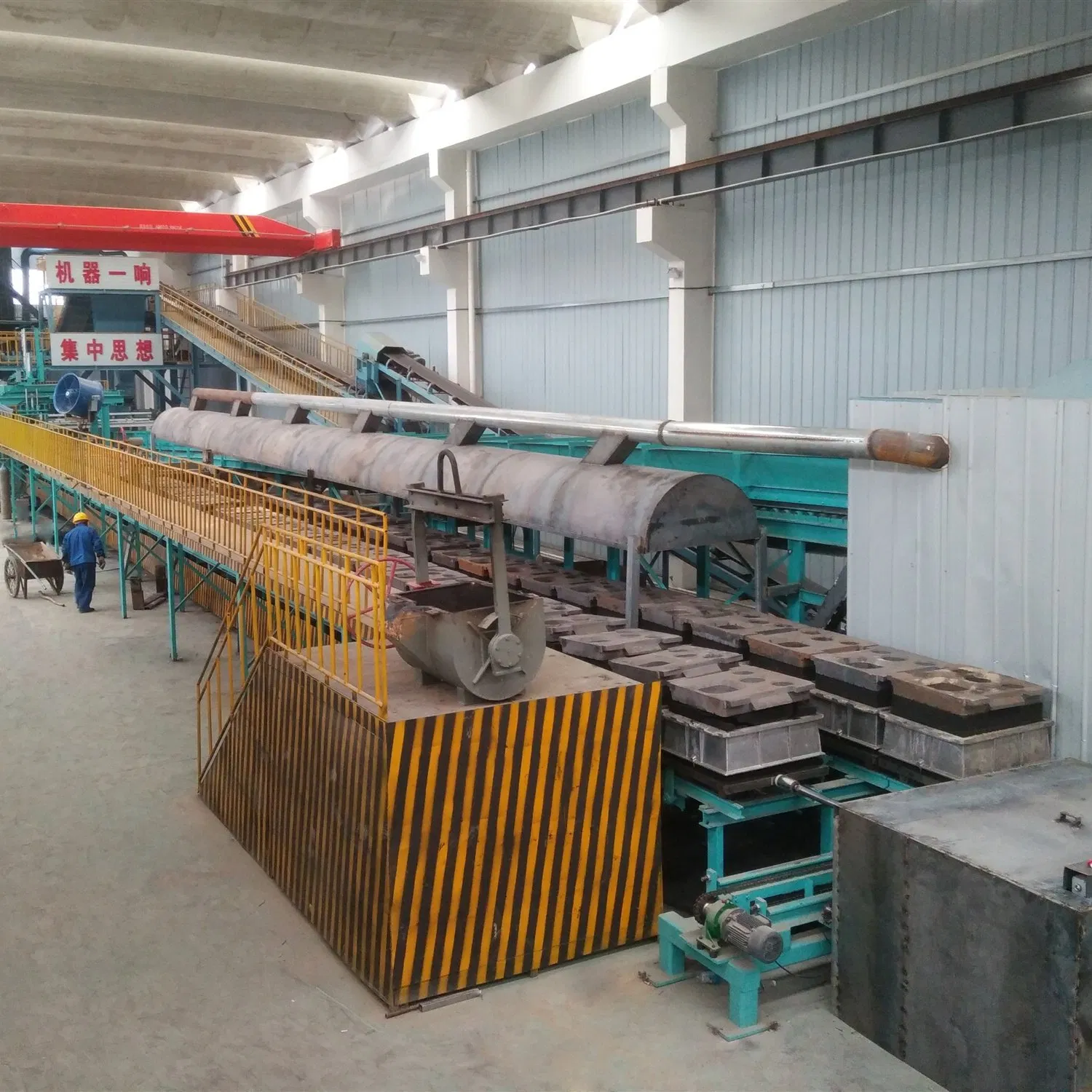

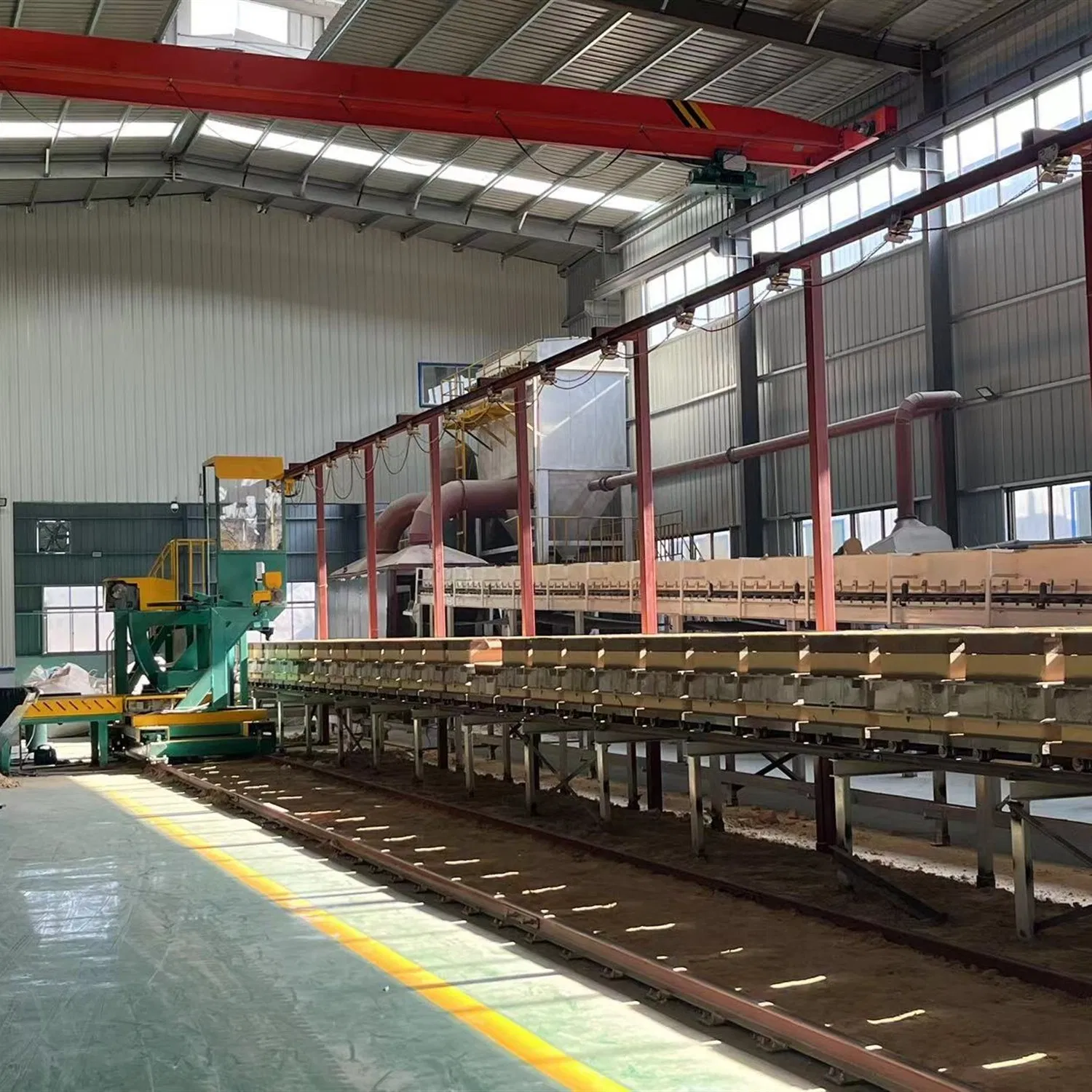

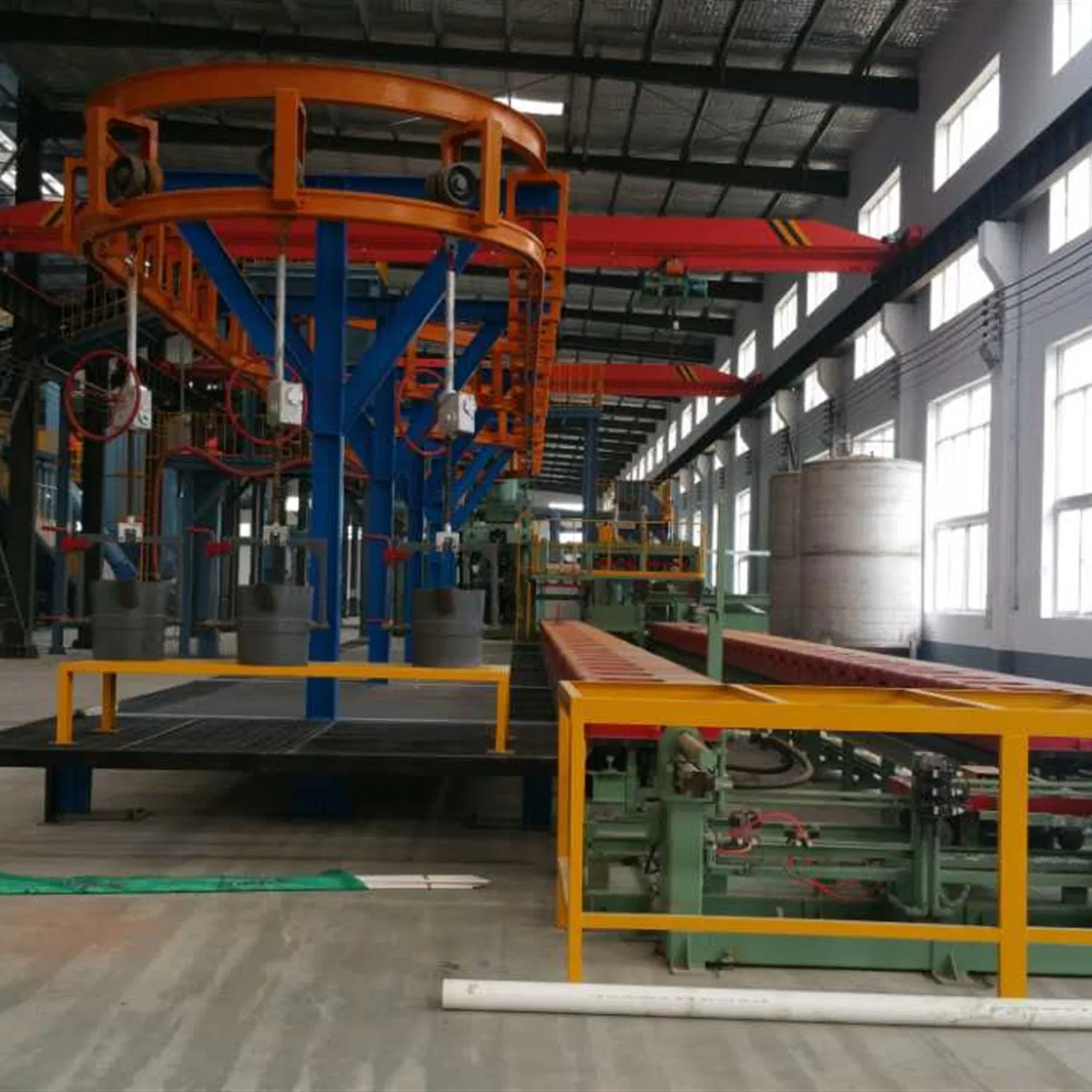

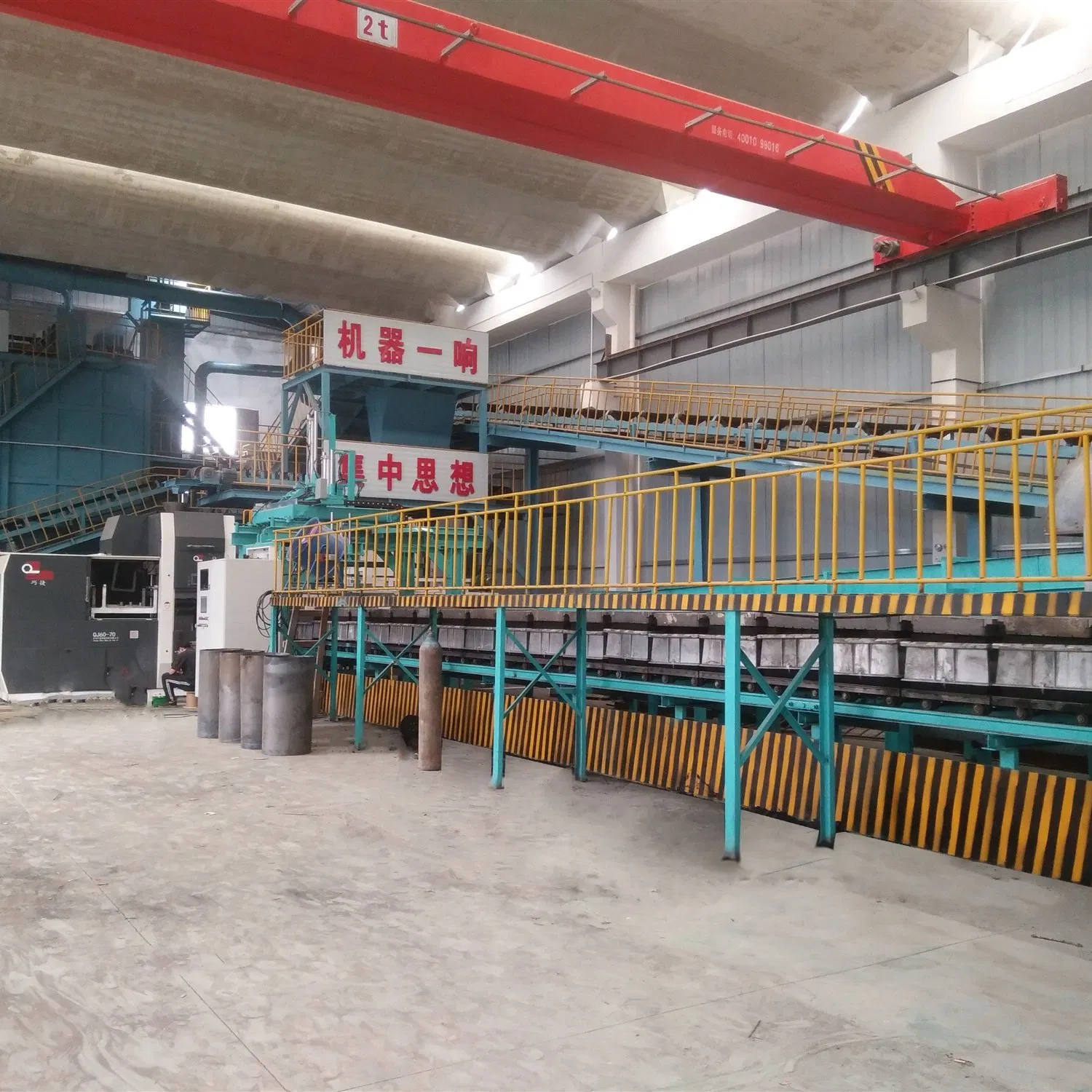

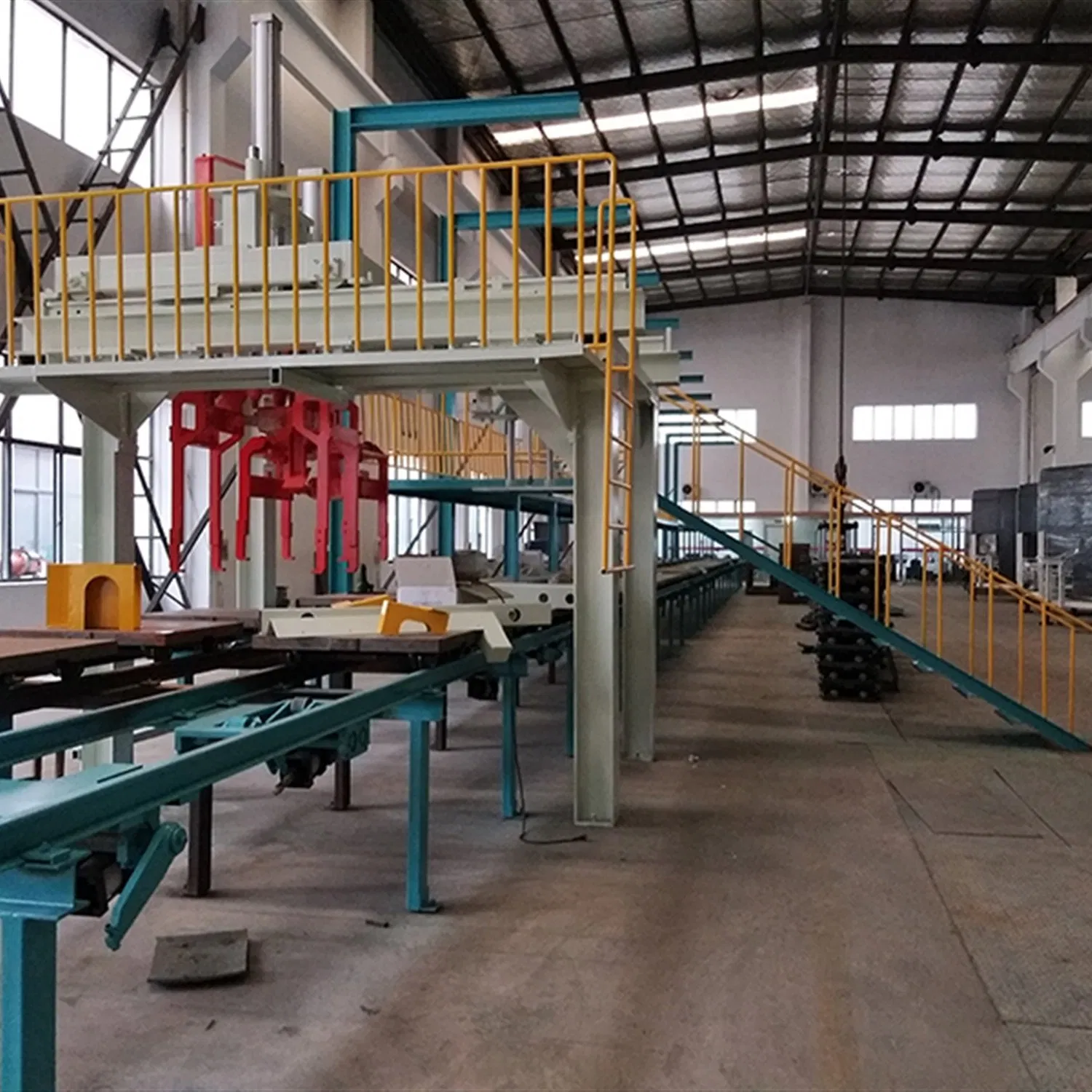

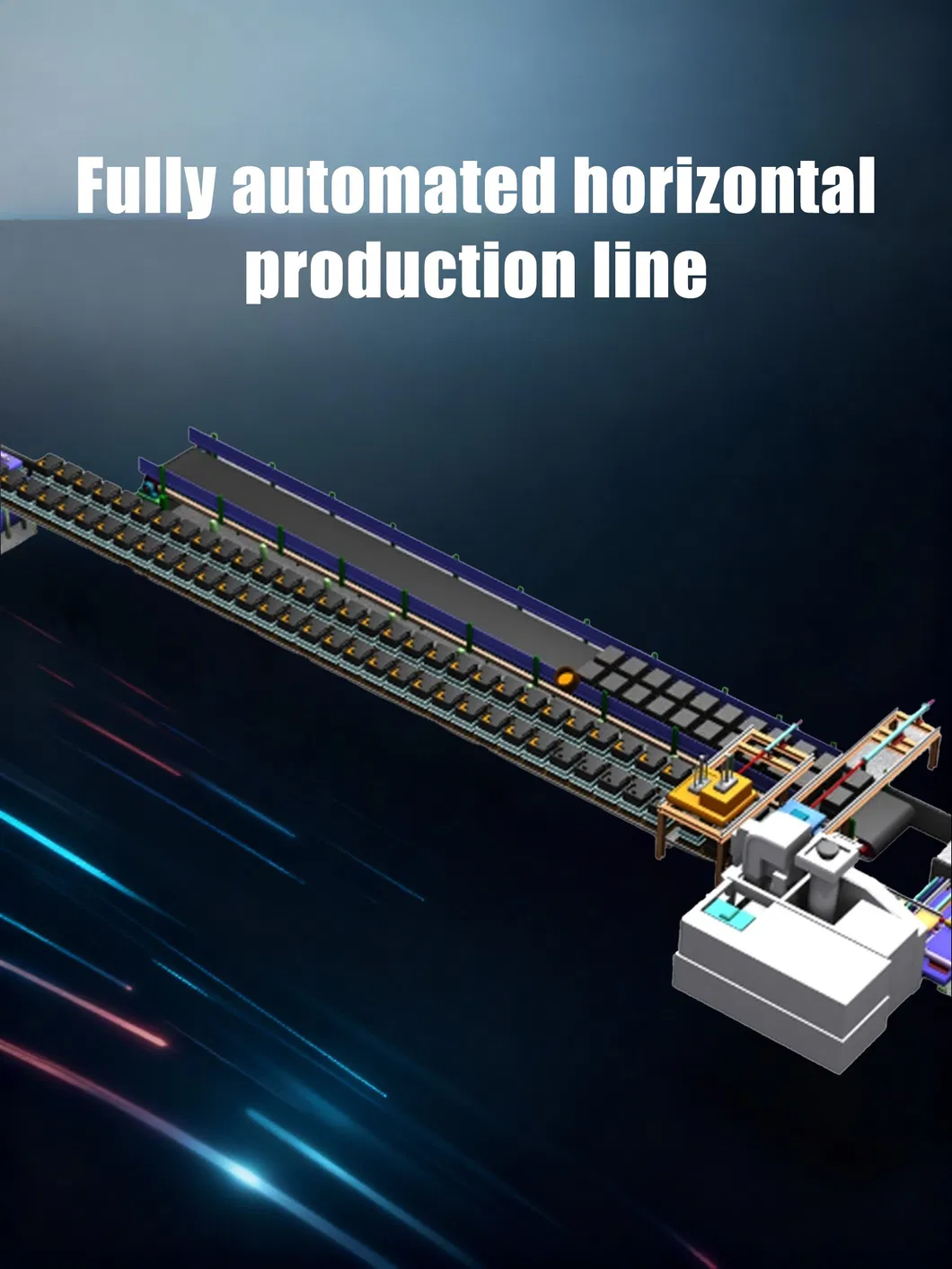

The HSLH casting and cooling production line consists of a horizontal single-row and double-row sand mold conveyor, trolley transfer vehicles, sand mold pushing mechanism, sand mold ejection mechanism (also the trolley cleaning mechanism), core box pressure installation mechanism, core box pressing mechanism, core box pressure removal mechanism, core box cleaning mechanism, pressure cleaning mechanism, hydraulic power unit system, electrical control unit, touch screen electronic control operation system, and secondary cooling conveyor belt system.
The system uses high-speed PLC control and a full set of imported electrical and hydraulic power systems. It operates smoothly with low downtime. The touch screen operation system provides convenient standard, storage, pouring, and cleaning automatic operation programs, allowing users to efficiently organize production.
1. Ingenious Design: National patented product, fully functional, and can be wired freely according to factory conditions. It integrates perfectly with sand processing and melting auxiliary equipment.
2. Independent Hydraulic System: Powered by Japanese imported cylinders, hydraulic pumps, and solenoid valves. Equipped with fast and slow push devices for smooth and reliable operation.
3. Advanced Control: High-speed PLC with imported electrical components. The main control cabinet uses a touchscreen operating system supplemented by pull-wire and pour-stop switches.
4. Mold Alignment: The automatic molding box pressing device ensures that upper and lower molds do not misalign. Cleaning devices ensure that both the molding box and pressing iron remain clean.

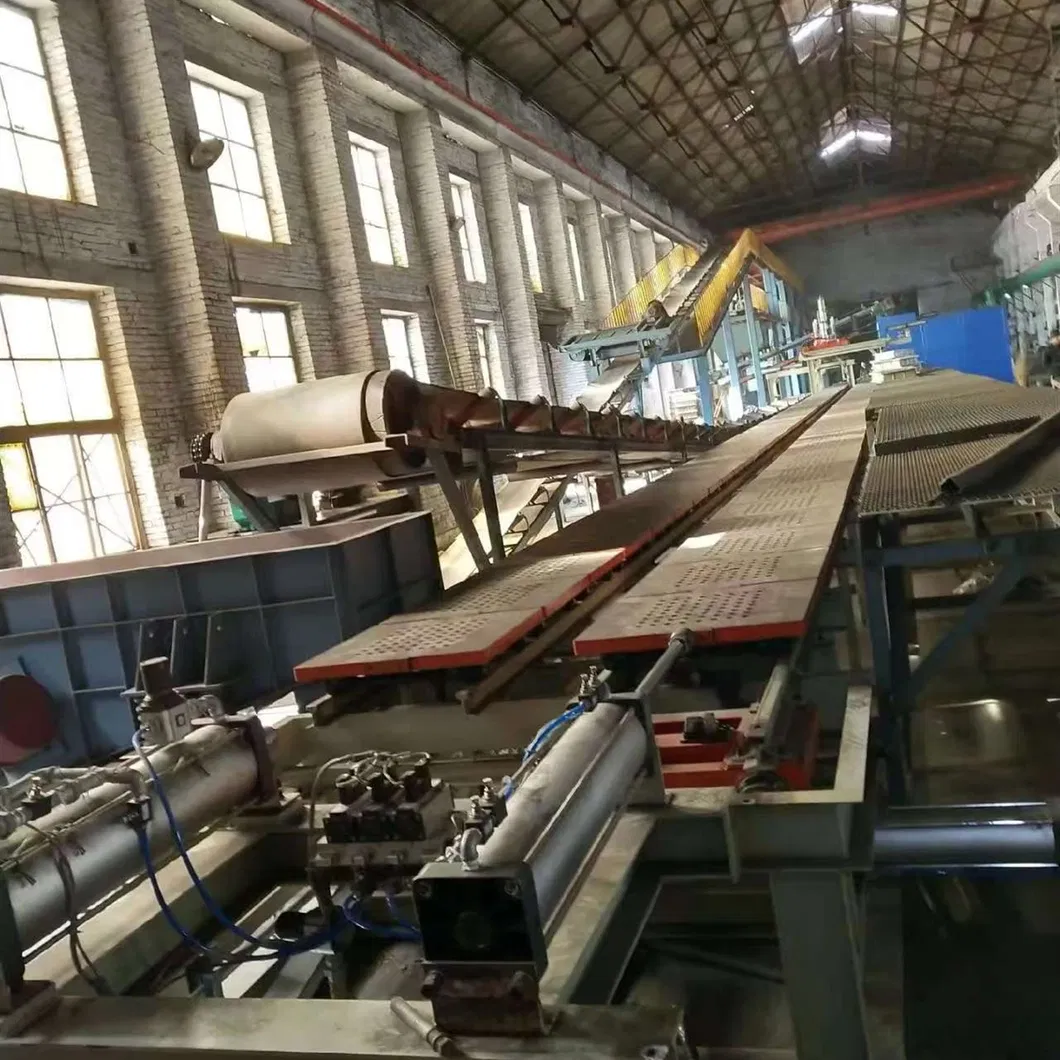

5. Automatic Cleaning: After mold removal, the offline device pushes the mold to the secondary cooling conveyor while an electric roller brush automatically cleans the trolley surface.
6. Smooth Transfer: Transfer vehicles use variable frequency motors, providing smooth start/stop and fast running speeds without impact.
7. Flexible Height: The height of the head pulley of the secondary cooling conveyor can be customized to the requirements of the sand drop machine, minimizing underground work.
8. Adjustable Cooling Time: The operating time of the secondary cooling conveyor can be adjusted based on material requirements to meet specific casting standards.
