DR-2 Autonomous Delivery Robot
The series features intelligent autonomous delivery robots equipped with autonomous navigation and obstacle avoidance capabilities. This practical solution improves efficiency, reduces costs, and enhances safety across various delivery scenarios.

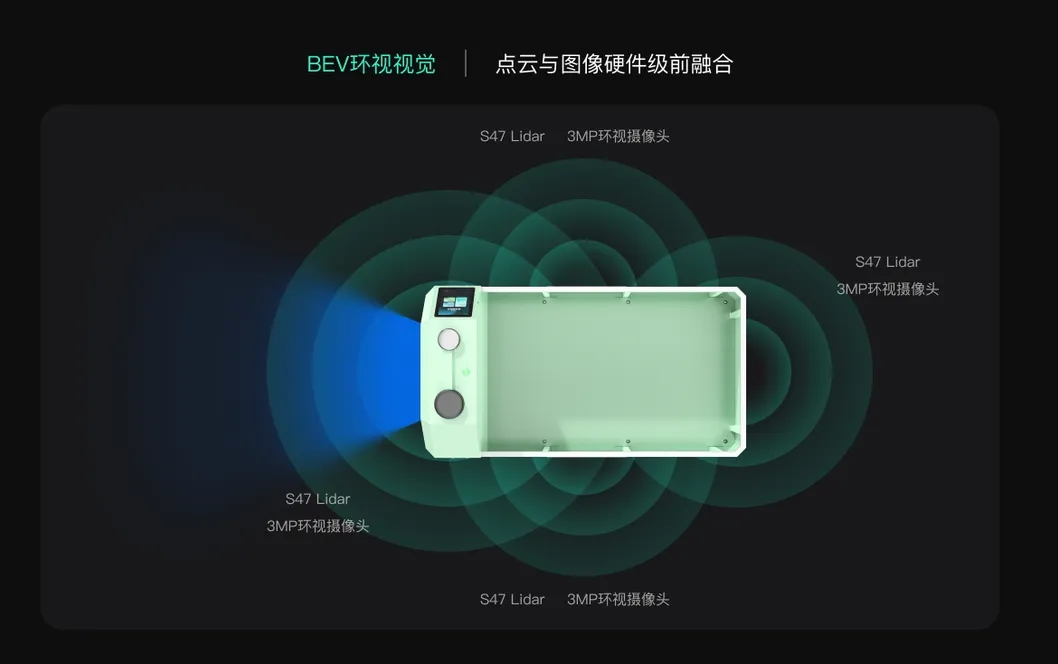

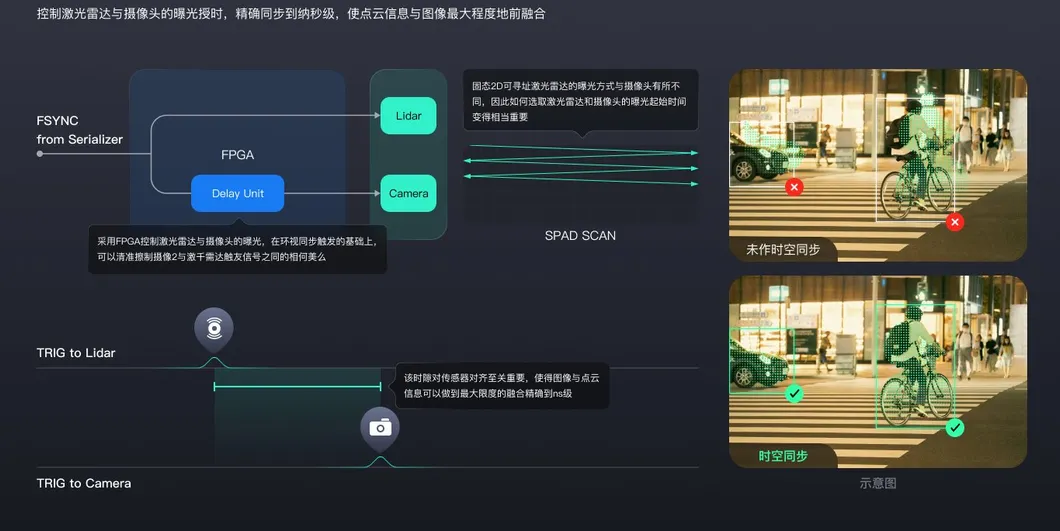

Multiple-sensor fusion ensures safety through redundancy, adaptability, and accurate obstacle detection in various environments.
| Sensor Type | Dark | Glass | White Wall | Rain/Snow | Traffic Light | Desert |
|---|---|---|---|---|---|---|
| LIDAR | OK | NG | OK | NG | NG | NG |
| Camera | NG | NG | NG | NG | OK | NG |
| MM-wave Radar | OK | OK | OK | OK | NG | NG |
| Ultrasonic Radar | OK | OK | OK | OK | NG | NG |
| AI Platform | OK | OK | OK | OK | OK | OK |
| Vehicle Dimensions & Weight | |
| Length/Width/Height (mm) | 1079*628*785 |
| Overall Weight (kg) | 60-500 |
| Cargo Volume (L) | >100 |
| Electric Motor & Battery | |
| Peak Power (kw) | 0.35 |
| Maximum Speed (km/h) | 20 |
| Battery Capacity (kwh) | 2.1 |
| Battery Type | Lithium Iron Phosphate |
| Charging Time (H) | 4 |
| Range (KM) | 80 |
| Chassis & Braking | |
| Driving Form | Hub Motor Rear-drive |
| Braking System | Electromagnetic Brake |
| Suspension Systems | Ackermann Chassis |
| Driving Characteristics | |
| Minimum Turning Radius (mm) | 1500 |
| Climbing Ability (%) | 10 |
| Ground Clearance (mm) | 200 |
