High-Capacity 1500kg Automated Guided Vehicle for Advanced Warehouse Logistics

Control Mode:	Point to Point Control
Drive Mode:	Electric
Load Capacity:	1500kg

📋

Basic Specifications

Model NO.

Shark 1500

Type

AMR (Autonomous Mobile Robot)

Safety Features

Collision Avoidance, Emergency Stop, Obstacle Detection, Laser Scanner

HS Code

8427109000

Production Capacity

1000 Pieces/Year

Transport Package

Wooden Case

🤖

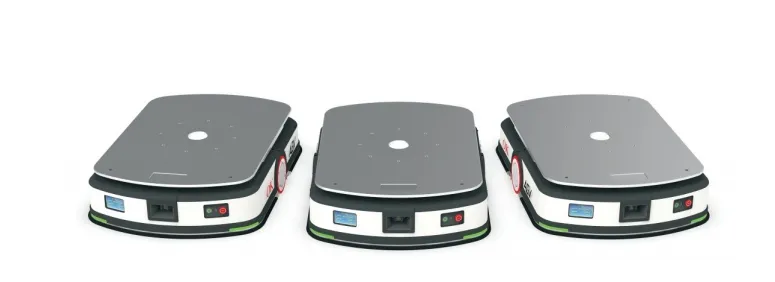

Automated Guided Vehicle Introduction

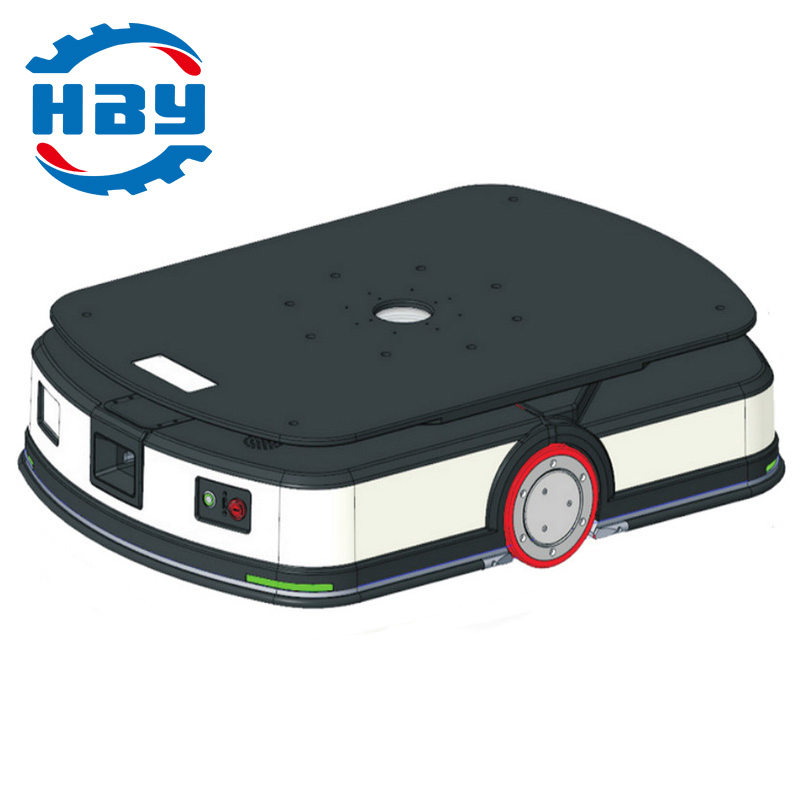

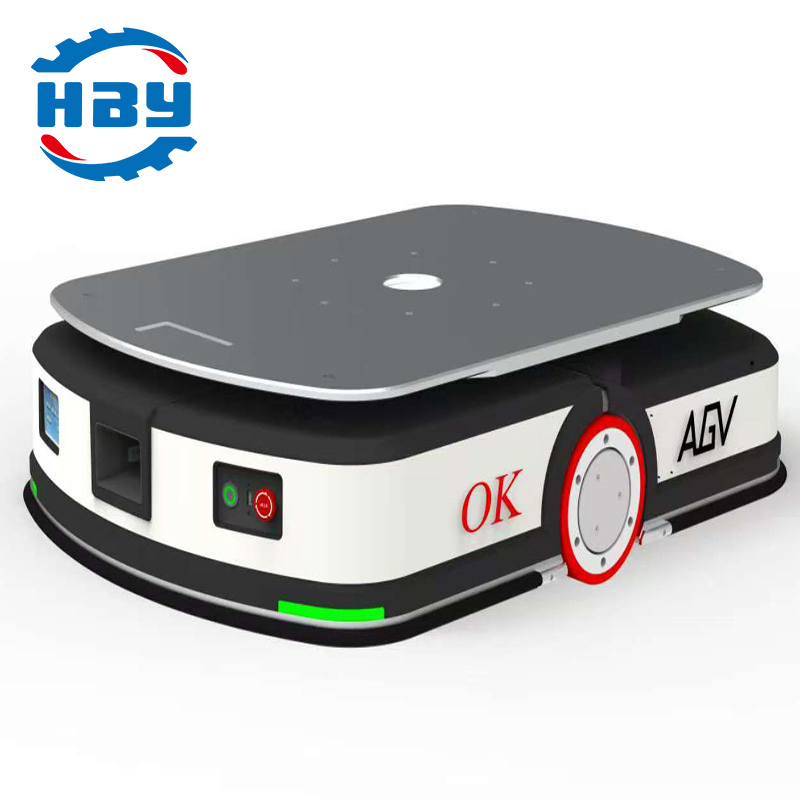

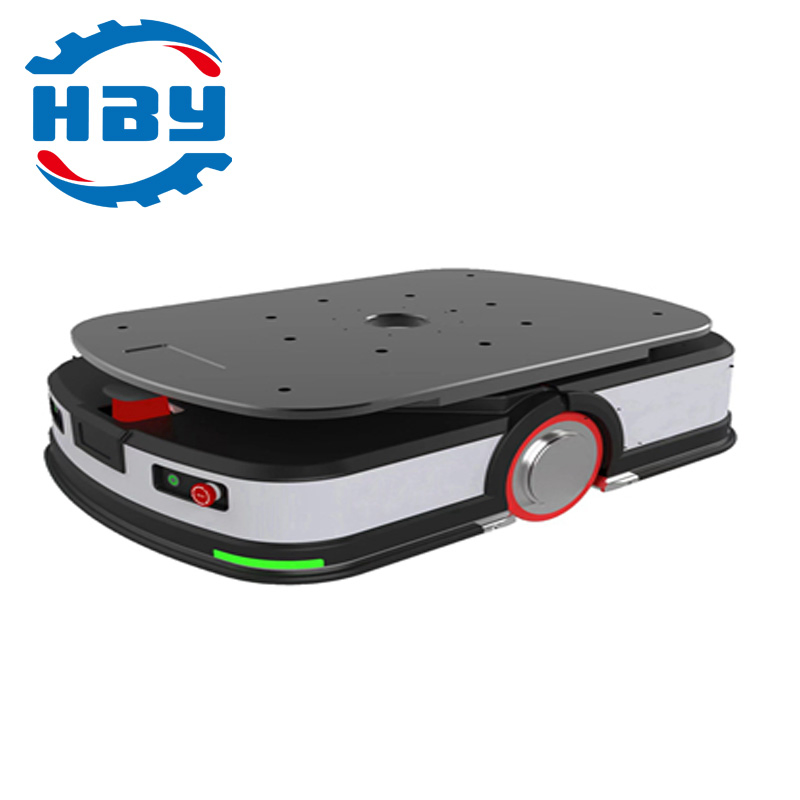

The Shark 1500 is a high-capacity warehouse logistics AGV mobile robot designed for intelligent material transfer. Featuring trackless guidance and a mature fleet control system, it utilizes advanced navigation to map environments and calculate real-time location, speed, and moving angles with precision.

🚀

Product Advantages

01. Navigation Flexibility
Options include magnetic tape, QR code, laser, and SLAM (optional).

02. Versatile Movement
Supports forward, backward, 90°/180° rotation, and pivot turns.

03. High Precision
Navigation stop accuracy of ±10mm, customizable up to ±5mm.

04. Elevator Integration
Automatically interacts with elevators for multi-floor operations.

05. System Compatibility
Seamlessly connects with WMS and MES systems for automated scheduling.

06. Triple Protection
Laser obstacle sensors, mechanical bumpers, and emergency stop buttons.

📊

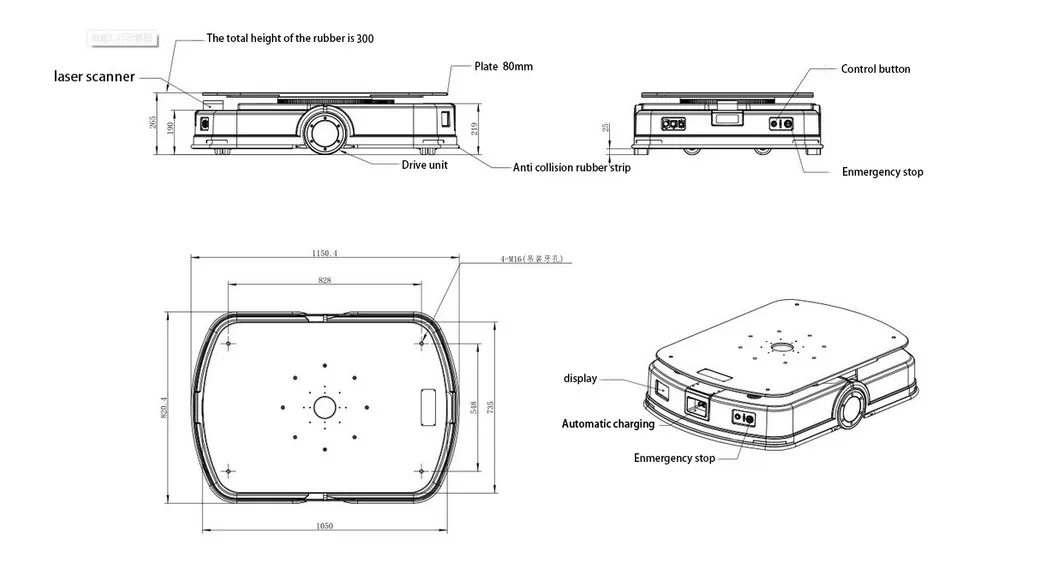

Technical Parameters

Feature	Specification

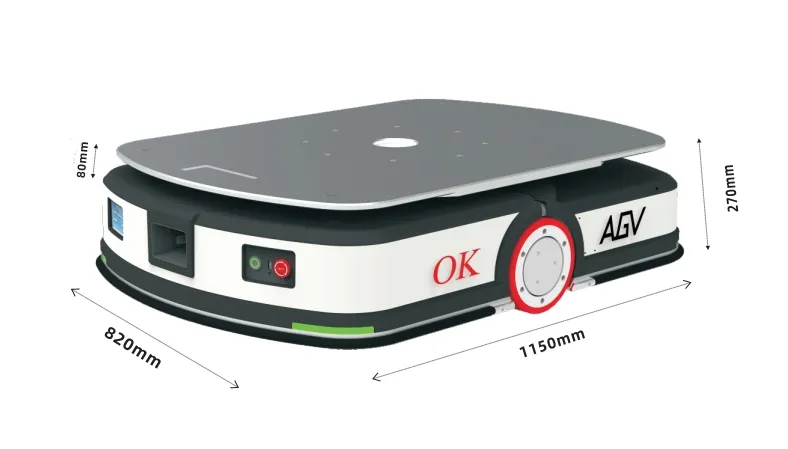

Size	L1150W820H270 (mm)
Control System	Intelligent motion control system
Moving Mode	Forward, backward, pivot, 90°-360° rotation
Driving Mode	Differential drive
Power Source	DC48V 28AH Lithium Battery
Lifting Stroke	70mm (Automatic)
Loading Capacity	1500KG
Moving Speed	0-80m/min
Working Time	24 Hours (Continuous)
Stop Accuracy	±10mm
Safety Range	0-180° Angle, 0-3 Meters Adjustable

💡

Key Operational Highlights

R&D-Driven Technology

Cutting-edge navigation including SLAM and Laser combined with a robust 1500kg heavy-load structural design.

Global Reliability

Tailored solutions deployed across diverse logistics, healthcare, and industrial sectors worldwide with ISO-certified quality.

❓

Frequently Asked Questions

Q1: What is the maximum load capacity of the Shark 1500?

The Shark 1500 is specifically designed to handle heavy loads up to 1500KG, making it ideal for pallet and large component transport.

Q2: Which navigation methods are available for this AMR?

It supports multiple navigation technologies including SLAM (Simultaneous Localization and Mapping), QR code, Laser, and Magnetic Tape/Nail to suit different warehouse environments.

Q3: How does the robot handle multi-floor logistics?

The system features an "Elevator in and out" capability, allowing it to automatically connect with ordinary elevators and carry materials across different floors without manual intervention.

Q4: Does the Shark 1500 support automatic charging?

Yes, it supports both wireless and automatic charging. The robot can return to the charging station according to scheduling instructions to ensure 24-hour operation.

Q5: What safety systems are integrated to protect workers?

The robot utilizes triple protection: a laser obstacle avoidance sensor (adjustable up to 3 meters), front/rear mechanical bumpers, and easily accessible emergency stop buttons.

Q6: Can this robot be integrated with my existing WMS/MES?

Absolutely. The Shark 1500 is designed for high expansion compatibility and can be customized to interface directly with Warehouse Management Systems (WMS) and Manufacturing Execution Systems (MES).
