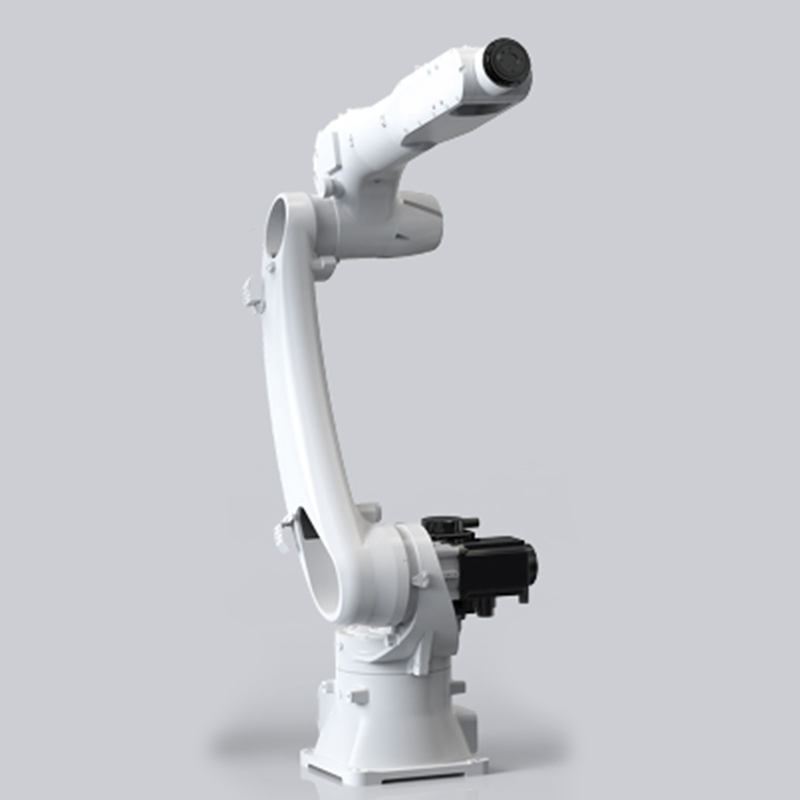

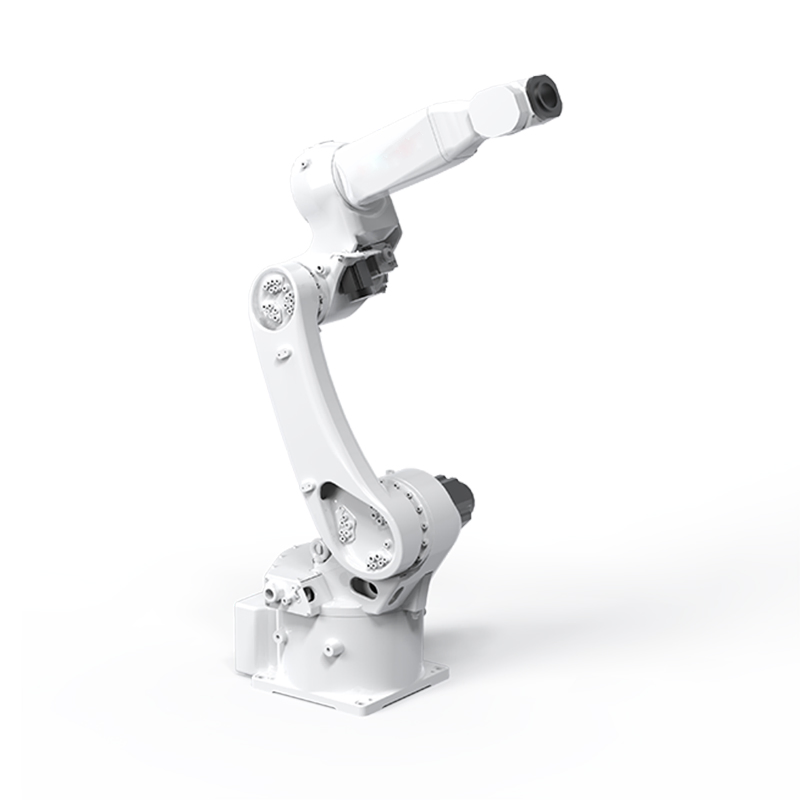

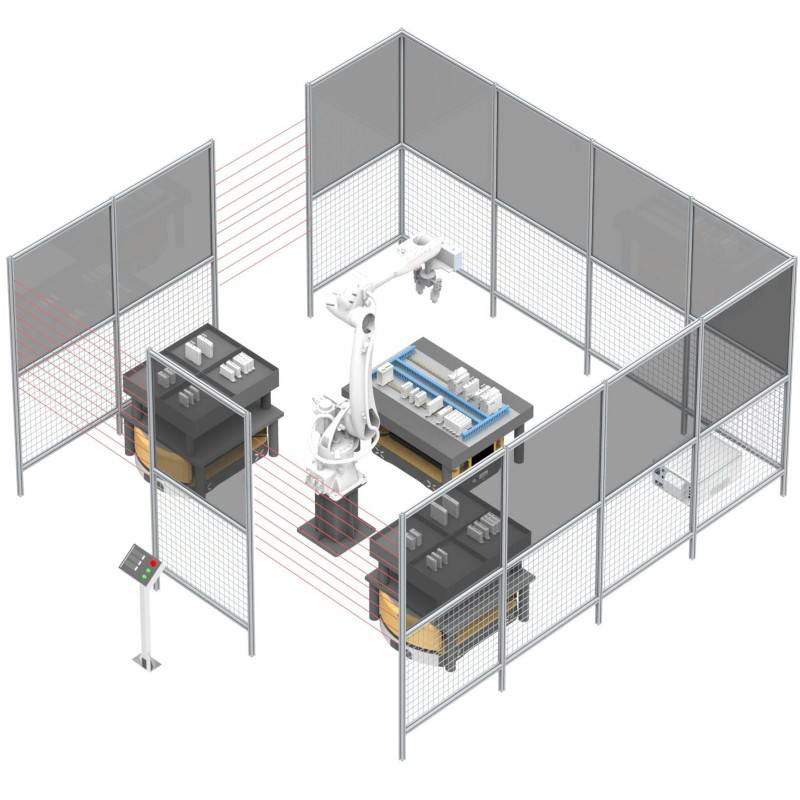

Industrial Robot for Logistics Warehousing Automatic Sorting Palletizing and Handling
Industrial Robot for Logistics Warehousing Automatic Sorting Palletizing and Handling
Industrial Robot for Logistics Warehousing Automatic Sorting Palletizing and Handling
Industrial Robot for Logistics Warehousing Automatic Sorting Palletizing and Handling
Industrial Robot for Logistics Warehousing Automatic Sorting Palletizing and Handling
1 / 5
Industrial Robot for Logistics Warehousing Automatic Sorting Palletizing and Handling
Industrial Robot for Logistics Warehousing Automatic Sorting Palletizing and Handling
Industrial Robot for Logistics Warehousing Automatic Sorting Palletizing and Handling
Industrial Robot for Logistics Warehousing Automatic Sorting Palletizing and Handling
Industrial Robot for Logistics Warehousing Automatic Sorting Palletizing and Handling

Industrial Robot for Logistics Warehousing Automatic Sorting Palletizing and Handling

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Basic Info.
Model NO.
Series-Z
Degrees of Freedom
6-axis
Drive Mode
Electric
Type
Industrial Robot
Weight
61kg
Repeatability
±0.03 mm
Rated Load
6kg
Motion Radius
920mm
Maximum Speed
225°/Sec
Ambient Temp.
5℃ ~ 45℃
Origin
China
HS Code
847950
🔍 Product Description

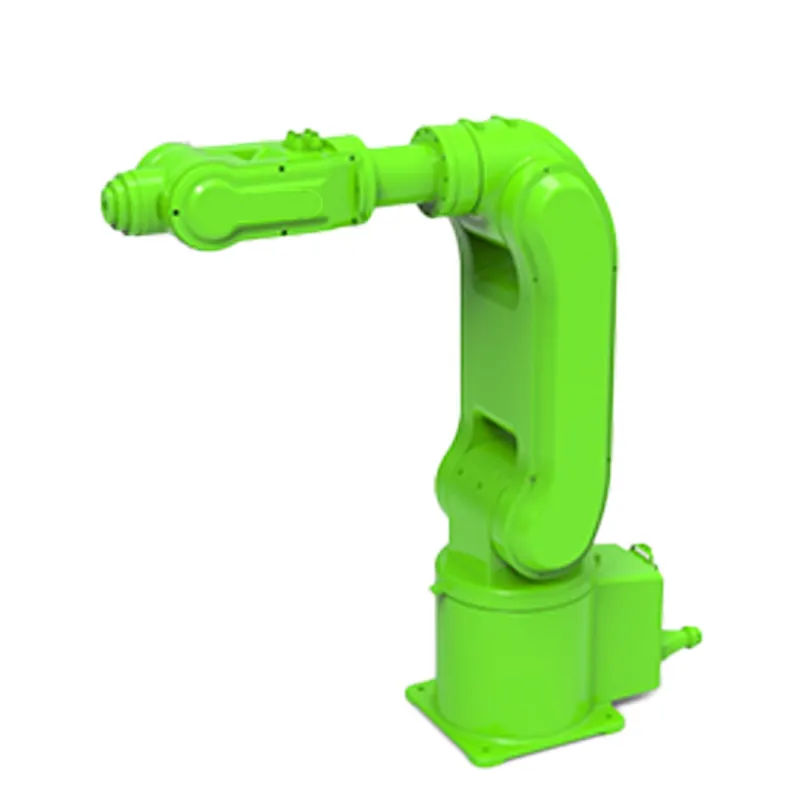

Industrial Robot Sorting

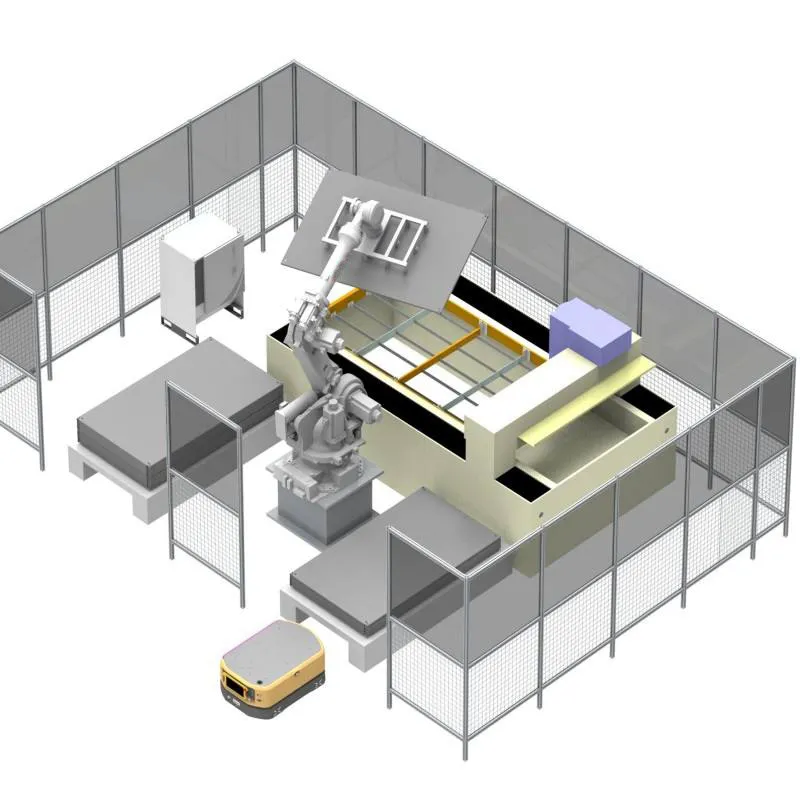

Industrial Robot Handling
⚙ Product Parameters
Parameter Name Specifications
Rated Load6 KG
Motion Radius920 mm
Structure TypeSerial
Number of Axis6
Repeatability±0.03 mm
Working RangeAxis 1±165°
Axis 2+120° / -60°
Axis 3+62° / -80°
Axis 4+175° / -140°
Axis 5+30° / -205°
Axis 6±360°
Maximum SpeedAxis 1225°/sec
Axis 2225°/sec
Axis 3225°/sec
Axis 4225°/sec
Axis 5225°/sec
Axis 6225°/sec
Weight≈61 kg
Mounting MethodGround, Bracket, Inverted
📸 Manufacturing Display
Production View 1
Production View 2

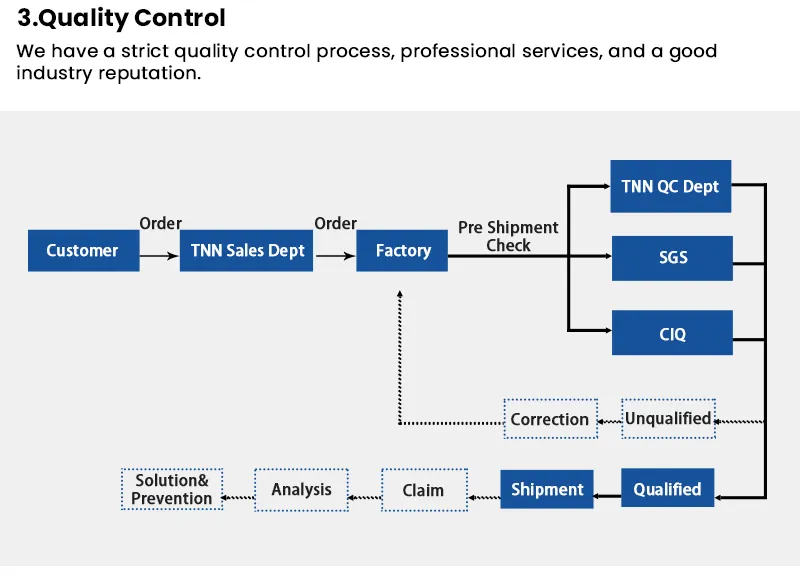

Production View 3
Production View 4
✅ Key Advantages
●
Professional Quality Control: Strict testing of pre-shipment samples in-house. Only cargos passing the confirmation of Original COA with clients are shipped.
●
Logistics Excellence: Specialized in mixed container loads with over 20 different products. Reinforced palletizing methods ensure cargo arrives in perfect condition.
●
Multi-Modal Transport: Fast delivery options including sea, railway, air, and courier services.
●
Comprehensive Testing: Own laboratory for pre-shipment sample testing and retention of batch samples for traceability.
❓ Frequently Asked Questions
1. What is the rated payload capacity of this industrial robot?
This robot is designed with a rated load capacity of 6 kg, making it ideal for high-speed sorting and handling tasks.
2. What is the maximum motion reach or radius?
The robot features a motion radius of 920mm, providing a wide working envelope for various industrial applications.
3. How accurate is the robot for repetitive tasks?
The model offers a high repeatability of ±0.03 mm, ensuring precision in automated logistics and assembly.
4. Can this robot be mounted in different orientations?
Yes, it supports multiple mounting methods including ground installation, bracket mounting, and inverted (ceiling) installation.
5. What are the operating environment requirements?
The robot operates effectively within an ambient temperature range of 5℃ to 45℃.
6. What is the drive mode and structure of the robot?
It is an electric-driven industrial robot with a 6-axis serial structure, allowing for high degrees of freedom in movement.
