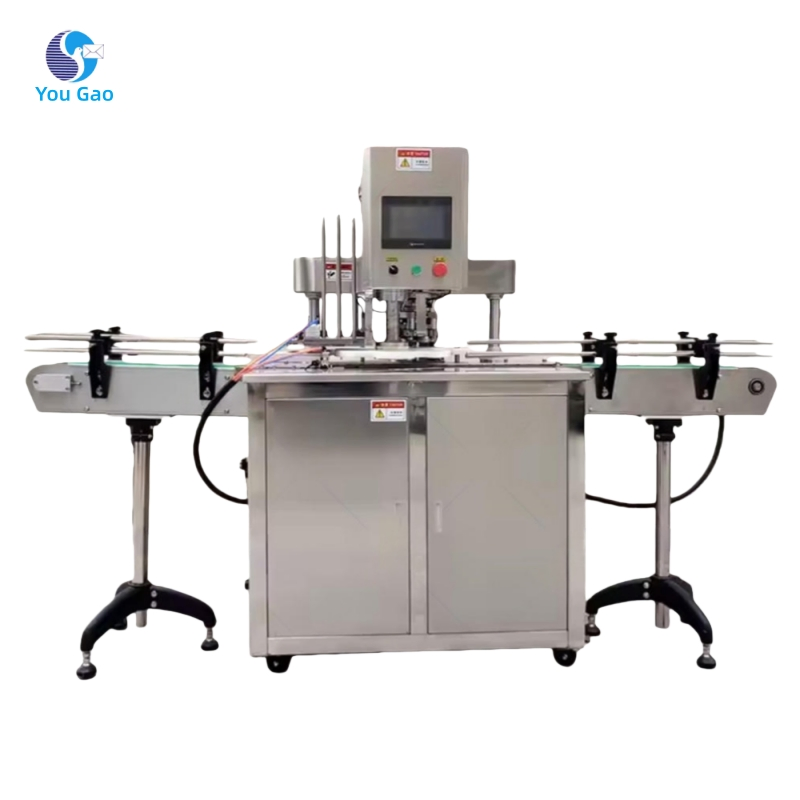

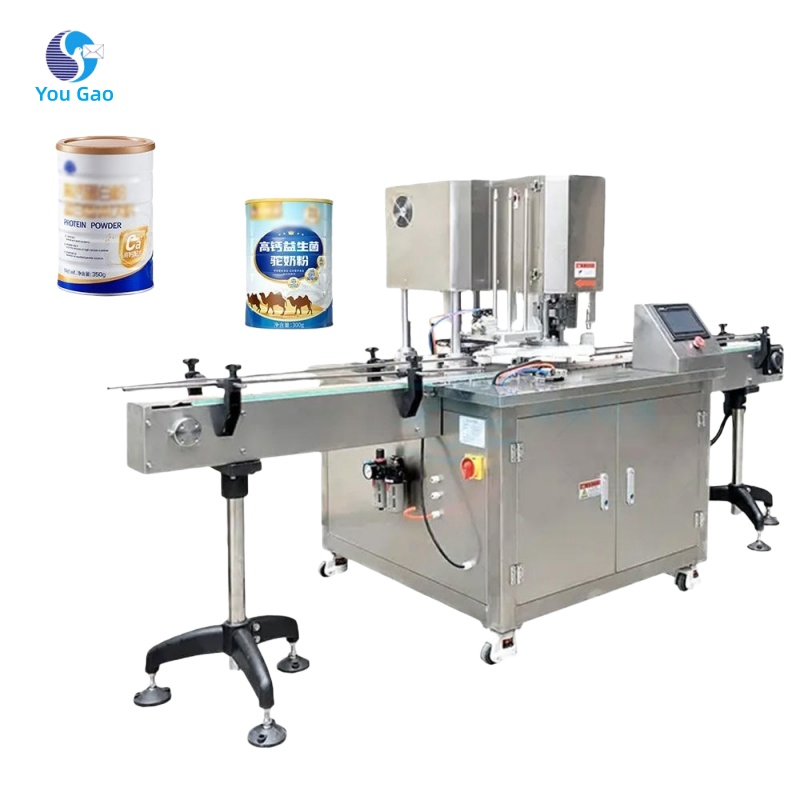

Robotic Can Sealing System Integrated with Conveyor for Unmanned Production Environment
Robotic Can Sealing System Integrated with Conveyor for Unmanned Production Environment
Robotic Can Sealing System Integrated with Conveyor for Unmanned Production Environment
Robotic Can Sealing System Integrated with Conveyor for Unmanned Production Environment
Robotic Can Sealing System Integrated with Conveyor for Unmanned Production Environment
1 / 5
Robotic Can Sealing System Integrated with Conveyor for Unmanned Production Environment
Robotic Can Sealing System Integrated with Conveyor for Unmanned Production Environment
Robotic Can Sealing System Integrated with Conveyor for Unmanned Production Environment
Robotic Can Sealing System Integrated with Conveyor for Unmanned Production Environment
Robotic Can Sealing System Integrated with Conveyor for Unmanned Production Environment

Robotic Can Sealing System Integrated with Conveyor for Unmanned Production Environment

Customization: Available
After-sales Service: Video Support Services
Warranty: 12-Month Warranty
Send Inquiry

Product Description

Robotic Can Sealing System
System Interface
📊 Basic Info.
Packaging Box Automatic Grade Automatic
Packaging Material Wooden Crate Application Cosmetics, Cleaning, Detergent, Drinks, Oil, Food, etc.
Material Type Stainless Steel Automation Fully Automatic
Speed 5000 Per Hour Model Specification FK-1016
📸 Detailed Photos

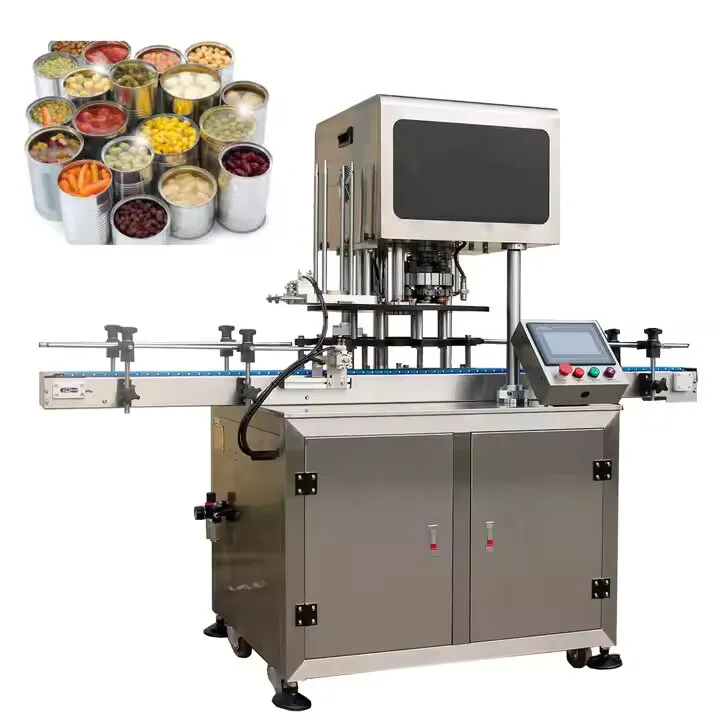

Detailed View 1

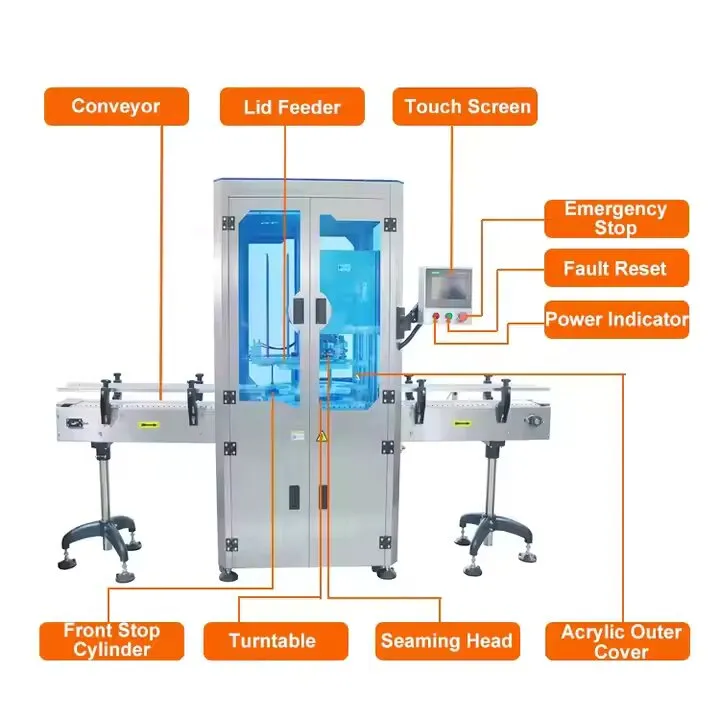

Detailed View 2

Equipment Requirements: This equipment utilizes cylinder components and requires an air compressor as the power source for normal operation. The can sealing machine must be equipped with a vacuum pump and an air tank for efficient vacuum extraction.

System Configuration
⚙️ Main Features
01
Automated workflow: Completes can loading, lidding, vacuuming, and sealing in one continuous series.
02
Intelligent PLC control system ensures stable operation and high working efficiency.
03
Vacuum system features specialized fluororubber sealing rings, resistant to high temperatures with zero leakage.
04
Edge-sealing rollers crafted from Cr12 mold steel for exceptional durability and sealing precision.
05
Residual oxygen content below 3%, effectively extending product shelf life and maintaining quality.
📝 Product Parameters
Number of sealing head 1
Number of seaming roller 4
Sealing speed 30-40 cans / min (related to can size)
Sealing height 35-200mm
Sealing can diameter Φ50-Φ100mm
Vacuum degree -40Kpa ~ -60Kpa
Air source pressure 0.6 ~ 0.8MPa
Machine size 2000(L) * 950(W) * 1700(H)mm
Weight 600kg
Machine Dimensions
Machine Layout
📜 Certifications & Shipping

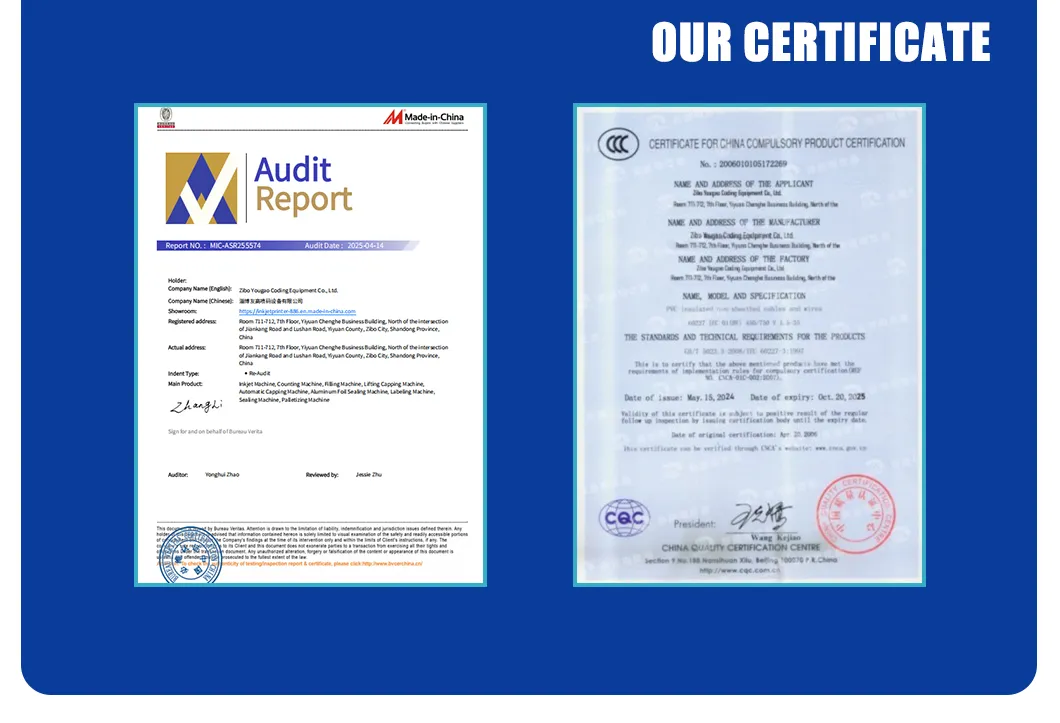

Quality Certifications
Packaging Process
❓ Frequently Asked Questions
1. How is the machine quality ensured?
We focus on high-quality and durable machines designed for stable operation for over 10 years. Every unit undergoes strict testing and debugging before leaving the factory to ensure only qualified products are shipped.
2. Do your products have international certifications?
Yes, our equipment is fully certified with CE and the ISO9001 series, meeting international safety and quality standards.
3. What payment methods do you accept?
We accept T/T, L/C, D/P, and Western Union. For standard orders, we typically require a 50% advanced payment, with the remaining 50% balance due before packing and shipping.
4. What is the typical production lead time?
The standard production time is approximately 30 to 45 working days, depending on the specific configuration and order volume.
5. Do you support OEM or ODM services?
Yes, we provide full support for both OEM (Original Equipment Manufacturer) and ODM (Original Design Manufacturer) requirements to meet specific client needs.
6. What are the available shipping options?
We offer flexible delivery options; goods can be transported by either air freight or sea shipment depending on your urgency and budget.
