New Type 7axes Rail Best Robotic Welding Systems with Software Import 3D Drawings Directly
New Type 7axes Rail Best Robotic Welding Systems with Software Import 3D Drawings Directly
New Type 7axes Rail Best Robotic Welding Systems with Software Import 3D Drawings Directly
New Type 7axes Rail Best Robotic Welding Systems with Software Import 3D Drawings Directly
New Type 7axes Rail Best Robotic Welding Systems with Software Import 3D Drawings Directly
1 / 5
New Type 7axes Rail Best Robotic Welding Systems with Software Import 3D Drawings Directly
New Type 7axes Rail Best Robotic Welding Systems with Software Import 3D Drawings Directly
New Type 7axes Rail Best Robotic Welding Systems with Software Import 3D Drawings Directly
New Type 7axes Rail Best Robotic Welding Systems with Software Import 3D Drawings Directly
New Type 7axes Rail Best Robotic Welding Systems with Software Import 3D Drawings Directly

New Type 7axes Rail Best Robotic Welding Systems with Software Import 3D Drawings Directly

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
XB
Control Mode
Continuous Path Control
Drive Mode
Electric
Type
Arc Welding Robot
Welding Speed
0.5 m/min
Name
Robotic Welding
Welding Machine
Aotai or Megmeet
Controller
Bochu Fsweld
Software
Cypweld
Robot System
Knt
Advantage
No Teaching and Programming
Visual System
Laser Suture Finder Bcw600p
Product Description

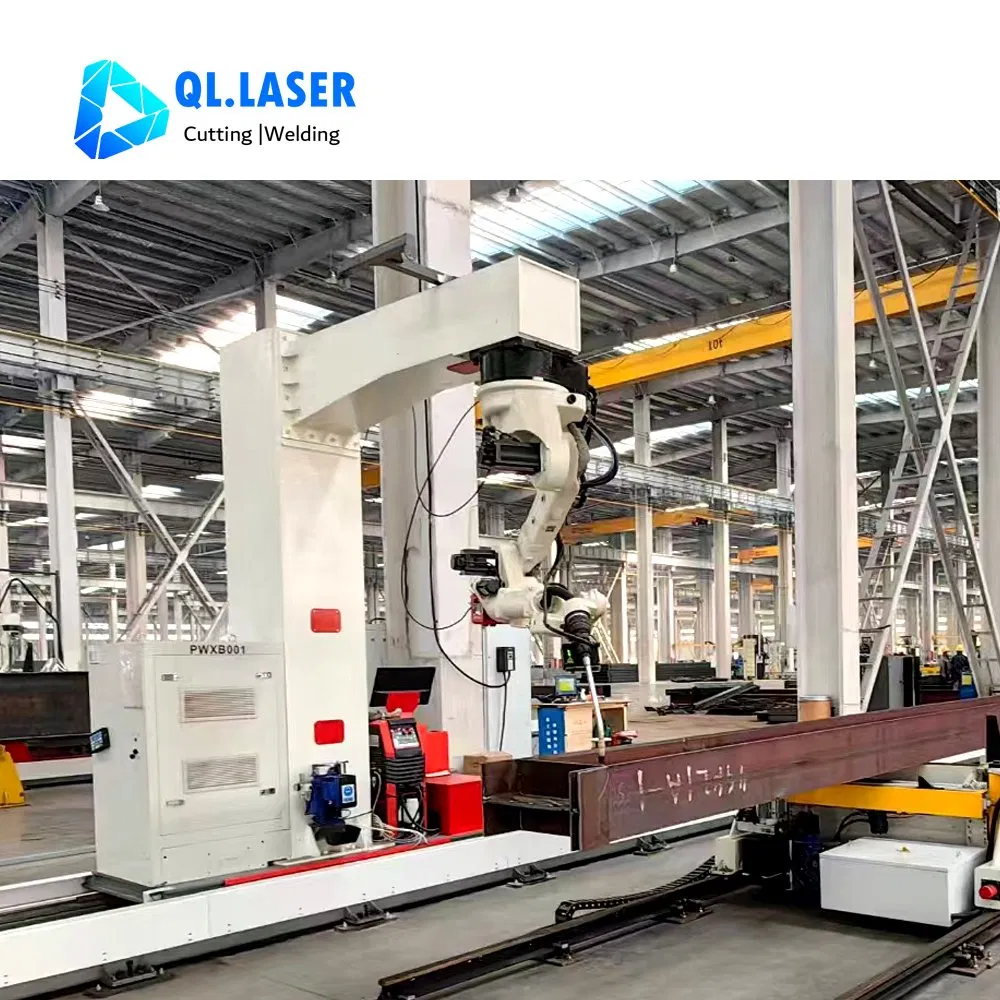

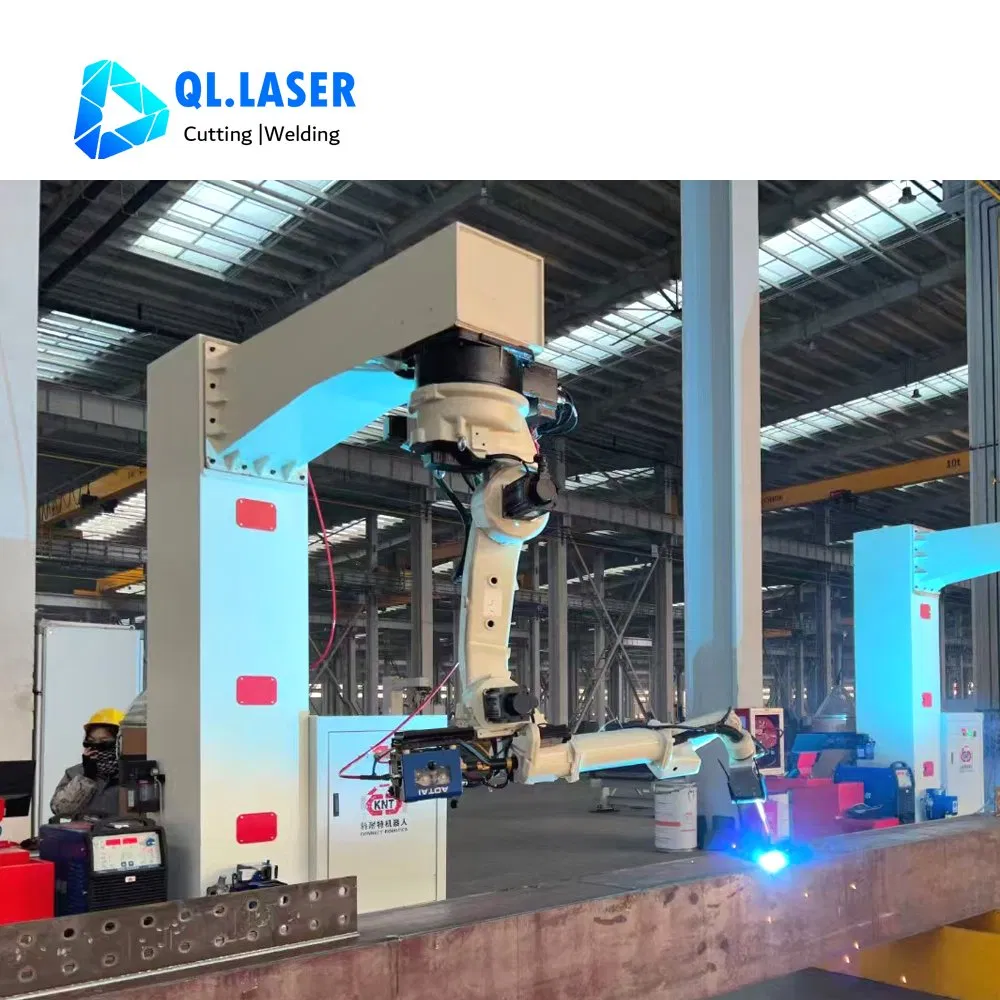

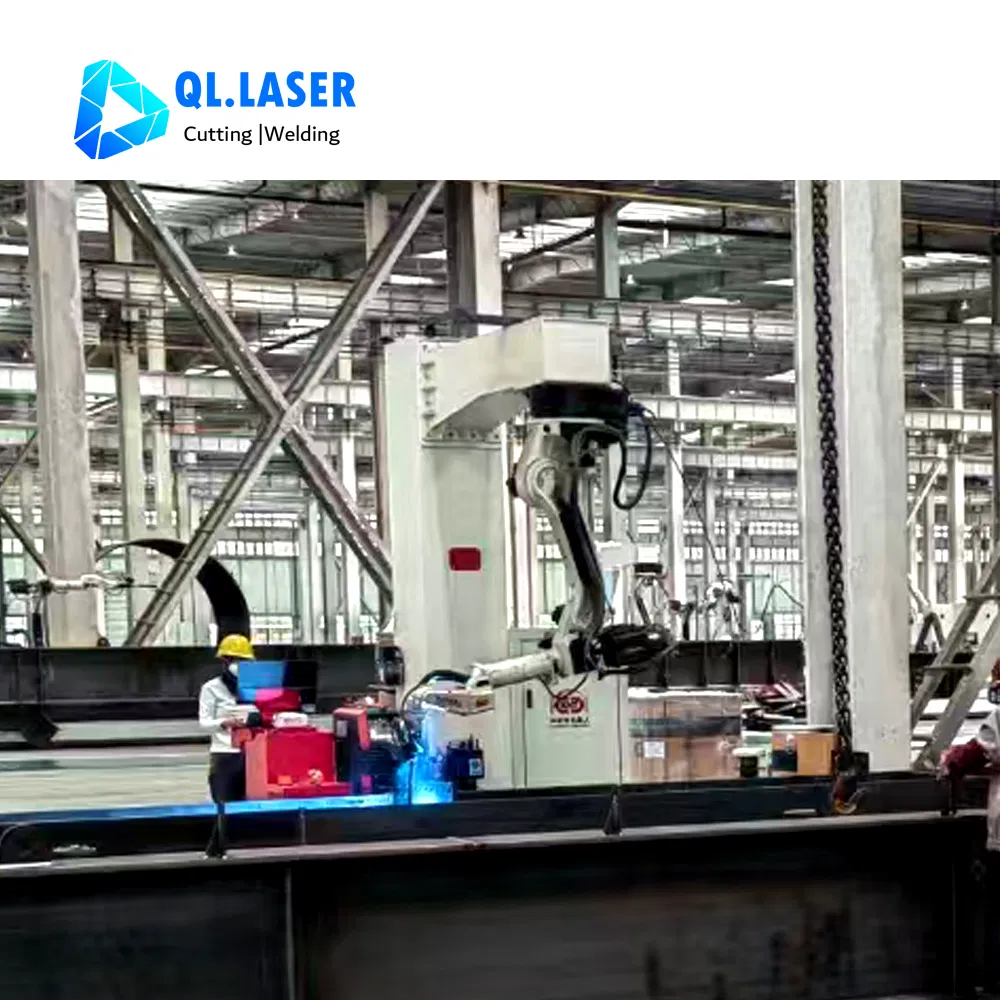

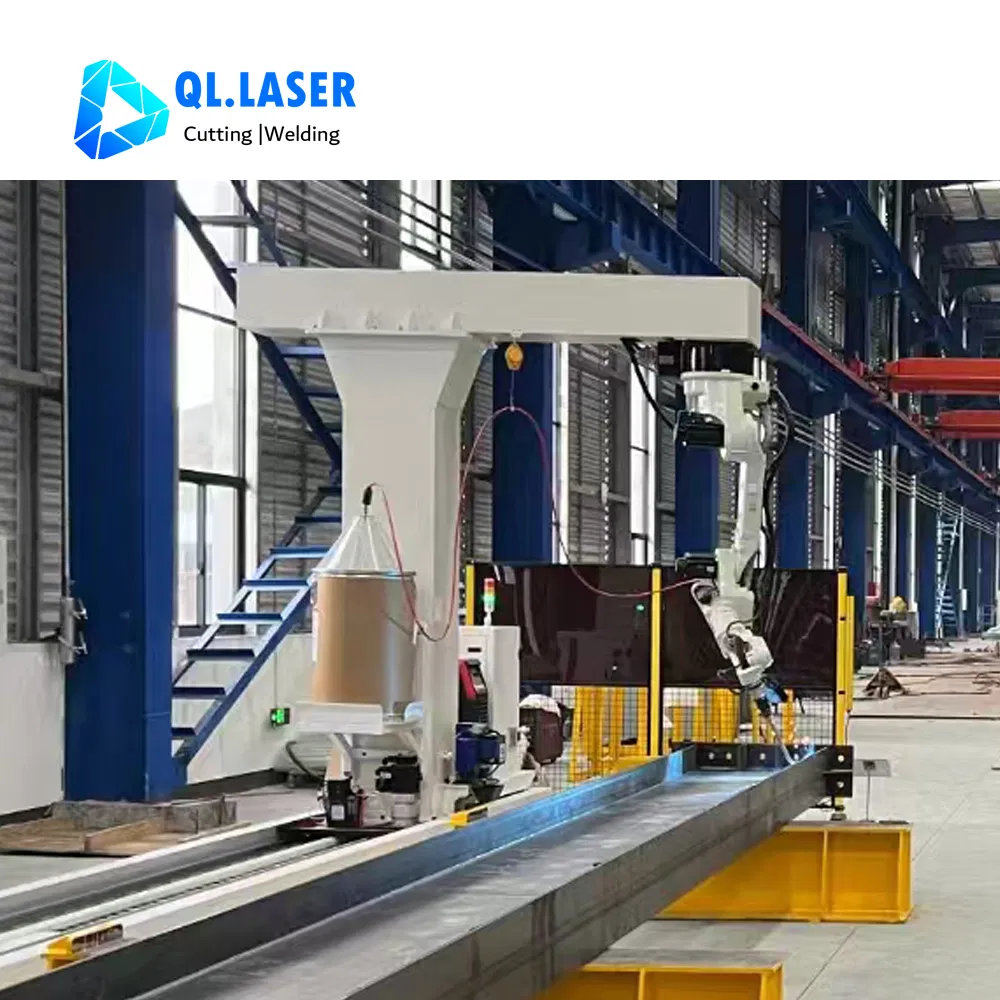

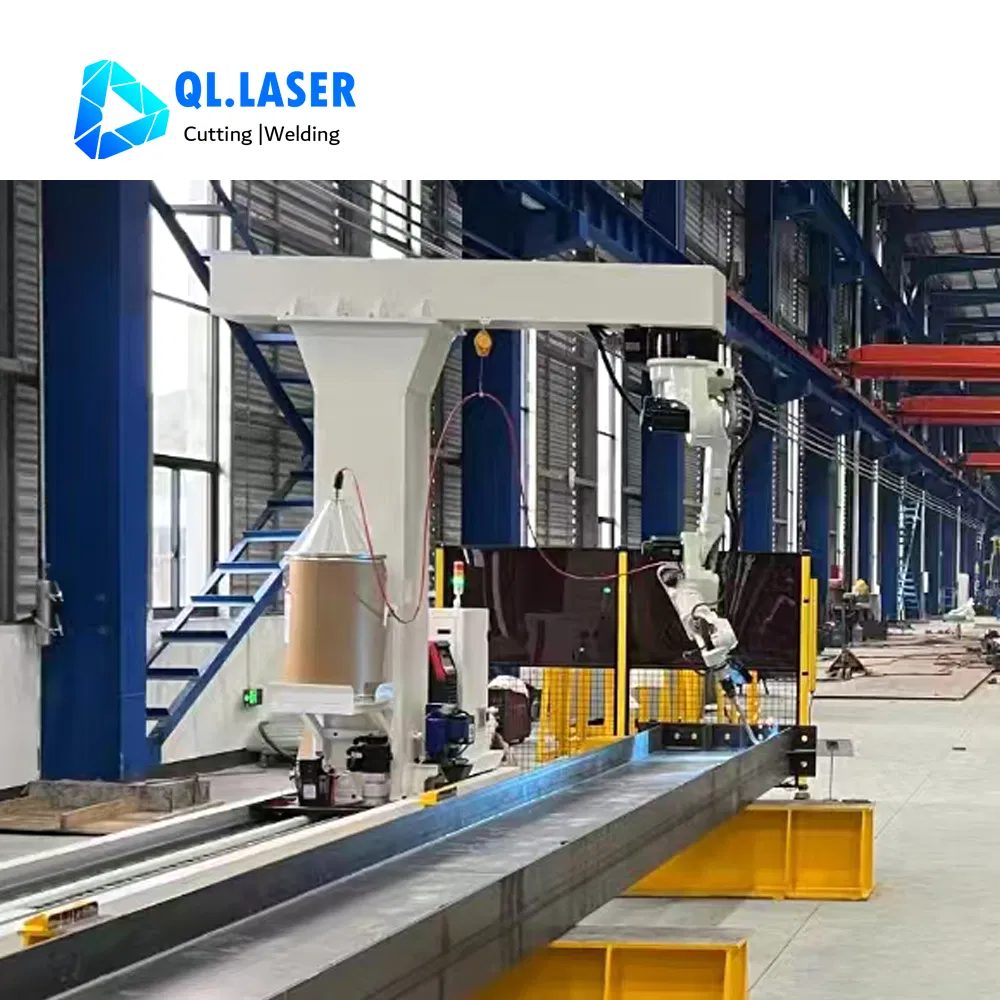

New Type 7-axes Rail Robotic Welding Systems with Software Import 3D Drawings Directly

  • 1

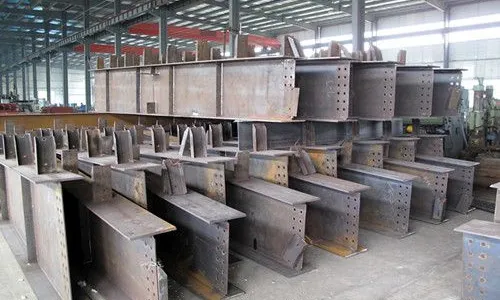

    Welding of open components such as H-beams, roof beams, box columns, and other corner welded components.
  • 2
    Add a seventh axis, robot and track follow-up control, providing a larger working area.
  • 3
    Dual-side track work areas for efficient sectioned small piece welding.
  • 4
    Simultaneous welding and handling to effectively improve production efficiency.
  • 5
    Foolproof operation with 1-2 days of training; zero manual intervention required after loading.
Technical Parameters
Content Parameter Range Unit Remarks
Degrees of Freedom (Axes)7//
Ambient Temperature-10~45ºC/
Maximum End Load6Kg/
Recommended Floor SpaceW2000*L12000*H650mm/
Peak Total Power45kW/
Rated Input Voltage380+/-10%VThree-phase
Core Advantages

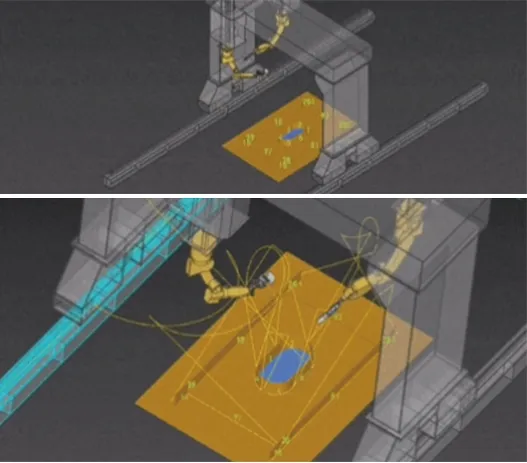

Integrated Drive

Robot Integrated Drive and Control

  • Built-in drive system, replacing traditional teaching.
  • Automatic trajectory planning.
  • Intelligent obstacle avoidance.
  • Collision detection and monitoring.

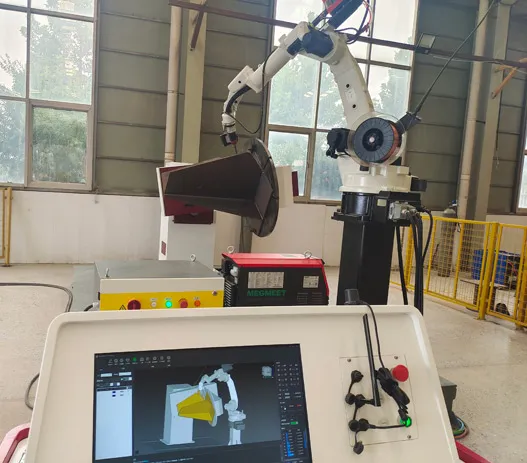

Digital Twin System

  • 1:1 replication of physical objects.
  • Real-time synchronization between computer and robot.
  • Scene-generated trajectory with one-click commands.
Digital Twin

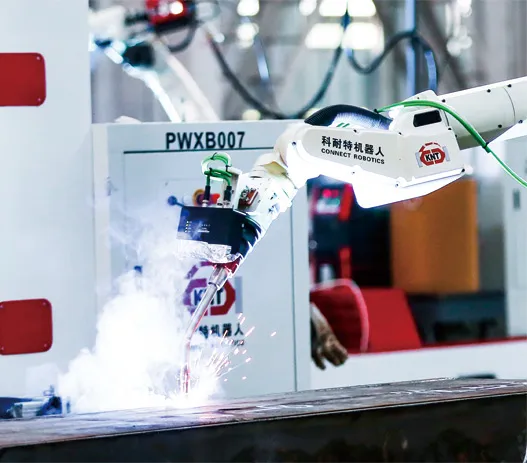

No Programming

No-Teaching, No-Programming

  • Direct 3D model import for automatic seam recognition.
  • One-click deployment for corner and multi-layer welds.
  • Laser guidance for automatic path planning.
Visual Positioning & Tracking

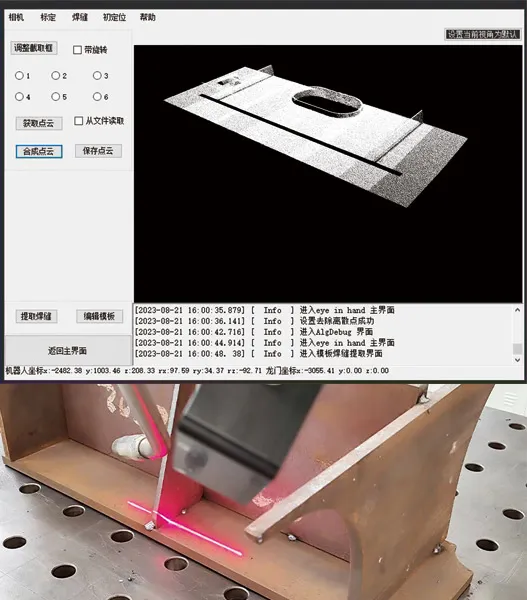

Visual System

3D Camera Positioning: Captures 2m x 2m area with ±0.5mm accuracy.

Line Laser Guidance: Real-time analysis of seam position to correct trajectory.

"Eye-in-Hand" System: Solves complex imaging challenges with high precision and graphical interface.

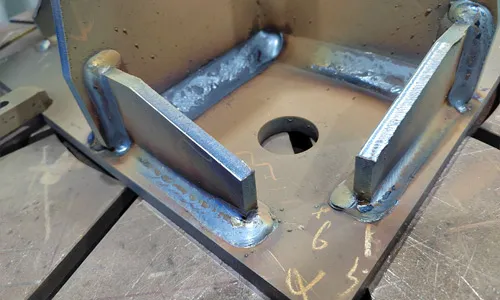

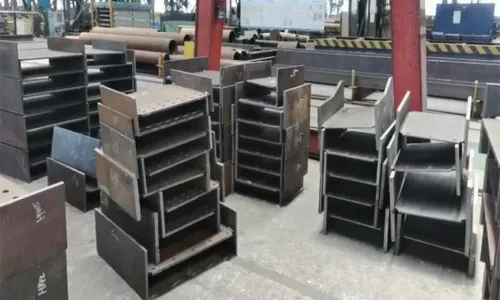

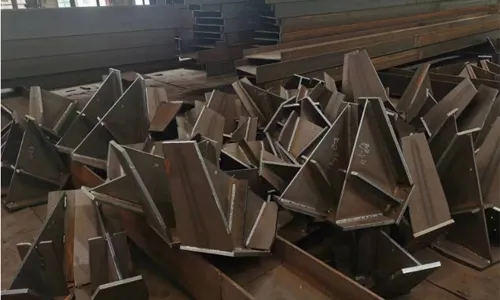

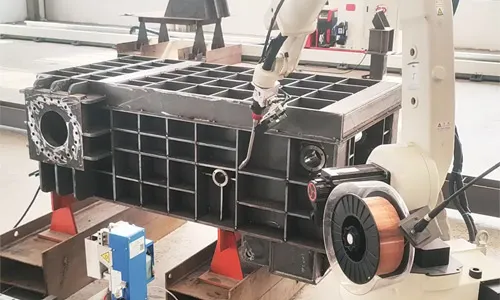

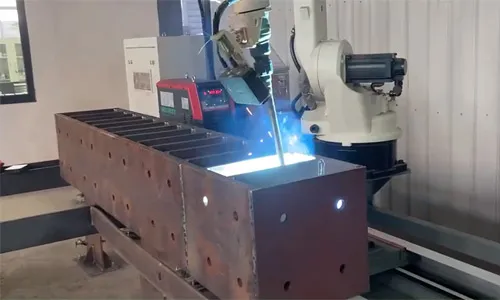

Welding Samples
Other Related Products

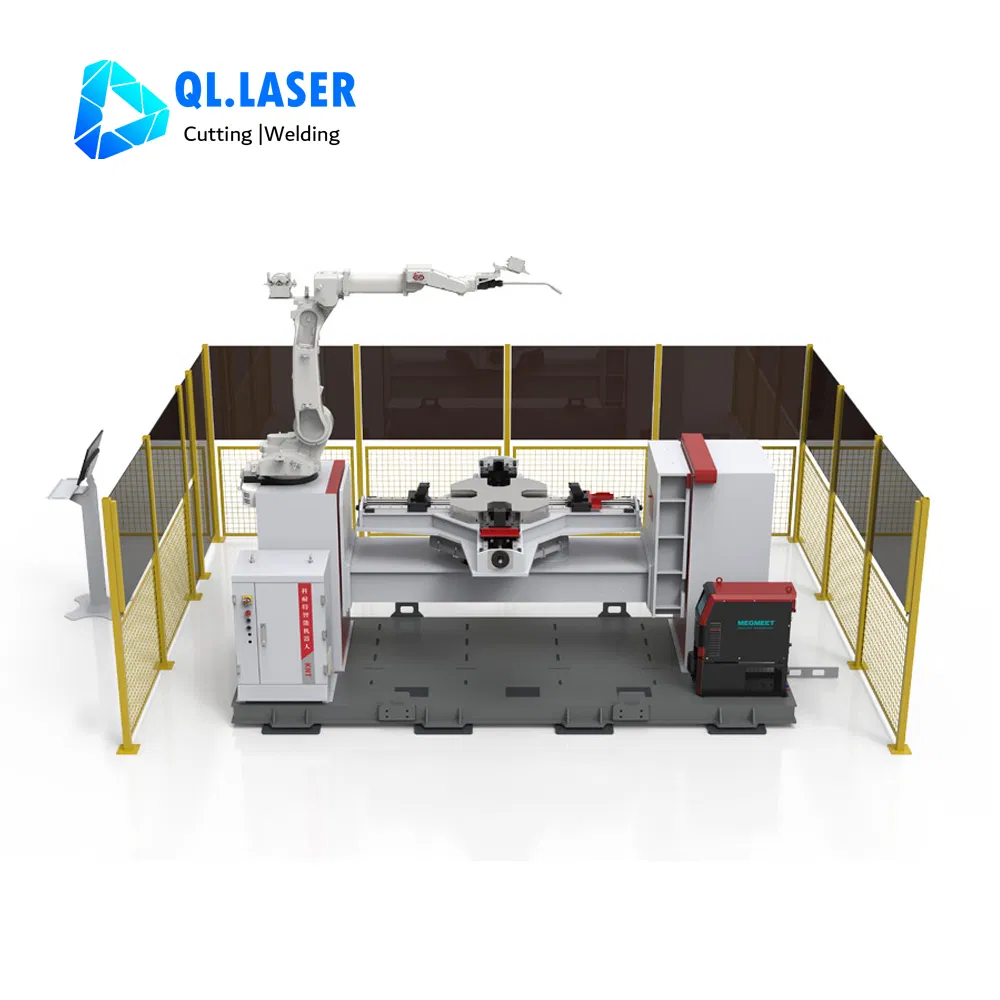

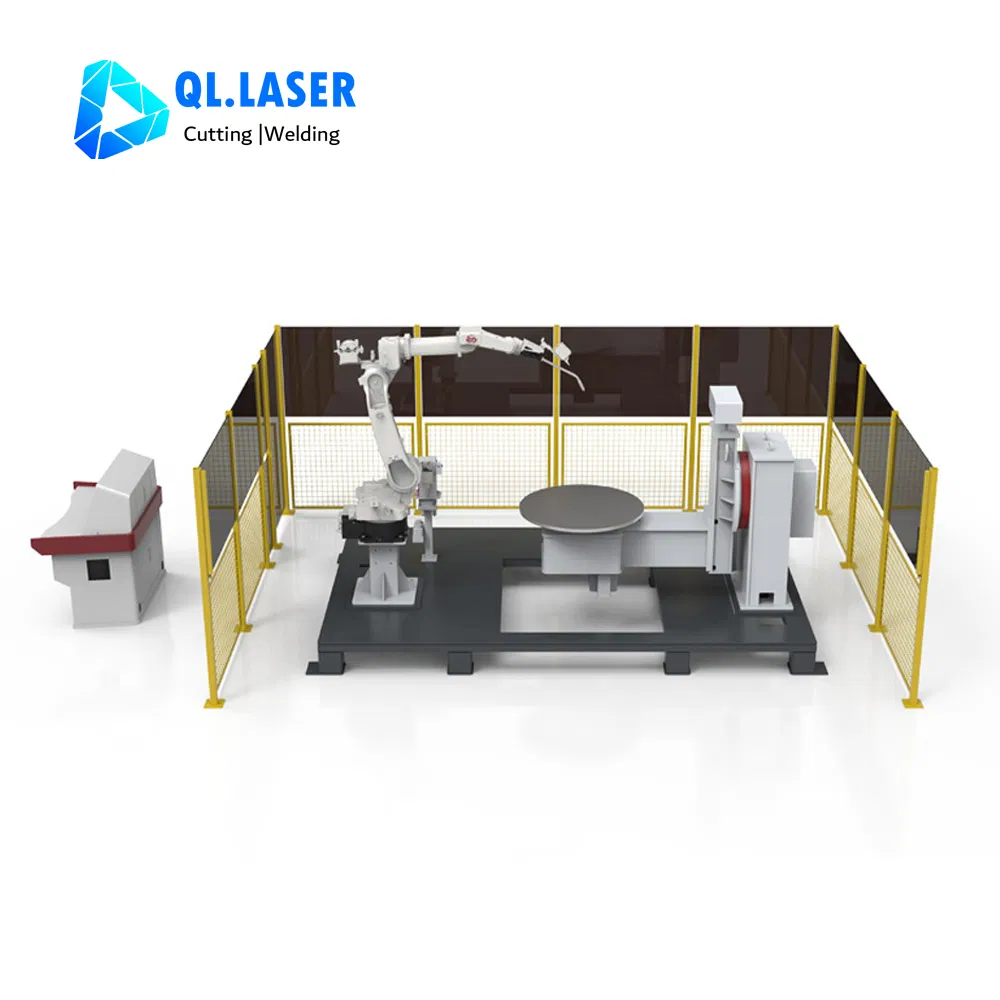

BW series Robot Welding with L Positioner

BW series Robot Welding with H Positioner

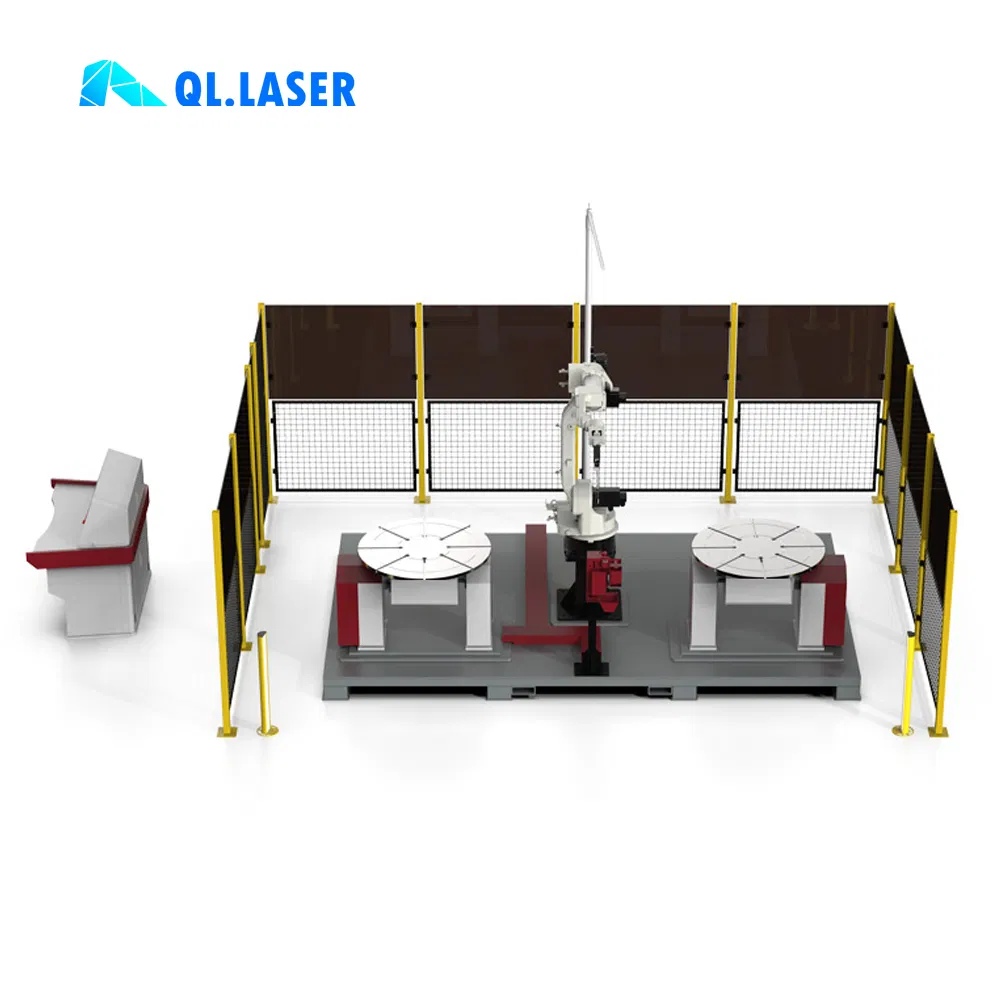

BW series Robot Welding with Dual Positioner

Frequently Asked Questions (FAQ)
Q1: Does this robotic system require professional programming skills? A: No. It features "No-Teaching, No-Programming" technology. Operators can handle the system after just 1-2 days of training.
Q2: Can I import my own designs directly into the software? A: Yes, the system supports importing 3D drawings directly, and the software automatically recognizes and extracts welding seam information.
Q3: What types of structural components is this robot suitable for? A: It is ideal for open components like H-beams, roof beams, box columns, and various corner-welded structures.
Q4: How does the visual positioning system help with welding? A: The 3D camera and line laser guidance capture the workpiece in real-time with ±0.5mm accuracy to correct the trajectory and avoid collisions.
Q5: What is the benefit of the 7-axis configuration? A: The additional 7th axis allows the robot to move along a track, significantly expanding the working area and allowing for simultaneous welding and handling.
Q6: Does the system support multi-layer welding? A: Yes, the built-in process library includes commands for multi-layer, multi-pass, and intermittent welding which can be selected with one click.
