The BBA-QZSMC1305 intelligent tin soldering machine control system is designed for the high-precision tin soldering industry. It features low cost, high condensation, and high integration. Collocated with perfect tin soldering processes, it meets diverse processing demands and is widely applied in multi-axis automatic tin soldering machine fields.

• 320*240 HD colored screen and English operation interface for convenient usage.
• Supports spot welding and drag welding; tin supply speed adjusts automatically based on working speed.
• Oblique angle gun access function allows customizable gun angles.
• Tin shaking function (horizontal/vertical) to upgrade welding quality.
• Perfect cleaning functions including designated position cleaning and tin volume compensation.
• MARK point counterpoint function to revise errors from workpiece deviation.
• Skip selection function for multiple interrupted commands.
• Command displacement and regional array copy for efficient programming.
• Batch edition, single step, and automatic circulation operation.
• Supports automatic execution, reset, and production volume tracking.
• Portable box saves hundreds of processing files, each supporting up to 8,000 commands.
• Hardware supports four-gun tunnel control and 12-way high-speed pulse output.

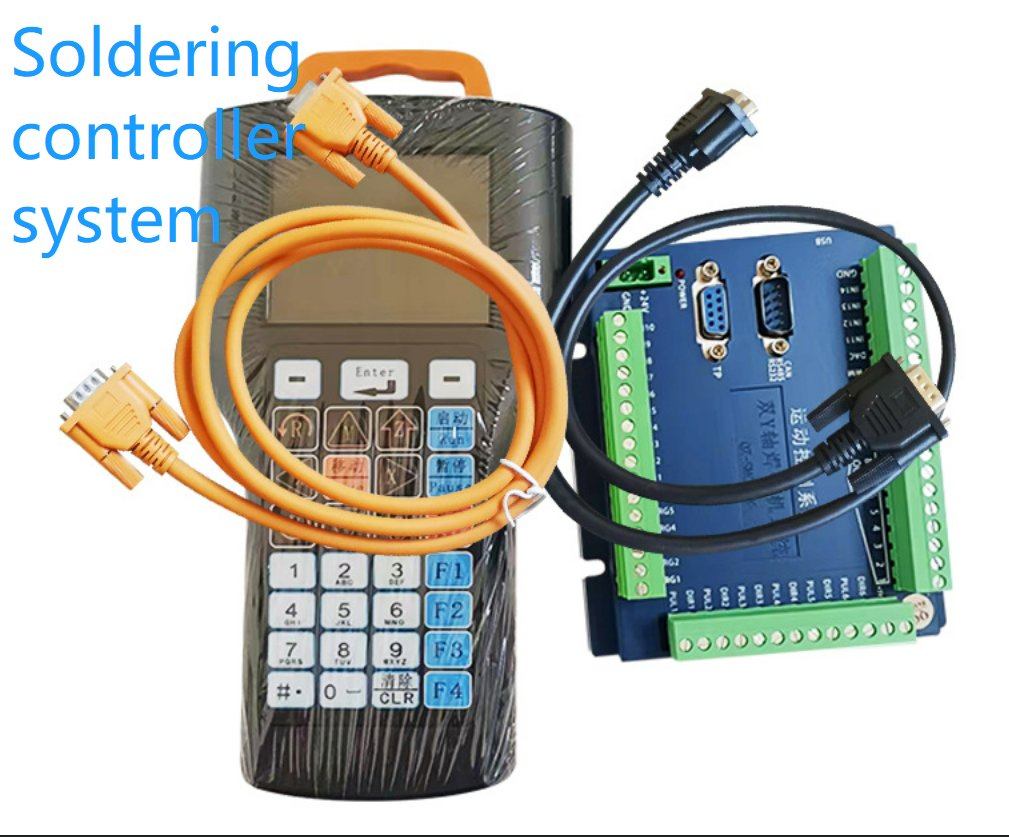

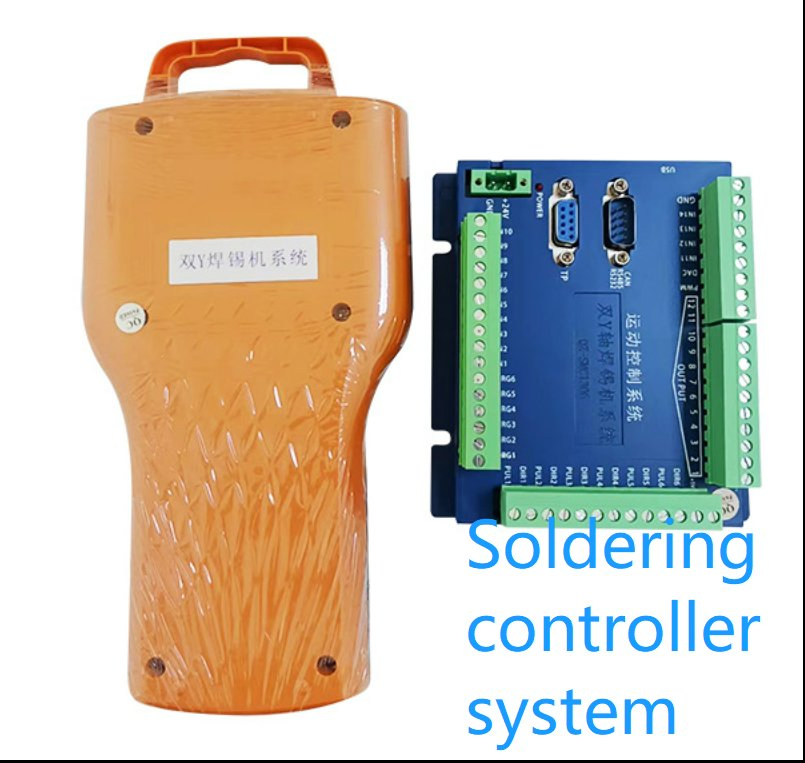

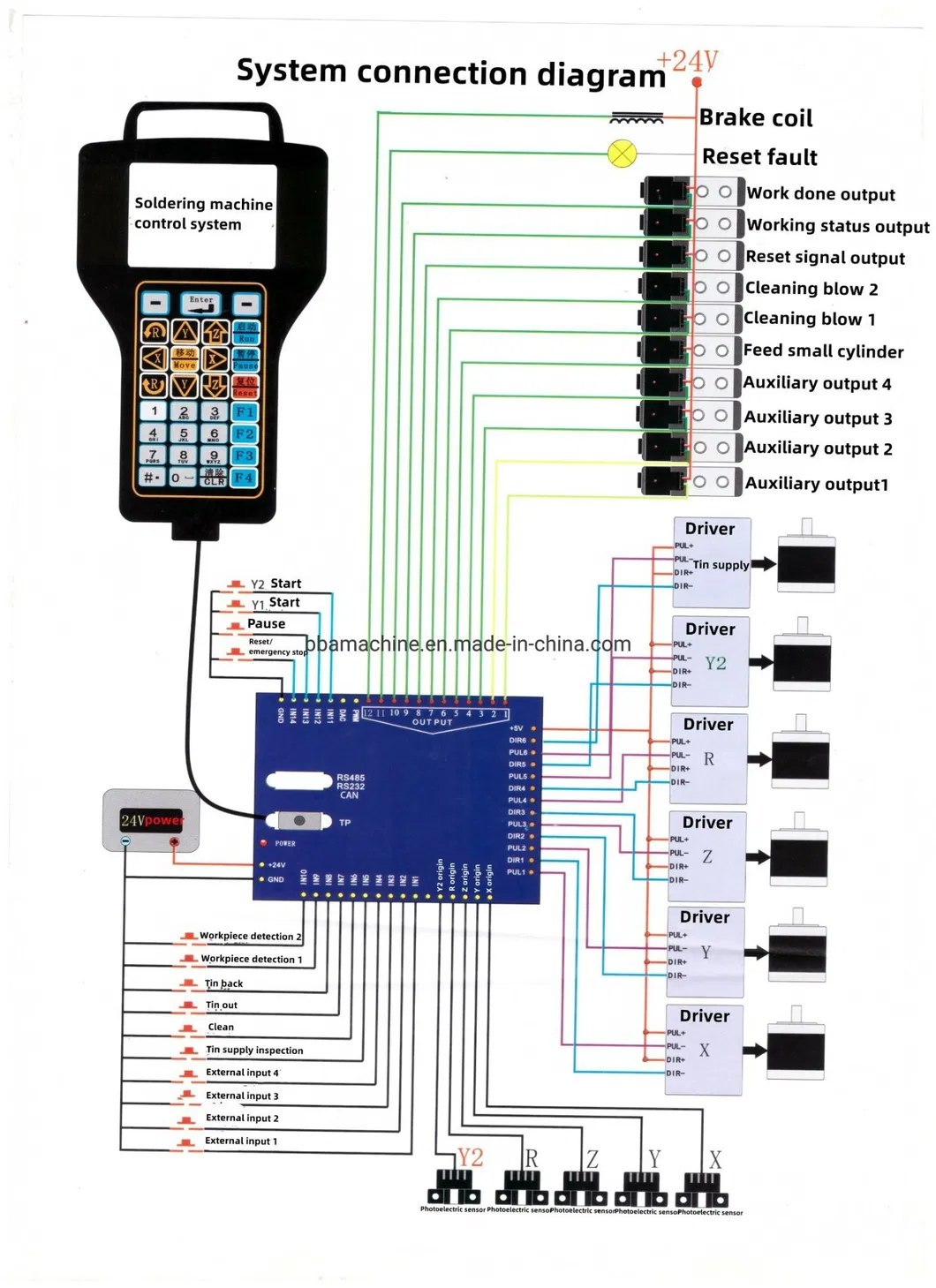

Controller Hardware Features:

• Number of motor axis: 5 axis (XYZRB) | Pulse frequency: 200K
• I/O Ports: 8-way input (XYZR origin, start/pause, reset/emergency); 4-way rubber gun output; 4-way general I/O input/output.
• Output: 12-way high-speed "NPN integrated electrode open circuit" 5-24VDC; Rated current: 0.5A.
• Working Voltage: 24V DC | Interface: DB44 interface | Save capacity: 16M.
• Environmental: Operating Temp -10 to 60ºC; Humidity 40%-80%.

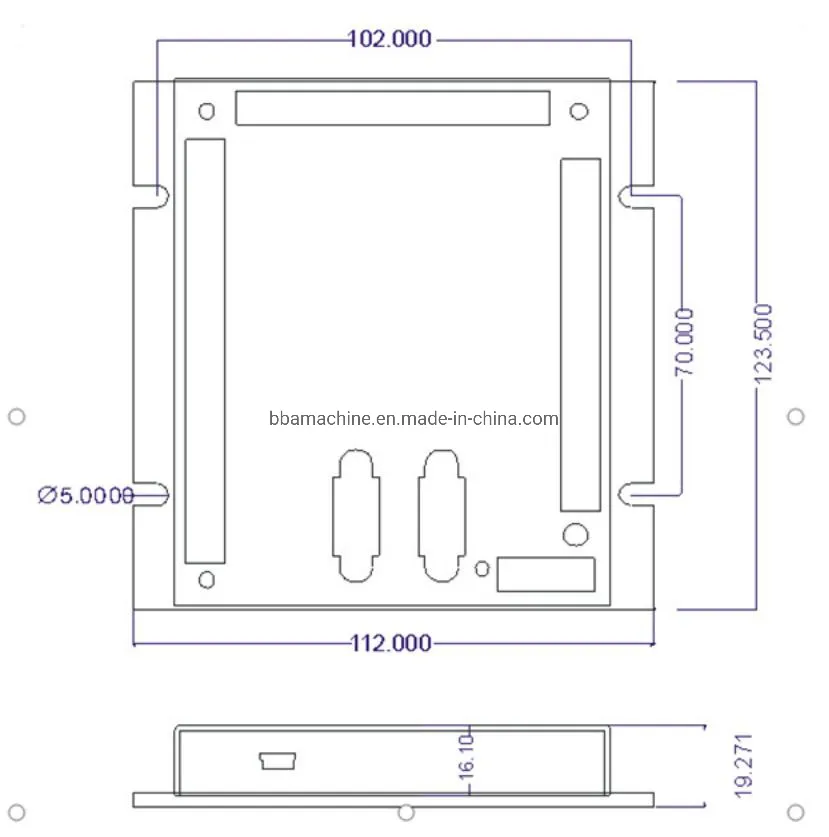

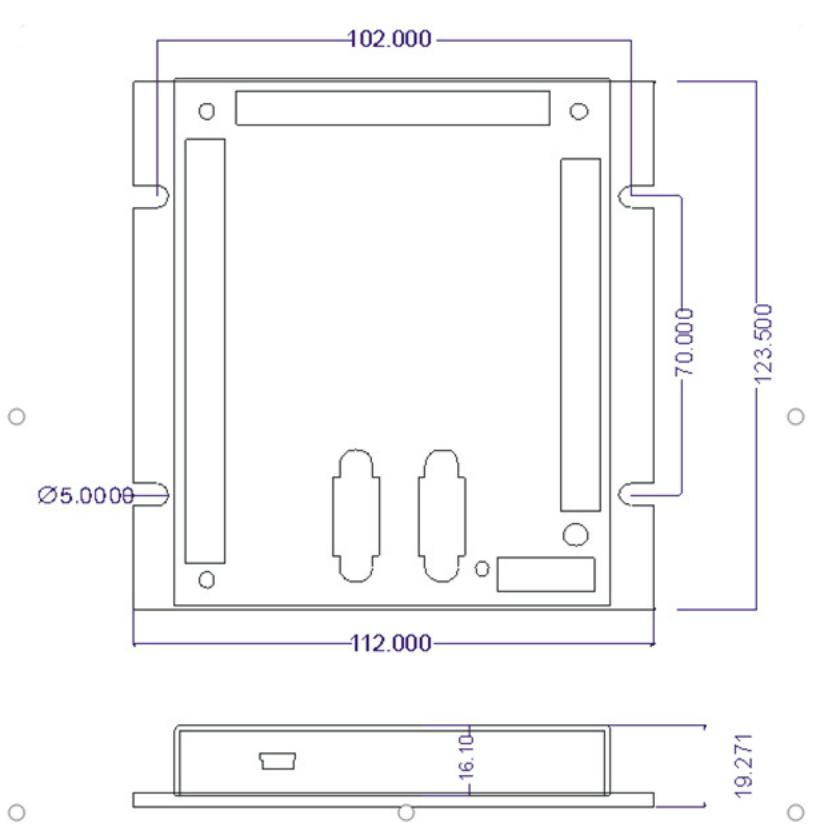

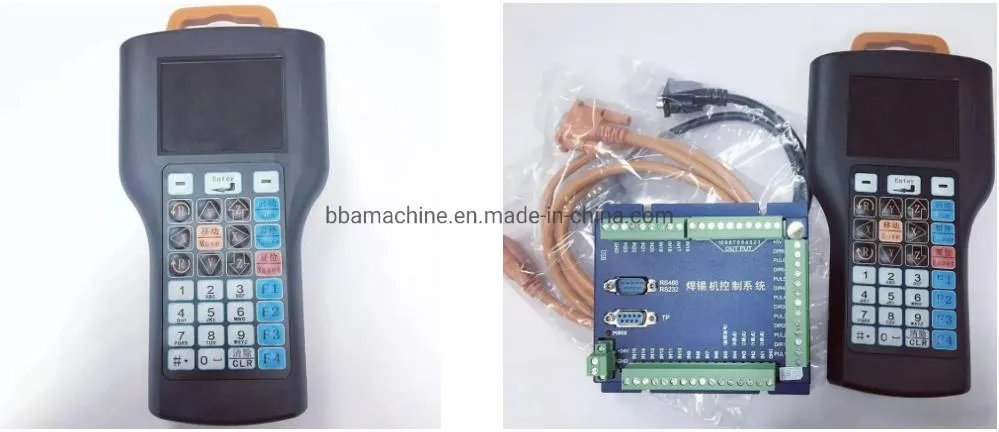

Portable Box Hardware Features:

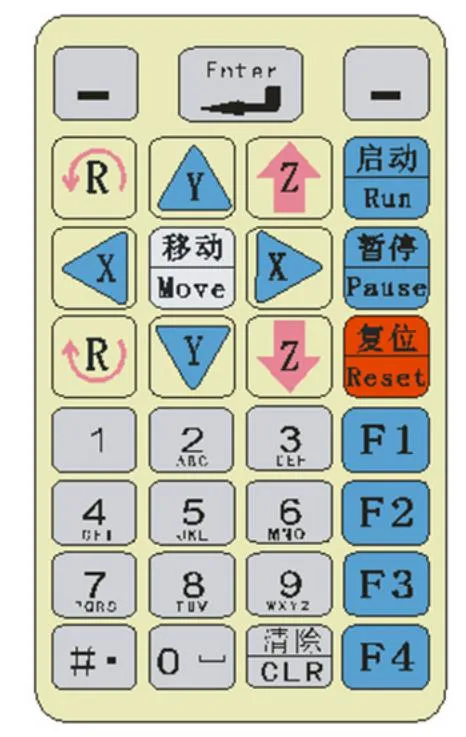

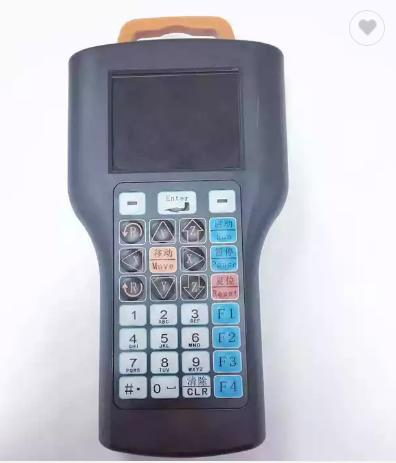

• Interface: USB and Serial port collocated.
• Display: 3.2'' colored LCD (320*240 resolution).
• Storage: Flash chip based.
