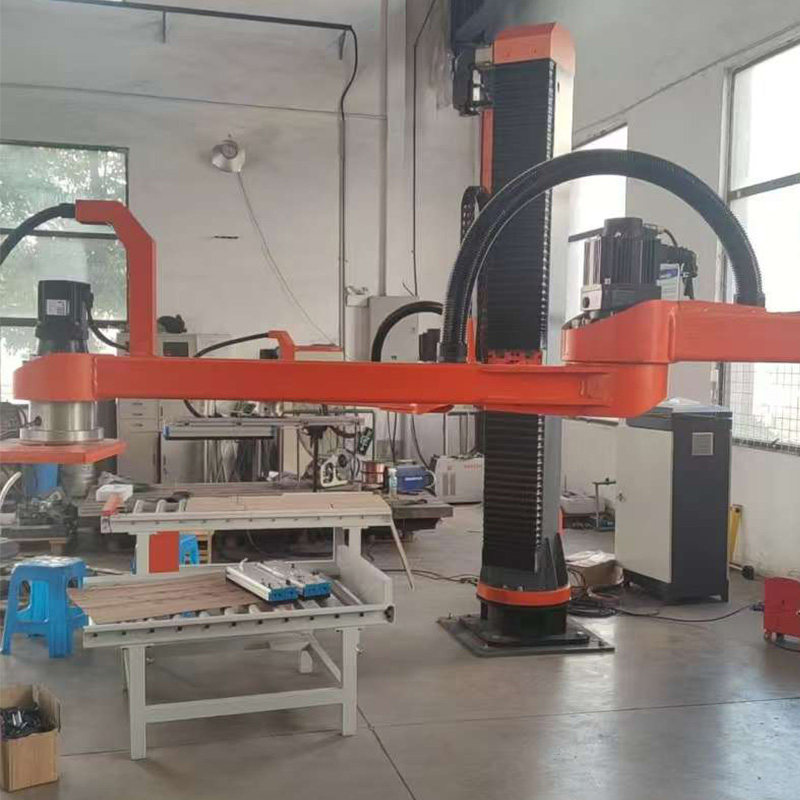

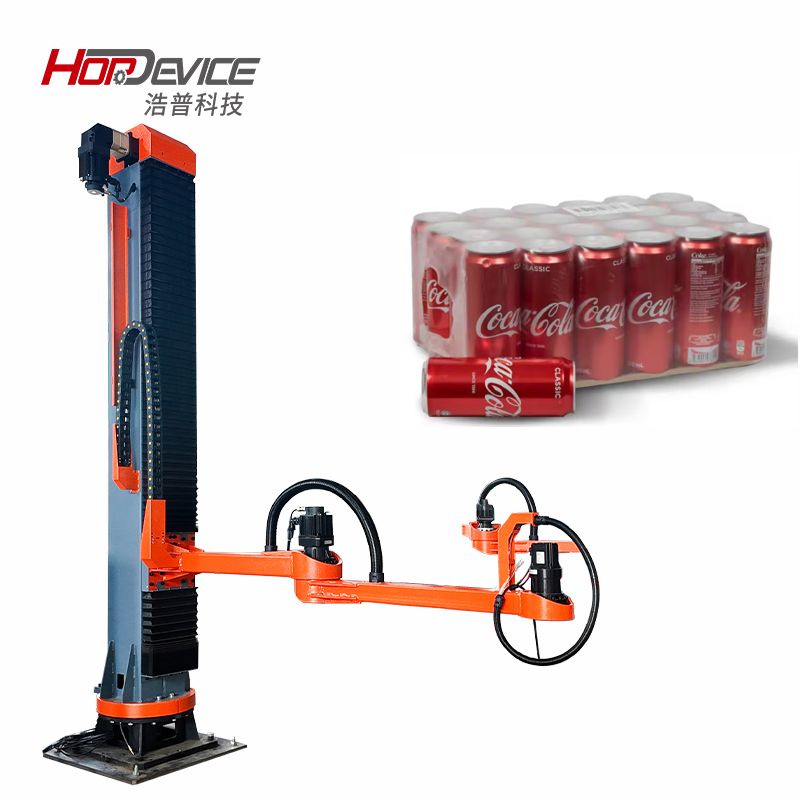

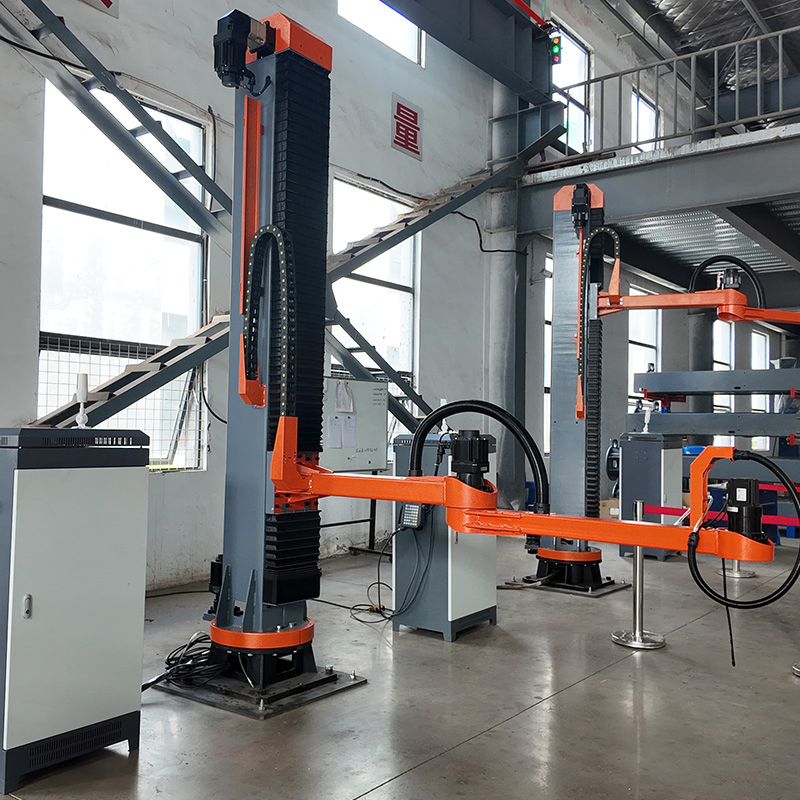

Factory Affordable Cost Combined Palletizing Depalletizing Robot in Russia

Customization: Available
Automatic Grade: Full-Automatic
Load Capacity: 100 kg

Product Description

Basic Information
Model NO.
HPMDJ-100
Usage
Material Handling, Packaging
Palletizing Speed
200-800 Bags/Hour
Power
220V/380V
Machine Material
Contact Parts 304ss
Language
English / Customized
Robot Gripper
Designed According to Product
Movement
Circle Pass Coordinate Type
Warranty
One Year

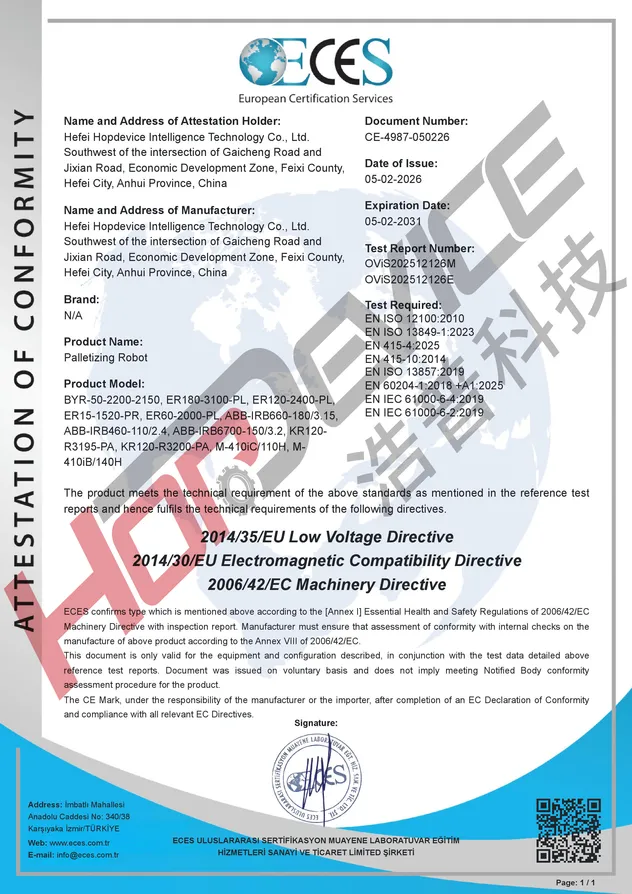

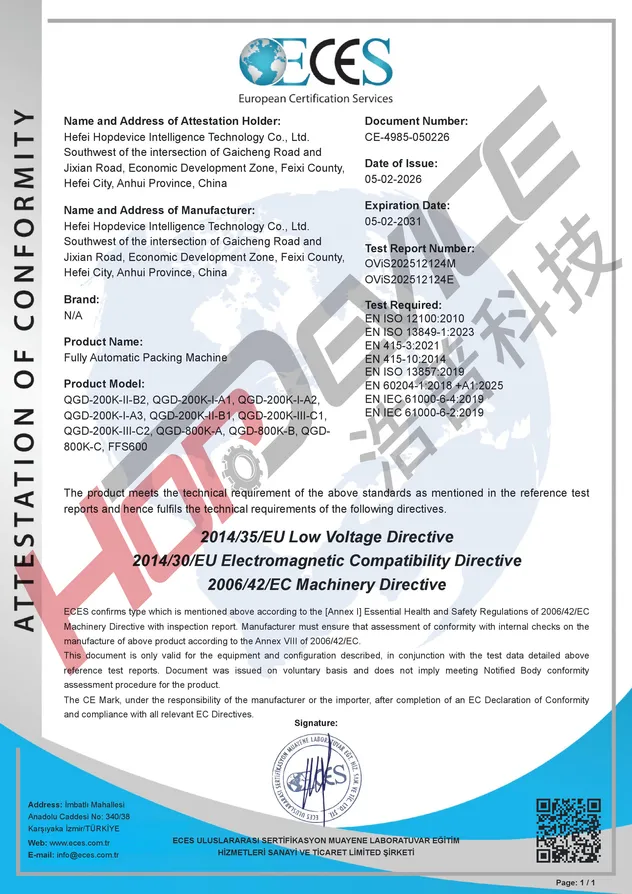

Certification
CE, ISO
Product Description

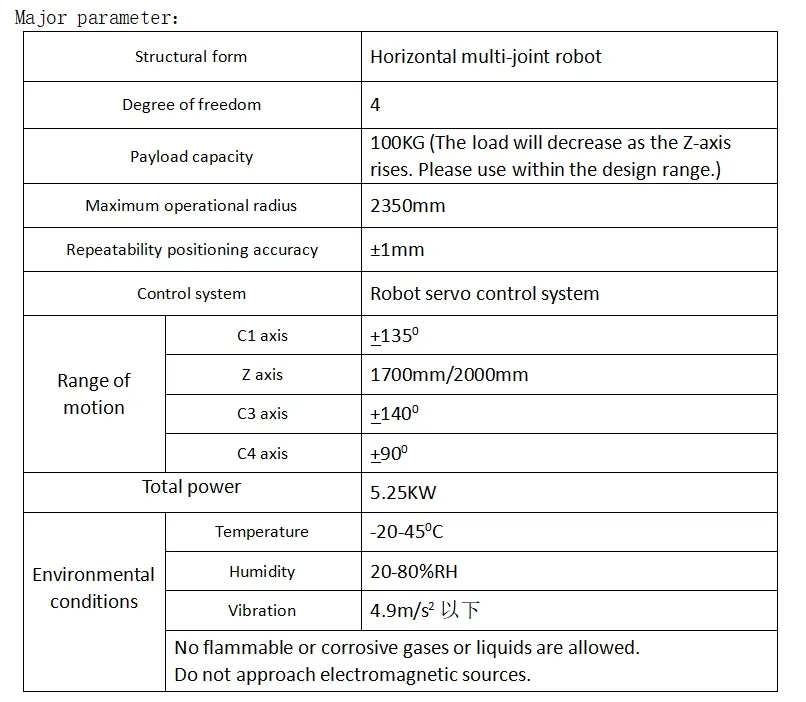

Safety Robotic Arm
4 / 6 Axes Safety Robotic Arm Robots
  • Structure: Horizontal multi-joint robot (4 Degrees of freedom)
  • Payload Capacity: 100KG / 300KG
  • Max Moving Radius: 2350mm
  • Accuracy: Repeated positioning accuracy ±1mm
  • Total Power: 5.25KW

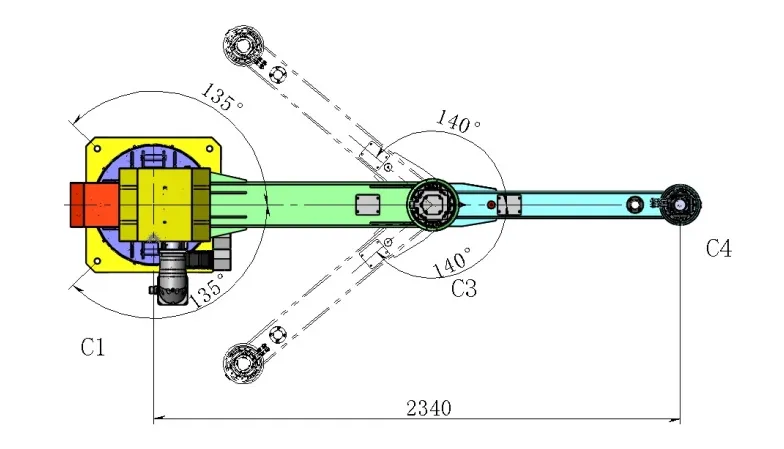

  • Axis Motion: C1 (+1350), Z (2000mm), C3 (+1400), C4 (+900)
Equipment Features
  • Low energy consumption, easy to operate and maintain compared to traditional bulky robots.
  • Advanced robot control system ensuring stable stacking and accurate reset.
  • Small footprint with flexible rotation, capable of double production line and double pallet palletizing.
  • Quick switch between palletizing requirements via pre-set program files.
  • Intelligent management via PLC touch screen to reduce manual labor costs.

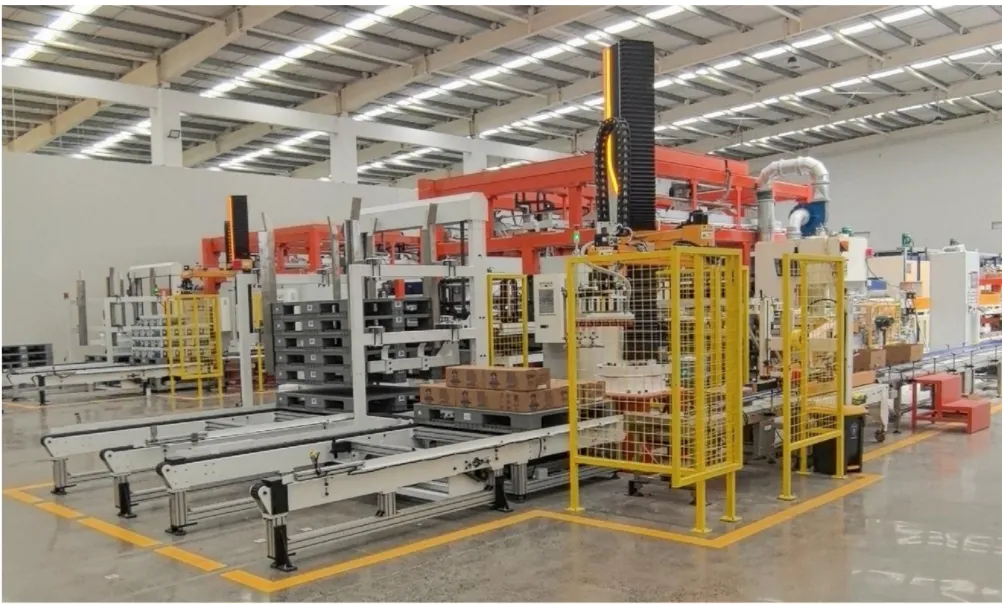

Robotic Arm Layout

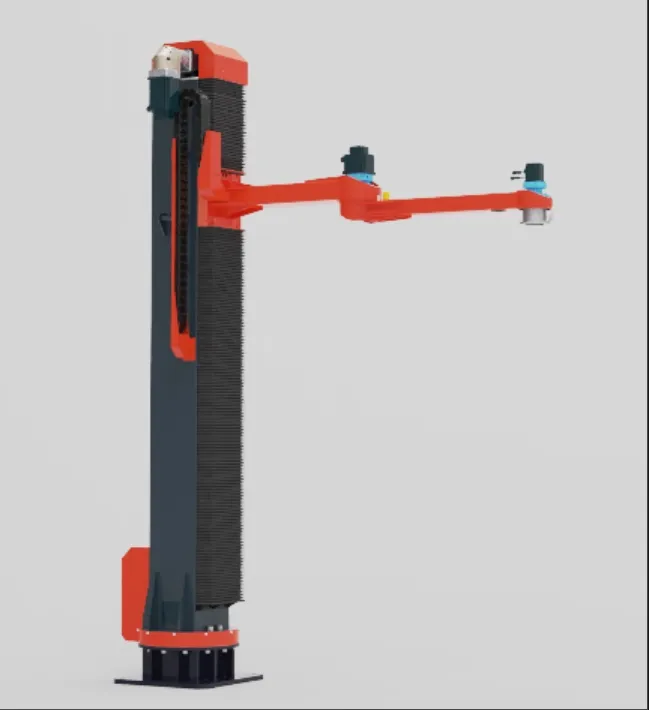

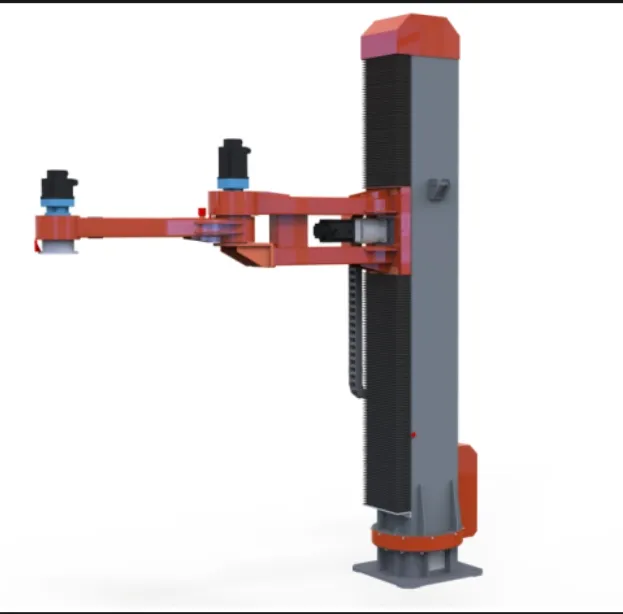

Specifications & Technical Drawings
Spec Drawing 1 Spec Drawing 2
Spec Drawing 3 Spec Drawing 4
System Overview

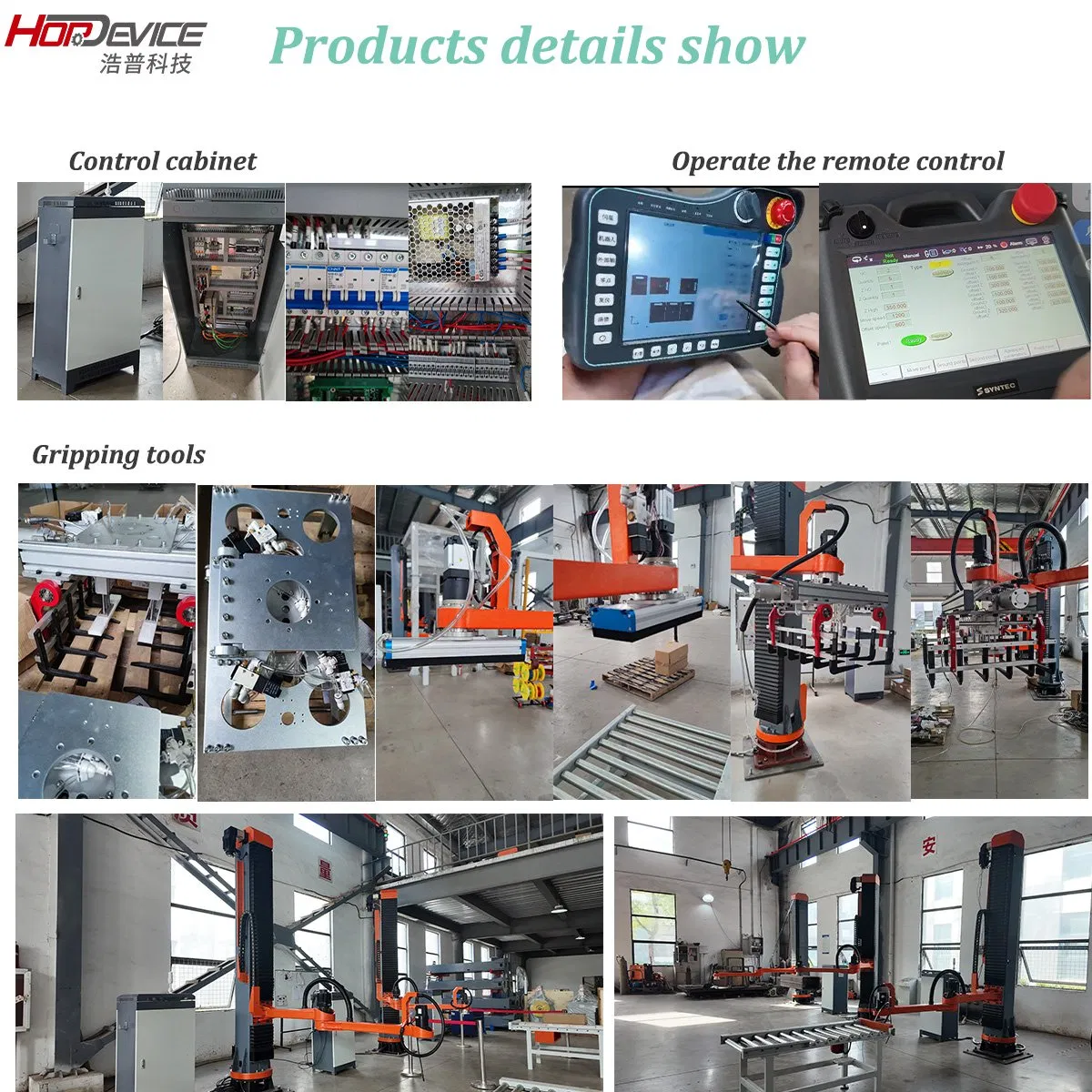

Machine Details
Detail 1 Detail 2
Component 1 Component 2 Component 3

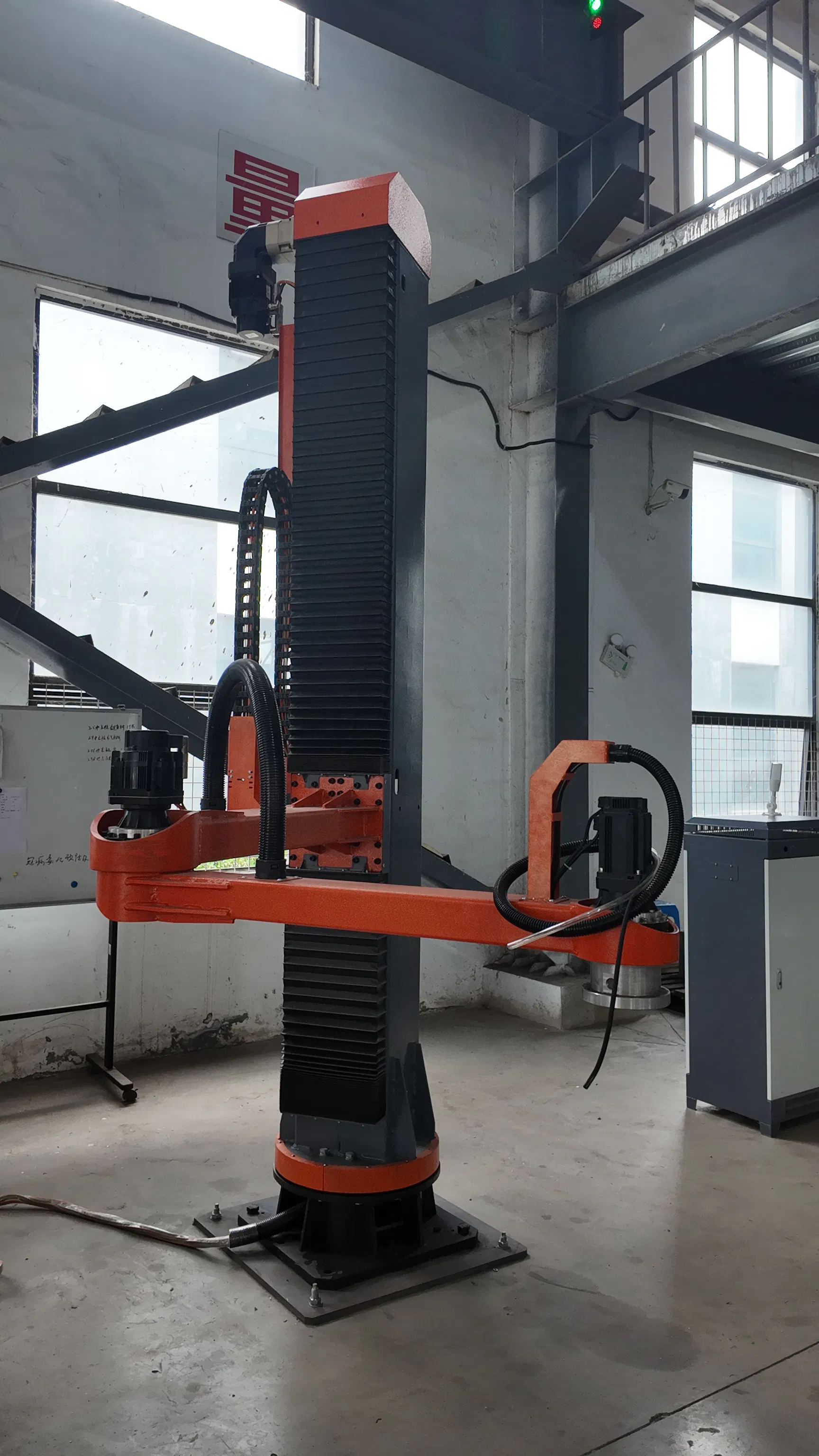

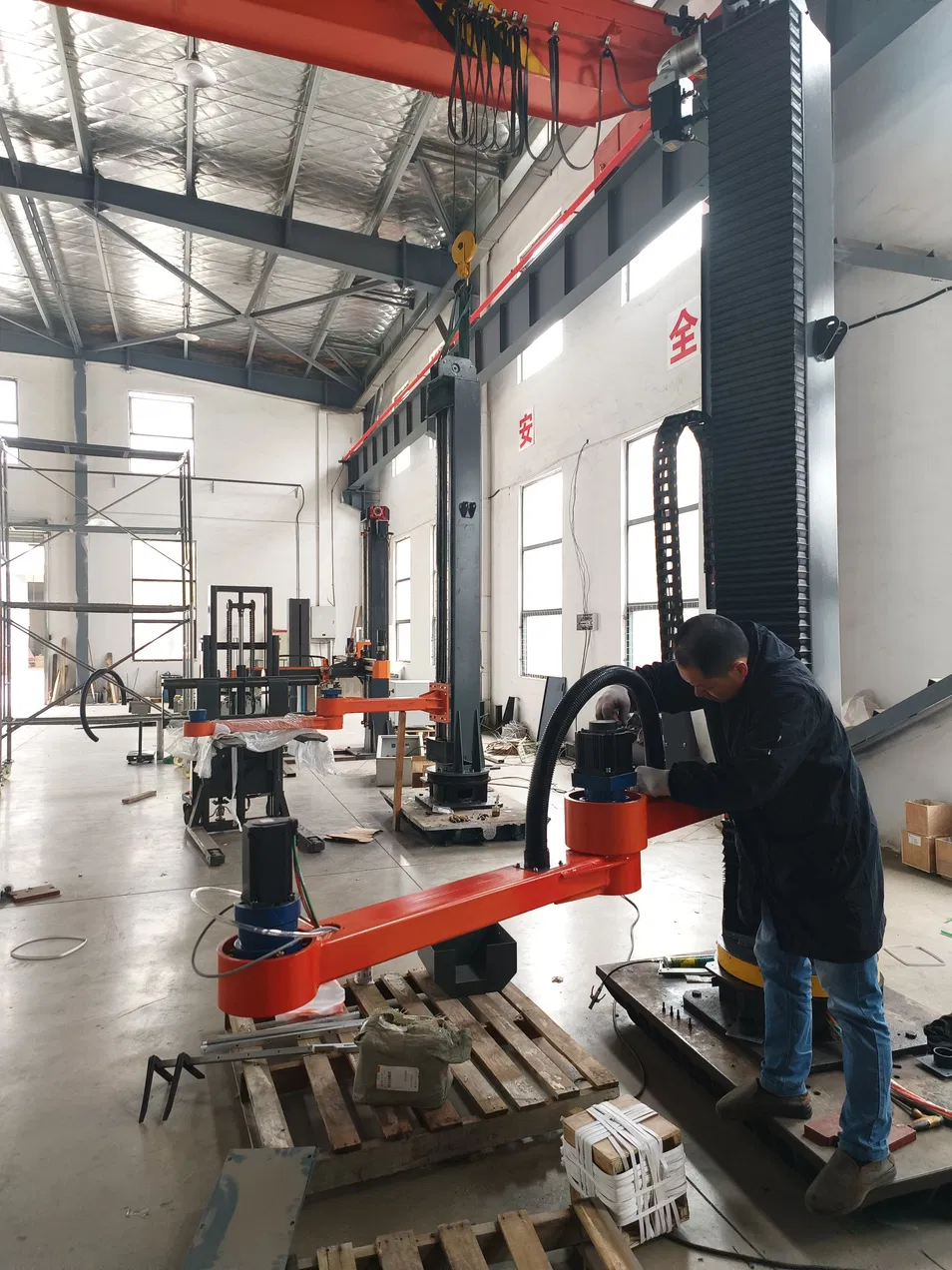

Scope of Application
Workshop
Main Applications:

Material Handling / Packing / Assembly

This high-efficiency automatic robotic palletiser is designed for stacking and palletizing in various production lines. It provides intelligent mechanization for sectors including:

  • Beverage Industry: Beer, water, soft drinks, milk, and juices.
  • Foodstuff: Various packaged food products.
  • Packaging Types: Cartons, plastic crates, bottles, bags, barrels, and shrink-wrapped products.

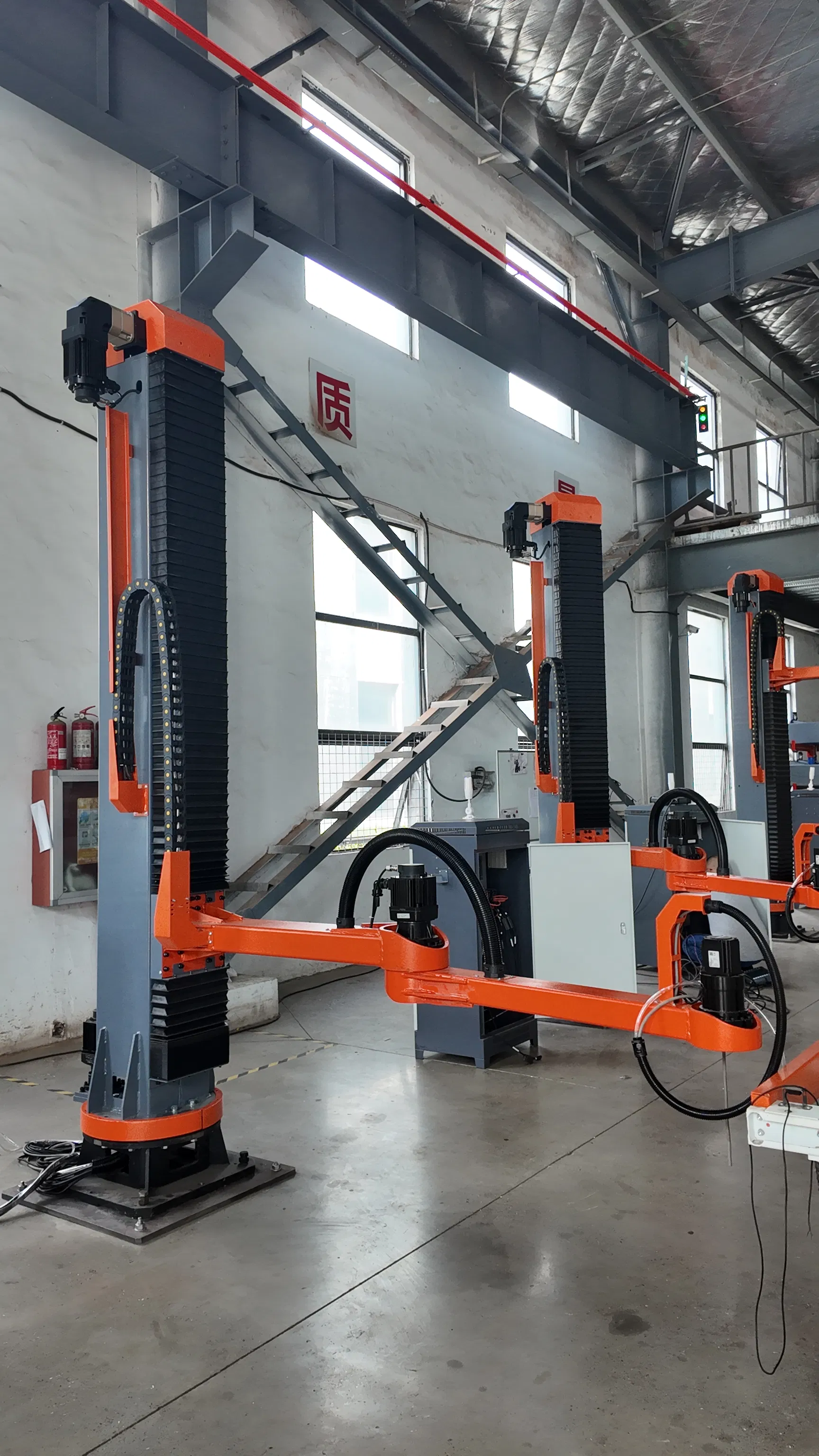

App 1 App 2

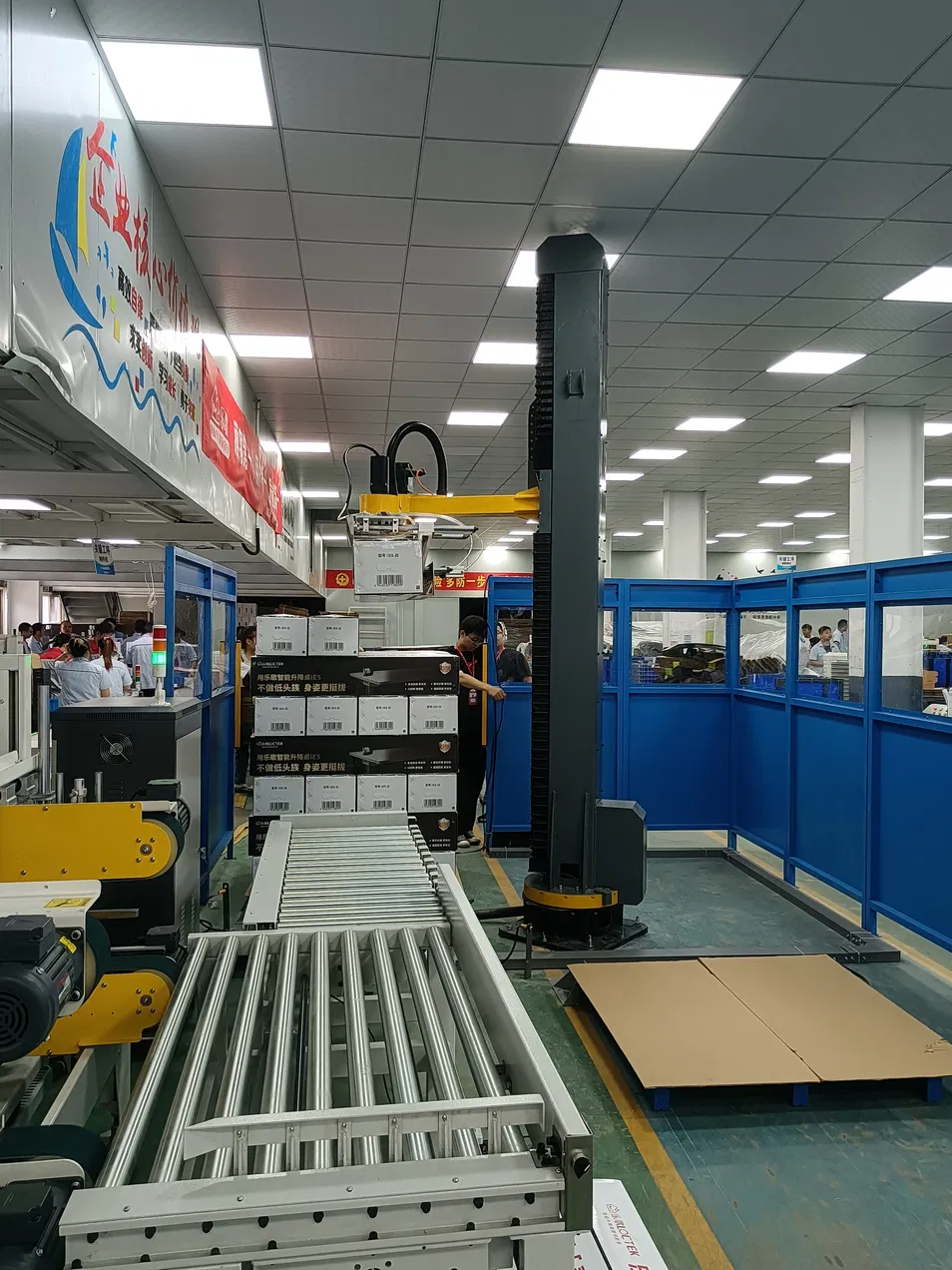

App 3 App 4

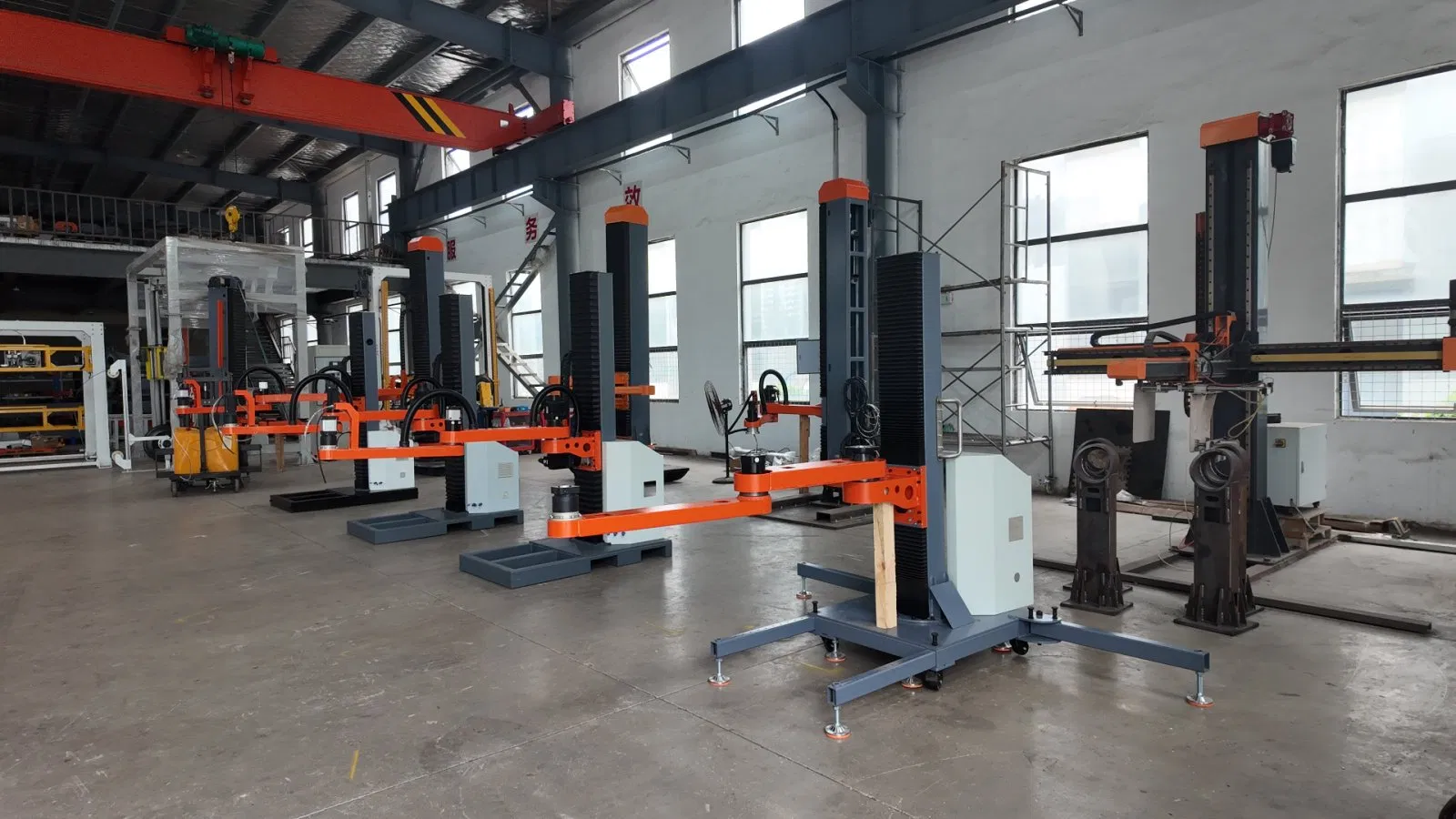

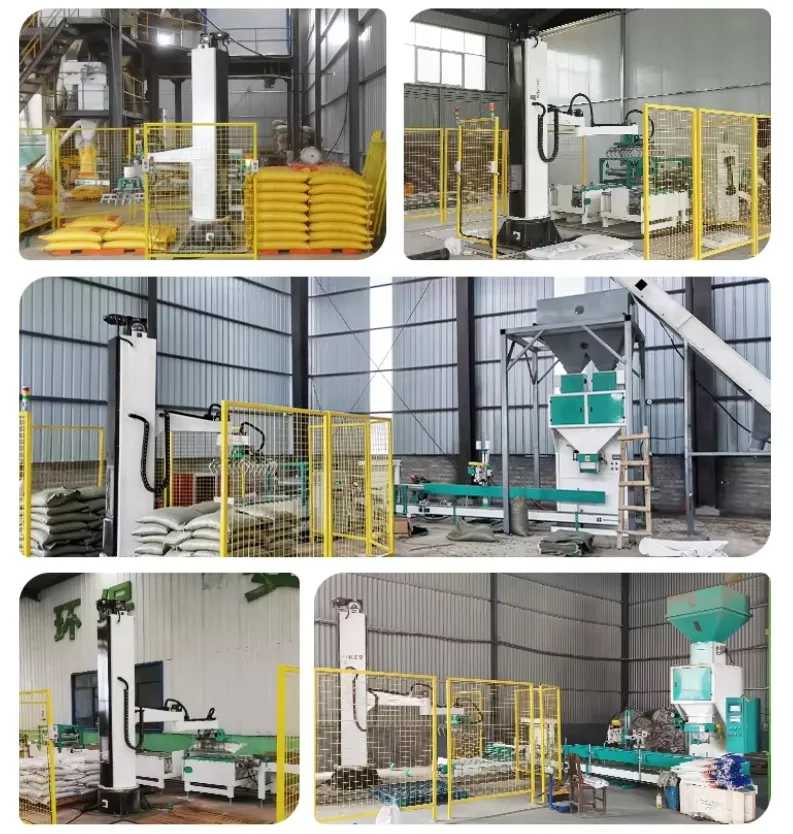

Palletizing Result Machine Structure
Frequently Asked Questions (FAQ)
What is the maximum payload of this robotic arm?
The robot is designed to handle payloads ranging from 100KG to 300KG, depending on the specific configuration.
What is the speed of the palletizing process?
The system can achieve a palletizing speed of 200 to 800 bags per hour, depending on the material and layout.
Does the machine support customized languages?
Yes, the control system comes standard with English but can be customized to other languages as per the client's requirements.
What kind of maintenance does the robot require?
This model is designed for low energy consumption and easy maintenance. The horizontal multi-joint structure reduces complexity compared to traditional bulky robots.
Is the robot gripper universal?
The robot gripper is specifically designed and customized according to the physical characteristics of your product (bags, boxes, or crates) to ensure secure handling.
What is the warranty period for the equipment?
We provide a one-year warranty on the machine, along with online service and offline installation training support.
