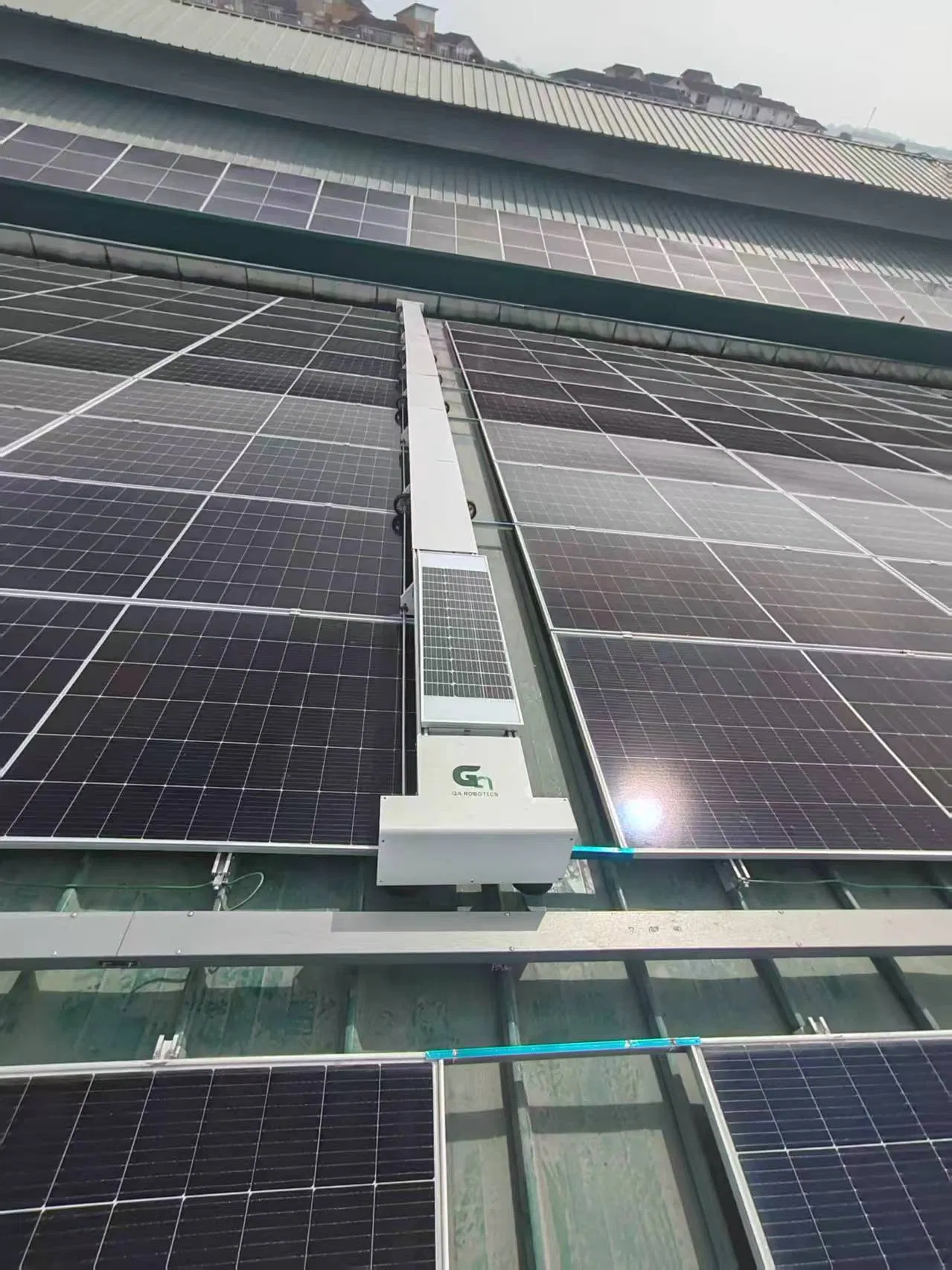

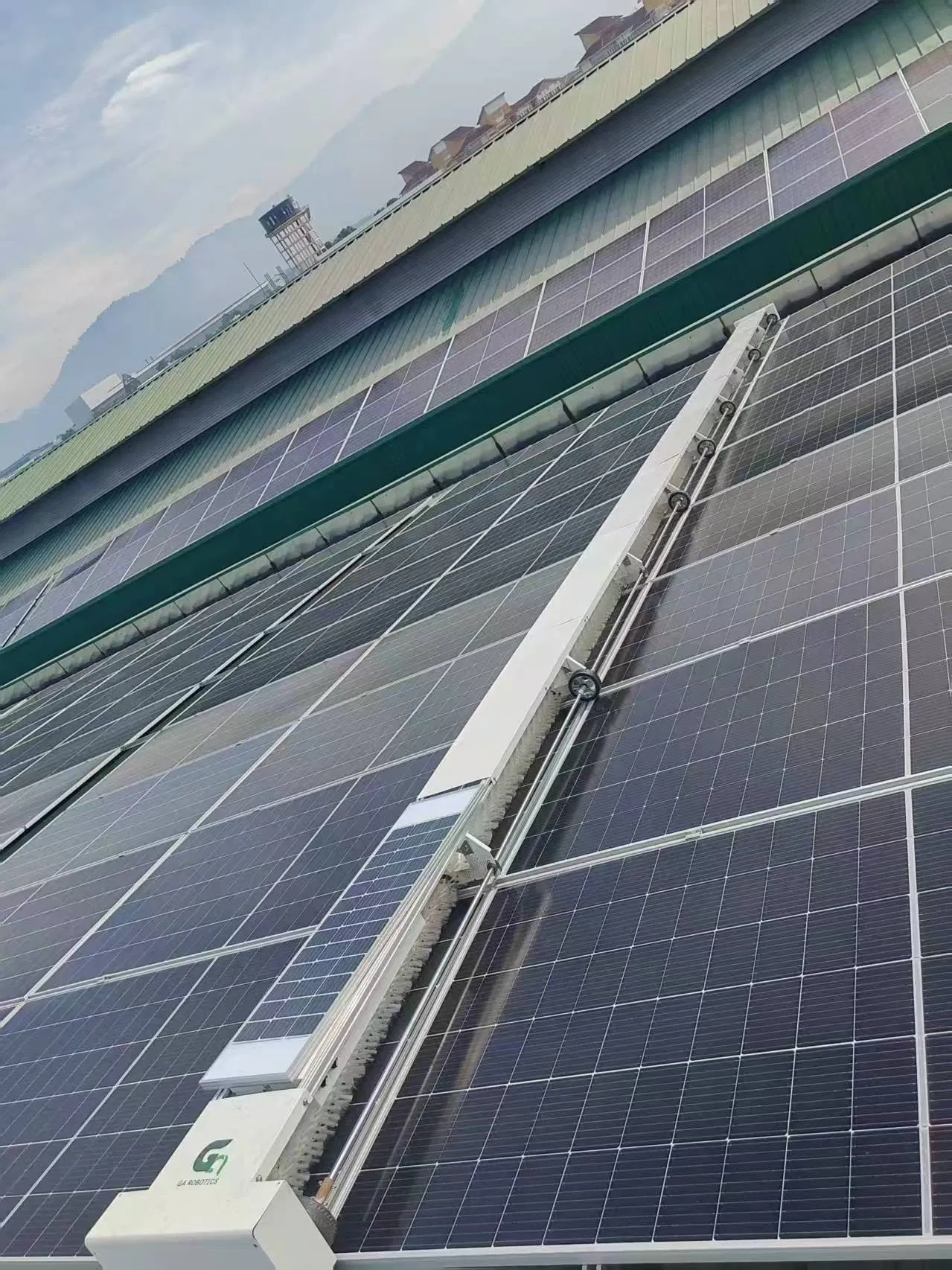

Ai-Driven Lightweight Autonomous PV Railed Cleaning Robot

Basic Information

Model NO.

S-ZTG-3310-007

Clean Type

High Pressure Cleaning

Cleaning Process

Cold Water Cleaning

Control

PLC

Customized

Fuel

Electric

Principle

Electronic Cleaning

Remote Control

With Remote Control

Style

Fixed Style

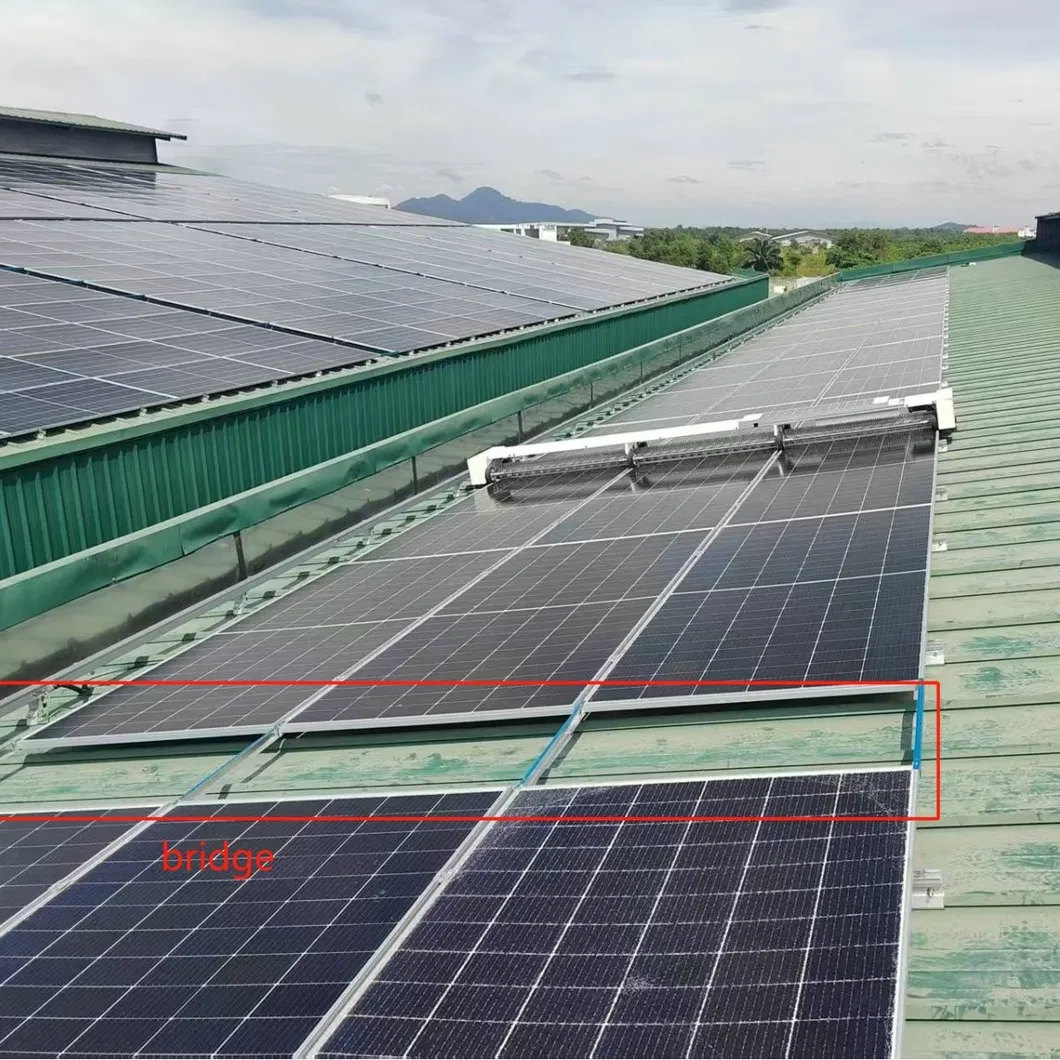

Crossing Ability

50cm

Bruh Size

1-10m

Application

Large Power Station/Roof Plant

Transport Package

Wooden Case

Specification

40KG

HS Code

84795090

Production Capacity

1000 Sets Per Year

Product Description

Solar panel cleaning robot has two control modes: automatic and manual. The manual mode supports remote control.

Solar panel cleaning robot can work alone or collaboratively over a 4G network.

Managers can remotely command and control multiple robots through the software, and the working conditions and fault conditions can also be transmitted back to managers through the wireless network to facilitate remote management and control.

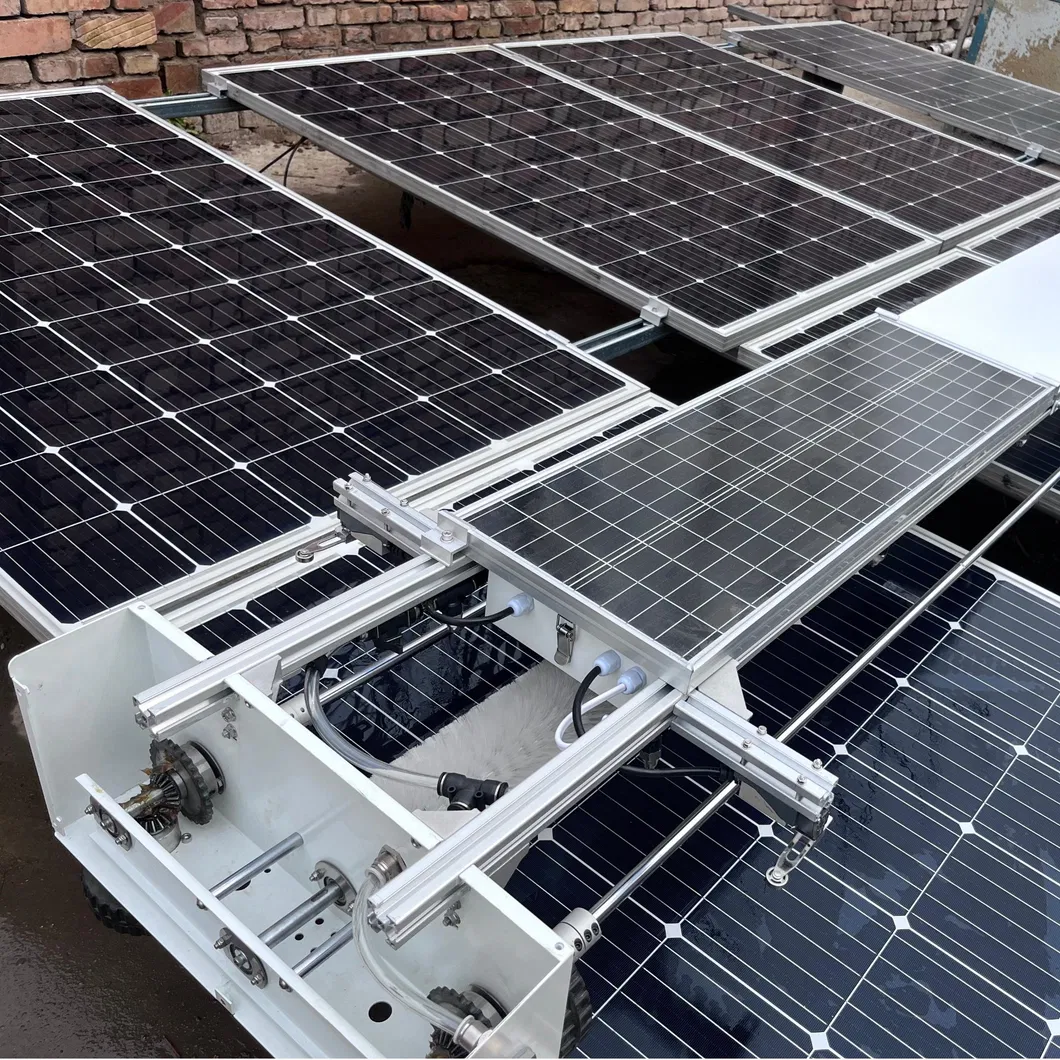

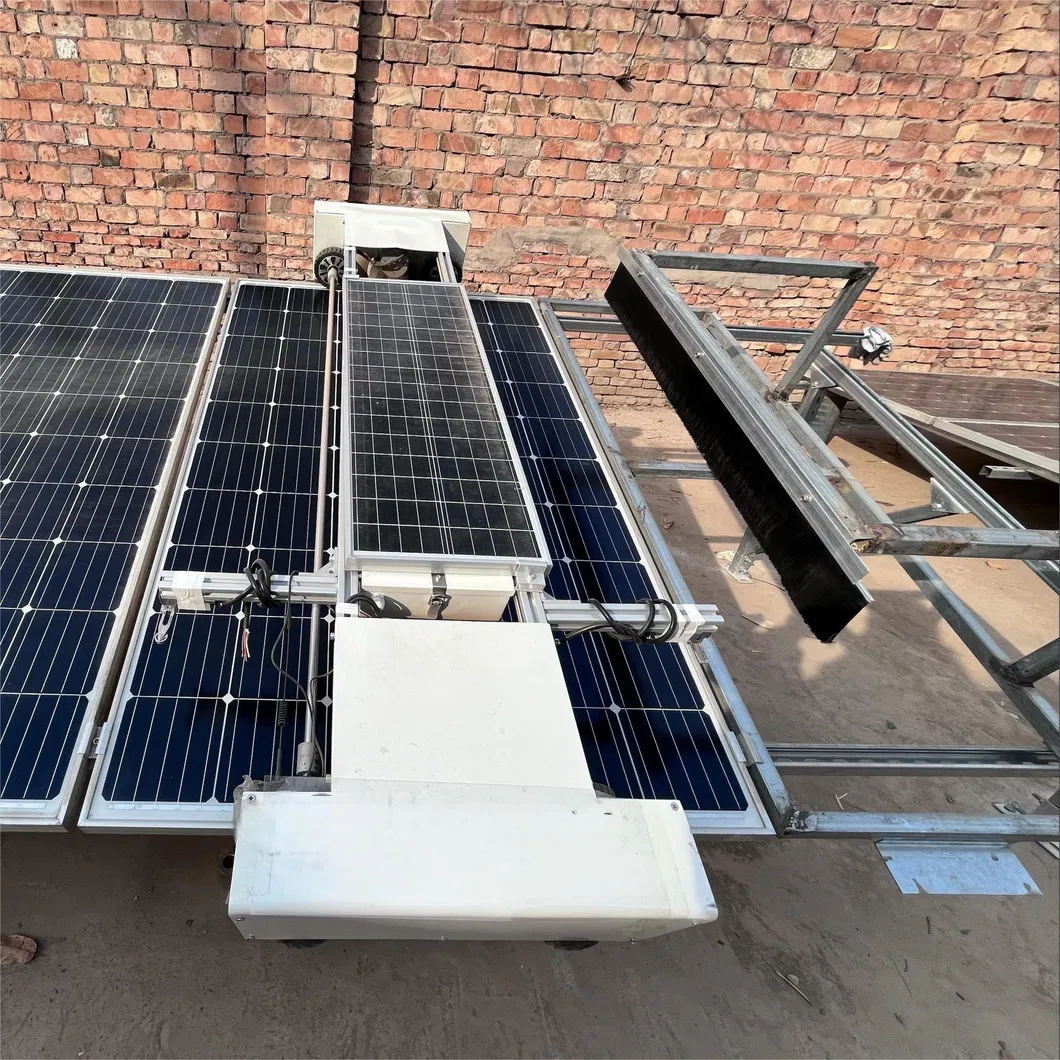

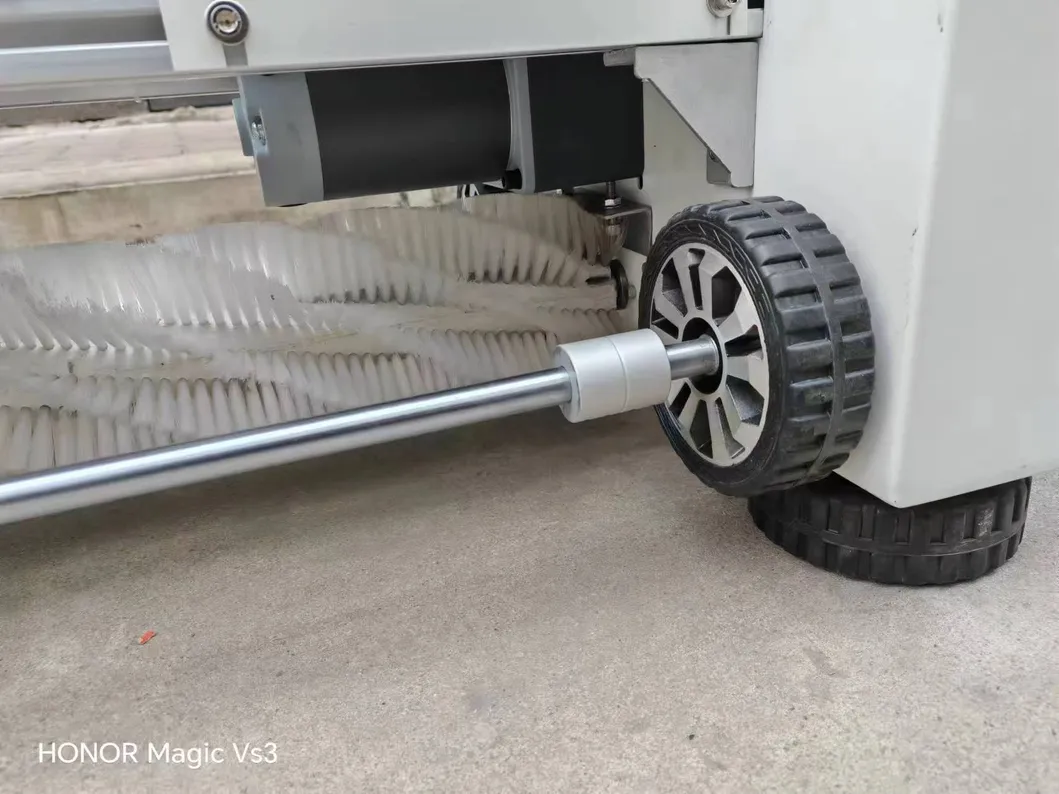

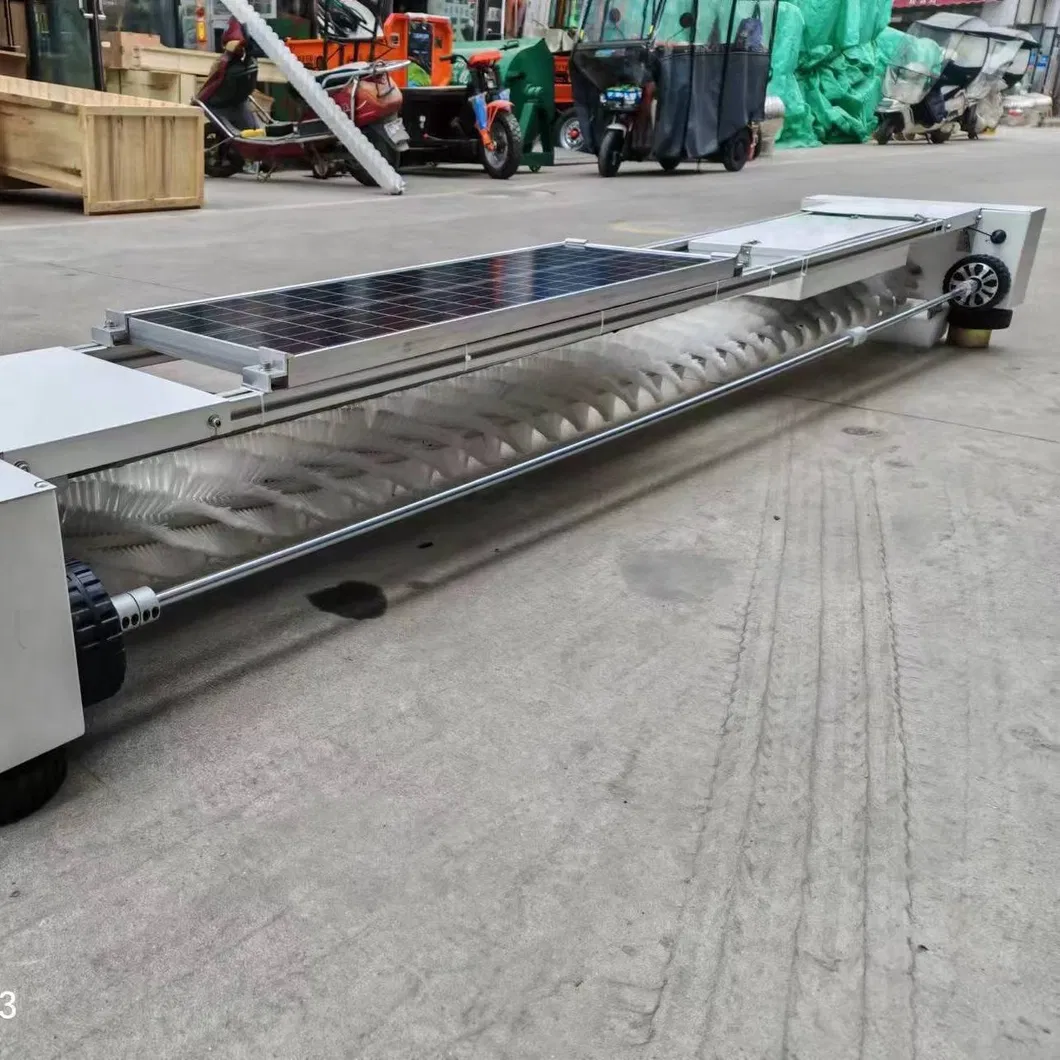

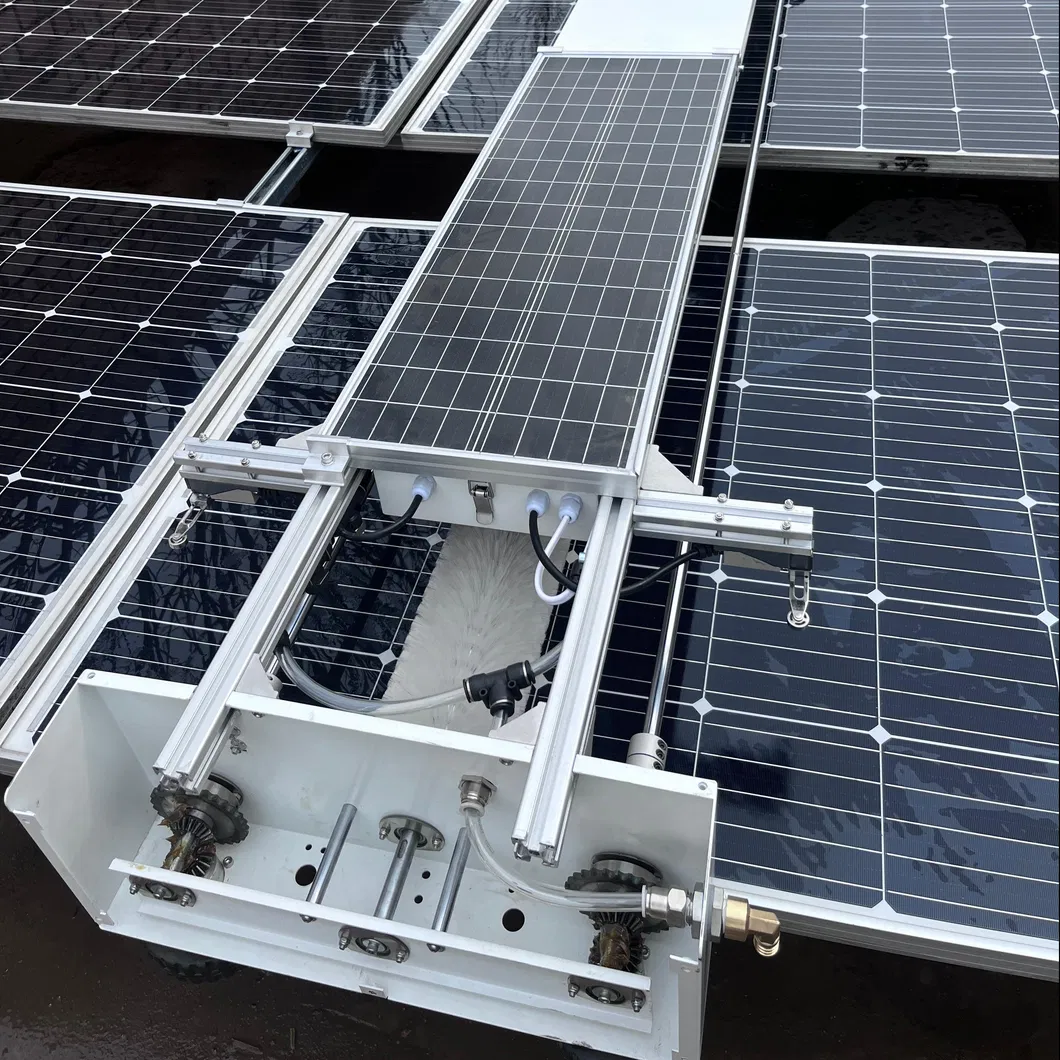

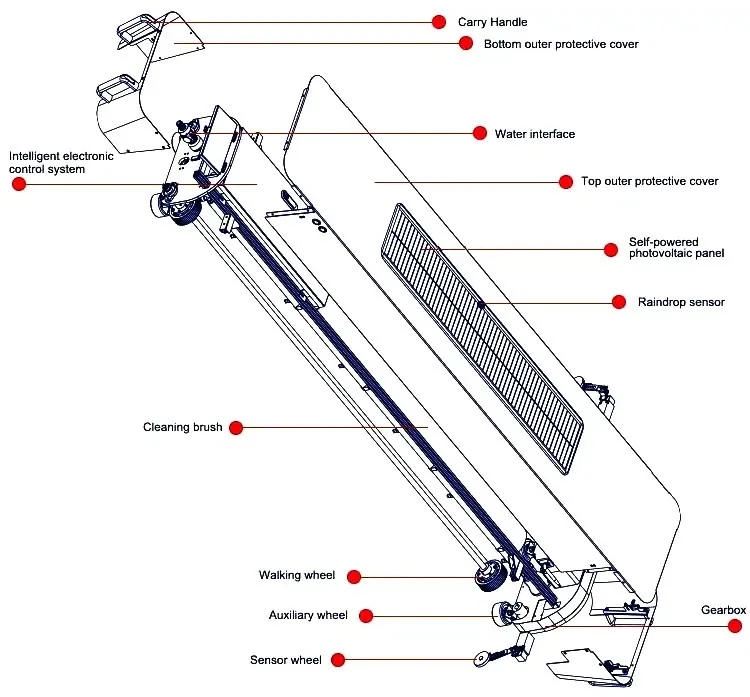

Detailed Photos

Product Parameters

Product Model	ZTG-3310
Product Name	Remote control crawler photovoltaic cleaning robot
Standard Width	400 mm
Standard Height	215 mm
Length	customizable
Power Mode	Lithium batteries, rechargeable photovoltaic panels
Rechargeable photovoltaic panel power	50W/24V
Battery Power	24V/10A
Time Required to Fill the Battery	4 hours
Design Lifetime	3-5 years
Motor Power	90 W
Network Access	4G
Cleaning Speed	14m/min
Maximum one-way Distance	600 m
Working Temperature	-20 ~ 80ºC
Boot Mode	Automatically start on time
Control Mode	Automatic, manual, remote control
Control Platform	Remote service platform + mobile APP
Night Work	Support

Our Advantages

✔1. High cleaning efficiency
✔2. High degree of intelligence
✔3. Comes with solar power generation, charging and storage devices, self-powered without external power supply, works around the clock
✔4. Strong adaptability, suitable for a variety of areas and terrains
✔5. Automatic/manual control modes, manual mode can be controlled remotely
✔6. Automatic cleaning time and frequency can be set independently according to region or season
✔7. Automatic speed stabilization, the forward speed of the equipment matches the speed of the brush motor to improve cleaning quality
✔8. Waterproof, dustproof and fogproof levels
✔9. Equipment components are standardized, easy to transport, install and debug, and parts are easy to replace

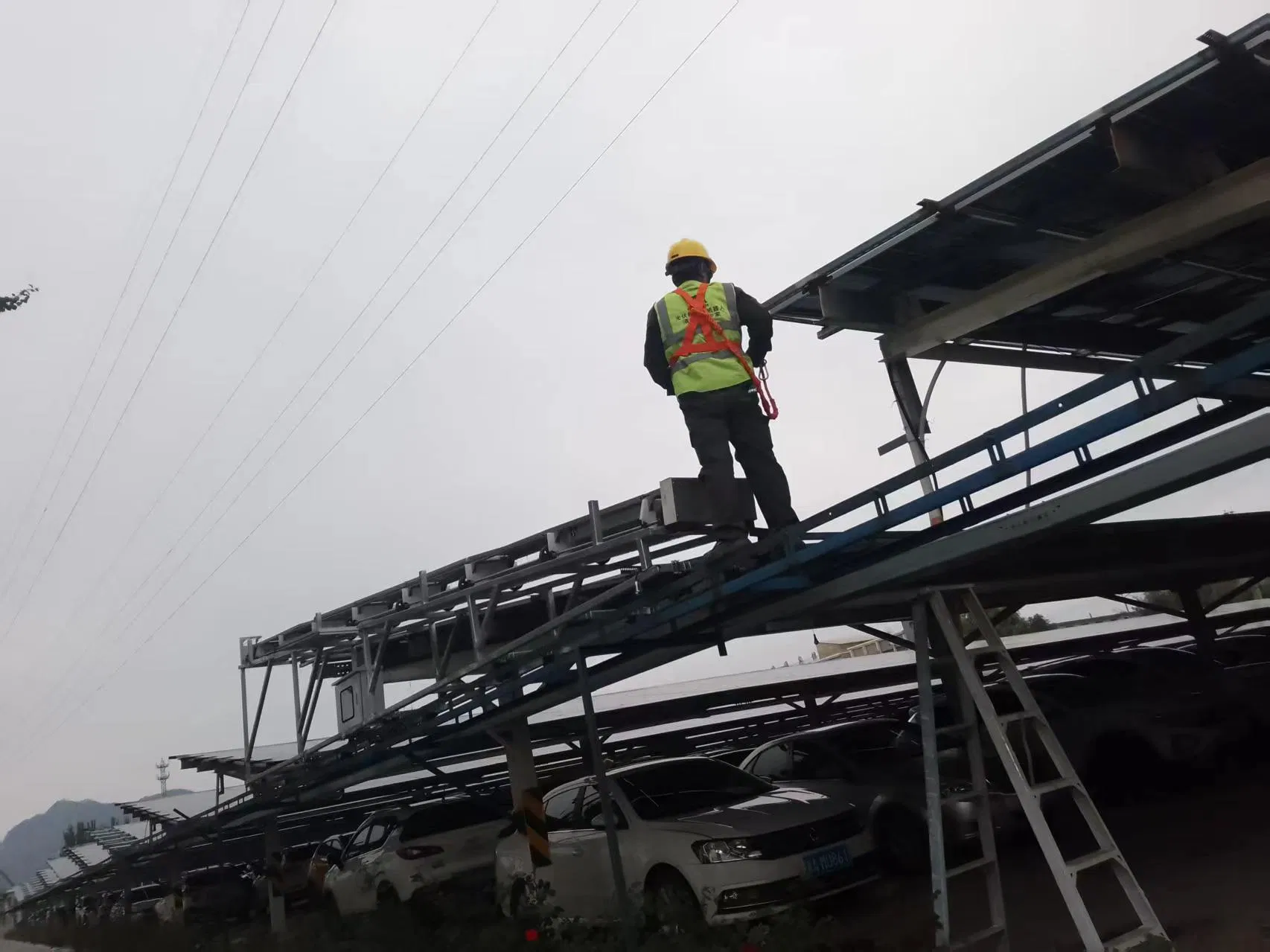

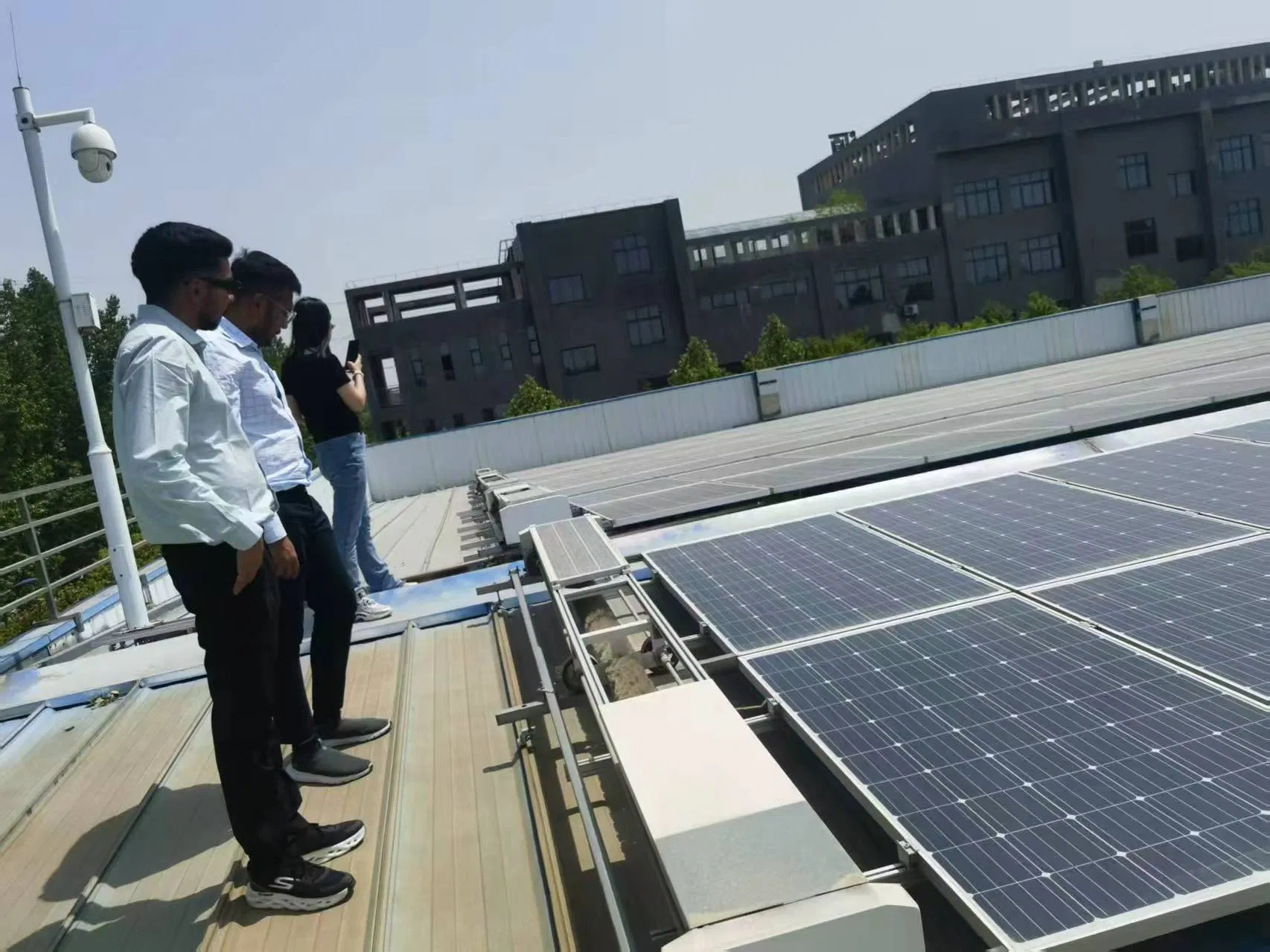

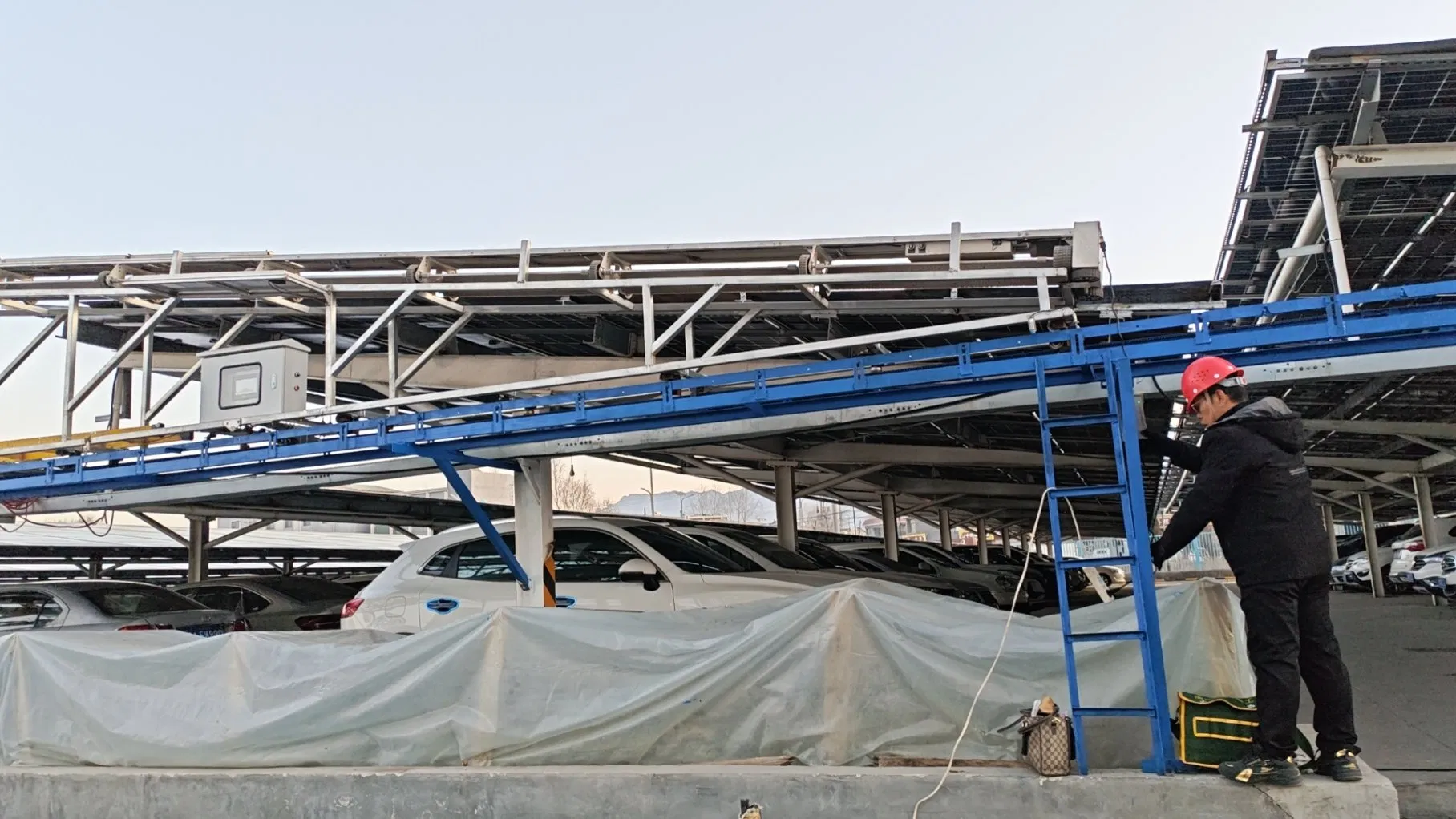

Application Scenarios

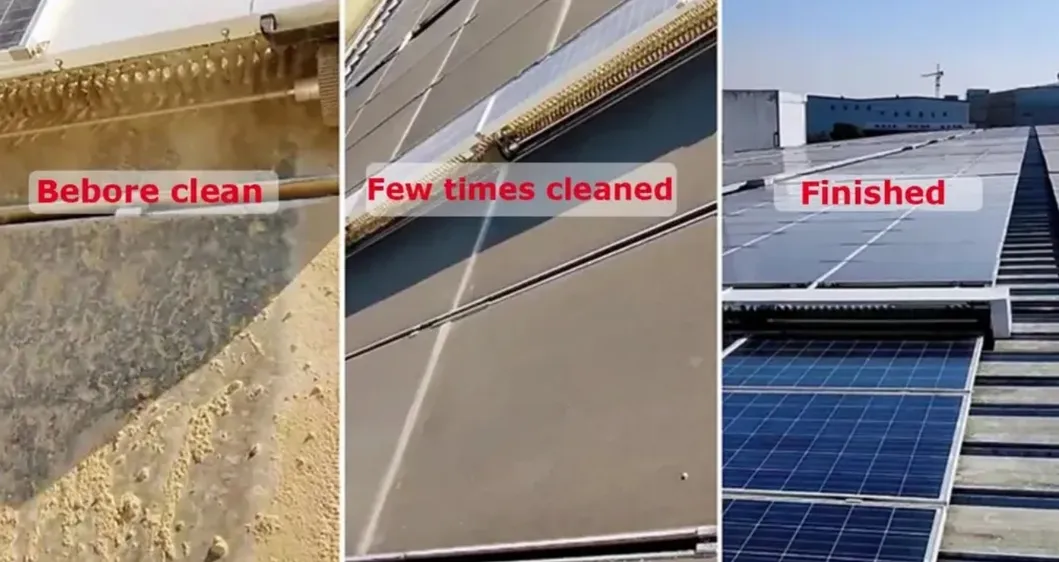

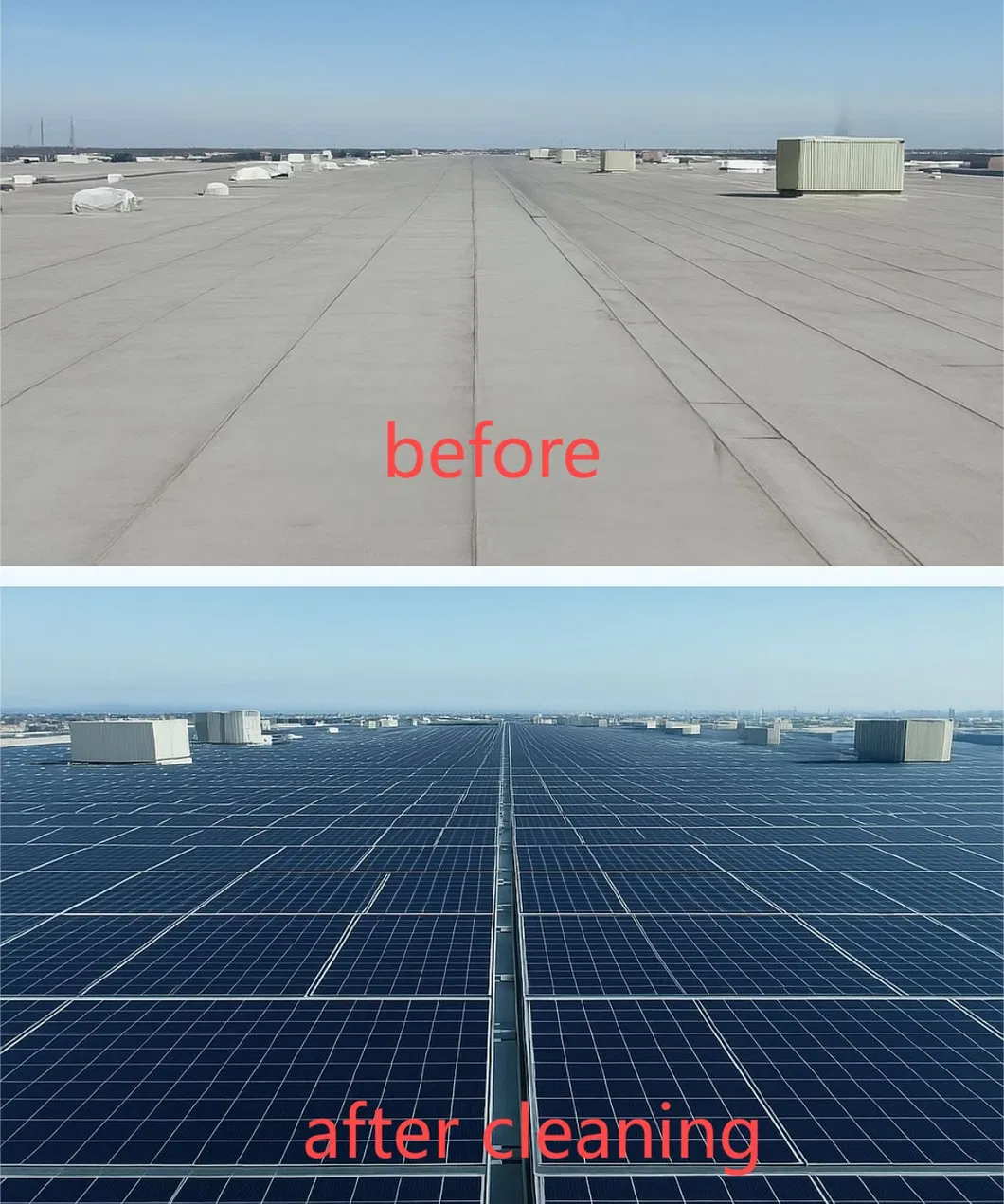

Before and After Cleaning

Packaging & Shipping

Packaging details:

1. Outer packaging: standard sea export bakelite box;
2. Inner packaging: stretch film, moisture-proof plastic film;
3. Customized according to your requirements.

Shipping:

1. Port: Tianjin, Qingdao, Shanghai, or other ports according to your requirements.
2. Shipping: FOB/CIF/DDU quotations are available.
3. Mode of transportation: Logistics; by car; by train; by transportation; by air, etc.

Frequently Asked Questions

Will the robot hit walls or obstacles during operation?

This will not happen under normal circumstances. Human operations will be controlled by humans requiring basic understanding of operation. The fully automatic system is controlled by induction to prevent collisions.

Can it work on rainy days after installation?

Fully automatic equipment can operate on rainy days. However, human-operated cleaning is not recommended on rainy days to protect personnel safety from lightning and other hazards.

Which robots can be made into crawlers? Are they low cost?

Both options are possible. Crawler tracks are primarily used because they provide high cleaning friction and a superior cleaning effect.

How does this equipment compare with peers?

Our equipment is designed to be more efficient, durable, and reliable, focusing on long-term performance and stability in various environments.

Can debris like leaves be detected by electricity generation levels?

Debris covering a large area can be identified through monitoring systems by observing changes in power generation. Small area debris might not always trigger a monitorable change.

Is the robot easy to maintain?

Yes, the equipment components are standardized, making them easy to transport, install, and debug, with parts that are simple to replace when needed.
