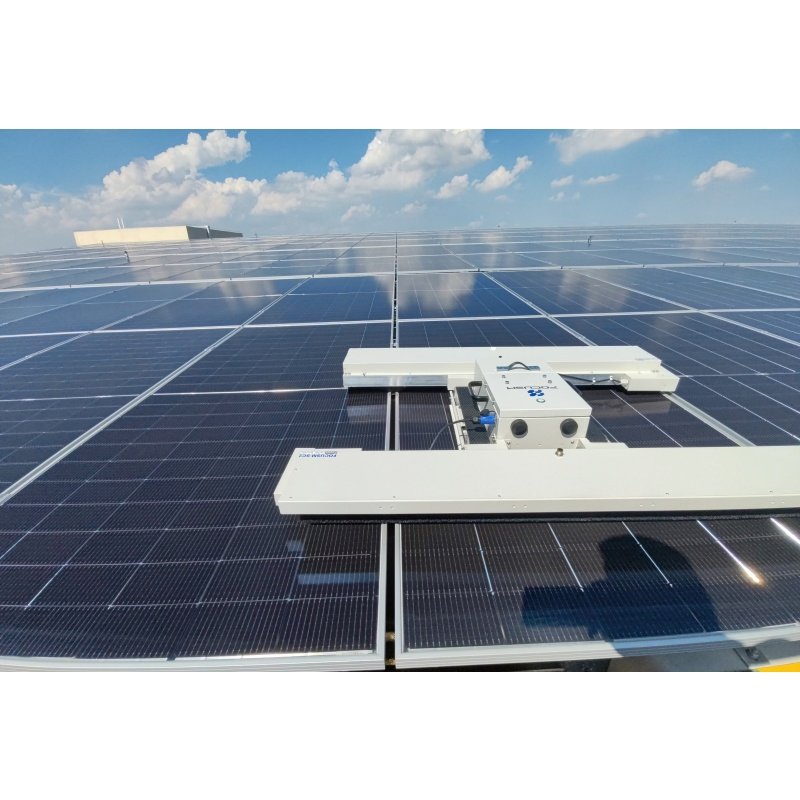

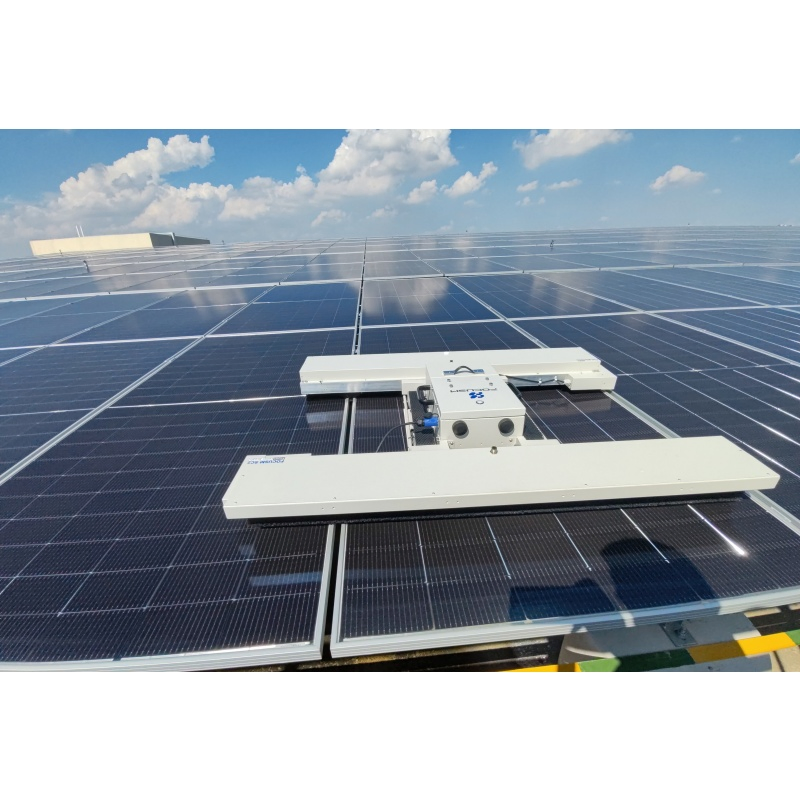

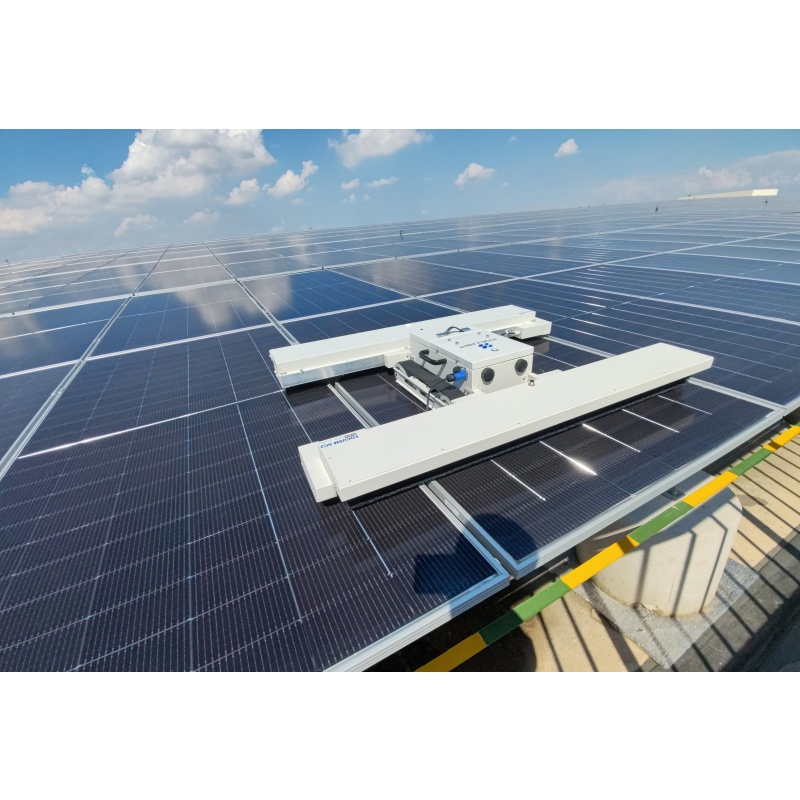

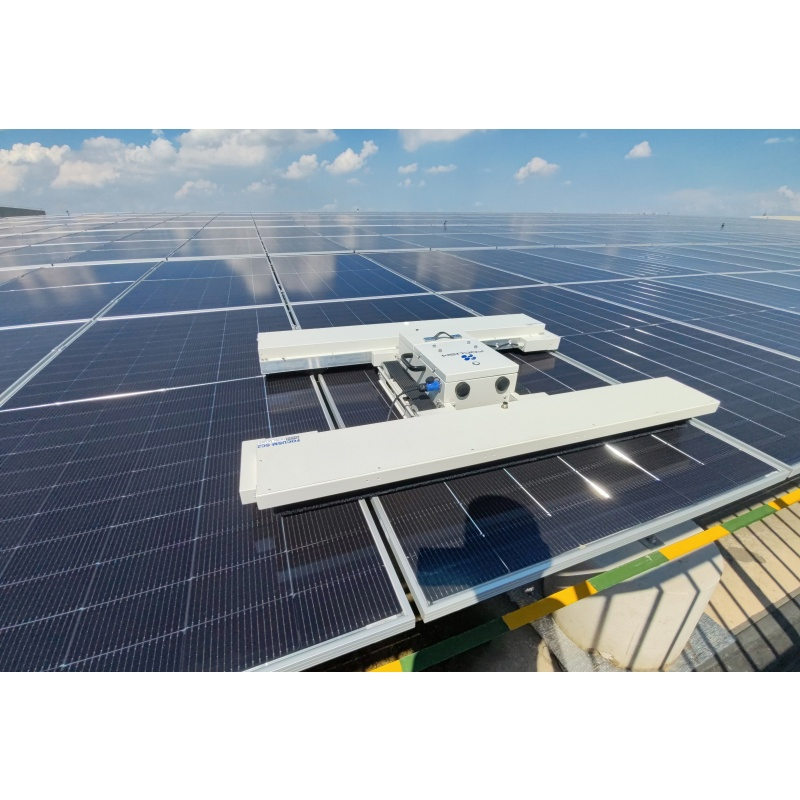

Utility-Scale Ai-Driven PV Trackless Hybrid Cleaning Remote-Controlled Robot

1 / 4

Utility-Scale Ai-Driven PV Trackless Hybrid Cleaning Remote-Controlled Robot

Customization:	Available
After-sales Service:	1 Year
Automation:	Automatic

Send Inquiry

Product Description

ℹ Basic Information

Model NO.

PV Trackless Cleaning Robot

Fuel

Electric / Diesel

Principle

Physical Cleaning

Weight

2200kg

Working Hours

More Than 8h (Full Tank)

Cleaning Efficiency

4MW/H

Cleaning Speed

1-2km/H

Max. Gradeability

≤90%

Fuel Tank Capacity

100L

Dimensions

2255mm * 5810mm * 3355mm

⚙ Product Description

Our Utility-Scale AI-Driven PV Trackless Hybrid Cleaning Remote-Controlled Robot is designed for high-efficiency maintenance of large-scale solar installations. It excels in challenging terrains including saline-alkali land, snow, sandy, and muddy environments.

Width / Length / Height	2255mm * 5810mm * 3355mm
Weight	2200Kg
Maximum Speed	4Km/h
Cleaning Speed	1-2km/h
Cleaning Width	4000mm
Cleaning Efficiency	4MW/h
Working Hours	More than 8h with a full tank of oil
Fuel Tank Capacity	100L
Turning Radius	1.46m
Max. Gradeability	≤90%
Max. Cross Slope	≤30%
Temperature Range	-30~80°C

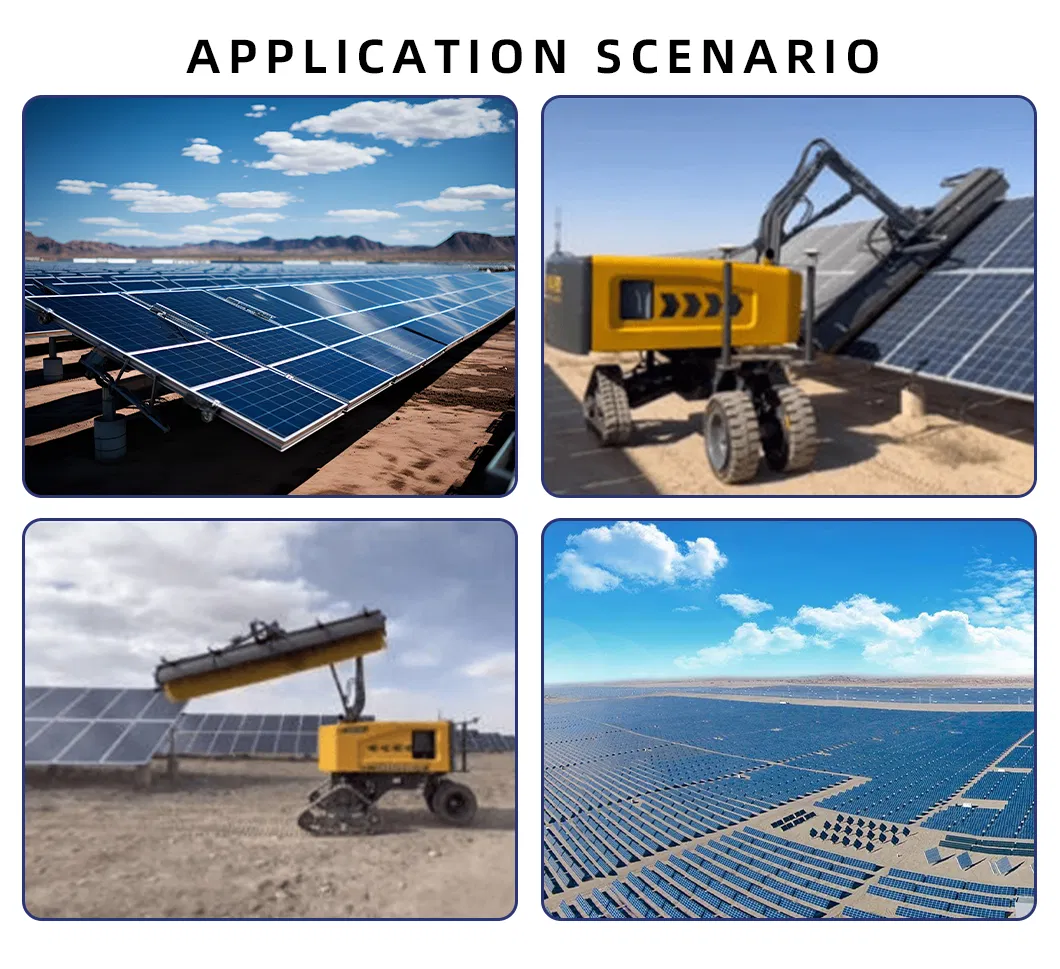

Application Site	Saline-alkali land, snow, sandy land, muddy land, riverbed

📦 Packaging & Shipping

🏢 Company Profile

Professional Innovation in New Energy

As a national high-tech enterprise, we focus on the R&D, manufacturing, and servicing of intelligent equipment for the new energy sector. Our business encompasses solar cell and module production lines alongside intelligent equipment for PV plant installation and maintenance. With a global perspective and keen forward-looking thinking, we focus on technological innovation to remain a pioneer in the PV industry.

❓ Frequently Asked Questions

1. What products are available for PV maintenance?

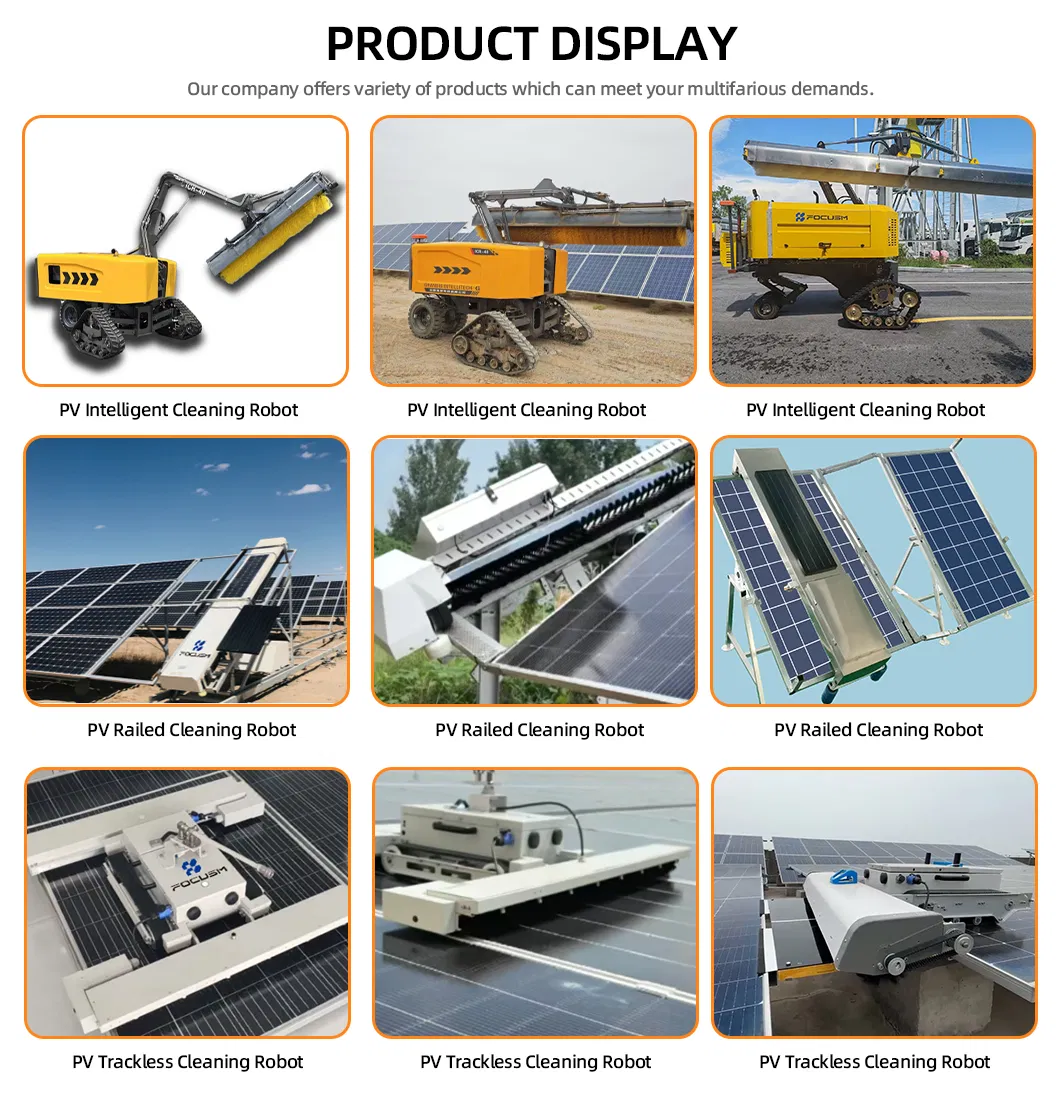

We offer five core products: Intelligent Cleaning Robots for harsh terrains, PV Railed Cleaning Robots (waterless), PV Trackless Cleaning Robots (dry/wet), Intelligent Installation Robots for rapid panel setup, and PV Intelligent Inspection systems for defect detection.

2. What are the key specs of the PV Railed Cleaning Robot?

The railed robot features a 3-hour working time, 12m/min walking speed, 30° obstacle crossing angle, and an IP65 protection level. It includes on-board charging via 55-165W solar panels.

3. Can the Trackless Cleaning Robot handle wet and dry modes?

Yes, it supports both. Dry cleaning handles up to 15° inclines, while wet cleaning supports up to 18°. The 24V 25Ah battery provides 5-6 hours of operation per charge.

4. How efficient is the Intelligent Installation Robot?

It can install one PV panel in just 40 seconds, which is approximately three times faster than manual labor. It has a maximum load capacity of 400KG for panels.

5. What defects can the Intelligent Inspection system identify?

The system detects eight types of defects, including four types of hot spots (point-like, all-red, horizontal, vertical), thick dust, shading, bird droppings, and physical module damage with over 95% accuracy.

6. What terrains are suitable for the Trackless Cleaning Robot?

This robot is highly versatile and can operate in saline-alkali land, snow-covered areas, sandy terrain, muddy ground, and riverbeds.
