| Model NO. | S-ZTBX-1705-057 |
| Clean Type | High Pressure Cleaning |
| Cleaning Process | Cold Water Cleaning |
| Control | CNC |
| Fuel | Electric |
| Style | Crawler Style |
| Specification | 1300*1200*480 mm |
| Production Capacity | 5000PCS Pieces/Month |

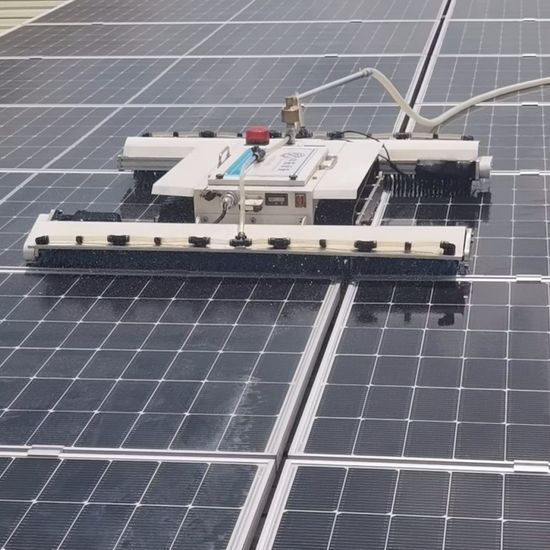

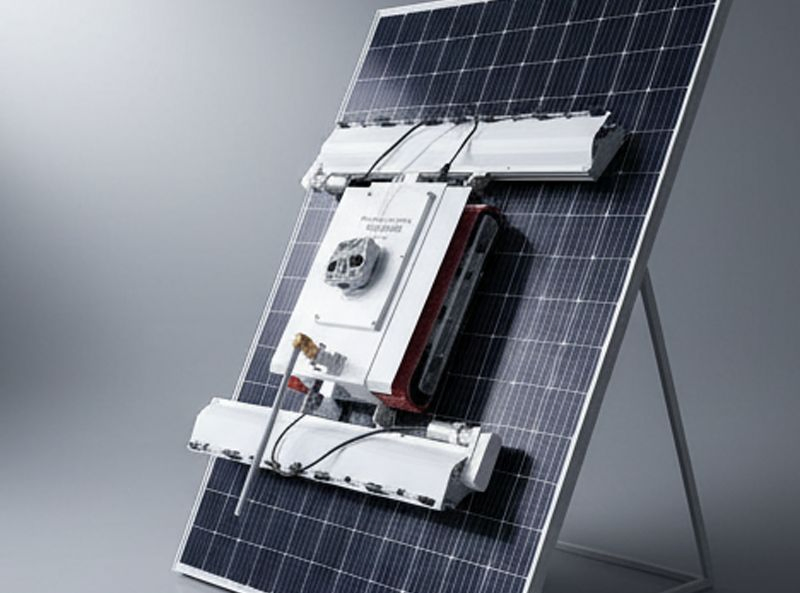

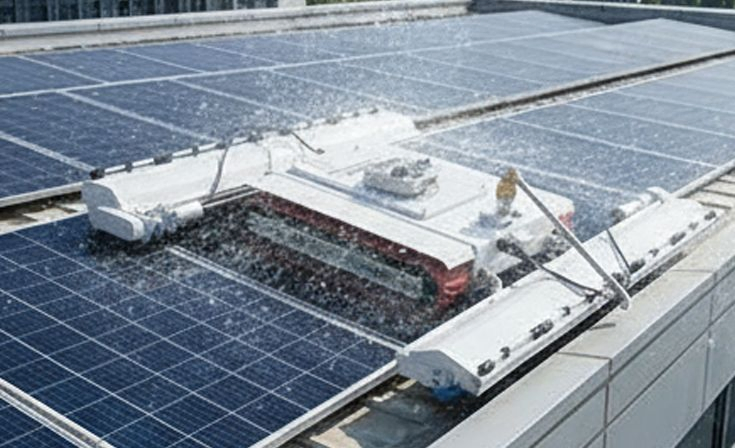

This intelligent portable cleaning robot is primarily designed for the efficient cleaning and dust removal of photovoltaic modules. Featuring a modular design, it ensures easy transport, rapid installation, and seamless commissioning. Equipped with a high-speed roller brush made of specialized polymer material, it provides fast cleaning across large areas without causing any damage to the photovoltaic panels.

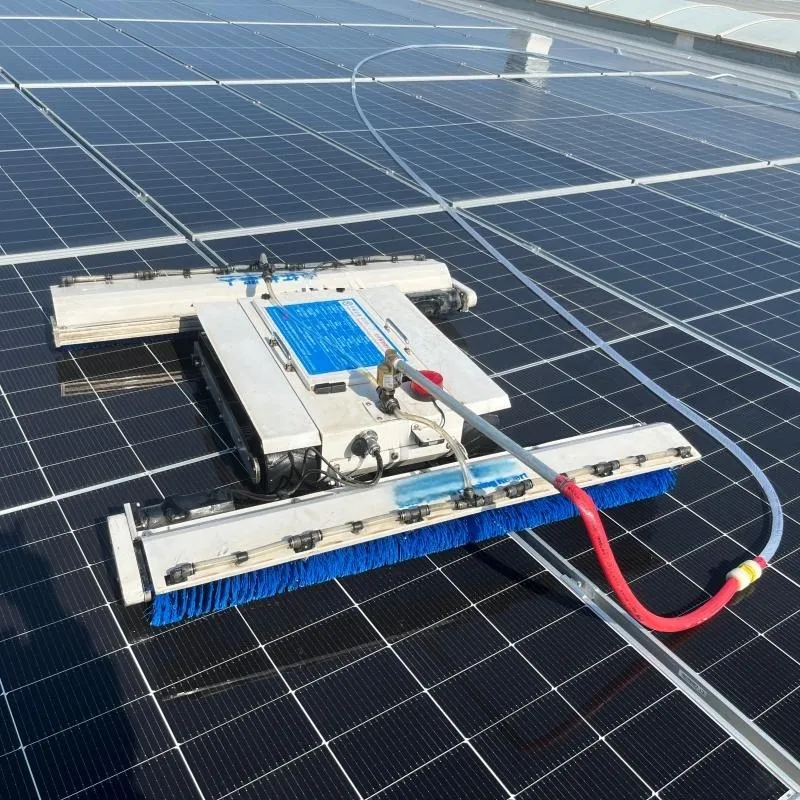

The anti-fall system is equipped with 4 high-precision sensors on the front and rear ends. When it moves to the edge area of the photovoltaic panel, it will automatically stop and the drop detection indicator light will light up. The robot can be safely operated via remote control to reverse direction, effectively eliminating the risk of falling.

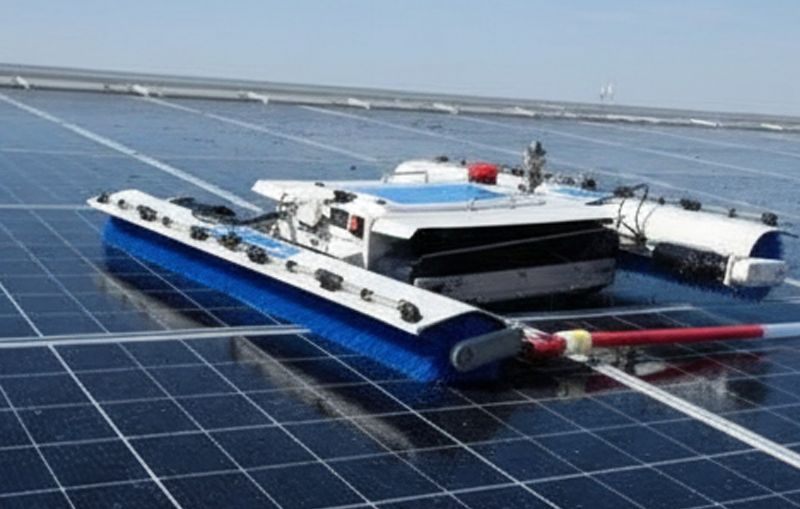

The photovoltaic cleaning robot is equipped with a 1200mm long soft brush with high cleaning efficiency, capable of covering up to 1.2MW per day. Made of soft nylon material, it ensures a thorough clean while maintaining the integrity of the solar panels.

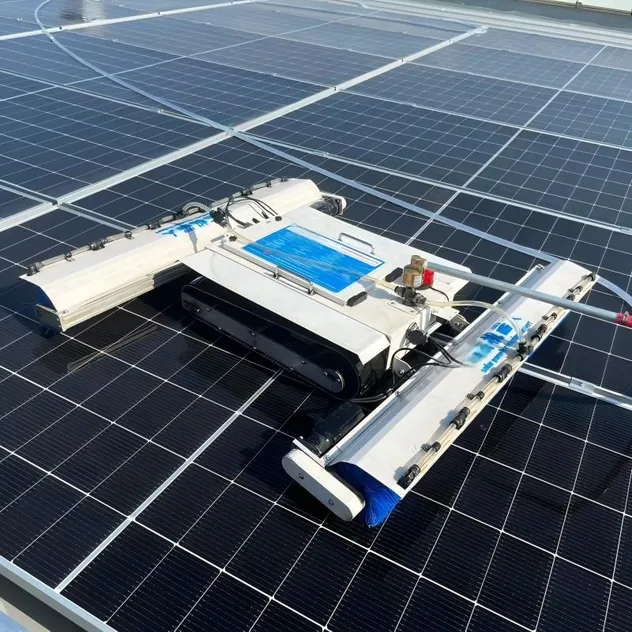

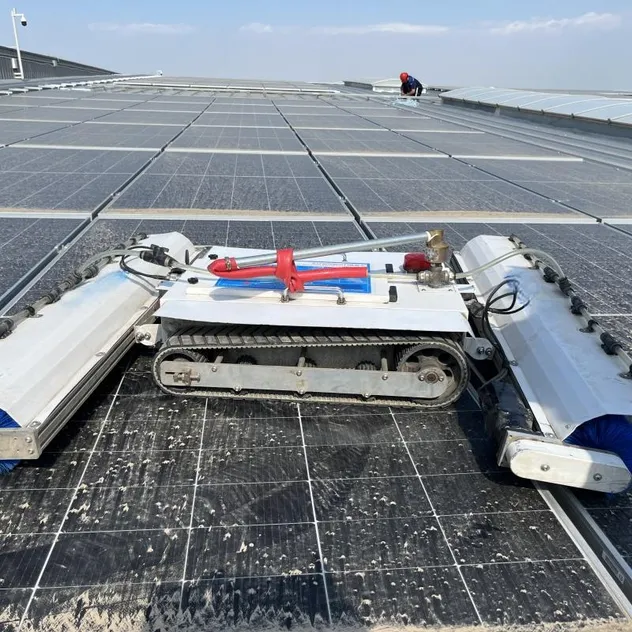

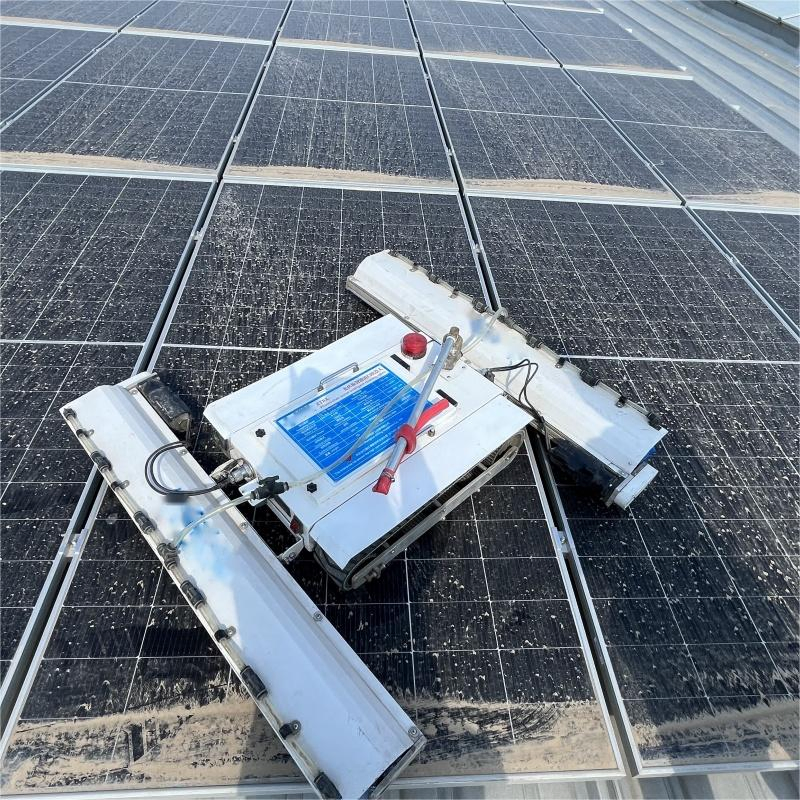

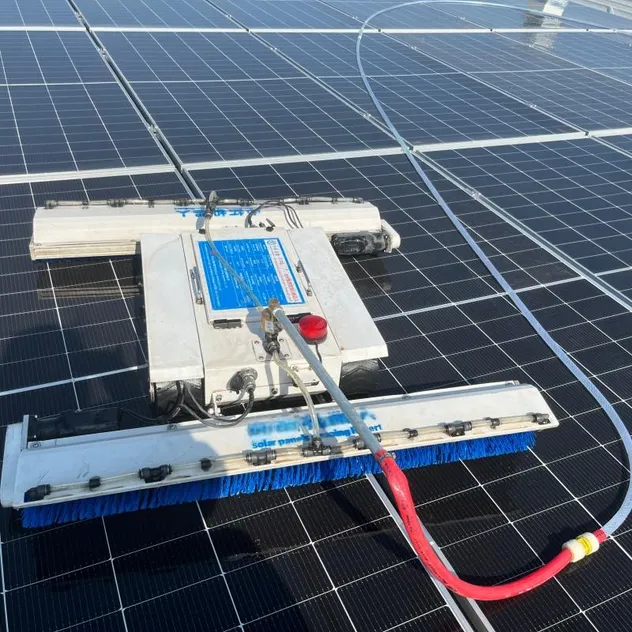

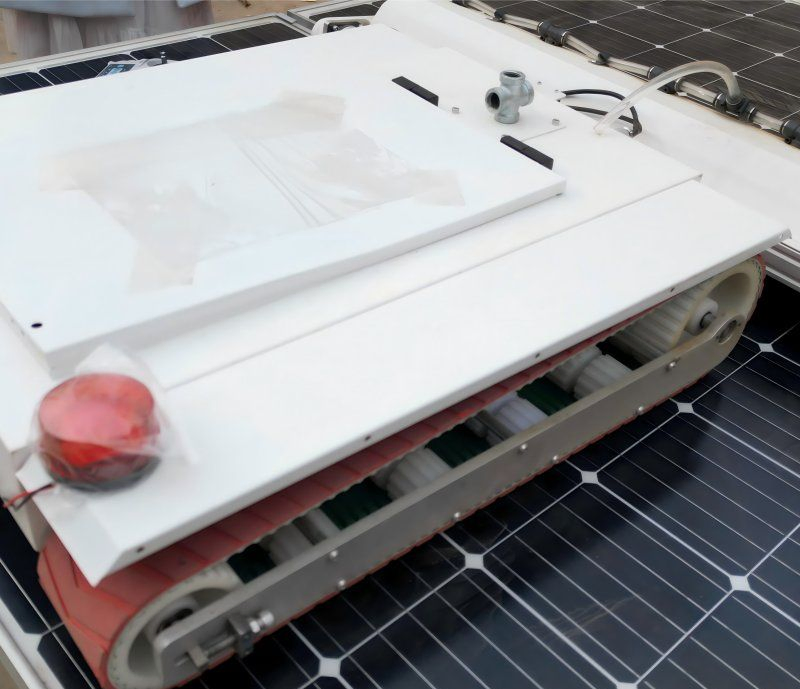

Utilizing a robust crawler chassis, the robot can move forward, backward, and turn in any direction under remote control. This allows for comprehensive cleaning operations without blind spots, even in complex photovoltaic array layouts.
| Battery | 50AH.24V×2 (Lithium battery) |
| Efficiency | 1200 Square meter per hour |
| Travel Speed | 0-20 m/min |
| Cleaning Width | 1100mm |
| Endurance | 6 hours |
| Cleaning Type | Washing / Dry cleaning |
| Working Angle | ≤20° |
| Water Consumption | Max 30L/min |
| Weight | 52kg (excluding battery) |
| Dimensions | 1200mm*1200mm*180mm |

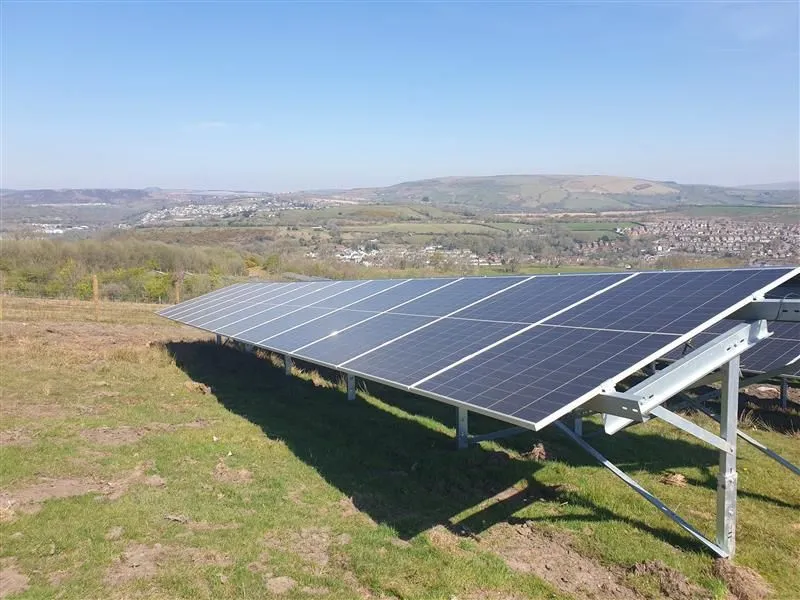

Ideal for large ground-based power stations with vast areas and complex terrain. Our intelligent robots handle cleaning tasks involving long distances and multiple rows of arrays. Strong climbing capabilities allow adaptation to various terrain undulations.
Established in 2015, we are a technology-based enterprise integrating research, development, production, and sales of photovoltaic cleaning equipment. With a decade of expertise, we combine professional mechanical design with practical experience in solar panel maintenance. All products adhere to ISO9001 Quality Management standards and carry CE certification.
