Ai-Driven Intelligent Autonomous Solar Ai-Vision Panel Installation Rtk-GPS Fusion Robot

Customization:	Available
Application:	Automotive, Electronics, Food and Beverage, Logistics, Pharmaceutical
Control Mode:	Continuous Path Control

Send Inquiry

Product Description

📊

Basic Information

Degrees of Freedom

4-axis

Drive Mode

Electric

Payload Capacity

200 kg

Vehicle Dimension

1802mm*1108mm*874mm

Maximum Speed

4.4km/H

Installation Speed

40sec/Panel

Max. Load

400kg

Motor Type

48V Brushless DC Motor

Origin

China

Production Capacity

2000 Units/Year

🤖

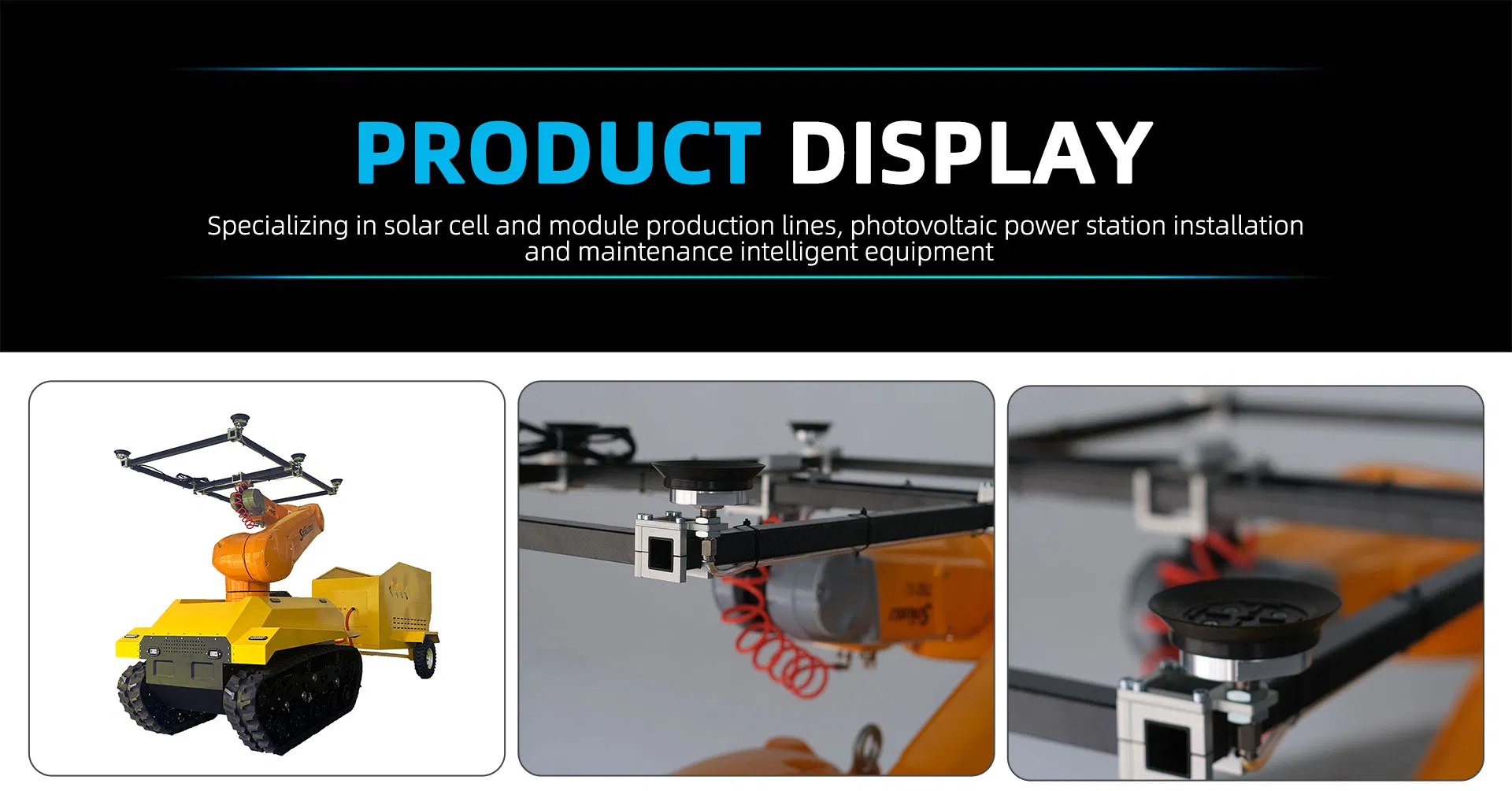

Product Showcase

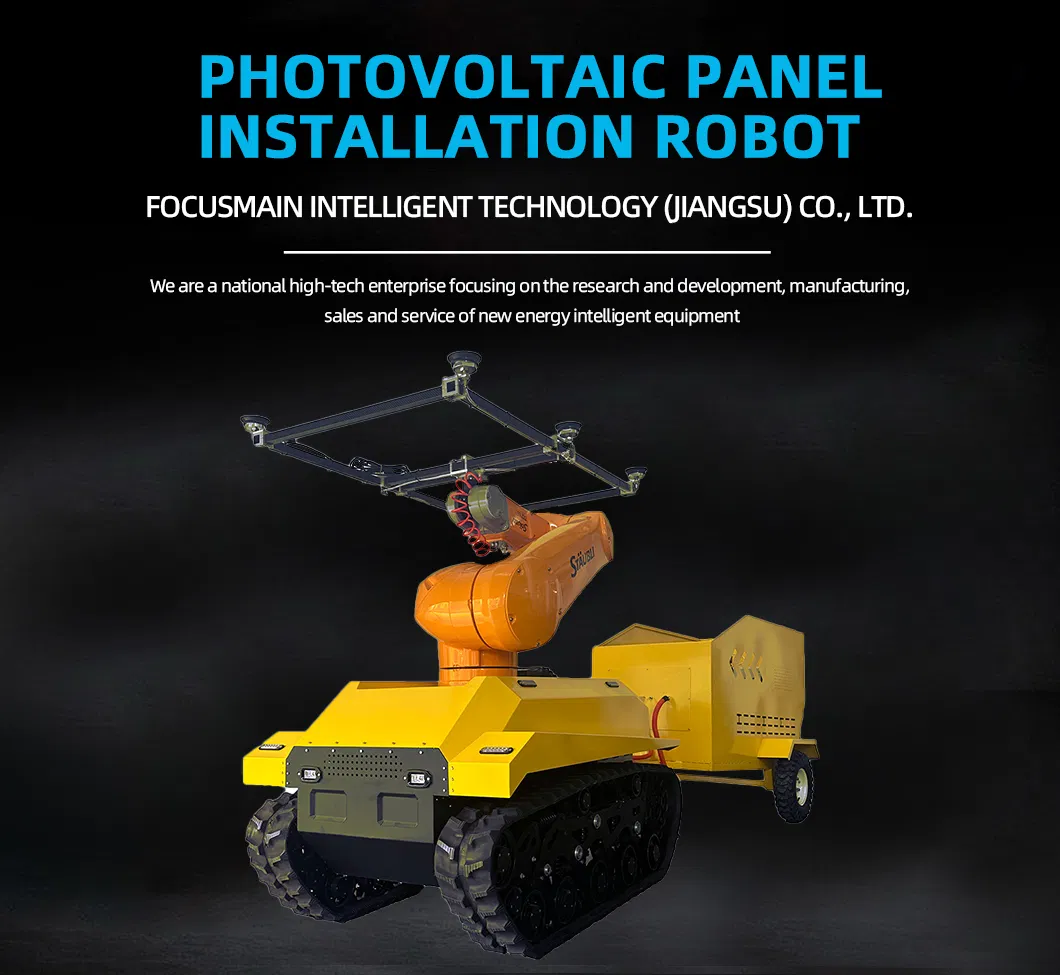

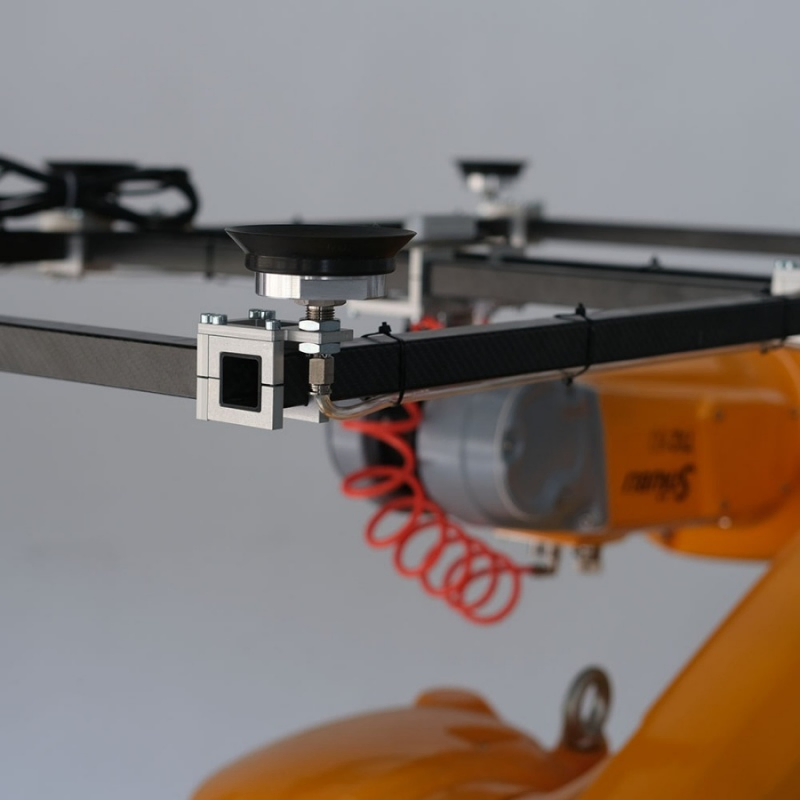

Autonomous Solar Panel Installation Robot

📋

Technical Specification

Overall Size: Width 1163mm * Length 3969mm * Height 1259mm
Ground Clearance	193mm
Track Width / Shoe Width	588mm / 200mm
Drive Wheel Diameter	255mm
Chassis Weight	392Kg
Max. Climb Slope	15°
Pressure to Ground	1095mm
Robot Load	30-40KG
Battery Capacity	40kwh
Working Hours	>6h with full charged battery
Motor	2 * 3000W 48V Brushless DC
Rated Torque	487N·m
Ingress Protection	IP64
Surface Protection	Yellow Plastic Spray

🏢

Industrial Expertise

Located in the capital of new energy, our enterprise is a national high-tech, specialized entity focusing on R&D, manufacturing, sales, and service of new energy intelligent equipment. Our expertise covers solar cell & module production lines and intelligent equipment for PV plant installation and maintenance. With a global presence and forward-looking strategy, we focus on technological innovation to be a pathfinder in the PV industry.

📦

Packaging & Certifications

❓

Frequently Asked Questions

What are the key specs of the PV Railed Cleaning Robot?

Working time exceeds 3 hours per charge with a walking speed of 12m/min. It features IP65 protection, 30° obstacle crossing, and operates in temperatures from -20 to 60℃.

What payment methods are accepted?

We accept T/T (Telegraphic Transfer) for most orders, L/C (Letter of Credit) for large scale orders, and PayPal or Xtransfer for fast sample processing.

How long does shipping take?

In-stock standard products take 3-7 days. Out-of-stock items require 30-45 days for production, while custom products typically take 45-60 days.

What is the warranty coverage?

Standard warranty is 1 year. For specific equipment like the PV Trackless Cleaning Robot, the warranty is 1 year or 3000 working hours.

Is there a Minimum Order Quantity (MOQ)?

Standard PV Railed/Trackless models have an MOQ of 1 set. Large intelligent installation equipment requires 2 sets, and custom products start at 3 sets.

Is a deposit required for production?

Yes, a 30%-50% deposit is required. Refunds are available (minus small fees) if production hasn't started; however, once production is complete, we provide options to adjust specs or ship the goods.
