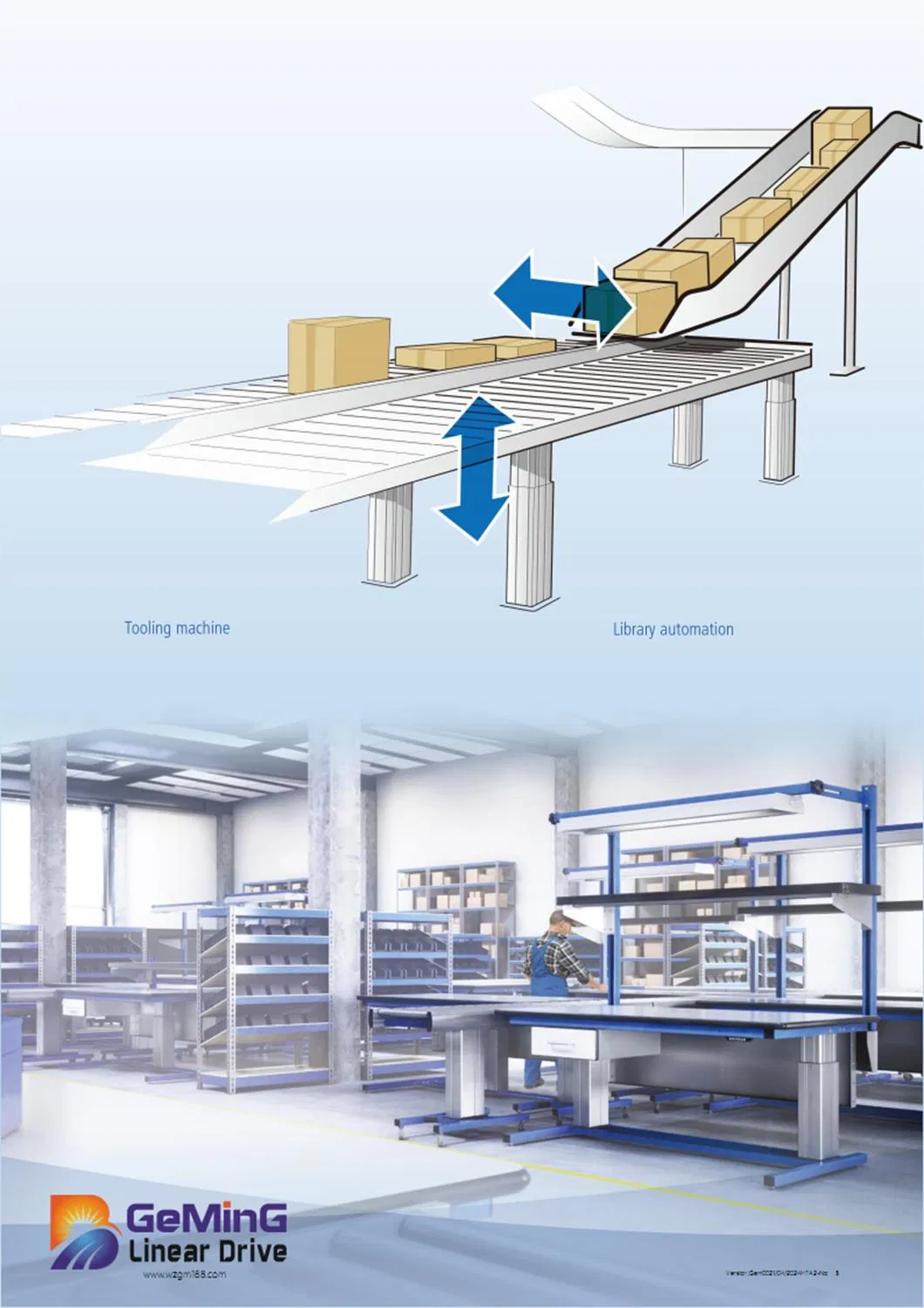

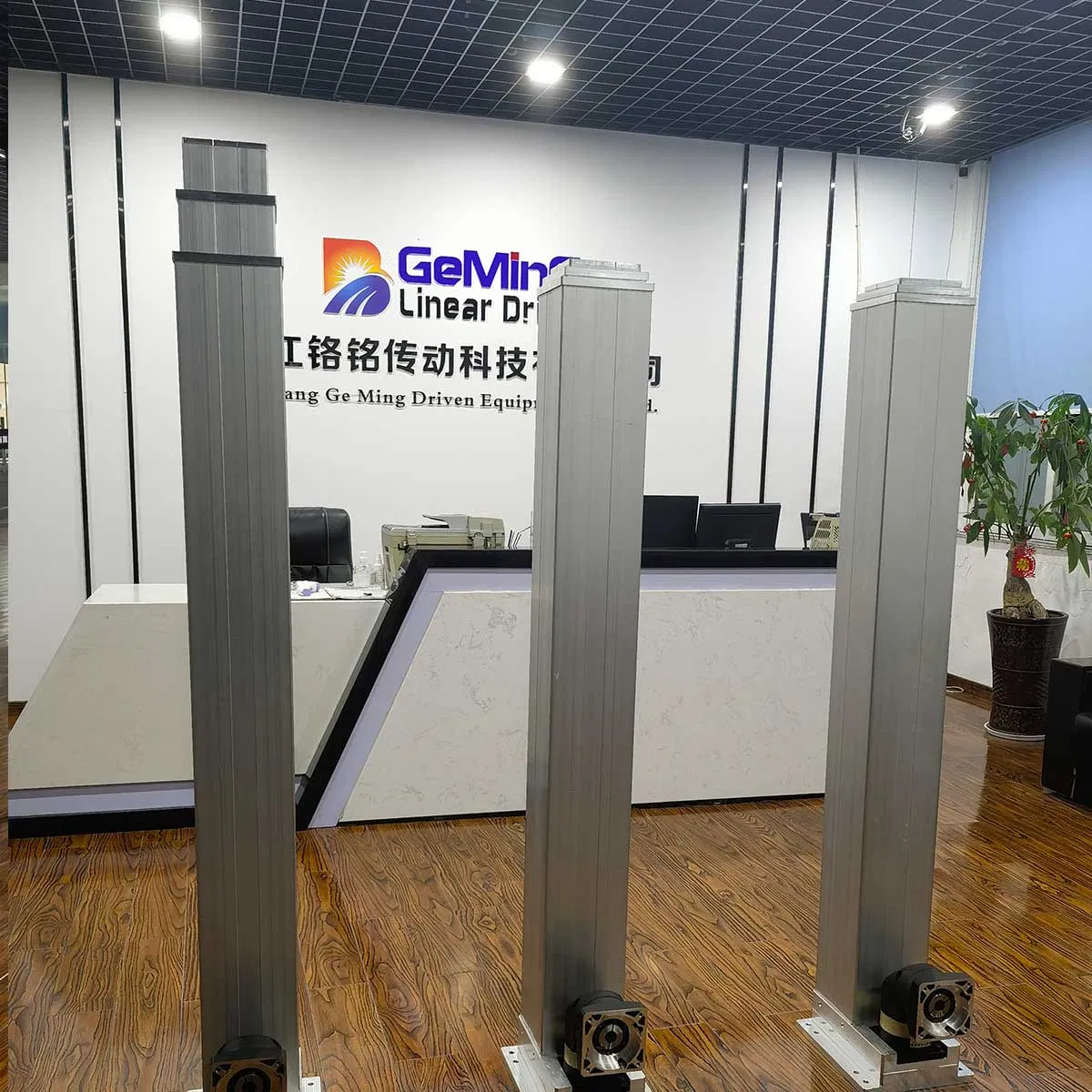

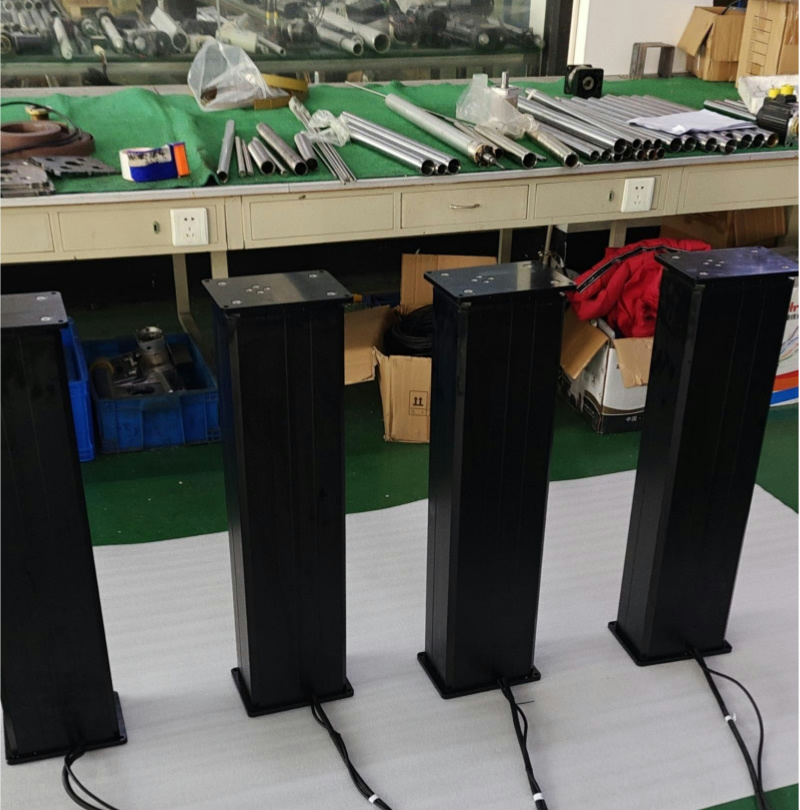

The HTA2 lifting column is designed for a wide variety of workstation applications such as computer workstations, workbenches, assembly tables, medical equipment lifting platforms, and height adjustment in modern kitchens. It is an ideal solution for vertical movement needs.
Multiple HTA2 lifting columns can improve high synchronization performance and load operation capacity. It features a powerful design and full-featured control box options. It can operate as a single system or with 2 to 4 lifting columns in parallel depending on the control requirements.
• Model Selection: Our technical team will choose the right model and transmission solutions for your usage based on specific parameters.

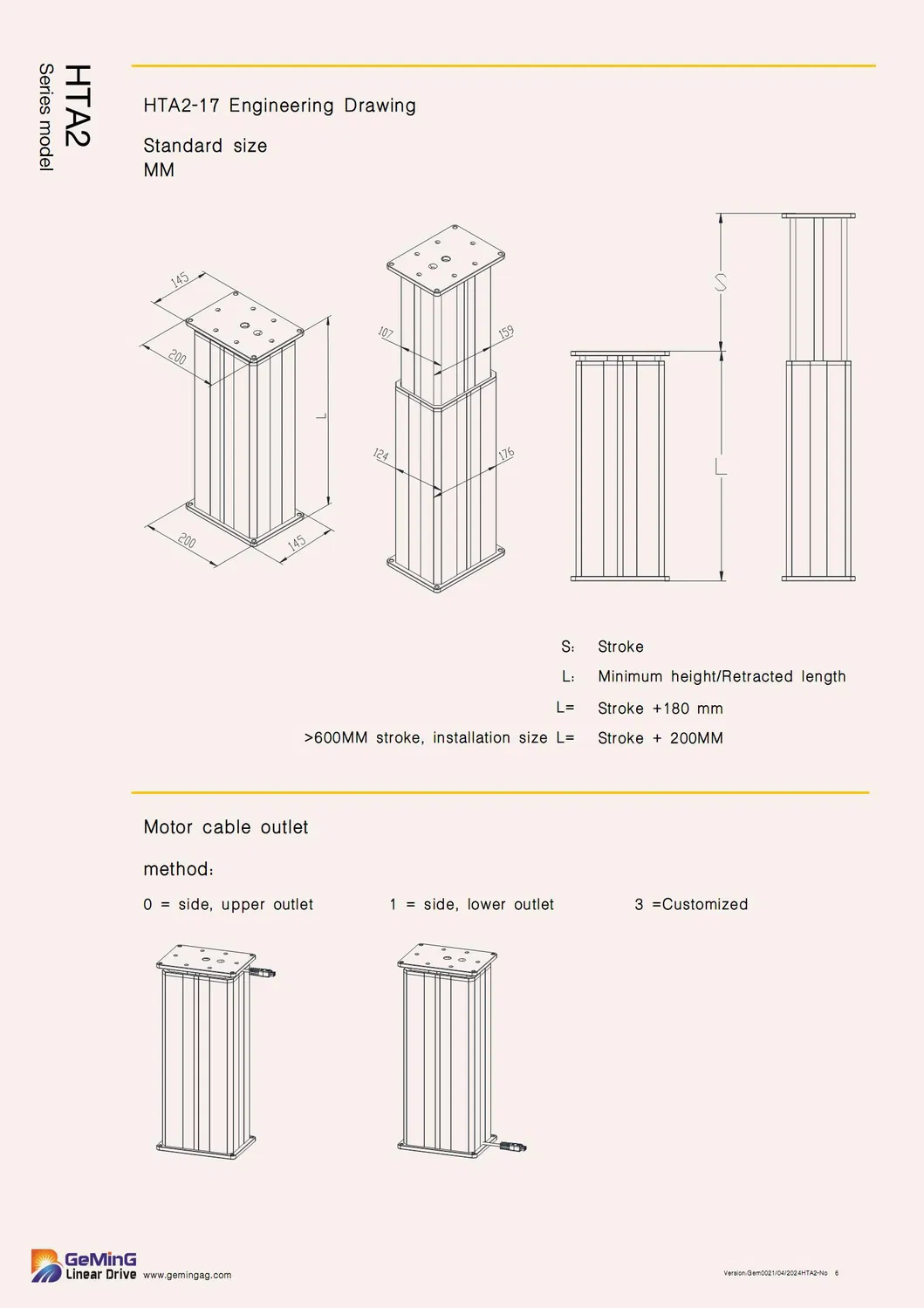

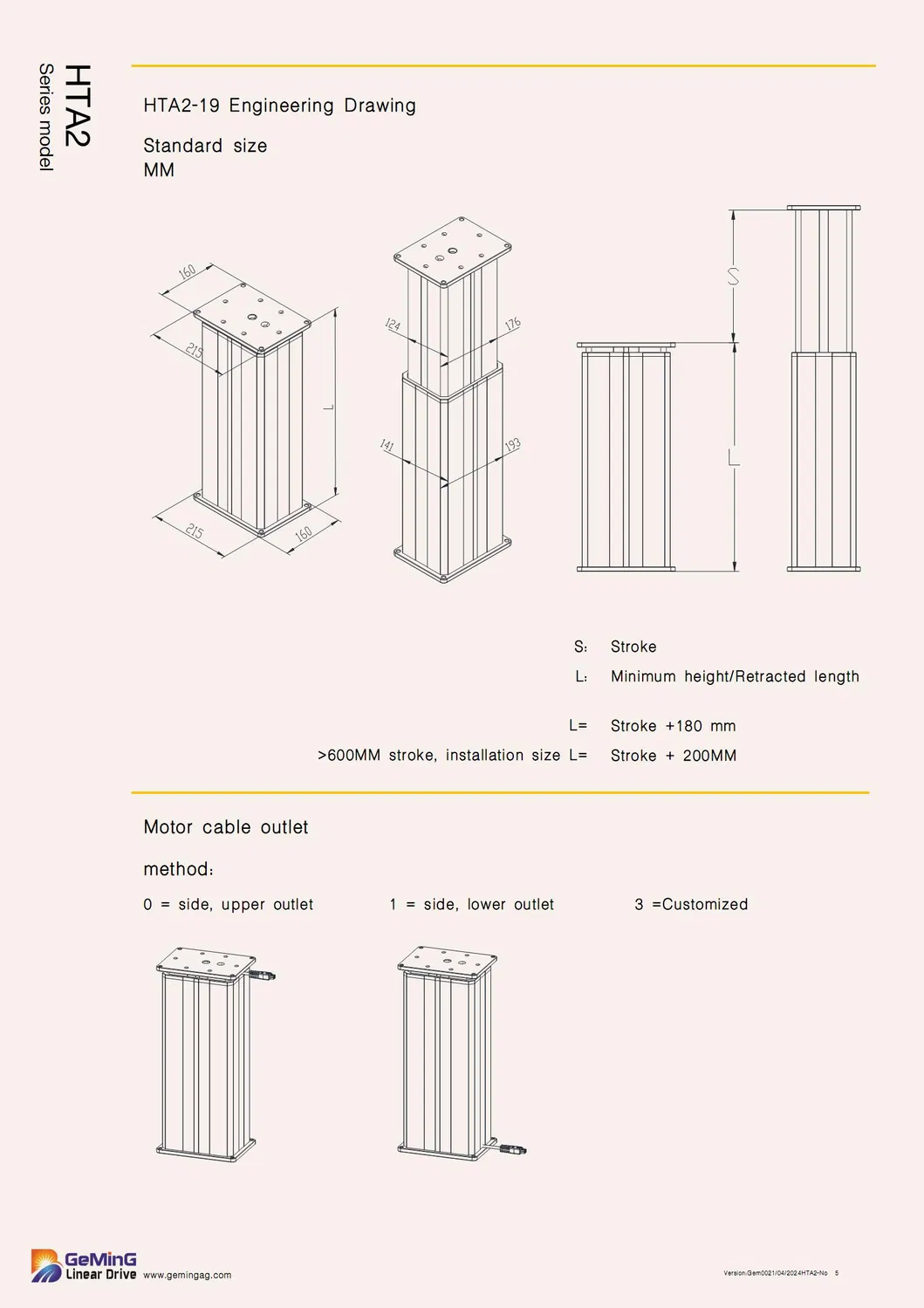

• Drawing Request: Product parameters, catalogues, CAD, or 3D drawings are available upon request.
• Tailored Solutions: Standard products can be modified or customized to meet specific application needs.
| Feature | Specifications |
|---|---|
| Voltage | 12, 24, 48V DC, 220V AC |
| Motor Options | DC servo motor, AC servo motor |
| Maximum Thrust | 8,000N / 4,000N |
| Maximum Speed (Load) | 5-100 mm/s |
| Dynamic Lateral Moment | 1,000Nm |
| Static Lateral Moment | 1,800Nm |
| Noise Level | 48~52 DB |
| Screw Selection | Ball screw, trapezoidal screw |
| Safety Compliance | ISO9001-2008, CE, RoHS |
| Code | Rated Load Thrust (N) | Rated Load Pull (N) | Static Force (N) | Current (A) | No-Load Speed (mm/s) | Rated Load Speed (mm/s) |
|---|---|---|---|---|---|---|
| A1 | 8,000 | 6,000 | 8,000 | 10.2 | 5 | 4 |
| A2 | 7,500 | 6,000 | 8,000 | 10.2 | 10 | 8 |
| A4 | 3,500 | 3,500 | 3,500 | 10.2 | 20 | 16 |
| B1 | 4,000 | 4,000 | 5,000 | 5.5 | 5 | 4 |
| B2 | 2,000 | 2,000 | 2,800 | 5.5 | 11 | 9 |
Electric telescopic lifting columns are best-suited for height-adjustable office furniture, industrial workstations, and medical equipment requiring smooth, quiet vertical movement.
