Basic Information
Mounting Method
Ground, Bracket, Inverted
Core Components
PLC, Engine, Bearing, Gearbox, Motor
Transport Package
Wooden Case
📸

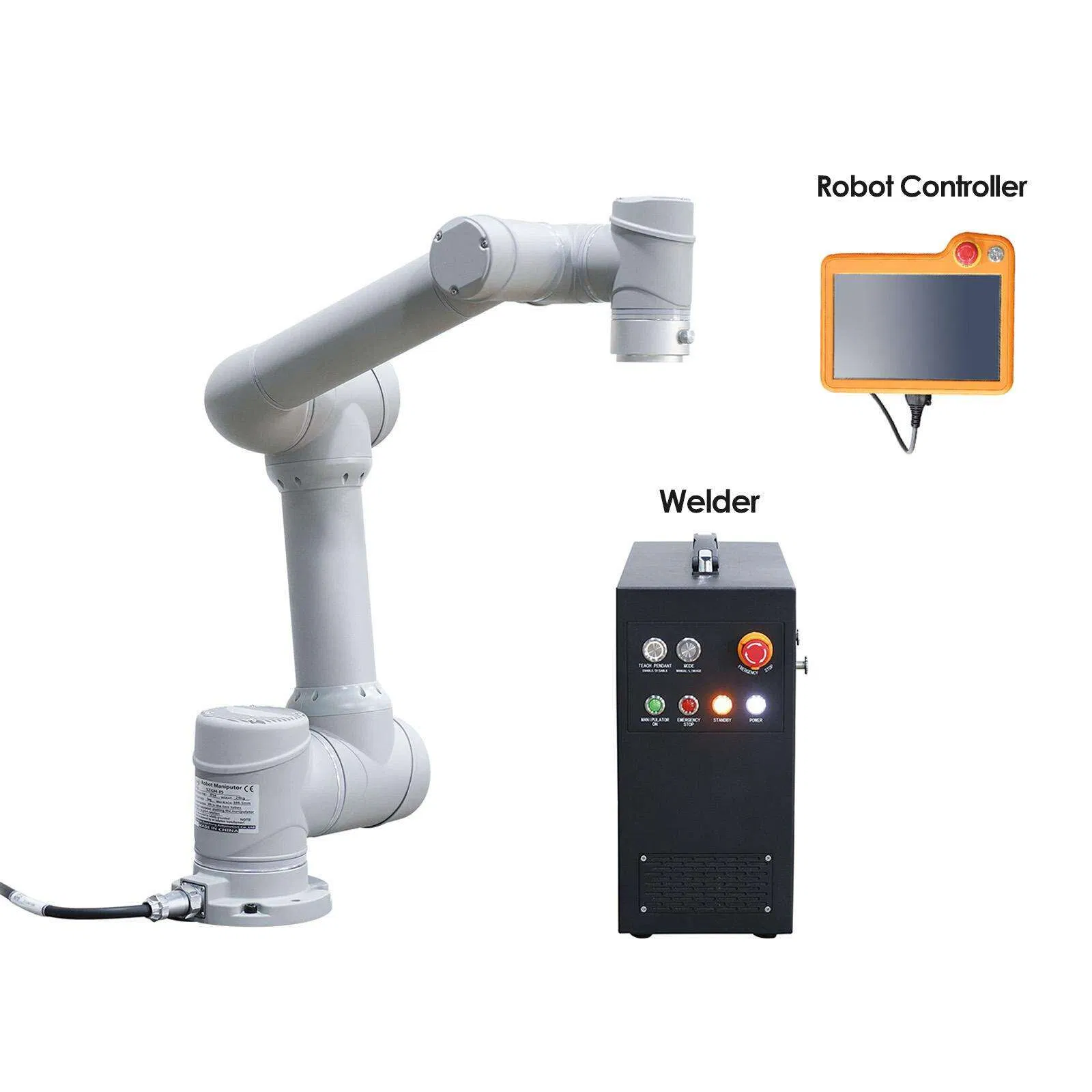

Detailed Product Gallery
📊
Technical Parameters
| Specification Item |
Details |
| Rated Load | 6KG |
| Motion Radius | 600-920mm |
| Structure Type | Serial |
| Number of Axis | 6 |
| Repeatability | ±0.03 mm |
| Working Range | Axis 1 | ±165° |
| Axis 2 | +120° / -60° |
| Axis 3 | +62° / -80° |
| Axis 4 | +175° / -140° |
| Axis 5 | +30° / -205° |
| Axis 6 | ±360° |
| Maximum Speed | Axis 1 | 225°/sec |
| Axis 2 | 225°/sec |
| Axis 3 | 225°/sec |
| Axis 4 | 225°/sec |
| Axis 5 | 225°/sec |
| Axis 6 | 225°/sec |
| Weight | 50-60kg |
| Mounting Method | Ground, Bracket, Inverted |
| Ambient Temperature | 5ºC ~ 45ºC |
🏢
Industry Expertise
Our manufacturing and distributing group focuses on high-quality food additives and industrial machinery, operating under a strict ISO9001:2015 Certification framework. We work closely with international partners across Europe, Asia, North America, Latin America, and Africa to deliver professional-grade solutions.
⭐
Core Advantages
- 27-year export experience in industrial equipment and additives.
- Customer-oriented sourcing and comprehensive supply chain services.

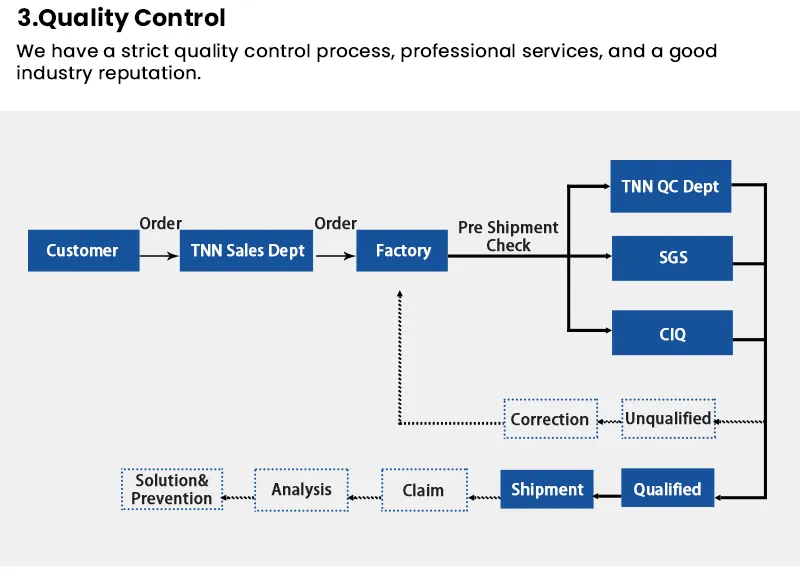

- In-house laboratory for pre-shipment sample testing to ensure 100% quality compliance.
- Third-party inspections and professional COA confirmation protocols.
- Fast delivery via sea, railway, air, and express courier with customized palletizing.
- Expertise in handling mixed container loads and complex logistic requirements.
❓
Frequently Asked Questions
1. What is the motion precision of this industrial robot?
The robot features a high repeatability of ±0.03 mm, ensuring precise performance in repetitive industrial tasks.
2. What mounting options are available for the 6-axis robot?
It supports versatile mounting methods, including ground installation, bracket mounting, and inverted (ceiling) installation.
3. What are the core components of the control system?
The robot is built with high-quality core components including a PLC, high-performance motor, precision gearbox, and durable bearings.
4. Can it operate in extreme temperatures?
The standard operating ambient temperature range for this model is between 5ºC and 45ºC.
5. What is the maximum payload and reach of the robot?
The robot has a rated load capacity of 6KG and a motion radius (reach) ranging from 600mm to 920mm depending on the specific configuration.
6. Is quality inspection provided before shipment?
Yes, we conduct strict quality control through our own lab testing pre-shipment samples and offer third-party inspection to guarantee product quality.
