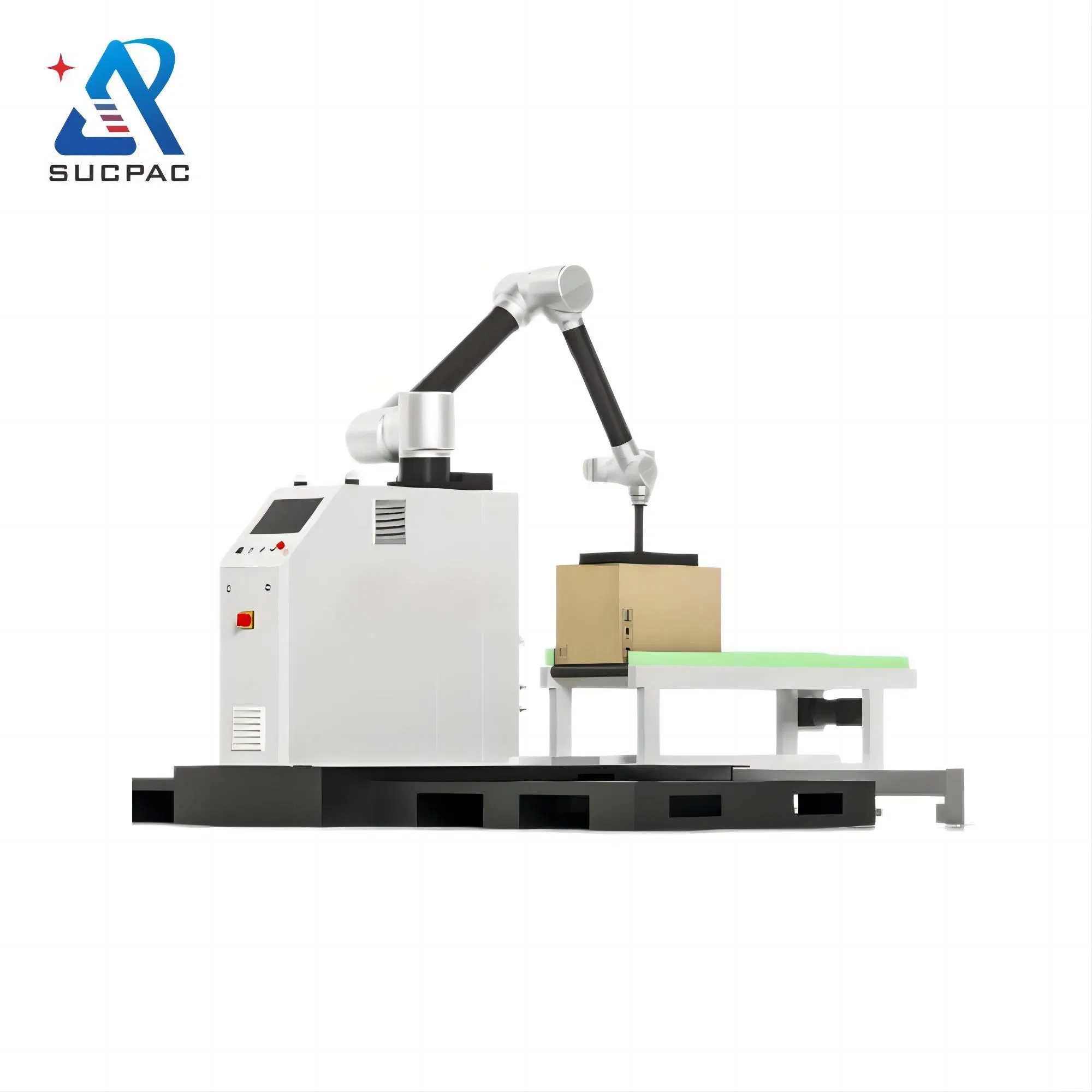

Collaborative Palletizing Robot for Efficient Stack Automation in Warehouse and Factory
Collaborative Palletizing Robot for Efficient Stack Automation in Warehouse and Factory
Collaborative Palletizing Robot for Efficient Stack Automation in Warehouse and Factory
Collaborative Palletizing Robot for Efficient Stack Automation in Warehouse and Factory
Collaborative Palletizing Robot for Efficient Stack Automation in Warehouse and Factory
1 / 5
Collaborative Palletizing Robot for Efficient Stack Automation in Warehouse and Factory
Collaborative Palletizing Robot for Efficient Stack Automation in Warehouse and Factory
Collaborative Palletizing Robot for Efficient Stack Automation in Warehouse and Factory
Collaborative Palletizing Robot for Efficient Stack Automation in Warehouse and Factory
Collaborative Palletizing Robot for Efficient Stack Automation in Warehouse and Factory

Collaborative Palletizing Robot for Efficient Stack Automation in Warehouse and Factory

Customization: Available
Type: Arrangement Palletizer
Automatic Grade: Automatic
Send Inquiry

Product Description

📋 Basic Information
Model NO.
SPR-MD45K
Working Radius
1460 mm
Vertical Distance
1600- 2100 mm
Positioning Accuracy
0.04 mm
Stacking Speed
≤ 6PCS/Min
Transport Package
Wooden Case
Specification
150*180*200cm
Robotic Arm for Precision Automated Robot Palletizer For Factory Packing Machine
⚙ Product Parameters
Parameter Permanent Type Lifting Type
NamePalletizing robot
ModelSPR-MD45K
Load45Kg45Kg
Working radius1460mm1460mm
Pallet size Spec.1000*1200mm1000*1200mm
Vertical distanceH=1600mmH=2100mm
Stacking speed≤ 6pcs/min≤ 6pcs/min
Positioning accuracy0.04mm0.04mm
Communication modeTCP/IPTCP/IP
Protection LevelIP54IP54
Temperature Range0-55°C0-55°C
Power3.3Kw4.2Kw
Voltage220V/50HZ single phase
Weight260kg300kg
Floor area1505*1716mm
📷 Detailed Photos & Components

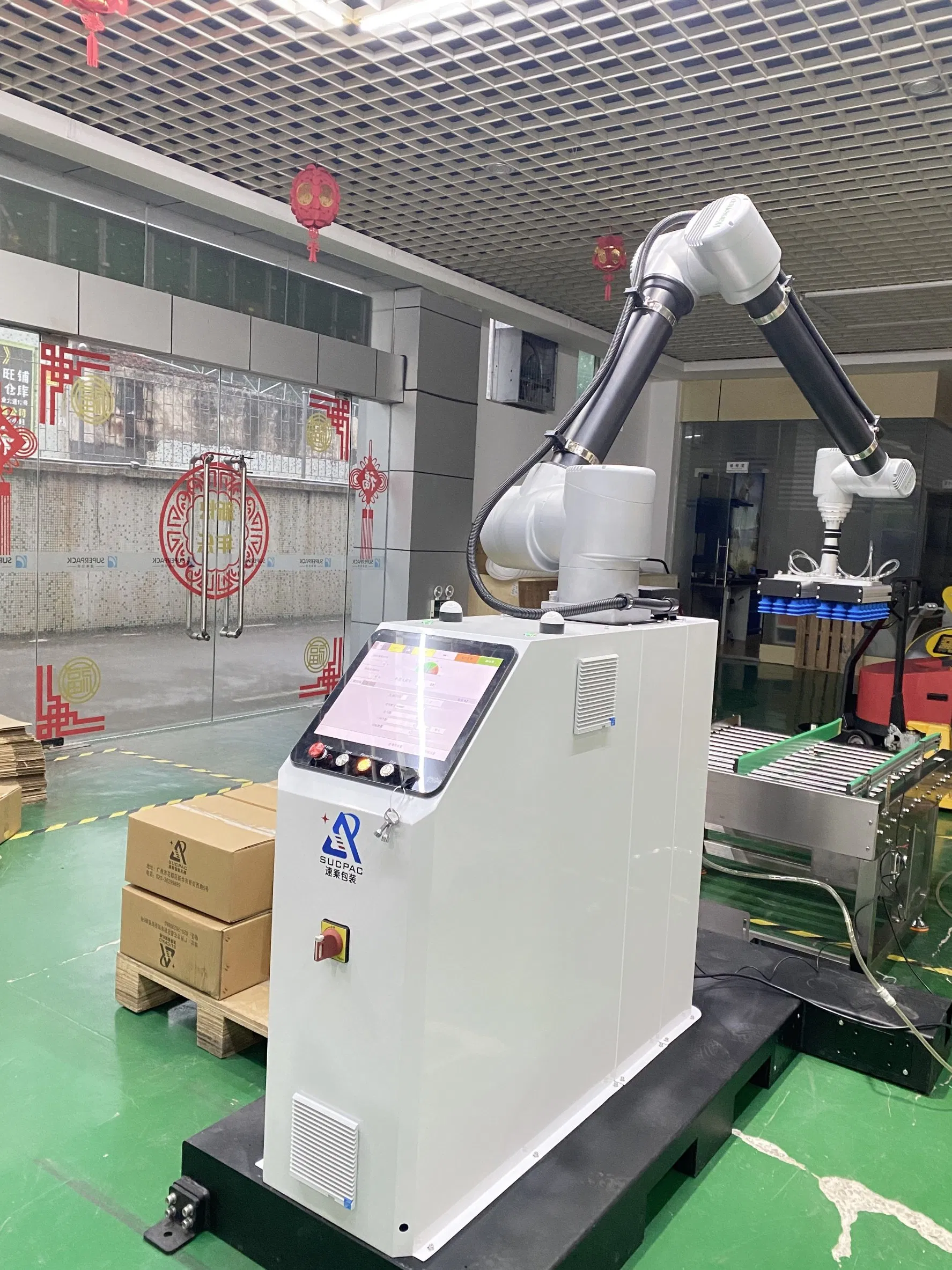

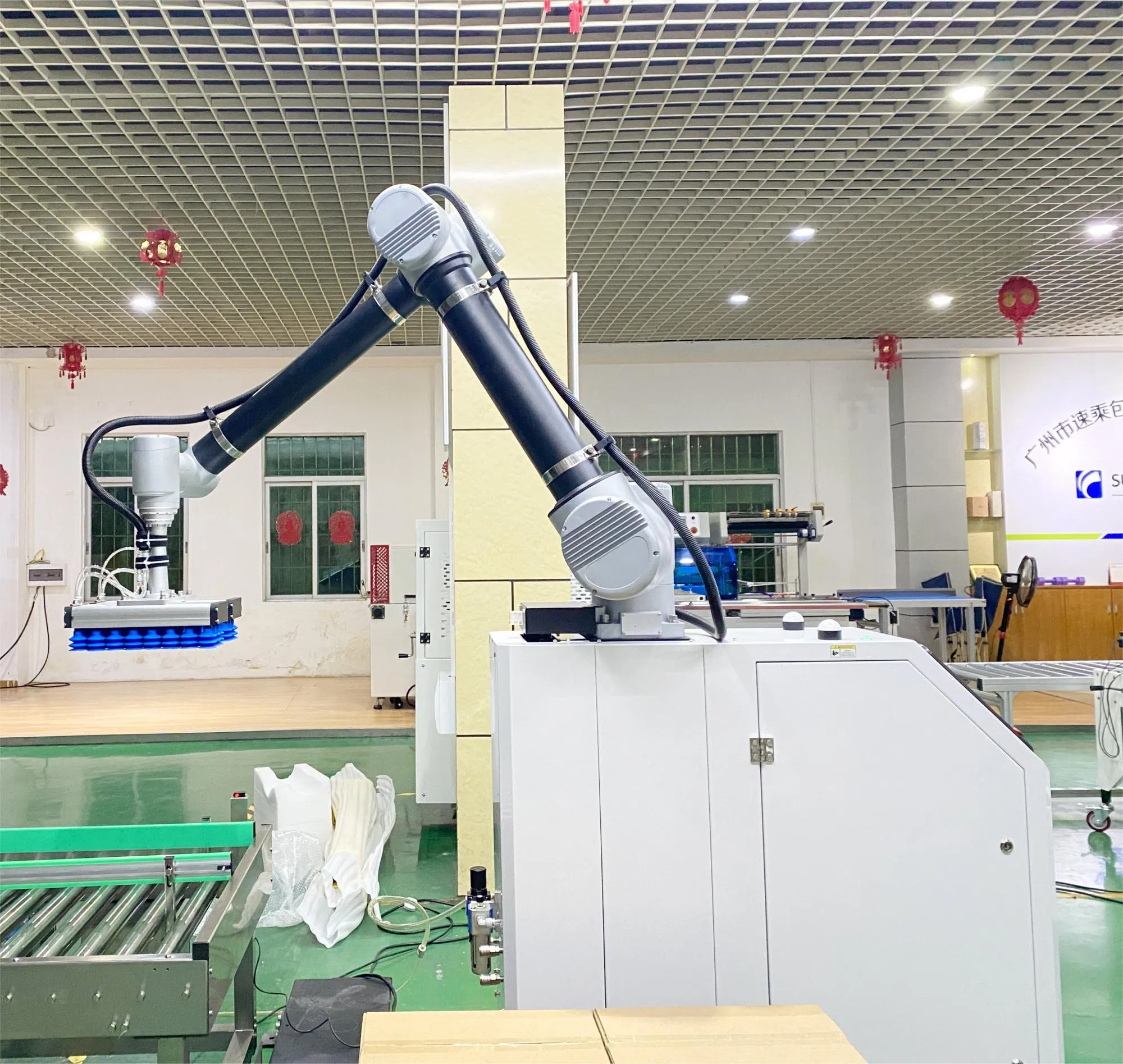

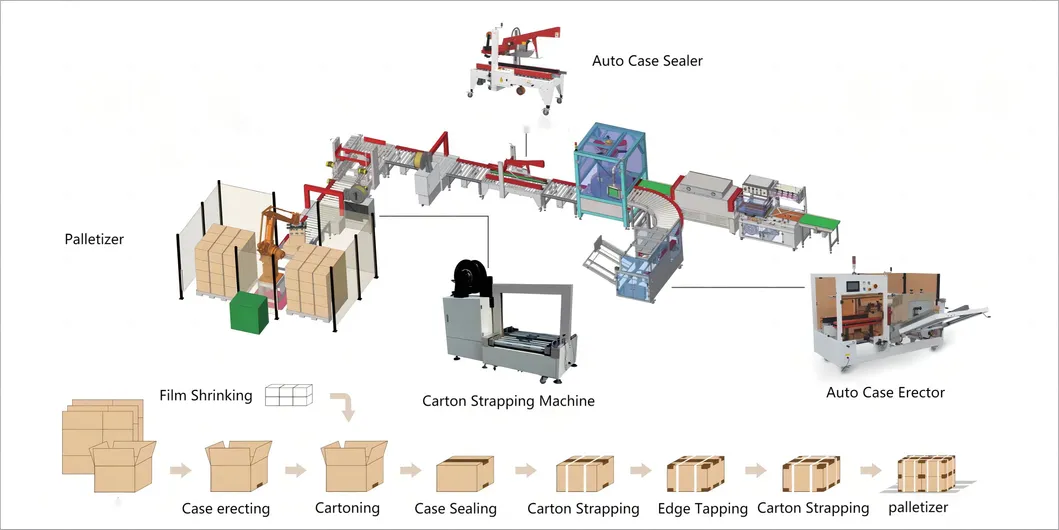

Collaborative Palletizing Robot

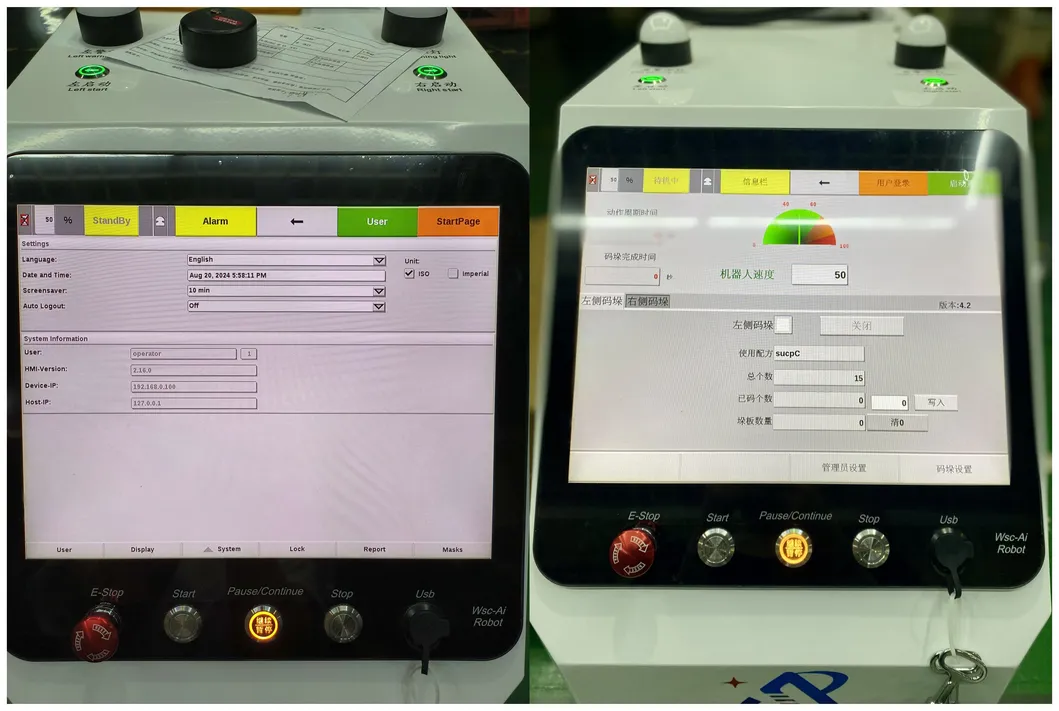

🖥 Operating System
12.1-inch high-sensitivity capacitive touch screen/7-inch all-in-one computer WSC collaborative palletizing robot system.
Operate System
End Actuator

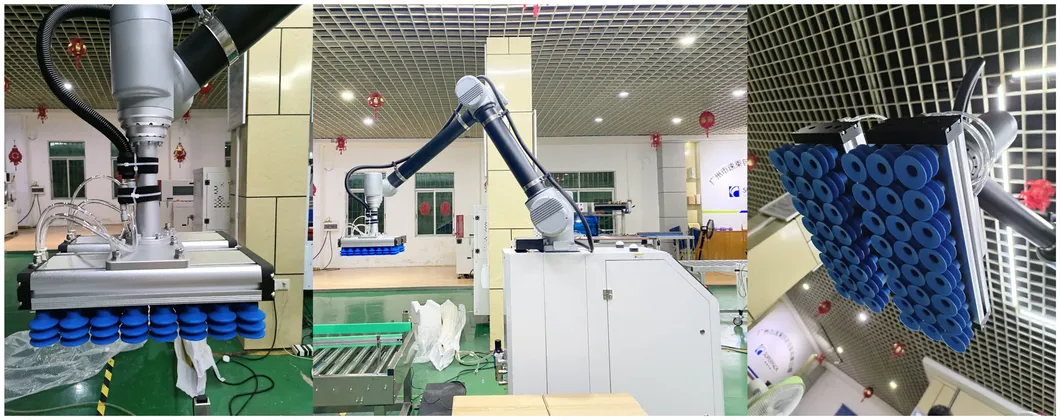

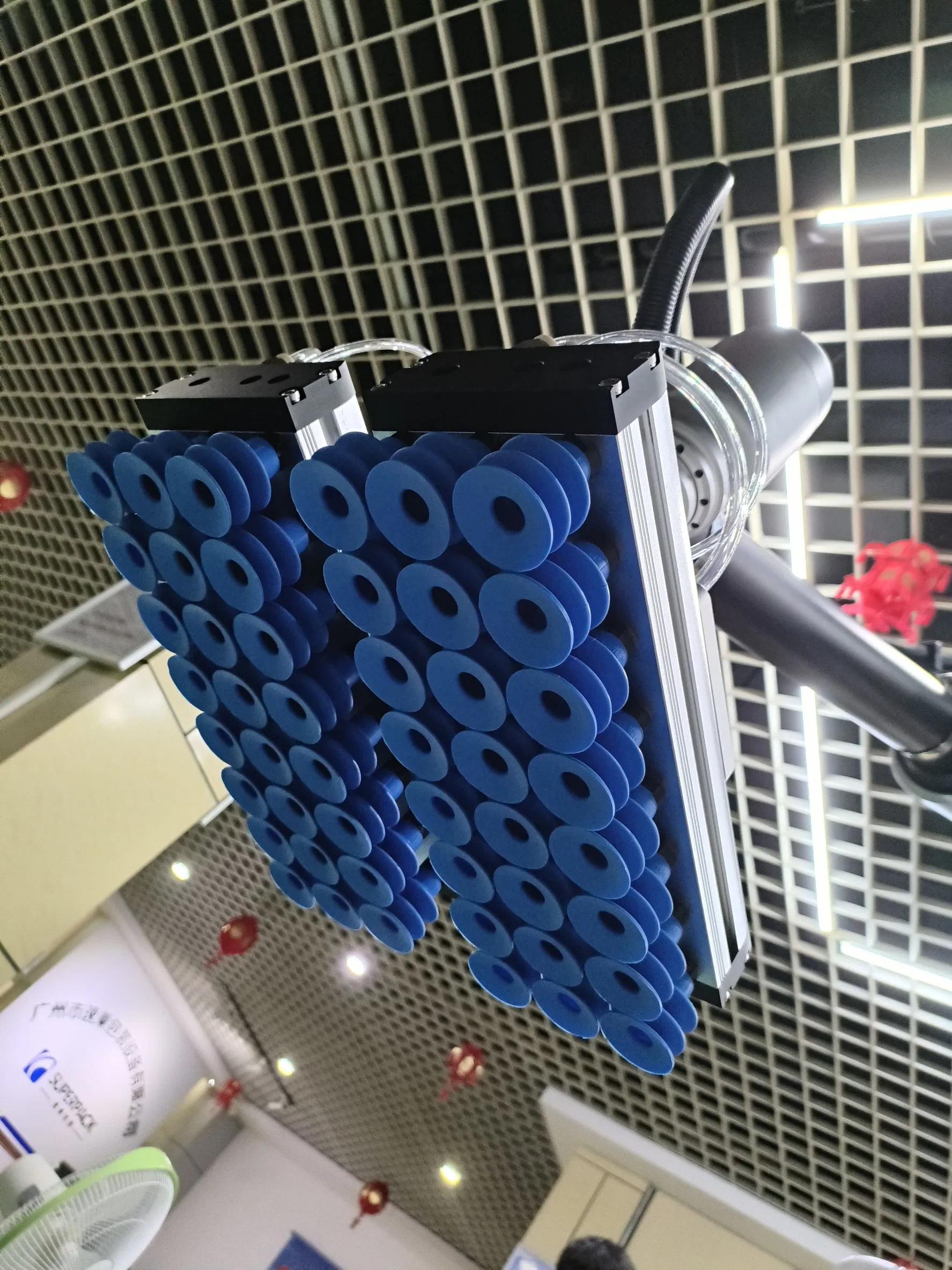

🧲 End Actuator
Lightweight and simple design, strong suction to prevent falling, patented product.

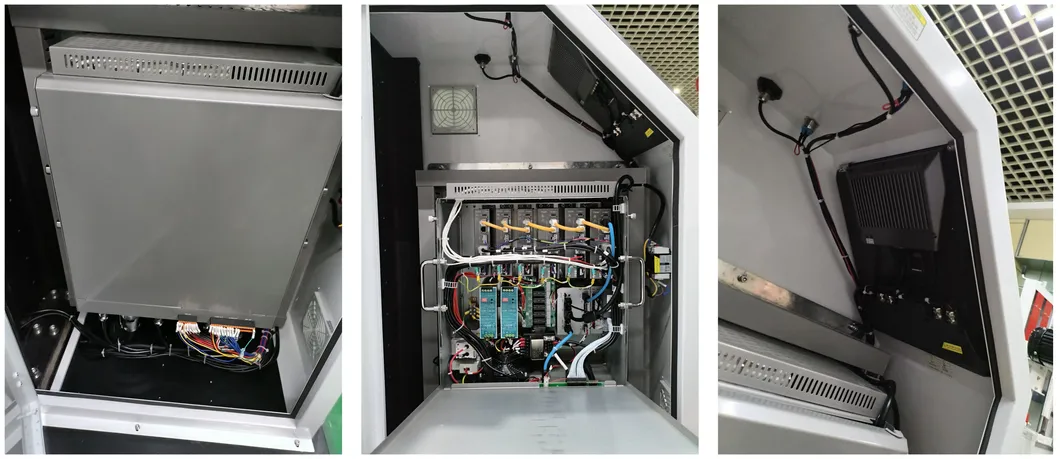

Palletizing details
Applications
🚀 Applications
One machine is suitable for many different types of products at the same time and can replace a variety of suitable fixtures.

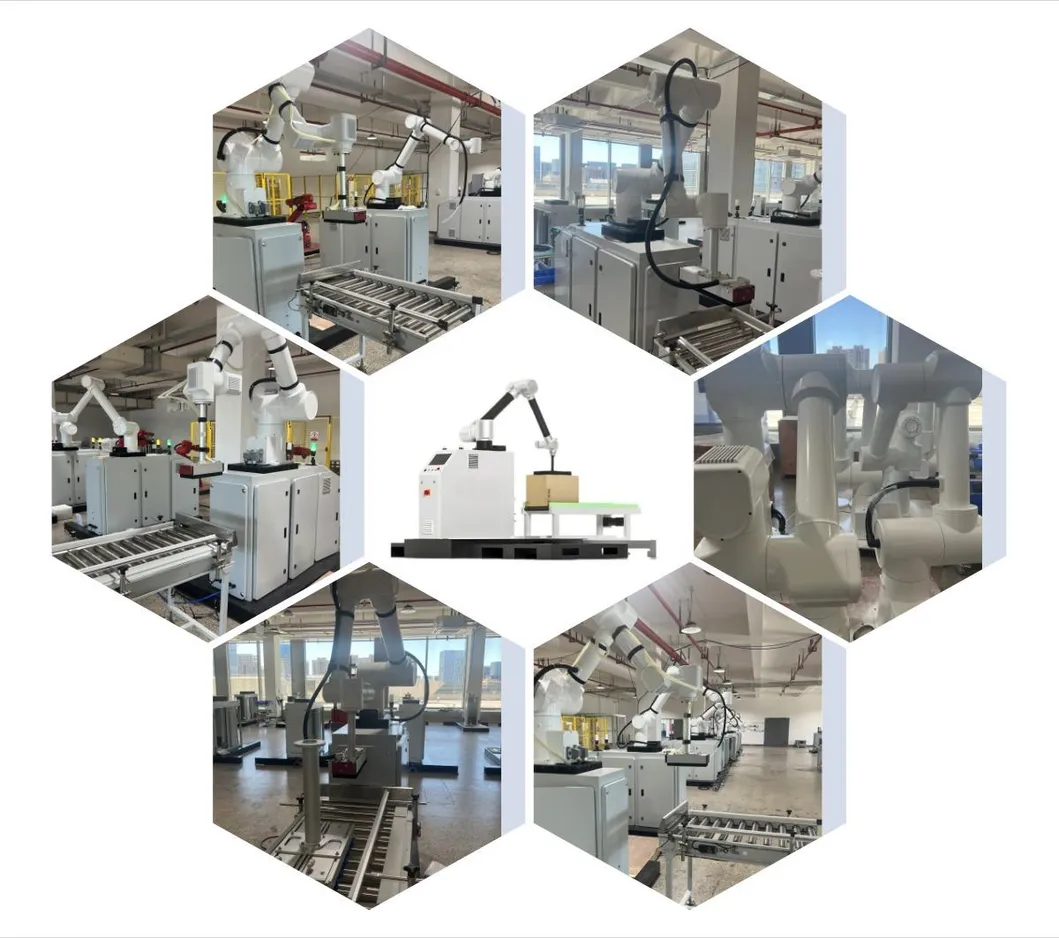

Mechanical pallet positioning
Pallet Positioning System
Reliable Operation

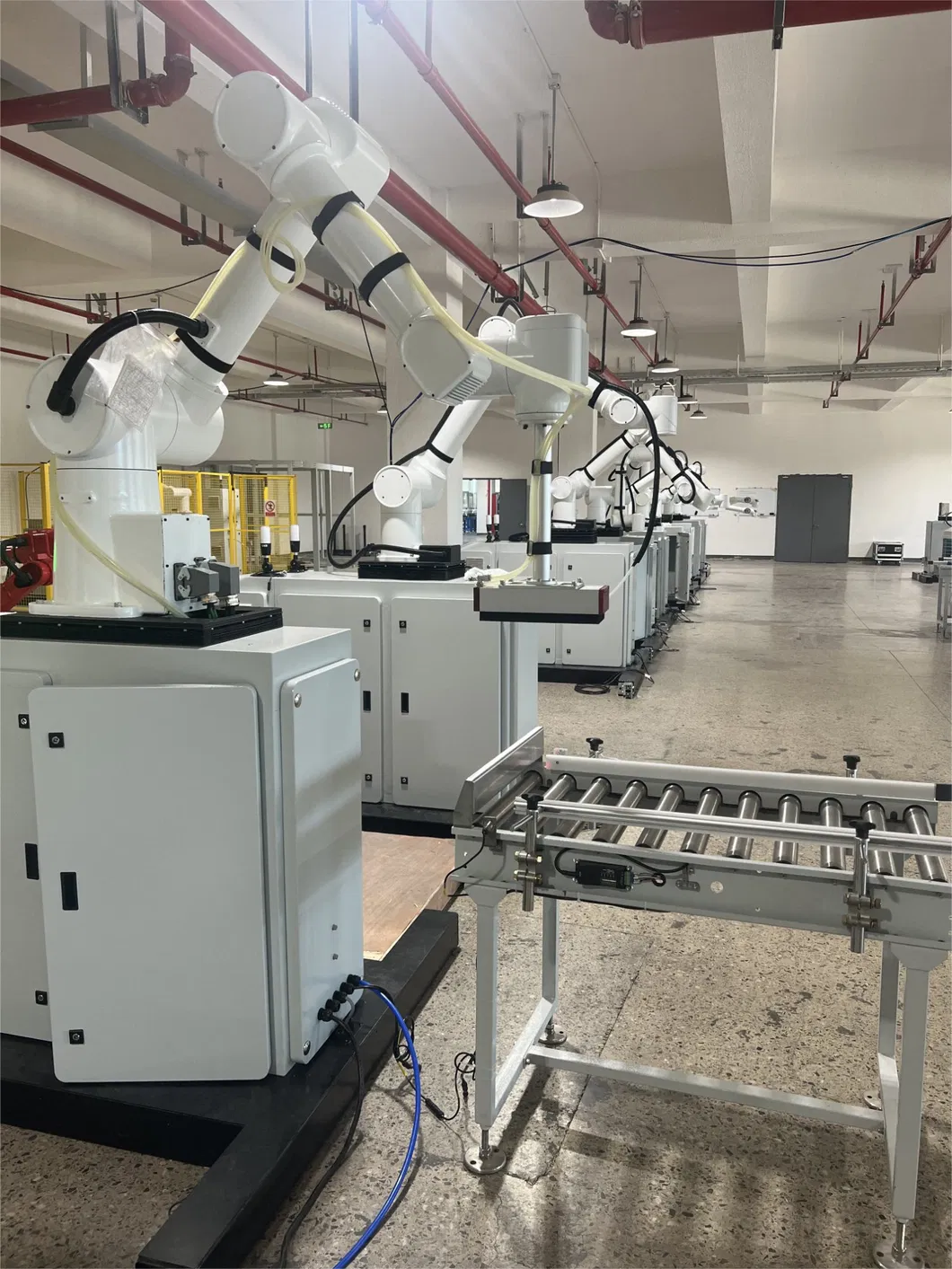

✅ Reliable Operation
Full servo control, fast running speed and accurate positioning.
🎖 Certifications

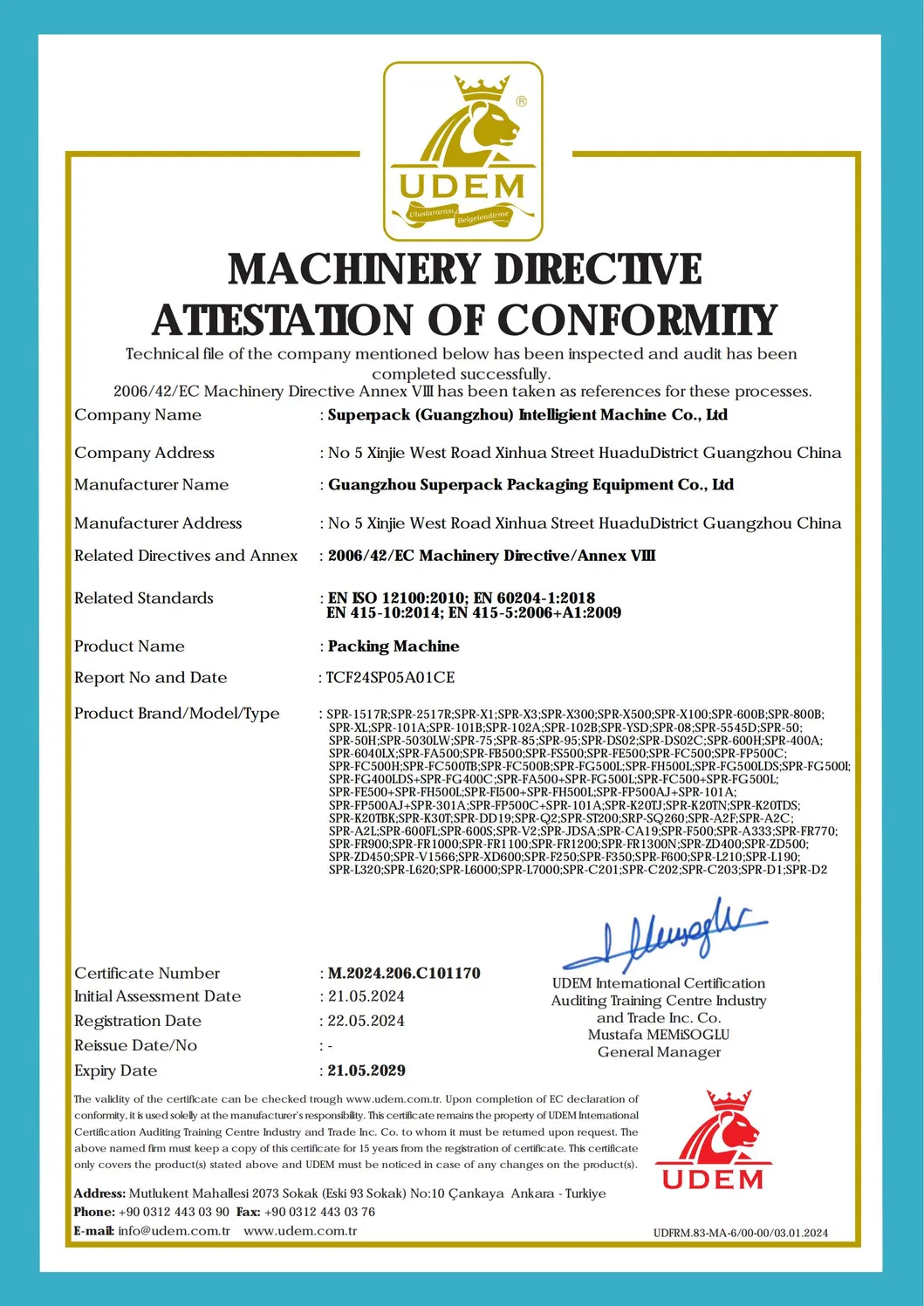

Certification 1
Certification 2
Certification 3
Factory Certificate
❓ Frequently Asked Questions
What is the maximum load capacity of the SPR-MD45K robot?
The SPR-MD45K robotic arm has a maximum load capacity of 45Kg, making it suitable for various factory packing needs.
How accurate is the positioning of the robotic arm?
The robot offers high precision with a positioning accuracy of 0.04 mm, ensuring consistent and reliable stacking.
What are the power and voltage requirements?
The system operates on a 220V/50HZ single-phase power supply, with a power consumption of 3.3Kw for the permanent type and 4.2Kw for the lifting type.
Does the robot support multi-product handling?
Yes, one machine is suitable for many different types of products simultaneously and can be fitted with a variety of suitable fixtures.
What is the standard stacking speed of this system?
The stacking speed is ≤ 6 pieces per minute, optimized for collaborative and automated factory environments.
What kind of interface does the operating system use?
It features a 12.1-inch high-sensitivity capacitive touch screen or a 7-inch all-in-one computer for an intuitive user experience.
