Automatic Robot Palletizing Machine 70kg-150kg for Carton Palletizing

Customization:	Available
Application:	Automotive, Electronics, Food and Beverage, Logistics, Pharmaceutical
Control Mode:	Continuous Path Control

Send Inquiry

Product Description

ℹ

Basic Information

Model NO.

WEX-1800-150

Degrees of Freedom

4-axis

Drive Mode

Electric

Payload Capacity

100 kg

Applicable Product

Carton, Film Bags, Woven Bags, Large Barrels

Warranty

12 Months

Weight

820kg

Height

2950mm

Loading Capability

70-150kg

Palletizing Speed

6-8 Times/Min

Origin

China

HS Code

8428909090

Packaging & Delivery

Package Size

130.00cm * 250.00cm * 250.00cm

Gross Weight

1200.000kg

⚙

Product Description

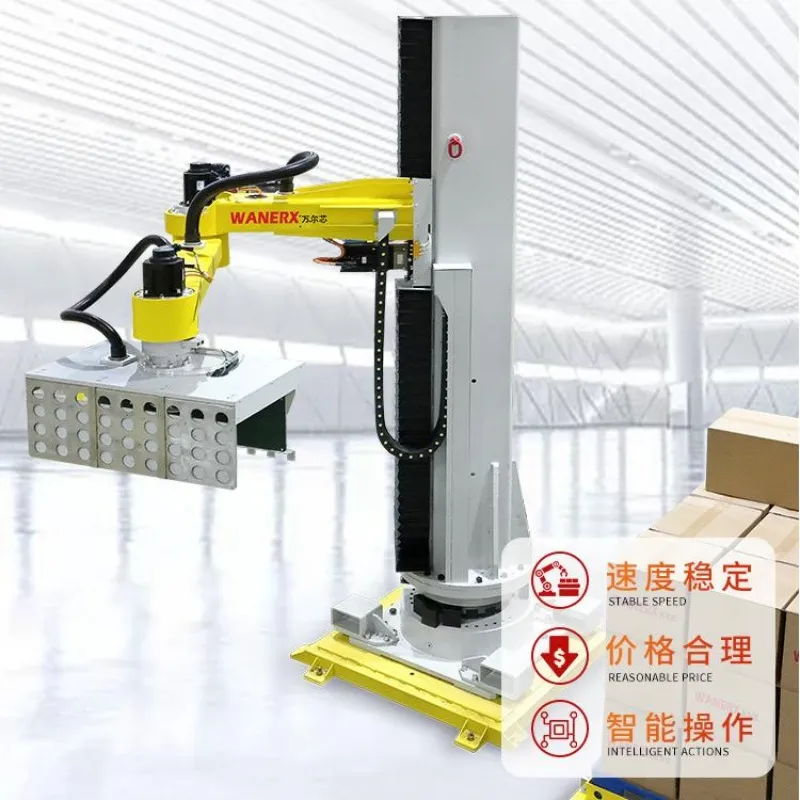

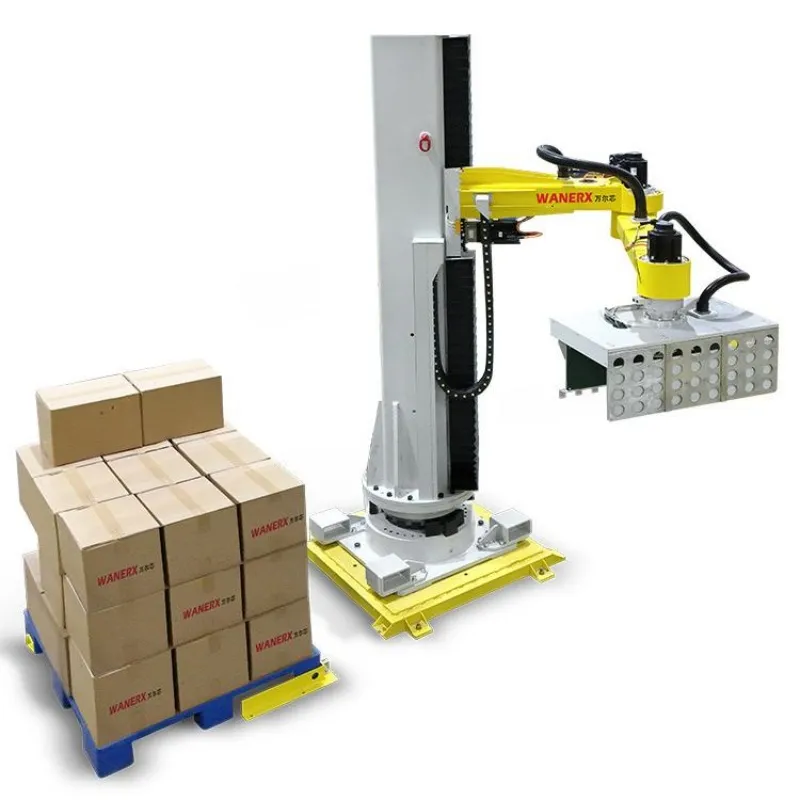

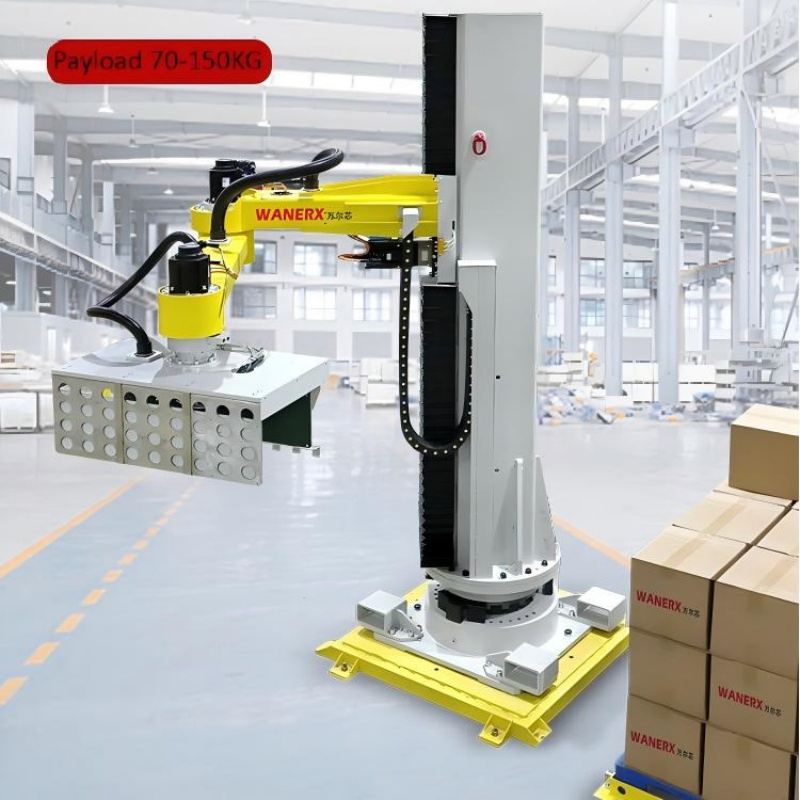

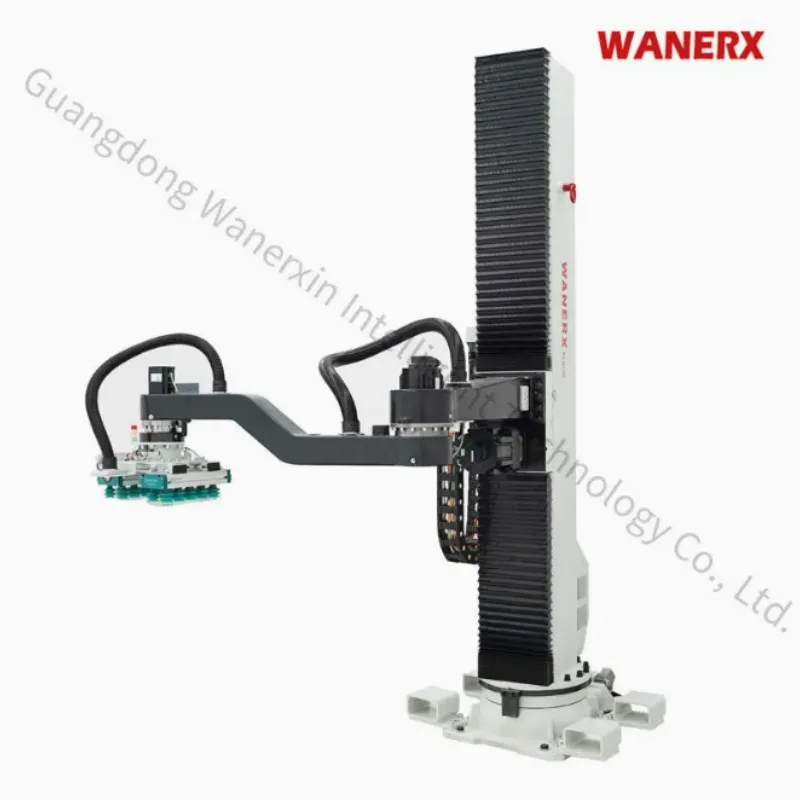

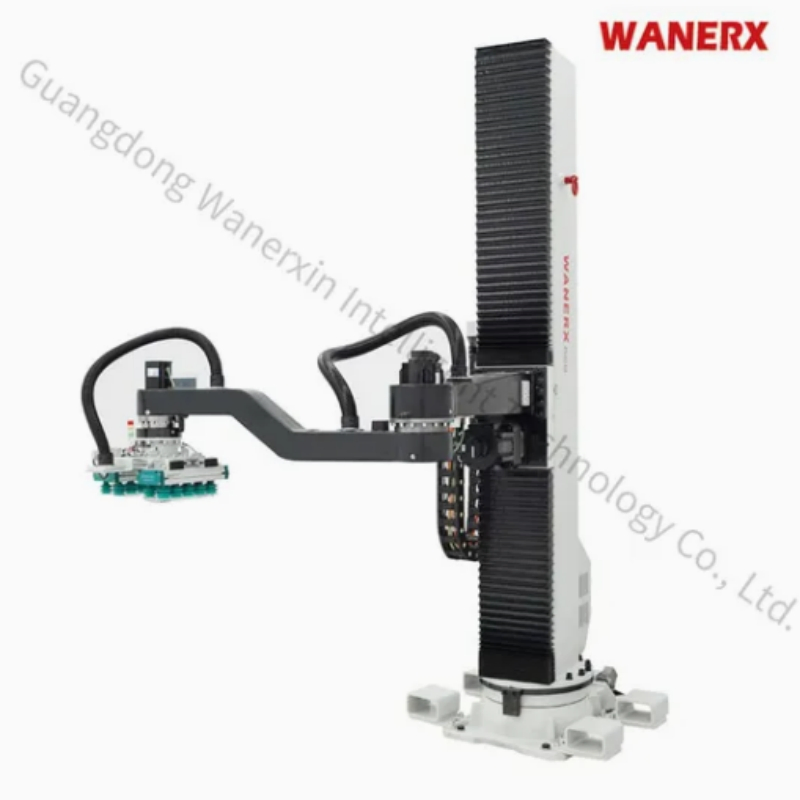

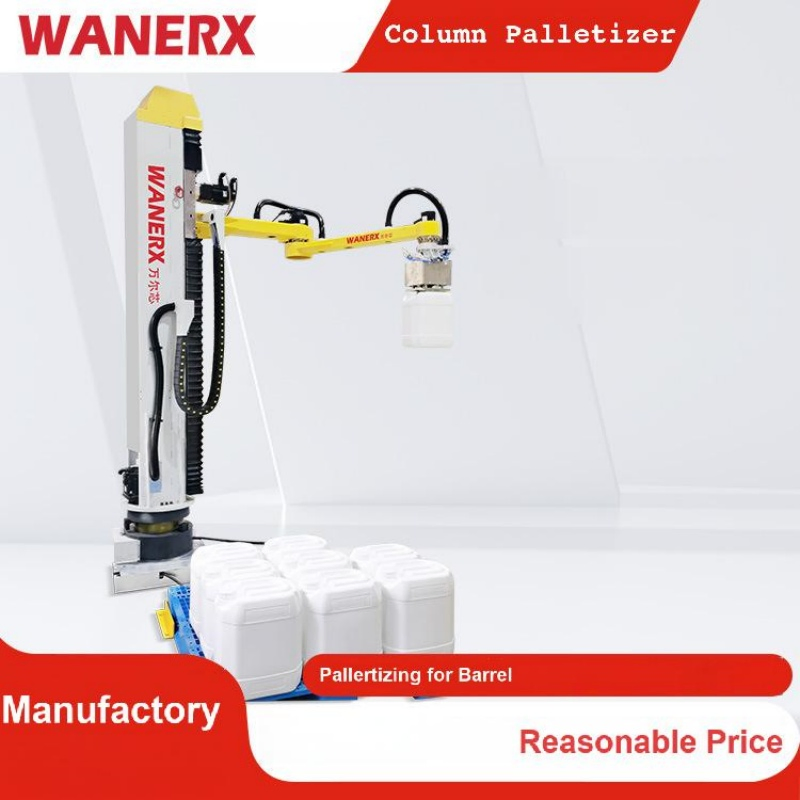

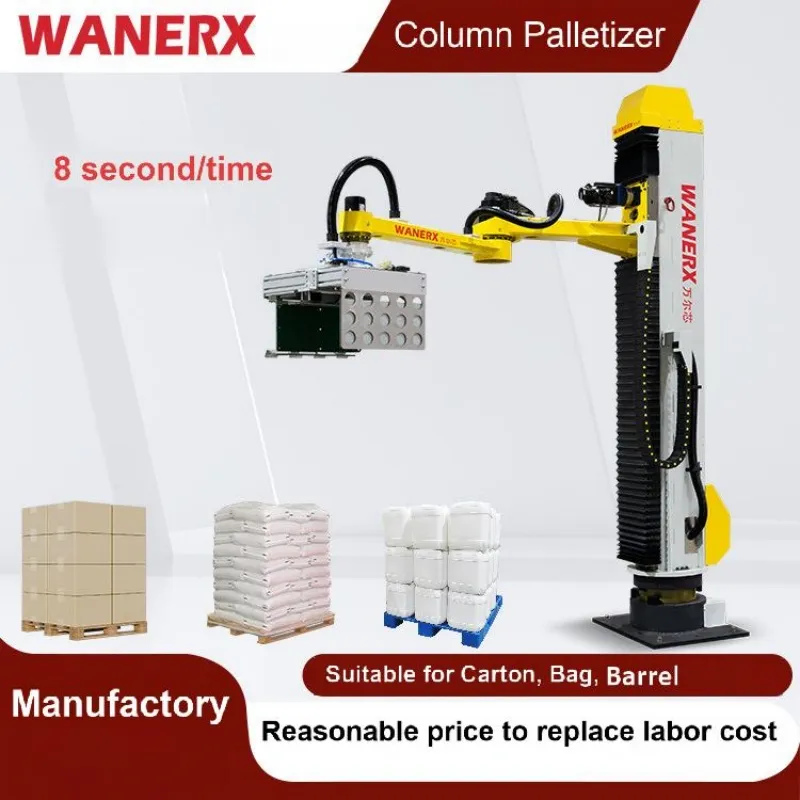

Column Palletizing Machine

The single column palletizer is primarily designed for palletizing and material handling processes within various production lines. Its architecture features a vertical lifting shaft paired with three horizontal rotating shafts, forming a cylindrical spatial coordinate system. This design allows for a significant cubic working space within a compact arm span, making it ideal for palletizing in narrow operational environments.

Key Configurations

Stable Construction: The base and robot arms are crafted from high-quality castings, providing a stable structure with excellent rigidity.
Durable Column: Made of welded steel, the column offers a sturdy build that can be customized in height to fit specific installation spaces.
High Precision: Rotating shafts are driven by precision RV reducers and servo motors for rapid speed and accurate positioning.
Linear Motion: The column lifting shaft utilizes precision gear racks and linear guide rails to ensure structural rigidity.

📋

Technical Specifications

Model	WEX-1800-100
Palletizing Speed	7-9 times/min (Depends on the product)
Loading Capability	70-150KG
Applicable Product	Carton, Film Bags, Woven Bags, Large Barrels
Pallet Supply Way	Manual Placement / Automatic Placement
Palletizing Gripper	Suction Cup / Splint / Gripper
Total Height	2924.5mm
Power Supply	380v 50HZ
Air Supply	0.5-0.6kg/m³, 1.5M3/min
Material	Carbon Steel with Baking Paint

🖼

Product Advantages & Gallery

❓

Frequently Asked Questions

Q: What's the lead time for orders? A: Standard models typically ship within 15–30 days. For customized units tailored to specific requirements, the lead time is approximately 30–45 days.

Q: Can I request a customized gripper or bucket size? A: Absolutely! We offer tailored attachments including various suction cups, splints, and grippers to match your product's dimensions and weight.

Q: What documents do you provide for international export? A: We provide a comprehensive export package, including the Commercial Invoice, Packing List, Bill of Lading, and Certificate of Conformity (COC).

Q: How do I place an order? A: Please contact us via email or phone to receive a formal quote. Once the specifications are agreed upon, you can confirm the order with a Purchase Order (PO).

Q: What is the warranty period for the palletizing machine? A: We provide a 12-month warranty on all standard equipment, ensuring reliable operation and peace of mind for your production line.

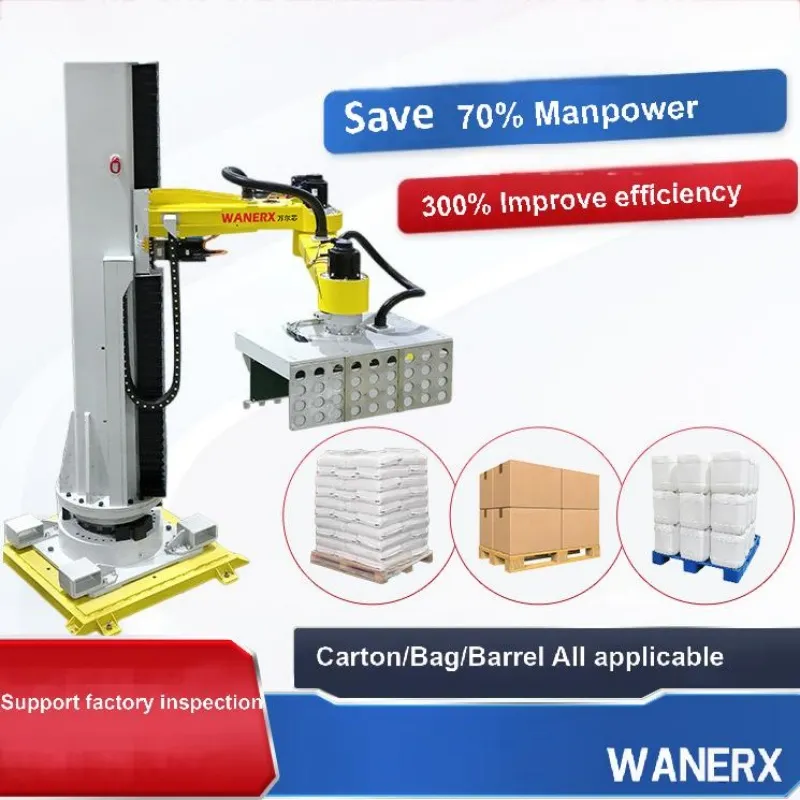

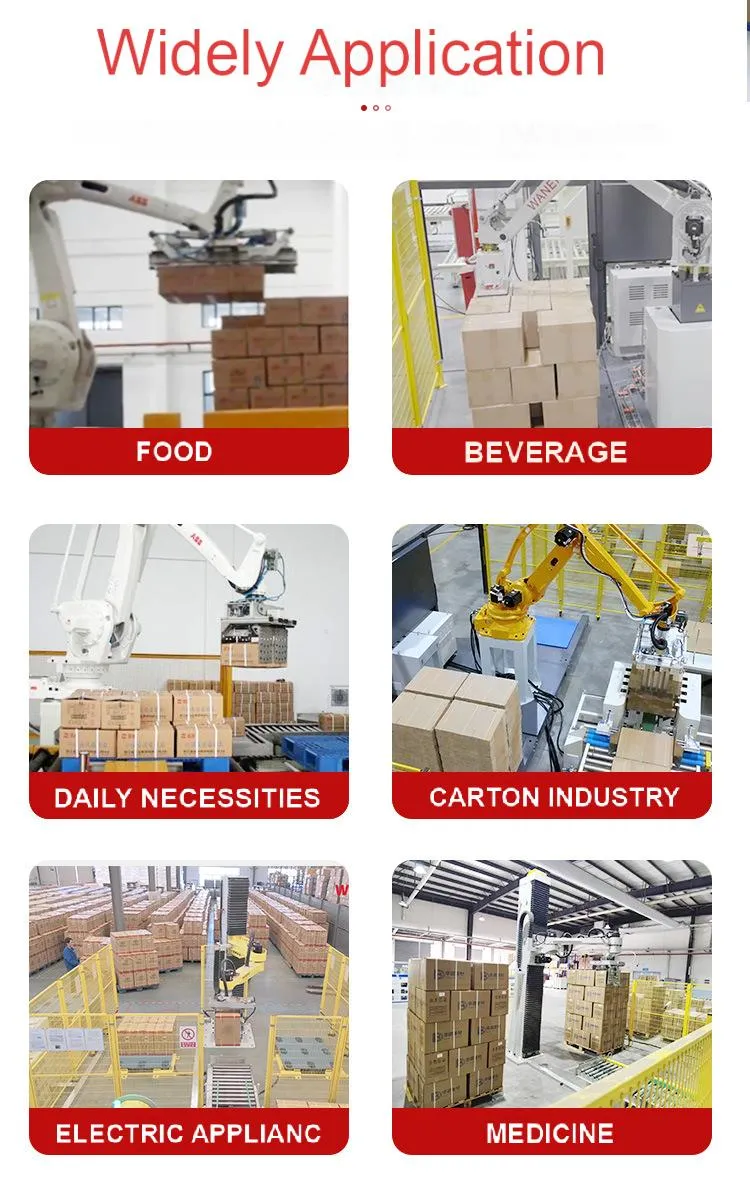

Q: What types of products can this machine handle? A: It is highly versatile and suitable for palletizing cartons, film bags, woven bags, and large barrels across multiple industries.
