High Performance Fully Automatic Industrial delivery Robot arm Collaborative Palletizing Robot

Customization:	Available
Transmission Type:	Flexible
Rhythm:	Flow Production Line

Send Inquiry

Product Description

Basic Info.

Model NO.RMD35

Automatic Production LineComprehensive

Production ScopeParts Production Line

Flexible ProductionIntelligent Manufacturing

CertificationISO, CE

AutomationAutomatic

Axes4

Payload35kg

Reaching2100mm

StructureArticulated

Product Description

RMD Series Palletizing Robot

Application: stacking, unstacking, transferring, stamping, loading and unloading in packing, drinking, chemical industry and food industry.

Technical Parameters

Type	Dof	Payload (kg)	Repeatability (mm)	Motion Range (J1-J4)	Top Velocity (°/s)	Motion Radius (mm)	Weight (kg)
RMD08	4	8	±0.05	±170/±360	251/367.5	1433	180
RMD20	4	20	±0.05	±170/±360	175/330	1755	266
RMD35	4	35	±0.05	±170/±360	60/375	2100	360
RMD50	4	50	±0.1	±178/±360	171/222	2154	660
RMD120-2400	4	120	±0.1	±180/±360	145/420	2404	1020
RMD200	4	200	±0.1	±180/±360	105/242	3150	1500

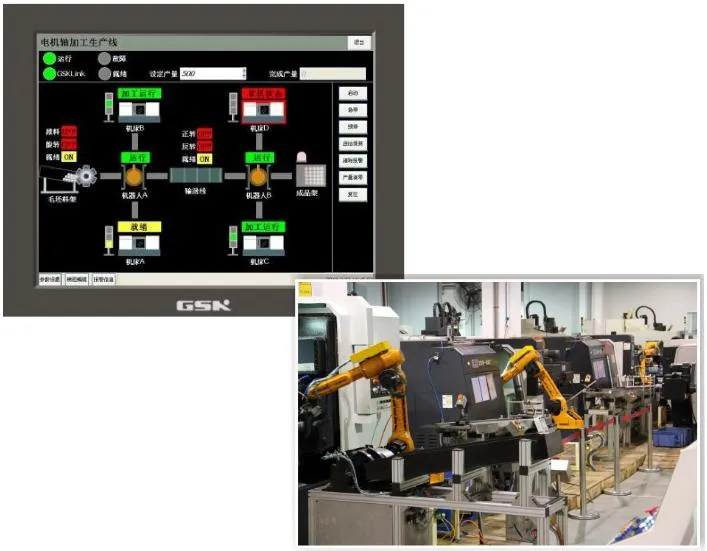

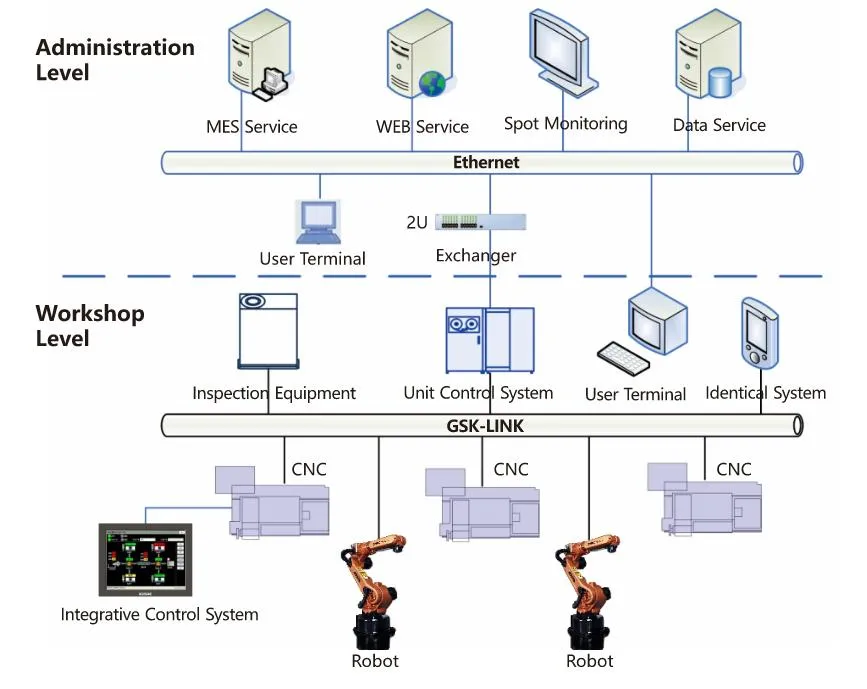

Production Line Unit Control System

✓

Assembles lines of production equipment for machining all kinds of parts.

✓

High-speed connection between CNC machine, industrial robot and auxiliary operations.

✓

Supports on-line and off-line programming.

✓

Maximizes production efficiency and stabilizes quality while reducing labor costs.

Applications

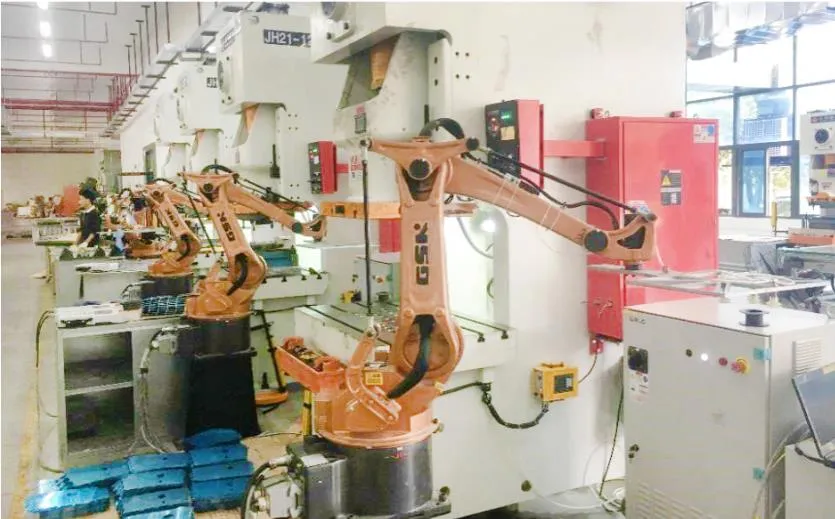

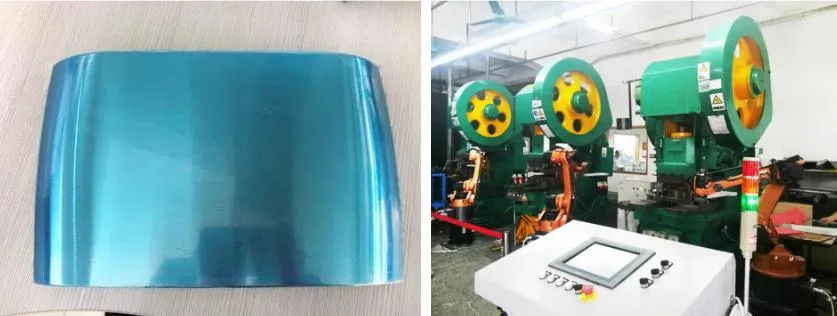

1. Metal Plate Stamping

Using robots for loading and unloading materials across punching machines. High flexibility for various workpiece specifications.

2. Coffee Machine Panel Production

Automated punching production line for panels. Replaces 24/7 manual labor with stable, high-efficient output.

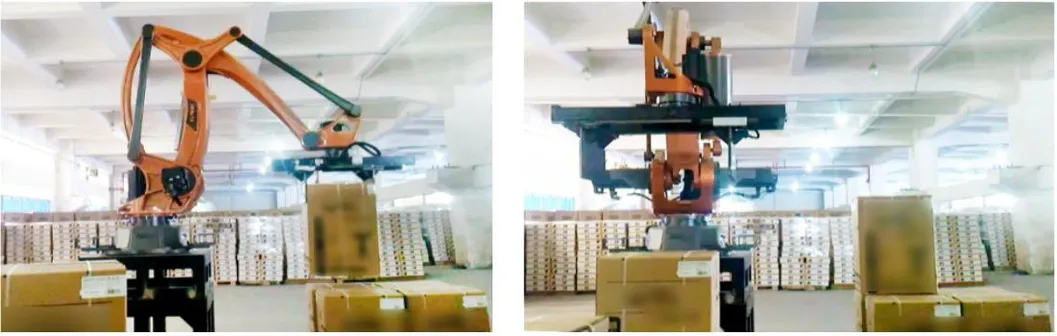

3. Washing Machine Palletizing

Handling 40-60kg washing machines with a 15s cycle time. Includes pressure sensors to prevent damage during gripping.

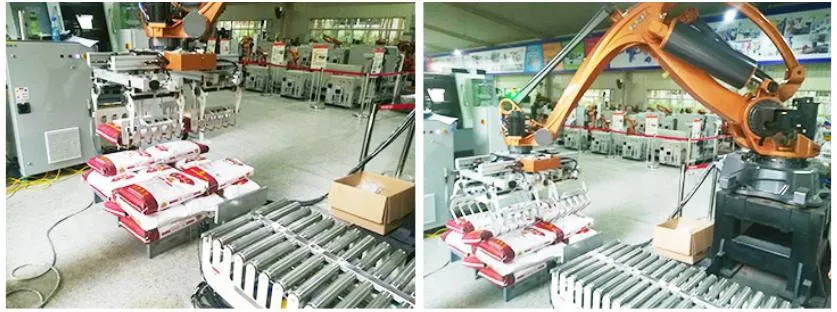

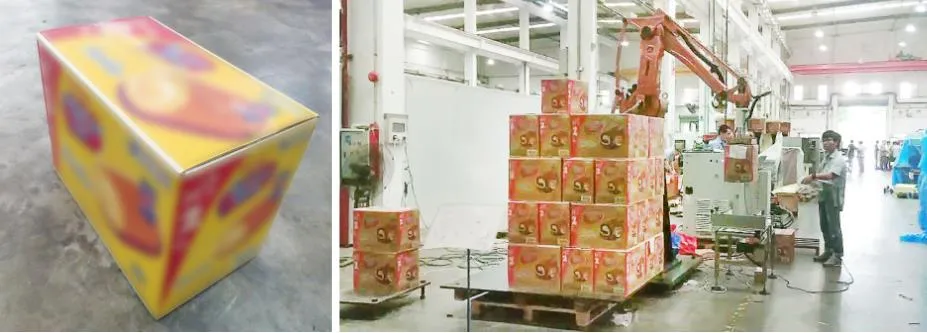

4. Rice Bag & Egg Roll Stacking

Automatic palletizing for bags (5-50kg) and cartoons. Achieves orderly stacking and improves corporate image.

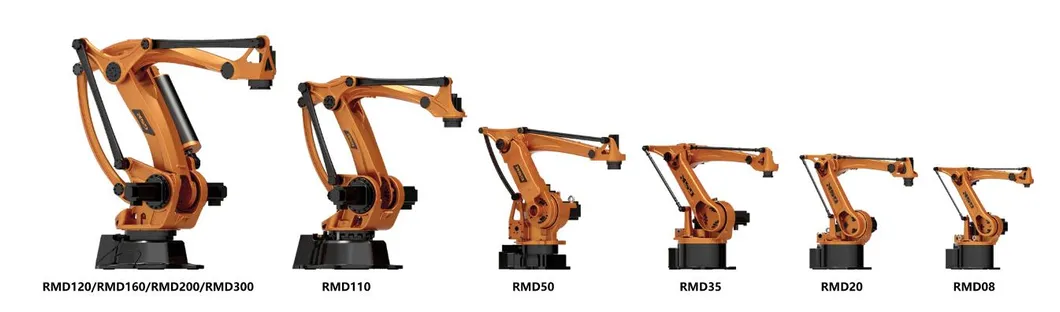

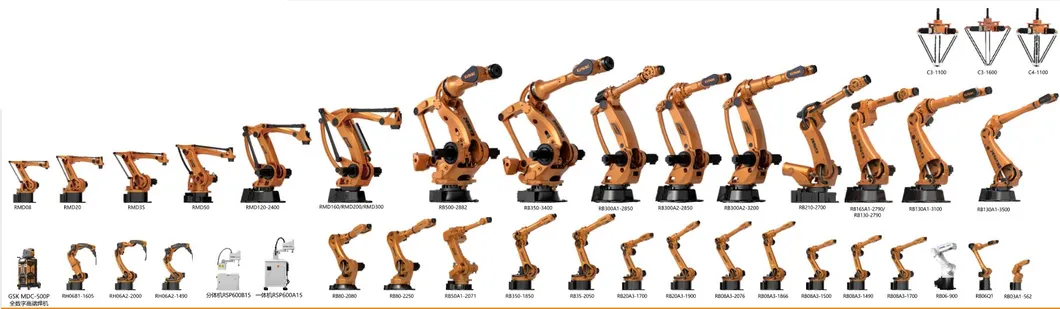

Robot Family

Our industrial robots cover transportation, welding, polishing, painting, stacking, and paralleling, with up to 30 kinds of products. We provide robots with superior performance, designed for modern automation solutions.

Frequently Asked Questions

Q1: What is the maximum payload of the RMD series palletizing robots? A: The RMD series covers a wide range of payloads, from 8kg for small parts up to 300kg for heavy-duty industrial palletizing.

Q2: How many axes do these robots typically use? A: These articulated palletizing robots feature a 4-axis design, optimized for high-speed stacking and material handling tasks.

Q3: What industries are these robots suitable for? A: They are widely used in food and beverage, chemical, metal stamping, home appliances, and logistics for tasks like stacking, unstacking, and loading.

Q4: Can the robots handle different workpiece specifications on the same line? A: Yes, the system features high flexibility and compatible gripper designs to handle various product types and sizes within the same production environment.

Q5: What is the repeatability precision of the RMD robots? A: Most models offer high precision with a repeatability of ±0.05mm to ±0.1mm, ensuring consistent placement during operation.

Q6: Do these robots support continuous 24/7 operation? A: Absolutely. These robots are designed to replace manual labor for round-the-clock production, significantly increasing efficiency and reducing long-term costs.
