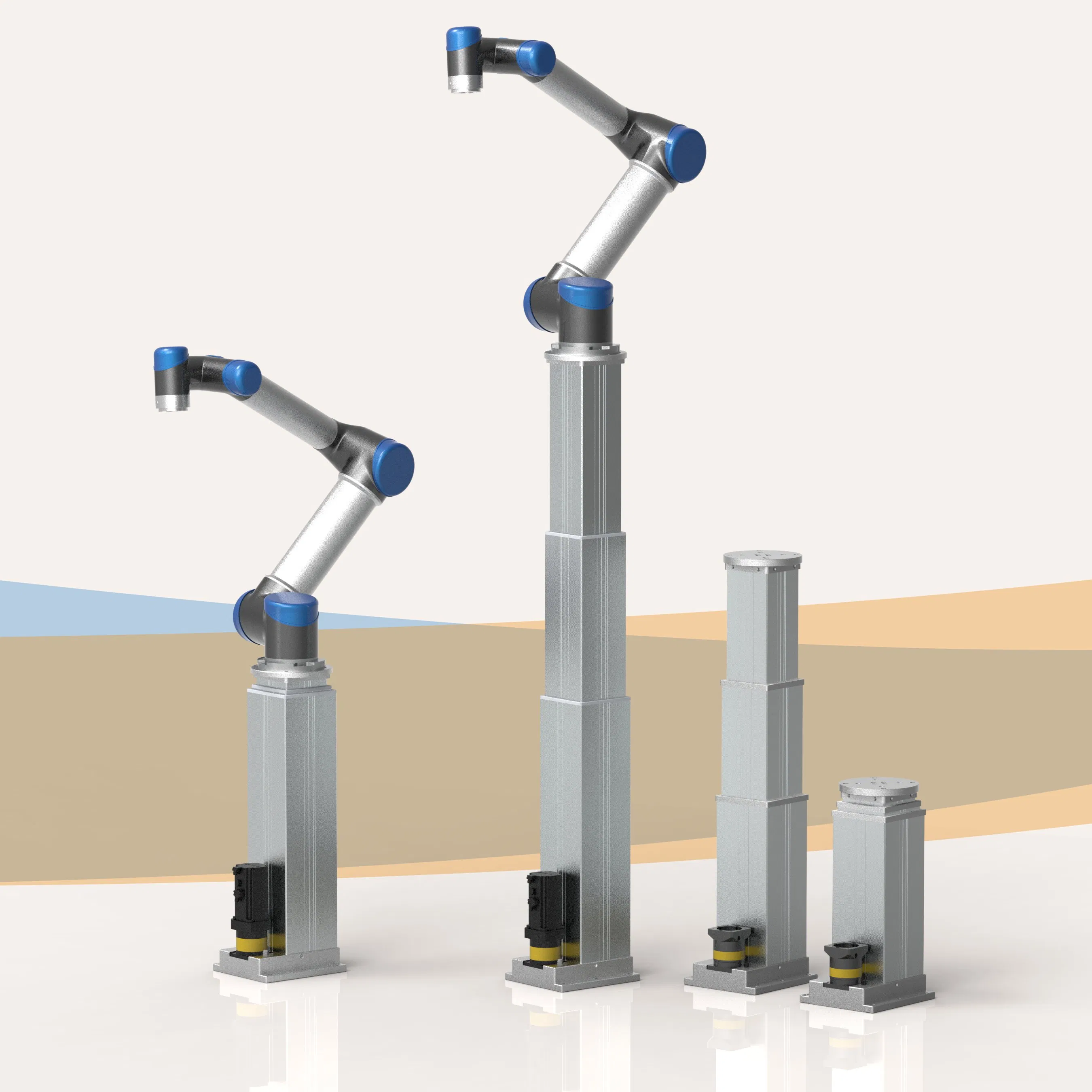

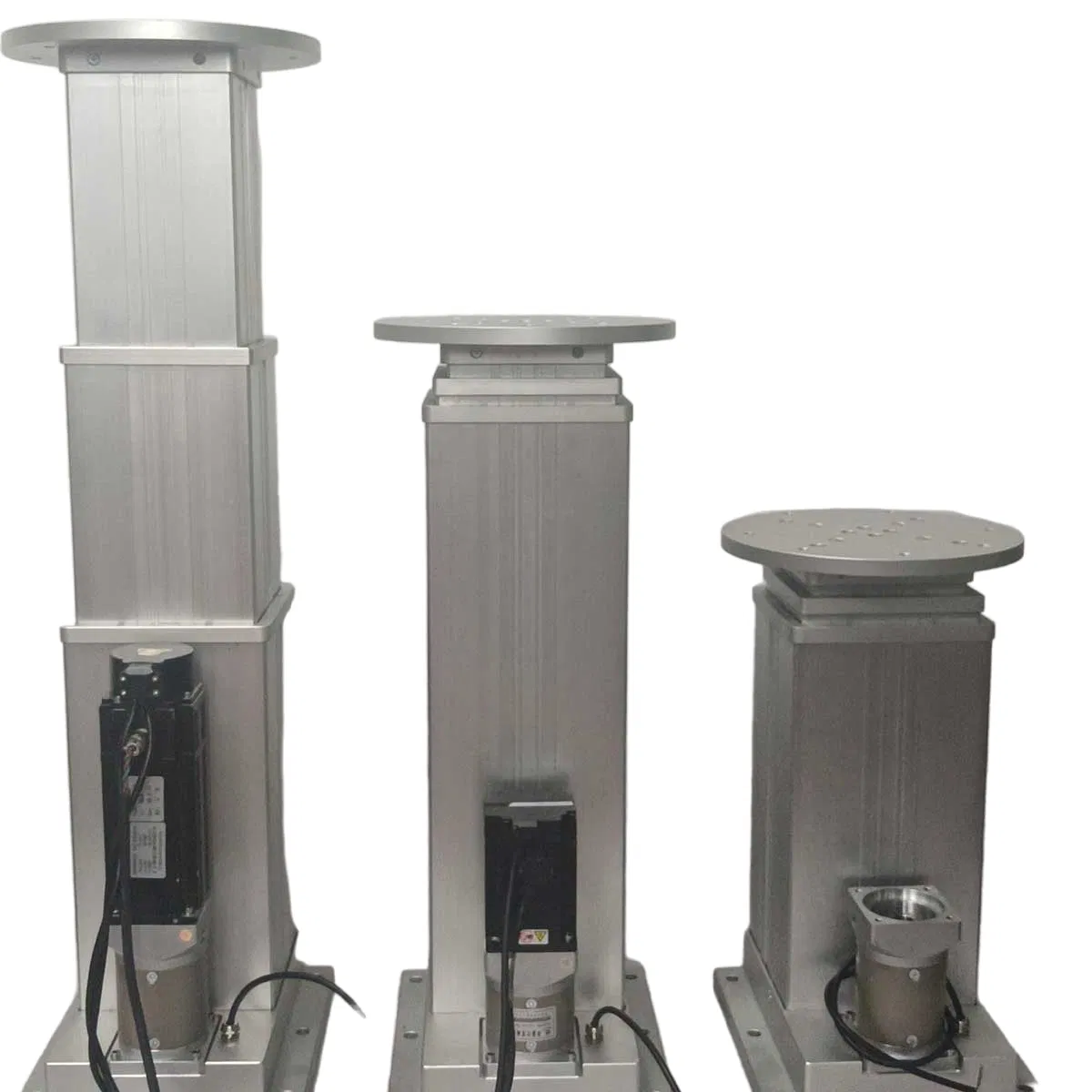

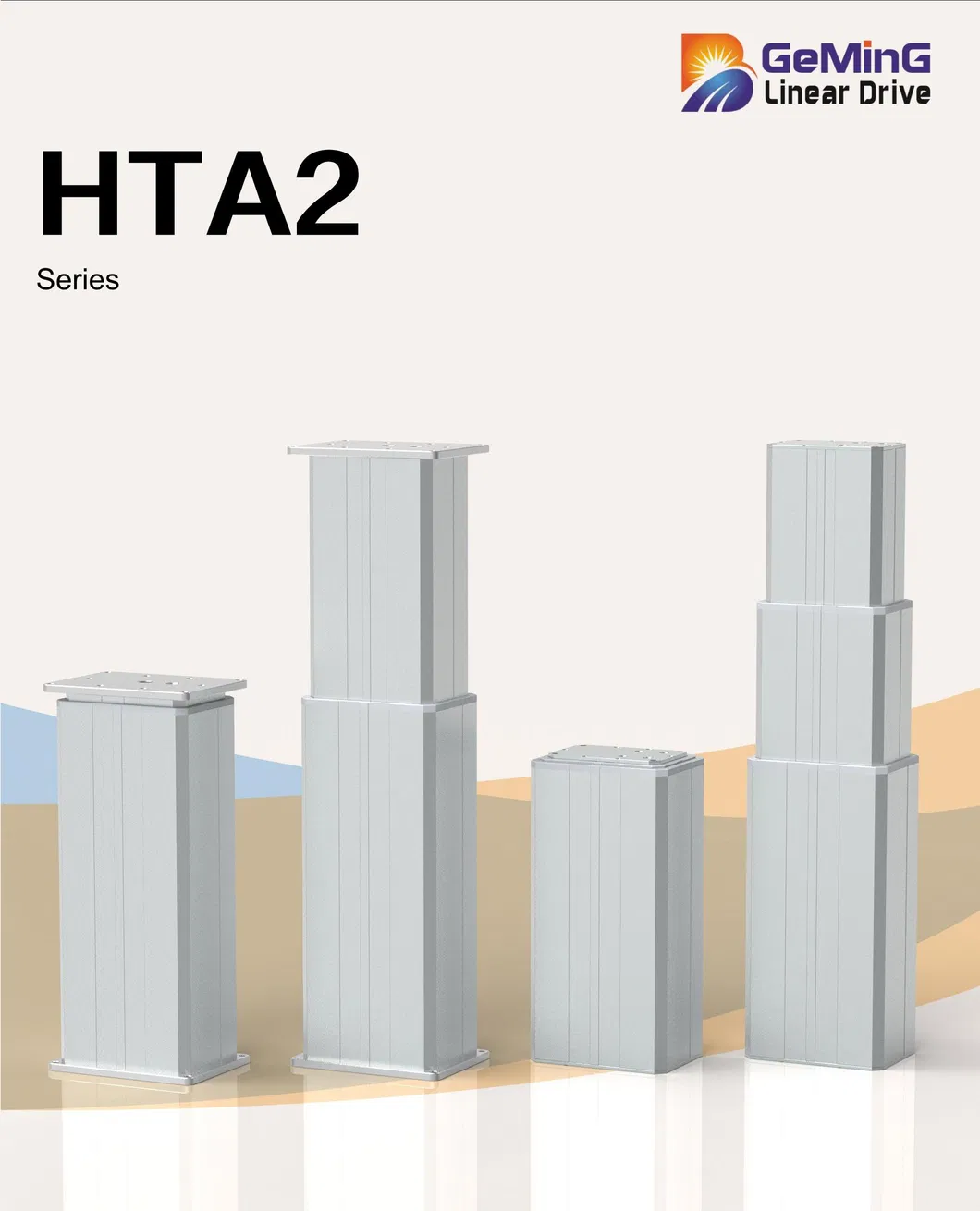

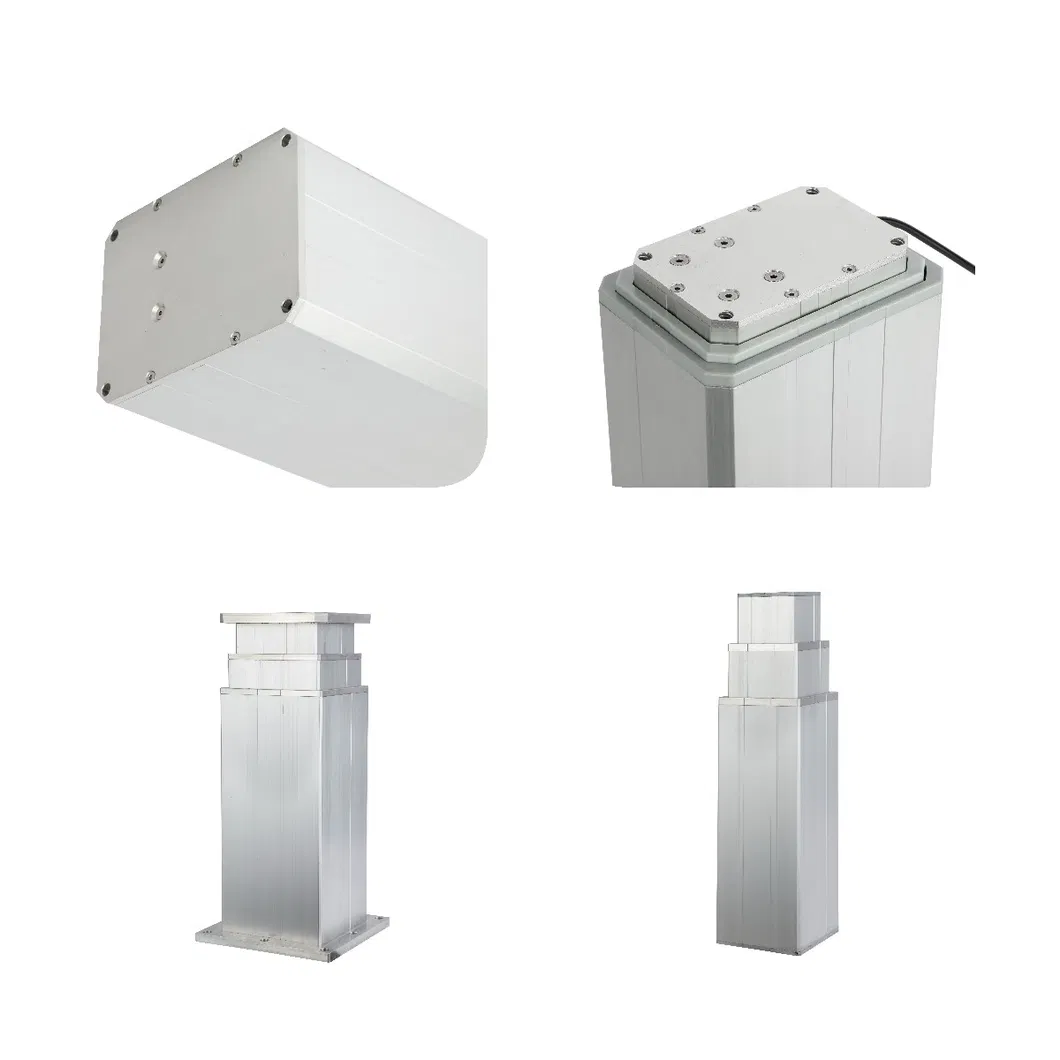

HTA2 lifting column is designed for a wide variety of workstation applications such as computer workstations, workbenches, assembly tables, medical equipment lifting platforms, and height adjustment solutions. The HTA2 lifting columns improve high synchronization performance and load operation capacity. It features a powerful design and full-featured control system, capable of operating as a single system or with 2 to 4 lifting columns in parallel.
• Model Selection: Technical teams provide the right model and transmission solutions based on specific usage parameters.

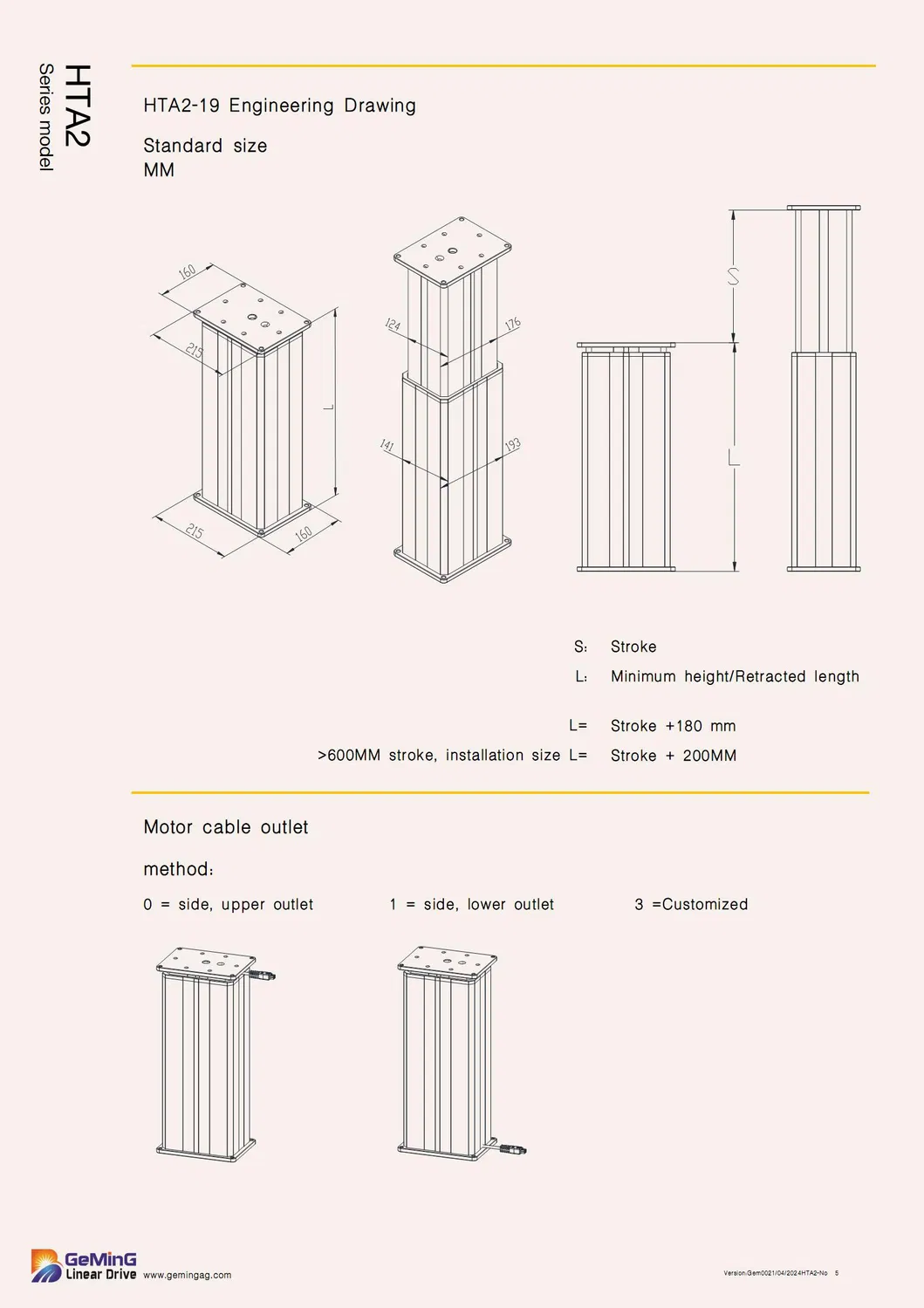

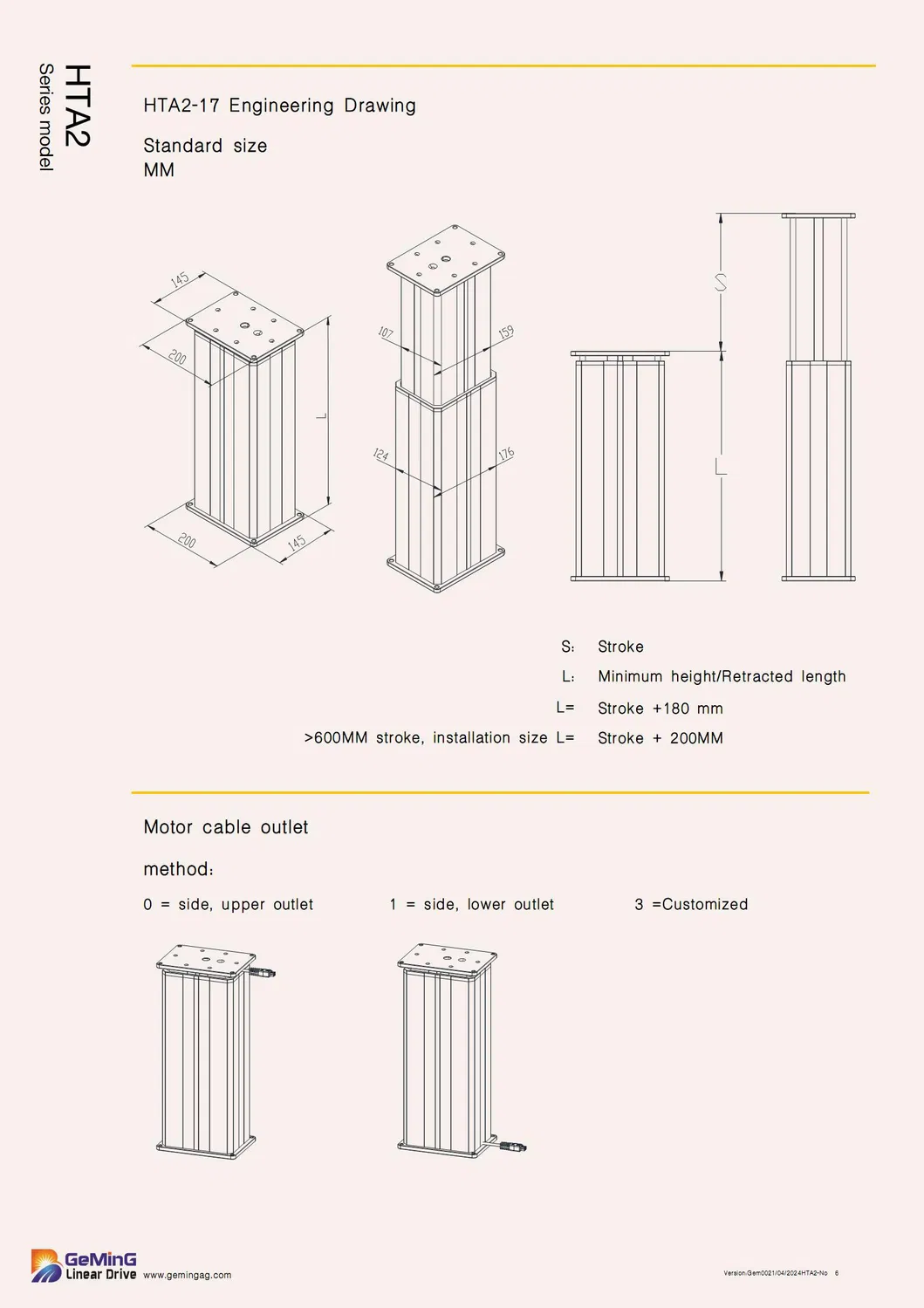

• Technical Requests: Catalogues, CAD, or 3D drawings are available upon request for detailed parameters.
• Customization: Standard products can be modified or customized to meet specific application needs.
| Voltage | 12, 24, 48V DC / 220V AC |
|---|---|

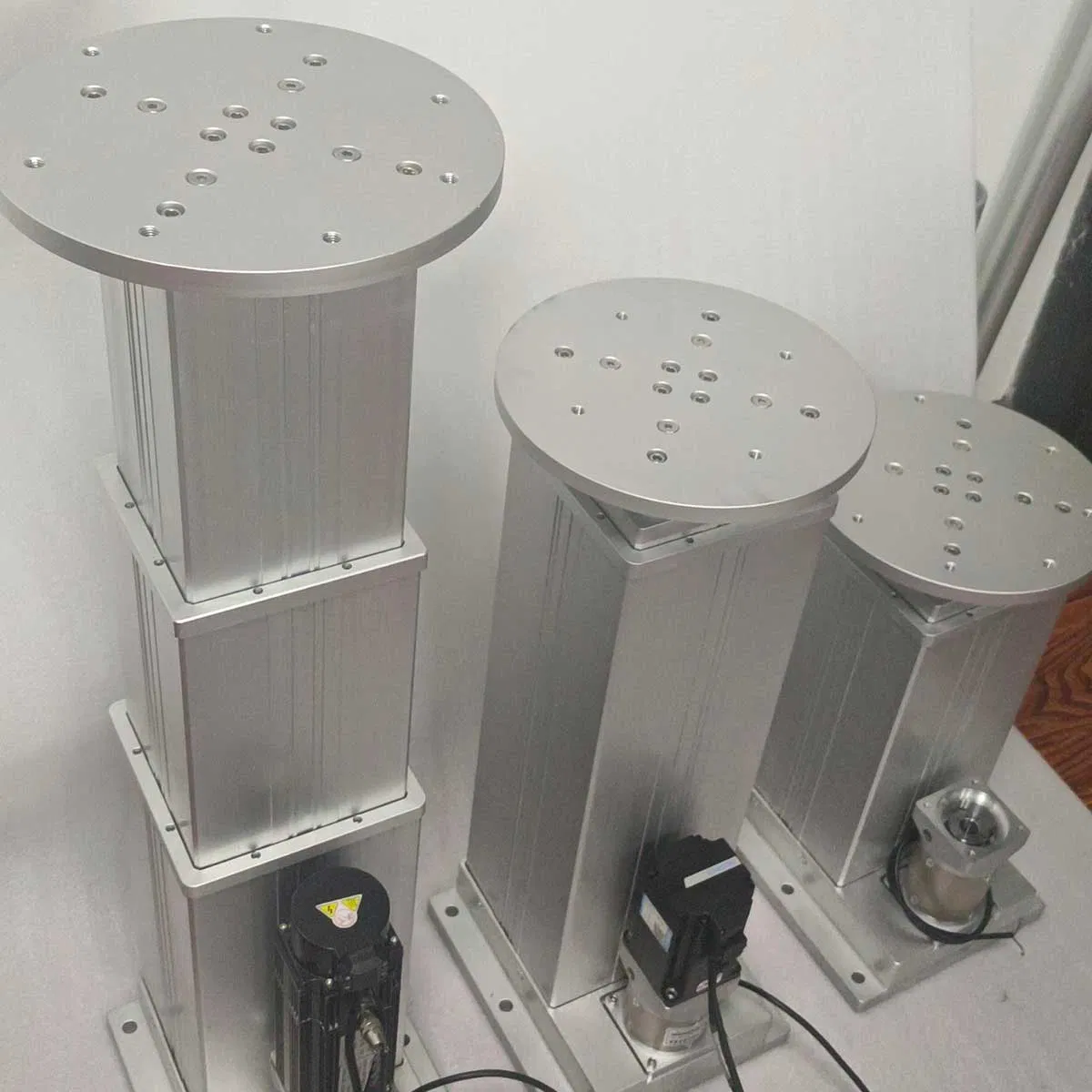

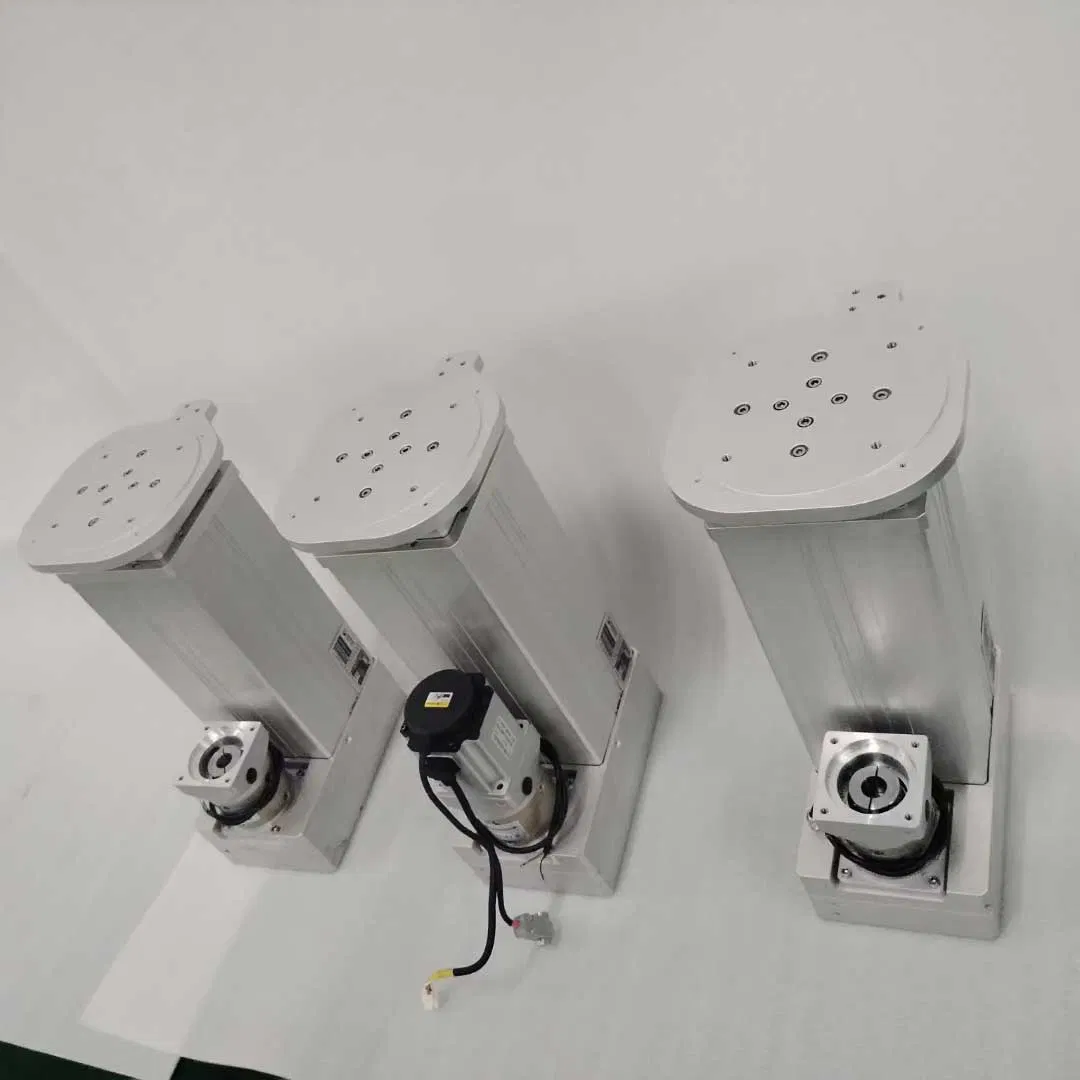

| Motor Options | DC Servo, AC Servo |
| Max Thrust/Pull | 8,000N / 4,000N |
| Speed Under Load | 5-100 mm/s |
| Lateral Moment | 1,000Nm (Dynamic) / 1,800Nm (Static) |
| Noise Level | 48~52 dB |
| Screw Type | Ball screw, Trapezoidal screw |
| Safety | ISO9001-2008, CE, RoHS |

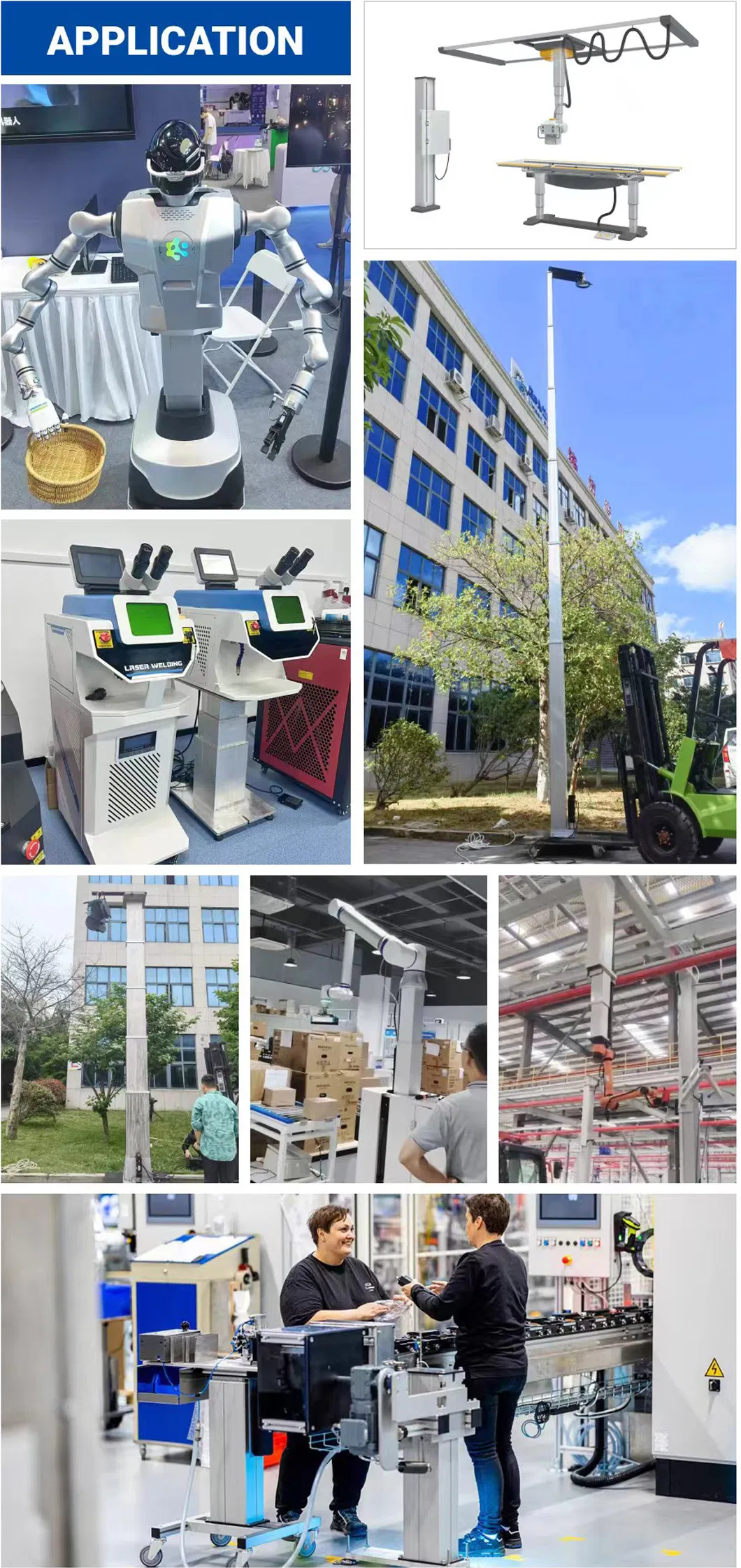

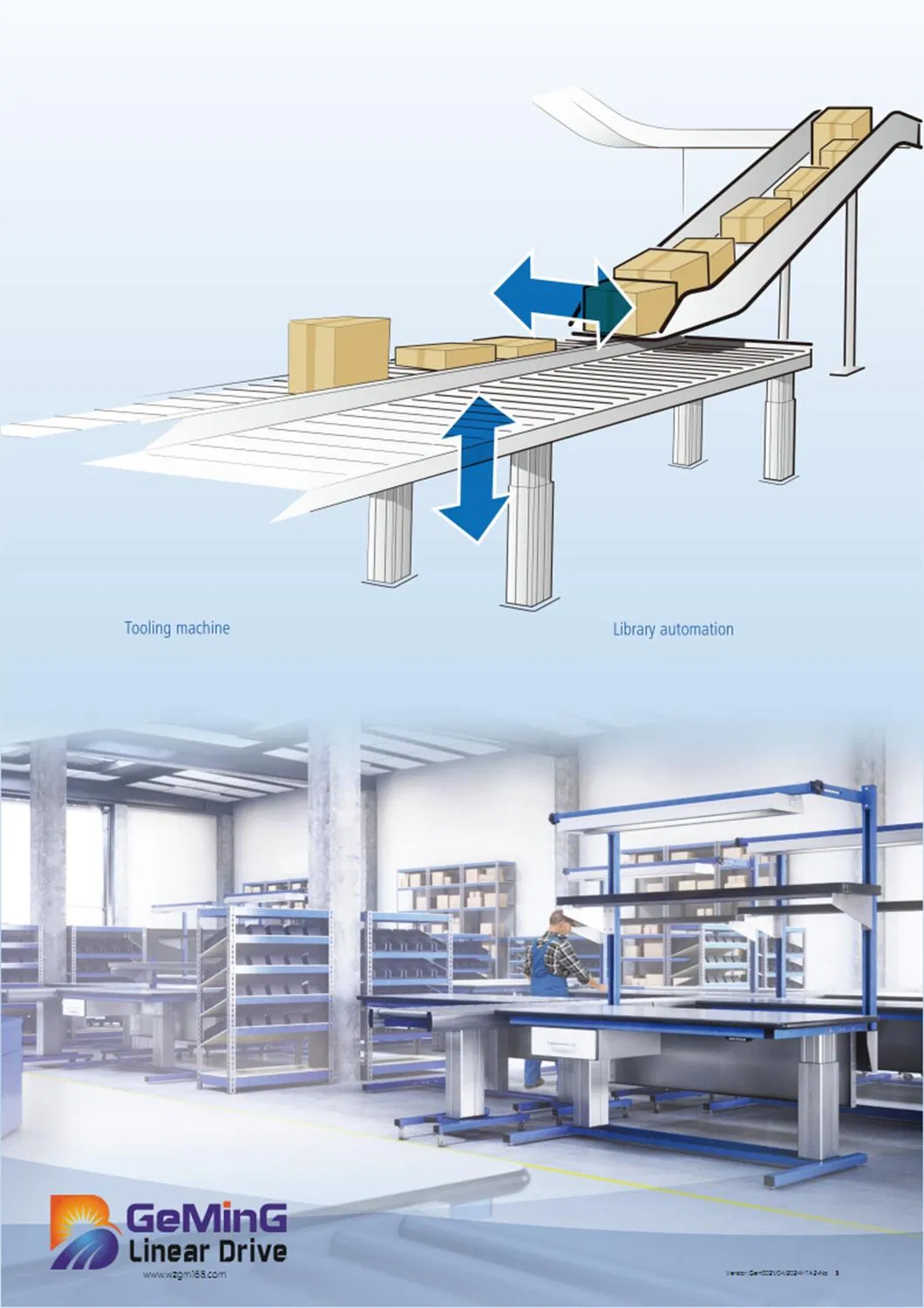

Electric Telescopic lifting columns are best-suited for height adjustable office, industrial, and medical equipment requiring vertical movement. These columns provide quiet and smooth movement for products such as desks and medical beds.
| Code | Rated Load Thrust (N) | Rated Load Pull (N) | Self-locking Static (N) | No-load Speed (mm/s) | Rated Load Speed (mm/s) |
|---|---|---|---|---|---|
| A1 | 8,000 | 6,000 | 8,000 | 5 | 4 |
| A2 | 7,500 | 6,000 | 8,000 | 10 | 8 |
| A3 | 5,500 | 5,000 | 6,000 | 13 | 10 |
| A4 | 3,500 | 3,500 | 3,500 | 20 | 16 |
| A5 | 2,800 | 2,800 | 3,200 | 26 | 22 |
| A6 | 1,800 | 1,800 | 2,000 | 40 | 32 |

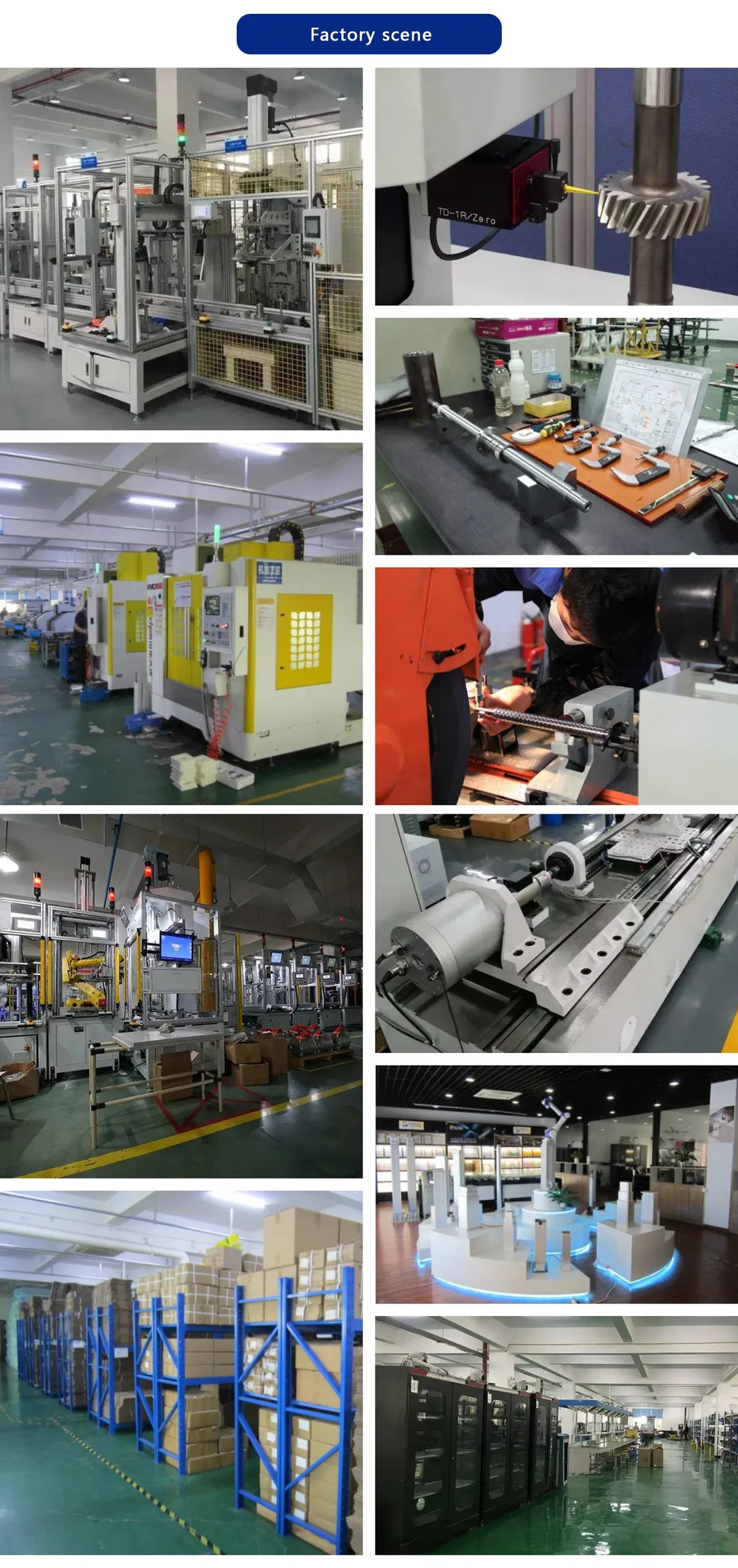

We specialize in R&D and manufacturing linear motion systems, including electric linear actuators and lifting column control systems. With multiple manufacturing plants, we provide high-quality, long-life linear motion solutions for global industrial and medical needs.
