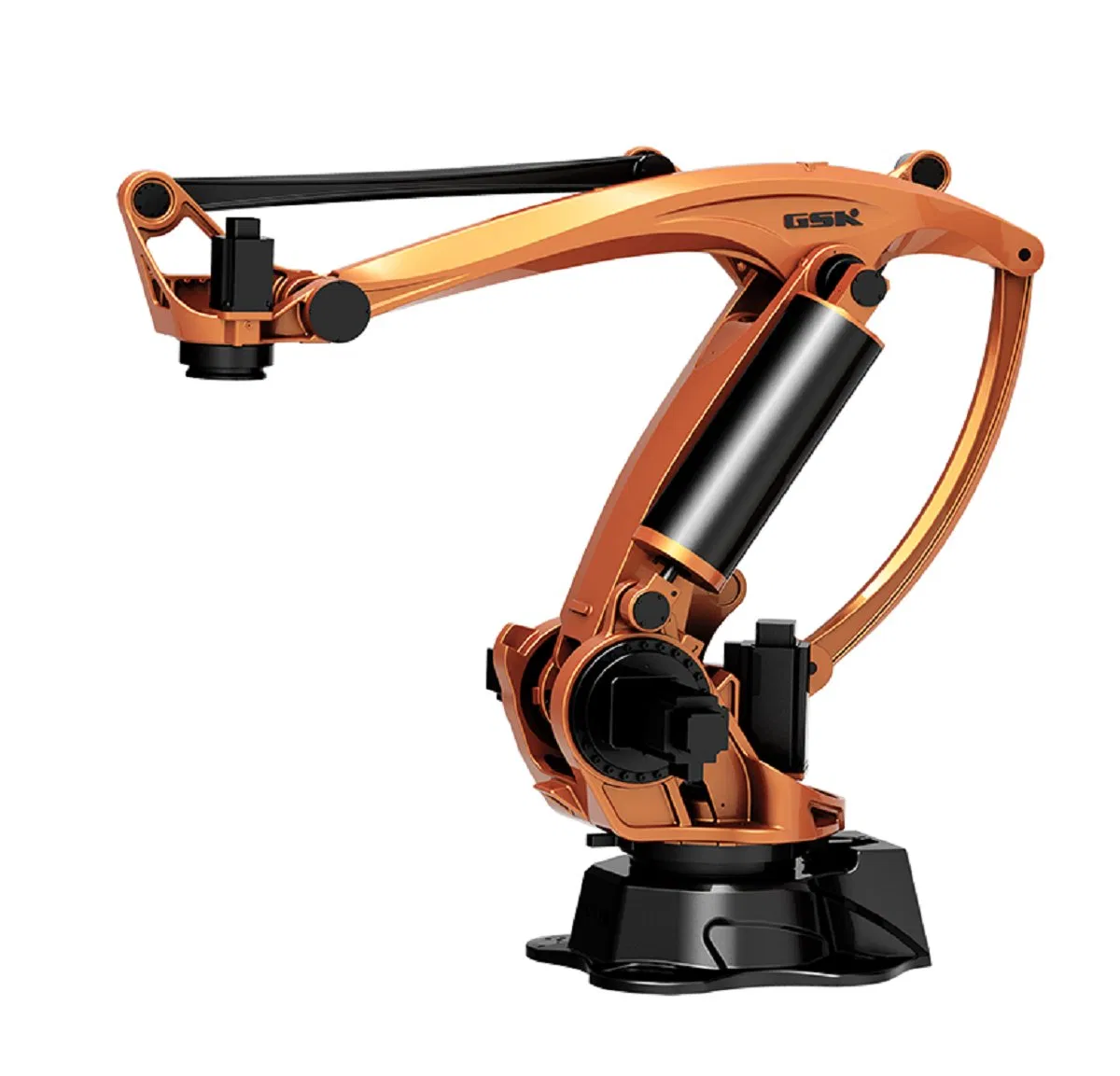

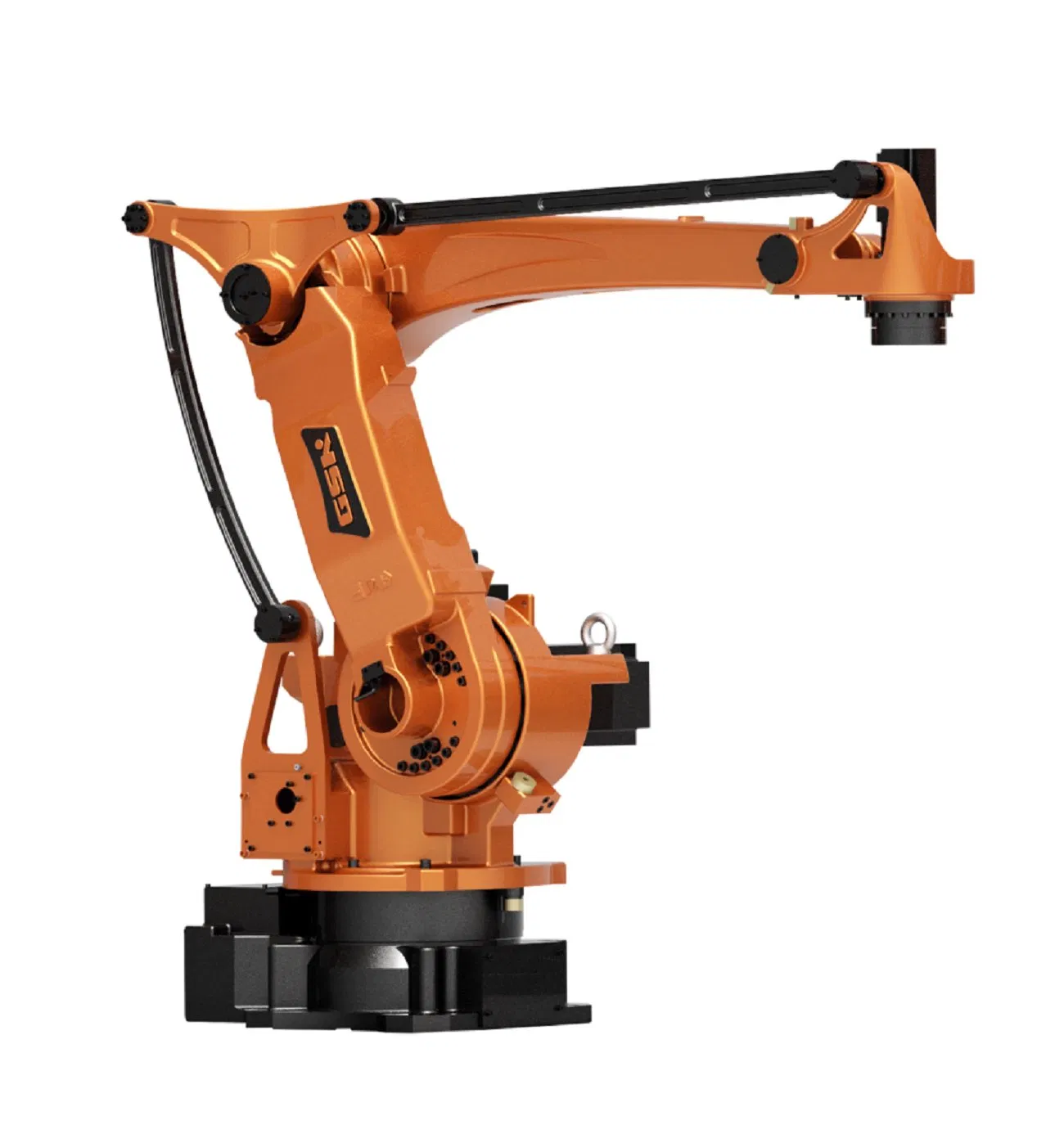

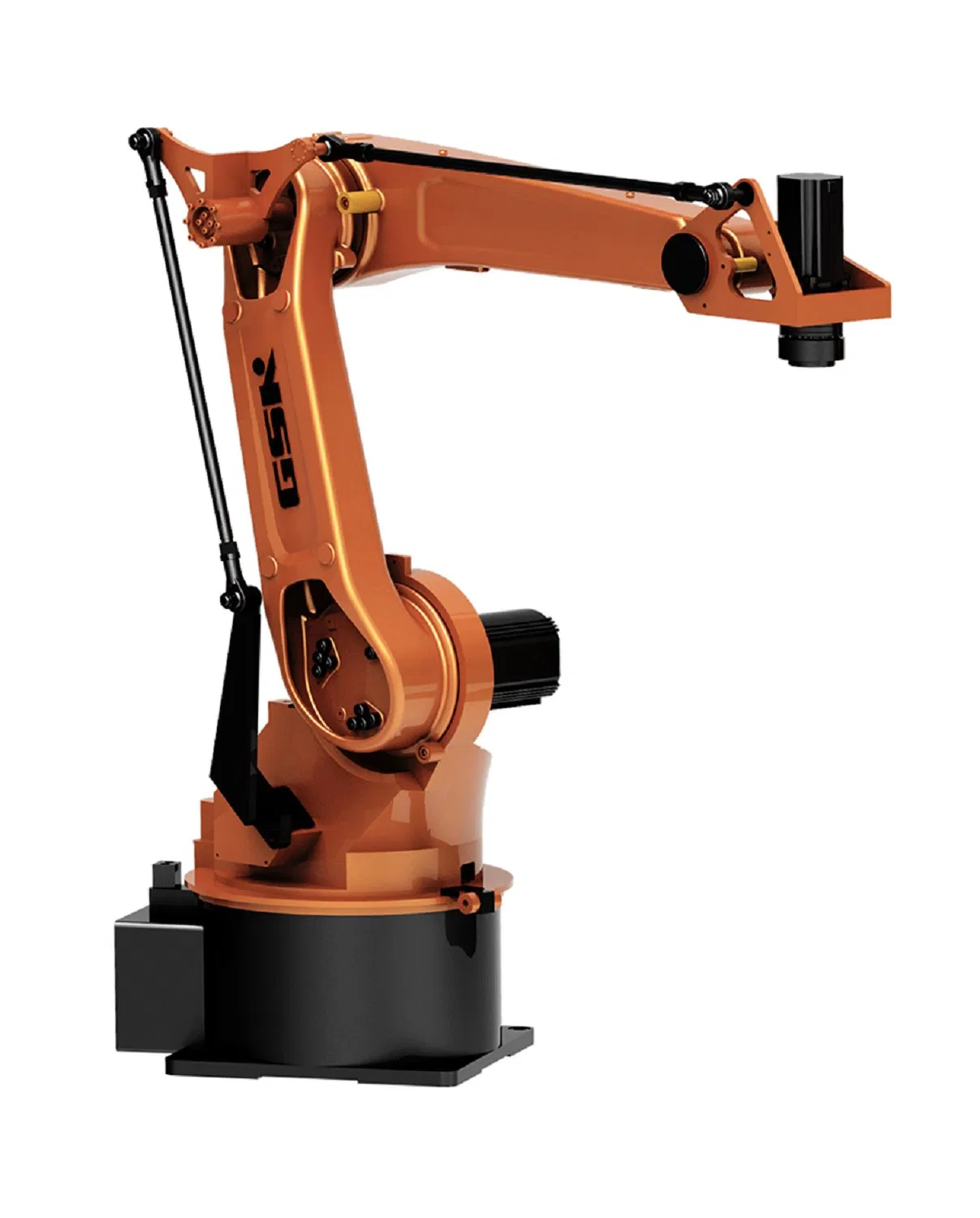

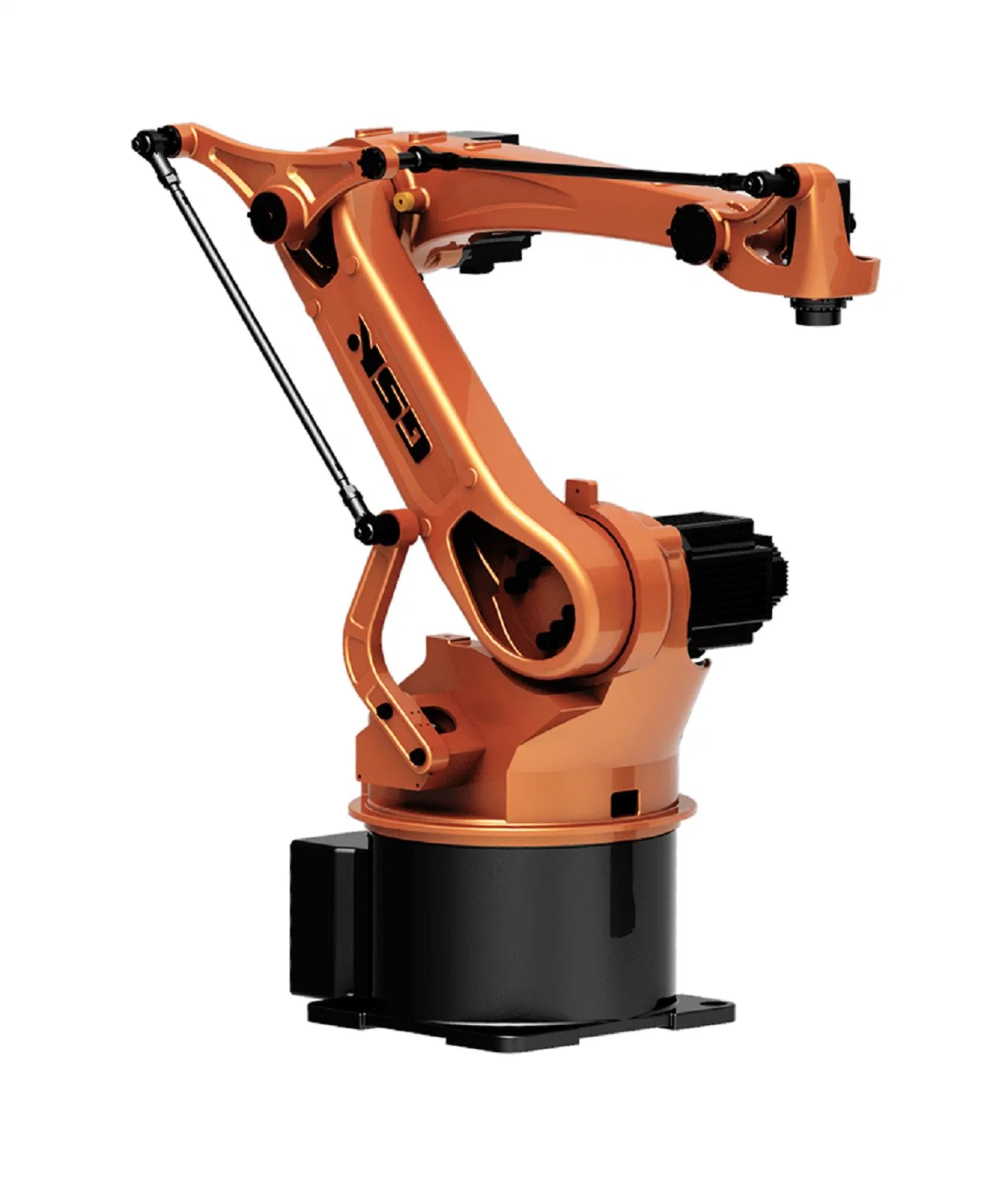

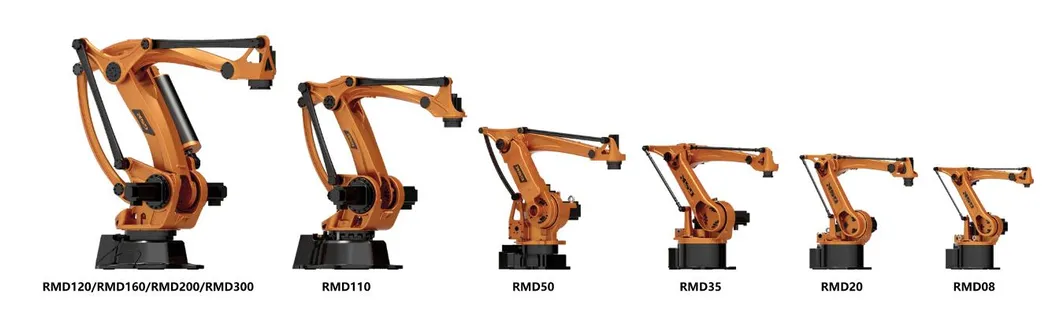

RMD Series Palletizing Robot
Application: Stacking, unstacking, transferring, stamping, loading and unloading in packing, drinking, chemical industry and food industry.
| Type | Dof | Payload (kg) | Repeatability (mm) | Motion Range (°) | Motion Radius (mm) | Weight (kg) | |||
|---|---|---|---|---|---|---|---|---|---|
| J1 | J2 | J3 | J4 | ||||||
| RMD08 | 4 | 8 | ±0.05 | ±170 | +90~-40 | +68~-90 | ±360 | 1433 | 180 |
| RMD20 | 4 | 20 | ±0.05 | ±170 | +106~-45 | +73~-90 | ±360 | 1755 | 266 |
| RMD50 | 4 | 50 | ±0.1 | ±178 | +90~-40 | +65~-78 | ±360 | 2154 | 660 |
| RMD120-2400 | 4 | 120 | ±0.1 | ±180 | +85~-40 | +120~-20 | ±360 | 2404 | 1020 |
| RMD200 | 4 | 200 | ±0.1 | ±180 | +100~-44 | +121~-15 | ±360 | 3150 | 1500 |

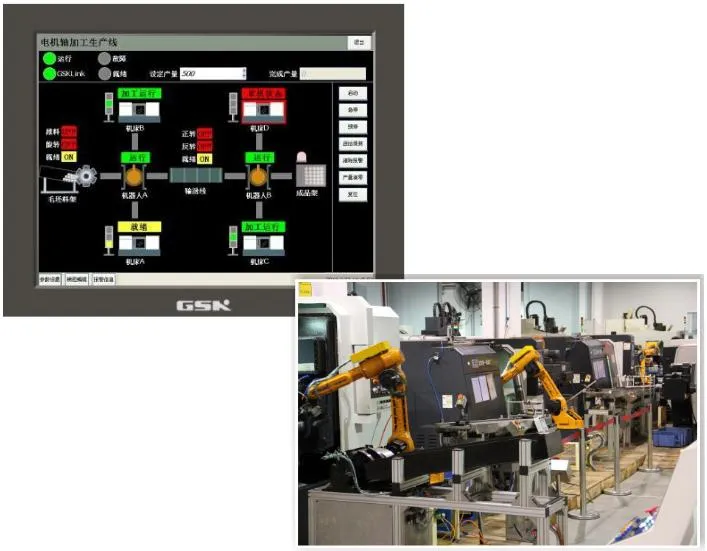

Achieving the "Digitalized factory" and "Intelligent workshop" management system.
✔️ CAM and CAPP application management
✔️ Equipment utilization statistics
✔️ Production flow interference control
✔️ Regulate production capacity

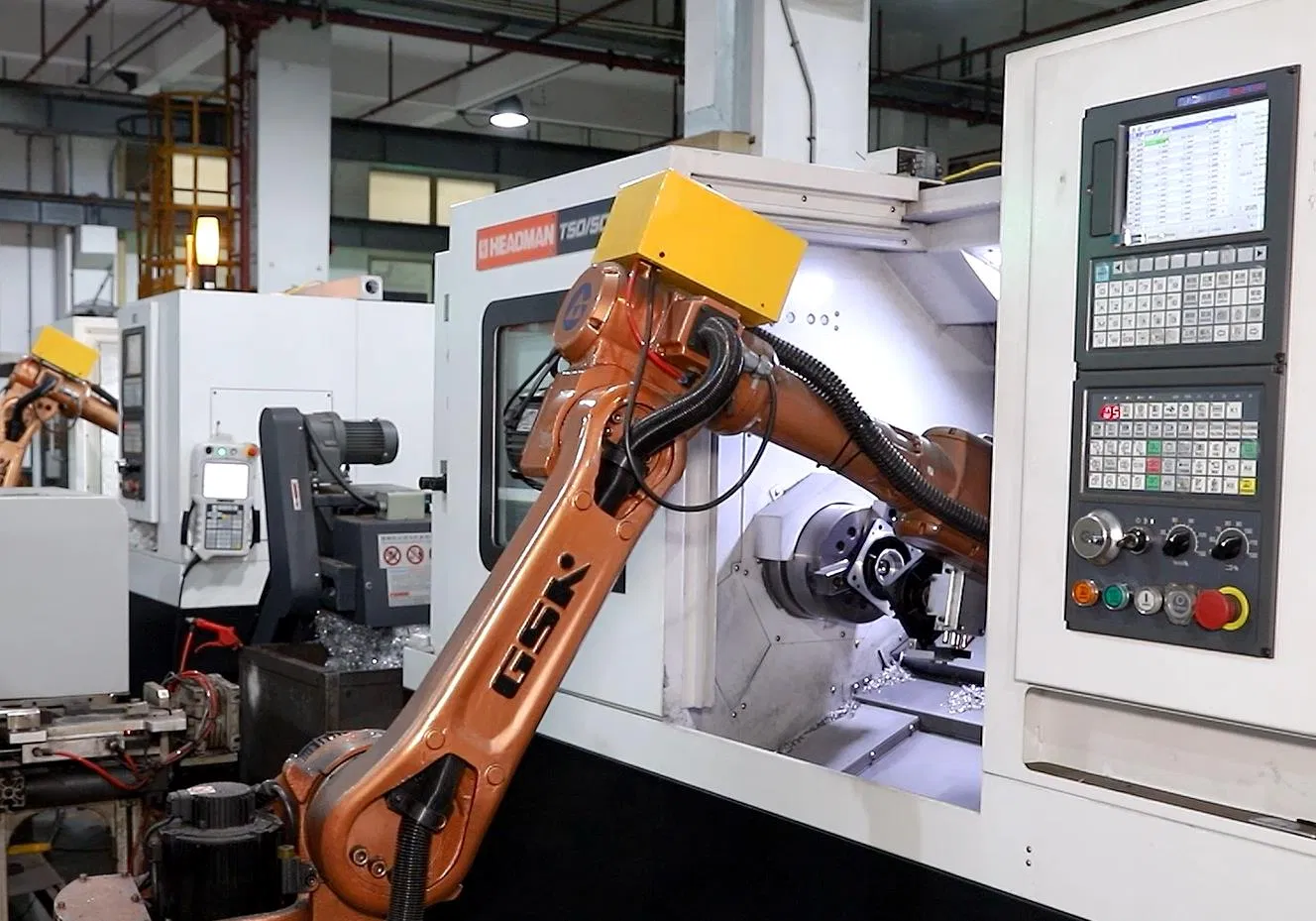

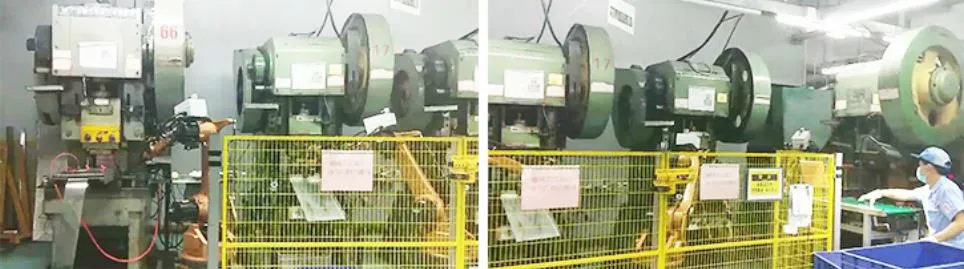

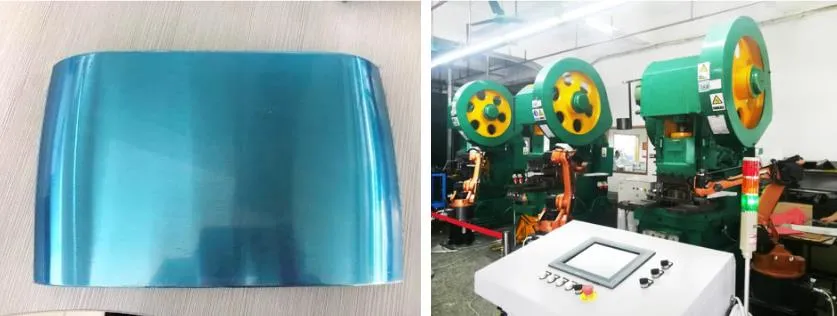

Requirements: Loading and unloading for punching machines, finished products sent via conveyor, high flexibility for different specifications.
Effect: Saves labor cost, enables 24/7 operation, and maintains steady finish quality.
Effect: Replaces labor for consecutive 24-hour operation; ensures high-efficiency and quality guarantee.

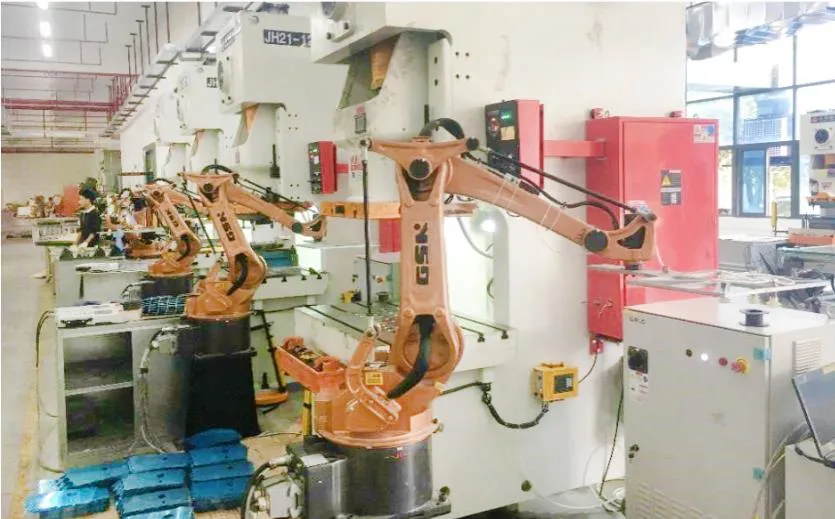

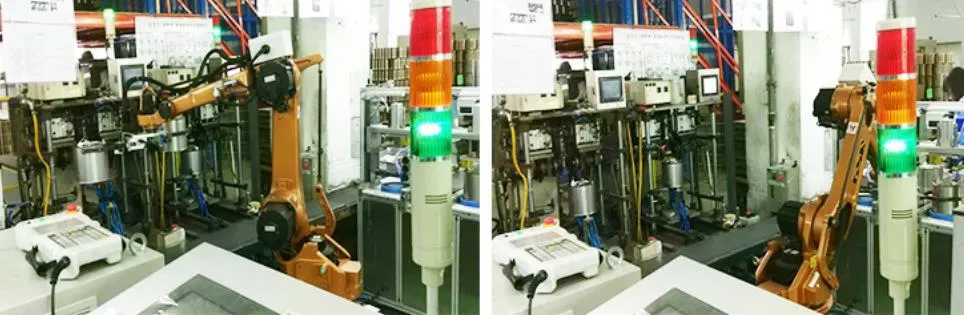

Requirements: Production beat of 16 seconds/piece, capturing container for roll-welding and laser marking devices.
Effect: Closely matched with punching machines, maximizing production efficiency and reducing cost.

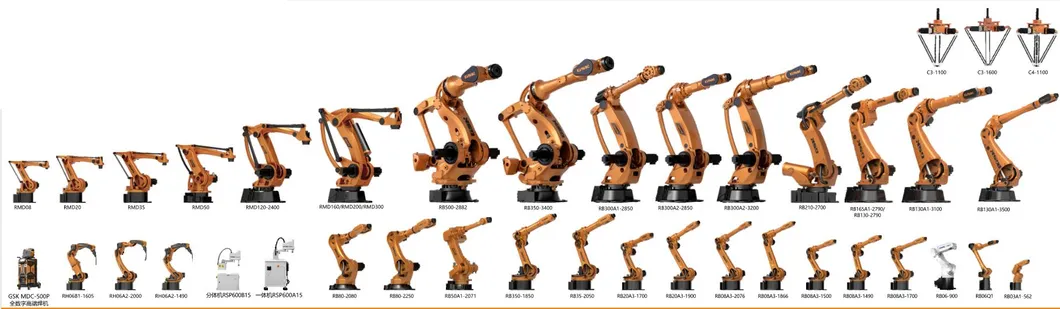

With industrial control technology R&D and manufacture experience for more than 30 years, industrial robots are divided into 6 series covering transportation, welding, polishing, painting, stacking, and paralleling, up to 30 kinds of products.
