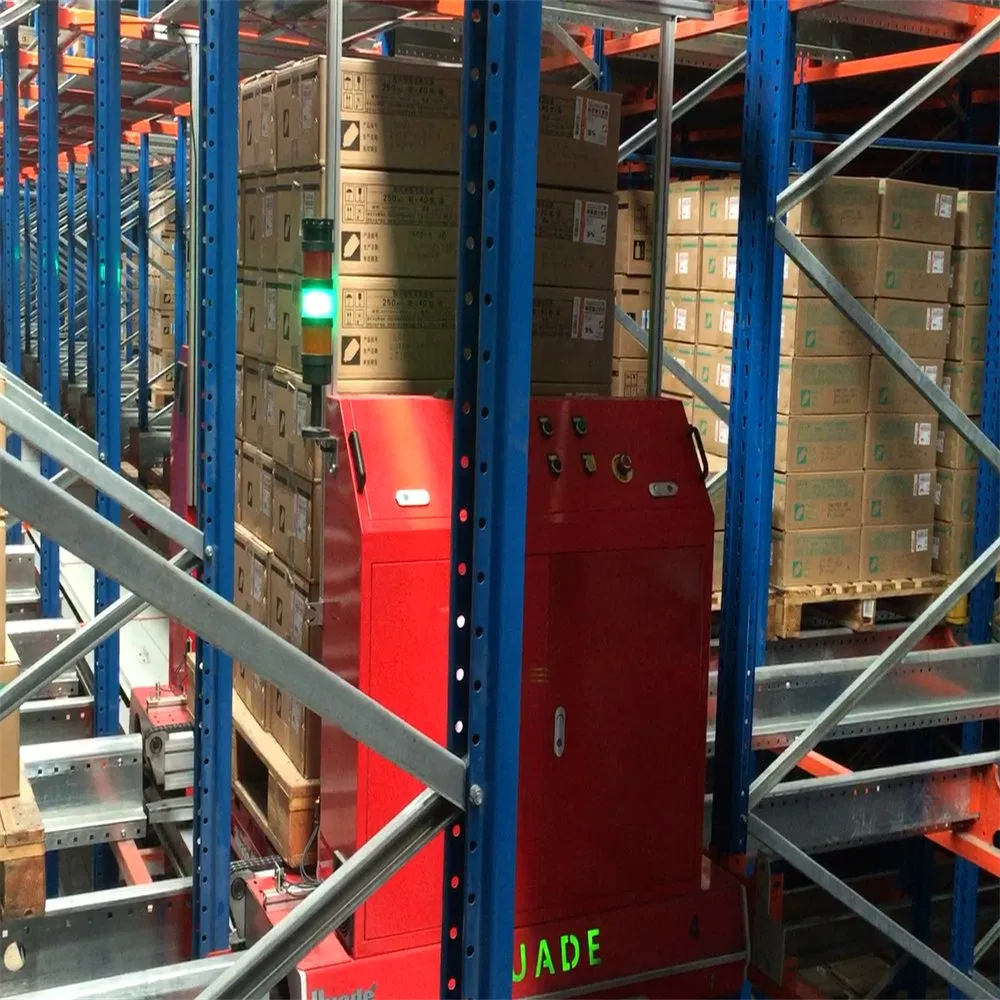

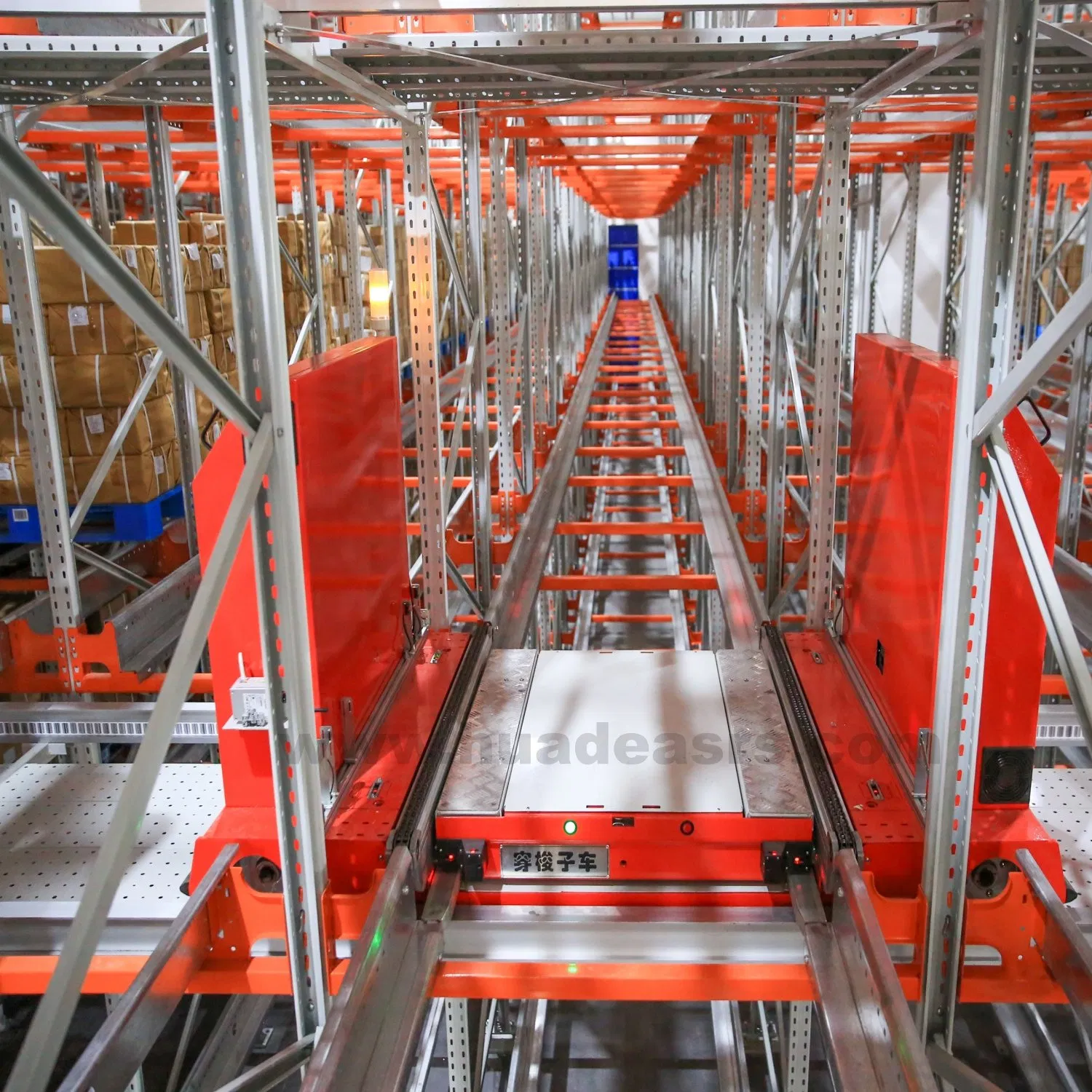

Mother Child Shuttle AS/RS for Multi-Deep Pallet Warehouse Storage Racking System
Multi Deep Pallet ASRS are fully automated pallet storage solutions for warehouses with low ceilings, fewer unique products and high throughput requirements. These systems include:

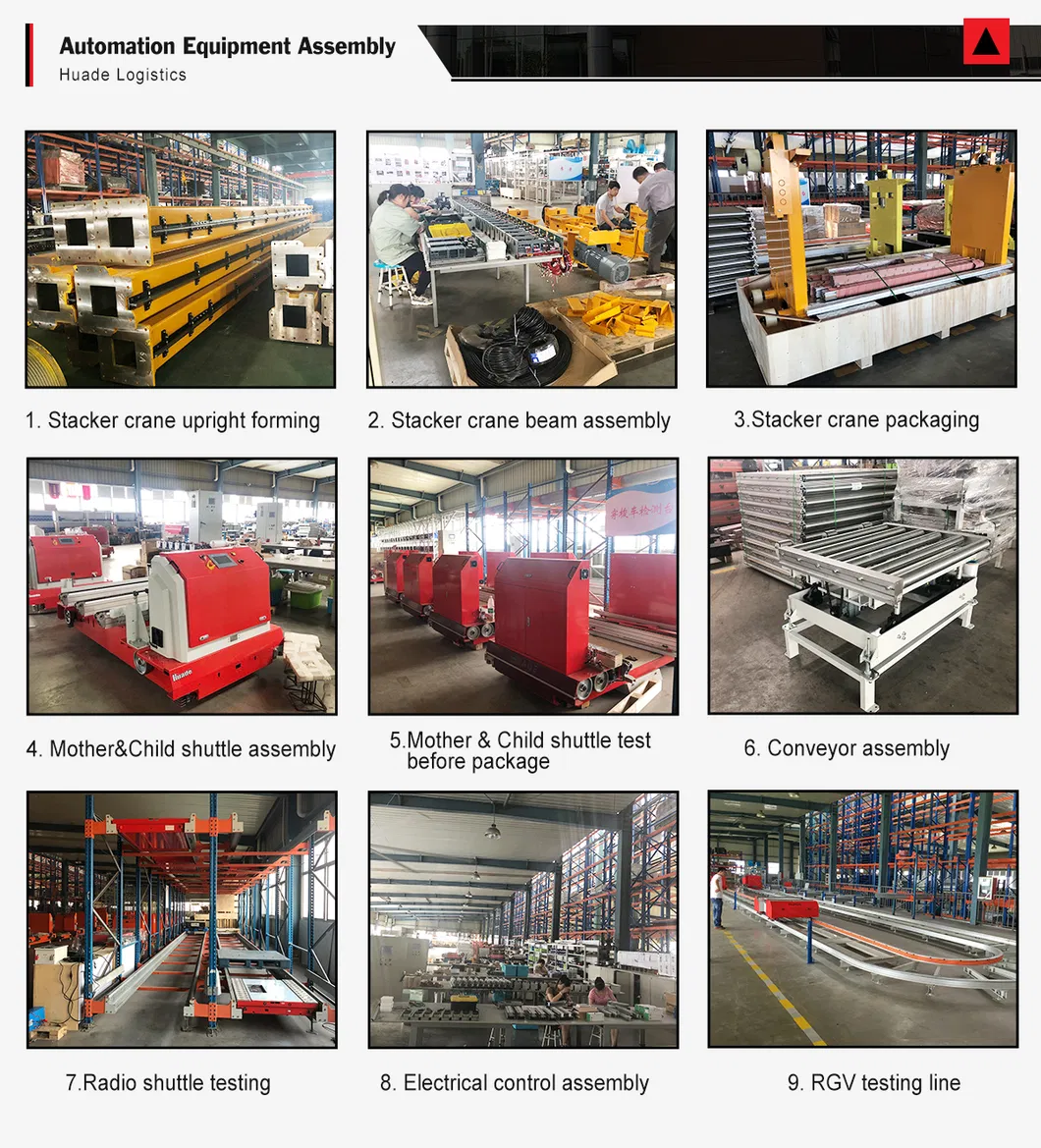

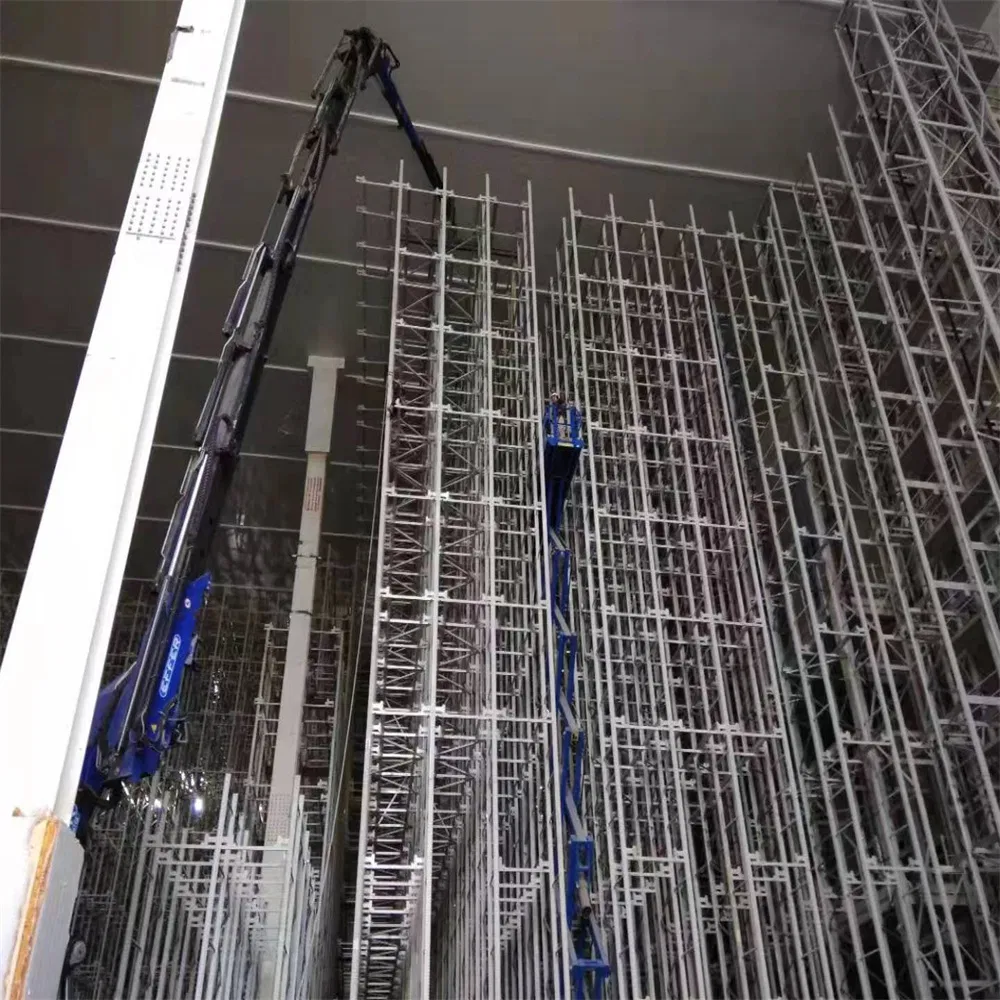

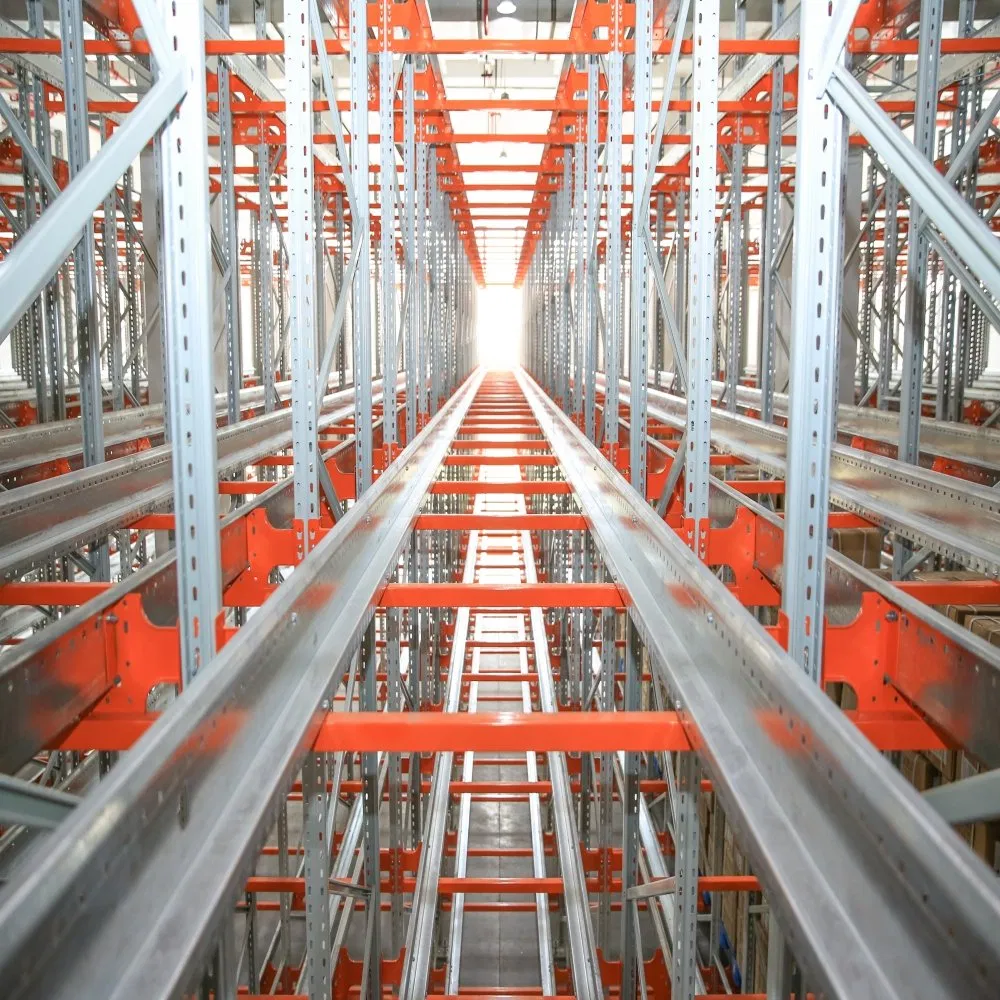

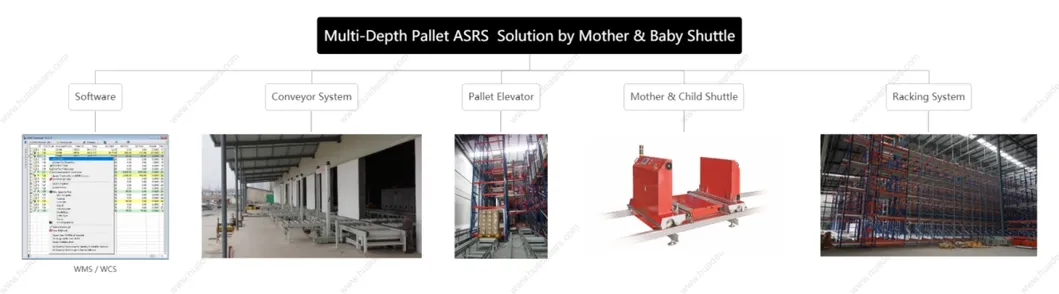

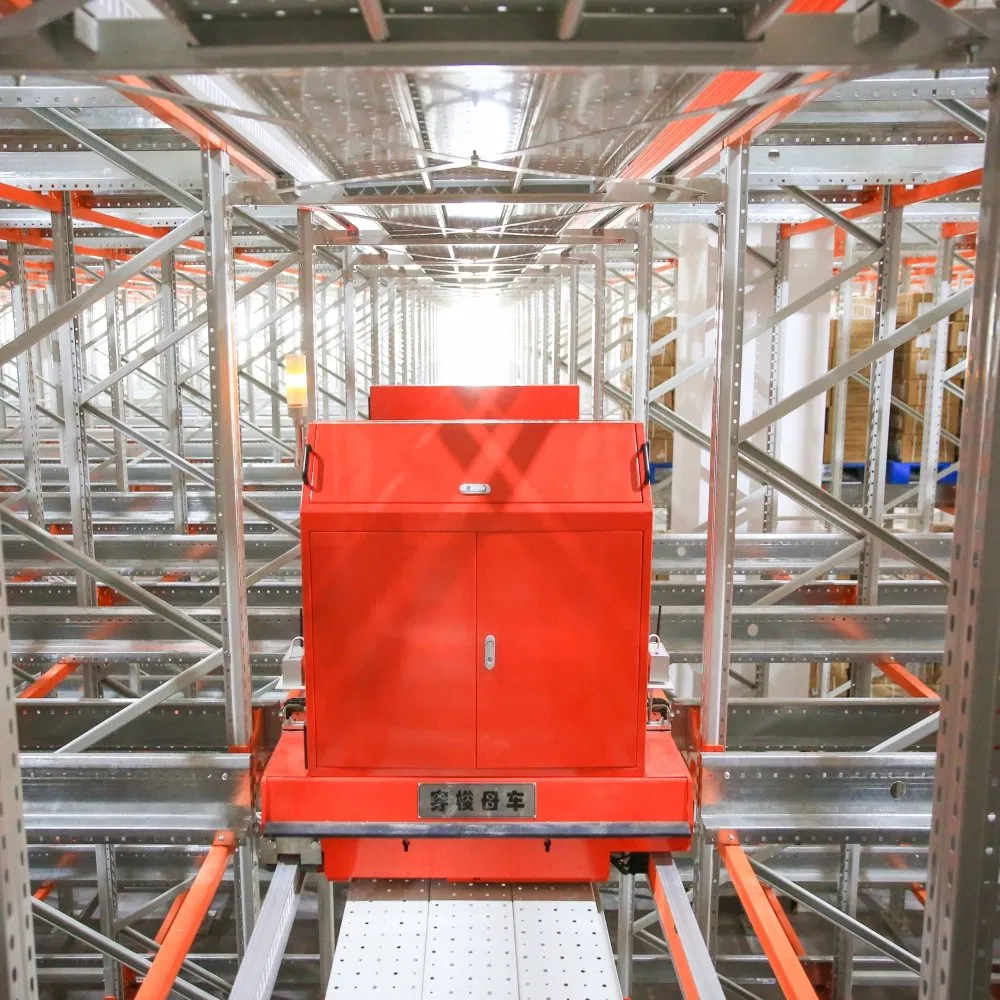

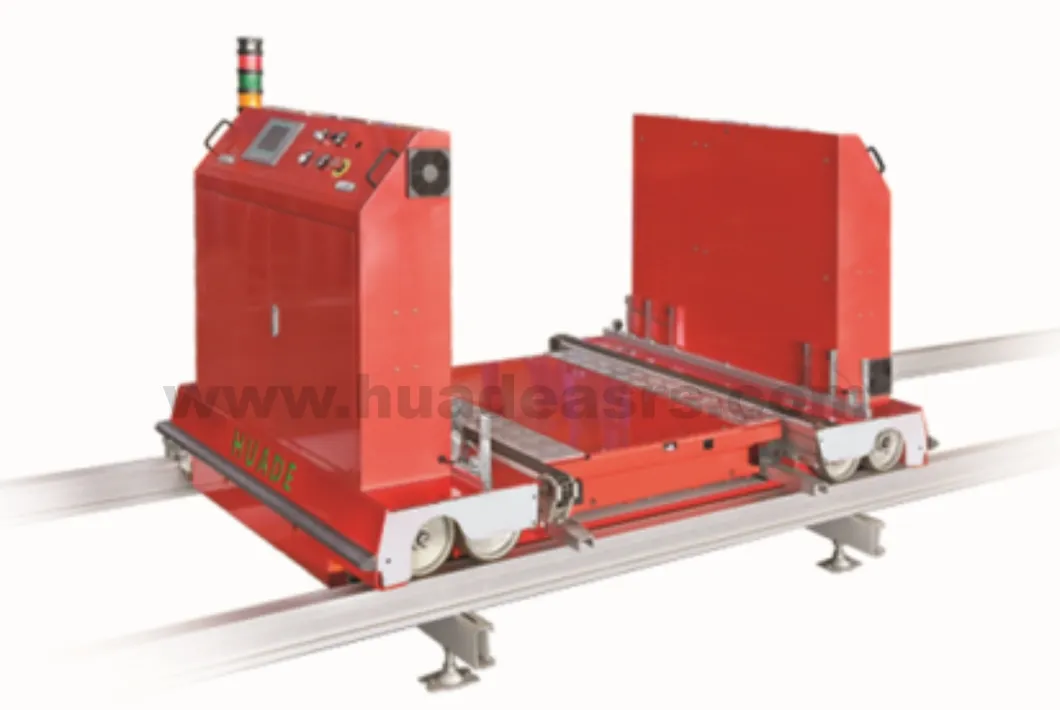

This system consists of high-density pallet racking, a mother shuttle powered by bus bar, a baby (child) shuttle on the mother shuttle, pallet elevators, and buffer conveyors.
| Type | Non layer transfer type | Layer transfer type | ||
|---|---|---|---|---|
| Model | HDSZS | HDSZM | ||
| Power Supply | Bus bar | Battery | Bus bar | Battery |
| Max Load (kg) | 1500 | 1500 | 1500 | 1500 |
| Mother Speed (Full) | 2.0 m/s | 1.0 m/s | 2.0 m/s | 1.0 m/s |
| Satellite Speed (Full) | 0.6 m/s | 0.5 m/s | 0.6 m/s | 0.5 m/s |
| Control mode | Manual, Automatic, On-line | |||
Latest four-way shuttle transport technology enables access to multi-deep pallets at any level. This optimizes building footprints and minimizes environmental impact.
