Our technical team chooses the right model and transmission solutions based on your specific parameters.

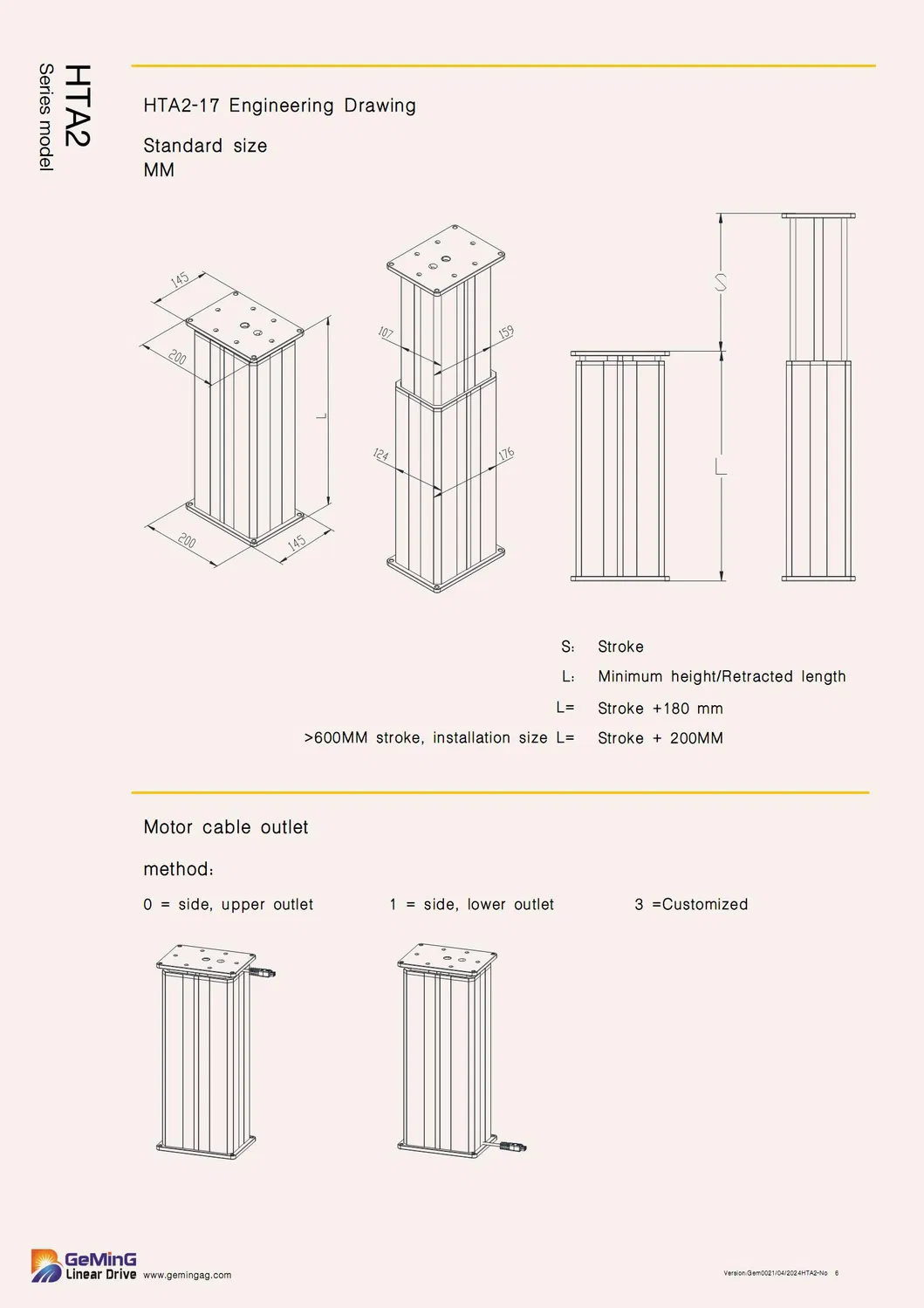

Customization: We can modify standard products or customize them to meet specific needs including CAD/3D drawing requests.
| Parameter | Specification |
|---|---|
| Voltage | 12, 24, 48V DC, 220V AC |

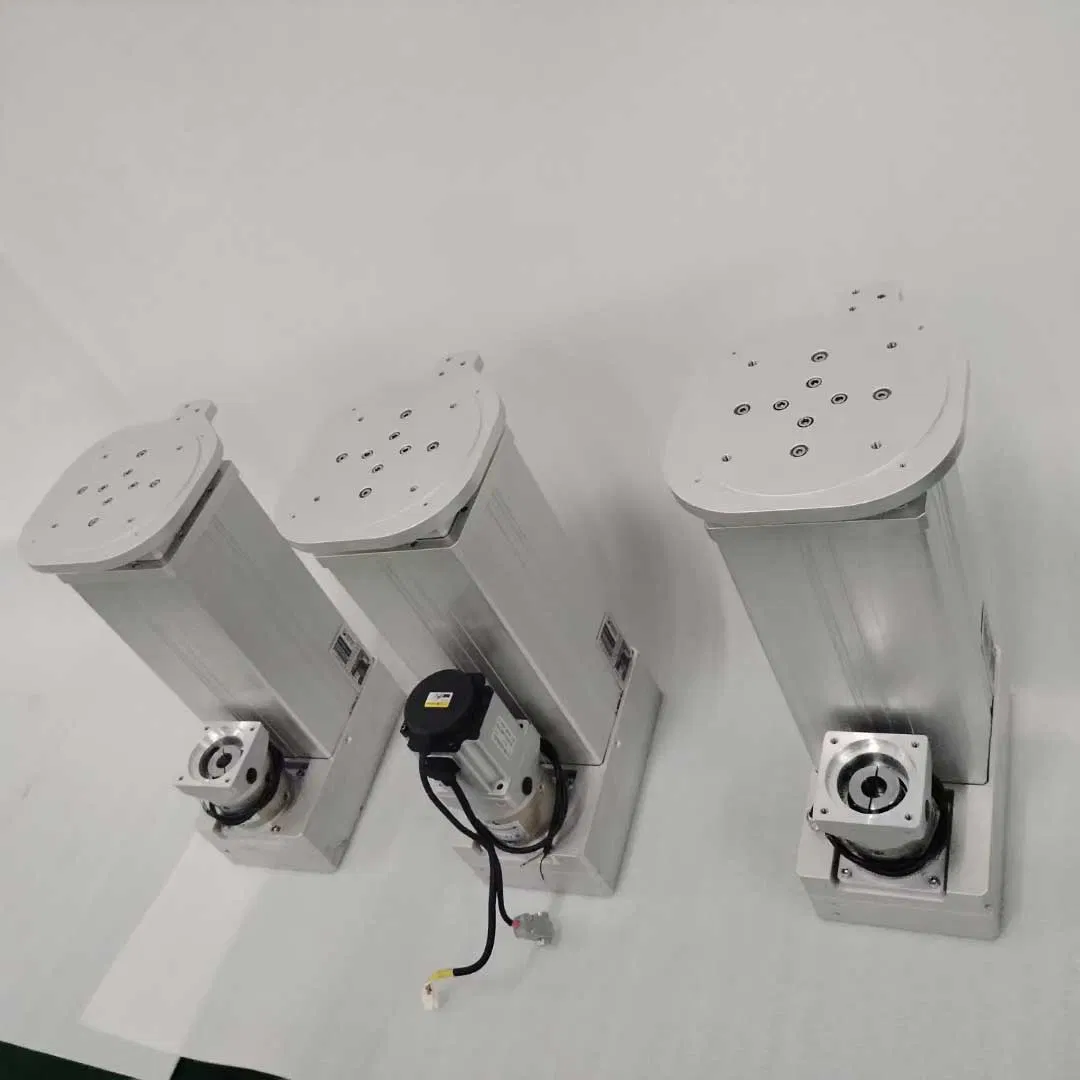

| Motor Options | DC servo motor, AC servo motor |
| Maximum Thrust | 8,000N / 4,000N |
| Max Speed under Load | 5-100 mm/s |

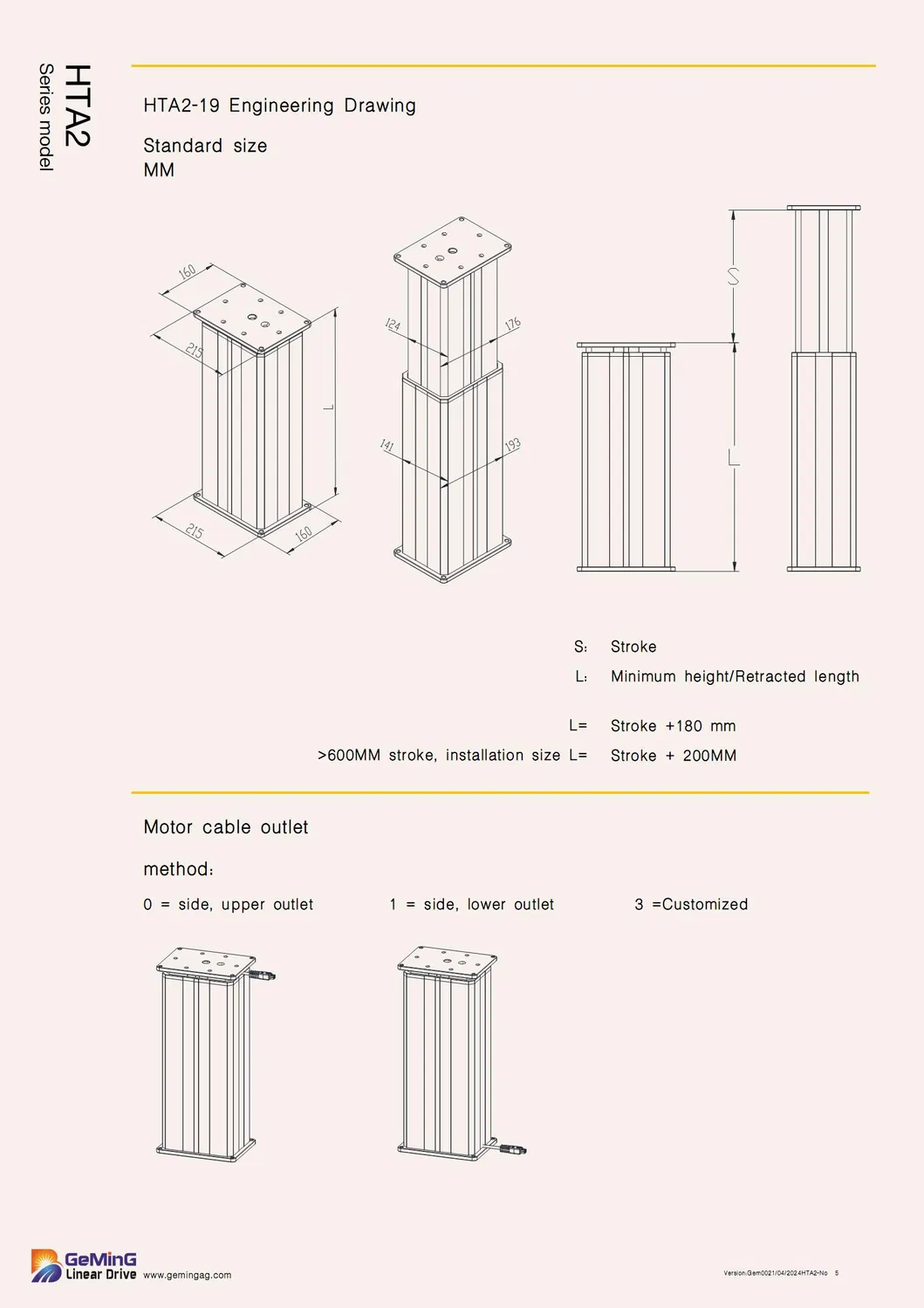

| Min Installation Size | Stroke /2 + 200mm |
| Dynamic Lateral Moment | 1,000Nm |
| Static Lateral Moment | 1,800Nm |
| Noise Level | 48~52 DB |
| Screw Selection | Ball screw, Trapezoidal screw |
| Safety Certificate | ISO9001-2008, CE, RoHS |
| Code | Rated Load (Thrust N) | Self-locking Force (N) | No-load Speed (mm/s) | Loaded Speed (mm/s) |
|---|---|---|---|---|
| A1 | 8,000 | 8,000 | 5 | 4 |
| A2 | 7,500 | 8,000 | 10 | 8 |
| A4 | 3,500 | 3,500 | 20 | 16 |
| B1 | 4,000 | 5,000 | 5 | 4 |
| B2 | 2,000 | 2,800 | 11 | 9 |
