OEM Geming CE Approved Robot Lifting Mechanism Lift Electric Automation Lightweight Collaborative Robots

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Overview & Basic Info

Model NO.HTA2
ApplicationWorkshop/Shipboard/Warehouse/Building Crane
Lift MechanismTelescoping Lift
Driven TypeDC
CertificationGS, CE, RoHS, ISO 9001
Maximum Load8000N
Maximum Speed5-100mm/S
Temp Range-45 to +75°C

Product Features

The HTA2 lifting column is designed for a wide variety of workstation applications such as computer workstations, workbenches, assembly tables, medical equipment lifting platforms, and height adjustment solutions. Two HTA2 lifting columns can improve high synchronization performance and load operation capacity. It features a powerful design and full-featured office series control box. Can operate as a single system or 2 to 4 lifting columns in parallel depending on the control system.
Lifting Mechanism
• Model Selection & Customization
Professional technical teams can choose the right model and transmission solutions based on specific parameters. CAD or 3D drawings are available upon request. We can modify standard products or customize them to meet your specific needs.
📷

Detailed Photos

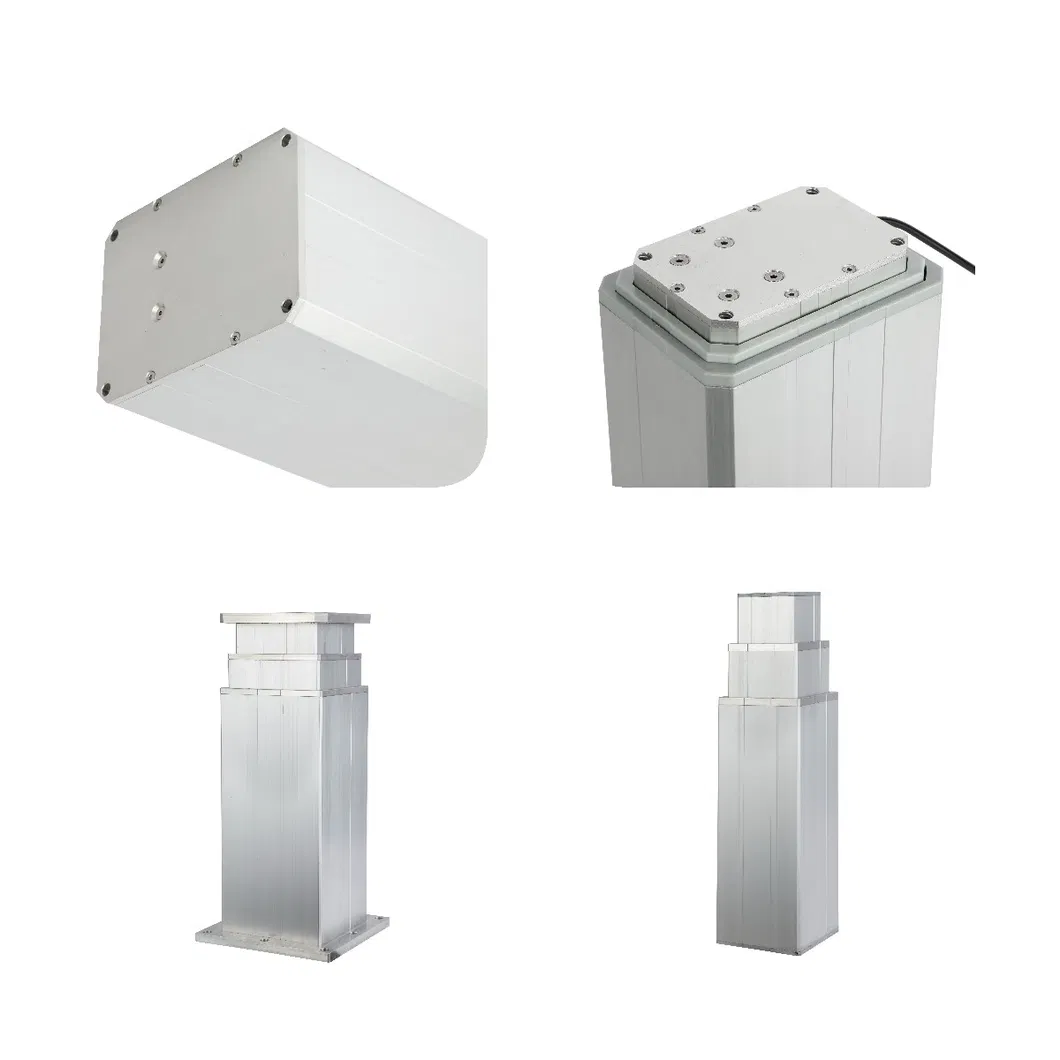

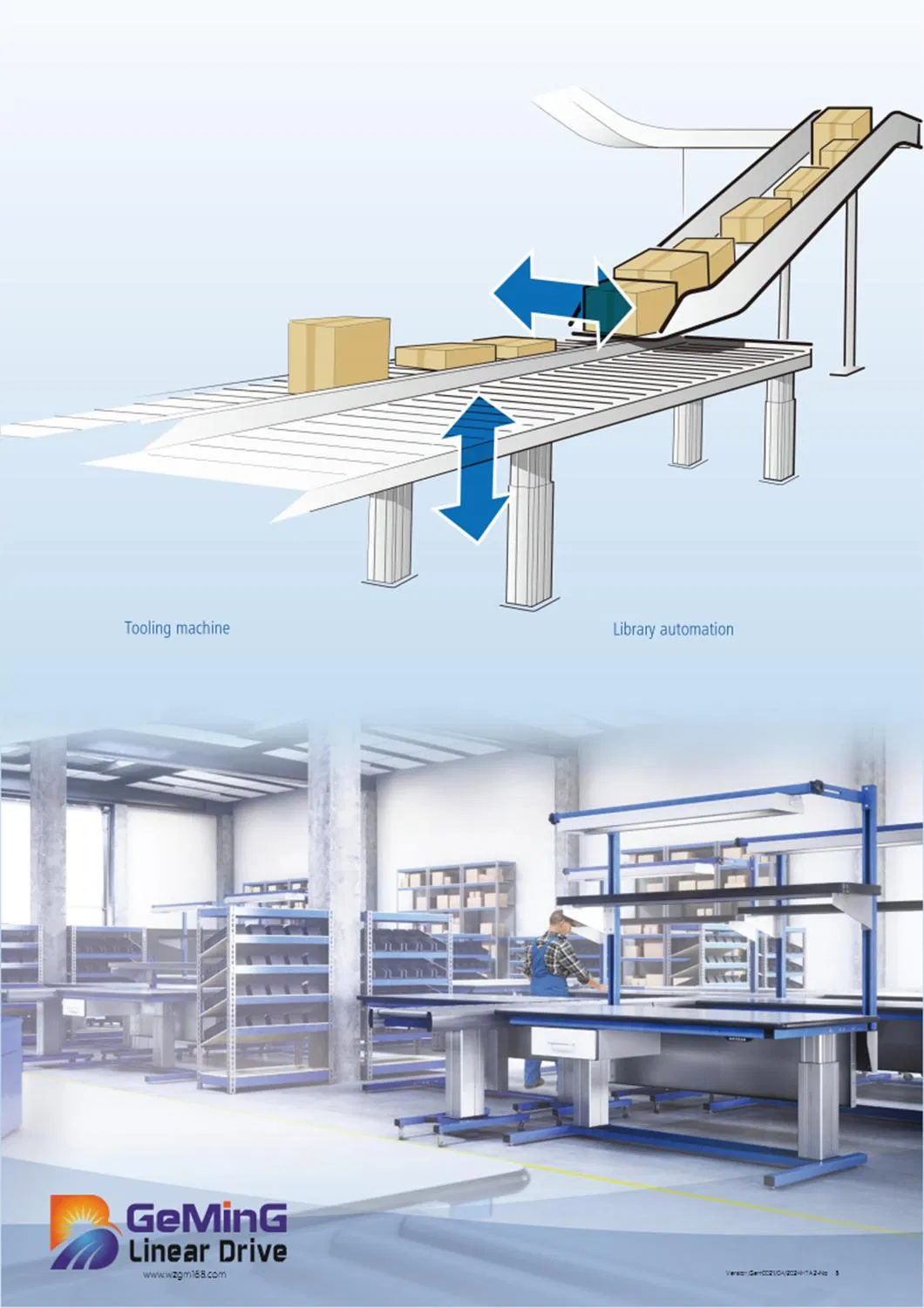

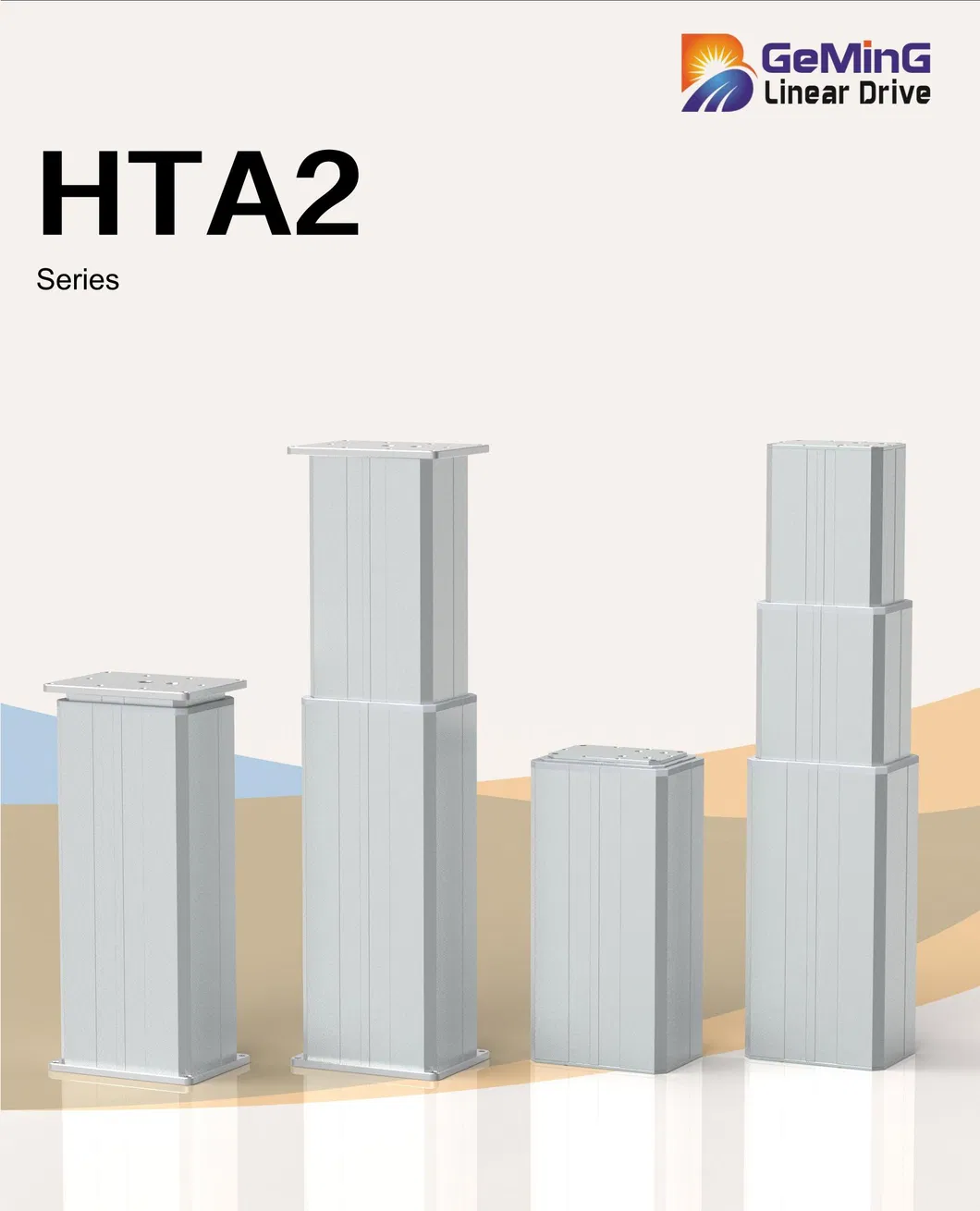

Detail 1 Detail 2 Detail 3

Functional Specifications

Voltage12, 24, 48V DC, 220V AC
Motor OptionsDC servo motor, AC servo motor
Max Thrust/Pull8,000N / 4,000N
Max Speed Under Load5-100 mm/s
Dynamic Lateral Moment1,000Nm
Static Lateral Moment1,800Nm
Noise Level48~52 DB
Screw SelectionBall screw, trapezoidal screw
Control OptionsCAN bus control
📐

Engineering Drawings

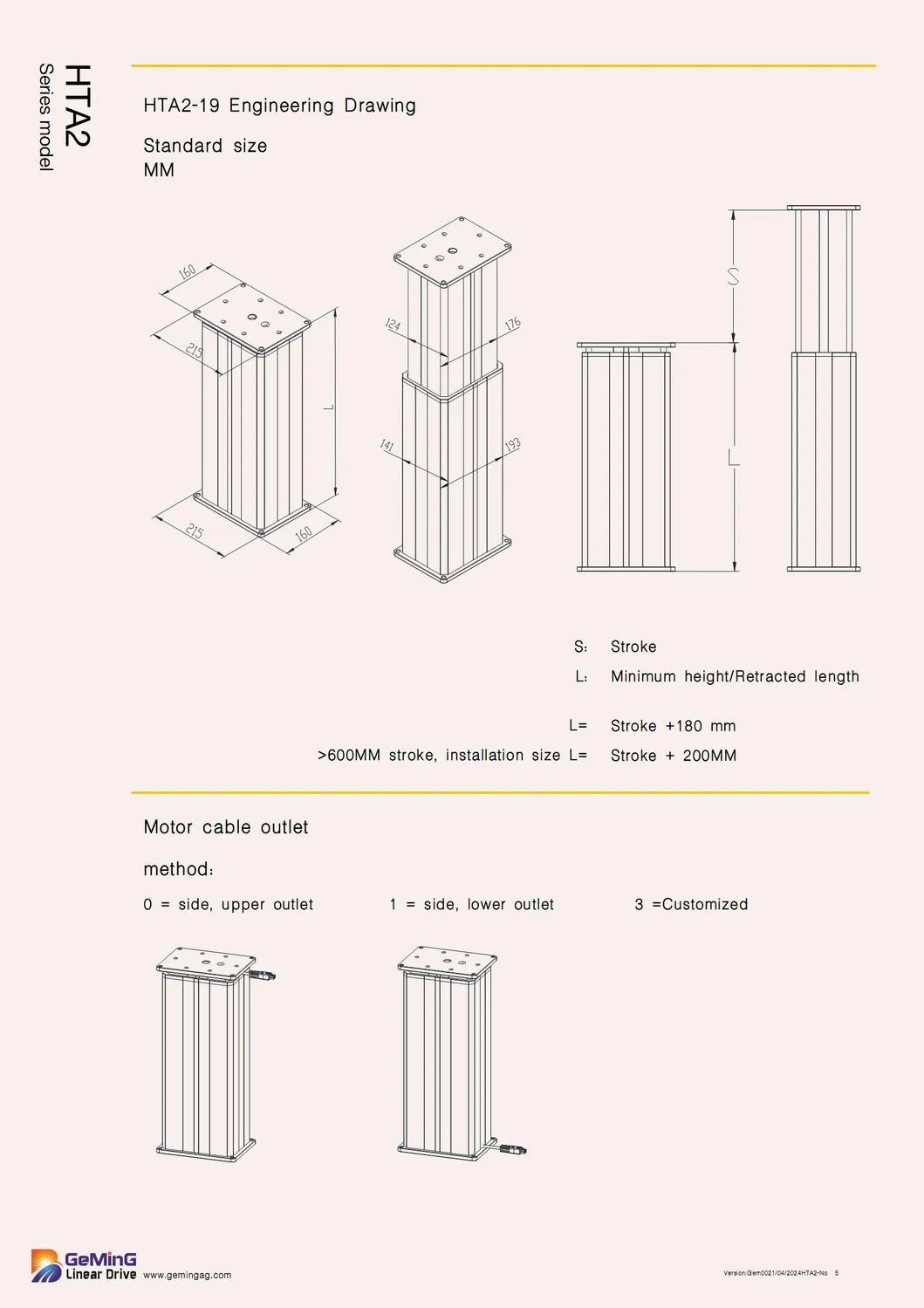

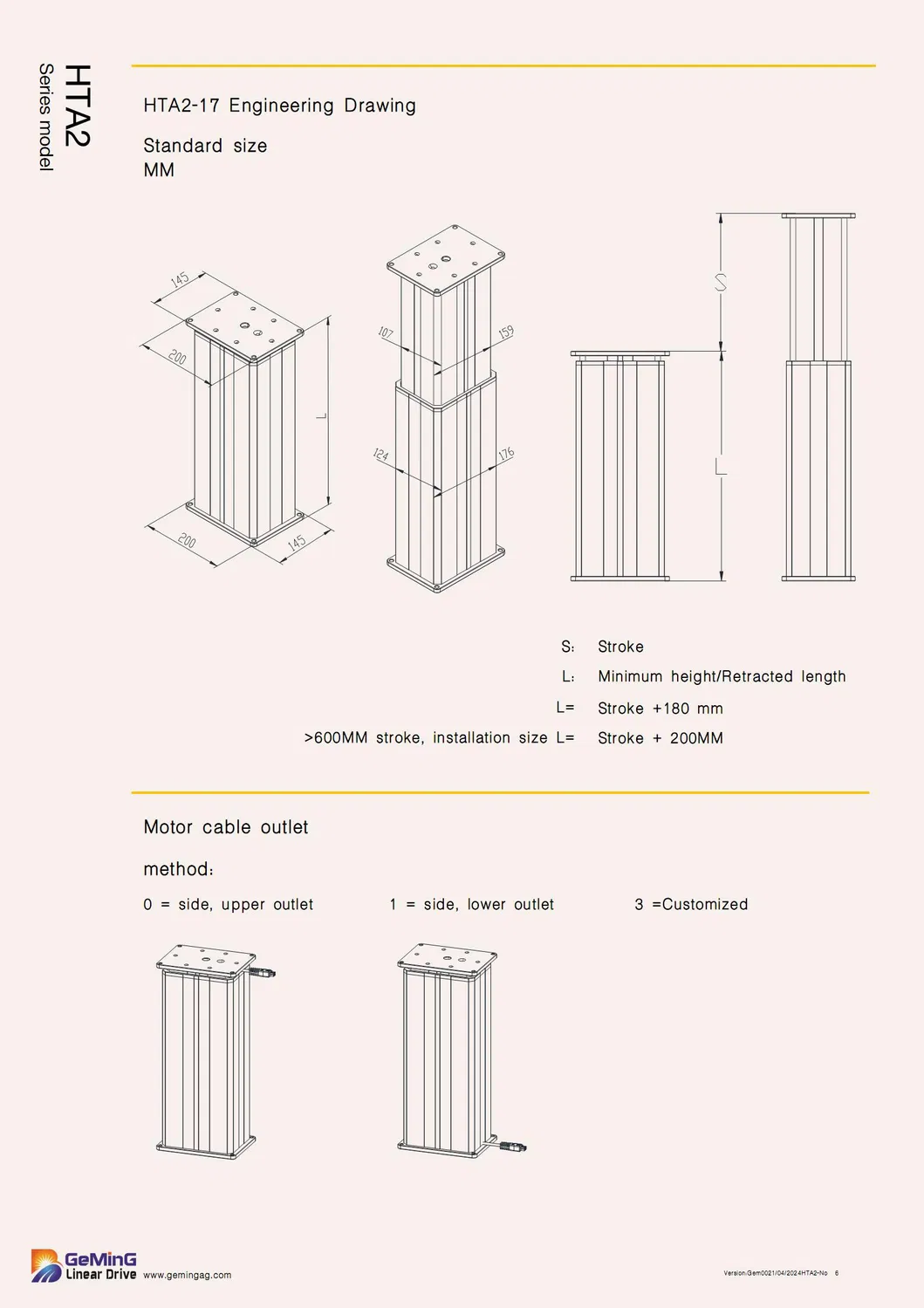

Drawing 1 Drawing 2
Load Chart
📊

Load & Speed Parameters

Code Rated Thrust (N) Rated Pull (N) Self-locking (N) Speed (No Load) Speed (Rated)
A18,0006,0008,0005 mm/s4 mm/s
A27,5006,0008,00010 mm/s8 mm/s
A43,5003,5003,50020 mm/s16 mm/s
B14,0004,0005,0005 mm/s4 mm/s
B41,0001,0001,00022 mm/s18 mm/s
💡

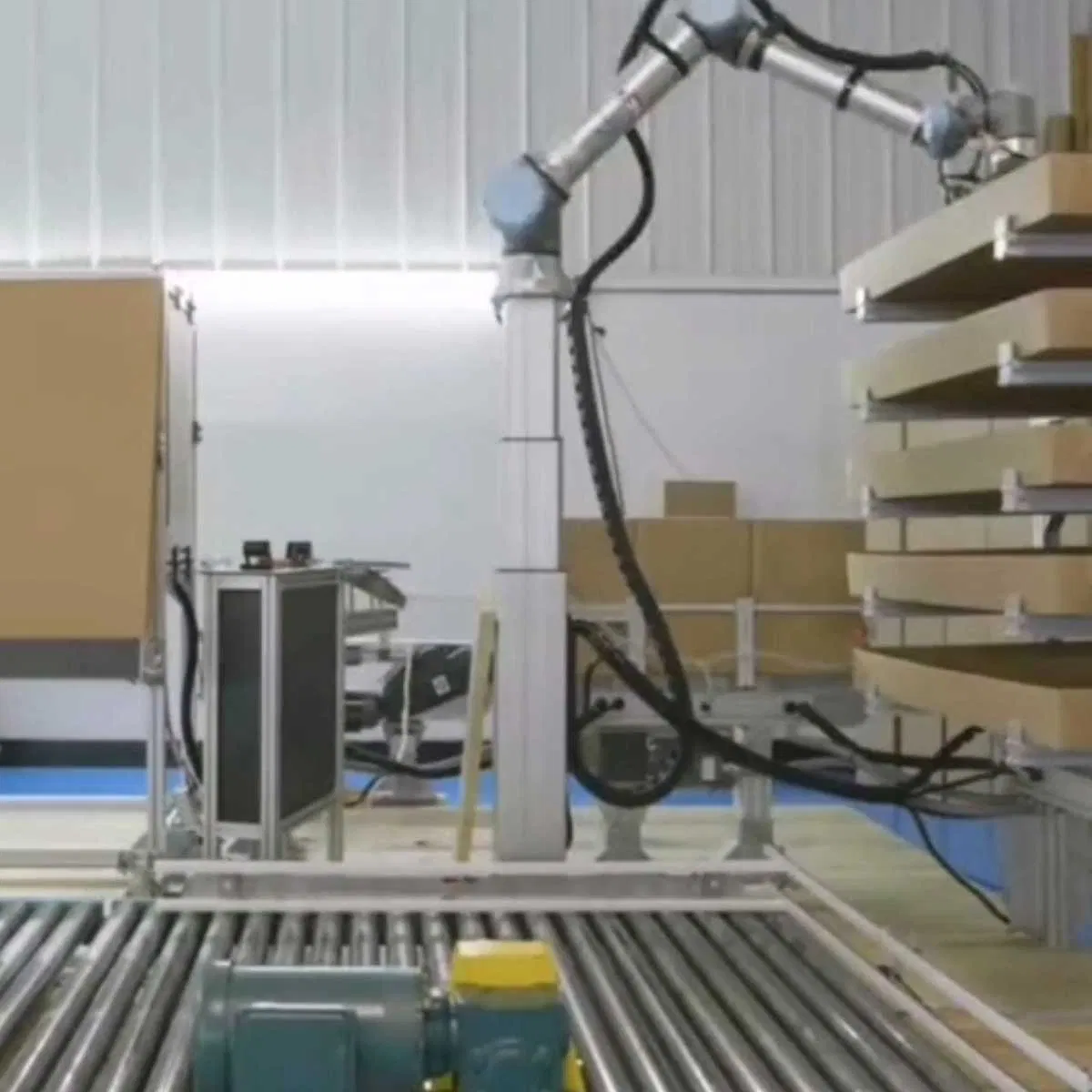

Applications

Application Use Cases
🏢

Company Profile

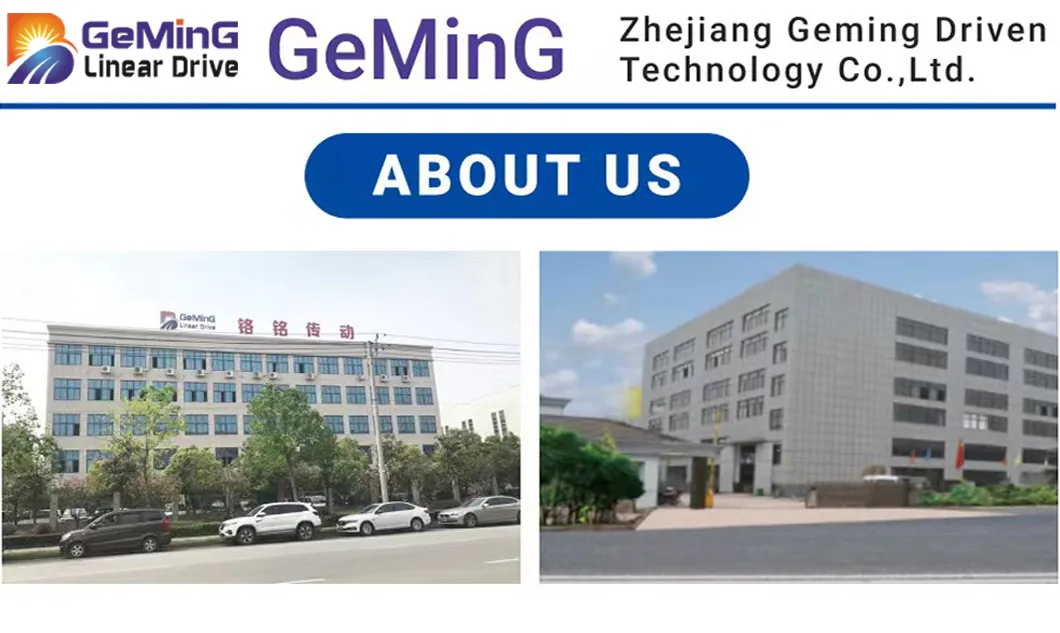

Manufacturing Facility
Founded in 2011, the company specializes in R&D and manufacturing linear motion systems and has become a leading manufacturer of electric linear actuators, electric lifting column control systems, and related technologies. With multiple manufacturing plants and sales agents, we provide global engineering and sales support. Our multinational team works together to achieve the common goal of providing high-quality, long-life linear motion solutions and excellent customer service.

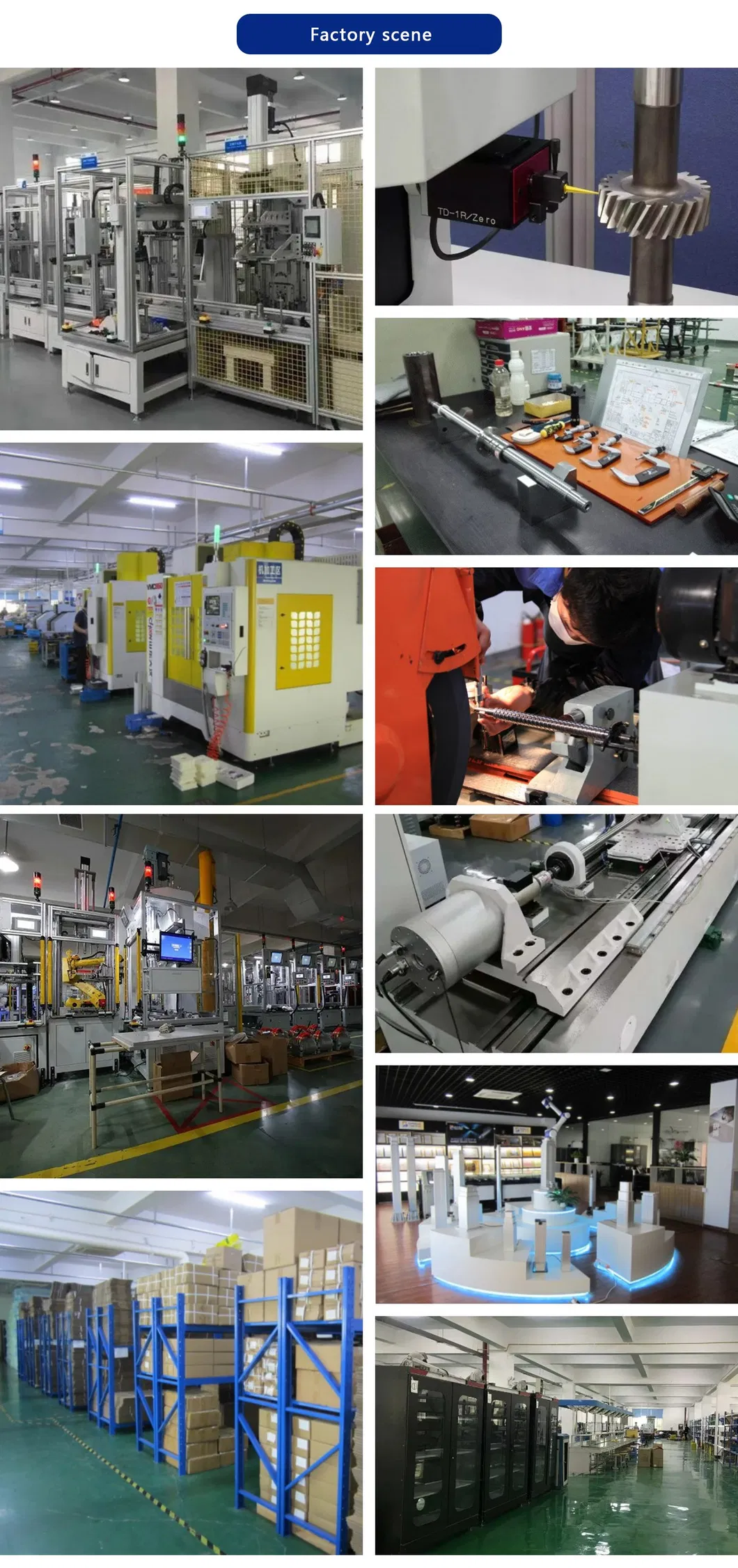

Factory Internal Production Line

Frequently Asked Questions

What are your main products?
We produce lifting columns, medical lifting columns, furniture lifting columns, ergonomic lifting tables, industrial linear actuators, micro actuators, and six-axis robotic arms.
How to choose a suitable lifting mechanism?
You can choose based on specifications such as voltage, speed, stroke, installation size, load capacity, motor working mode, and required noise level.
Do you have customized services for your products?
Yes, we can customize product requirements including installation size, shape, motor selection, stroke, and voltage to meet your specific needs.
Do you provide personalized design services?
Yes, we are willing to design actuators, lifting mechanisms, and control systems for customers. Simple customization often requires no additional fees.
How long is your delivery time?
Regular standard products typically take 6-20 days. Customized products may take longer depending on the specific order requirements.
Are your products certified?
Yes, our products comply with ISO9001, CE, and RoHS specifications to ensure international quality and safety standards.
