Smart Robot Semi Automatic Car Auto Puzzle Parking System
Smart Robot Semi Automatic Car Auto Puzzle Parking System
Smart Robot Semi Automatic Car Auto Puzzle Parking System
Smart Robot Semi Automatic Car Auto Puzzle Parking System
Smart Robot Semi Automatic Car Auto Puzzle Parking System
1 / 5
Smart Robot Semi Automatic Car Auto Puzzle Parking System
Smart Robot Semi Automatic Car Auto Puzzle Parking System
Smart Robot Semi Automatic Car Auto Puzzle Parking System
Smart Robot Semi Automatic Car Auto Puzzle Parking System
Smart Robot Semi Automatic Car Auto Puzzle Parking System

Smart Robot Semi Automatic Car Auto Puzzle Parking System

Customization: Available
Level: 2-6 Levels
Parking Post: 25-99 Posts, 2000 Kg / 2500 Kg
Send Inquiry

Product Description

Technical Specifications

Model NO.
BDP
Color
Customized
Installation Type
Multi-Level, Surface Mount, Underground
Material
Aluminum / Steel with Zinc Spray
Operation Mode
Manual / Button & IC Card
Power Source
Battery, Electric, Solar
Safety Features
Anti-slip Surface, Emergency Stop, Overload Protection, Safety Sensors
Warranty
12 Months (Parts) / 5 Years (Structure)
Parking Type
Self Parking / Puzzle System
Available Levels
2 - 15 Levels
Lifting Speed
28 - 120 M/Min
Driving Mode
Hydraulic Cylinder + Wire Rope
Surface Treatment
Hot Spray Galvanized
Voltage
380V, 3P / Customized

Product Description

The BDP series represents a versatile semi-automatic parking solution suitable for both commercial and residential purposes. It enables platforms to move vertically and horizontally, allowing for free parking and retrieval of vehicles without moving other cars. This system is driven by a high-efficiency hydraulic system, significantly increasing parking density.

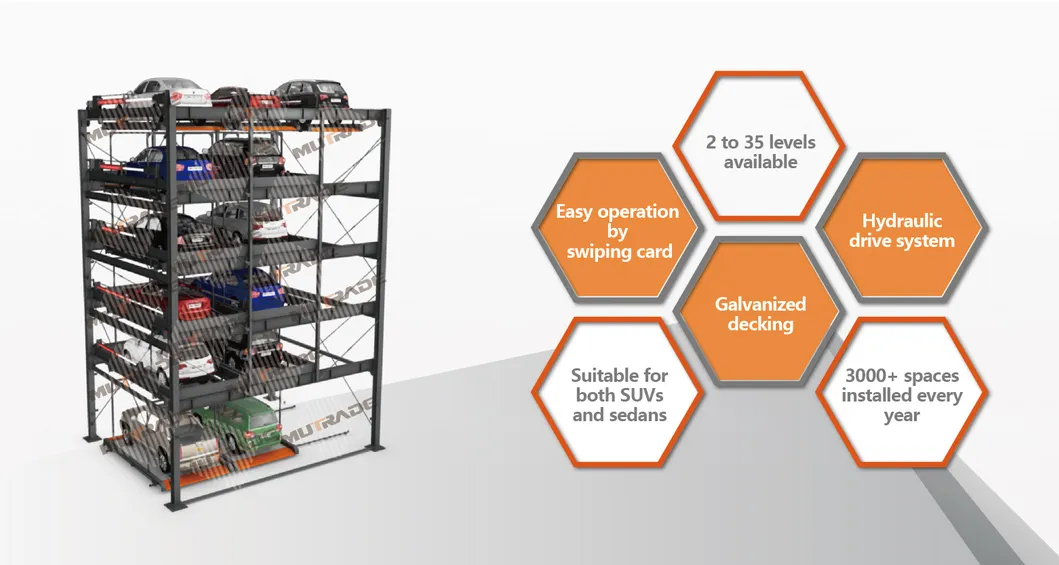

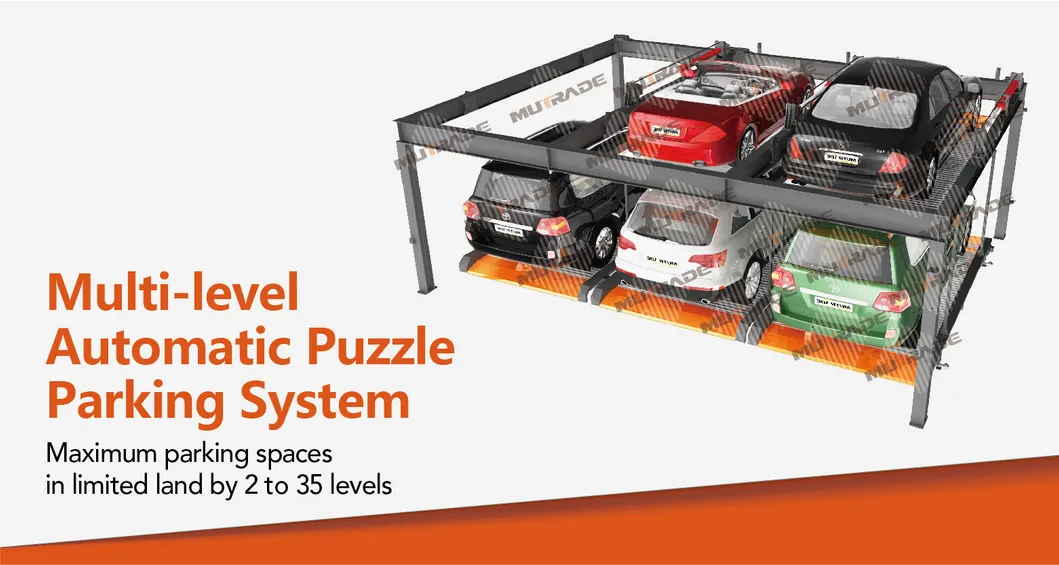

Automatic Car Puzzle Parking System Overview Hydraulic Parking System Details
ModelBDP Series
Length / Width6500mm / 2600mm
Lifting Height2100mm / 1850mm
Lifting Capacity2500kg / 2000kg
Lifting Time55s
Drove ModeHydraulic Cylinder
Motor Power2.2 - 11Kw
Surface TreatmentZinc Coating / Hot Spray Galvanized
Container LoadApprox. 16-17 units per 40ft Container

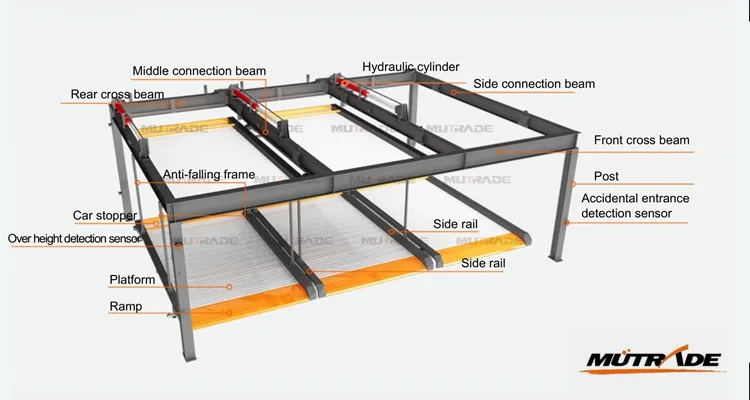

Parking System Technical Drawing

Key Advantages

🚀 High Speed Hydraulic system is 2-3 times faster than motor-driven types, especially for systems over 4 floors high.
🔇 Smooth & Quiet The hydraulic operation ensures a much quieter and smoother experience than traditional motor types.
🏢 Space Optimization New technology allows for building up to 15 floors above ground and 3 floors underground.
🌱 Energy Saving The platform consumes no electricity when descending, cutting energy costs by half.
🛠️ Low Maintenance Changing hydraulic cylinders is simpler and faster than replacing motors, ensuring lower downtime.
🛡️ Safety & Protection Includes anti-rust zinc spray finishing and multiple safety sensors to protect both the user and the vehicle.

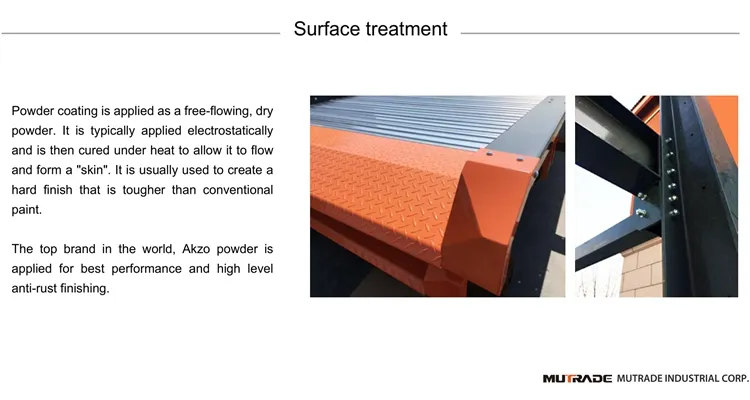

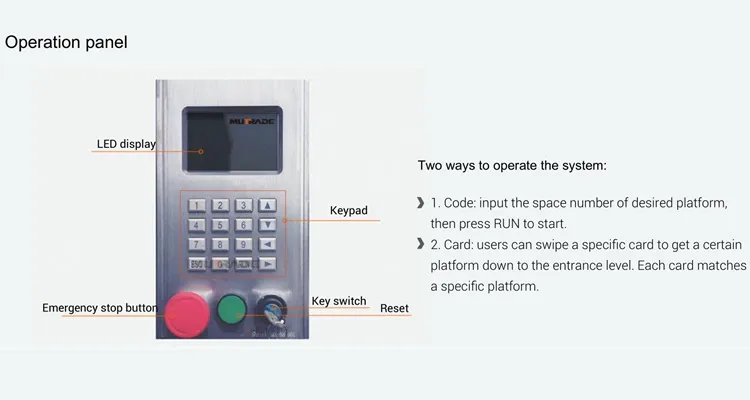

Advantage Display 1 Advantage Display 2

Packing & Delivery

Our standard export packaging is designed to save both cost and space while ensuring the safety of the equipment during transit.

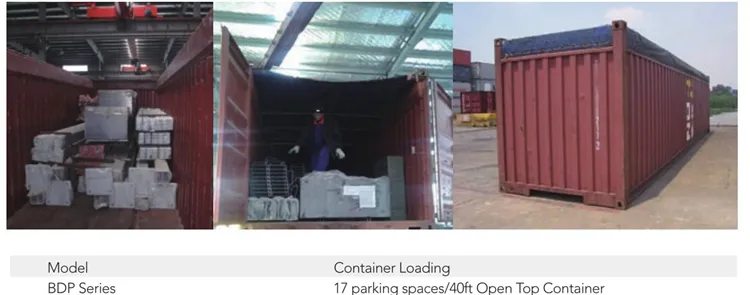

Standard Export Packing Loading into Container

Project References

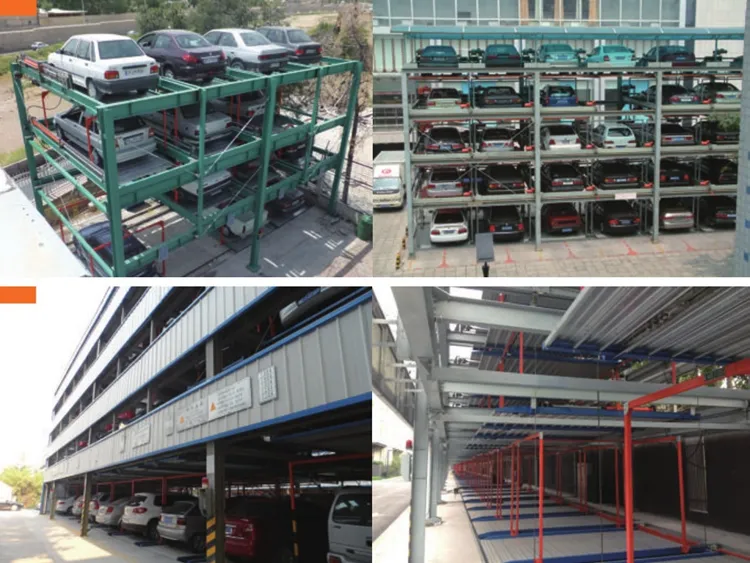

Installed Parking Project Reference

Certifications & Quality

CE ISO Certifications Quality Standard Certs

Frequently Asked Questions

Can the BDP system be used outdoors?
Yes. The structure features a zinc coating for superior water-proofing. Additionally, extra covers can be installed to protect the system from rain, snow, and heavy winds.
Is the BDP series compatible with SUVs?
Yes, the BDP series can be customized to fit various SUV sizes. Please provide your specific requirements to our technical team for a tailored solution.
What are the electrical voltage requirements?
The standard voltage is 380V, 3P. However, we can customize the system to match your local electrical standards upon request.
Will the system operate during a power failure?
The system requires electricity to operate. For areas prone to power outages, we recommend installing a backup generator to ensure continuous service.
Is self-installation possible for customers?
While installation is possible, we strongly recommend having our engineers guide the process for new users to ensure safety and proper calibration.
What is the maintenance frequency for hydraulic systems?
Hydraulic systems are known for low maintenance. Regular checks of the cylinders and fluid levels are recommended annually to ensure peak performance.
