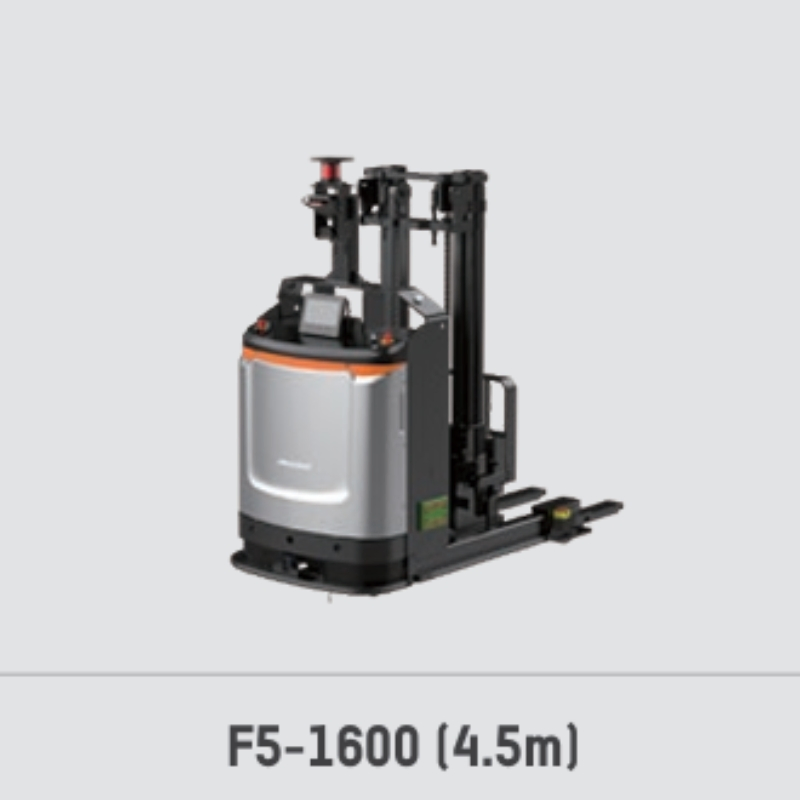

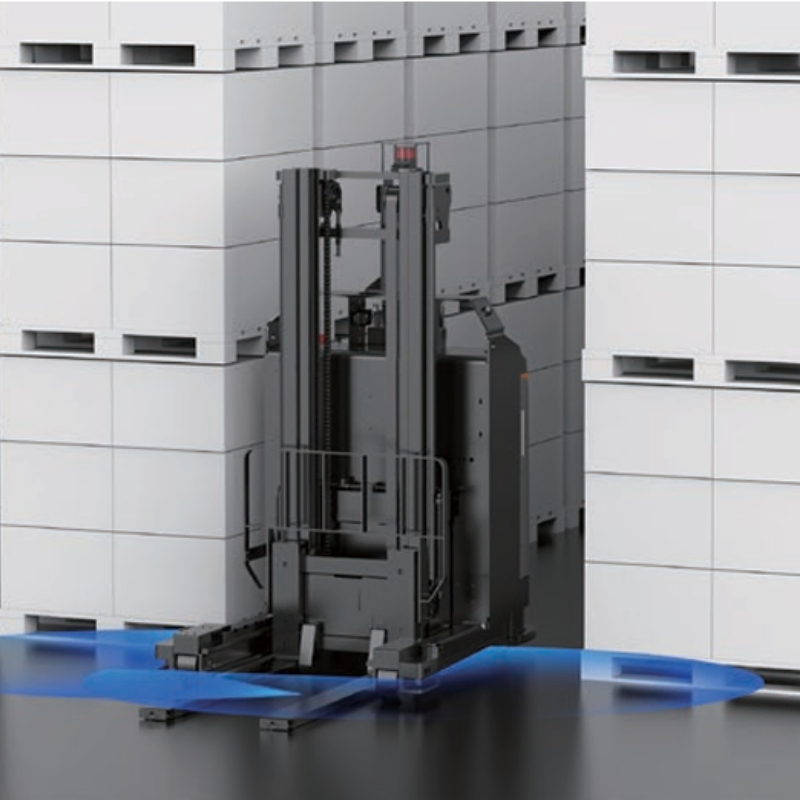

| Model NO. | F5-1600 (4.5m) |
| Load Capacity | 1600kg |
| Type | AMR (Autonomous Mobile Robot) |
| Safety Features | Collision Avoidance System, Emergency Stop Button, Obstacle Detection Sensors, Safety Laser Scanner |
| Dimension (L×W×H) | 2287*1200*2219 mm |
| Fork Lifting Height | 4500 mm |
| Weight (with Battery) | 2400 Kg |
| Origin | China |

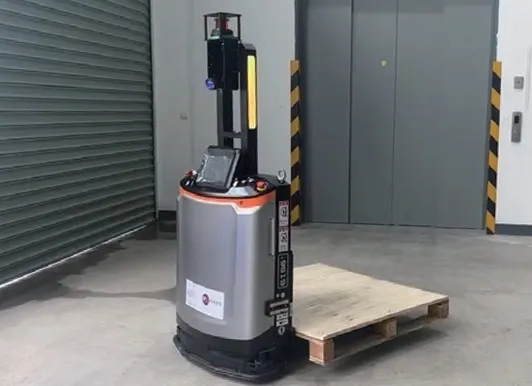

Adopting an autonomous body design, compatible with the design of the forward and counterweight modules, FMRs of the series are mainly used for indoor carrying scenes with mesh plastic trays, European standard pallets, and small fork space carriers. These FMRs are widely used in industries including lithium battery, beverage, home appliances, and panels.
• Efficient transportation: max speed up to 1.5m/s

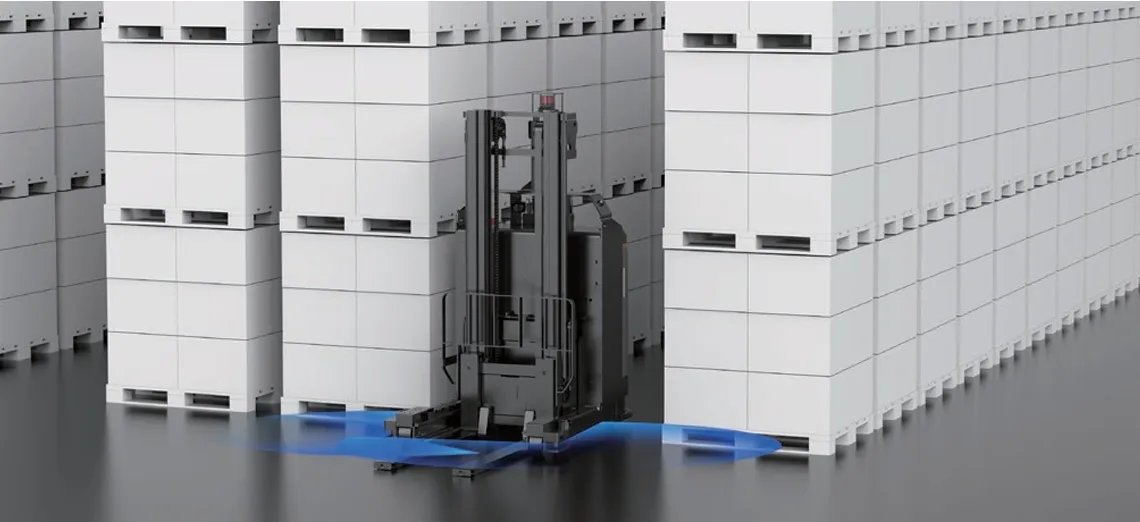

• Safe and reliable: 360° stereo sensing
• Precise positioning: Millimeter-level accuracy
• Roadway mode for straight line navigation
• Autonomous carrier recognition
• Storage location identification & height offset detection

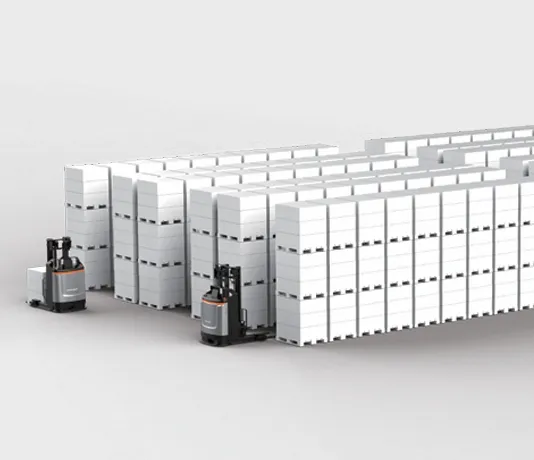

• Supports multi-level storage and material stacking

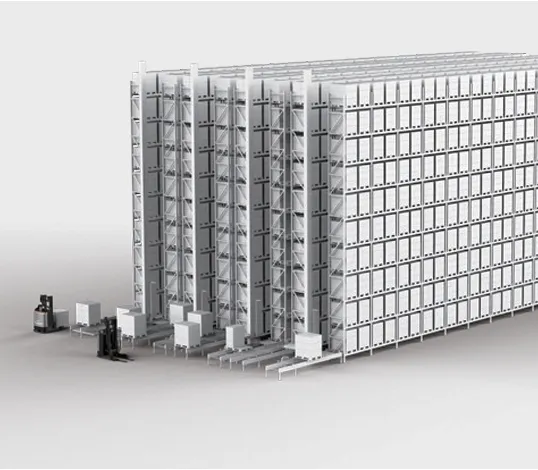

• Diversified docking with conveyors and AMRs
• Compatible with various pallet types

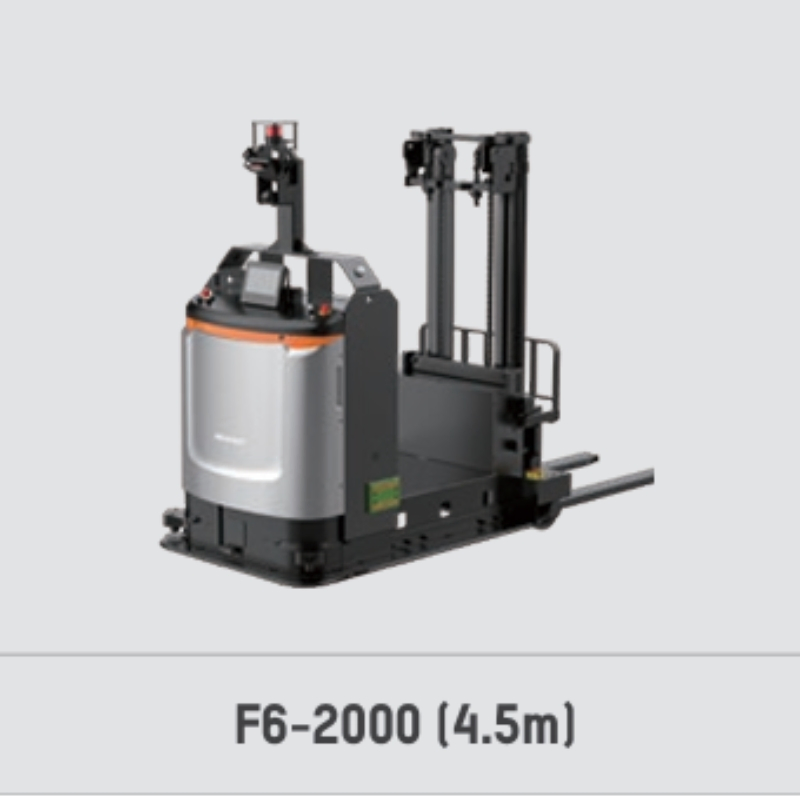

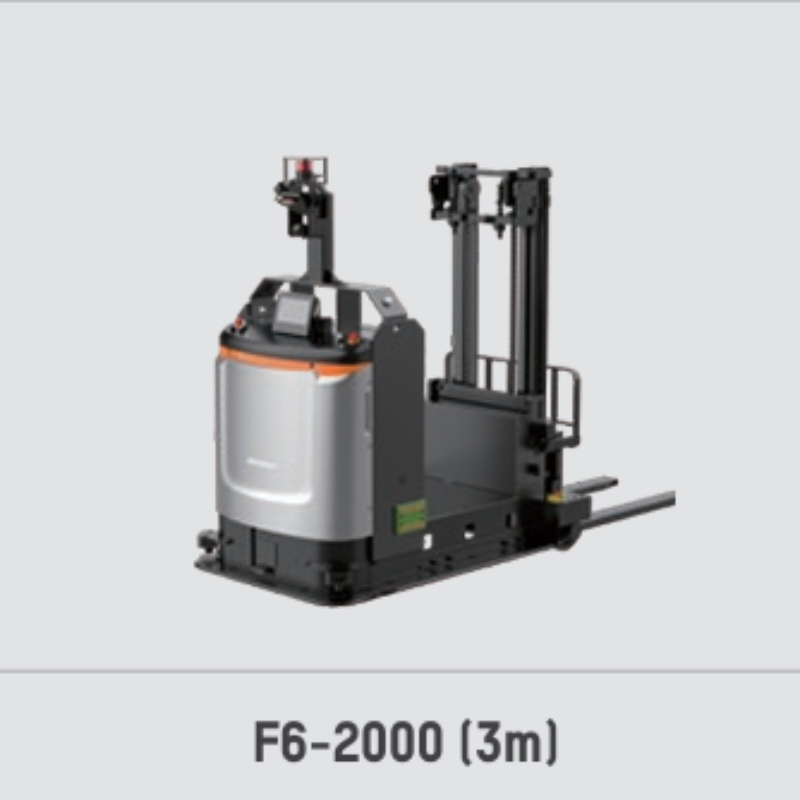

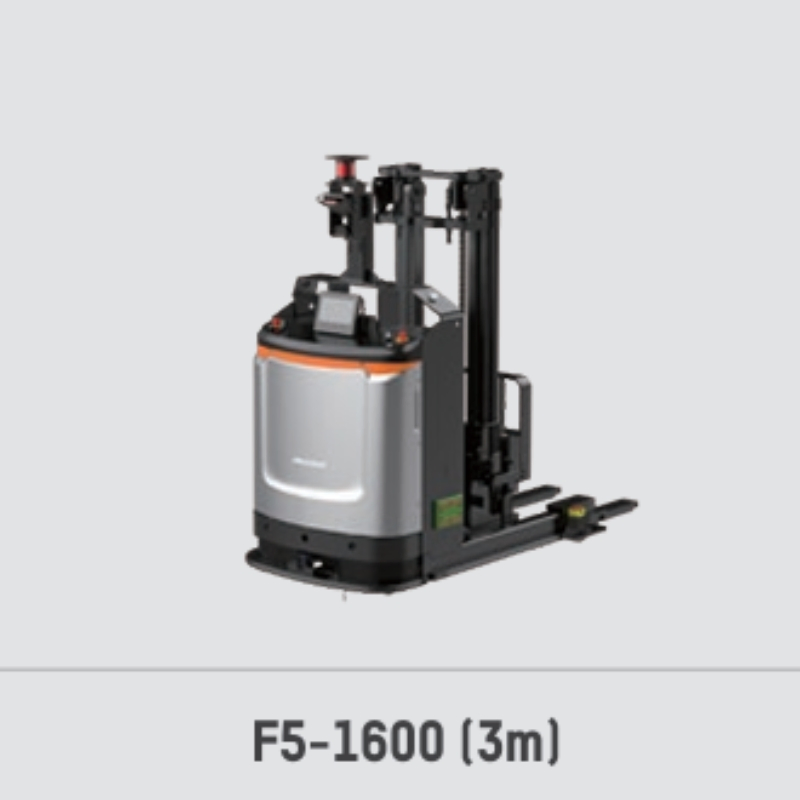

| Model Parameter | F5-1600 (3m) | F6-2000 (3m) | F5-1600 (4.5m) |
|---|---|---|---|
| Rated Speed (m/s) | 1.5 | 1.5 | 1.5 |
| Accuracy (mm/°) | ±10/±1 | ±10/±1 | ±10/±1 |
| Min. Rotation Radius (mm) | 1511 | 1897 | 1511 |
| Min. Aisle Width (mm) | 2705 | 3665 | 2705 |
| Charging Time (h) | ≤ 3 | ≤ 2 | ≤ 3 |
| Navigation Mode | L-SLAM / 3D L-SLAM (Customizable) | ||
As a one-stop intelligent factory solutions provider, we specialize in green intelligent logistics robots and factory system design. Our expert-level team offers customized integrated solutions including software development, equipment manufacturing, and project implementation.
• One-year comprehensive warranty
• 24-hour online remote technical service
• On-site support within 48 hours for critical issues
