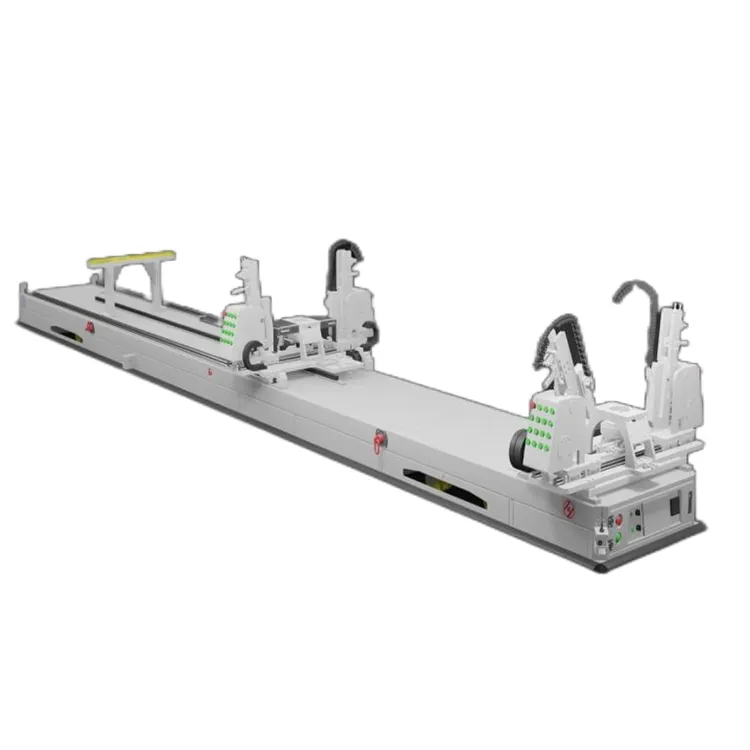

| Model NO. | LY-2-5T-24-B |
| Type | AGV (Automated Guided Vehicle) |
| Safety Features | Collision Avoidance System, Emergency Stop Button, Obstacle Detection Sensors, Safety Laser Scanner |
| Longitudinal Adjustment | 6000mm - 12000mm |
| Horizontal Outer Width | 780mm and 865mm (Two Types) |
| Body Structure | Differential Drive |
| Drive Motor Type | Low Voltage Servo Motor + Independent Servo Control |
| Walking Speed | 0-20m/Min |
| Battery | Lithium Iron Phosphate Battery, 58.4V/100ah |
| Navigation Accuracy | ±10 mm |
| Navigation Method | Magnetic Stripe Navigation |
| Protection Level | IP 54 / IP 65 |
Pioneer of Heavy-Duty AGV Solutions
Development of heavy-duty AGVs began in 2012, focusing on key technology accumulation. We successfully deliver systems with single vehicle loads up to 240 tons, with technical support ranging from 10 to 1,000 tons. Our products cover production, assembly, transportation, and storage for large workpieces in aerospace, high-speed rail, wind power, heavy shipping, and industrial manufacturing. It serves as an essential hardware platform for industrial flexibility, digitalization, and intelligence.

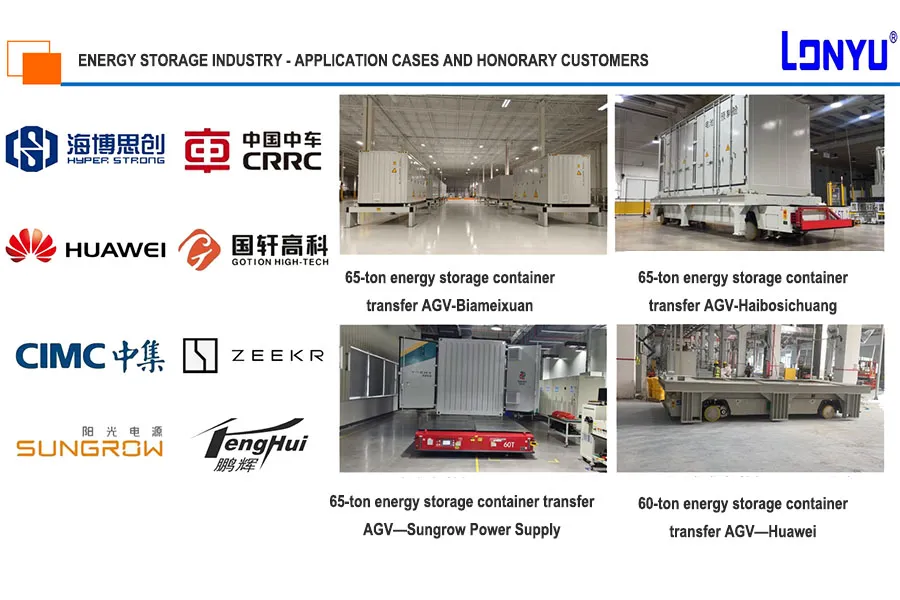

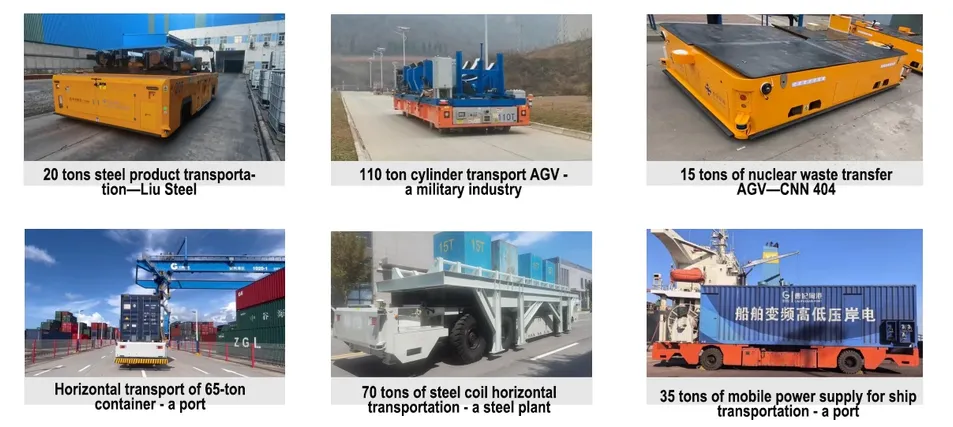

Common Applications: Steel plants, wind power, transformers, molds, equipment manufacturing, shipbuilding, rail transit, and aerospace.
| Rated Load (kg) | 30,000 |
| Equipment Weight (kg) | 3,500 |
| Body Shape (mm) | 9160 x 1660 x 1110 mm |
| Storage Pallets | 2 pcs (20ft) / 1 pc (40ft/45ft/57ft) |
| Climbing Ability | ≤ 3° |
| Perception System | Visual, environmental, and device perception sensors |
| Tire Type | Low pressure tubeless tires |
| Charging Method | Manual / Automatic / Intelligent battery swap |
| Extended Range (Optional) | Diesel or Methanol range extension |
The AGV Control system integrates with existing MES systems using automatic/manual dual insurance scheduling. It features central management software for real-time dynamic monitoring, traffic control at intersections, and electronic map positioning.
Automatic Charging Device: To support continuous logistics, the AGV automatically docks with charging stations when energy levels drop below a preset value. This eliminates the need for manual battery handling and maximizes system uptime.
