Unmanned Ground Vehicle Intelligent Mobile Robot Platform for Delivery Transport

Customization: Available
Control Mode: Continuous Path Control
Drive Mode: Electric

Product Description

Overview
Load Capacity100 kg
TypeAGV
Structural Form4WS, 4WD
Drive Motor350W*4 Hub Motor
Braking TypeMotor Brake
Wheelbase400 mm
Ground Clearance90-120mm
Running Speed5.4 Km/H
Max Climbing15° (Full Loaded)
Range40 Km
Wading Depth100mm
SafetyCollision Avoidance, E-Stop

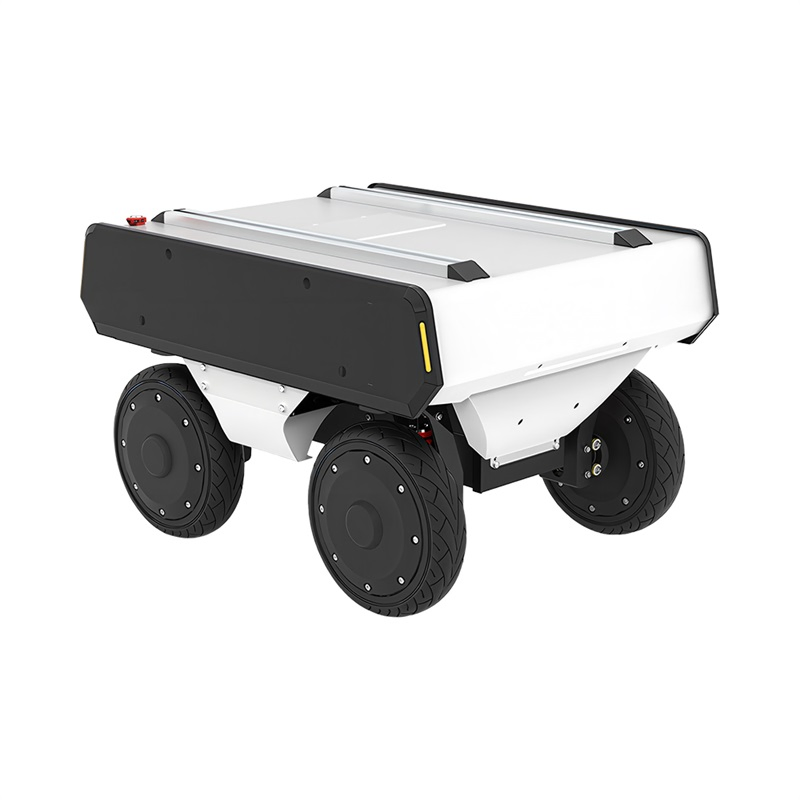

Unmanned Ground Vehicle Intelligent Mobile Robot Platform for Delivery Transport

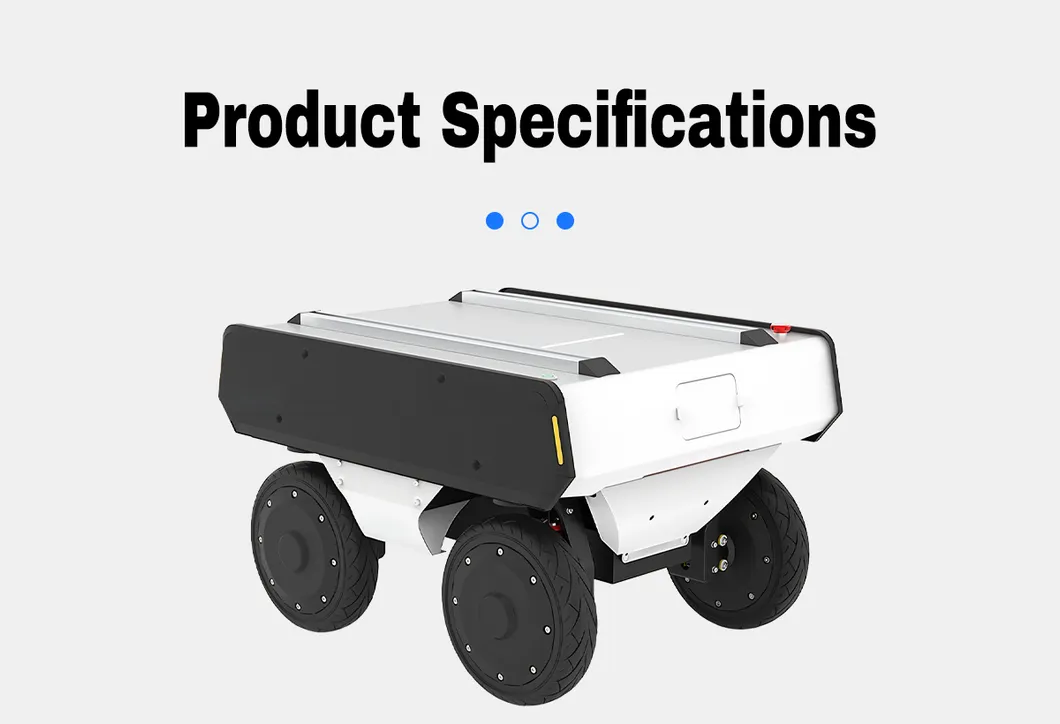

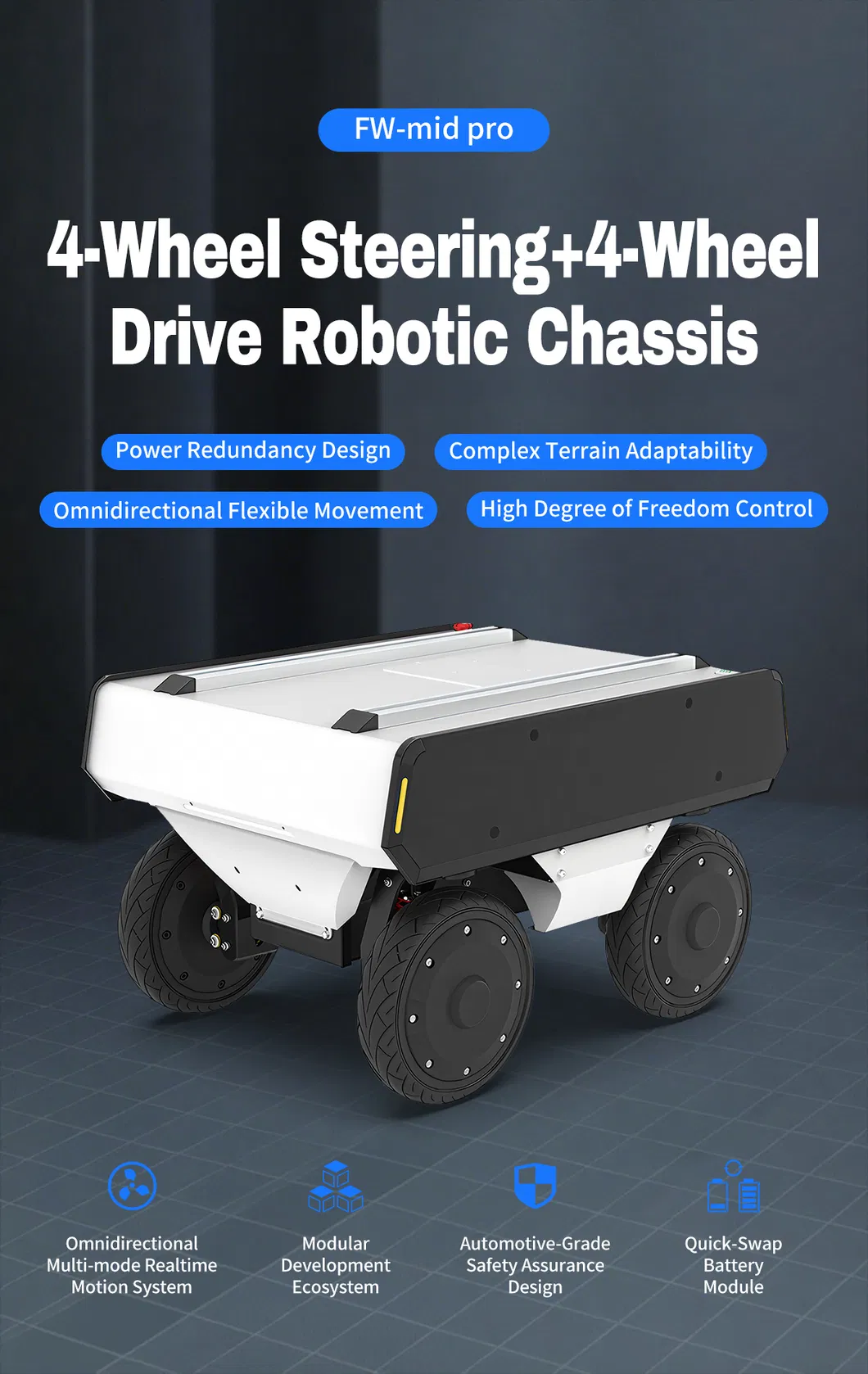

Robot Platform 1 Robot Platform 2
Product Description

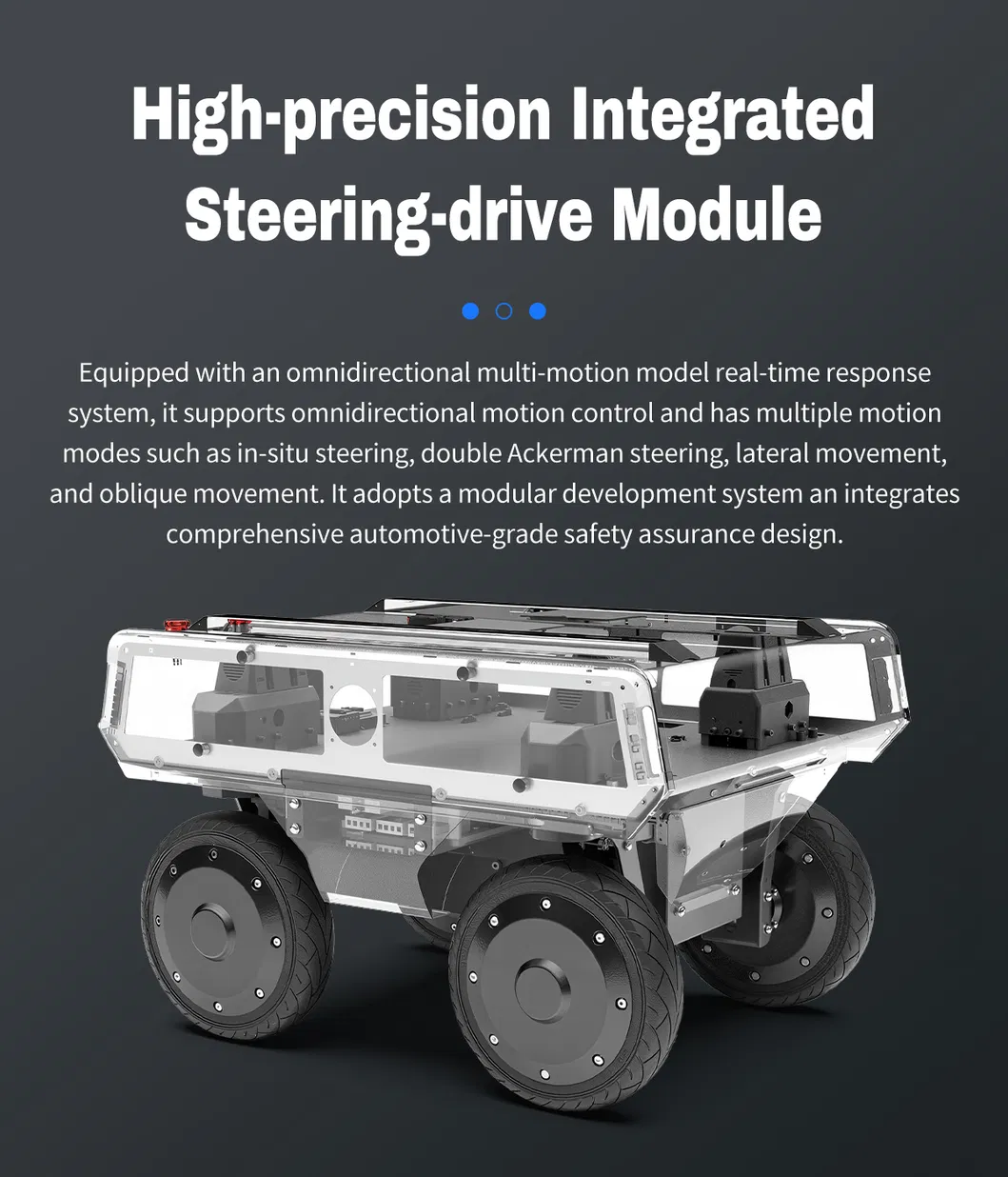

The FW-mid is a versatile wheeled robotic mobile chassis, embodying exceptional flexibility. Its four-wheel drive (4WD) structure, with independent four-wheel drive and steering, allows for precise control of chassis steering. The independent drive provides a strong driving force, superior maneuverability, and off-road performance. Its flexible control enables it to move laterally and on-site steering, and its excellent terrain adaptability makes it suitable for a variety of applications both indoors and outdoors. Its smooth, low-noise ride and tire-resistant design combine the advantages of both front-steering and differential systems, overcoming the steering shortcomings of four-wheel differentials. This mobile platform can carry a variety of specialized equipment and perform a variety of specialized tasks. It is widely used in inspection, patrol, reconnaissance, testing, transportation, firefighting, bomb disposal, and other applications requiring a mobile chassis.

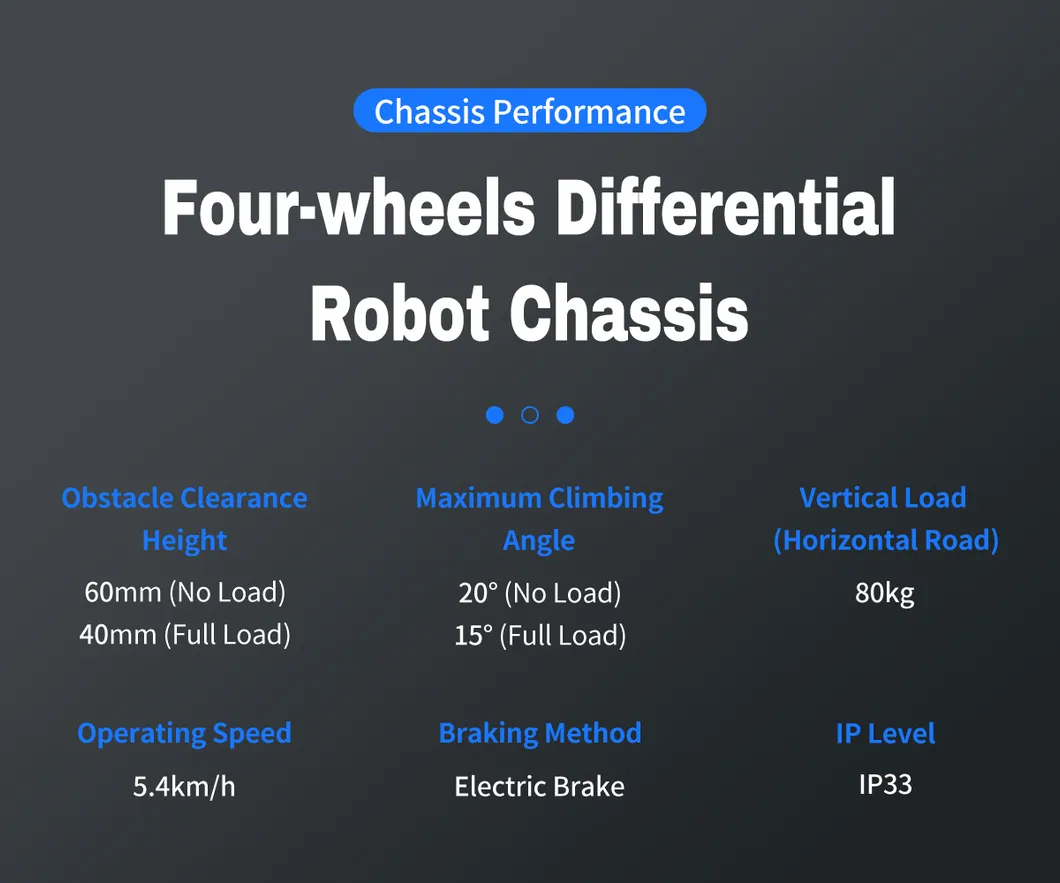

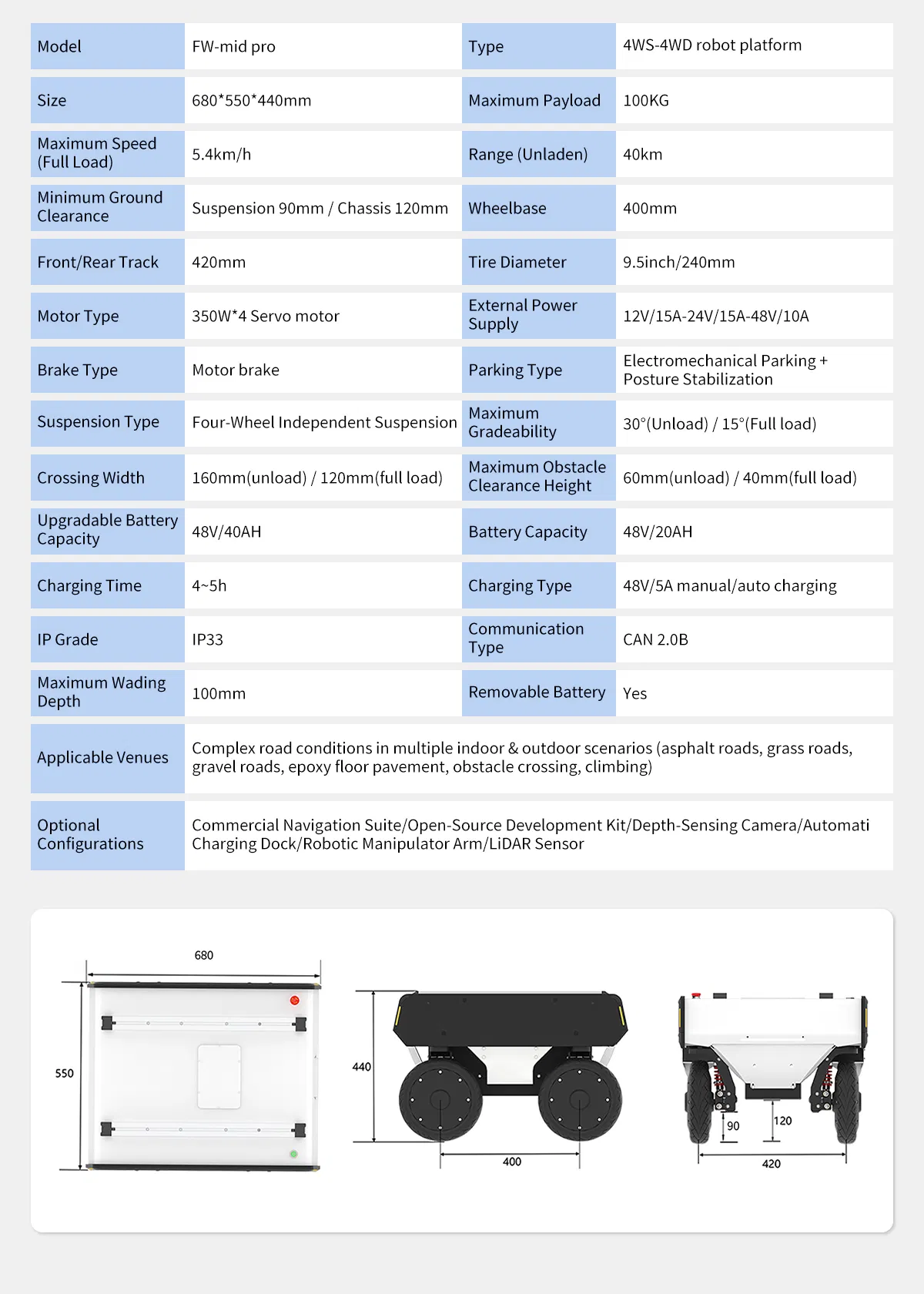

Type4WS-4WD robot platform
Drive Motor350W*4 Servo hub motor
Braking TypeMotor brake
Suspension TypeFour-Wheel Independent Suspension
Maximum Payload100KG
Maximum Speed5.4 km/ h
Maximum Gradeability30°(Unload)/15°(Full load)
Applicable ScenariosAsphalt, grass, gravel, epoxy floor, obstacle crossing, climbing

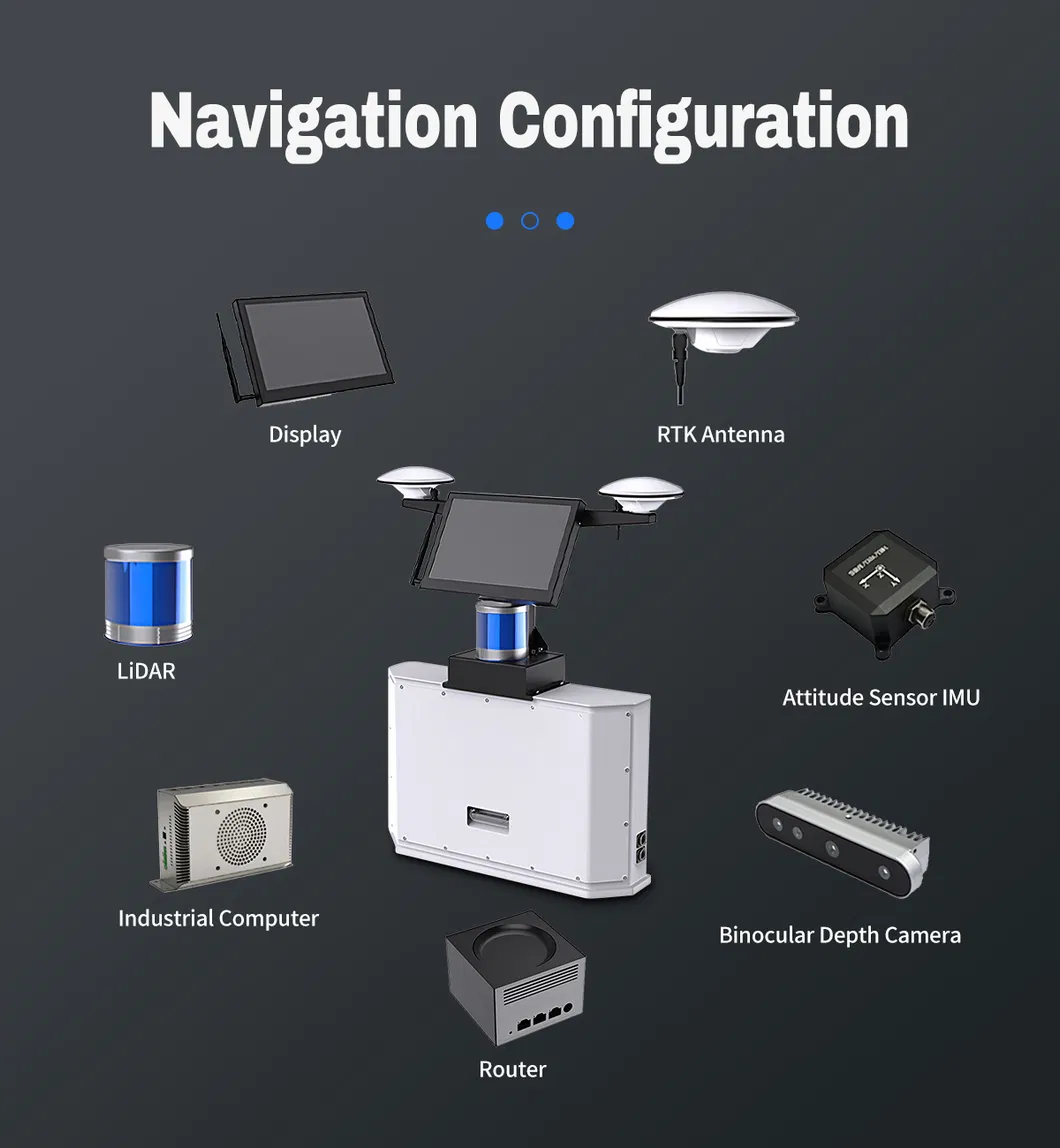

Optional ConfigurationsNavigation Suite, Open-Source Dev Kit, Depth Camera, LiDAR
Frequently Asked Questions
What is the maximum load capacity of the FW-mid platform?
The platform is designed to carry a maximum vertical payload of 100 kg.
Can this UGV operate on outdoor uneven terrain?

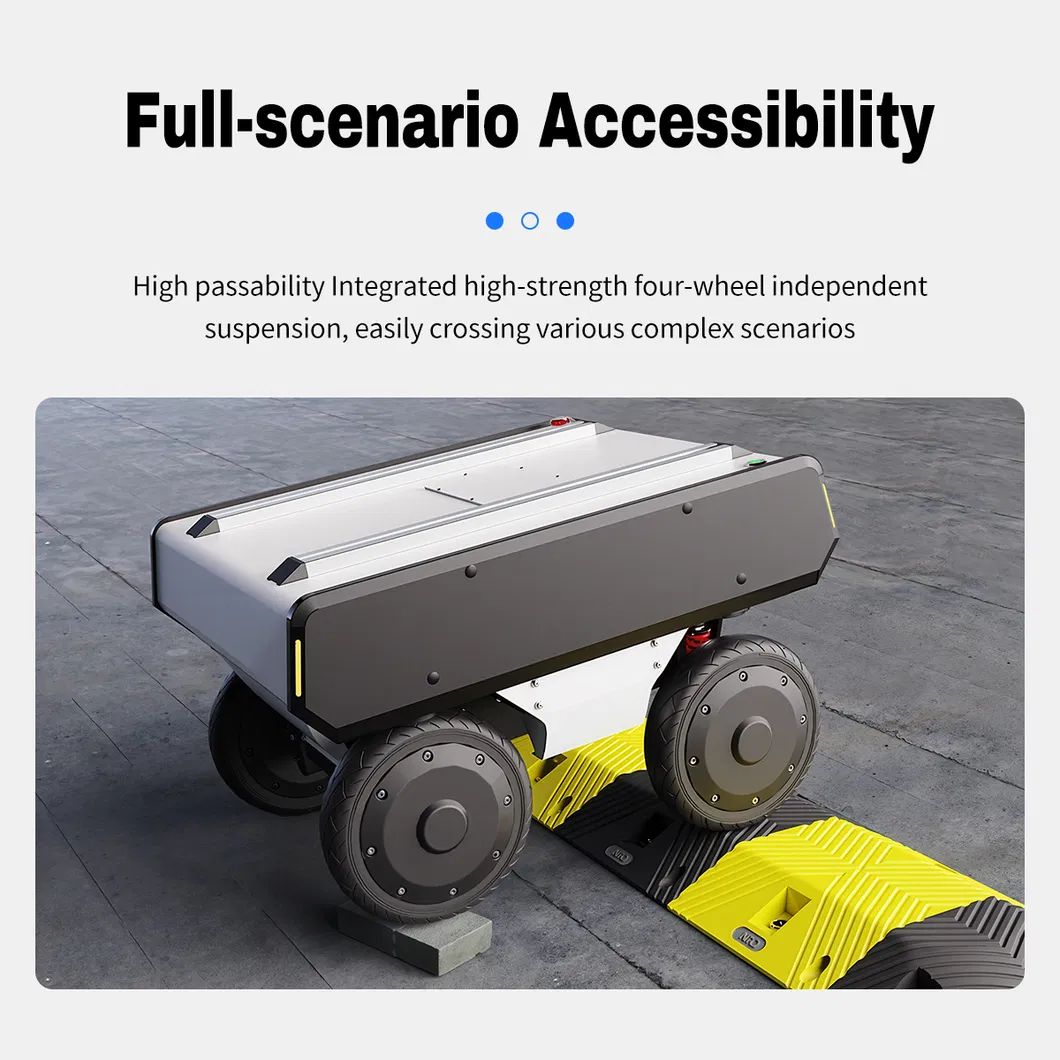

Yes, it features four-wheel independent suspension and high ground clearance (120mm chassis), making it suitable for asphalt, grass, gravel, and complex outdoor roads.

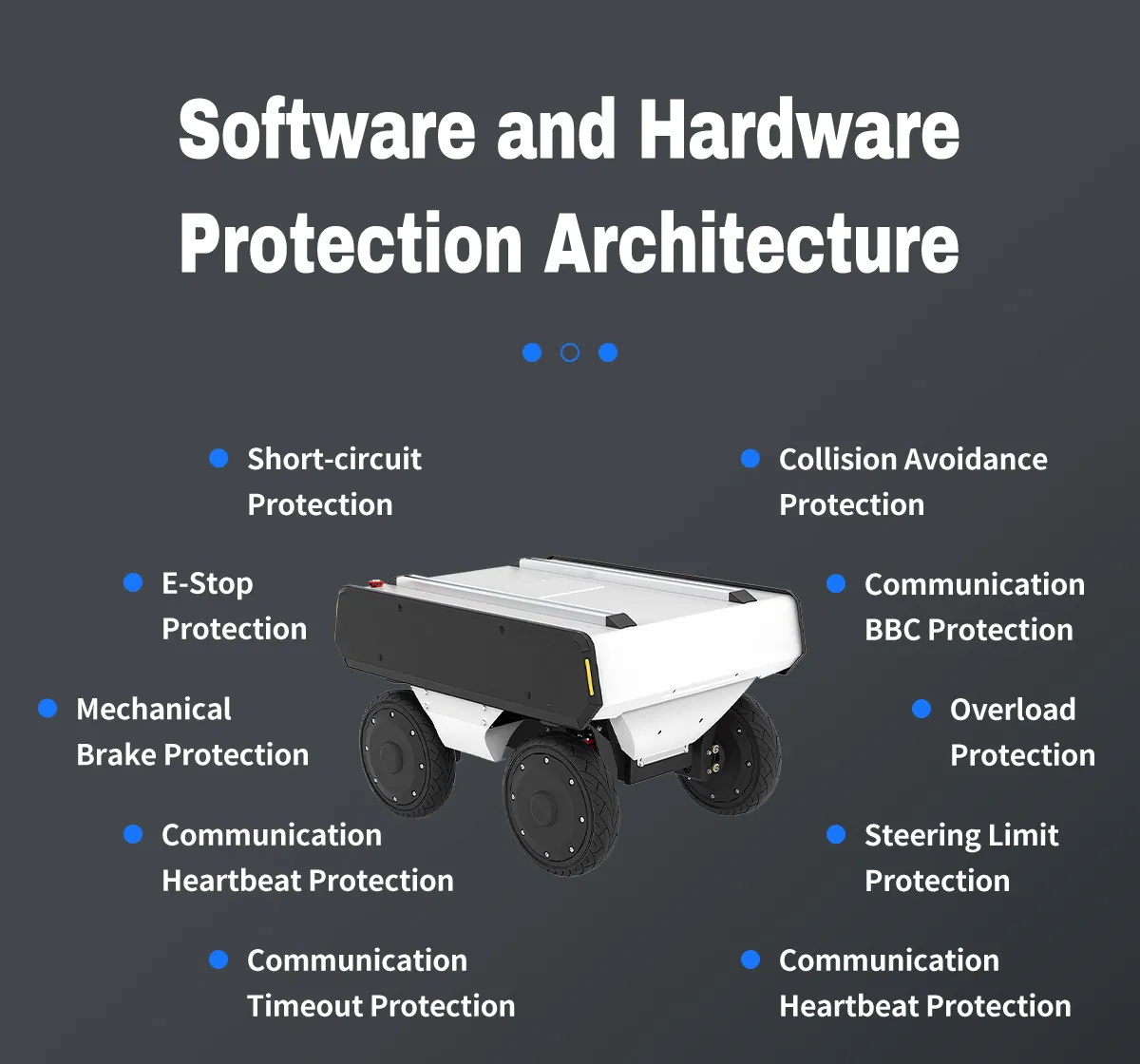

What are the safety features included?
The system includes a collision avoidance system, emergency stop button, obstacle detection sensors, and a safety laser scanner for secure operation.
What is the steering capability of the robot?

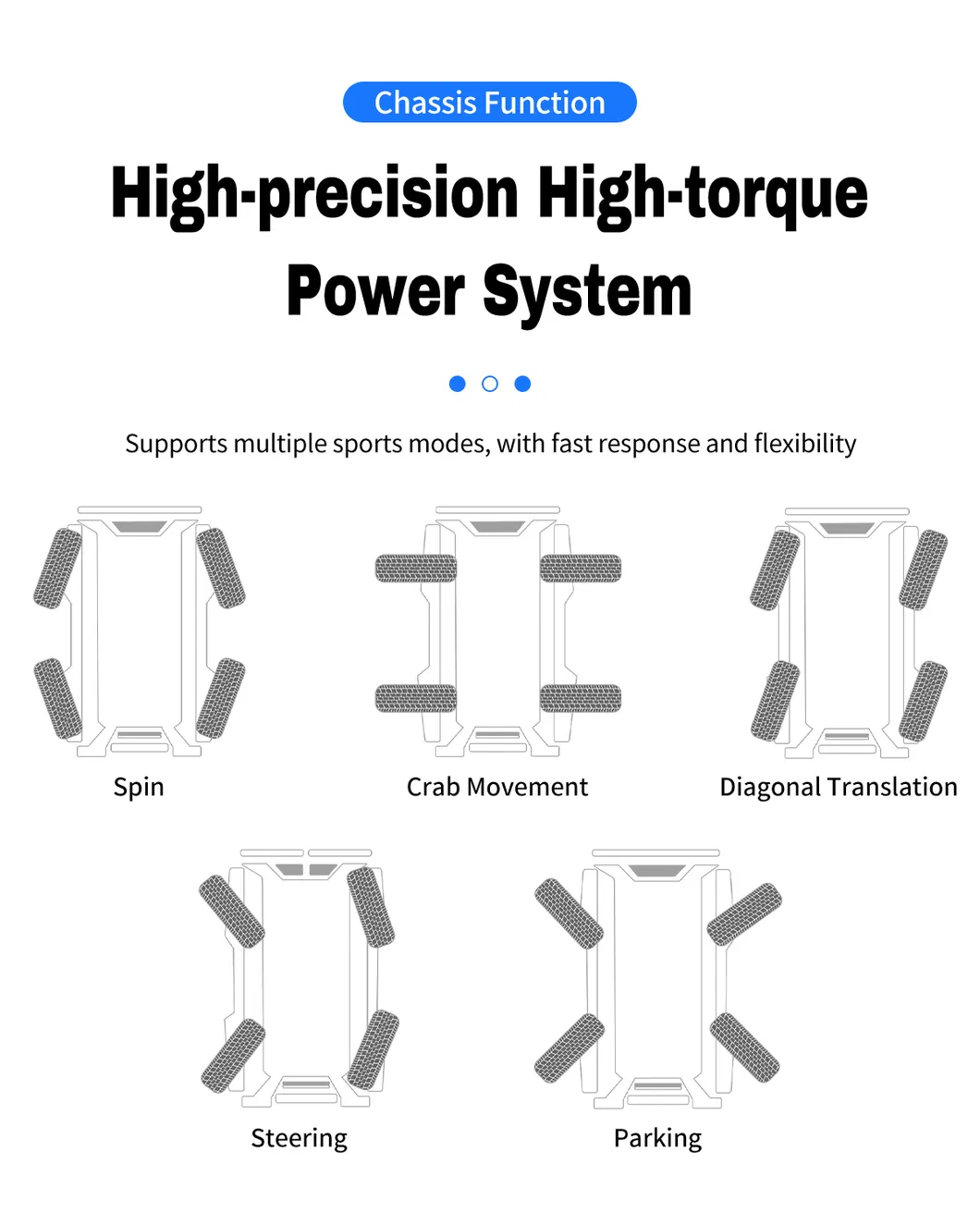

It utilizes a 4WS (Four-Wheel Steering) and 4WD (Four-Wheel Drive) system, allowing for lateral movement and on-site steering for superior maneuverability.
How far can the robot travel on a single charge?
The robot platform has an impressive range of up to 40 km, depending on the load and terrain conditions.
Is the platform waterproof or suitable for wet conditions?
The robot has a wading depth of 100mm, allowing it to navigate through shallow water or damp environments safely.
