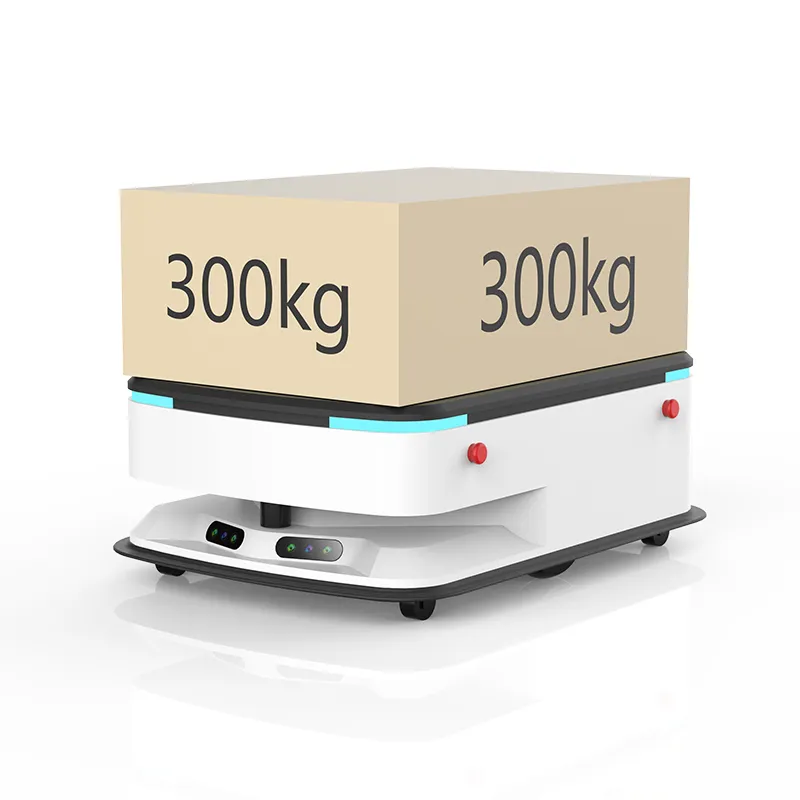

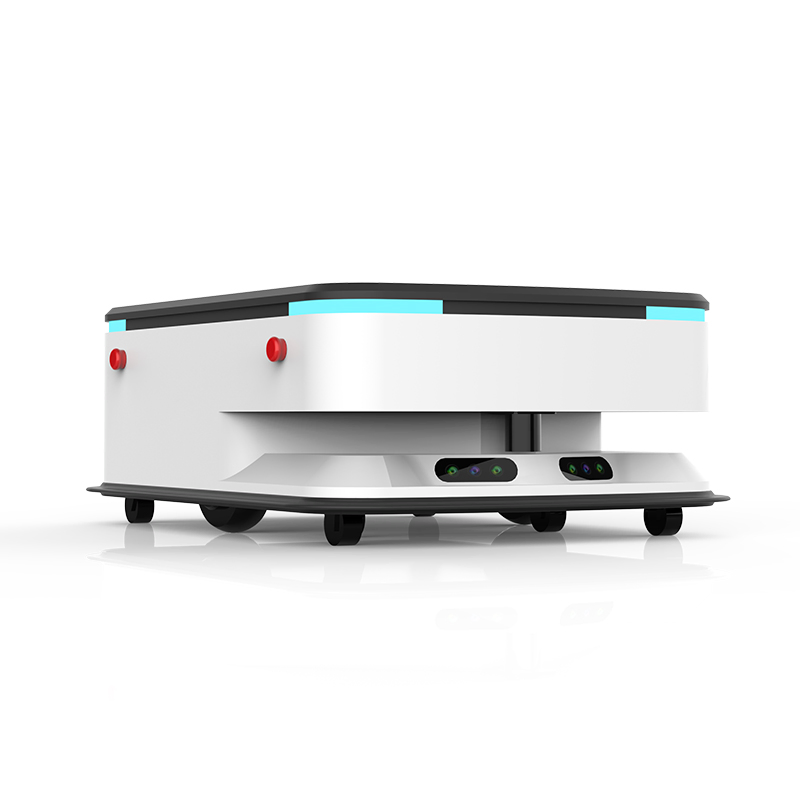

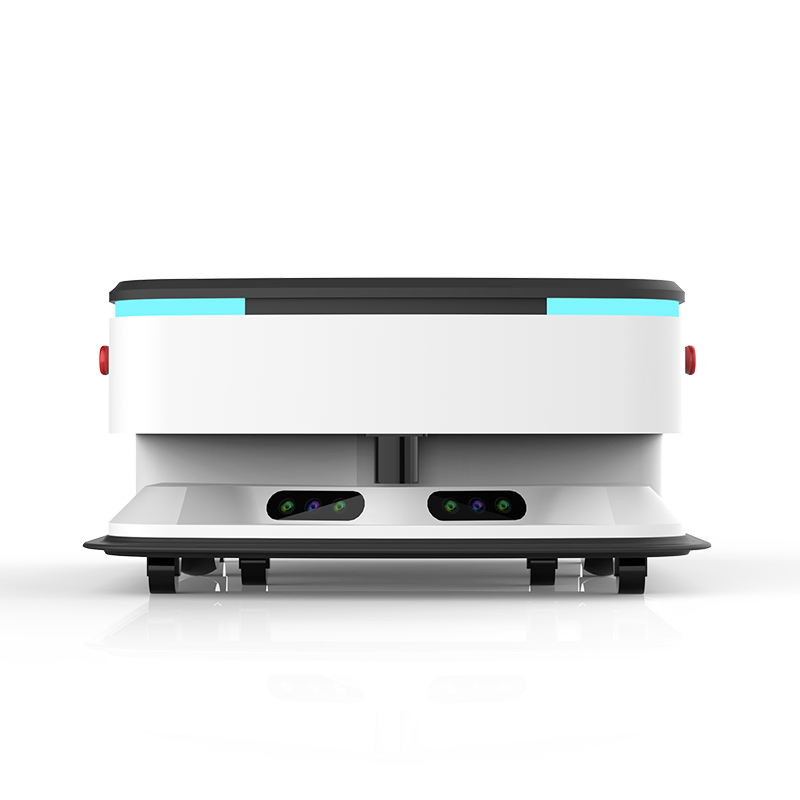

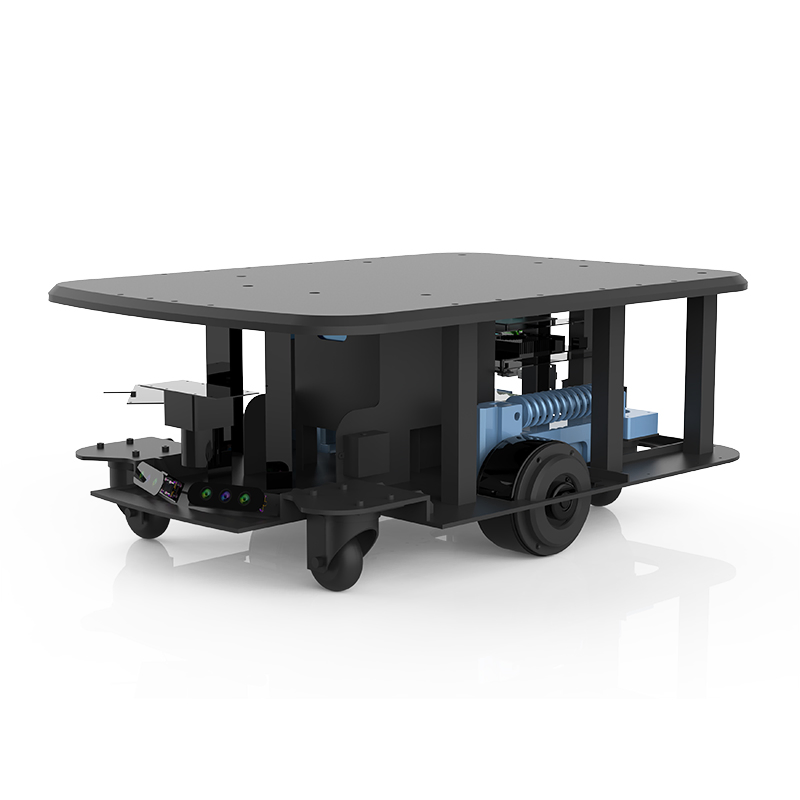

300kg AMR Agv Intelligent Mobile Robots Autonomous Factory Handling Robot Agv Robot
300kg AMR Agv Intelligent Mobile Robots Autonomous Factory Handling Robot Agv Robot
300kg AMR Agv Intelligent Mobile Robots Autonomous Factory Handling Robot Agv Robot
300kg AMR Agv Intelligent Mobile Robots Autonomous Factory Handling Robot Agv Robot
300kg AMR Agv Intelligent Mobile Robots Autonomous Factory Handling Robot Agv Robot
1 / 5
300kg AMR Agv Intelligent Mobile Robots Autonomous Factory Handling Robot Agv Robot
300kg AMR Agv Intelligent Mobile Robots Autonomous Factory Handling Robot Agv Robot
300kg AMR Agv Intelligent Mobile Robots Autonomous Factory Handling Robot Agv Robot
300kg AMR Agv Intelligent Mobile Robots Autonomous Factory Handling Robot Agv Robot
300kg AMR Agv Intelligent Mobile Robots Autonomous Factory Handling Robot Agv Robot

300kg AMR Agv Intelligent Mobile Robots Autonomous Factory Handling Robot Agv Robot

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
ABOT11B
Function
Anti-collision, Auto Charging, Basic Delivery, Obstacle Avoidance
Load Capacity
300kg
Navigation Mode
Lidar Navigation
Power Source
Battery (38.4V/25ah LiFePO4)
Travel Speed
0.1~1m/S
Charging Time
About 6h
Working Env.
Indoor
Dimensions
804x590x317mm
Certification
CE, ISO, RoHS

Product Description

FLY BOAT — LOAD TRANSFER AGV AMR

Fly Boat AMR AGV is a one-way backpack handling robot with a 300KG large load capacity. It is equipped with advanced SLAM 2.0 autonomous positioning and navigation technology, requiring no track or code markers. With high precision navigation and an open SDK platform, it provides rich API interfaces to support secondary development and customization for diverse industrial needs.

Detailed Photos

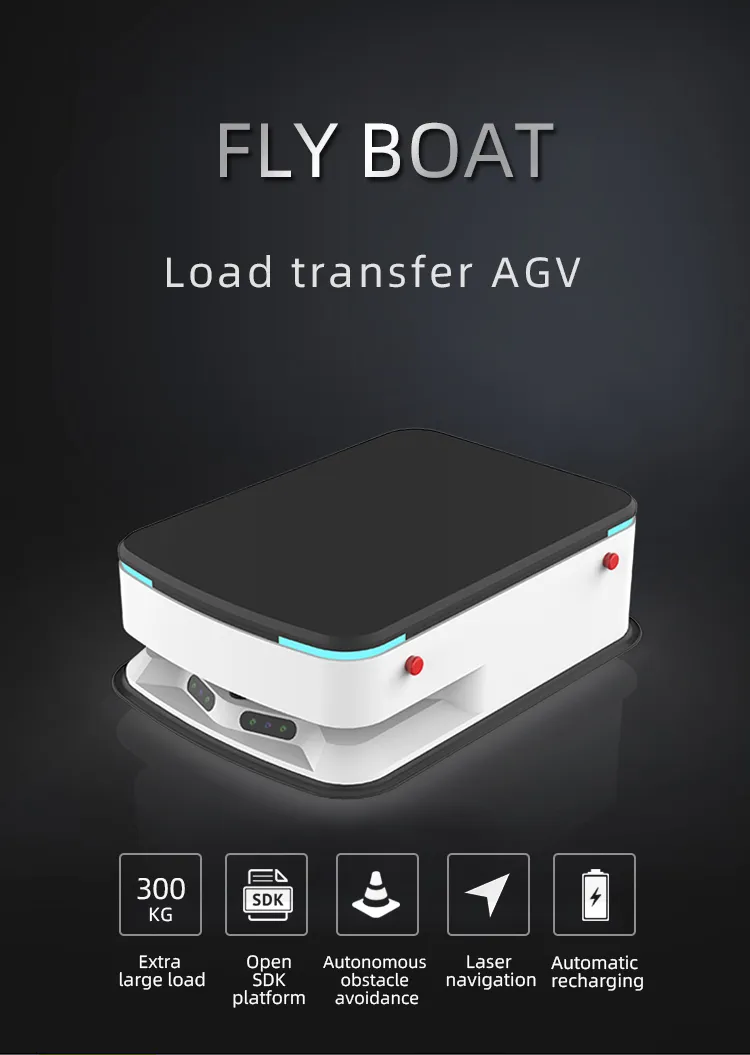

AMR AGV Overview
AMR AGV Handling

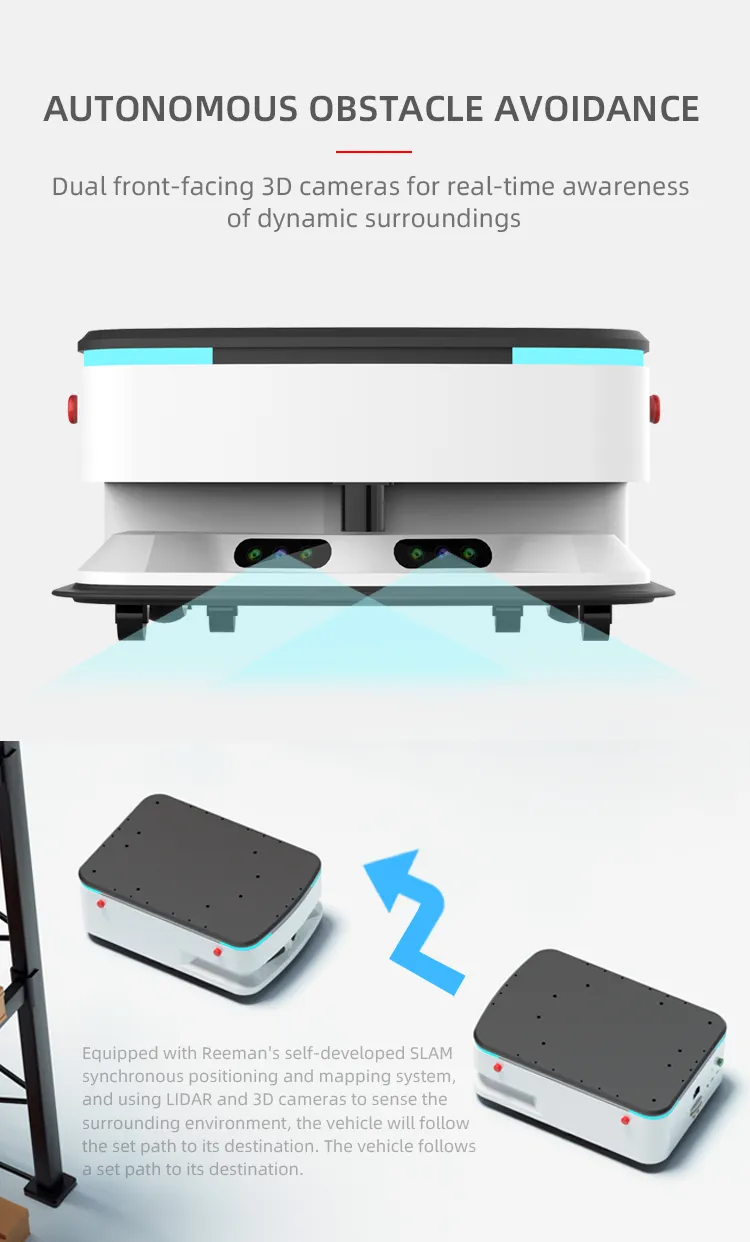

AMR AGV Navigation

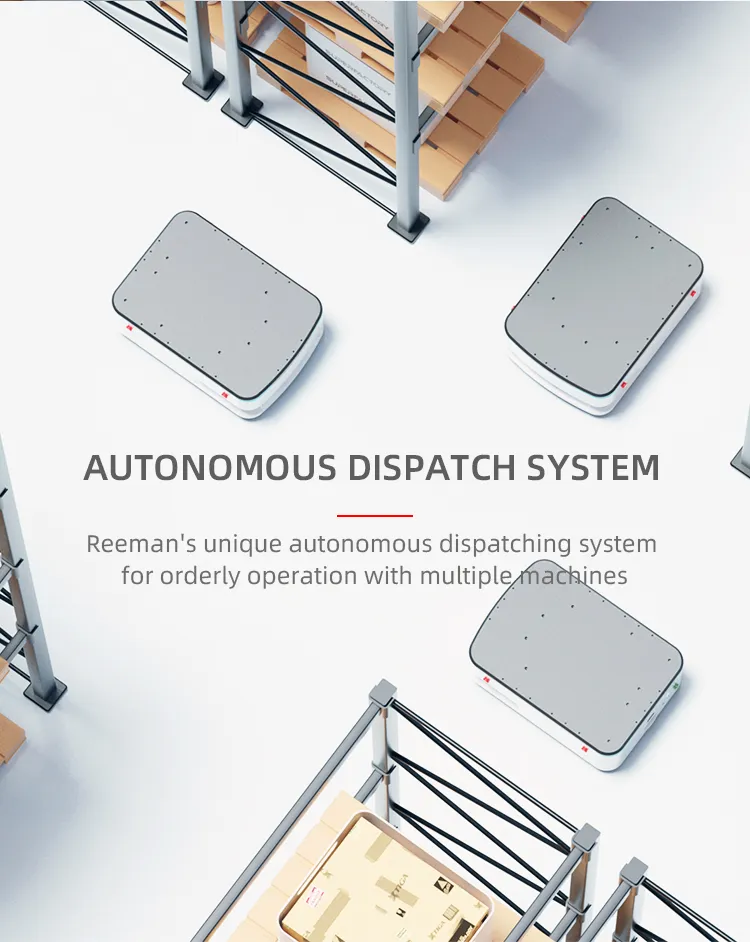

AMR AGV Base

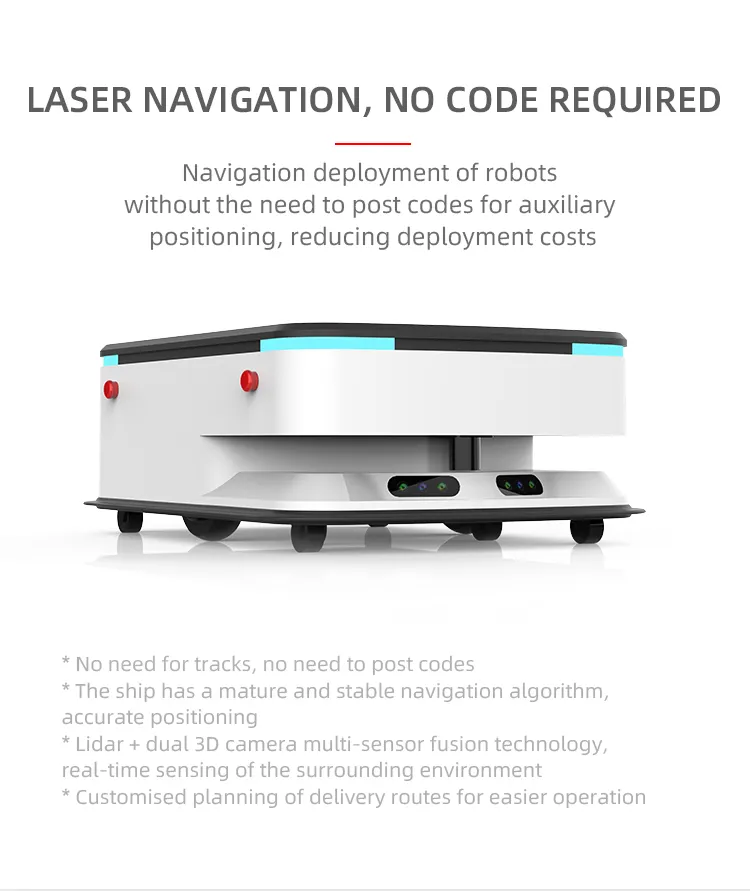

AMR AGV Side View
AMR AGV Sensors

Technical Parameters

Category Parameter Detail
DimensionSize800*590 mm
Net Weight70kg
Max Loading300kg (Rated 200kg)
SensorLiDARDetection: 230º, Range: 0.05~25m
Depth CameraPosition: Front; FOV: H 58.4° V 45.5°
BatteryCapacity38.4V 25Ah LiFePO4
Life/Standby10-15 Hours / 30 Hours Standby
Cycles>2000 Complete Cycles
MovementSpeed0.3-1m/s Adjustable
Narrow Passage90cm
NetworkConnectivityWiFi 2.4G/5G (4G/5G Optional)

Frequently Asked Questions

What is the maximum load capacity of the Fly Boat AMR?
The robot is designed for heavy-duty industrial handling with a maximum load capacity of 300kg.
How long does the battery last on a single charge?
It offers a battery life of 10 to 15 hours during operation and up to 30 hours in standby mode.
Does the robot require track installation on the floor?
No, it uses Lidar SLAM 2.0 autonomous positioning and navigation, meaning it navigates without the need for magnetic tracks or QR codes.
Is it suitable for outdoor use?
This model is designed specifically for indoor, clean environments such as factories, workshops, and warehouses.
What is the charging time for a full battery?
It takes approximately 5.5 to 6 hours to achieve a full charge using the standard charging pile.
Can the robot navigate through narrow spaces?
Yes, the Fly Boat AMR is capable of passing through narrow corridors as slim as 90cm.
