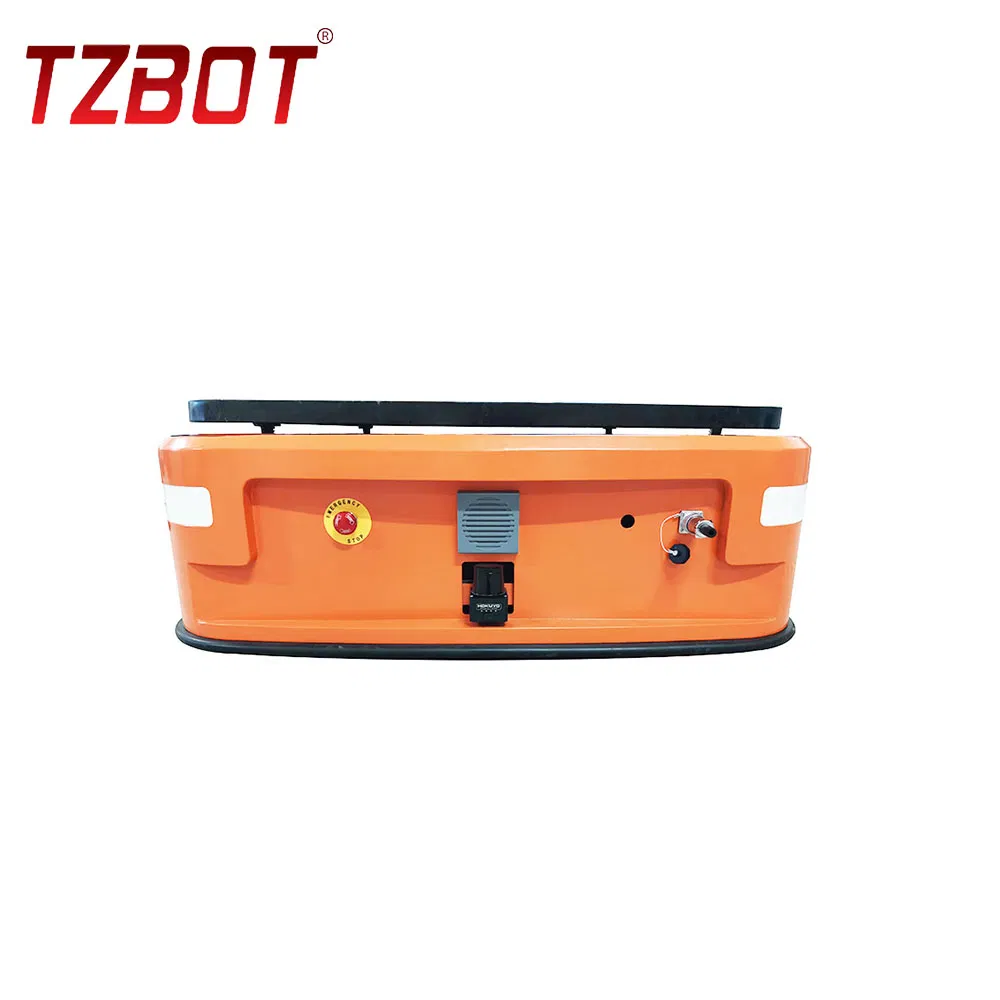

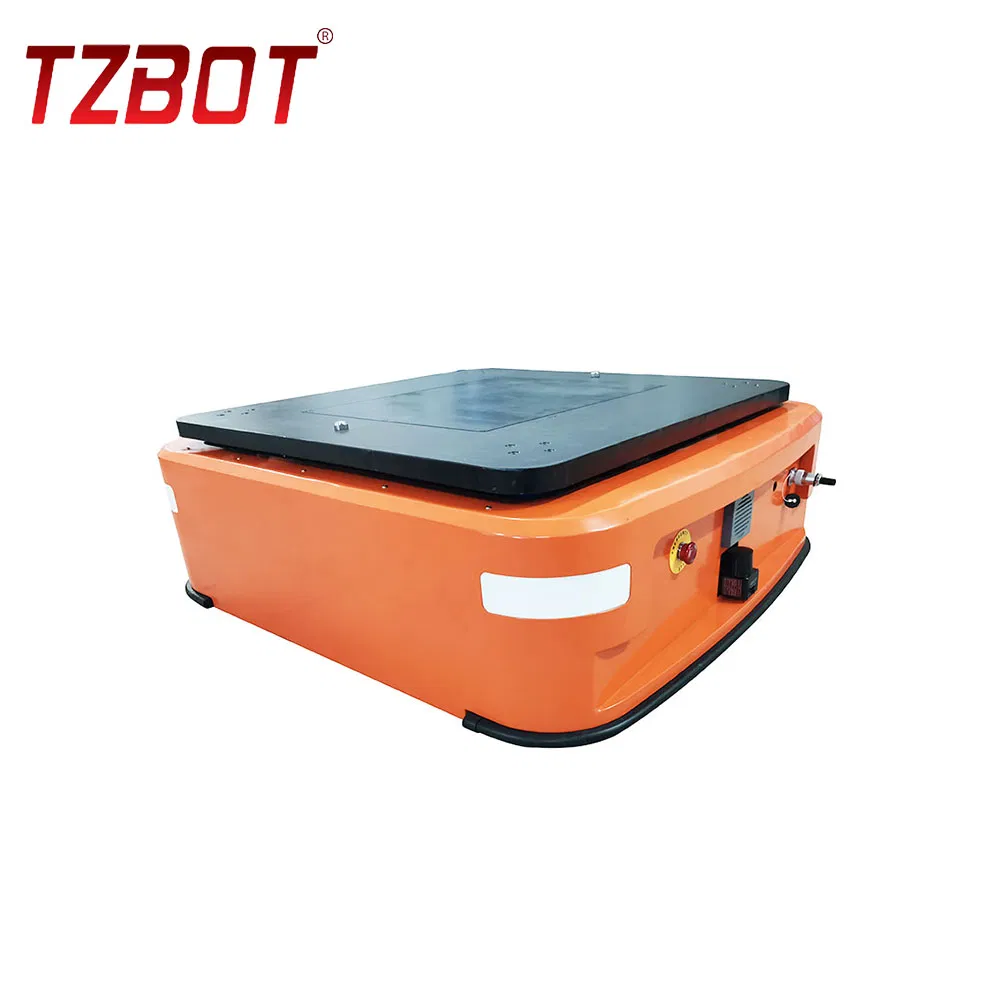

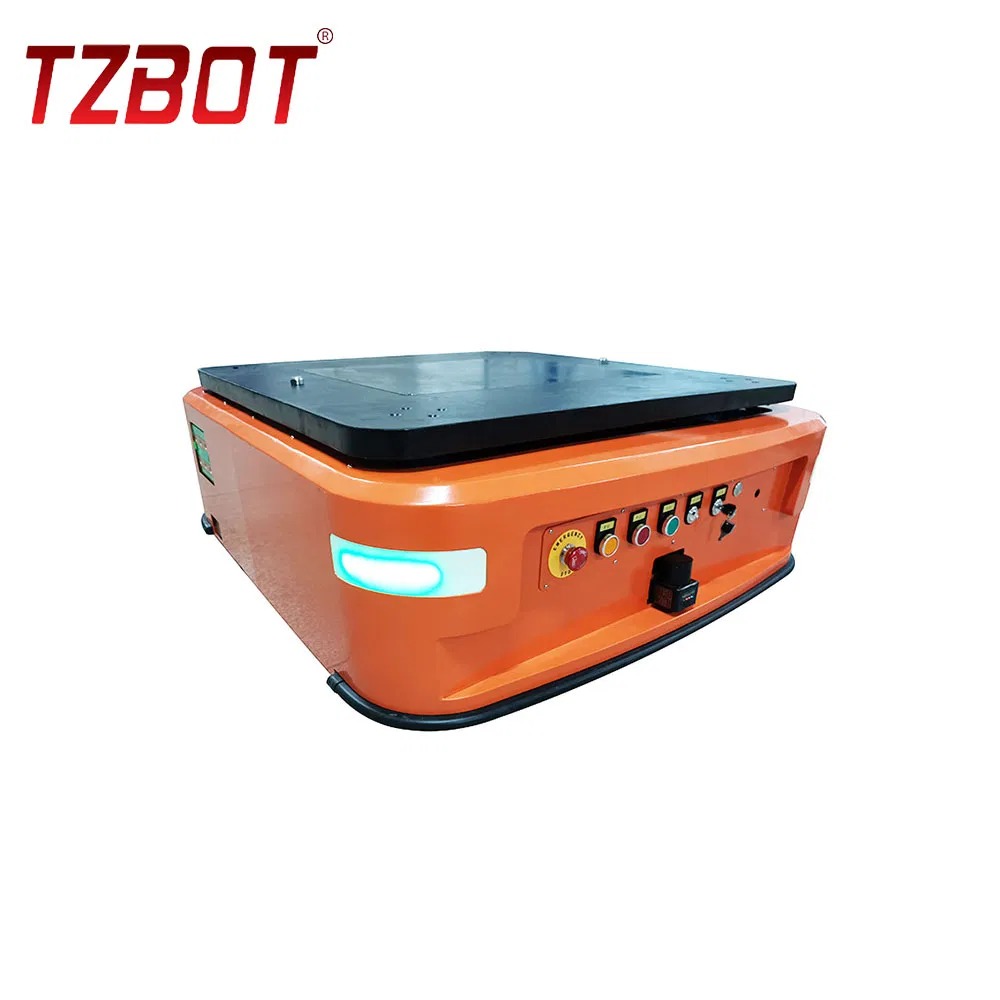

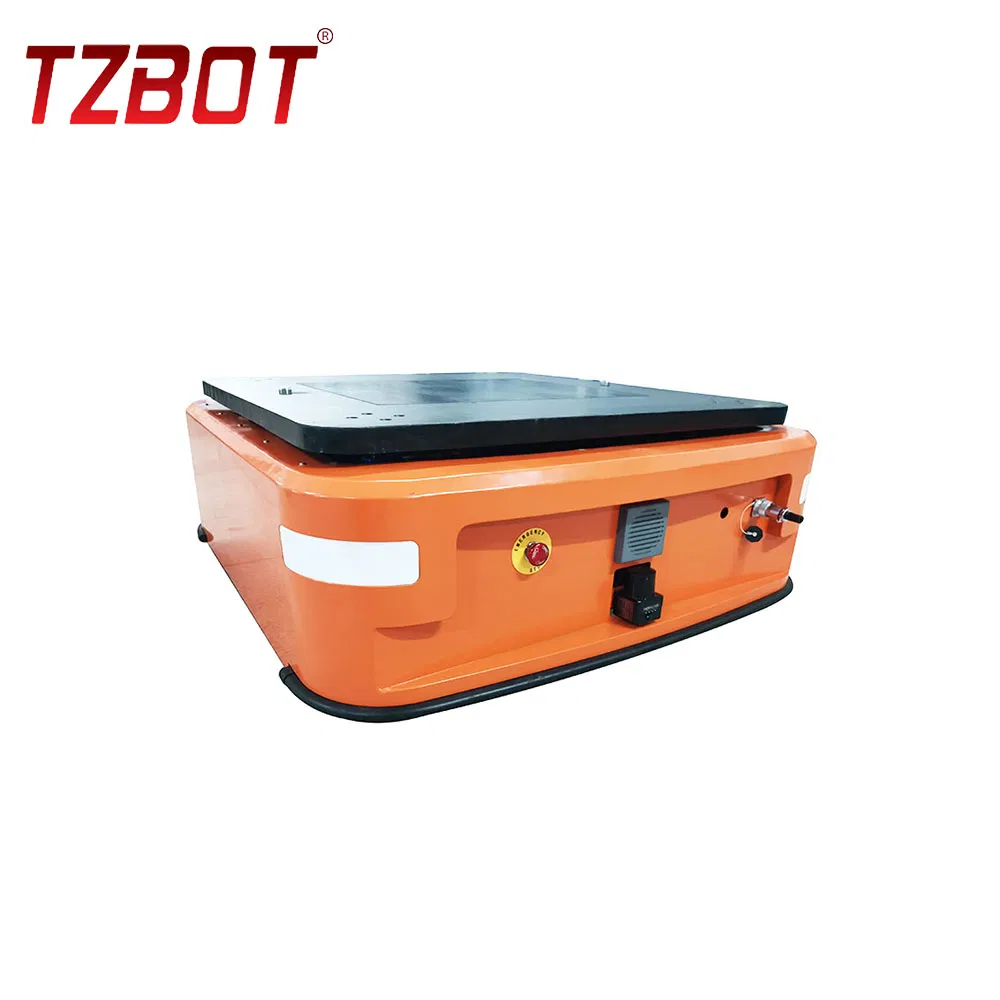

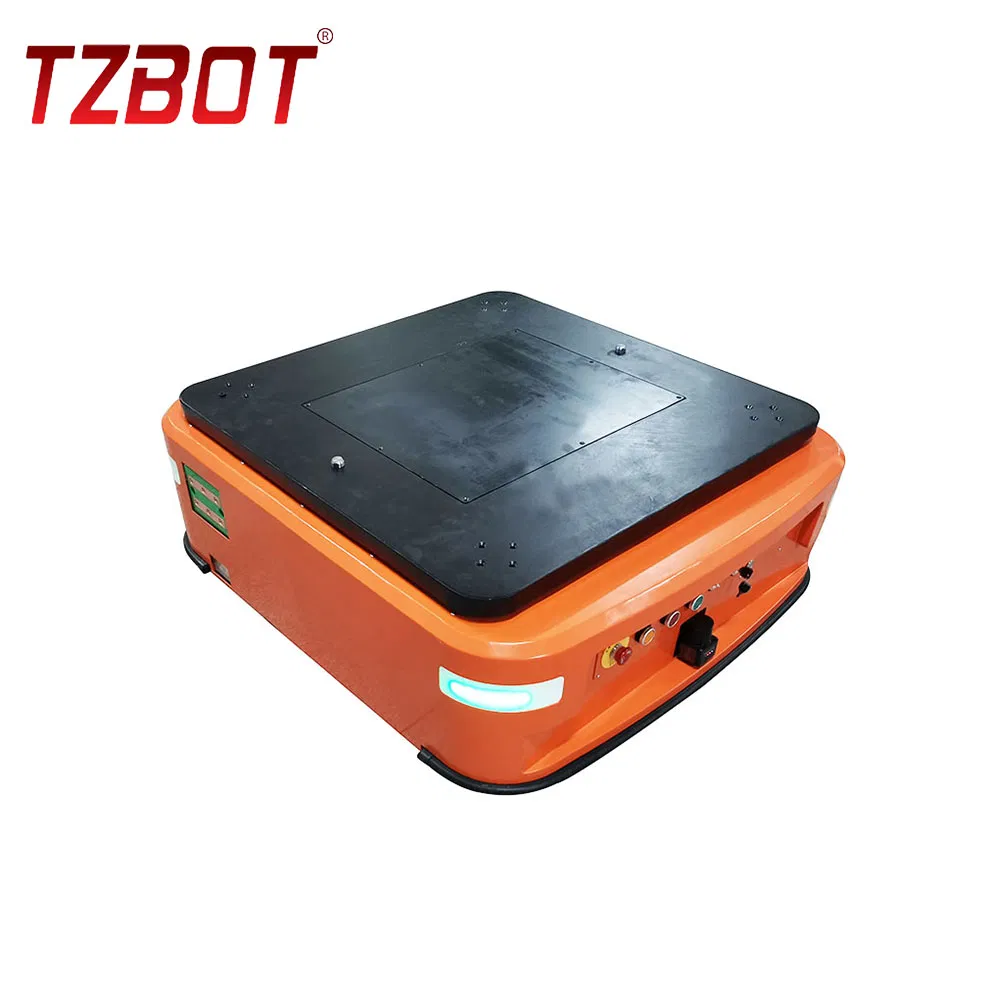

Tzbot 1000kg Heavy Load Capacity Magnetic Sensor Agv Warehouse Jack-up Robots Autonomous Mobile Robot for Warehouse Material Transportation
Tzbot 1000kg Heavy Load Capacity Magnetic Sensor Agv Warehouse Jack-up Robots Autonomous Mobile Robot for Warehouse Material Transportation
Tzbot 1000kg Heavy Load Capacity Magnetic Sensor Agv Warehouse Jack-up Robots Autonomous Mobile Robot for Warehouse Material Transportation
Tzbot 1000kg Heavy Load Capacity Magnetic Sensor Agv Warehouse Jack-up Robots Autonomous Mobile Robot for Warehouse Material Transportation
Tzbot 1000kg Heavy Load Capacity Magnetic Sensor Agv Warehouse Jack-up Robots Autonomous Mobile Robot for Warehouse Material Transportation
1 / 5
Tzbot 1000kg Heavy Load Capacity Magnetic Sensor Agv Warehouse Jack-up Robots Autonomous Mobile Robot for Warehouse Material Transportation
Tzbot 1000kg Heavy Load Capacity Magnetic Sensor Agv Warehouse Jack-up Robots Autonomous Mobile Robot for Warehouse Material Transportation
Tzbot 1000kg Heavy Load Capacity Magnetic Sensor Agv Warehouse Jack-up Robots Autonomous Mobile Robot for Warehouse Material Transportation
Tzbot 1000kg Heavy Load Capacity Magnetic Sensor Agv Warehouse Jack-up Robots Autonomous Mobile Robot for Warehouse Material Transportation
Tzbot 1000kg Heavy Load Capacity Magnetic Sensor Agv Warehouse Jack-up Robots Autonomous Mobile Robot for Warehouse Material Transportation

Tzbot 1000kg Heavy Load Capacity Magnetic Sensor Agv Warehouse Jack-up Robots Autonomous Mobile Robot for Warehouse Material Transportation

Customization: Available
Control Mode: Magnetic Navigation
Drive Mode: Motor
Send Inquiry

Product Description

1

Basic Information

Model NO.TZAGV-DM1000
Load Capacity1000kg
Walking DirectionForward, Steer, Back
BatteryLithium Battery
Control SystemAGV Controller
Charging MethodManual Charging/Auto Charging
Security SystemLidar Sensor; Bumper Sensor
Moving SpeedMax 0.6m/S
Vehicle WeightLess Than 250kg
ApplicationMaterial Handling
SpecificationL1100*W900*H380
2

Product Description

Bidirectional Jack-up AGV 1000KG

This AGV is equipped with a jacking device, which can be lifted up and transported after diving into the bottom of the rack or material truck. It can carry 1 ton of goods or materials. This style is widely used in the field of warehousing, logistics and handling.

Heavy Load AGV Warehouse AGV Robot
The backpack AGV heavy load capacity is 1000KG. It is an automatic guide vehicle and unmanned delivery robot designed to significantly improve work efficiency and save labor time in modern warehouse environments.
AGV Dimensions
3

Technical Specifications

Navigation MethodMagnetic navigation
Positioning Accuracy±5mm
Lifting Distance50mm
Jacking Speed8mm/s
Jacking Structure4 screw H type
Maximum Charging Speed1C
4

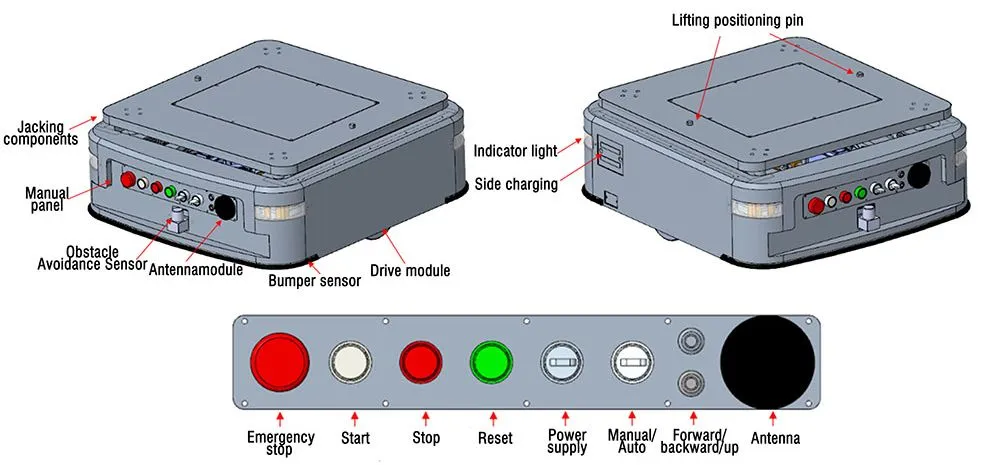

Product Structure

Product Structure Diagram
5

Product Advantages

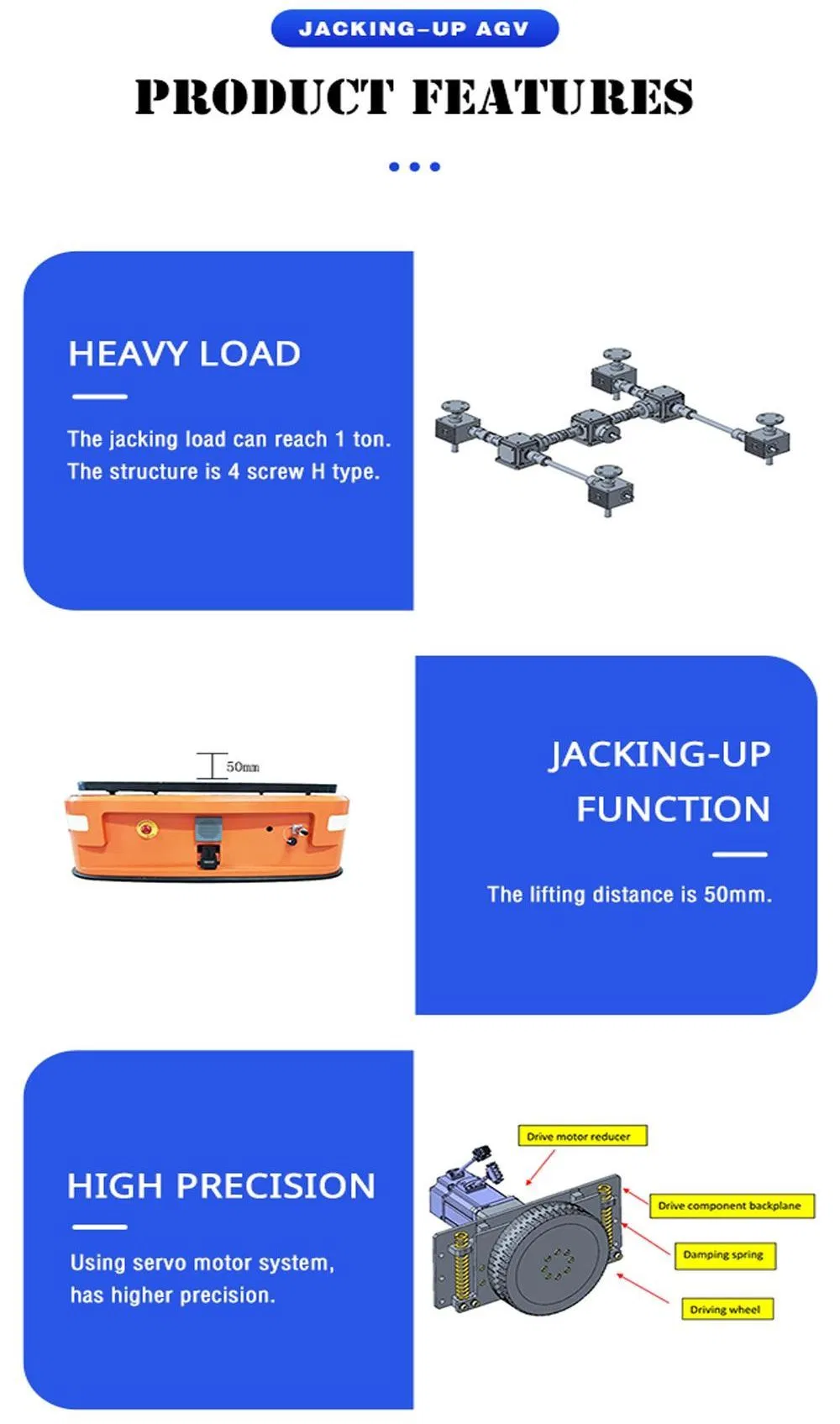

AGV Advantages

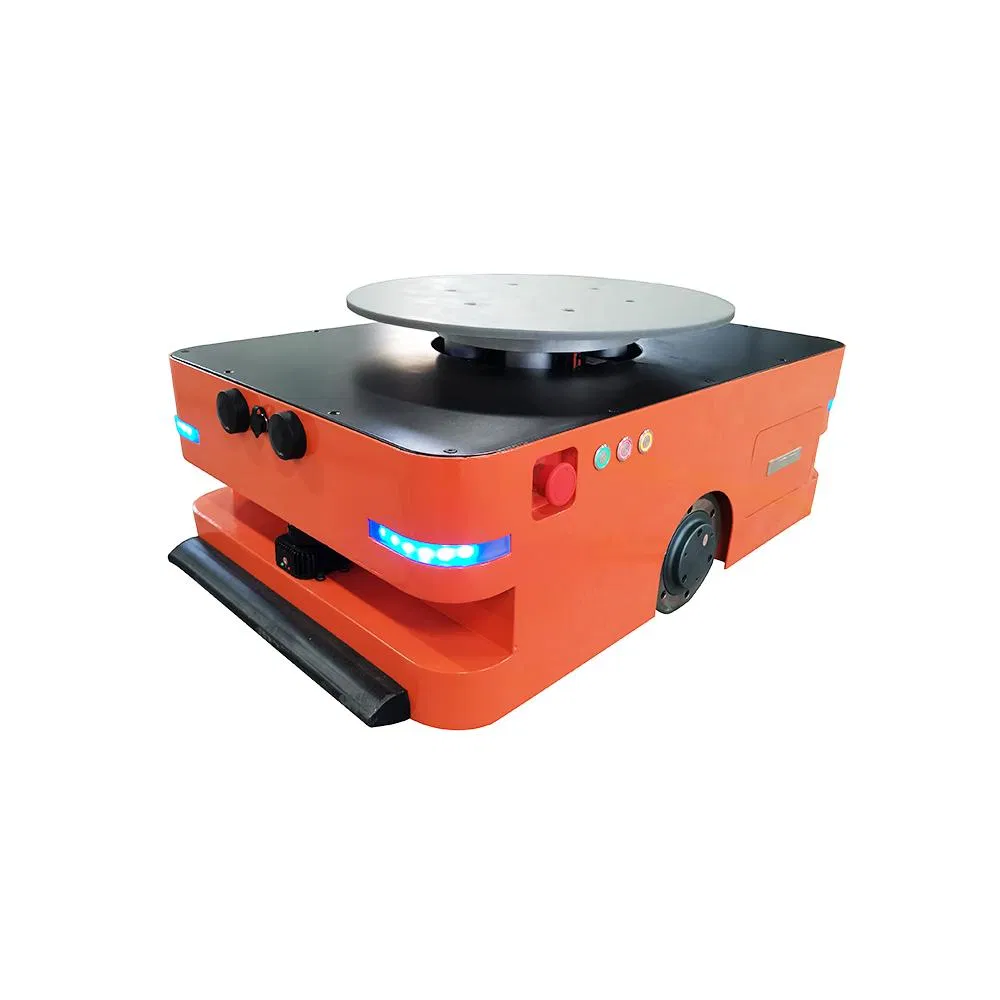

AGV Model 1

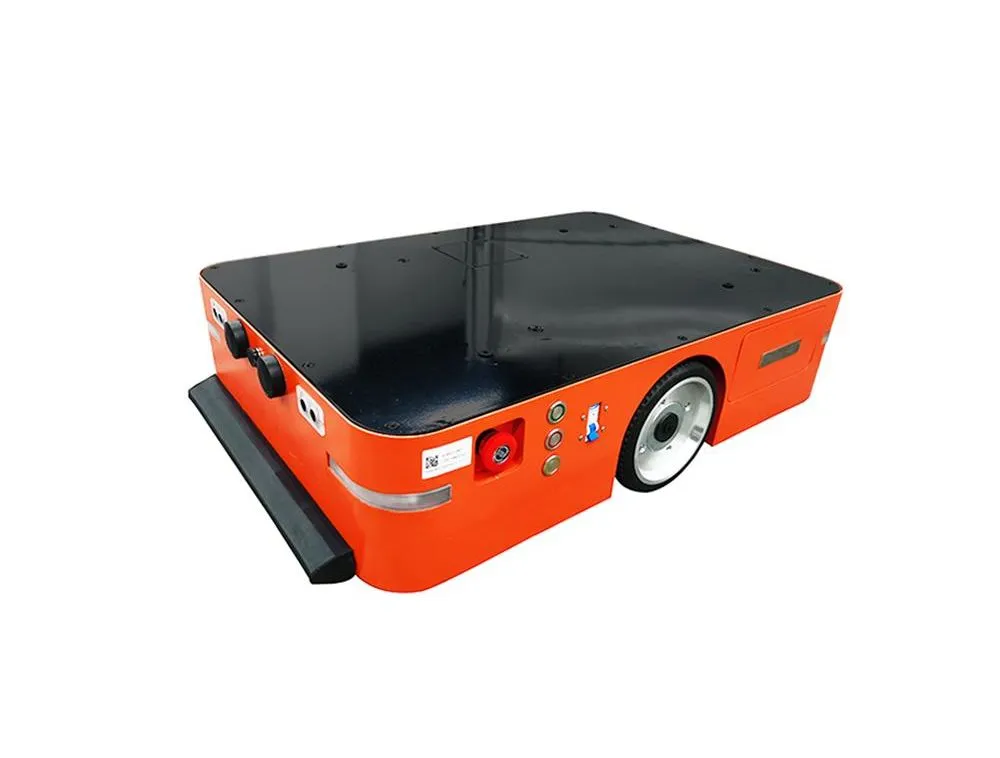

AGV Model 2

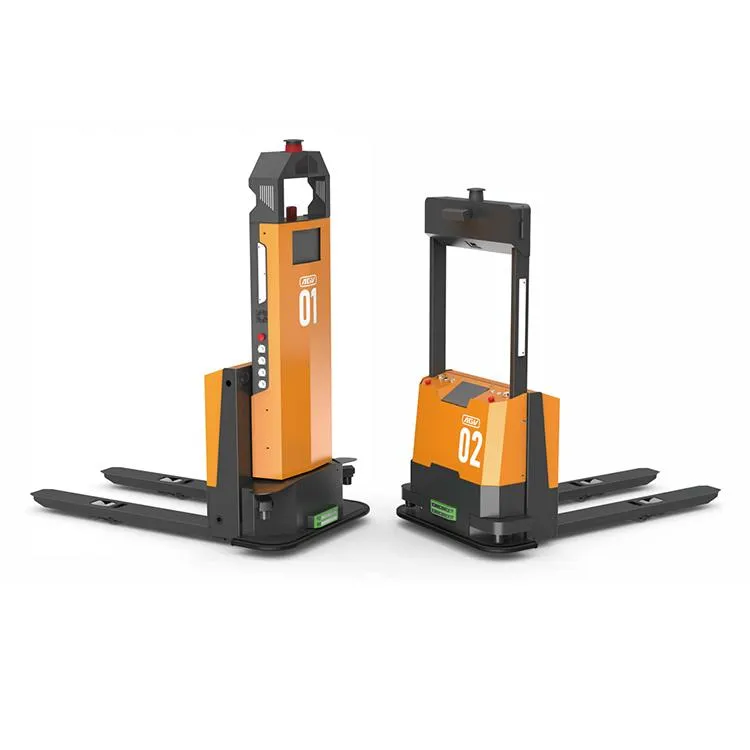

AGV Model 3
6

Manufacturing Excellence

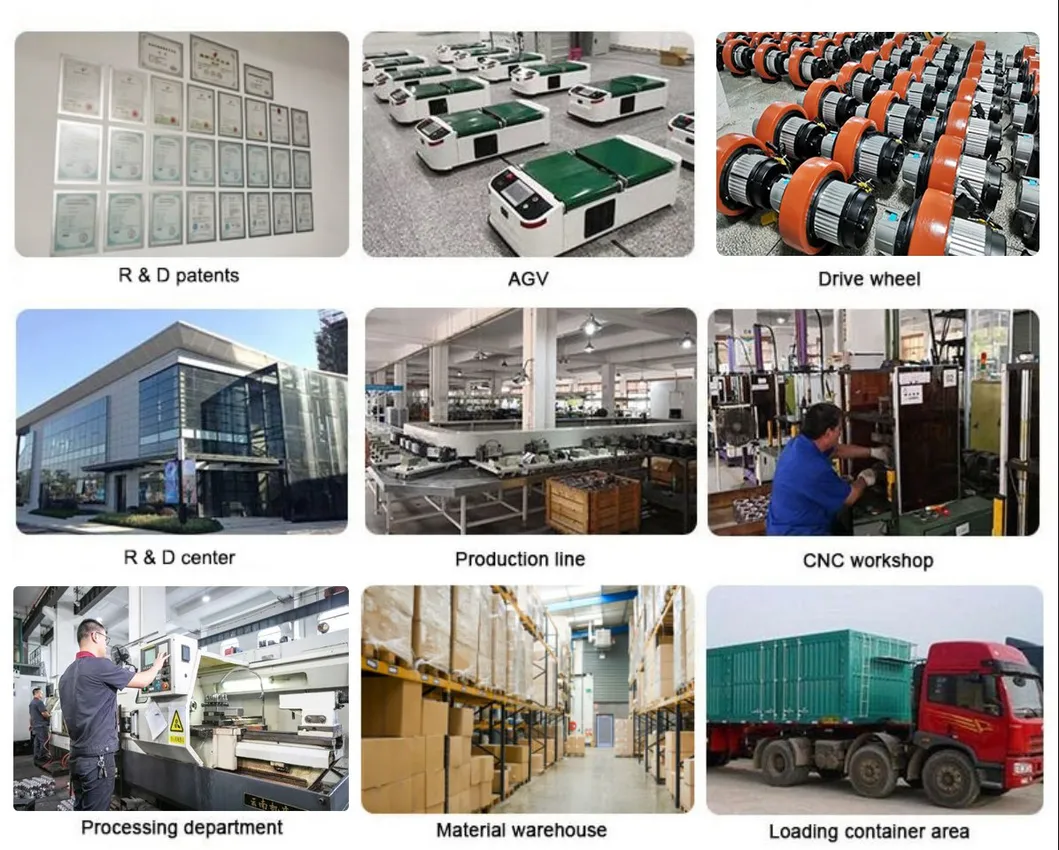

Factory Overview
Our manufacturer focuses on the design and production of AGVs, driving wheel assemblies, DC/AC motors, and automated equipment. With ISO9001:2015 certification, we prioritize customer satisfaction through technological innovation and flexible customization. Our products serve diverse sectors including forklifts, aerial platforms, agricultural machines, and medical devices.
Certifications
?

Frequently Asked Questions

What are the available payment methods?
We accept T/T, Paypal, West Union, Trade Assurance (Alipay or E-check), L/C, and D/P.
How do you ensure product quality?
All products undergo a double inspection process: once at the end of production and again before final packing. We offer a response within 24 hours for any quality concerns reported within 10 days of receipt.
What is the load capacity and navigation type of this AGV?
This model features a 1000kg load capacity and utilizes high-precision magnetic navigation with ±5mm positioning accuracy.
Do you provide technical support?
Yes, we have a professional technical team that provides a full range of pre-sale consulting and after-sale technical guidance.
Can the AGV be customized for specific requirements?
Absolutely. We pride ourselves on production flexibility and can quickly design and produce special parts or engines based on specific customer requests.
What security systems are integrated into the AGV?
The AGV is equipped with a comprehensive security system, including Lidar sensors and bumper sensors to ensure safe operation in shared workspaces.
