| Feature | Specifications |
|---|---|
| Main Configuration | 304 stainless steel finger diameter Phi =18mm, finger spacing, center line and roller spacing to keep the same. |
| Brand Configuration | SMC pneumatic components |
| Drive Mode | Pneumatic drive, with pressing device |
| Connection | Flange connection |
| Grasp Structure | Frame adopts high strength aluminum alloy, adjustable width |
| Basic Data | Maximum load 180Kg; Repeated positioning accuracy ±0.4mm; Protection class IP65; Demonstrator T70 |
| Working Radius | 3200mm |
| Body Weight | 1400Kg |
| Maximum Speed | J1: 114°/sec, J2: 108°/sec, J3: 119°/sec, J4: 290°/sec |

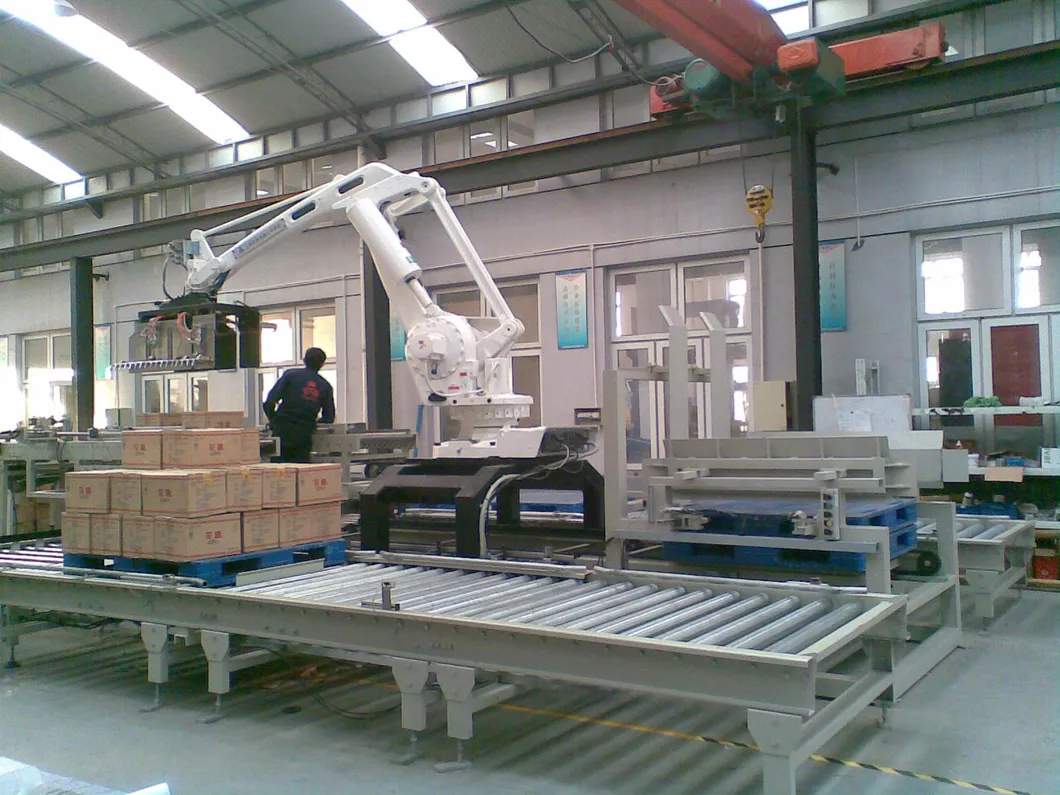

The robot arm is made of aluminum castings and processed by CNC machining center. The surface is sprayed with plastic to achieve a beautiful appearance.

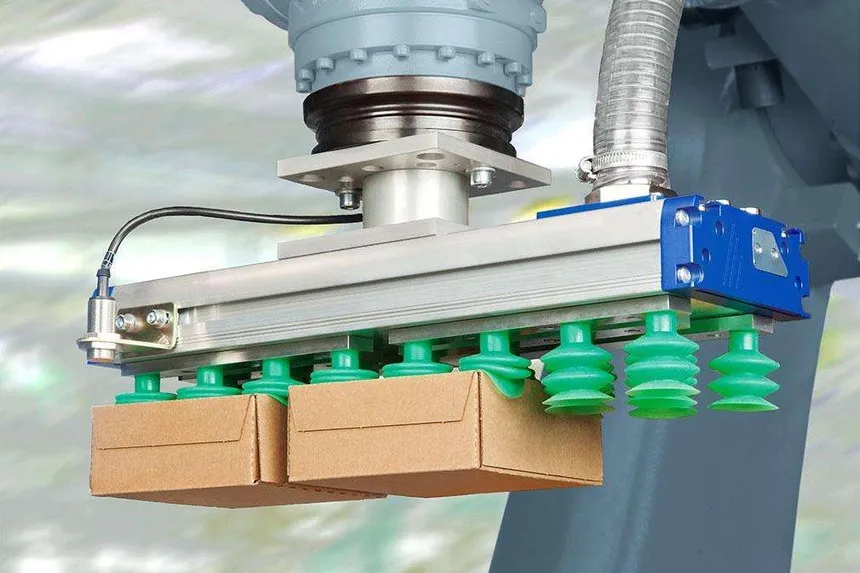

The reclaiming chuck rack is installed on the end flange. The suction cups are installed on the chuck rack with appropriate gravity and quantity according to different products. The reclaiming jig is easy to install and adjust, and has a wide range of application.

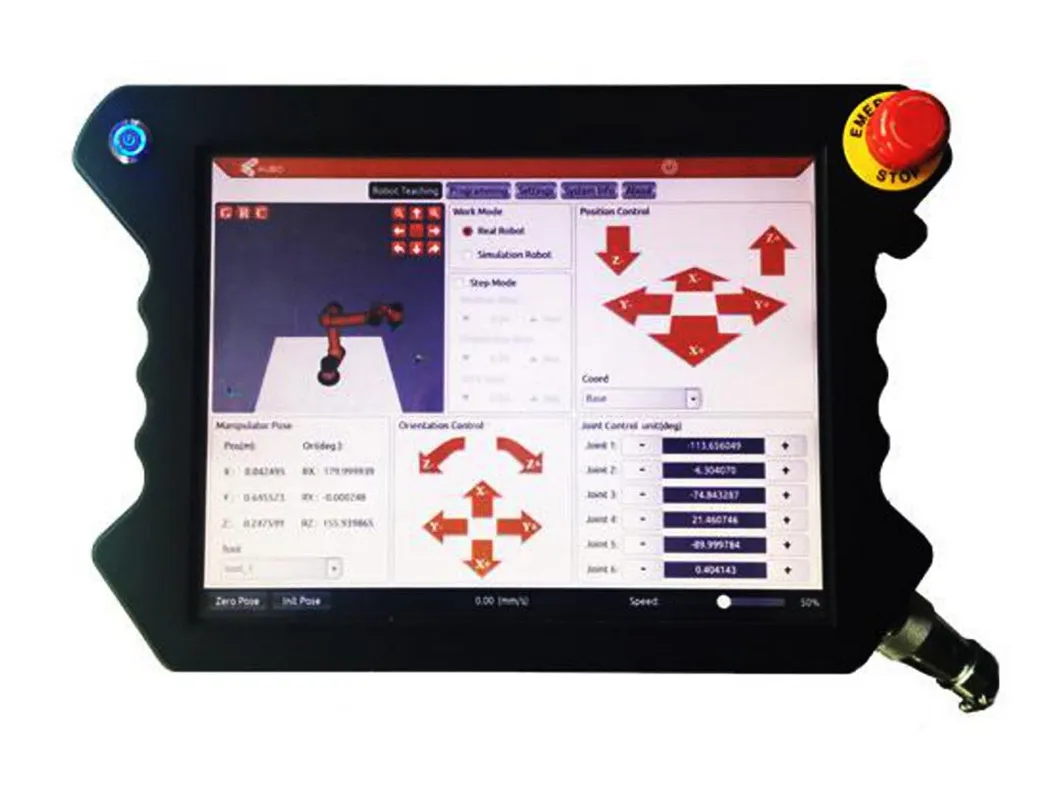

Hd control interface, at any time to grasp the machine dynamics, docking with the customer system, and automatically outputting the form information.

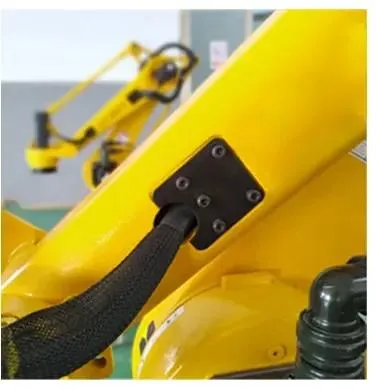

The robot arm shall reserve a wiring hole, which is beautiful and does not hinder the operation of the robot arm. The end shall reserve a gas pipe interface and a data cable connector.
