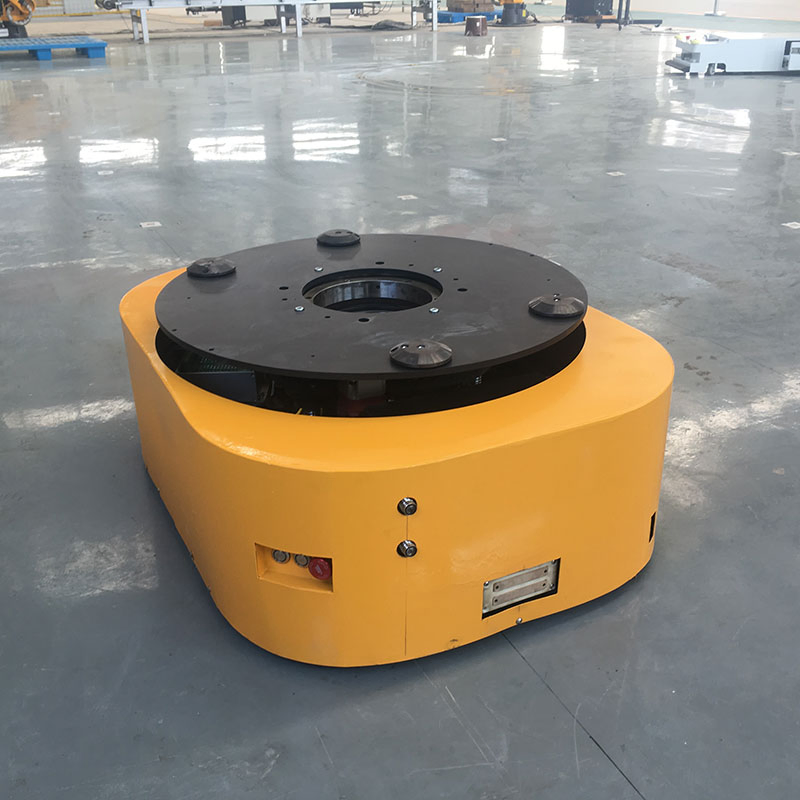

Agv Robot Warehouse Qr Code Platform Mobile with Picking Arm Autonomous Holder New Technical Fast Speed Warehouse Trackless Slam Two-Dimensional Code Slam

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Information

Model NO.
czh
Condition
New
Certification
ISO, CE
Application
Logistics Delivery
Transport Package
Wooden Box
Specification
930x650x290
Origin
China
Production Capacity
20000

Product Description

QR code robot

QR Code Robot System

Explanation: This system utilizes QR codes pasted on the ground at specific intervals. These codes contain vital navigation information, allowing the robot to execute movements and pathing accurately.

Key Advantages: Significant improvements in warehousing efficiency, seamless cluster operations, and high compatibility with other automated systems like manipulators or drones.

Considerations: Ideally suited for large-scale sorting centers where a complete integrated system can be deployed. While highly effective for industrial zones, it typically requires restricted operation areas to ensure safety and peak efficiency.

Technical Specifications

Item Parameter Remark
Navigation Magnetic American chip with stable quality
Driver Motor Brushless DC motor Servo Motor
Controller Professional AGV controller Embedded main board, high speed switch
Drive Way Double drives Flexible Turning
Load Mode Back carrying/tail towing /Lurking Two loading modes can be together
Rated Loading 50KG-4T Customizable
Auto Running Directions One direction/Two directions Manual forward, backward, left, right
Speed 0.2m/s~1.0m/s Run straight
Min Turning Radius 0.5 mile Arc turning
Dimension 800*500*250mm / 650*450*370mm Other sizes optional
Safety Protection Radar + infrared + safety strip Triple layer protection
Communication WIFI Distance within 1000m
Dispatching System Support Call, traffic, Dispatch
📷

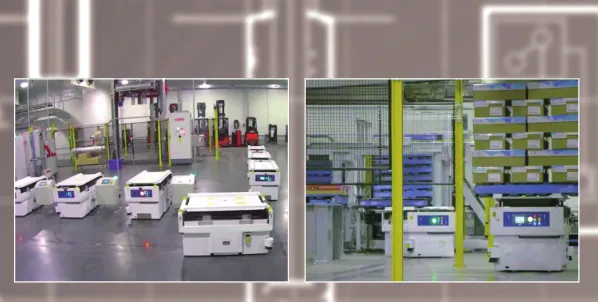

Product Gallery

?

Frequently Asked Questions

1. How does the QR code navigation system work? The robot follows QR codes pasted on the ground at set distances. These codes contain directional data that guides the robot through the warehouse efficiently.
2. What are the load capacities of this AGV robot? The rated loading range is very flexible, starting from 50KG and going up to 4 Tons, depending on the specific model and configuration.
3. What safety features are integrated into the robot? The robot is equipped with a triple-layer safety system including Radar, infrared sensors, and a physical safety collision strip for maximum protection.
4. Can this robot operate in small warehouses? While it can work in smaller spaces, it is most practical and cost-effective for large-scale warehouses due to the system-wide technical requirements.
5. What is the maximum speed of the AGV? The robot can reach speeds between 0.2m/s and 1.0m/s when running straight, ensuring fast logistics delivery.
6. How does the robot communicate with the control center? It uses WIFI communication with a support range of up to 1000 meters, allowing for seamless remote dispatching and traffic management.
