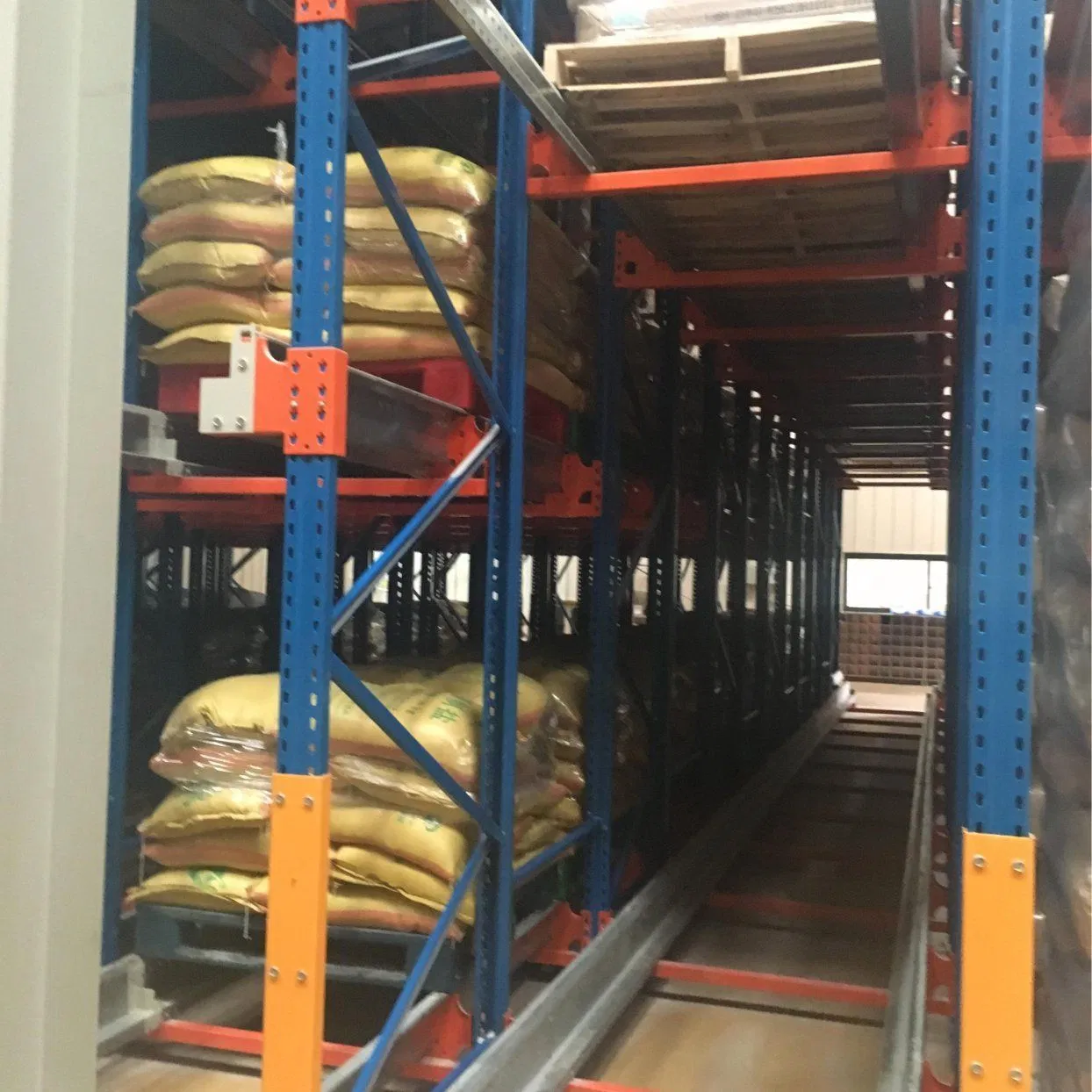

Auto Parts Warehouse Radio Shuttle System with Robotic Palletizer Integration

1 / 5

Auto Parts Warehouse Radio Shuttle System with Robotic Palletizer Integration

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Type

Shuttle Robot

Material

Steel

Height

5m - 15m

Load Capacity

Max 1500kg

Usage

Industrial, Warehouse Rack, Food & Beverage

Operation

Unmanned Operation

Pallet Size

1*1.2 or Customized

Full Load Speed

45m/Min

Effective Hours

Lifting Type

Mechanical

Product Description

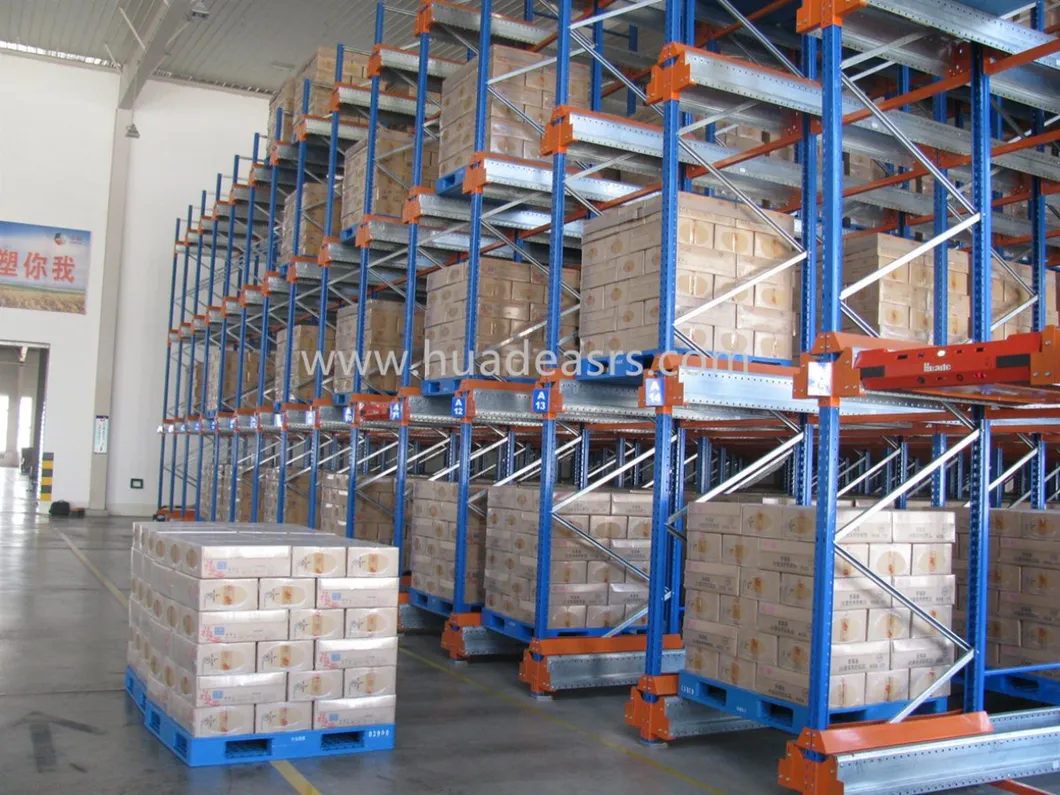

The Radio Shuttle Pallet Rack System is a semi-automated system conjunction with forklift trucks for storage of goods with low variety but high volumes per SKU. This system is highly recommended in manufacturing businesses, especially those fast moving consumer goods, food, beverage and cold chain industries.

Pallet Shuttle System Features

🚀Upright frame connected by supported beams for high stability.

📏Length up to 50m or more in the same lane; 80% space efficiency.

⚡60% faster loading/unloading than traditional drive-in racks.

🛡️No forklift drive into the lane, reducing accident risks.

📦Multiple SKU's can be stored in the same bay.

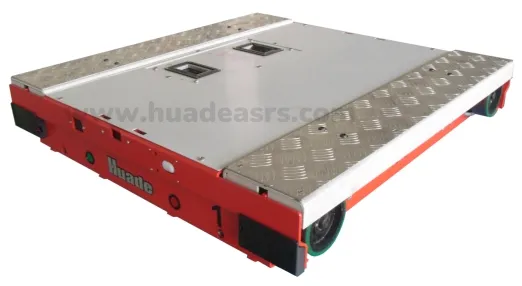

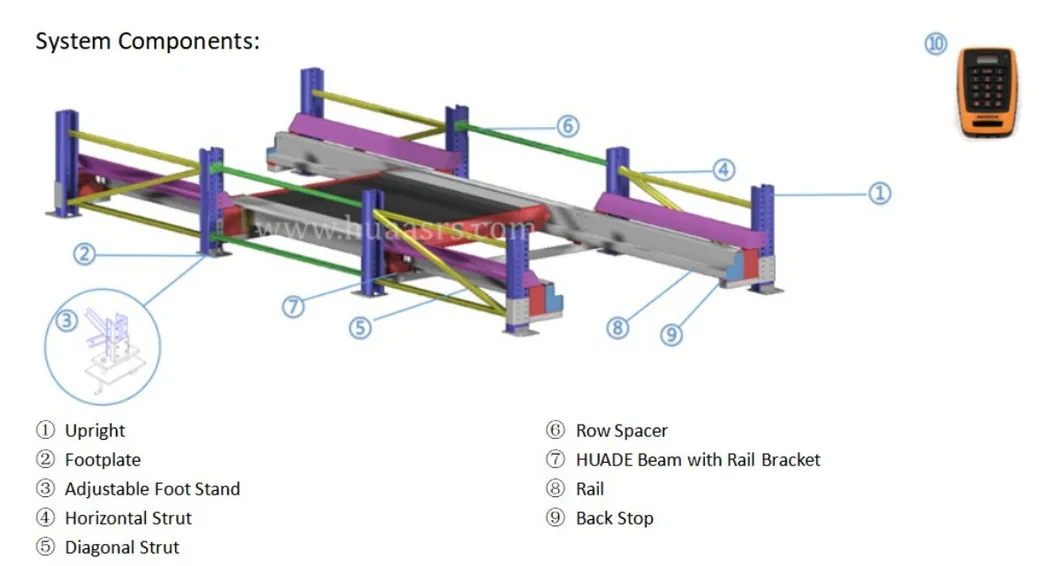

System Components & Specifications

Item	Basic Parameters
Applicable Pallet Size	1×1.2m, 1.1×1.2m, 1.2×1.2m
Loading Capacity	1000kg / 1500kg
Driving Speed	Empty: 50m/min \| Full Load: 40m/min
Acceleration	≤0.3m/s²
Driving Motor	Brush servo motor 24VDC 650W
Hoisting Height	40mm
Positioning Method	Photoelectric sensor & Proximity switch
Power Supply	Lithium iron phosphate battery (24V, 55A)
Charging Time	4 Hours for 8 Hours usage

Advantages of the Pallet Shuttle System

Time savings: Speedy order execution without forklifts entering the racking.
Space savings: Minimal clearance between levels and deep storage channels (60m+).
Cost savings: Lower footprint and reduced energy consumption in cold storage.
Compatibility: Supports both LIFO (Last In, First Out) and FIFO (First In, First Out).
Safety: Metal structures remain free from damage as forklifts stay in aisles.

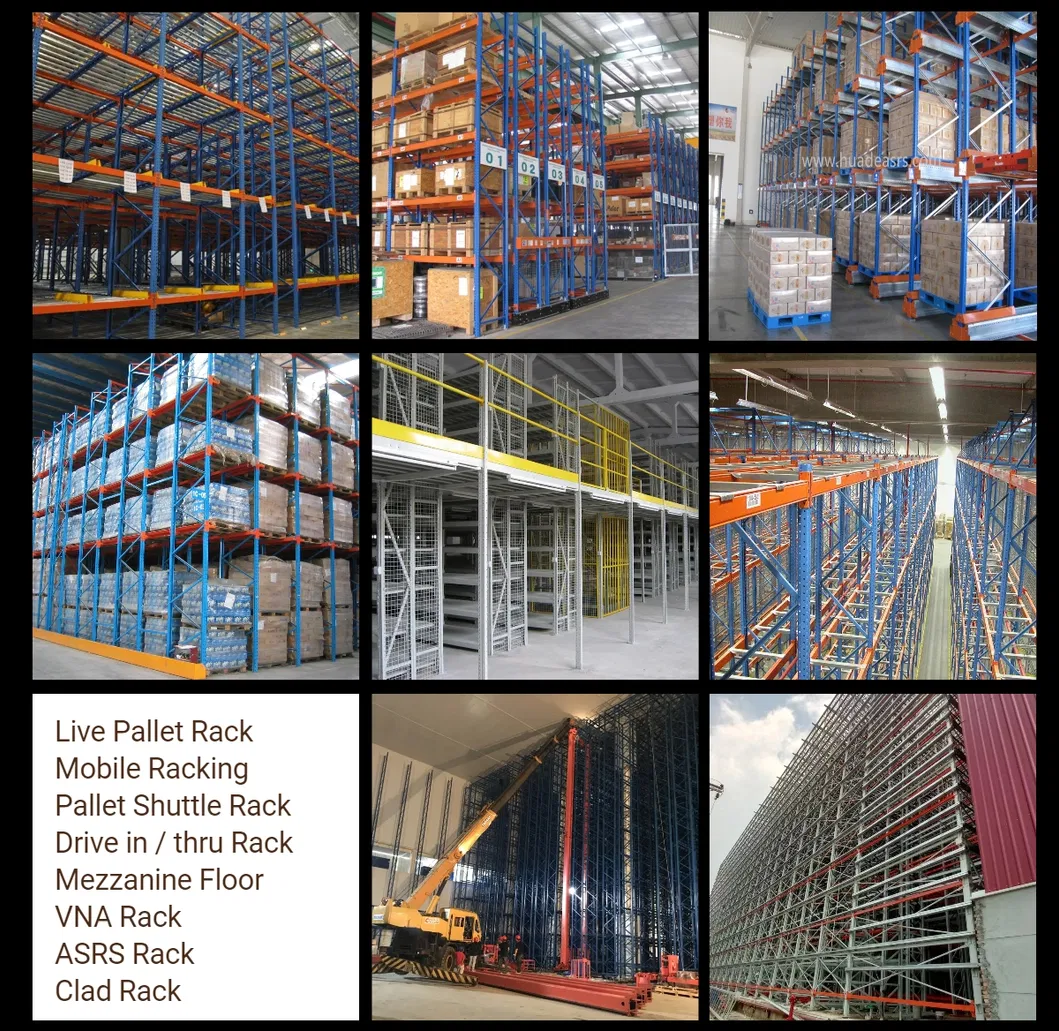

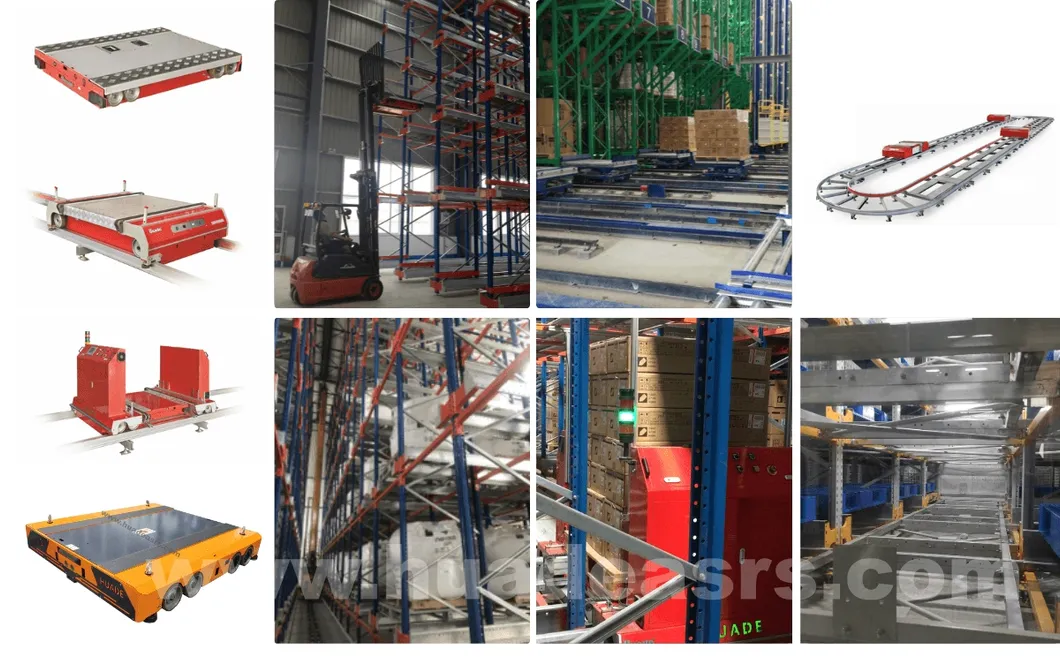

Product Family & Main Racking

Frequently Asked Questions

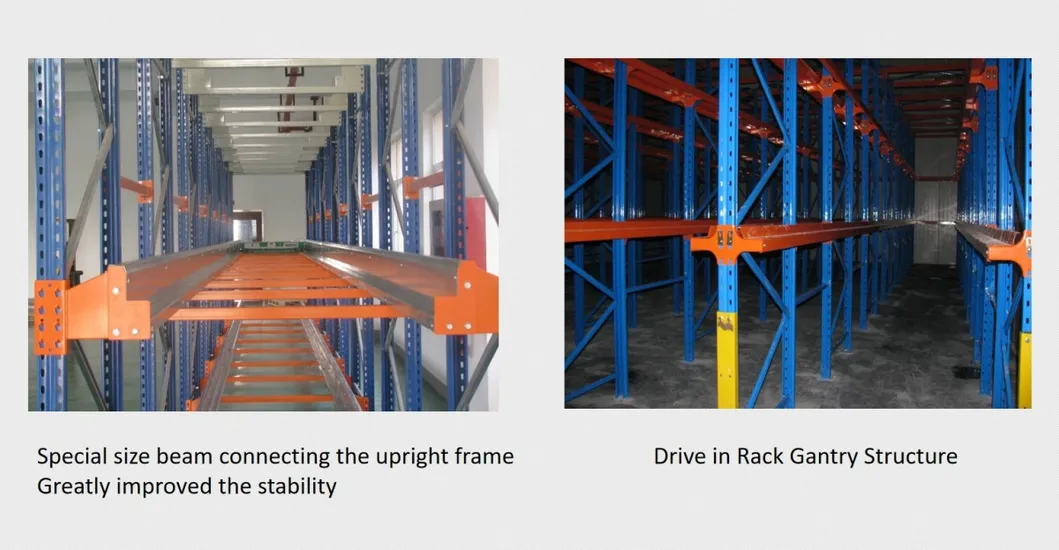

What are the main benefits of the Radio Shuttle System compared to Drive-in racking?

The Shuttle system offers higher space efficiency (up to 80%), 60% faster loading/unloading speeds, and significantly better safety as forklifts do not enter the rack structure.

Can this system operate in cold storage environments?

Yes, the system is highly recommended for cold chain industries. It helps reduce the surface area that needs cooling, leading to lower energy consumption. The remote controls are resistant down to -30ºC.

What pallet sizes are compatible with the shuttle robot?

The standard models support 1x1.2m, 1.1x1.2m, and 1.2x1.2m pallets. Custom sizes can also be accommodated based on specific warehouse requirements.

How long does the battery last and how long does it take to charge?

The Lithium iron phosphate power battery provides approximately 8 hours of effective working time and requires about 4 hours for a full charge.

Does the system support both FIFO and LIFO inventory strategies?

Yes, the Radio Shuttle System is fully compatible with both Last-In, First-Out (LIFO) and First-In, First-Out (FIFO) management strategies.

How is the shuttle robot controlled during operation?

All functions are activated via a multi-function remote control tablet equipped with an intuitive, multi-language user interface.
