Cheap Heavy Duty Vertical Racking System Automatic Warehouse Robotic Storage Shuttle Racking System From China Supplier

Customization:	Available
After-sales Service:	Yes
Warranty:	2 Years

📊

Technical Specifications

Surface TreatmentPowder Coating & Galvanized

CertificatesFem, As4084, ISO9001, CE

Max Height45m

Width Range1200-4000mm

Capacity10000-40000kg/Bay

MaterialQ235, Q355

Thickness1.5mm-3.5mm

ColorRAL System

🤖

Automated Storage and Retrieval System (AS/RS)

Intelligent Storage AS/RS Shelving Automatic Racking Pallet Systems refers to a computerized robotic system that automates operations such as unloading, sorting, put-away, storage, order-picking, staging and loading. Systems typically consist of 4 main components: the storage rack, the input/output system, the storage and retrieval (S/R) equipment, and the computer management system.

In AS/RS systems, heavy-duty rackings are placed on both sides with a small aisle space between them. The rail-mounted storage and retrieval mechanism is fixed between the aisle spaces. The rails cover the entire system with a PLC Controller to manage overall operations. Stacker cranes travel along the aisles to carry out the storage, placement, and retrieval of goods, making full use of space and significantly reducing error rates and labor intensity.

⚙️

Performance Parameters

Parameter Item	Details
Product Name	Intelligent Storage AS/RS Shelving Automatic Racking Pallet Systems
Size & Load	Customized load and size, height up to 45 meters
Lifting Speed	0-60m/min (Frequency Control)
Positioning Method	Laser ranging + rotary encoder, photoelectric address
Positioning Accuracy	80/100/120/140/160501.5/2.0mm
Horizontal Running Speed	0-240m/min (Frequency Control)

🧱

The Main System Components

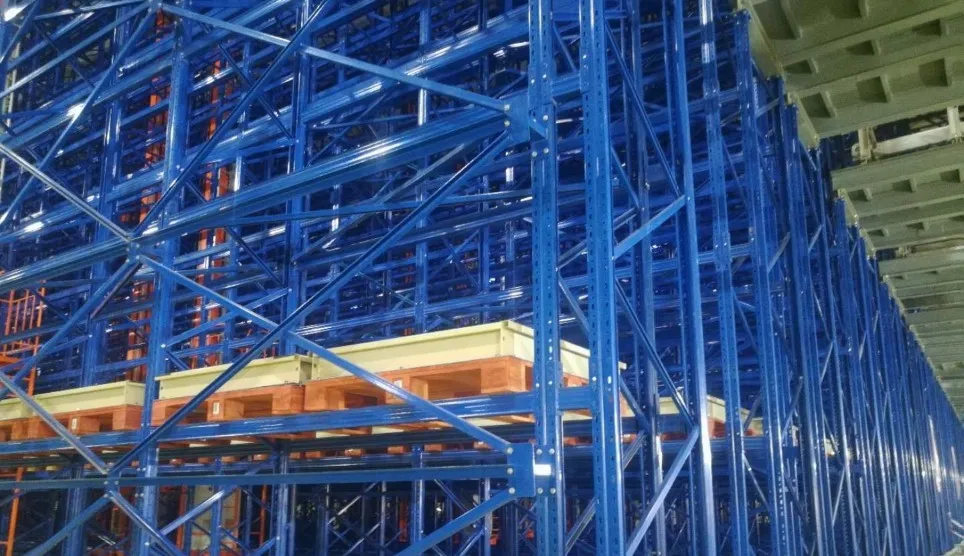

1. Racking Structure

Equipped with pallet racking or drive-in racking. Steel and wooden panels are available. Conveyors handle loading/unloading instructions from the central computer. Widely used in food, tobacco, electronic, and mechanical industries.

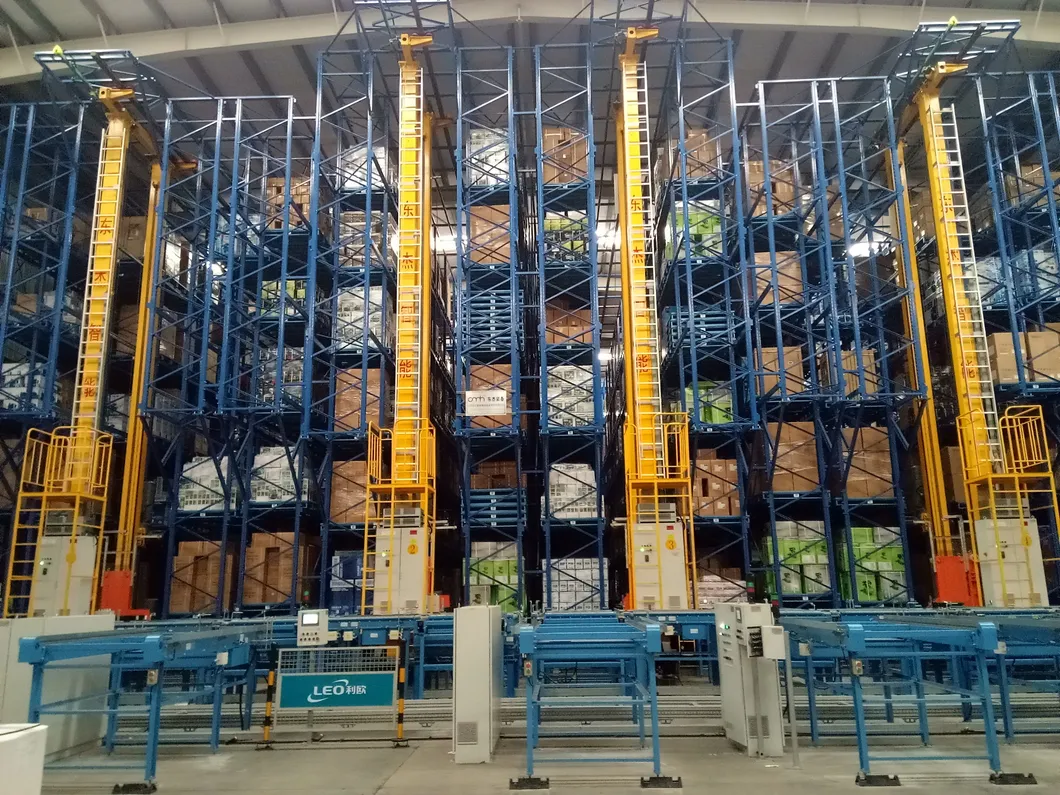

2. Stacker Crane

Double upright structure, steady and reliable. Features vector frequency conversion drive and encoder position control. Includes mechanical and electronic safety devices. Supports manual, semi-automatic, and fully automatic linkage control.

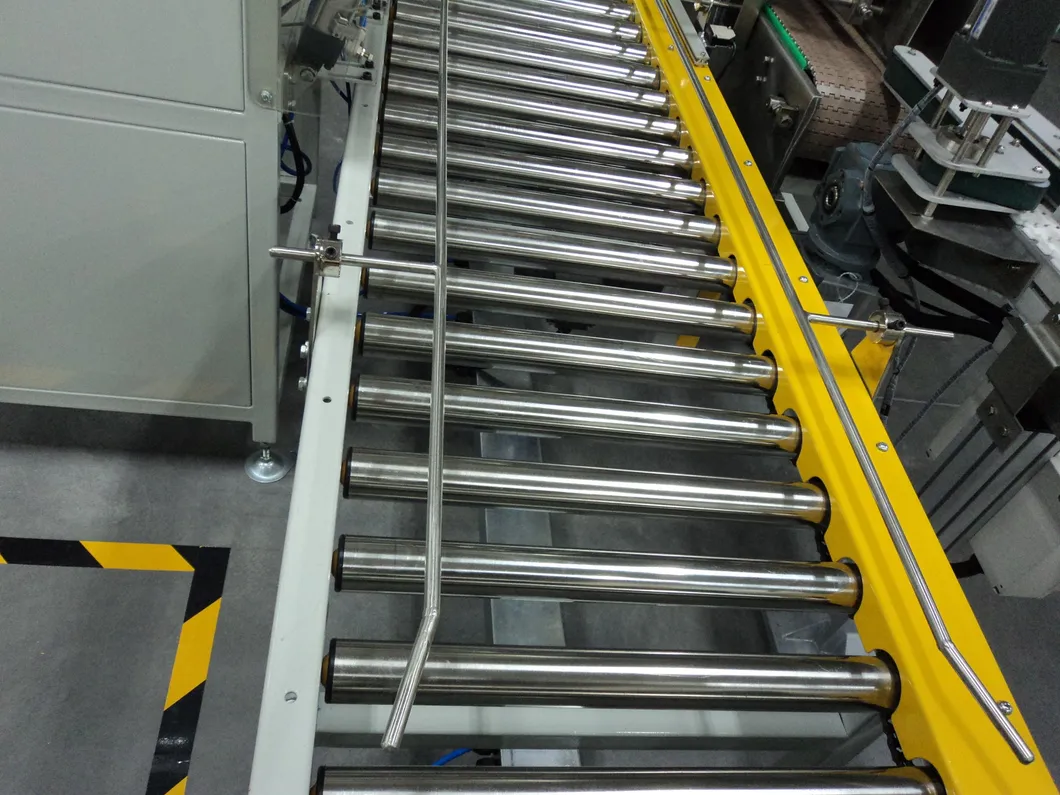

3. Conveyor System

Located at the front or back of the warehouse. Bridges the gap between forklifts and stackers using rolling or chain conveyors, rotating devices, and lifts.

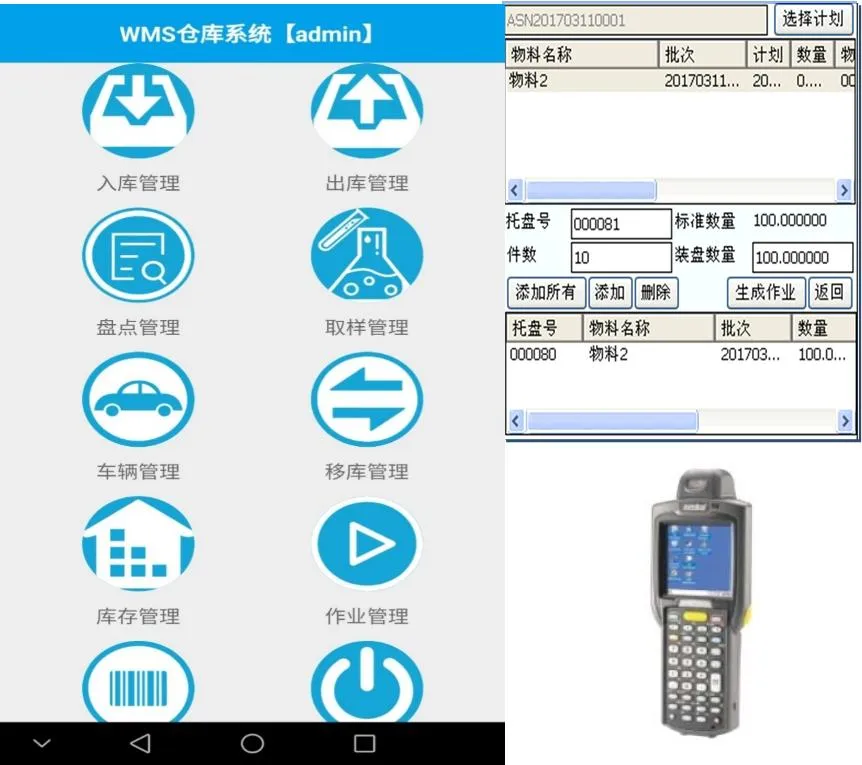

4. WMS & Controlling System

Communicates via OPC agreement. The management system uses star network structures and RF servers to monitor and control warehouse terminals in real-time.

🌟

Key Advantages

1. Maximum Space Utilization: Multi-level system allows for high-density storage of goods.

2. Flexible Height Options: Systems can be set at low (under 5m), middle (5-12m), or high elevations (up to 30-45m).

3. Operational Efficiency: Greatly reduces error rates and transportation costs through automation.

📸

System Gallery

❓

Frequently Asked Questions

🔹 What are the standard trading terms?

Payment usually requires a 30% deposit via T/T after order confirmation, with the remaining 70% balance paid against the bill of lading or via L/C. The lead time is normally around 30 days.

🔹 Can the racking system be customized?

Yes, we provide OEM and ODM services. All racks, including size, load capacity, and color (RAL system), can be customized to meet specific warehouse requirements.

🔹 What is the maximum height achievable for the AS/RS?

The system is highly scalable, with the total height capable of reaching up to 45 meters depending on the project requirements.

🔹 What safety features are included in the stacker cranes?

Stacker cranes are equipped with mechanical and electronic safety devices, vector frequency conversion drives, and encoder position control to ensure safe and steady operation.

🔹 Do you provide samples for testing?

Yes, samples are available for various models. Generally, samples can be prepared within 7-15 days once the request and payment are processed.

🔹 What is the warranty period for the system?

We offer a two-year warranty. During this period, any broken parts will be replaced and sent to ensure continued operation.
