Basic Information
Usage:
Beverage, Food, Industrial, Warehouse Rack
Capacity:
2000kg per Pallet
Control:
Remote Controller
Application:
Normal Temperature or Cold Room
Industry Expertise
We are engaged in the planning, design, manufacture, installation, and consulting service of racking and other material handling systems. As a specialist in automated logistics systems, we provide comprehensive solutions and management software for modern warehousing needs.
Product Description

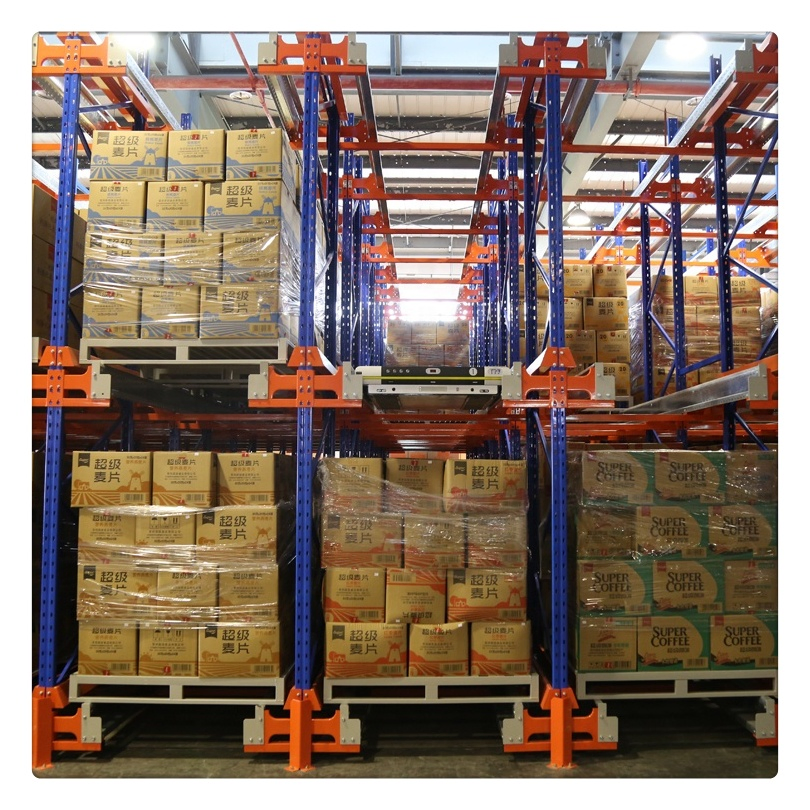

The Shuttle Concept

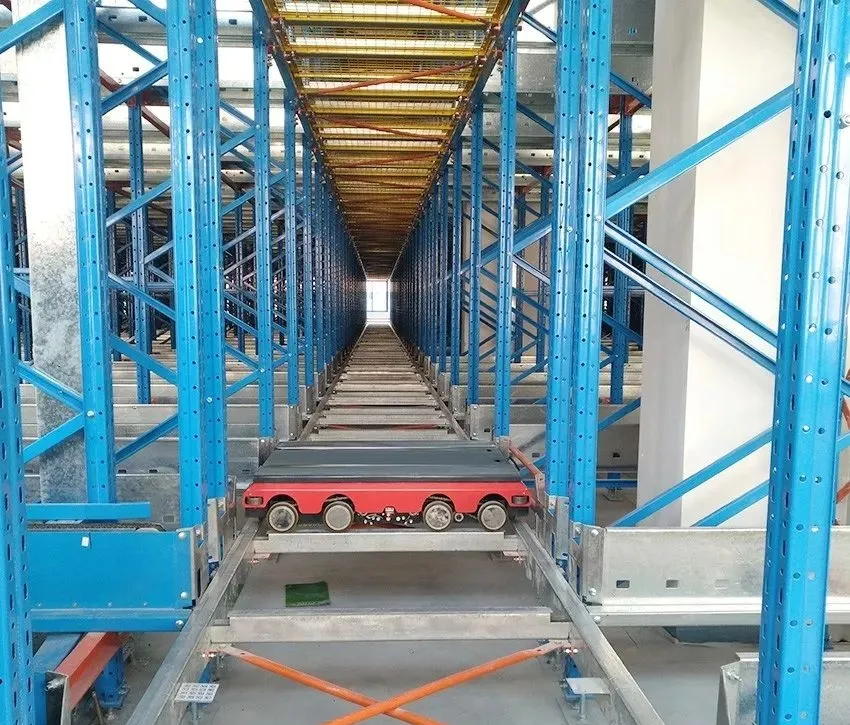

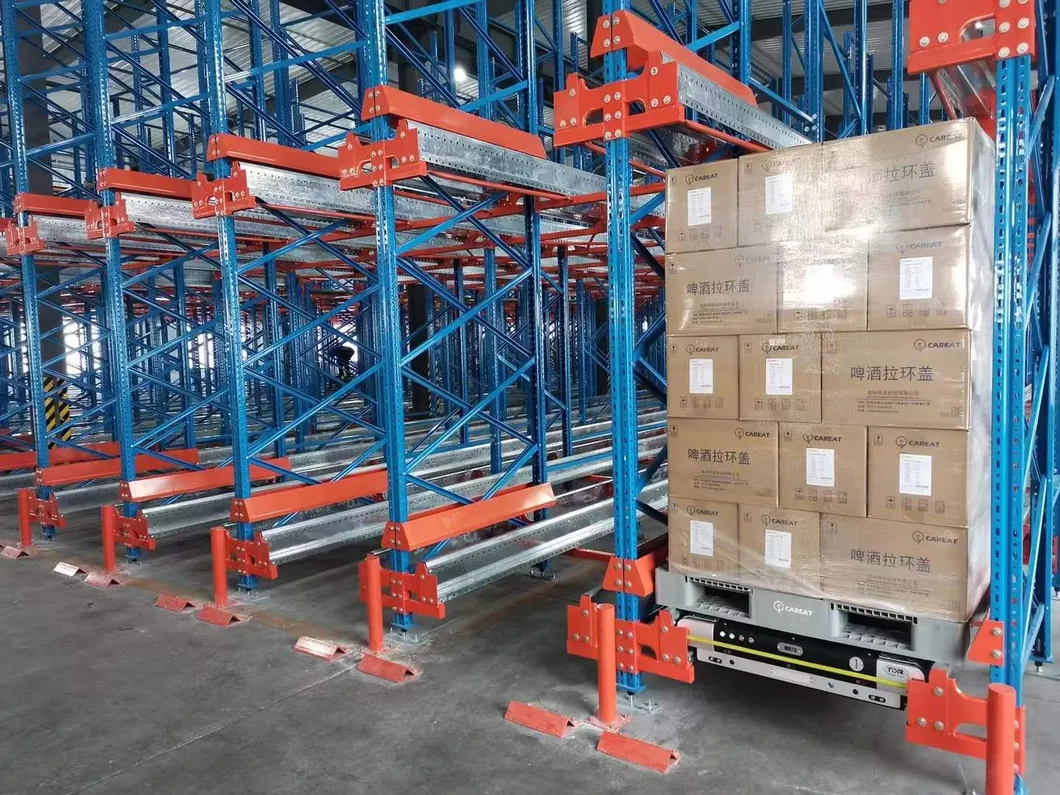

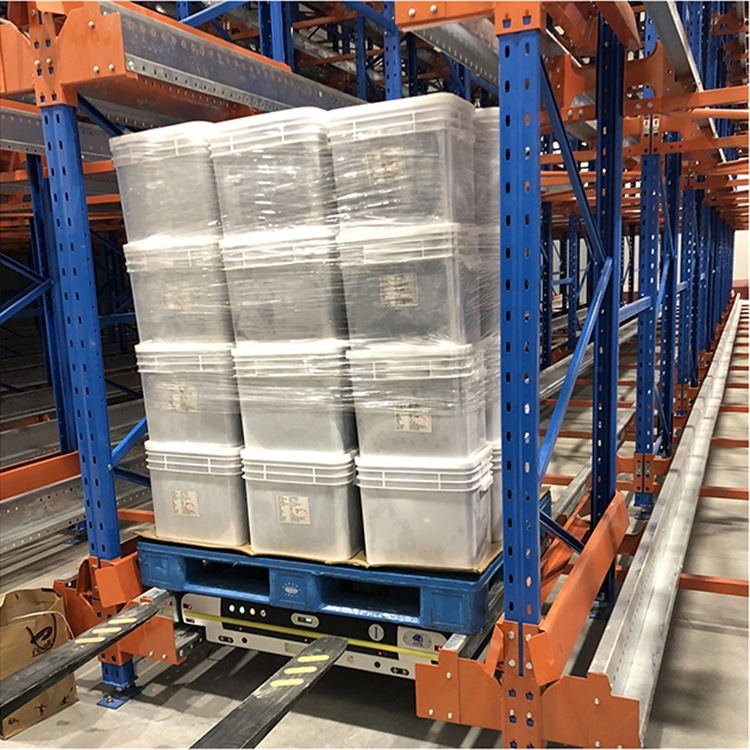

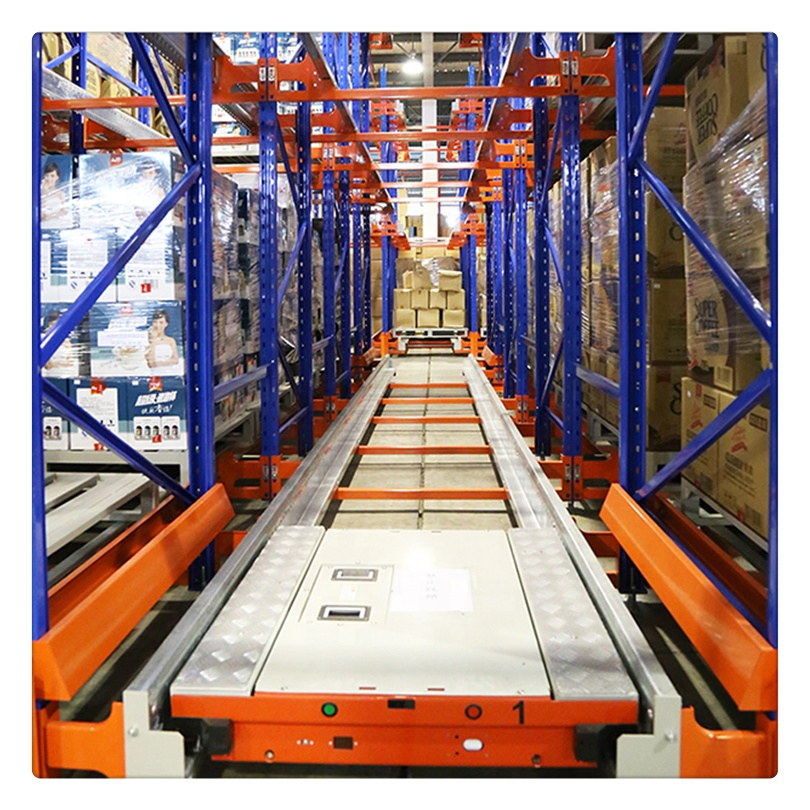

A shuttle system consists of supporting rack, shuttle rails, and a shuttle cart. The shuttle cart runs on the rails and is propelled by an electric motor. It features a platform on top that lifts up and down, allowing it to transport pallets placed on the rail into the rack for precise positioning.

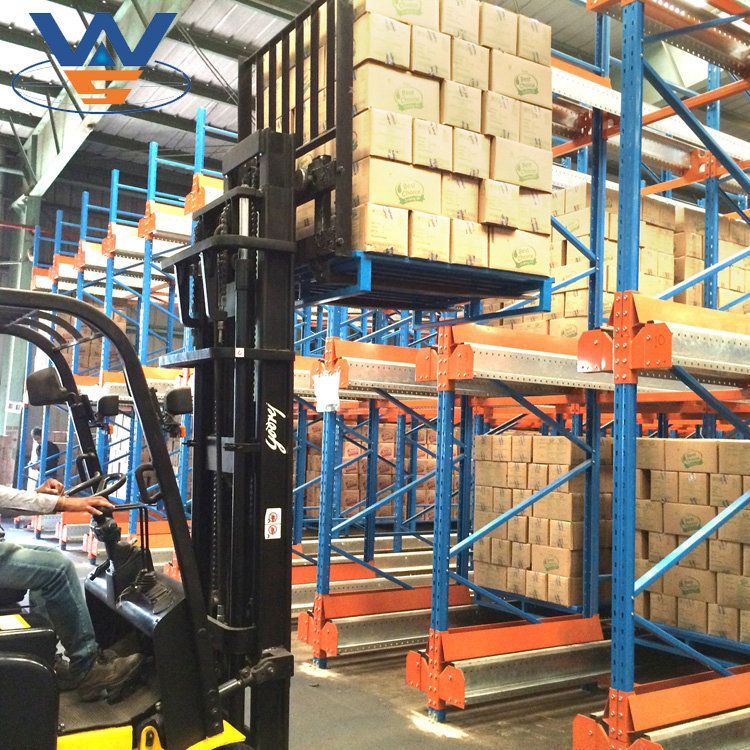

When a pallet is required, the cart moves under the pallet, lifts it, and brings it to the front of the rack where it can be retrieved by a forklift. All movements are controlled via a handheld remote control, and the cart can be moved between lanes easily by a forklift.
Key Advantages
The Shuttle is a fully programmable deep lane storage and retrieval system used to transport pallets within a racking structure for maximum storage and throughput of bulk stored items.
✔High-density storage with lower costs compared to traditional racking.
✔Flexible operation modes: FIFO (First-In, First-Out) or FILO (First-In, Last-Out).
✔Minimizes rack damage as forklifts do not need to enter the structure.
✔Enhanced safety and superior anti-seismic performance.
✔Increased accessibility as all levels can be reached independently at any time.
Technical Specifications
| Nominal Loading Capacity | 500 KGS ~ 2000 KGS |
| Max Speed | 50M/Min |
| Operation Methods | Manual, Vehicle-mounted, or Radio Remote Control |
| Operating Temperature | Capable of reaching -30°C for freezer applications |

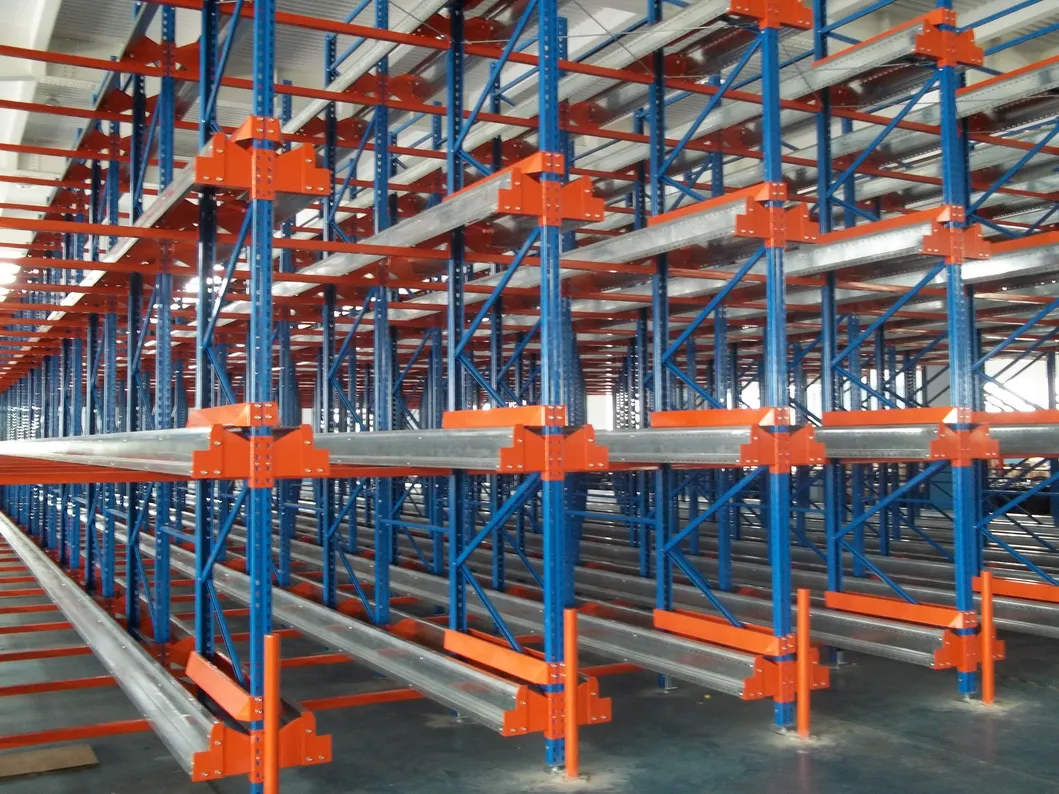

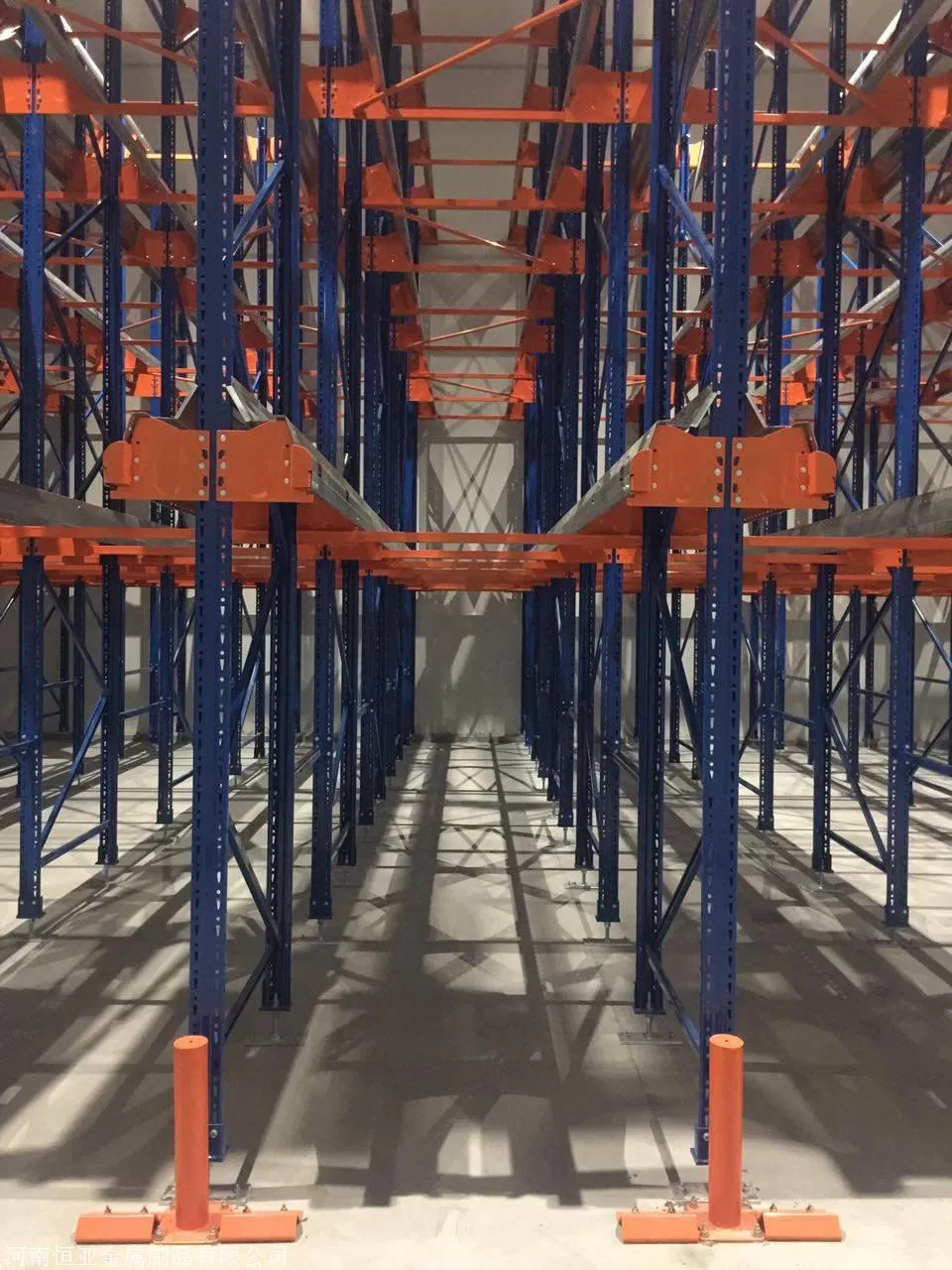

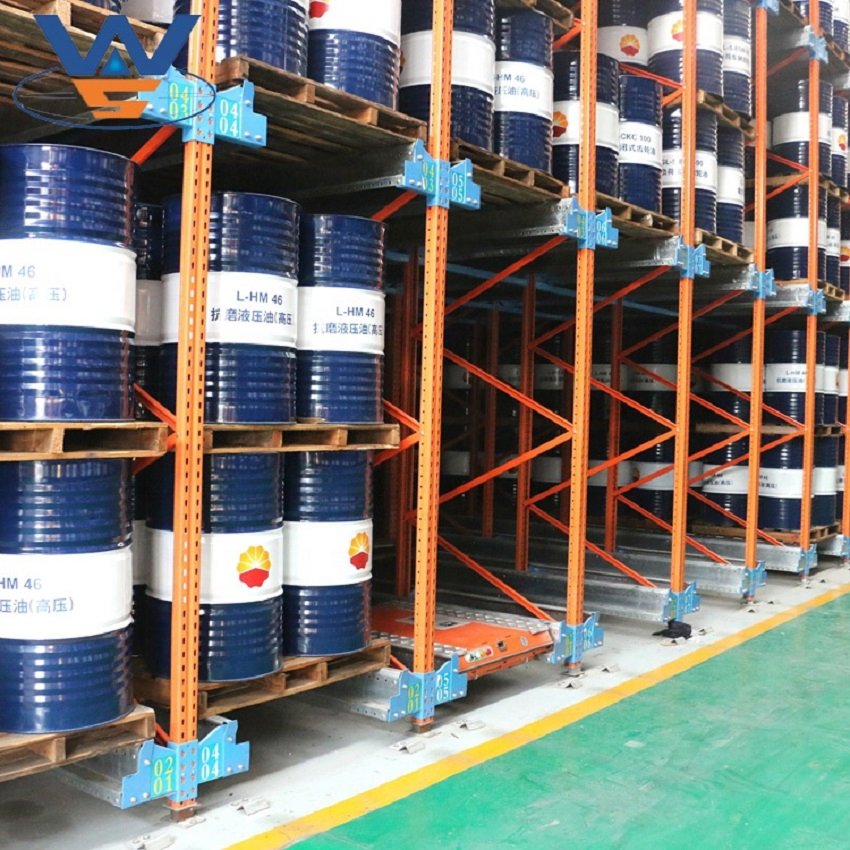

Product Gallery
Our Exhibitions
Our Service
★Competitive factory pricing with high quality standards.
★OEM and ODM services tailored to your specific requirements.
★Fast delivery and efficient project timelines.
★ISO and CE certified solutions.
★Comprehensive one-stop service from design to installation.
Frequently Asked Questions
1. What materials are used in your products?
The primary raw material used is high-grade Q235 steel. Other steel grades are available based on specific client requirements.
2. What is the typical delivery timeframe?
Generally, orders are processed and delivered within 15 days after receiving the deposit.
3. How do you guarantee product quality?
We employ professional engineers to verify dimensions and structural integrity, ensuring that each rack meets your specific load weight requirements.
4. Can I track the status of my order?
Yes. We provide regular updates and photos at different production stages so you can monitor your order's progress in real-time.
5. Do you provide installation support?
We provide detailed installation drawings. If required, we can also provide engineering support to guide your team through the installation process.
6. What information is needed for a quick quotation?
Please provide your warehouse layout plans, desired shelving dimensions (L*W*H), number of layers, loading capacity per layer, and preferred color (RAL).
