Cheap Heavy Duty Vertical Racking System Automatic Warehouse Robotic Storage Shuttle Racking System

Customization:	Available
After-sales Service:	Yes
Warranty:	2 Years

🔹 Basic Specification

Surface Treatment:Powder Coating & Galvanized

Certificates:As4084, Fem, ISO9001, CE

Height:Max 45m

Wide:1200-4000mm

Capacity:10000-40000kg/Bay

Material:Q235, Q355 Steel

Thickness:1.5mm-3.5mm

Color:RAL System

Transport Package:Standard Export Package

Origin:China

HS Code:73089000

Capacity:10000t/Year

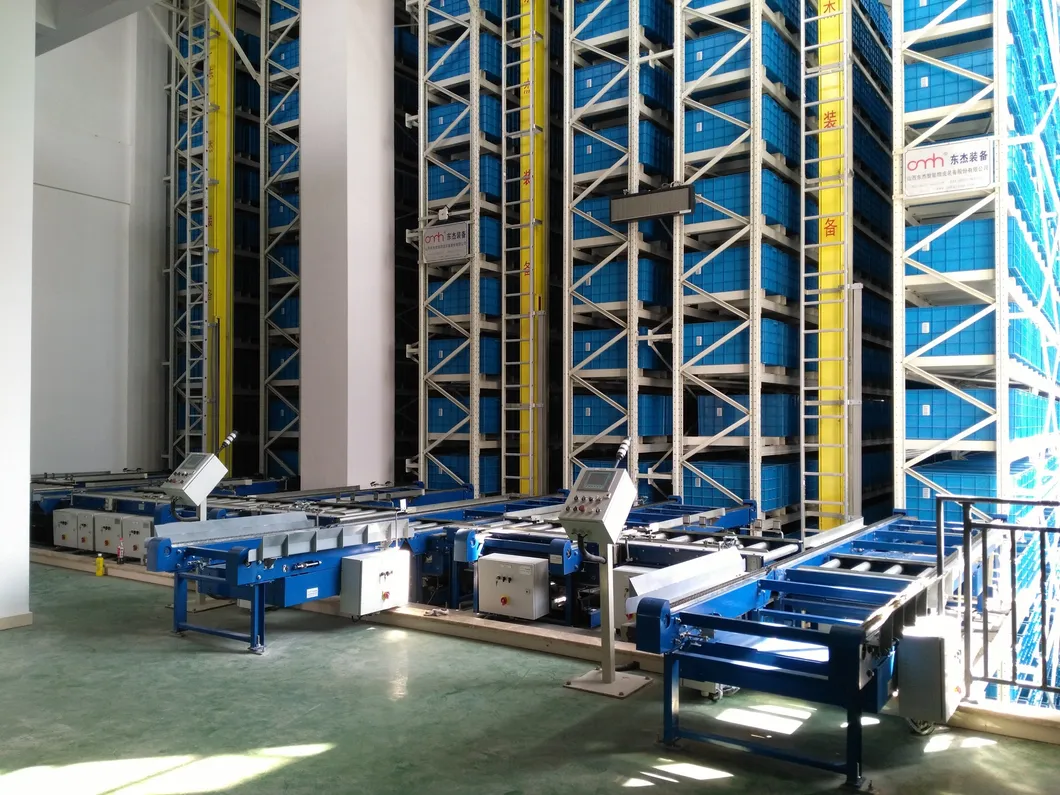

Automated Storage and Retrieval System (AS/RS)

Intelligent Storage AS/RS Shelving Automatic Racking Pallet Systems refer to a computerized robotic system that automates operations such as unloading, sorting, put-away, storage, order-picking, staging and loading. Systems typically consist of 4 main components: the storage rack, the input/output system, the storage and retrieval (S/R) equipment, and the computer management system.

In AS/RS system, heavy-duty rackings are placed in both sides with a small aisle space between these racks. The rail-mounted storage and retrieval mechanism is fixed between the aisle spaces. The rails cover the entire area with a PLC Controller to control the overall operation of the system.

📊 Technical Parameters

Parameter	Details
Product Name	AS/RS Racking System (Automated Storage / Retrieval System)
Basic Components	Racking system, stacker system, conveyor system, management and controlling system
Size	Customized size available
Material	Cold-rolled steel (Q235, Q355)
Color	RAL system (Blue, Grey, Orange or customized)
Lifting Speed	0-60m/min by frequency control
Positioning Accuracy	Laser ranging + rotary encoder
Horizontal Speed	0-240m/min by frequency control

⚙️ The Core Systems

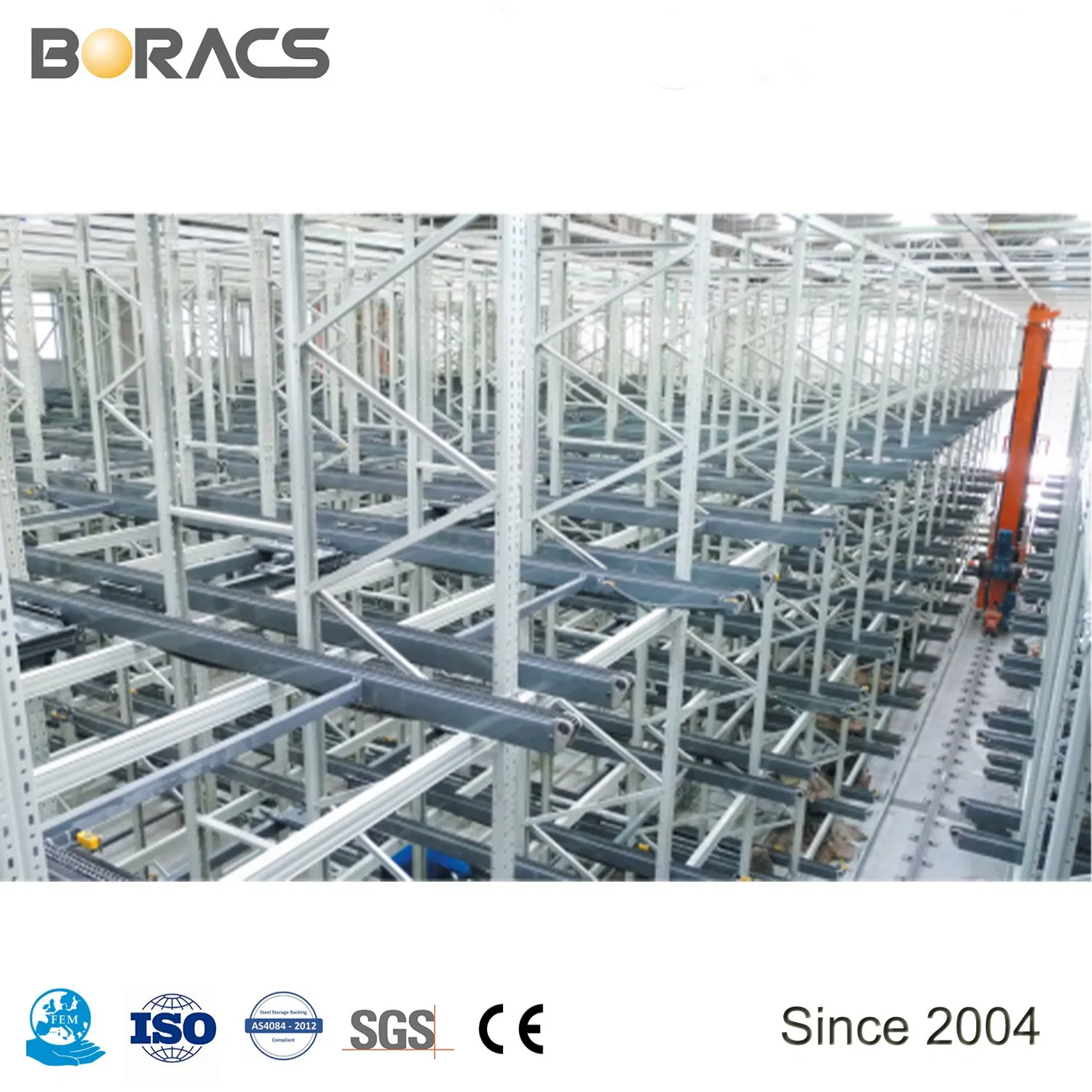

Racking Structure: AS/RS Systems are usually equipped with pallet racking and drive-in racking, both of which are composite structures. Steel and wooden panels are available for loading.

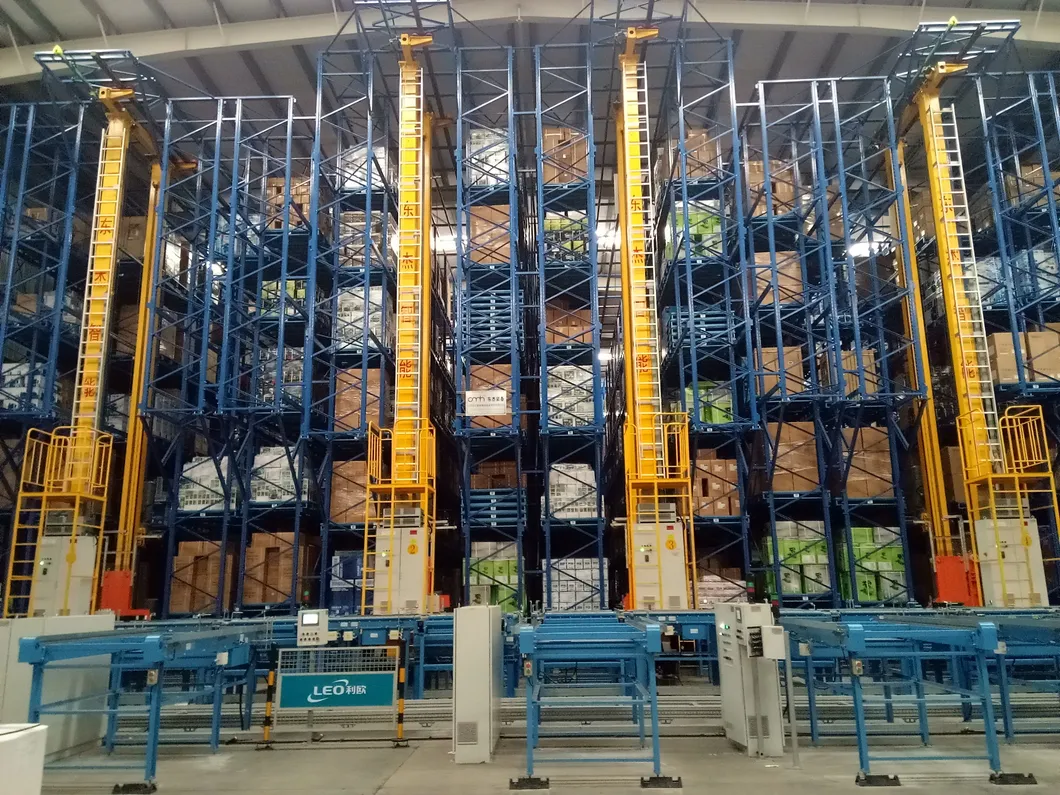

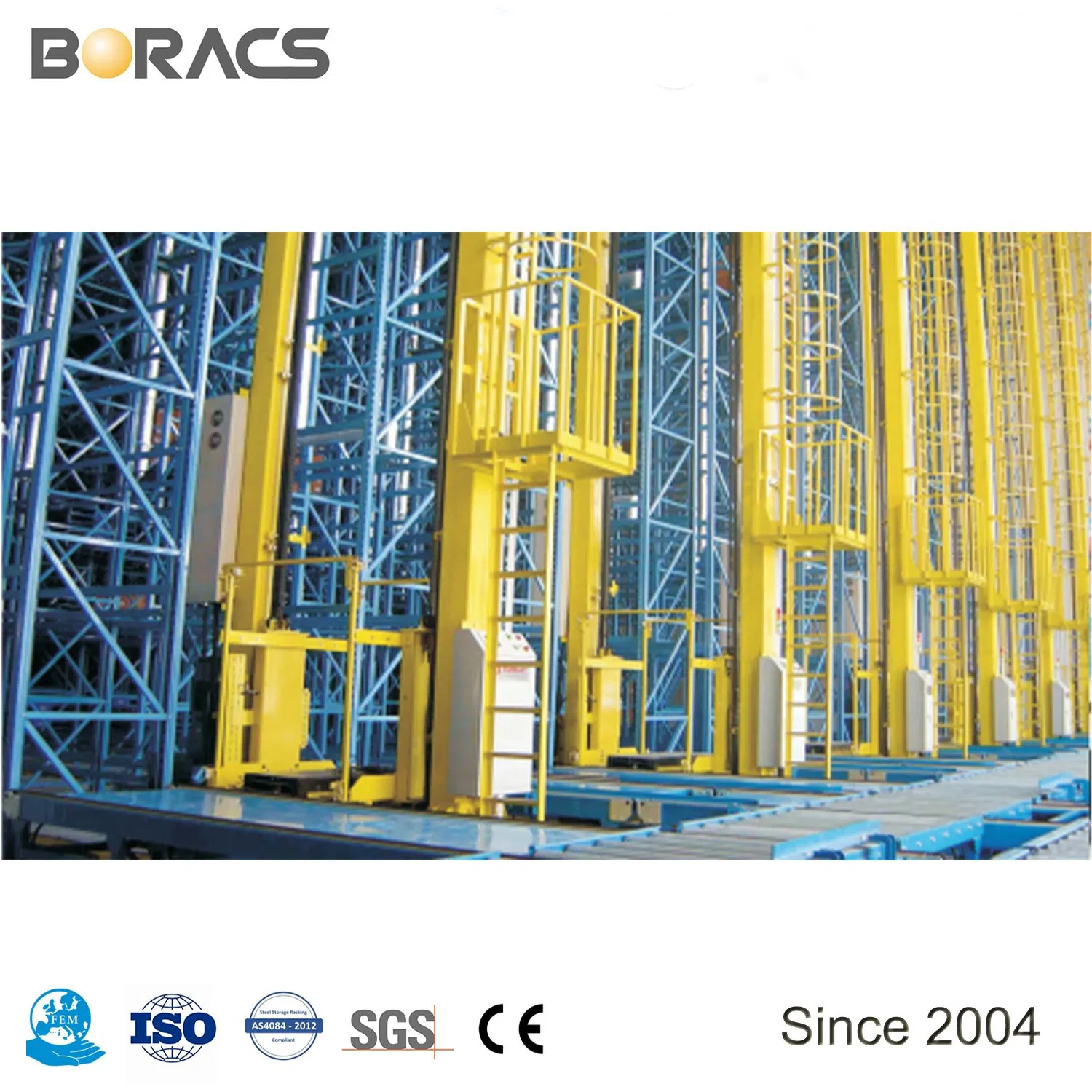

Stacker Crane: Double upright structure, steady and reliable. Features vector frequency conversion drive and encoder position control with integrated safety devices.

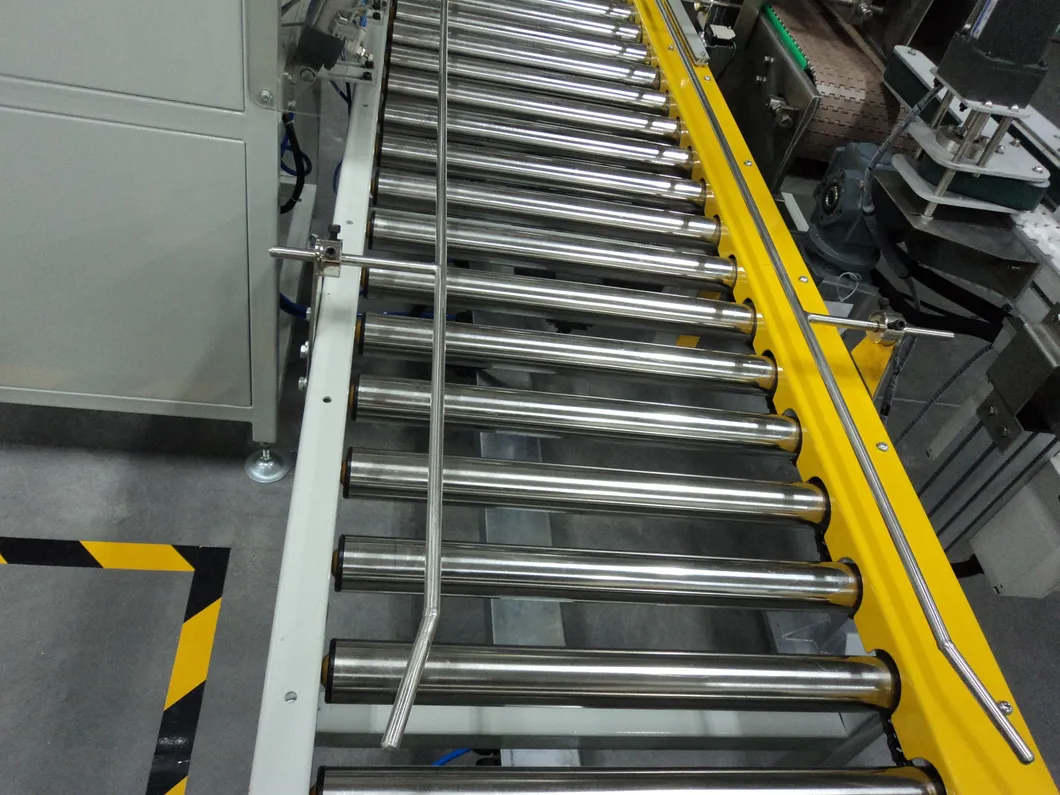

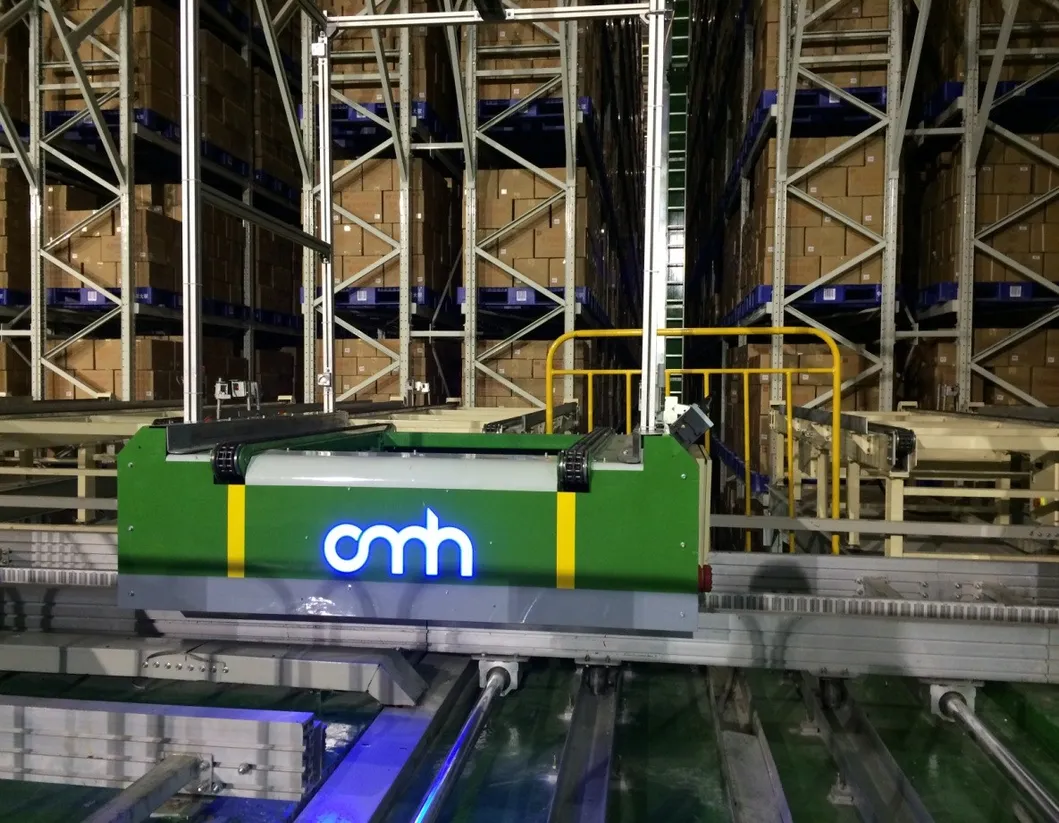

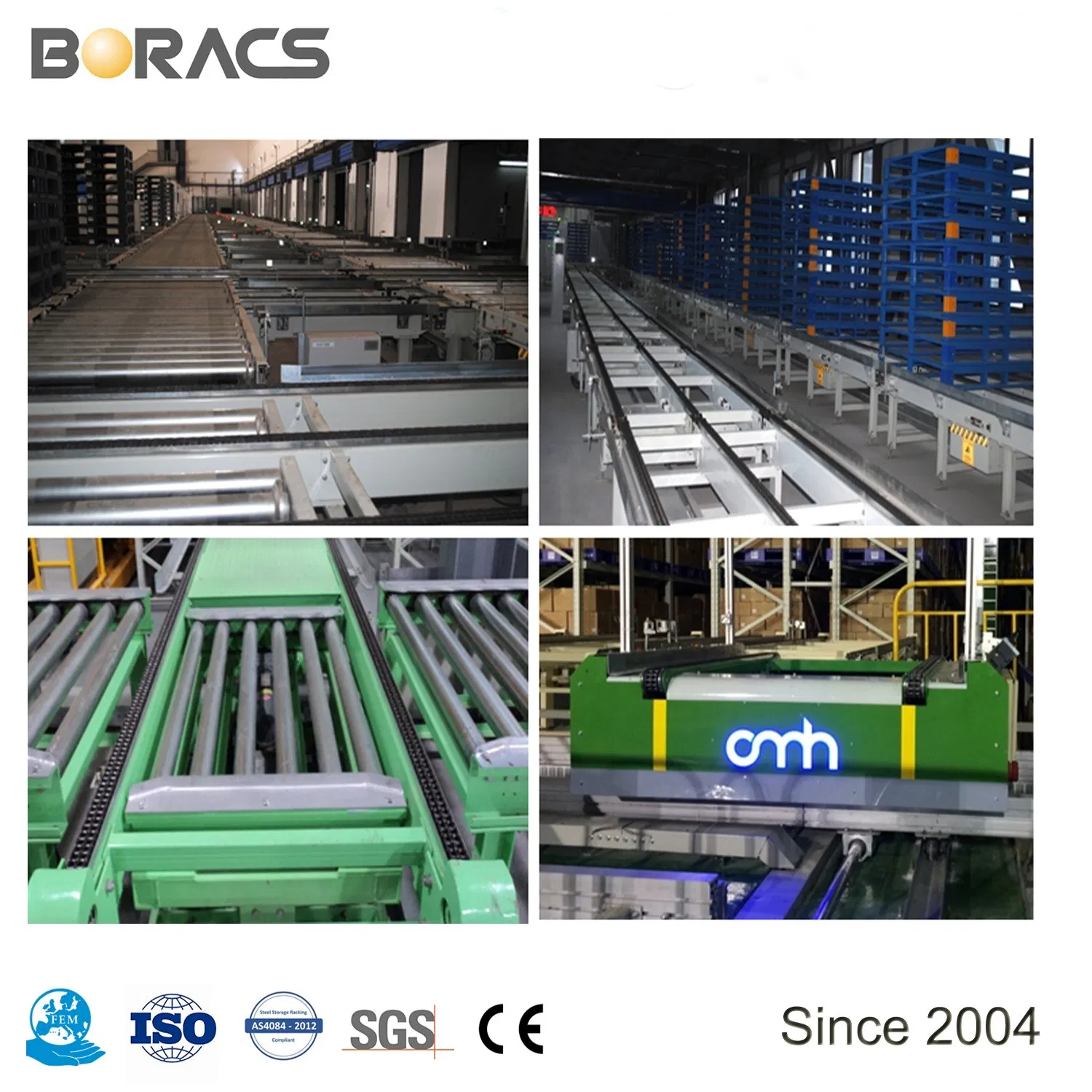

Conveyor System: Usually equipped at the front or back of the warehouse for conveying goods using rolling or chain conveyors, bridging procedures between forklifts and stackers.

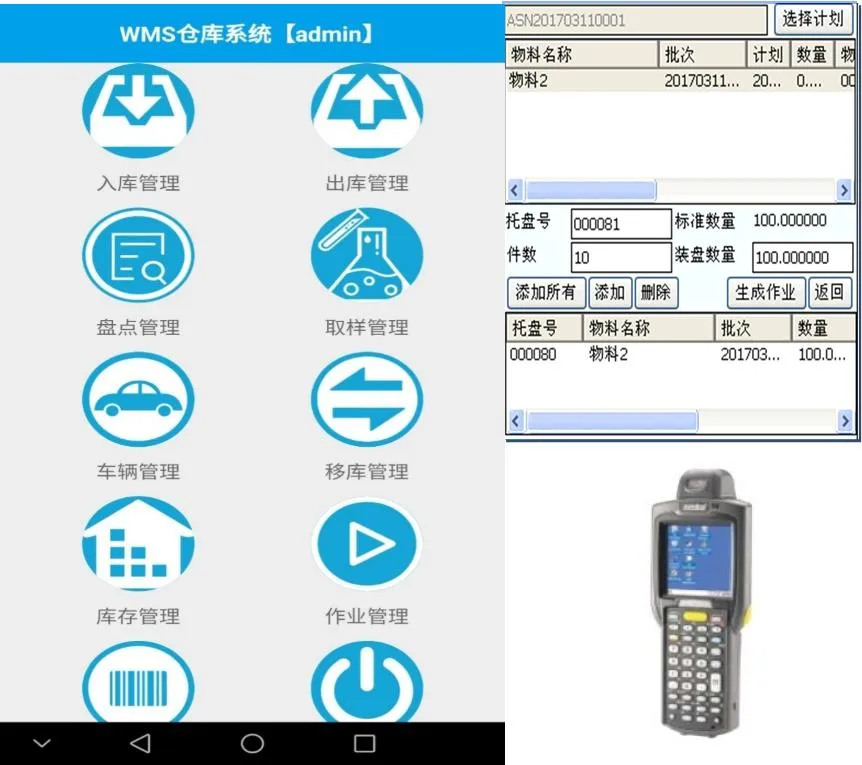

WMS & Controlling System: Communicates via OPC agreement; set up by Siemens controllers to operate all conveyors offline, managing automatic flow and RF terminals.

✅ Key Advantages

1. Space Optimization: Makes full use of vertical space for automated storage using multi-level racking systems.
2. Flexible Height: Heights can reach up to 45 meters depending on the warehouse design and operational needs.
3. Reduced Error: Greatly reduces error rates and labor intensity through robotic automation and computerized management.

🖼️ System Showcase

❓ Frequently Asked Questions

Q1: What are your standard trading and payment terms? A: Our standard terms include a 30% T/T deposit after order confirmation, with the remaining 70% balance paid against the bill of lading. We also accept L/C. The typical lead time is approximately 30 days after receiving the deposit.

Q2: Can the AS/RS system be customized for specific warehouse dimensions? A: Yes, the entire system including the racking, conveyors, and stacker cranes is fully customized to fit your specific load requirements and warehouse height, which can reach up to 45 meters.

Q3: What materials and surface treatments are used for the racking? A: We use high-quality Q235 and Q355 cold-rolled steel. The surface is treated with powder coating and galvanization to ensure durability and resistance to wear.

Q4: How does the system ensure positioning accuracy? A: The system utilizes laser ranging combined with rotary encoders and photoelectric addressing to achieve high-precision positioning for the stacker cranes and retrieval mechanisms.

Q5: What support do you offer for system design? A: We provide full engineering support, including design drawings, configuration confirmation, and professional solution planning to ensure the system meets your logistics needs.

Q6: What is the warranty period for the automated equipment? A: We provide a two-year warranty for the system components, during which any broken parts will be replaced and sent to you to ensure continuous operation.
