Our enterprise is extensively engaged in the planning, design, manufacture, installation, and consulting service of racking and other material handling systems. As a recognized provider in the industry, we are well-known for delivering series of automated logistics systems solutions and integrated management software to optimize warehouse operations worldwide.

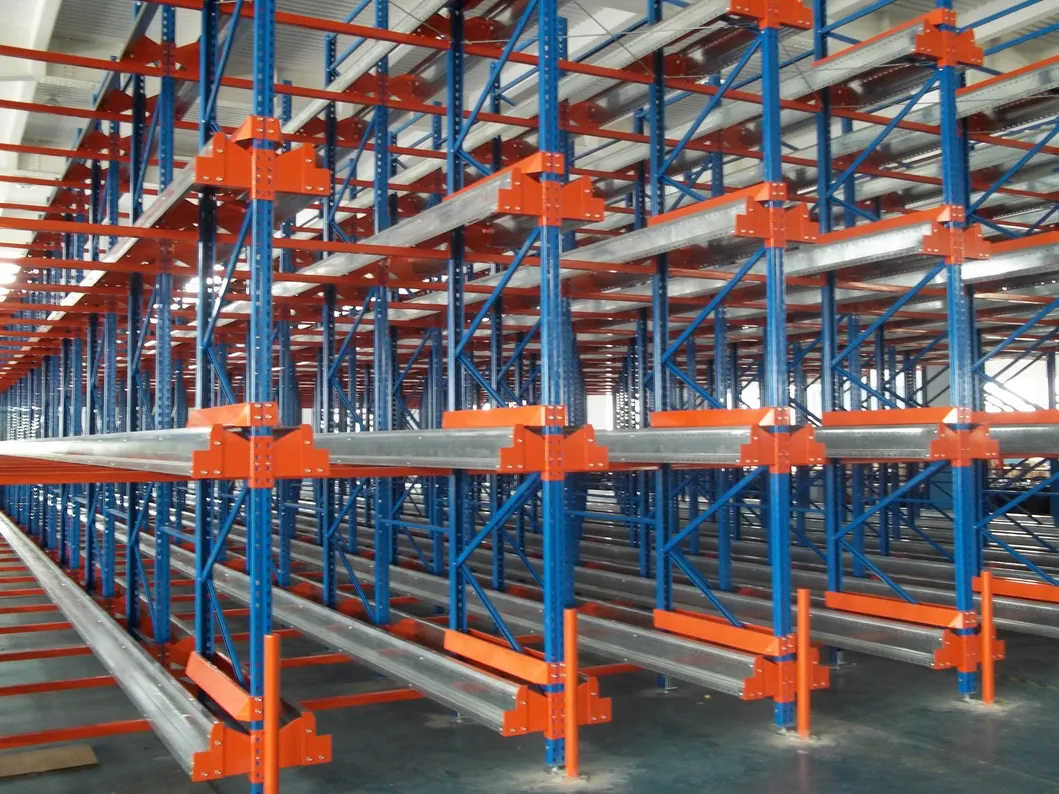

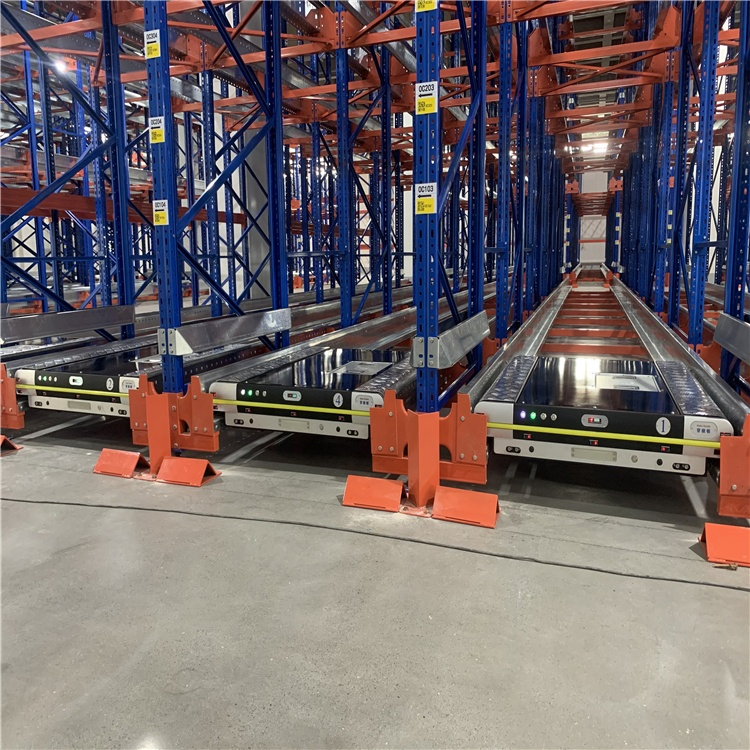

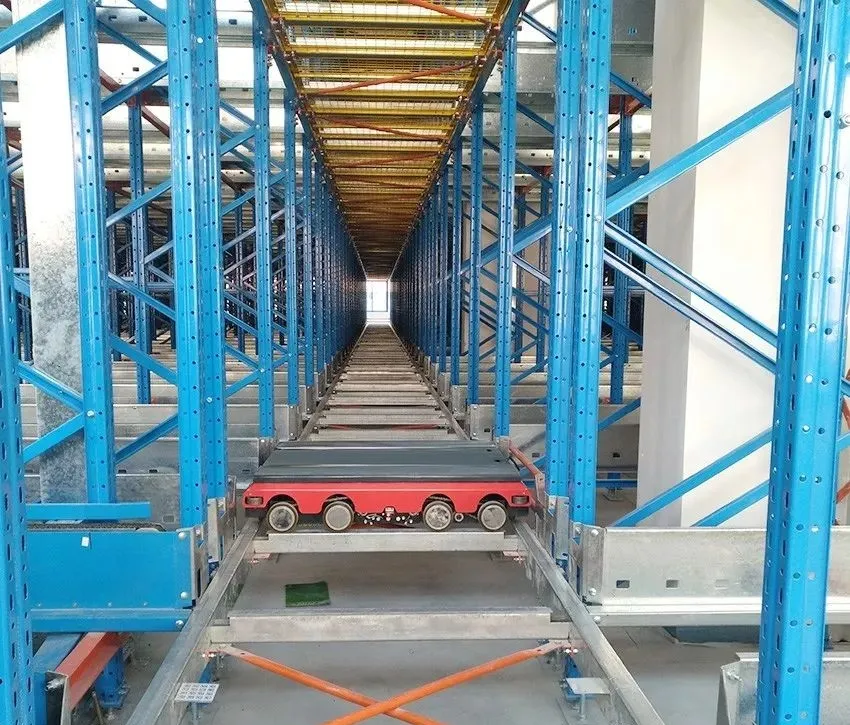

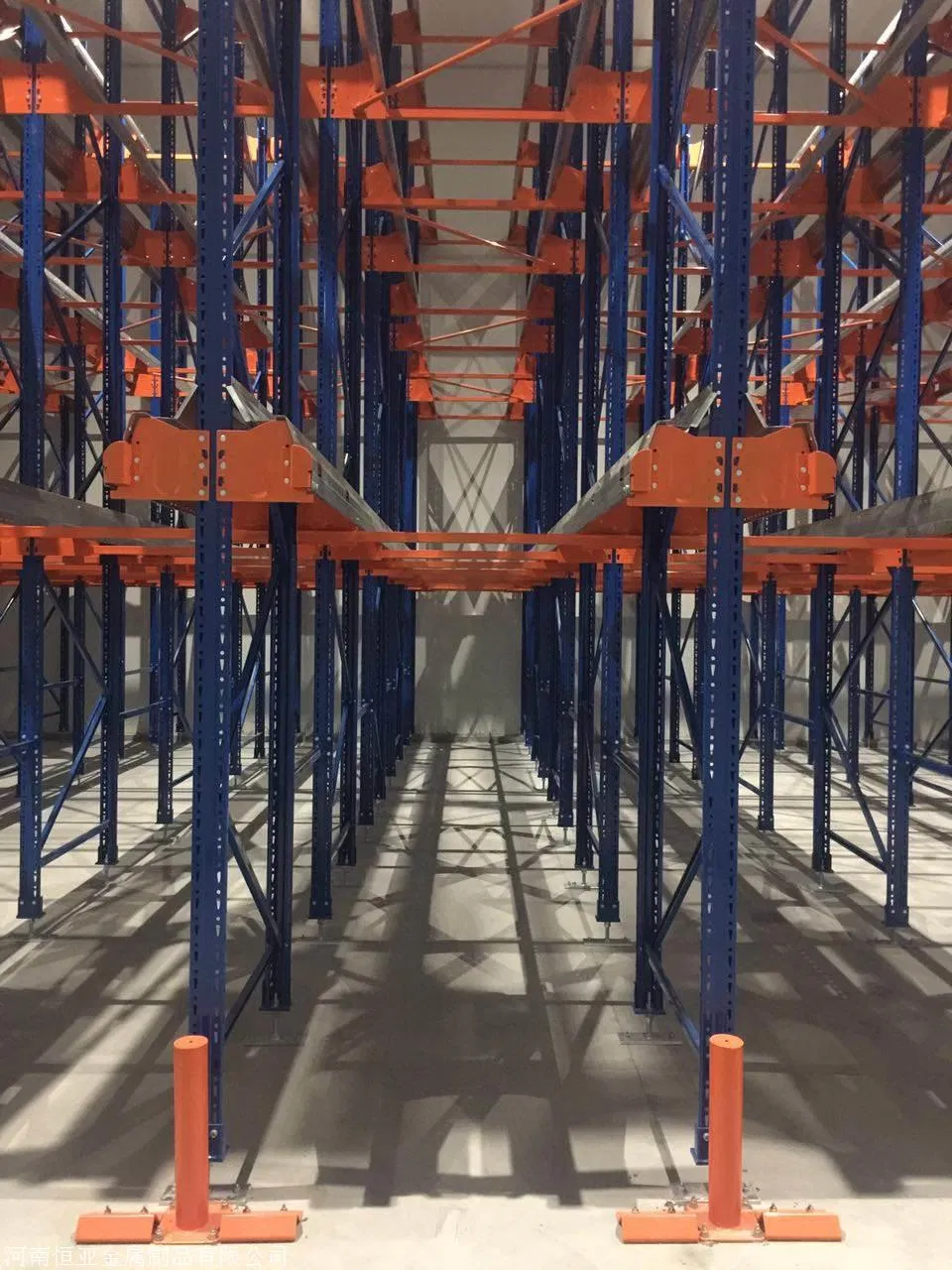

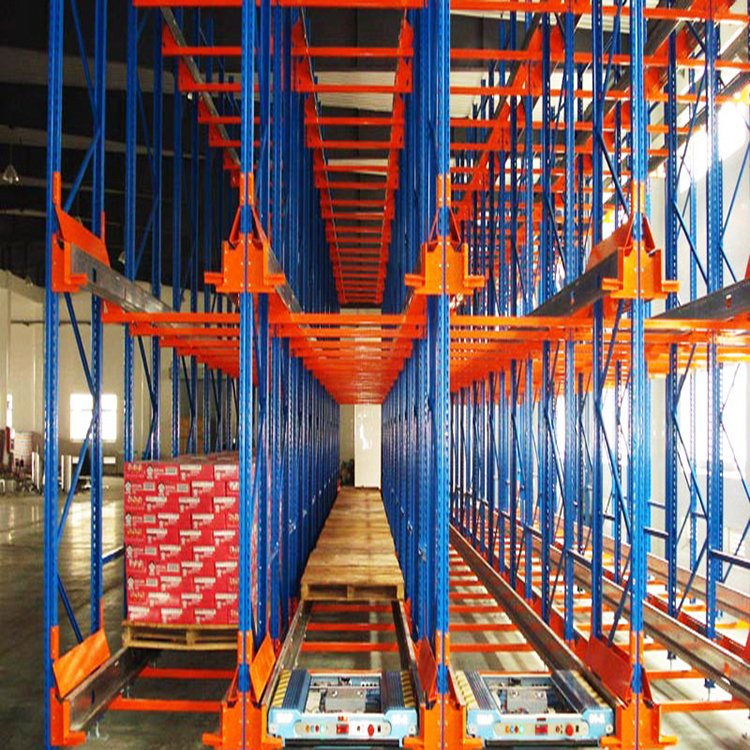

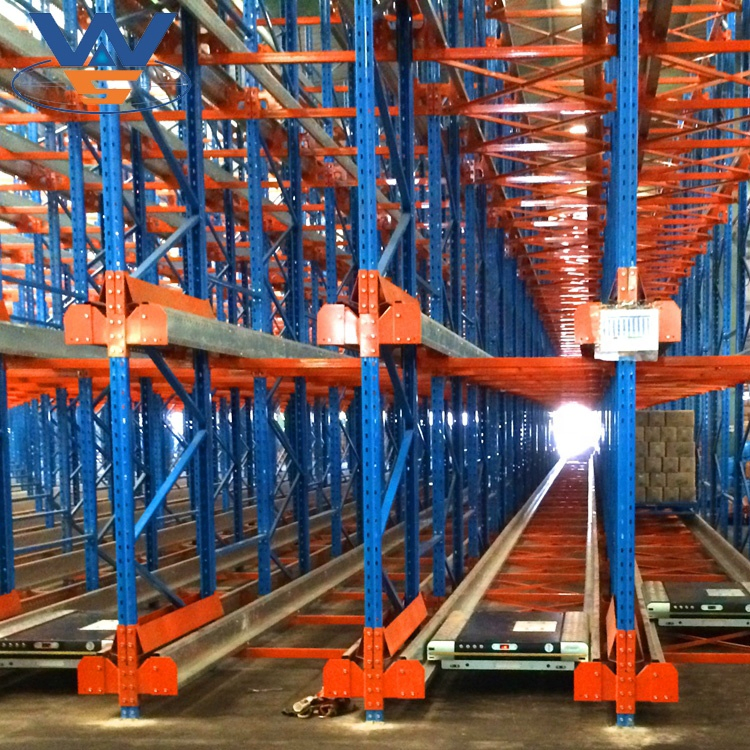

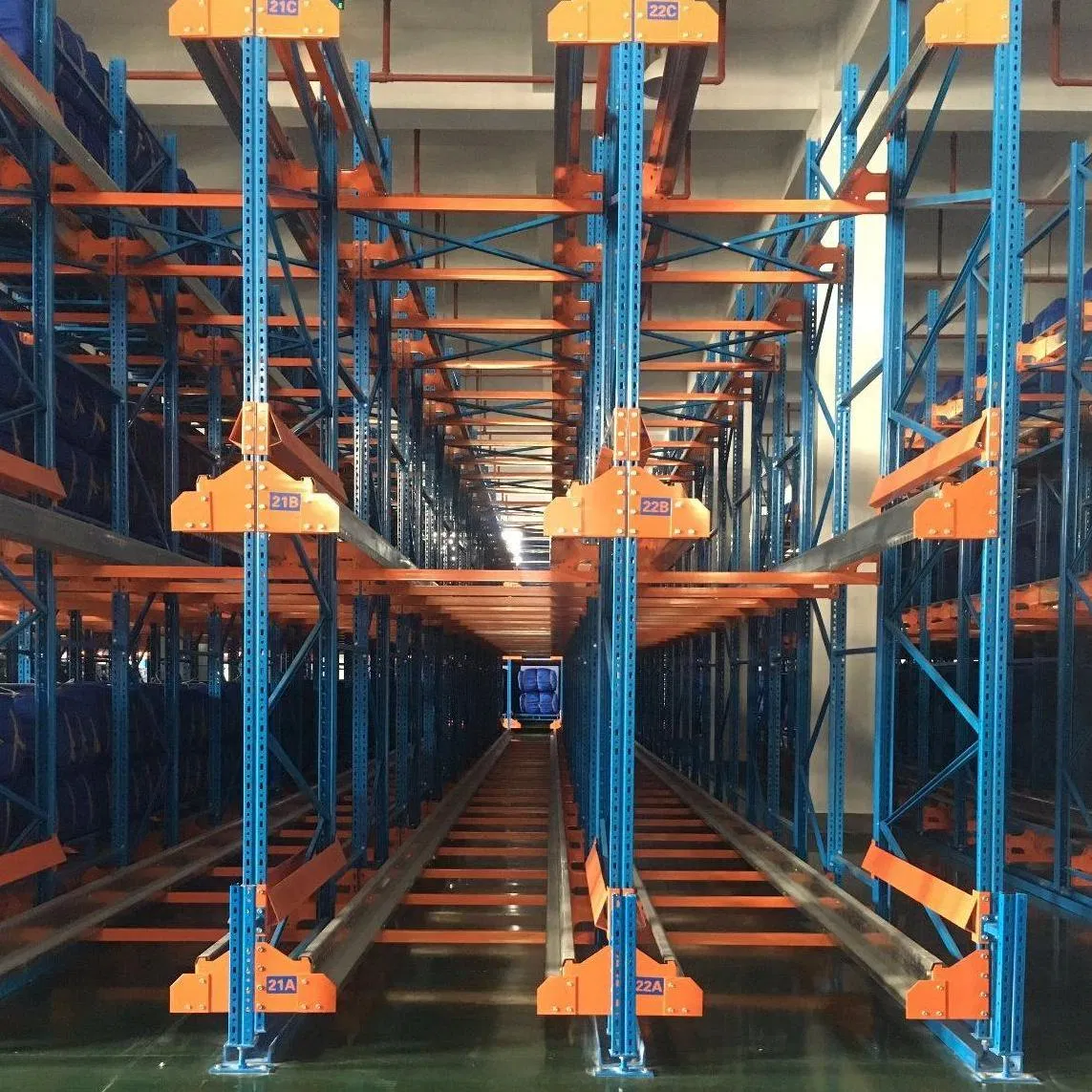

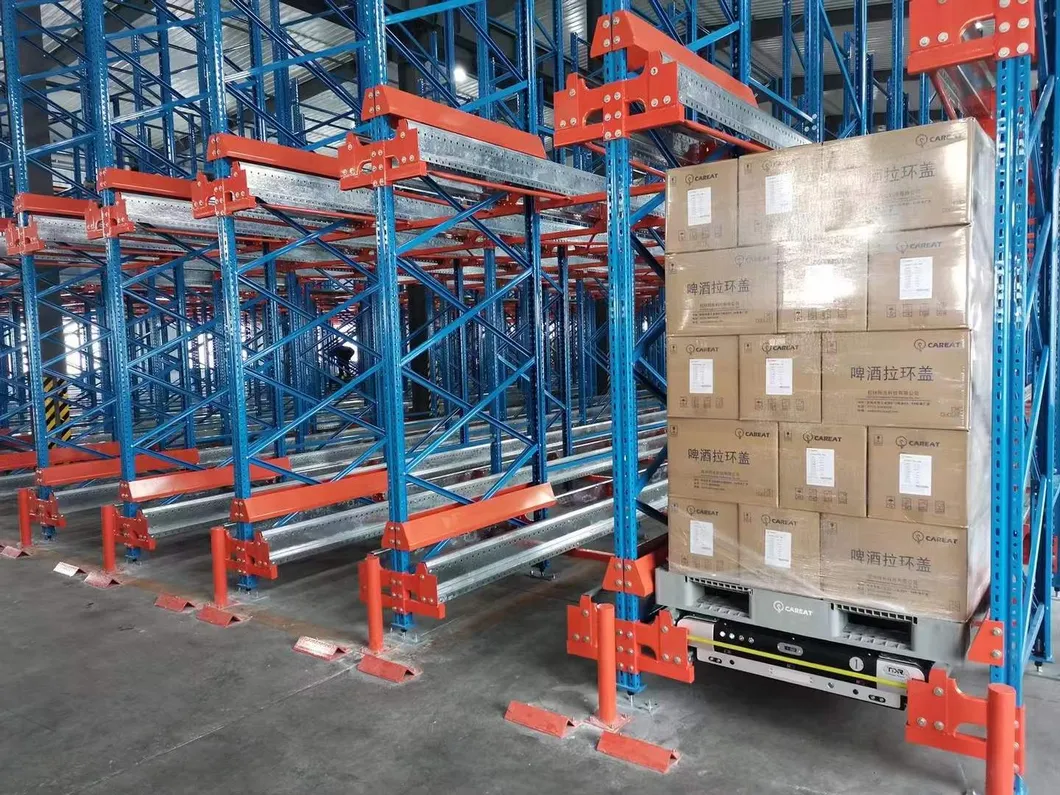

A shuttle system consists of supporting rack, shuttle rails and a shuttle cart. The shuttle cart runs on the rails and is propelled by an electric motor. It also has a platform on the top that can lift up and down. The lifting action is required to lift a pallet that is placed on the rail and then the electric motor moves the cart with the pallet on top into the rack in order to deposit the pallet in its right position.

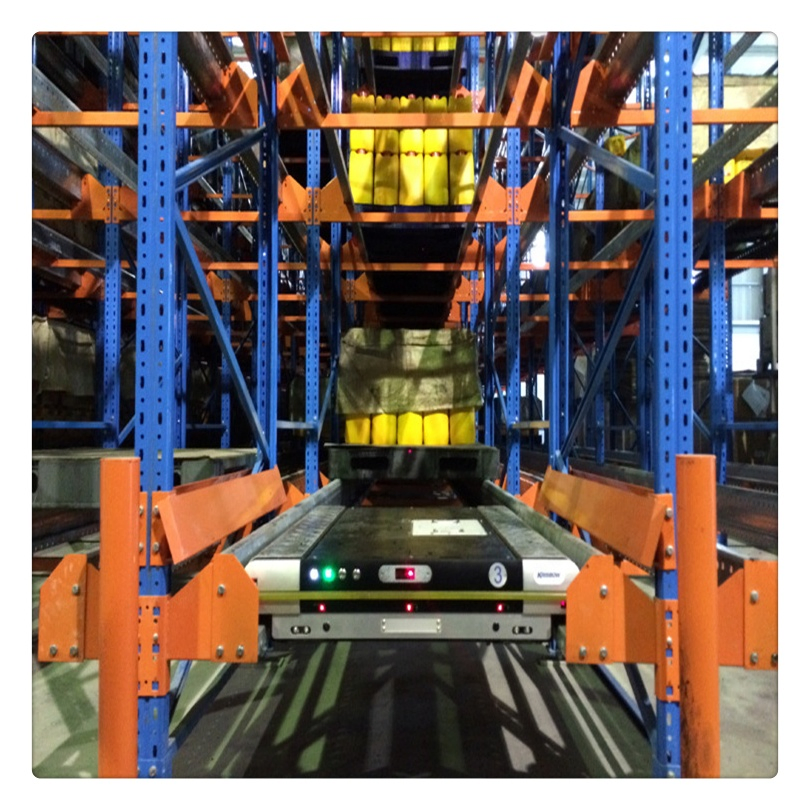

When the pallet is required, the cart moves in under the pallet, lifts it and brings it to the front of the rack where it can be retrieved by a forklift. All the movements of the shuttle cart are controlled with a hand held remote control.
Allows for more pallets to be stored in a given area compared to static racks, maximizing throughput of bulk items.
Minimizes damage to the rack because forklifts do not need to enter the racking structure.
Supports both FIFO (First-In, First-Out) and FILO (First-In, Last-Out) configurations.
Fully operational in freezer environments with temperatures as low as -30°C.
