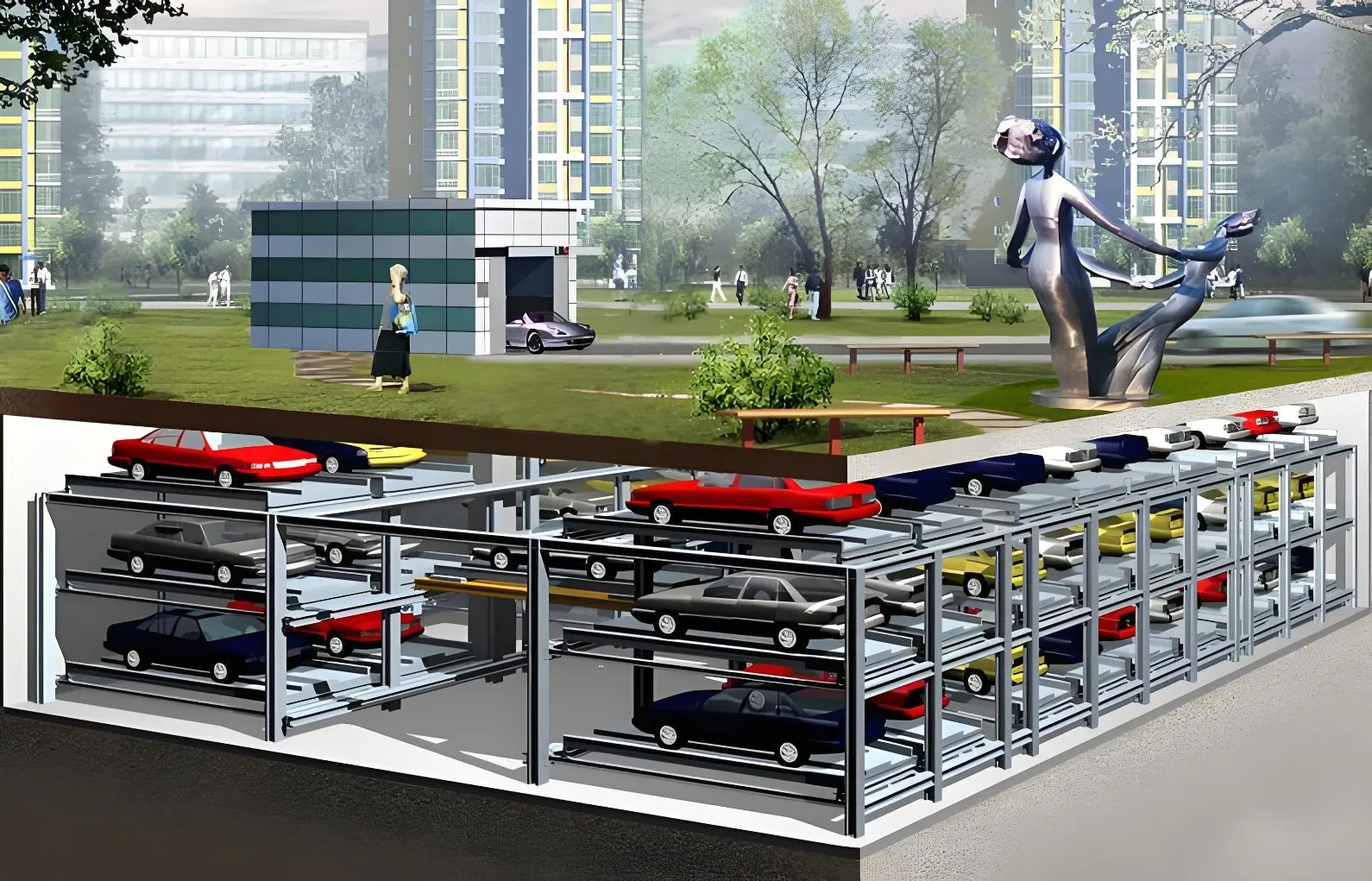

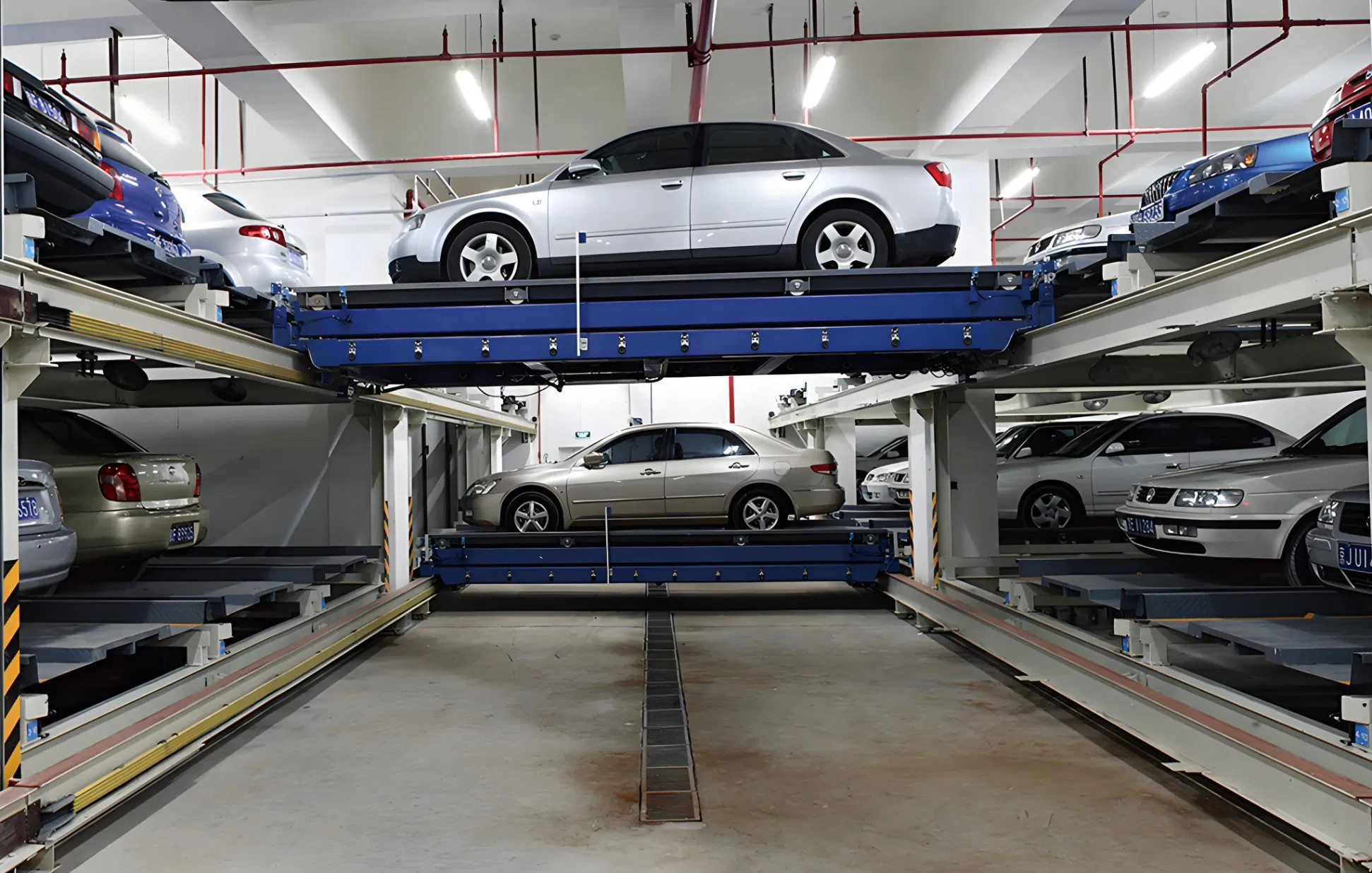

Automatic Hydraulic Car Storage Parking Shuttle System

Customization: Available
Level: Customized
Parking Post: Customized

Product Description

📊

Basic Information

Model NO.
PPY
Compatibility
Sedan & SUV
Control System
PLC Control
Installation
Outdoor
Lifting Mechanism
Mechanical
Load Capacity
2500kg
Operation Mode
Fully Automatic
Safety Features
Emergency Stop Button
Type
Robotic Parking System
Production Capacity
500unit/Year
⚙️

Product Description

Model Large car Oversize car
Length(mm)≤5000≤5300
Width(mm)≤1850≤1900
Height(mm)≤1550≤1550
Weight(kg)≤2000≤2350
Max. lifting speed(m/min)20~50
Max. walking speed(m/min)60~100
Max. access speed(m/min)25~30
Lifting motor(KW)11~15
Walking motor(KW)2.2
Drive modeMotor+Chain(or wirerope)
Control modePLC
Parking plots No.20~100 plots/garage

Key Features

Maximum weight capacity of 2.5 tons, meeting the parking demand of large and luxurious vehicles.
Flexible design with levels ranging from a minimum of 2 to a maximum of 15.
Optional electric car charging devices available for modern EV requirements.
Multiple layout options: ground layout, half-ground/half-underground, and full underground layouts.
Advanced safety equipment: Entrance observation mirrors, voice prompts, and LED displays.
🖼️

Product Display

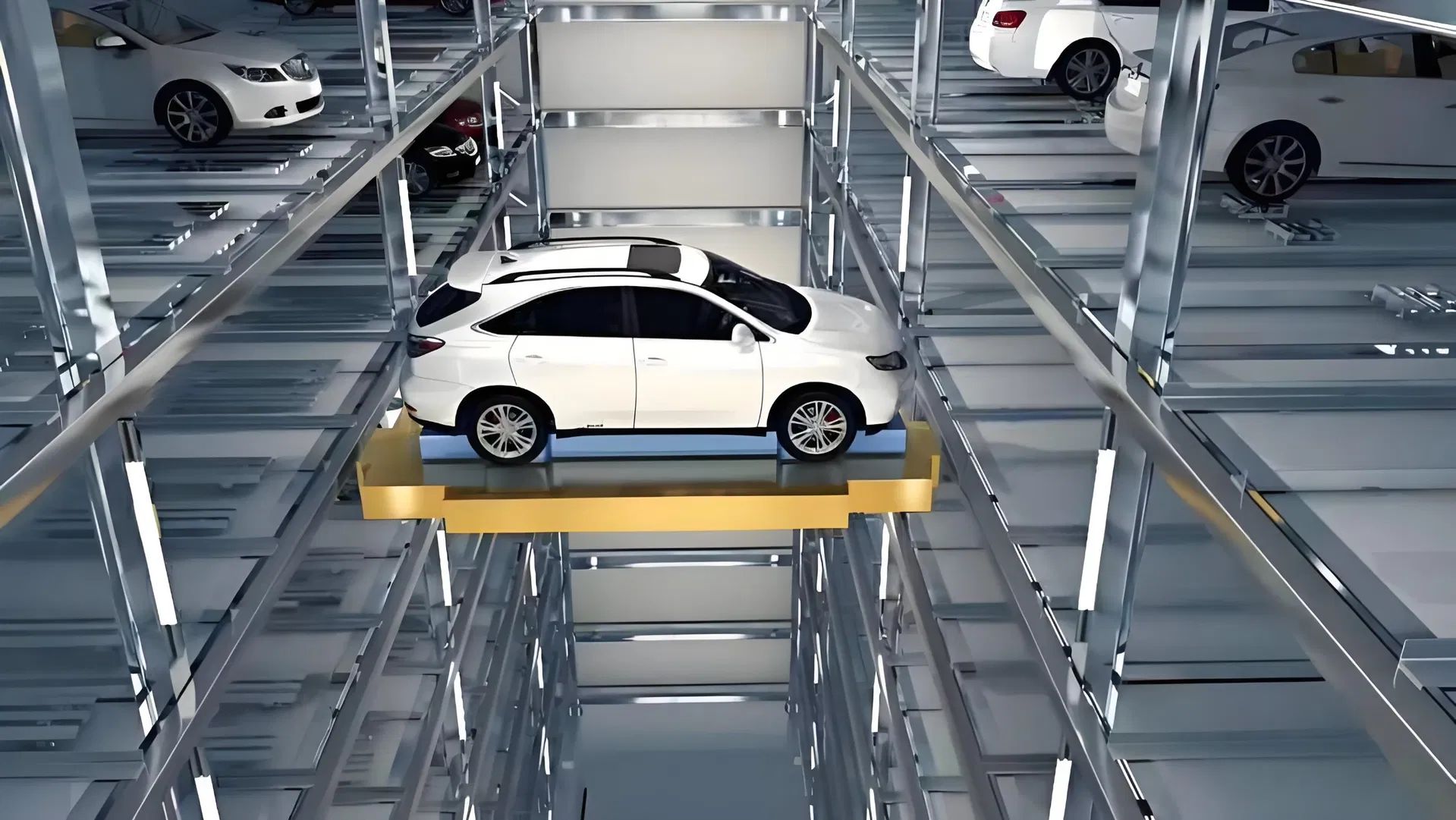

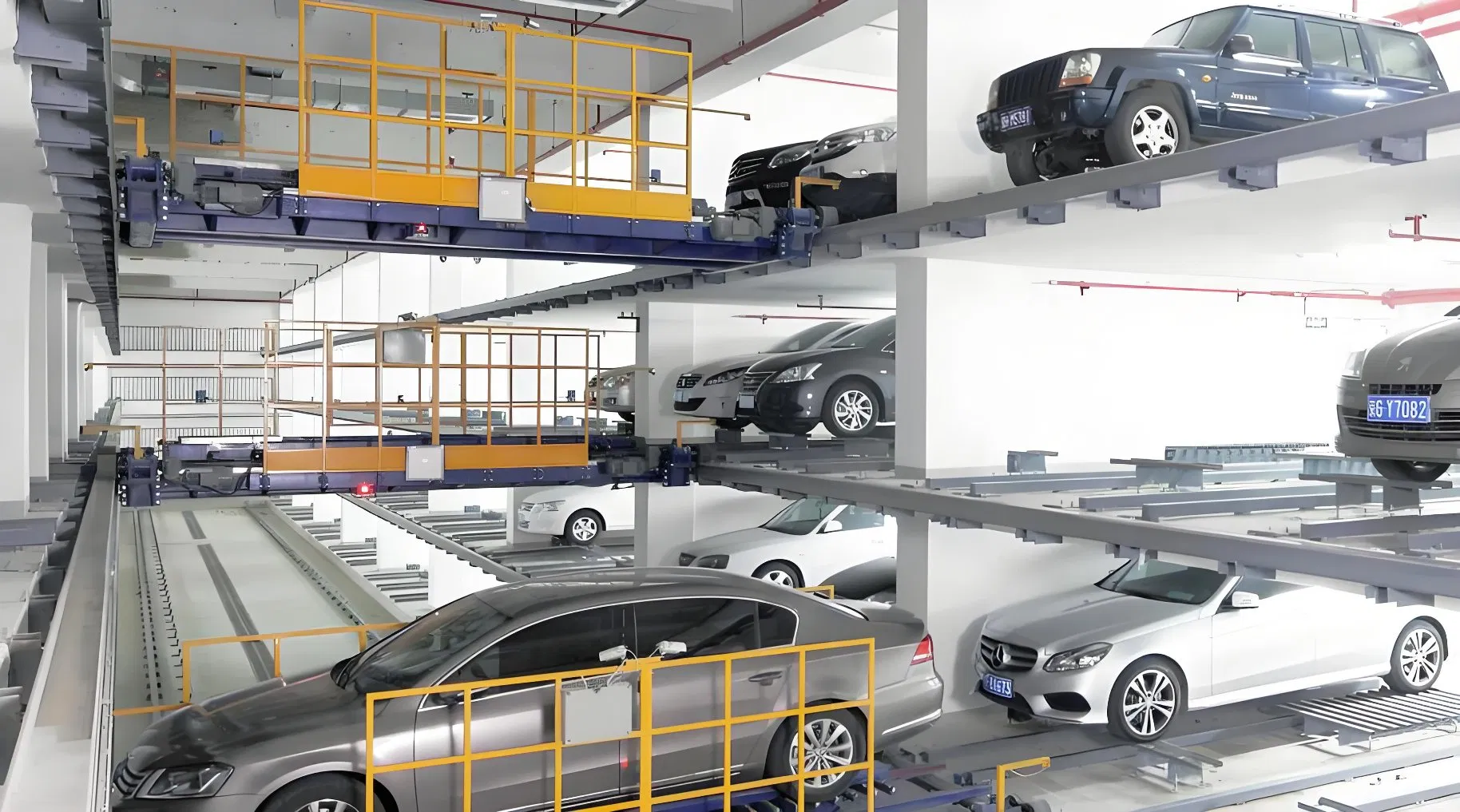

Automatic Parking System

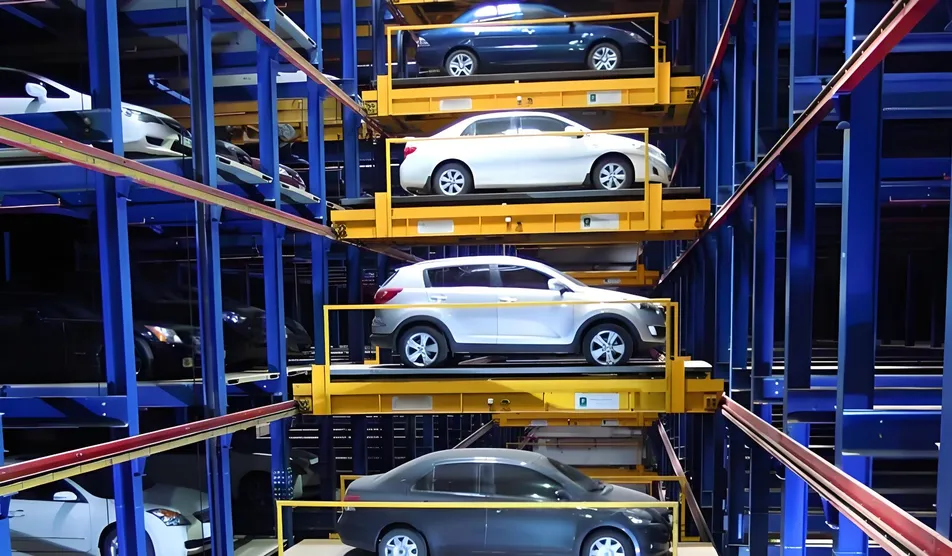

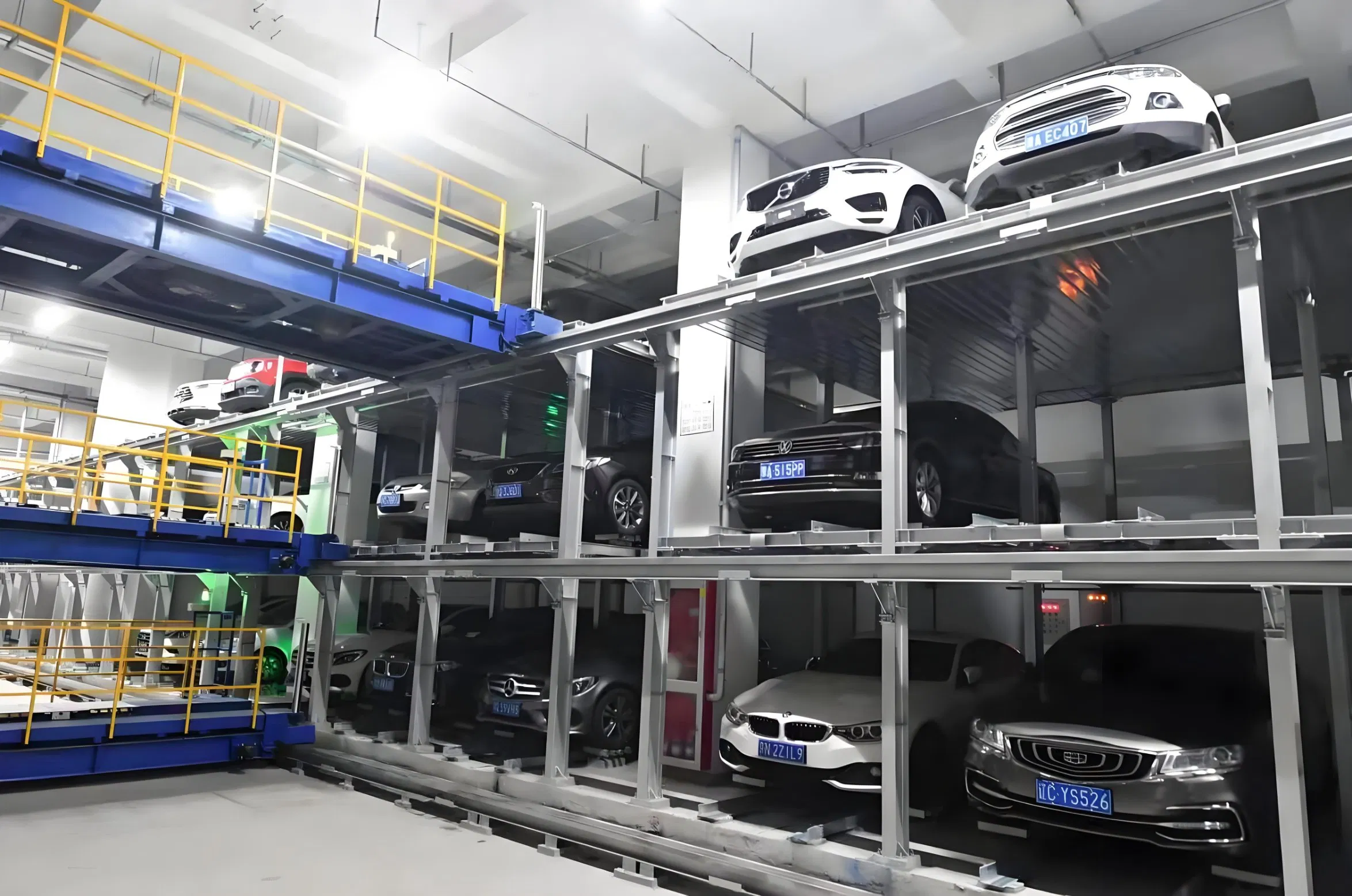

Shuttle System View 1

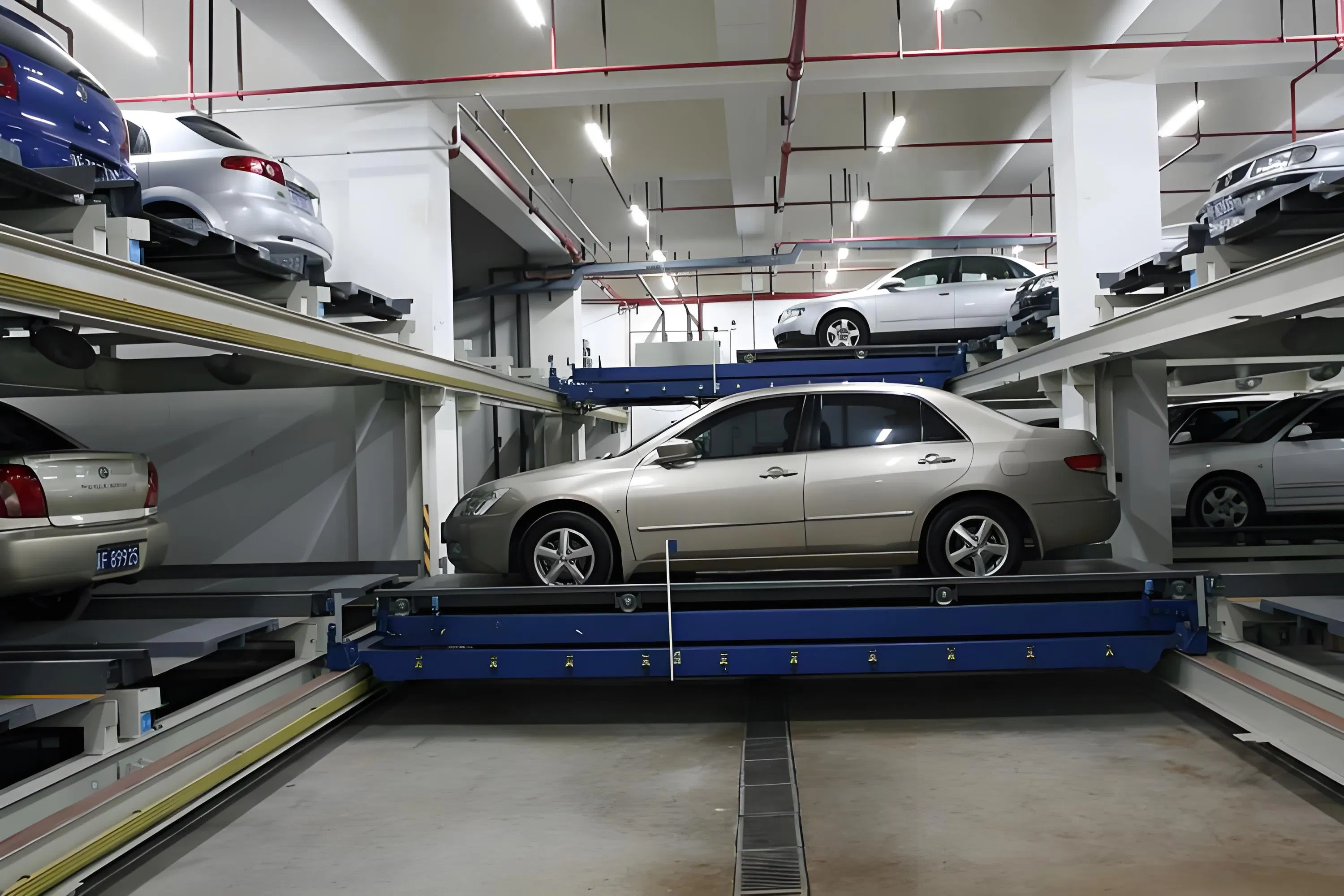

Shuttle System View 2
🚀

Applications

Parking Applications
🏢

Overview

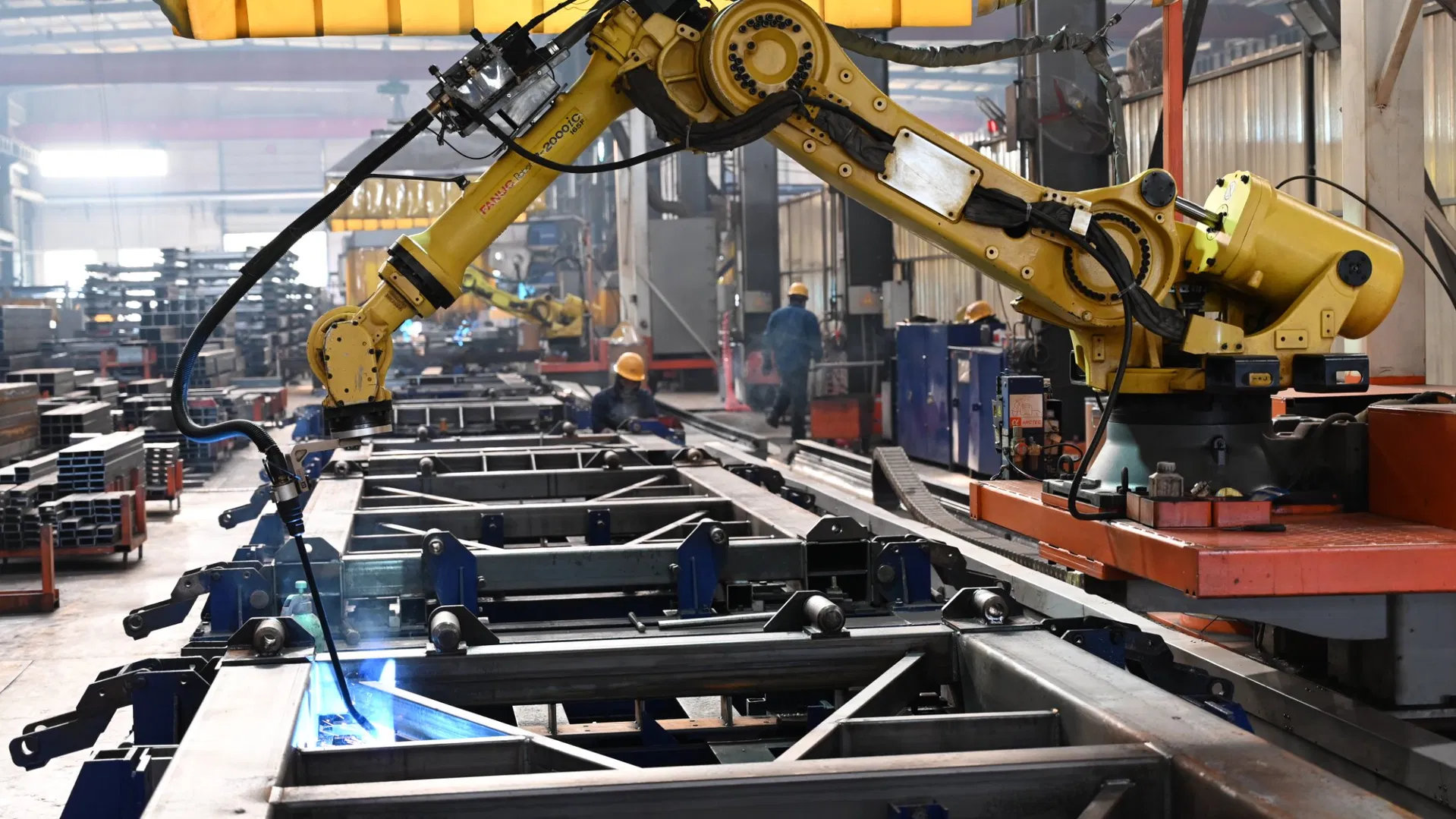

Production Base

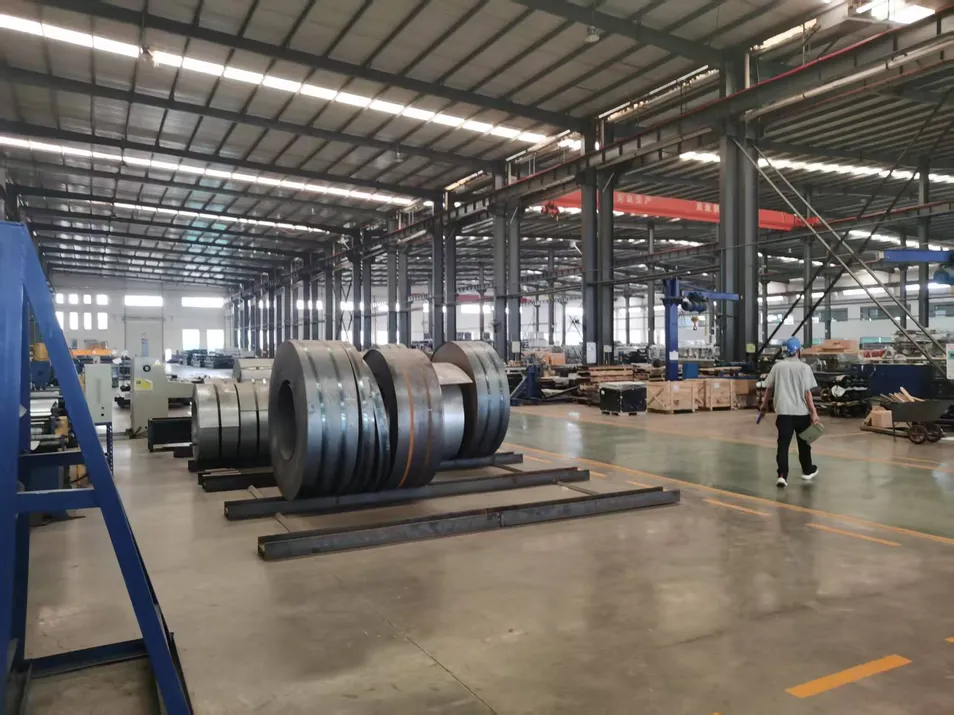

Facility 1

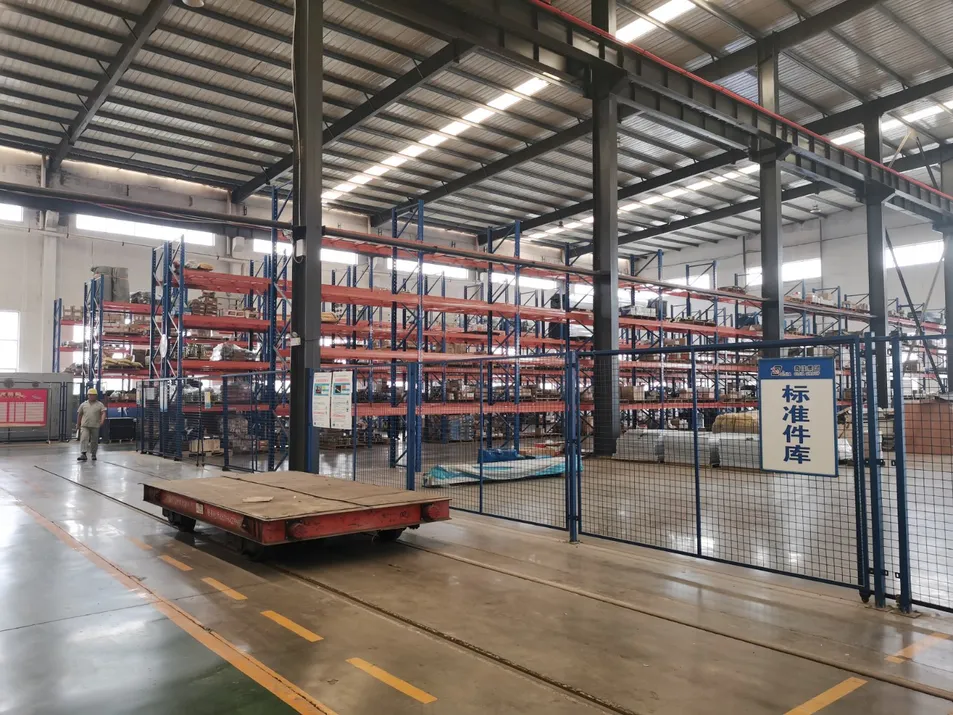

Facility 2
Professional three-dimensional garage provider integrating mechanical intelligent garage research and development, design production, engineering installation, and after-sales service. Equipped with a large steel structure workshop covering 12,000 square meters, including production, assembly, and testing facilities. The facility utilizes automatic wave board production lines, side beam automatic lines, and fully automatic paint spraying assembly lines. With over 65 professional technical talents, the annual storage capacity reaches approximately 8,000 parking spaces across various categories including lifting, horizontal movement, and vertical circulation.
🔍

Product Details

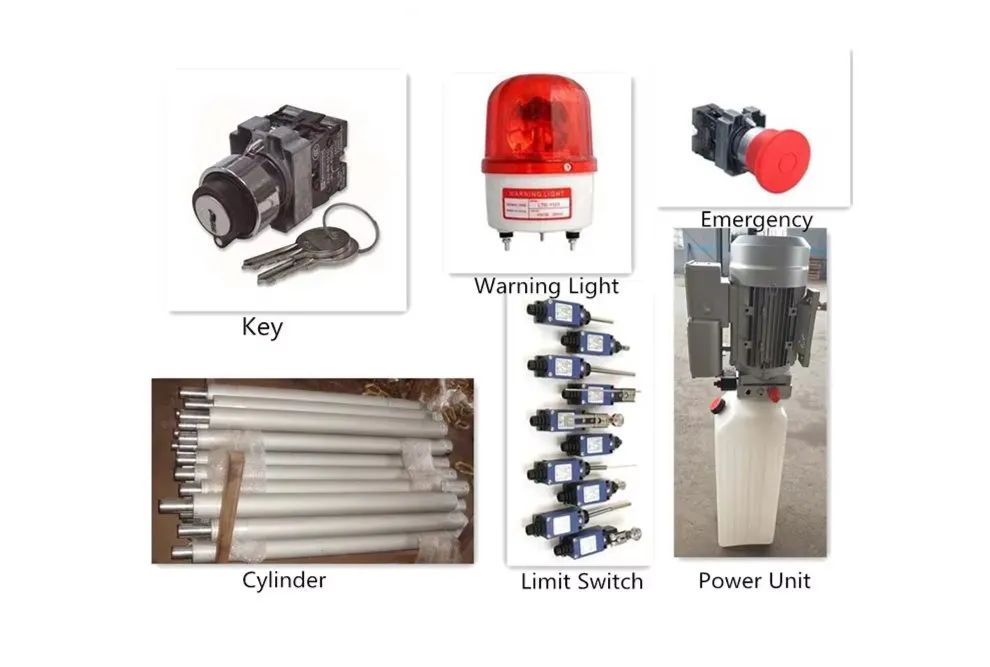

Technical Details
📦

Packing & Delivery

Packing Process
Delivery Load

Frequently Asked Questions

Are you a manufacturer?
Yes, we have our own dedicated factory and professional engineering team to handle design and production.
What are your standard terms of delivery?
We typically operate under EXW, FOB, CFR, and CIF terms depending on the project requirements.
How do you control production quality?
We utilize an independent QC team that monitors all production phases, comparing components to technical drawings to ensure 100% conformity.
What is the typical lead time for equipment?
Commonly, the lead time for our automated parking machines is between 35 to 60 days.
What payment terms do you accept?
We accept online Trade Assurance, TT (Telegraphic Transfer), LC (Letter of Credit), and other standard international payment methods.
Can you produce based on specific technical drawings?
Yes, we can manufacture based on your technical drawings or samples, and we have the capability to build custom molds and fixtures.
