Fully Automatic Parking Robotic Parking Plane Moving Parking System

Customization: Available
Level: Max 6 Parking Levels
Parking Post: 100-199 Posts

Product Description

Basic Specifications

Model NO.MLP
Control SystemIC Card, Touch Screen, or Manual
InstallationOutdoor
Load Capacity2000kg
MaterialAluminum
Operation ModeFully automatic
Safety FeaturesAnti-collision System, Emergency Stop Button, Overload Protection, Safety Sensors
Speedup to 75m/Min
TypeAutomated Parking System
Car TypeSedan & SUV
Car Length5300mm
Car Weight2350kg
Motor Power15-22kw
Elevating Speed28-42m/Min
TurntableAvailable
Access ModeForward in, Forward out
Working ModeUnmanned
CertificationCE, ISO, TUV, EAC
Warranty1 Year
HS Code84289020

Product Description

Automated Plane Moving Parking System is a fully automated smart parking system, which adopts a similar principle of parking and system structure to stereoscopic mechanical parking lots. Each floor of the system has a traverser responsible for moving the vehicles. Different parking levels are connected to the entrance by the elevator. To store the car, the driver just needs to stop the car at the entrance box and the whole car-accessing process will be done by the system automatically.

Automated Parking System 1

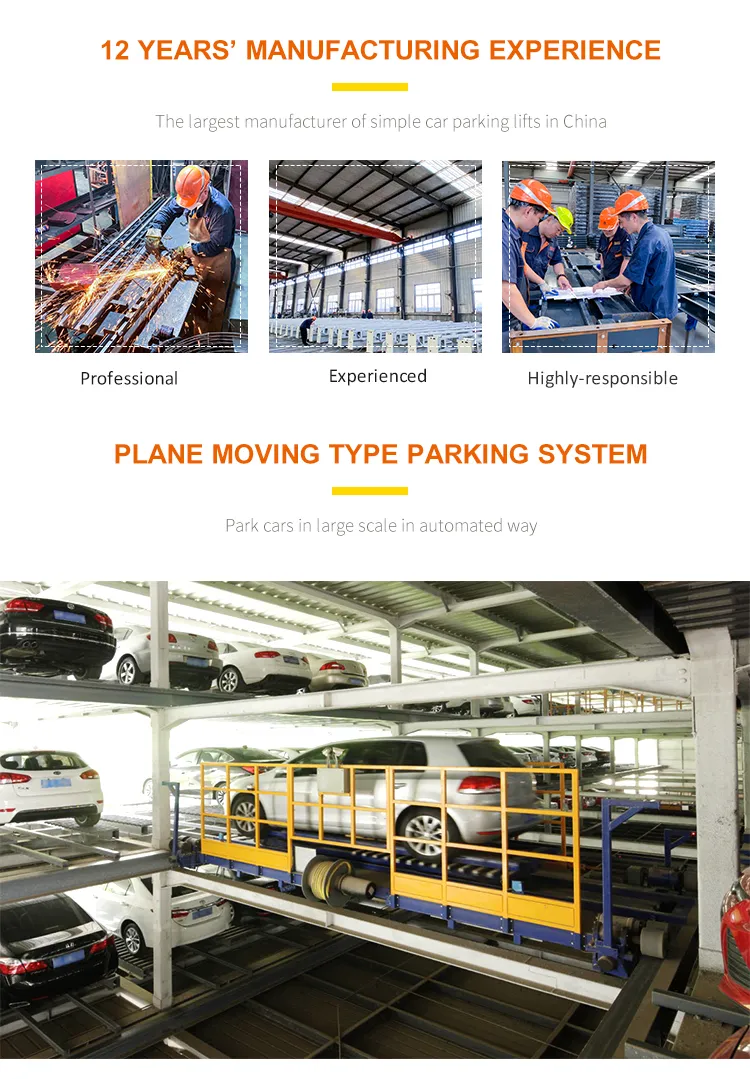

Automated Parking System 2

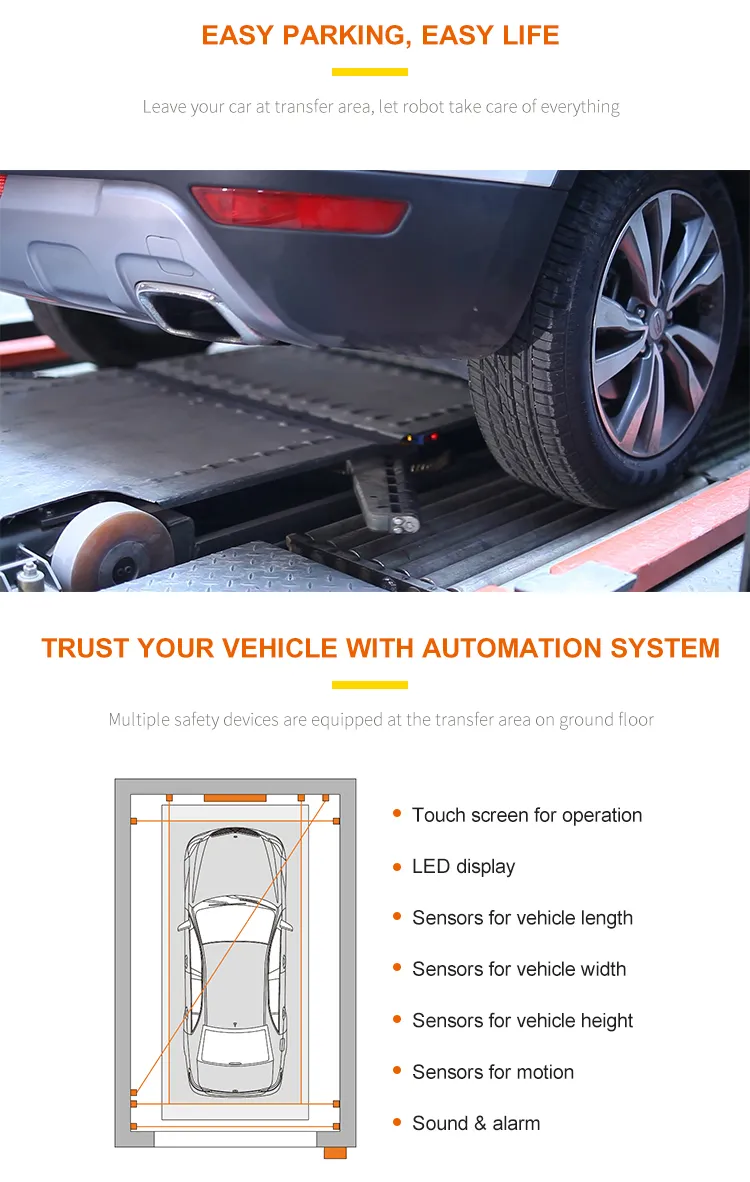

Automated Parking System 3

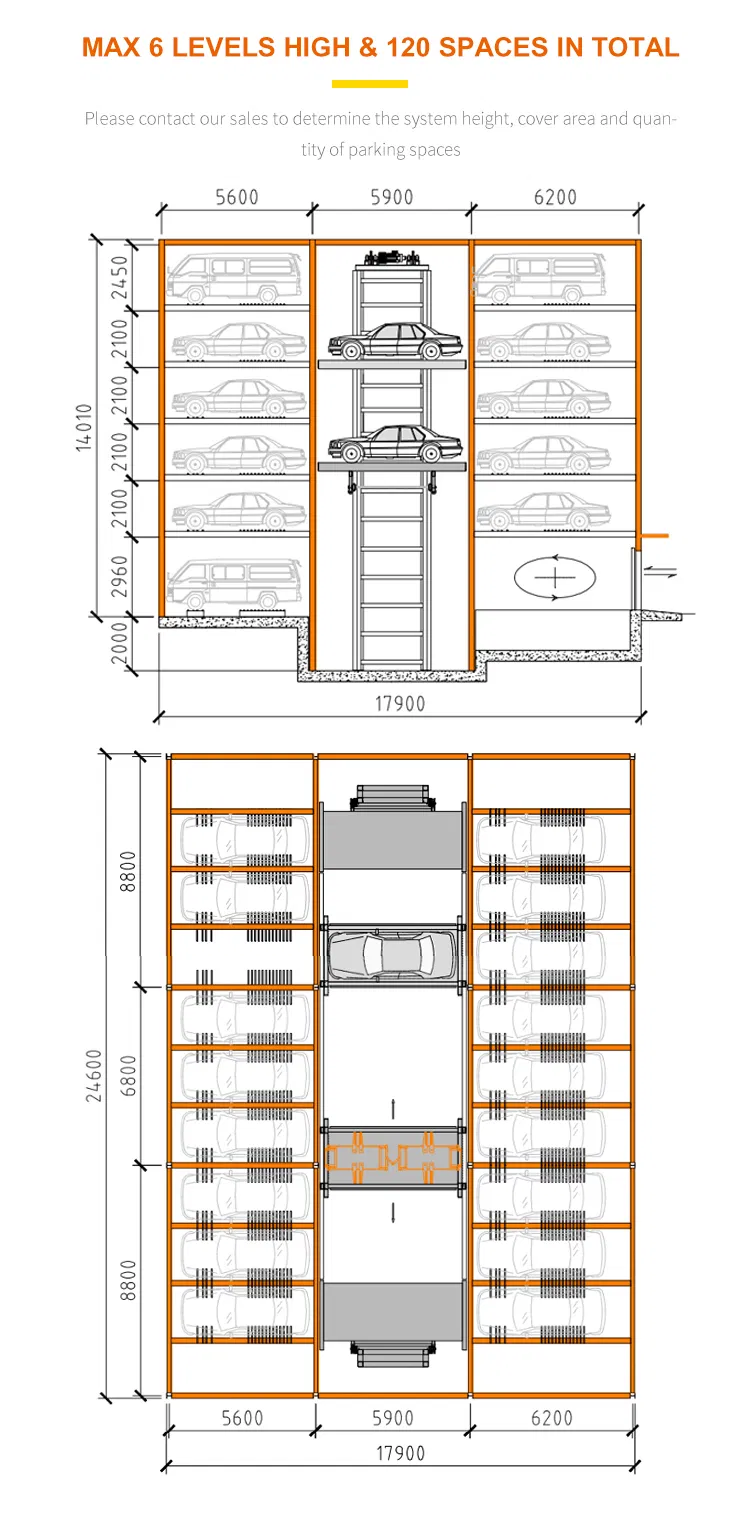

Automated Parking System 4

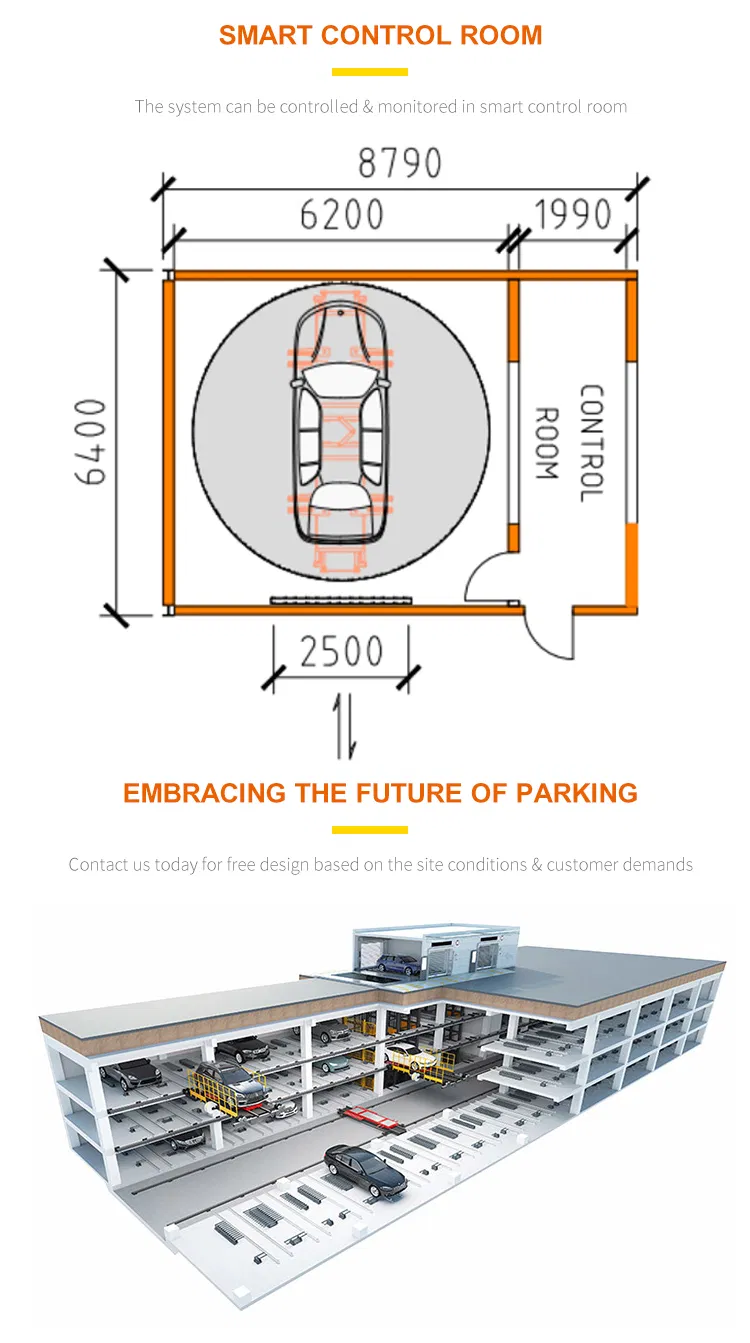

Automated Parking System 5

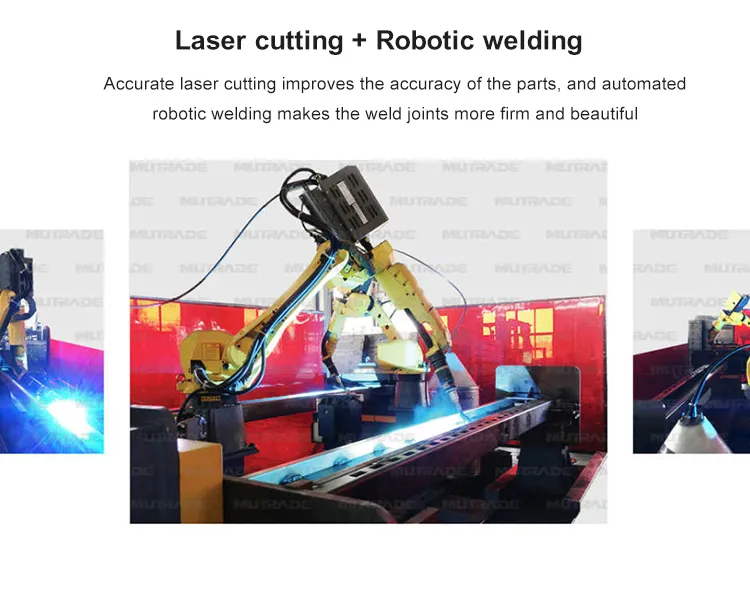

Automated Parking System 6
  • Maximum weight capacity of 2.5 tons, meeting the demand for large and luxurious vehicles.
  • Scalable levels from a minimum of 2 to a maximum of 15.
  • Optional electric car charging devices available.
  • Flexible entrance layouts: ground floor, side way at 90 degrees, or underground options.
  • Equipped with entrance observation mirrors, voice prompts, and LED displays.
  • High automation degree with advanced comb exchange technology for safe and stable operation.
  • Space-saving design with low maintenance costs and efficient use of available area.
  • Eco-friendly operation with no vehicle emissions inside the system.
  • Enhanced security: vehicle theft and vandalism are eliminated in the unmanned environment.

Scope of Application

This equipment is ideal for large-scale aboveground or underground parking projects. It can adapt to various configurations from 2 to 15 floors, making it perfect for outdoor parking or narrow areas where space optimization is critical.

Application Scope 1
Application Scope 2

Frequently Asked Questions

How does the Automated Plane Moving Parking System work?
The system uses a combination of elevators and horizontal traversers on each floor. Drivers leave their vehicle at the entrance, and the system automatically transports it to an available space.
What is the maximum car weight allowed?
The standard capacity is 2350kg, but the system can support up to 2.5 tons, making it suitable for large luxury sedans and SUVs.
Can the system be installed in narrow spaces?
Yes, the system is designed for high space efficiency and can be configured with a 90-degree side entrance to fit narrow land plots.
What safety measures are in place?
It features multiple sensors for over-length/over-height detection, anti-collision systems, emergency stop buttons, and overload protection to ensure vehicle and user safety.
Is there support for Electric Vehicles (EV)?
Yes, electric car charging devices are available as an optional feature for the parking spaces.
How many cars can the system accommodate?
The capacity depends on the number of levels (2 to 15) and the floor layout. It is designed for projects requiring a large number of car spaces with high throughput efficiency.
