Circular Tower Parking Smart Parking System

Customization:	Available
Level:	Max 10 Parking Levels
Parking Post:	100-199 Posts

Technical Specifications

Model NO.

ATP

Control System

IC Card, Touch Screen, or Manual

Installation

Outdoor

Load Capacity

2000kg

Material

Aluminum

Operation Mode

Fully automatic

Safety Features

Anti-collision System, Emergency Stop Button, Overload Protection, Safety Sensors

Speed

up to 95m/Min

Type

Automated Parking System, Hydraulic Parking System

Warranty

Main Structure 5 Years, Whole Equipment 1 Year

Processing Method

Laser Cutting & Robotic Welding

Surface Treatment

Akzo Nobel Powder Coating

Driving

Hydraulic

Vehicle Inlet/Outlet

Center

Certification

CE, ISO, CCC

Lift Mode

Hydraulic Cylinder

After-Sales Service

Lifetime After-Sales

Working Mode

Key Switch

Falling Prevention

Mechanical Lock

Design

Car Shuttle System

Voltage

Customized

Transport Package

Standard Exporting Package

Specification

2000kg/2500kg

HS Code

84289020

Production Capacity

500 Sets Per Month

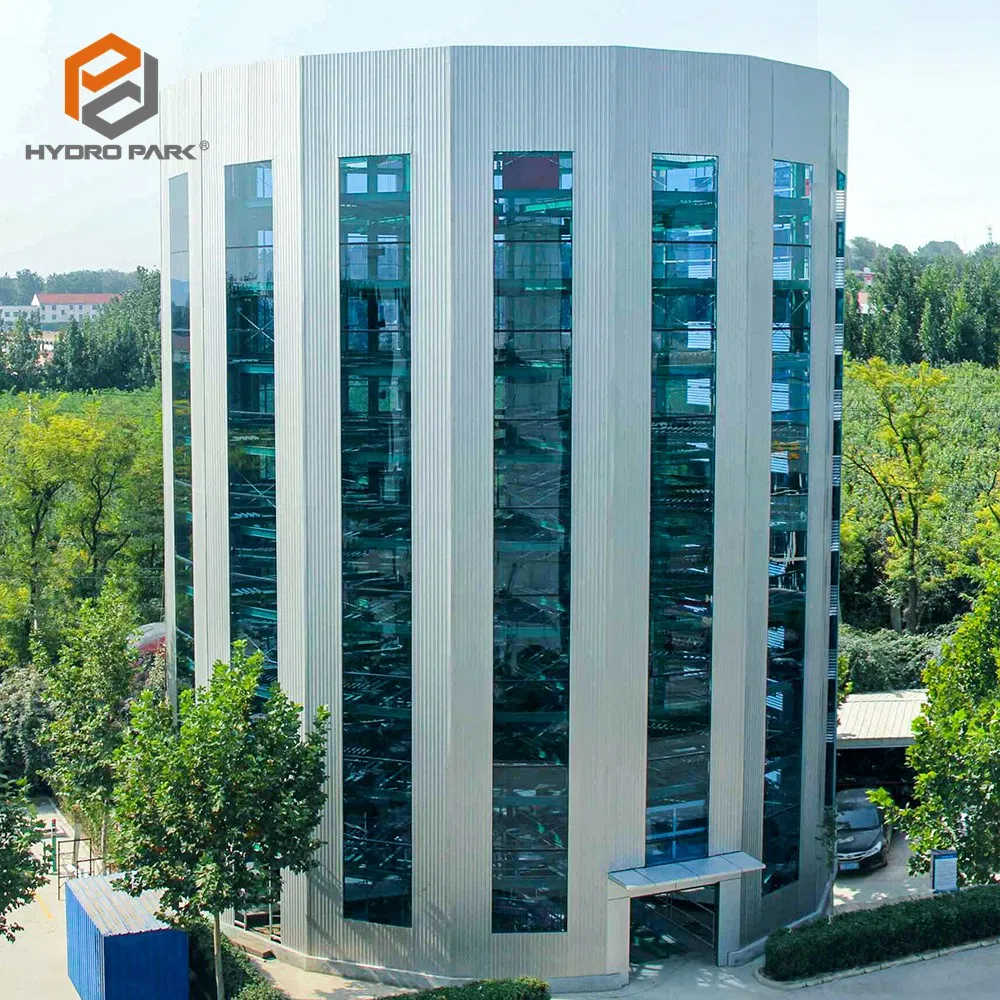

Circular Tower Smart Parking System

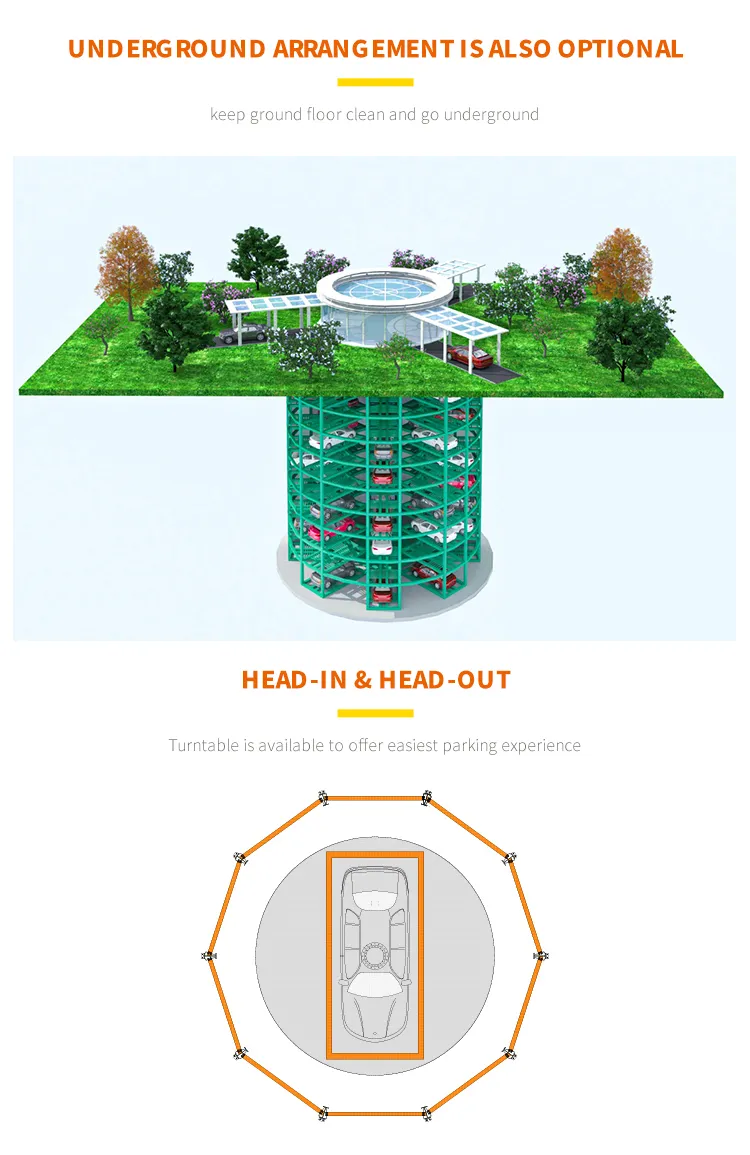

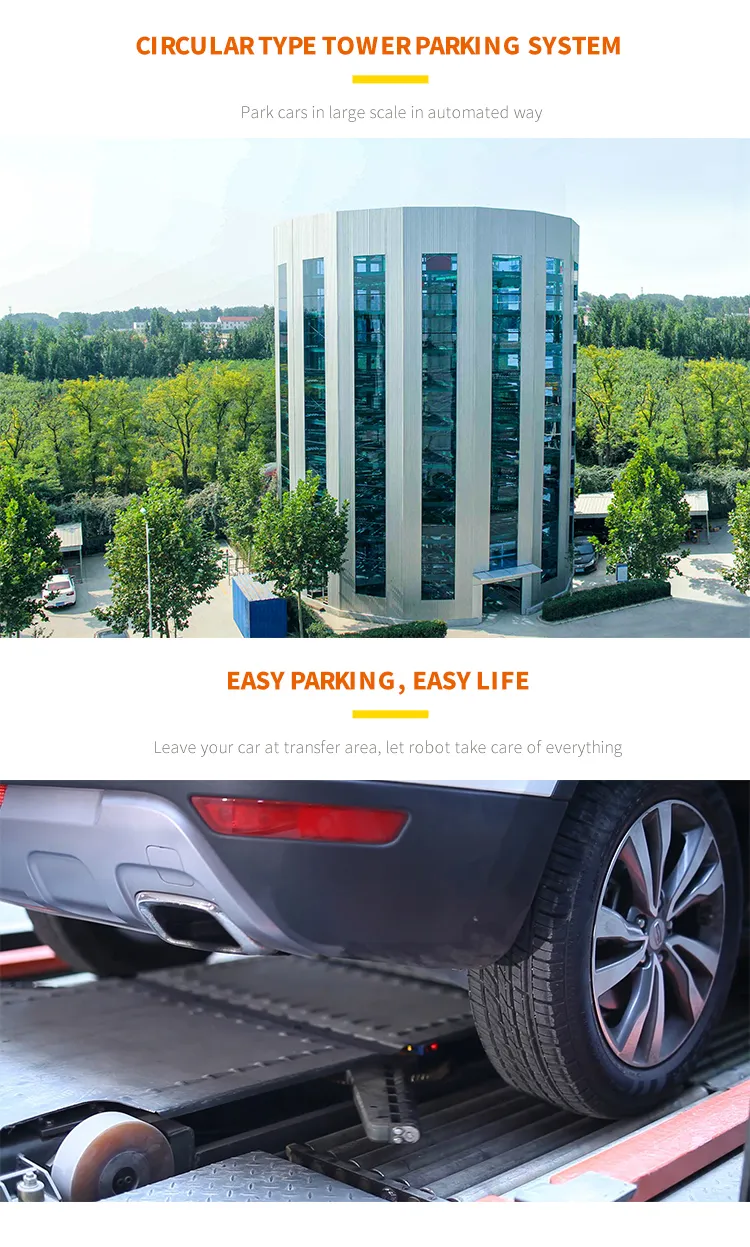

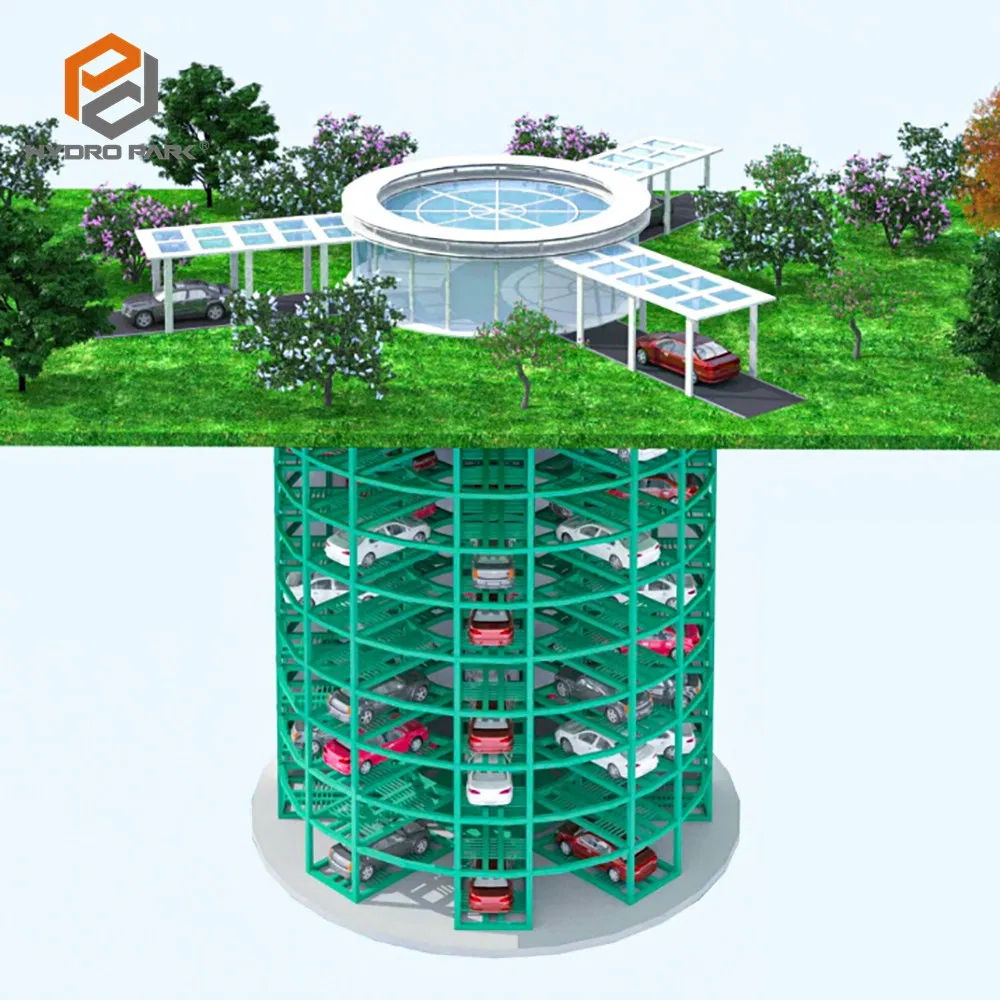

The continuous pursuit of functional, efficient and modern-looking equipment has led to the creation of an automated parking system with a streamlined design - Automated Circular Type Parking System. This vertical parking system is a fully automated mechanical parking equipment with a lifting channel in the middle and a circular arrangement of berths. Making the most of limited space, the fully automated cylinder-shaped parking system provides not only simple, but also highly efficient and safe parking. Its unique technology ensures a safe and convenient parking experience, reduces parking space, and its design style can be integrated with cityscapes.

Key Features

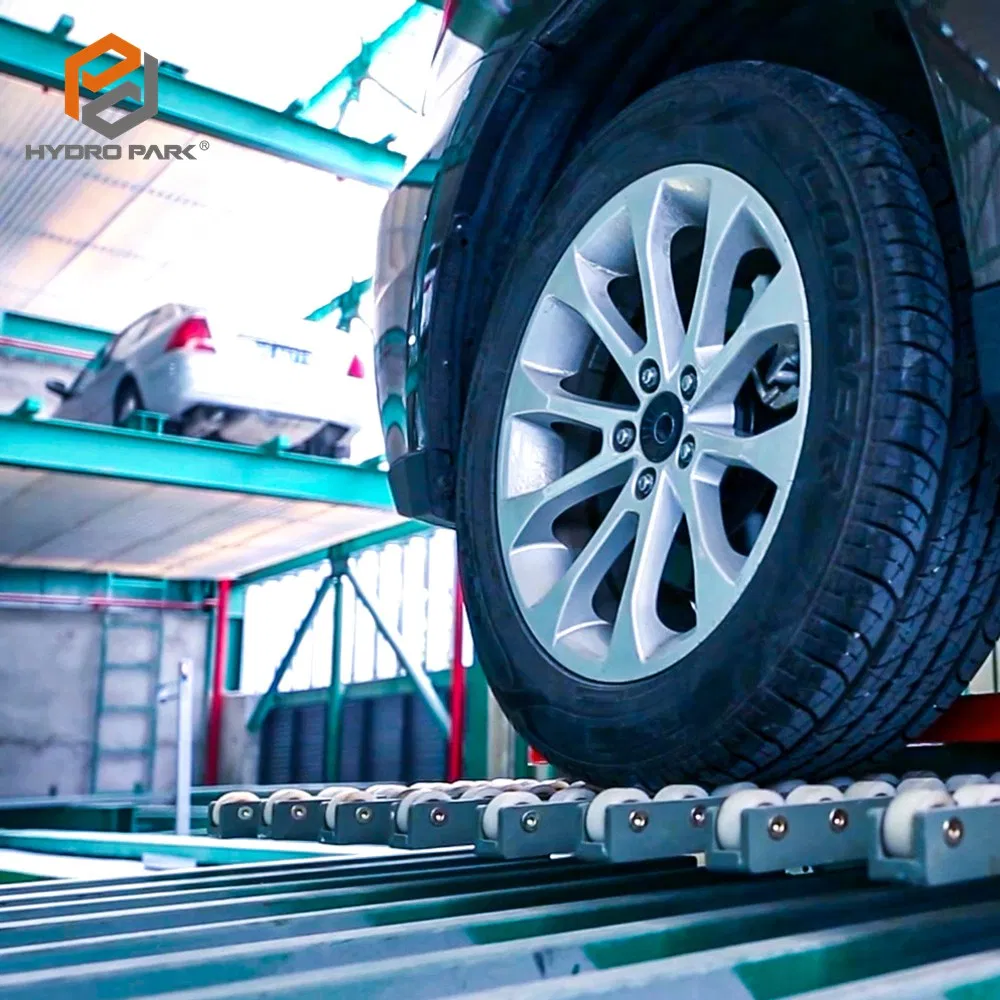

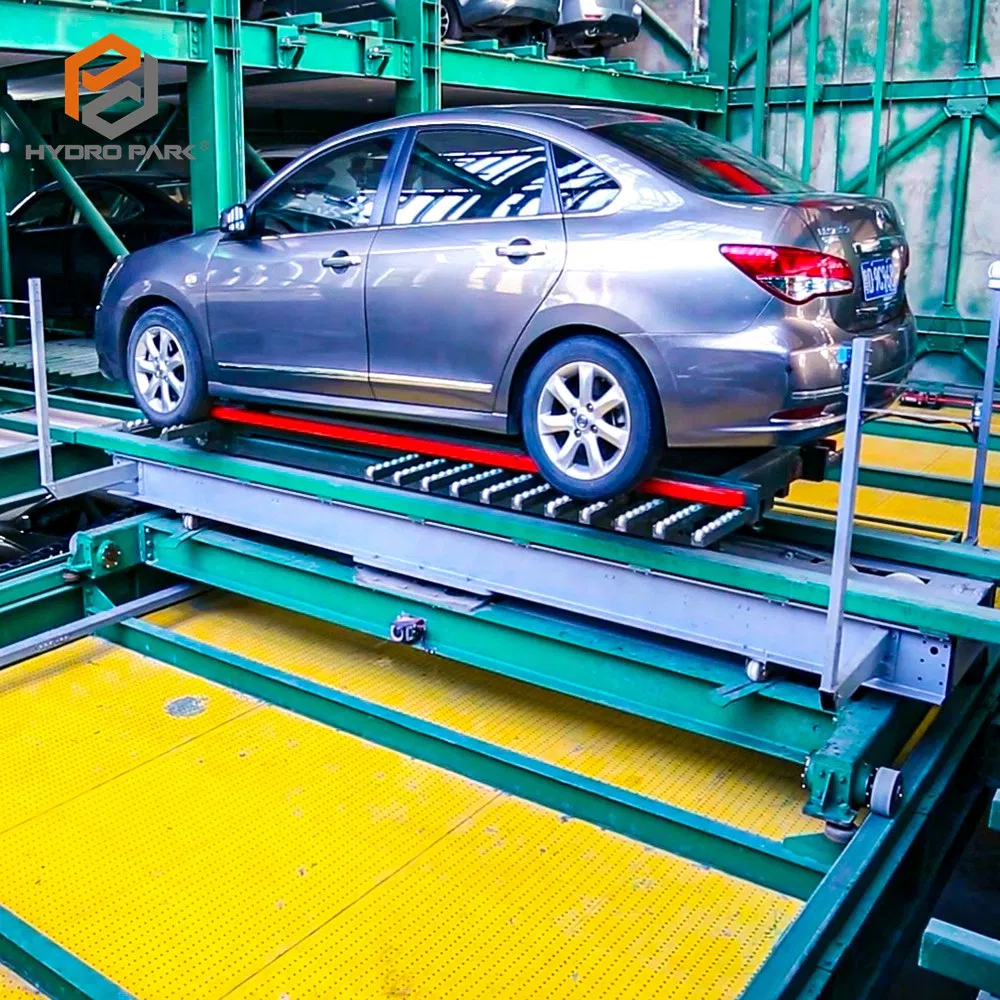

Stable intelligent lifting platform with advanced comb exchange technology (average access time only 90s).
Space saving & high margin design: required surface area decreases by ±65%.

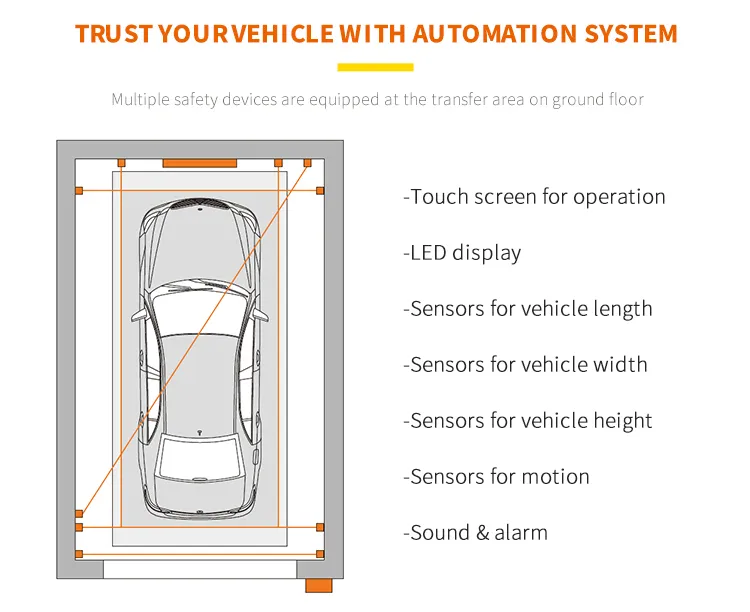

Multiple safety detection (over-length, over-height) ensures a safe access process.
User-friendly design: no narrow or steep ramps, no waiting for elevators, and secure environment.
Eco-friendly: less traffic, less pollution, and less noise.
Efficient use of available space: more cars accommodated in the same area.
Fully automated operation reduces the need for onsite staff.
Driver security is assured as drivers do not access the underground or storage areas.

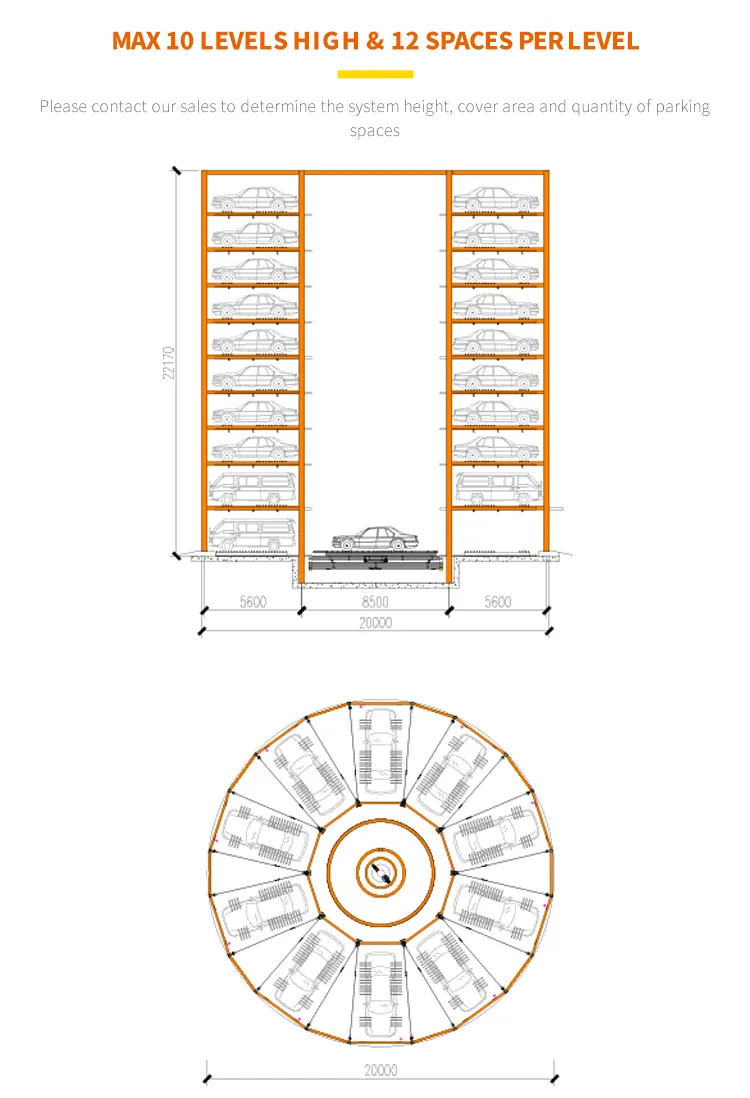

Compact system: one Ø18m parking tower can accommodate up to 60 cars.

How It Works

Vehicle Storage Process

1

Driver parks the car in the entry room following screen and voice instructions. System scans vehicle dimensions and weight.

2

Driver exits the room and swipes the IC card at the terminal.

3

The lifting platform transports the vehicle to the designated floor and parking space via automated lifting and swinging.

Vehicle Retrieval Process

1

Driver swipes the IC card and presses the pick-up key on the control machine.

2

Lifting platform moves to the designated floor, and the carrier transfers the vehicle to the platform.

3

The platform descends to the exit level and delivers the vehicle to the exit room.

4

Automatic doors open, and the driver drives the vehicle out.

Frequently Asked Questions

What is the average retrieval time for a vehicle?

The system is designed for high efficiency, with an average vehicle access time of only 90 seconds thanks to advanced comb exchange technology.

How much space can the Circular Tower Parking system save?

Compared to traditional parking solutions, this automated circular technology can reduce the required surface area by approximately 65%, making it ideal for urban areas.

What are the primary safety features included?

The system includes an anti-collision system, emergency stop buttons, overload protection, and multiple safety sensors to detect vehicle dimensions and ensure user safety.

Is the system suitable for outdoor installation?

Yes, the system is designed for outdoor installation and features an Akzo Nobel powder coating for superior weather resistance and durability.

What is the maximum load capacity for vehicles?

The standard load capacity is 2000kg per berth, with specifications available for up to 2500kg to accommodate various vehicle types.

What kind of warranty and service is provided?

We provide a 5-year warranty on the main structure, a 1-year warranty on the whole equipment, and lifetime after-sales support.
