Basic Information
Safety Features: Collision Avoidance System, Emergency Stop Button, Obstacle Detection Sensors, Safety Laser Scanner
Product Description

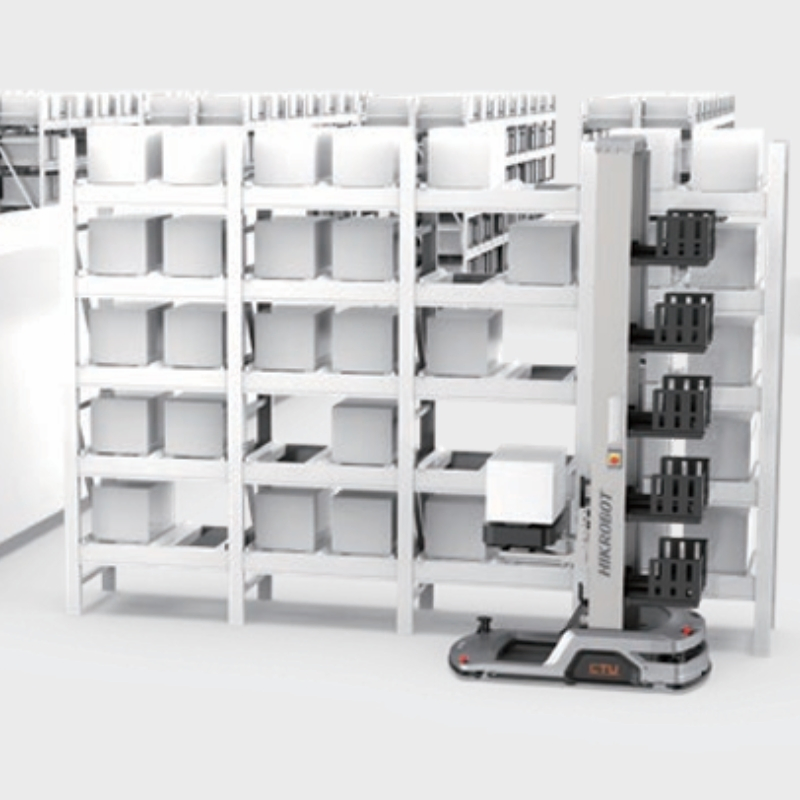

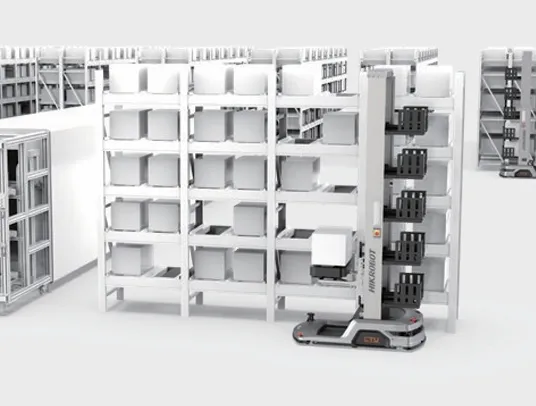

Carton Transfer Unit (CTU) --- Lifting T Series

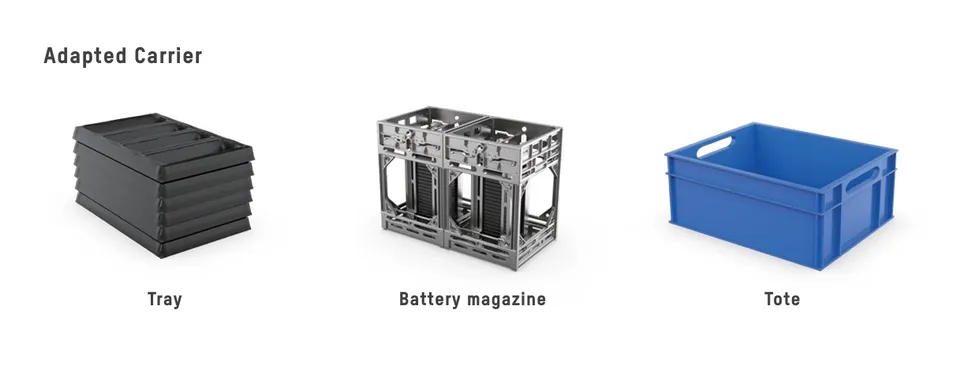

T series CTUs are suitable for all kinds of special carriers, such as trays in the 3C industry, lines and tools in the manufacturing industry, and battery magazines in the new energy industry, which can meet the scenarios needs of loading/unloading and lineside buffer for all kinds of machines.
For human-machine mixed traffic scenarios, the T series CTUs are equipped with multiple safety protections to achieve dual safety for personnel and materials. Flexible customized fork plates are available to meet the storage needs of materials of all sizes, with loads up to 100kg per box.
Key Features
Flexibly adapts to typical carriers in various industries. Lifting and placing is frictionless, adapting to high cleanliness manufacturing scenarios.
Telescopic obstacle avoidance, material deviation detection, and presence detection. Protects personnel in human-machine mixed traffic.

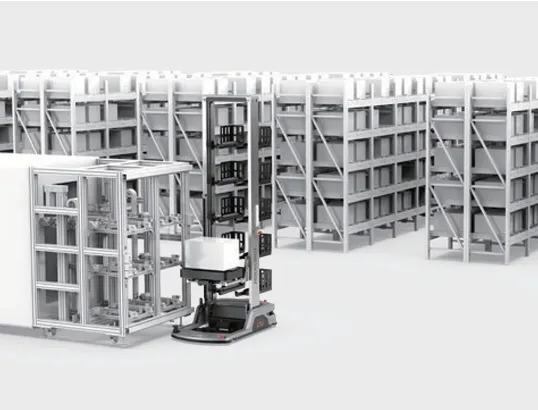

High outbound and inbound efficiency. The FlashStation docks up to 8 boxes at a time for maximum throughput.
Technical Specifications

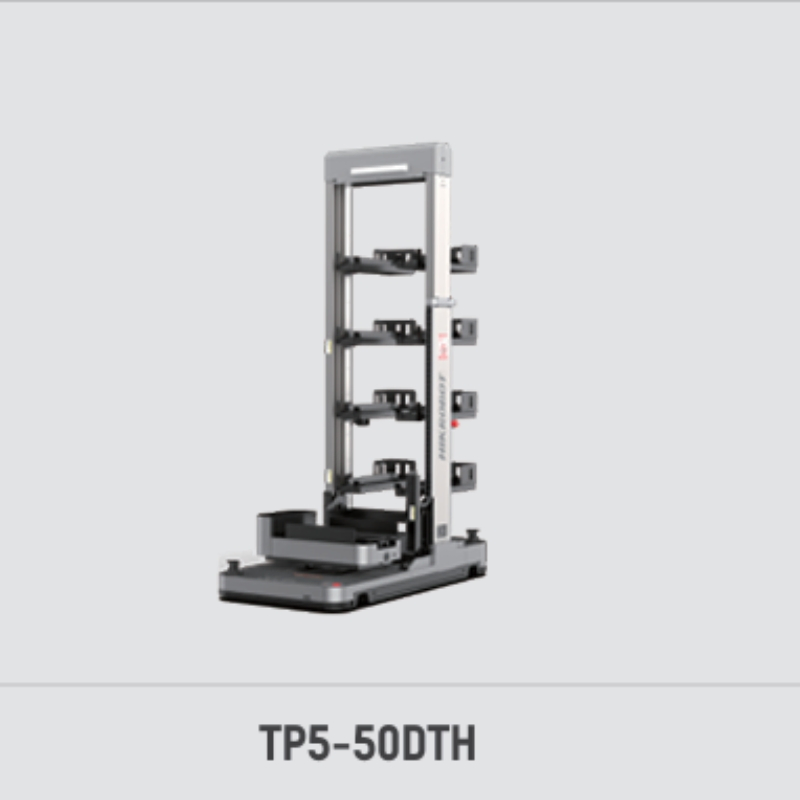

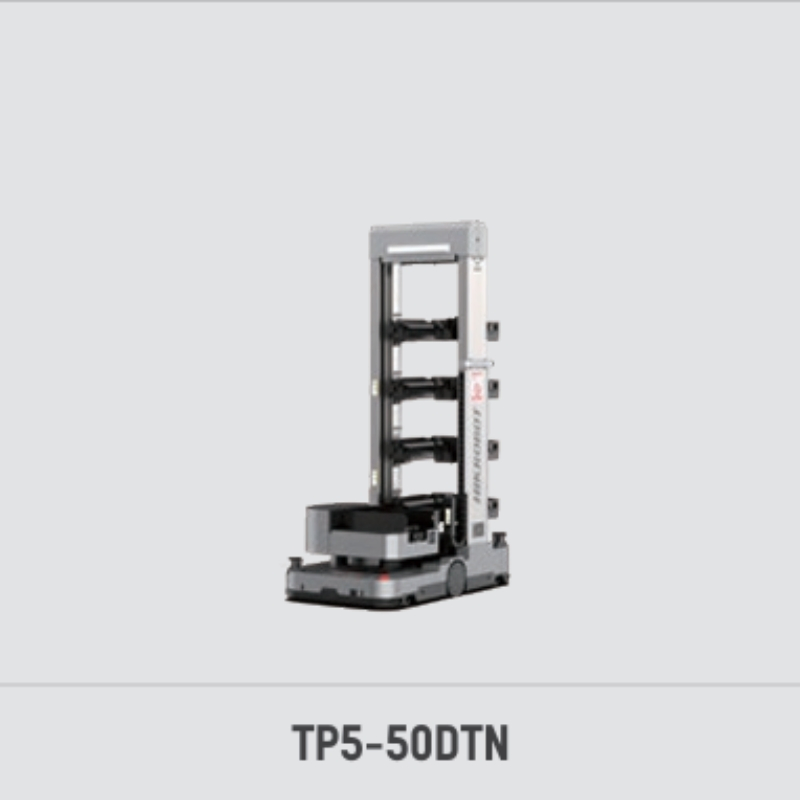

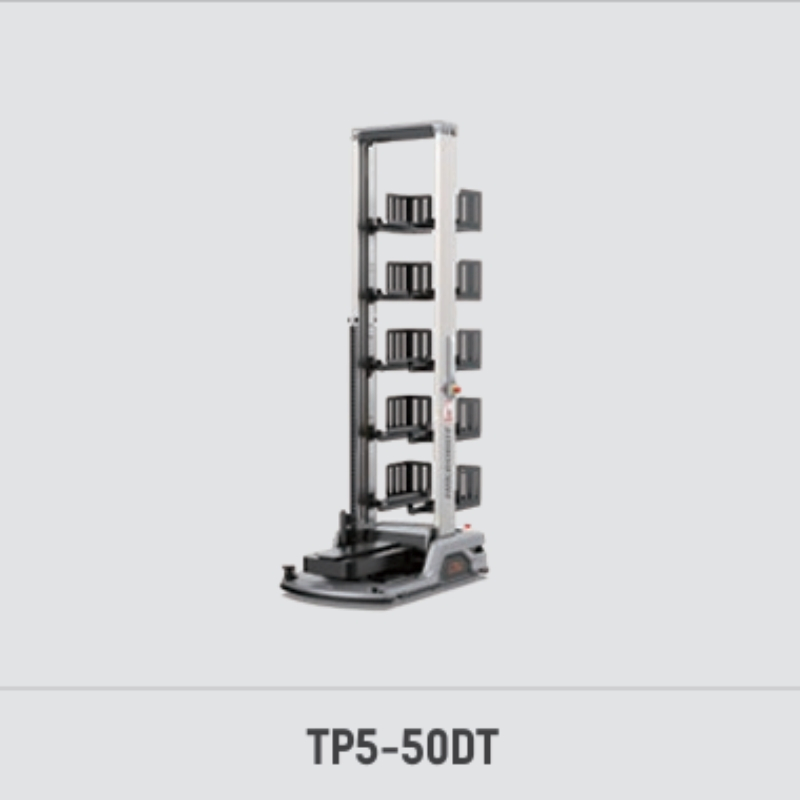

| Model | TP1-50DT | TP5-50DTN | TP5-50DT | TP5-50DTH |
|---|---|---|---|---|
| Rated running speed (m/s) | 1.8 | 1.8 | 1.6 | 1.8 |
| Travel stopping accuracy | ± 10mm / ± 1° | ± 10mm / ± 1° | ± 10mm / ± 1° | ± 10mm / ± 1° |
| Lifting accuracy (mm) | ± 2 | ± 2 | ± 2 | ± 2 |
| Aisle width (mm) | 840 | 850 | 1050 | 1100 |
| Run time (h) | 6-8 | 6-8 | 6-8 | 6-8 |
| Charging time (h) | ≤ 1.5 | ≤ 1.5 | ≤ 2 | ≤ 2 |
| Navigation mode | V-SLAM / 2D barcode / L-SLAM | |||
| Drive method | Differential | |||
| Interaction | Touchscreen | |||
After-Sales Service

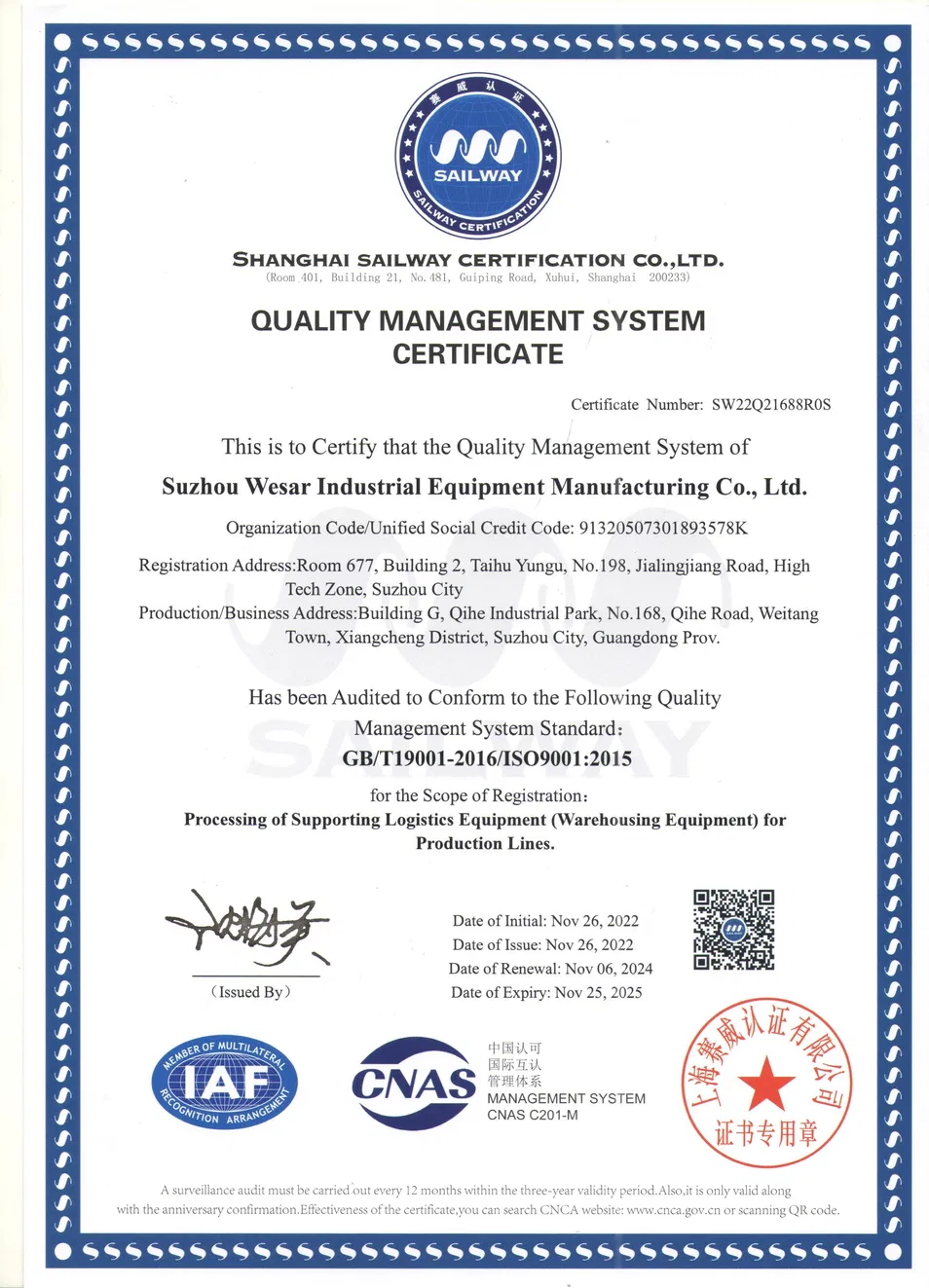

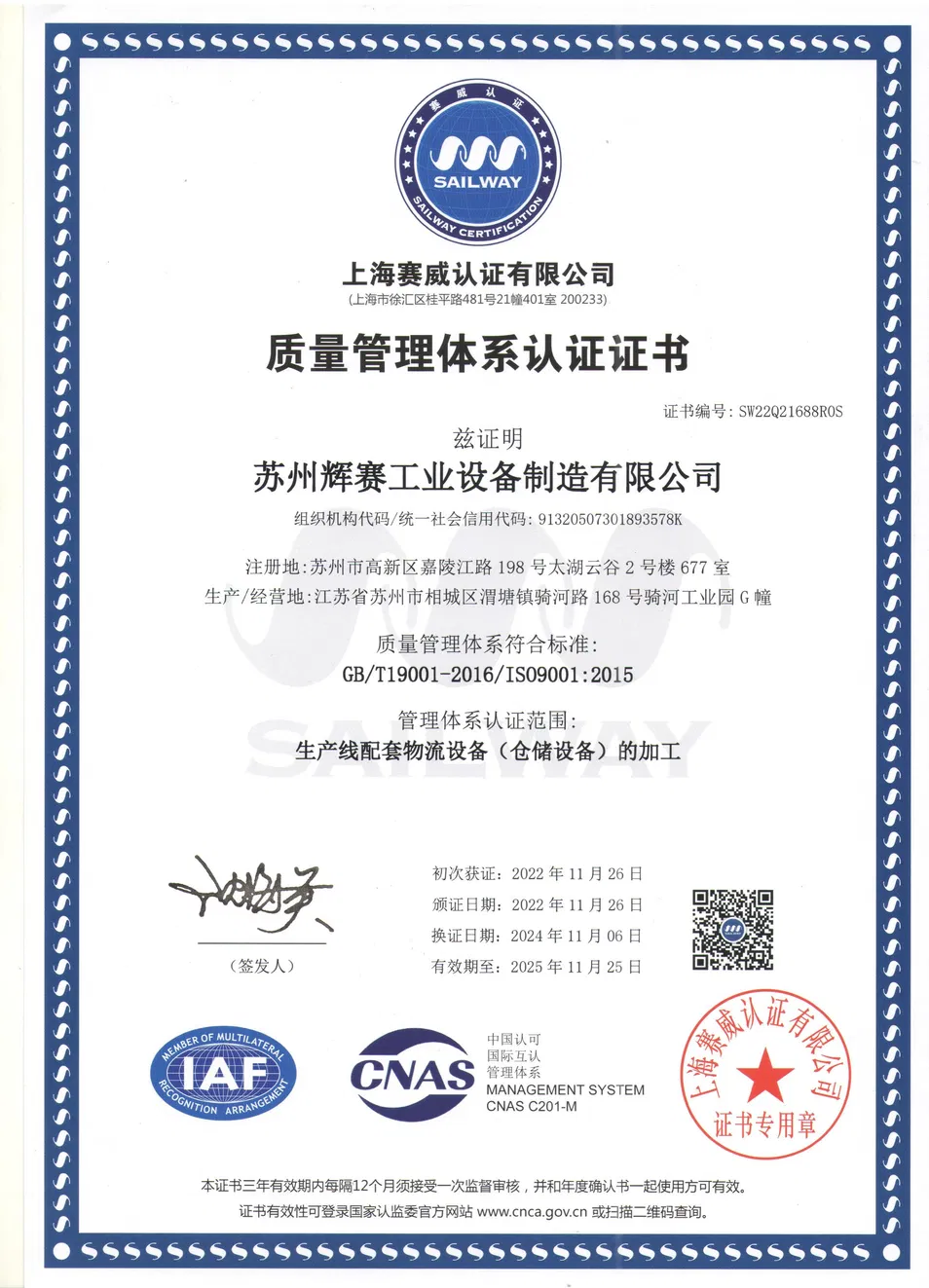

Certifications
