Round Buidling Parking System Circular Type Parking Equipment

1 / 5

Round Buidling Parking System Circular Type Parking Equipment

Customization:	Available
Level:	Max 10 Parking Levels
Parking Post:	100-199 Posts

Send Inquiry

Product Description

Round Building Parking System Circular Type Parking Equipment

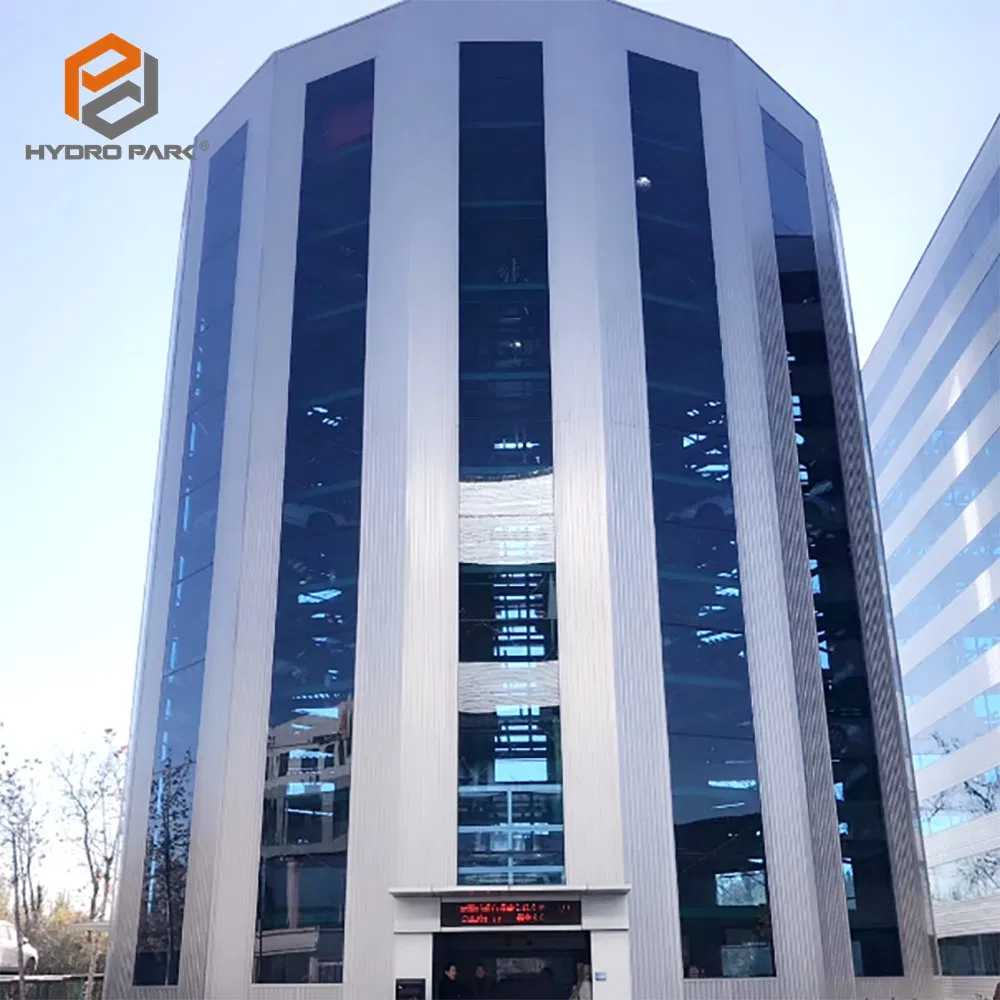

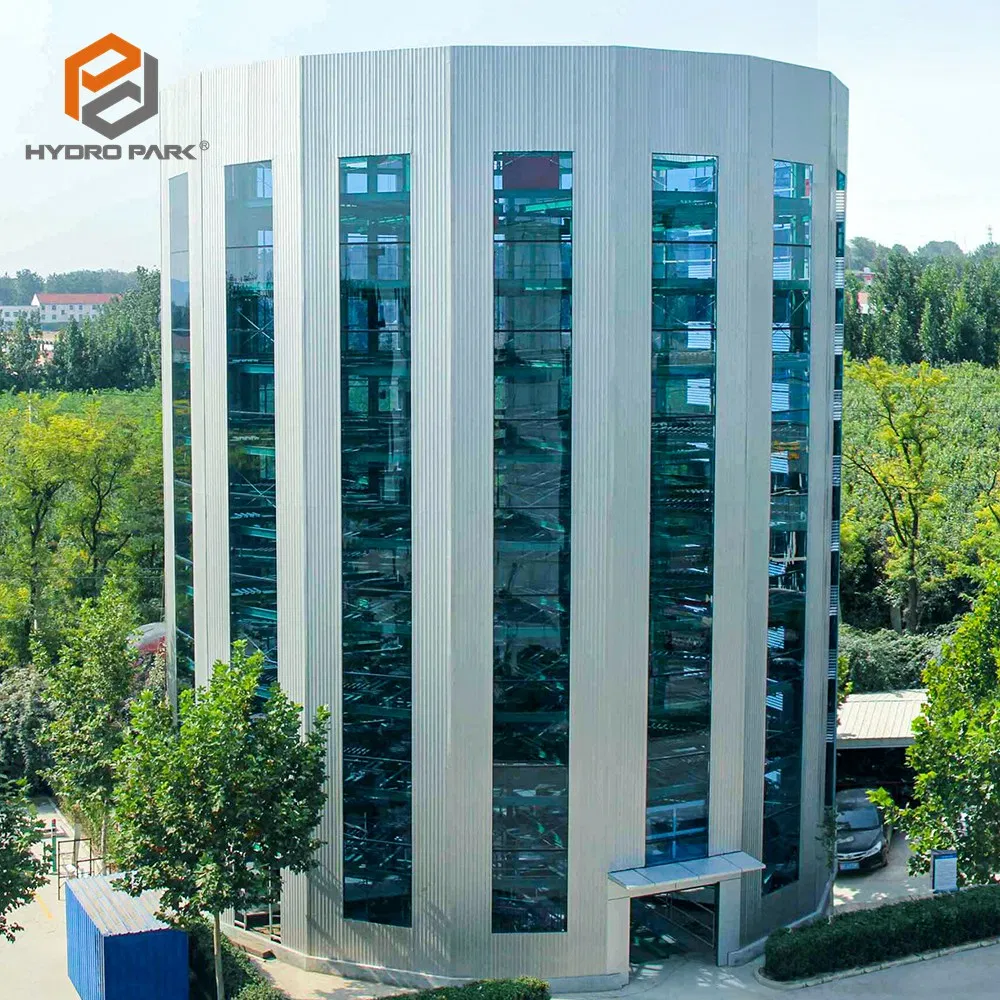

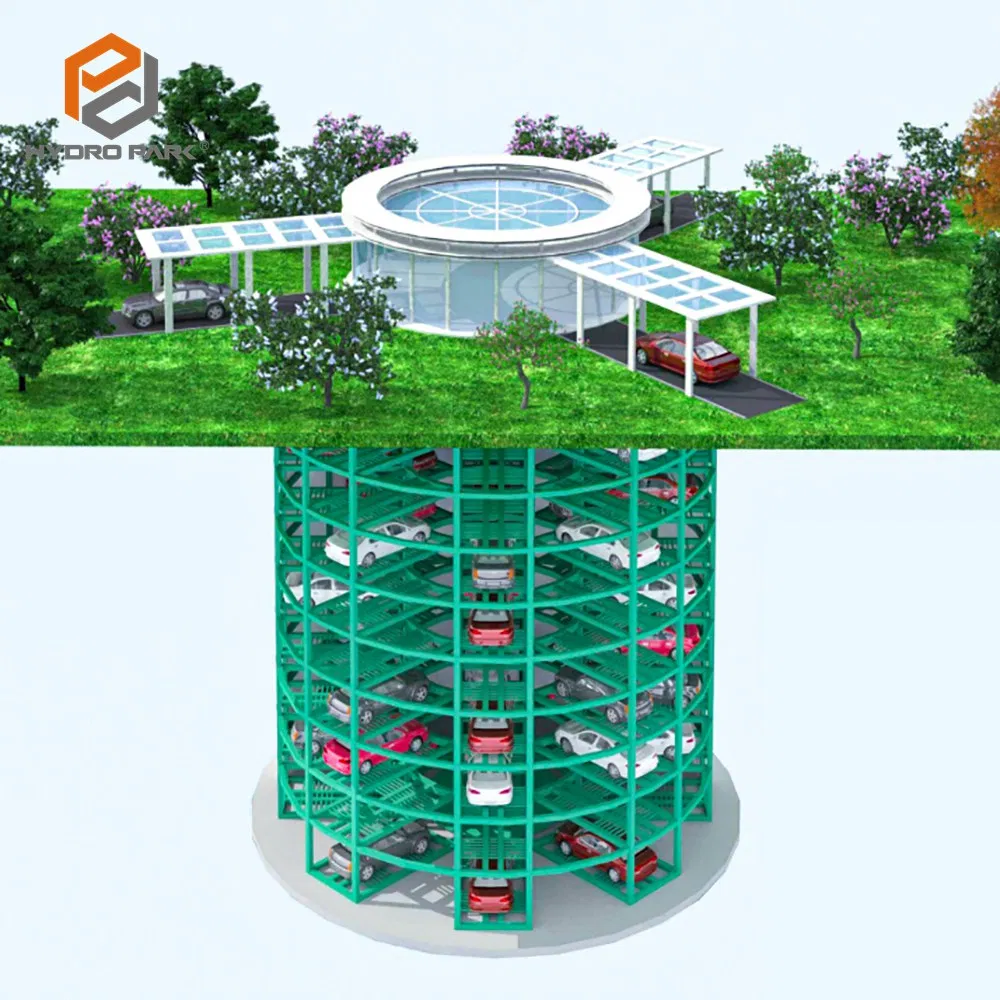

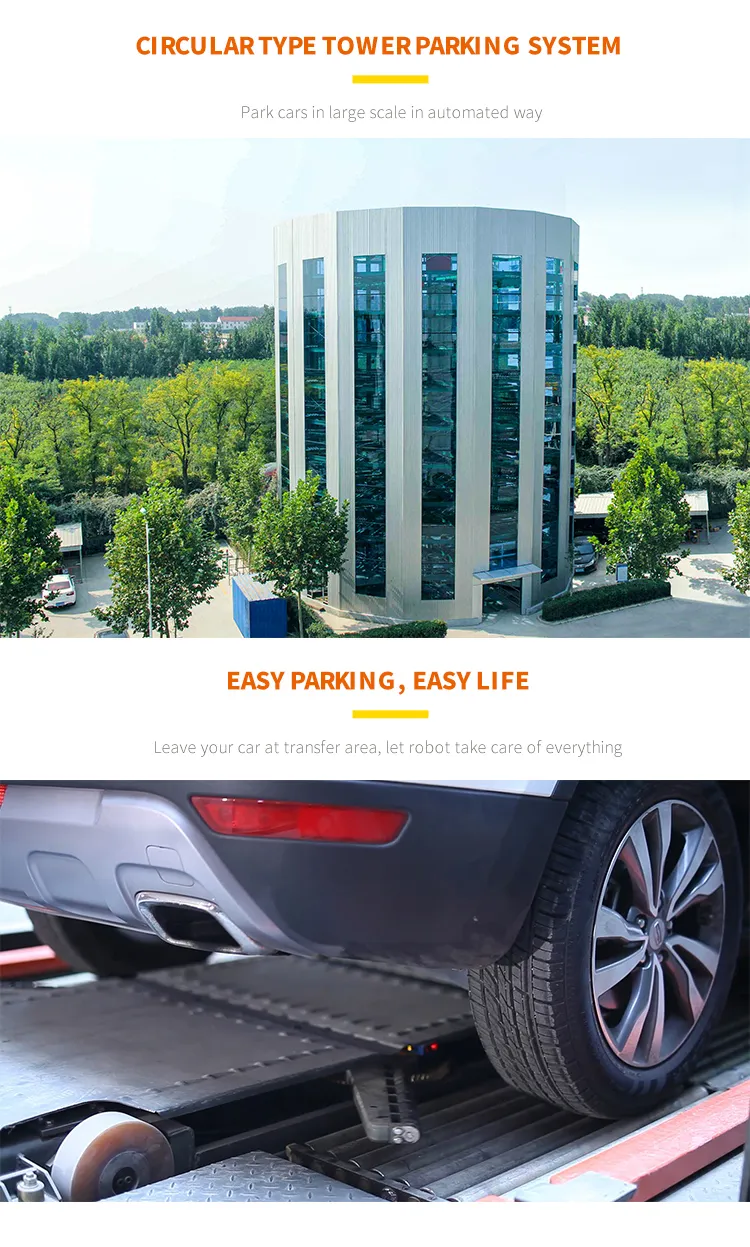

The continuous pursuit of functional, efficient and modern-looking equipment has led to the creation of an automated parking system with a streamlined design - Automated Circular Type Parking System. Circular type vertical parking system is a fully automated mechanical parking equipment with a lifting channel in the middle and a circular arrangement of berths. Making the most of limited space, the fully automated cylinder-shaped parking system provides not only simple, but also highly efficient and safe parking. Its unique technology ensures a safe and convenient parking experience, reduces parking space, and its design style can be integrated with cityscapes.

Technical Specifications

Model NO.

ATP

Control System

IC Card, Touch Screen, or Manual

Installation

Outdoor

Load Capacity

2000kg / 2500kg

Material

Aluminum

Operation Mode

Fully automatic

Speed

Up to 95m/Min

Type

Automated & Hydraulic Parking System

Warranty

Structure 5 Years, Equipment 1 Year

Surface Treatment

Akzo Nobel Powder Coating

Certification

CE, ISO, CCC

Safety Device

Mechanical Lock & Safety Sensors

Core Features & Advantages

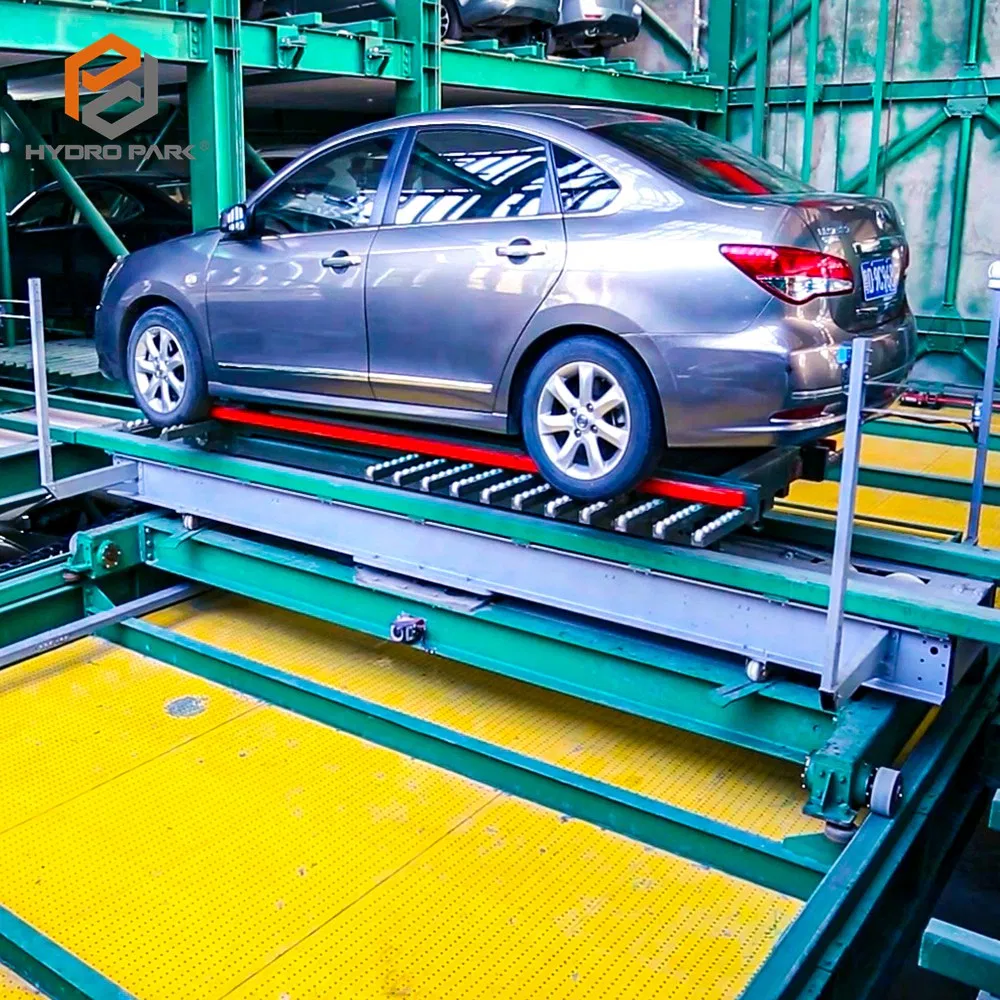

Stable intelligent lifting platform with advanced comb exchange technology.
Average vehicle access time is only 90 seconds.
Reduces required surface area by approximately 65%.
Multiple safety detection for over-length and over-height protection.
User-friendly design: no narrow ramps or dangerous dark stairwells.
Eco-friendly: less traffic, pollution, and noise during parking.

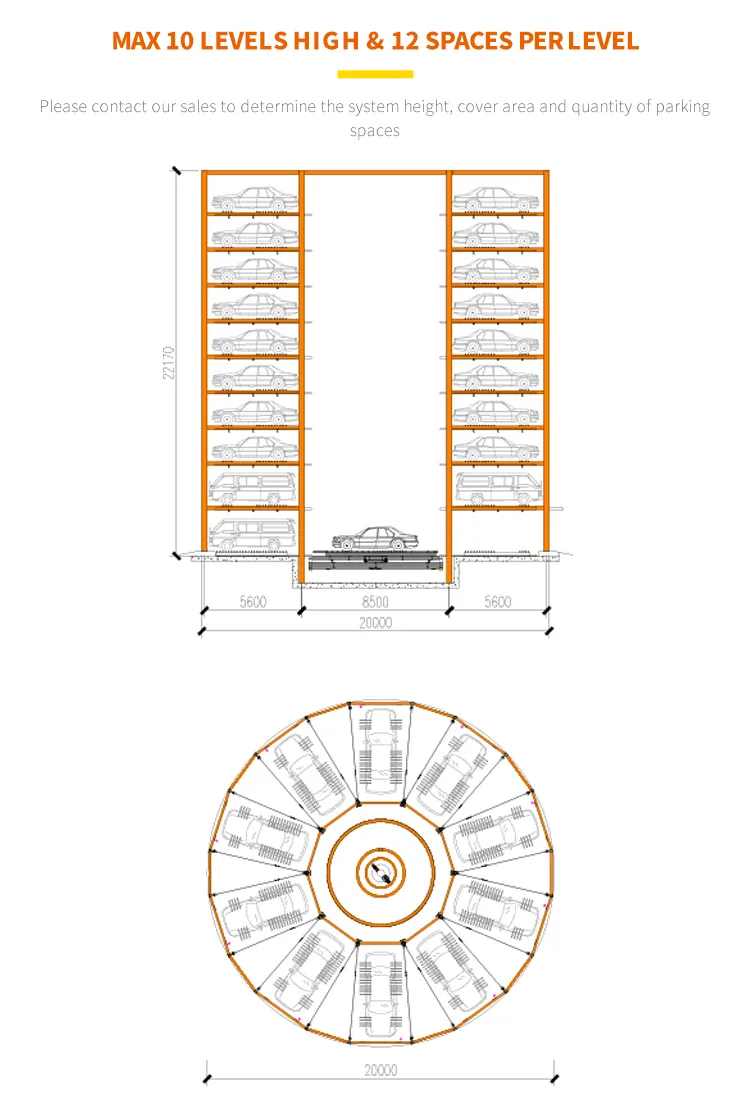

Compact design: one Ø18m tower accommodates up to 60 cars.
Fully automated operation reduces the need for onsite staff.

How to Store Your Car

Park the car according to the navigation screen and voice instructions. The system scans vehicle dimensions and weight.

Leave the room and swipe the IC card at the entrance.

The lifting platform transports the vehicle to the designated floor and parking space via lifting and swinging.

How to Pick Up Your Car

Swipe IC card on the control machine and press the pick-up key.

The platform moves to the designated floor to retrieve the vehicle.

The vehicle is brought down to the entry level.

Automatic doors open for the driver to drive the vehicle out.

Frequently Asked Questions

Q1: How fast can I retrieve my car from the circular parking system?

The system is highly efficient with an average access time of only 90 seconds, thanks to advanced comb exchange technology and high-speed lifting (up to 95m/min).

Q2: What is the maximum vehicle weight the system can handle?

The standard load capacity is 2000kg, with customized options available for up to 2500kg per vehicle.

Q3: How much space can this system save compared to traditional parking?

The Automated Circular Type Parking System can reduce the required surface area by approximately 65%, allowing up to 60 cars to be parked in a compact tower with only an 18m diameter.

Q4: Is the system safe against theft and vandalism?

Yes. Drivers do not access the internal parking area, and the system is fully automated. This eliminates concerns regarding vehicle theft, vandalism, and personal security in dark parking lots.

Q5: What safety features are included to protect the vehicles?

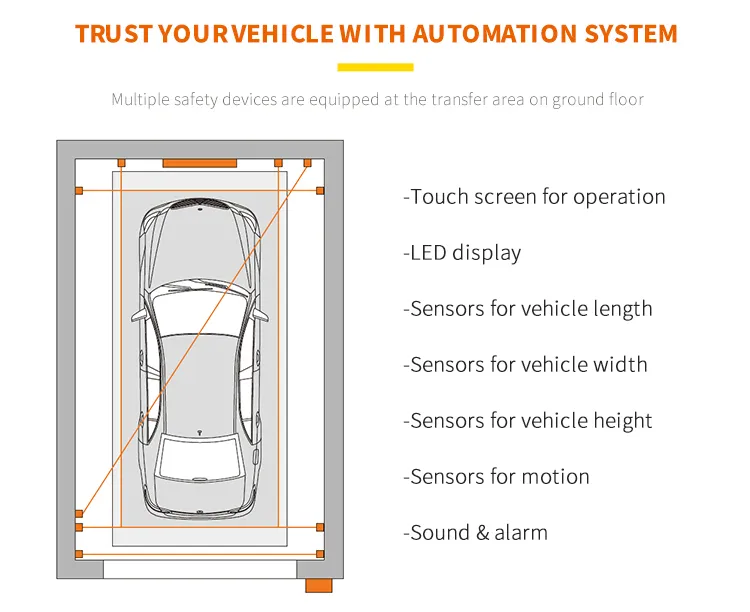

The system includes an anti-collision system, emergency stop buttons, overload protection, safety sensors for height/length detection, and mechanical locks for falling prevention.

Q6: What is the warranty for the circular parking equipment?

We provide a 5-year warranty for the main steel structure and a 1-year warranty for the whole equipment, along with lifetime after-sales service support.
