Unmanned Delivery Robot Ugv Mobile Robot Base Platform for Delivery Transport

Customization: Available
Control Mode: Continuous Path Control
Drive Mode: Electric

Product Description

i

Basic Specifications

Load Capacity
100 kg
Type
AGV (Automated Guided Vehicle)
Structural Form
4-Wheel Steering & Drive
Drive Motor
350W*4 Hub Motor
Braking Type
Motor Brake
Running Speed
5.4 Km/H
Vertical Load
80 kg
Max Climbing
15° (Full Loaded)
Range
40 Km
Ground Clearance
Suspension 90mm / Chassis 120mm
Safety Features
Collision Avoidance, E-Stop, Laser Scanner
Wading Depth
100 mm

Product Description

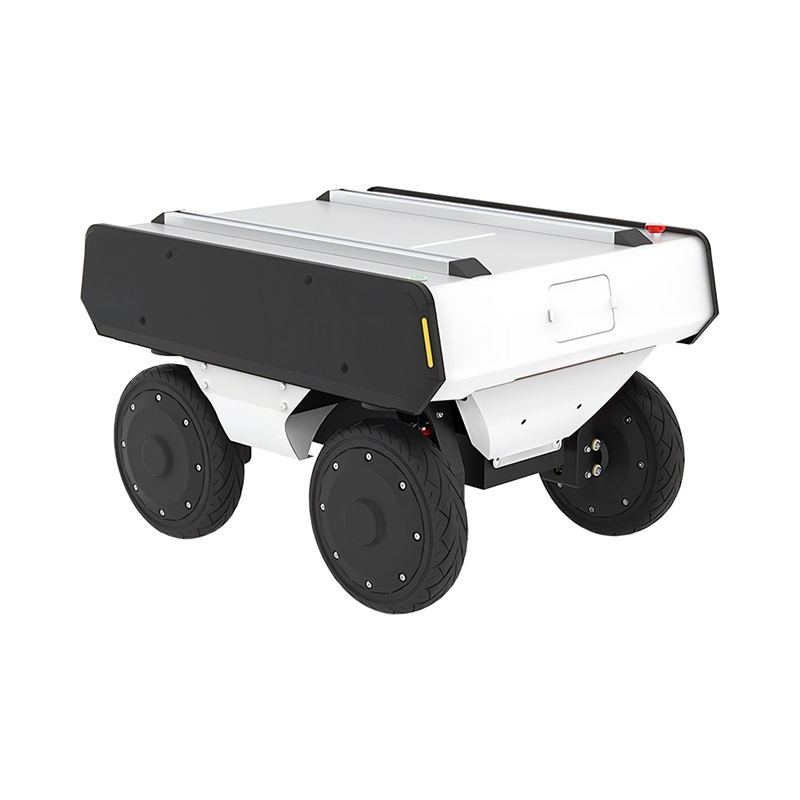

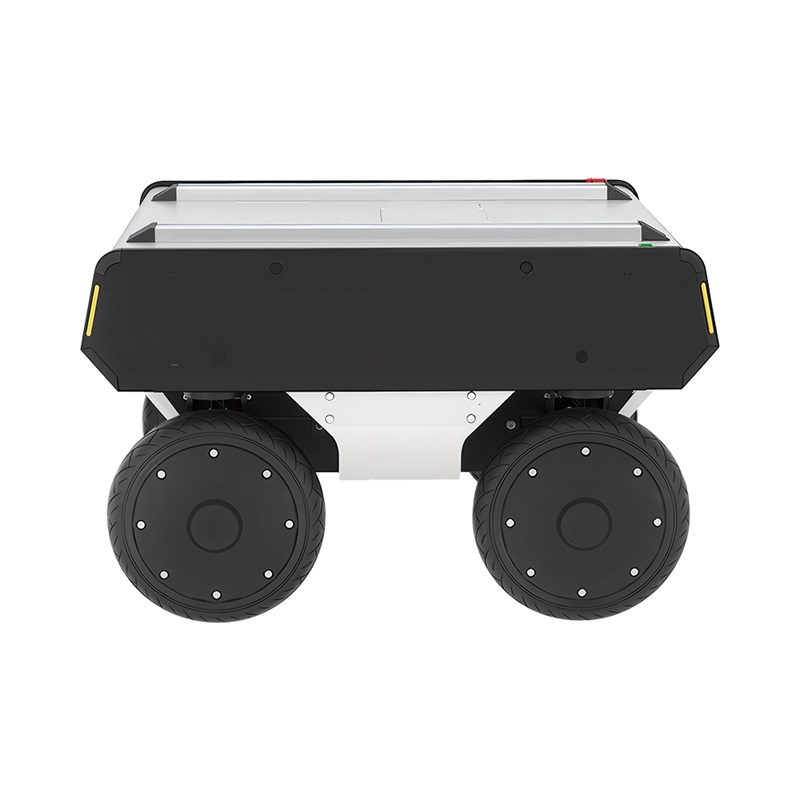

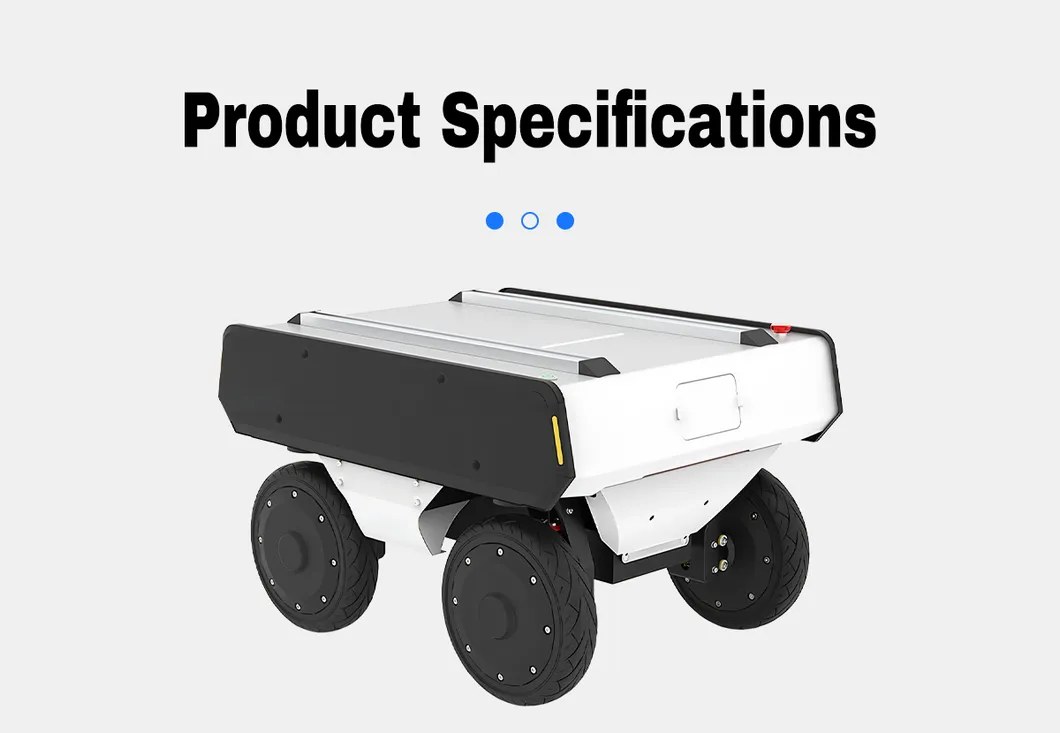

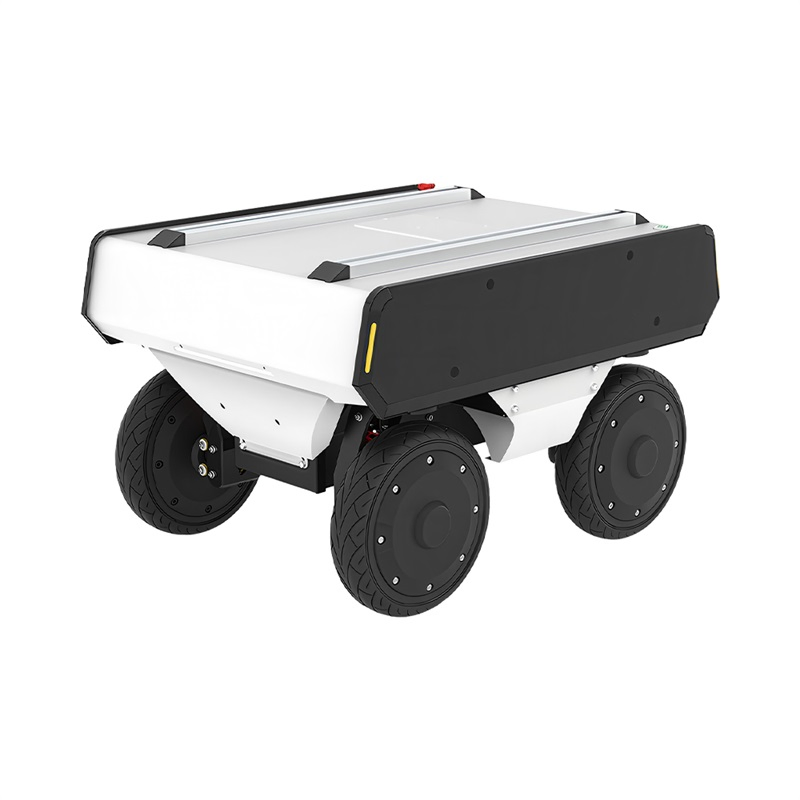

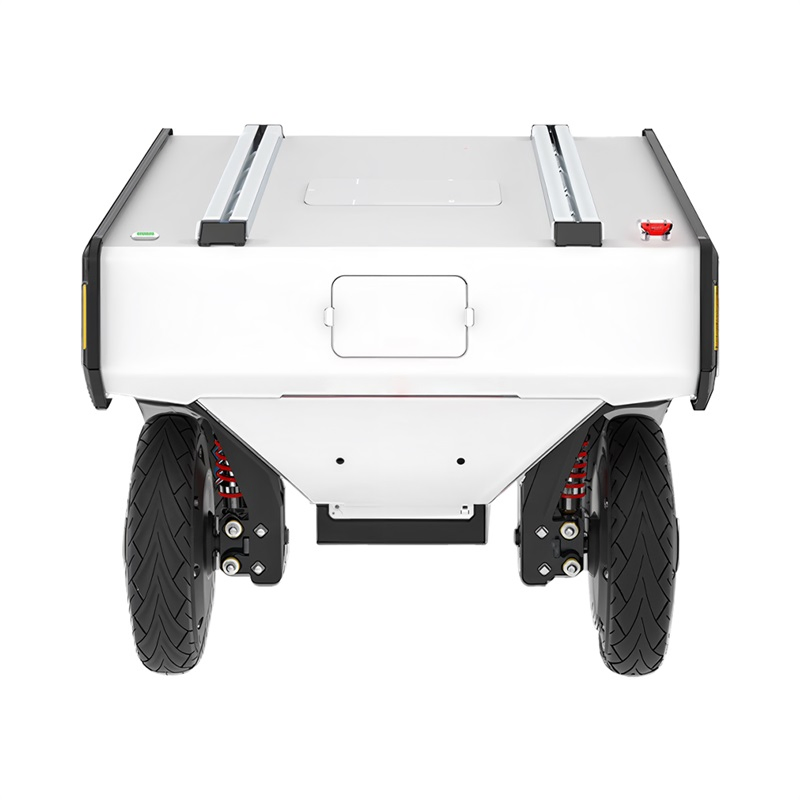

Unmanned Delivery Robot UGV Mobile Robot Base Platform
UGV Robot Base Unmanned Robot Chassis

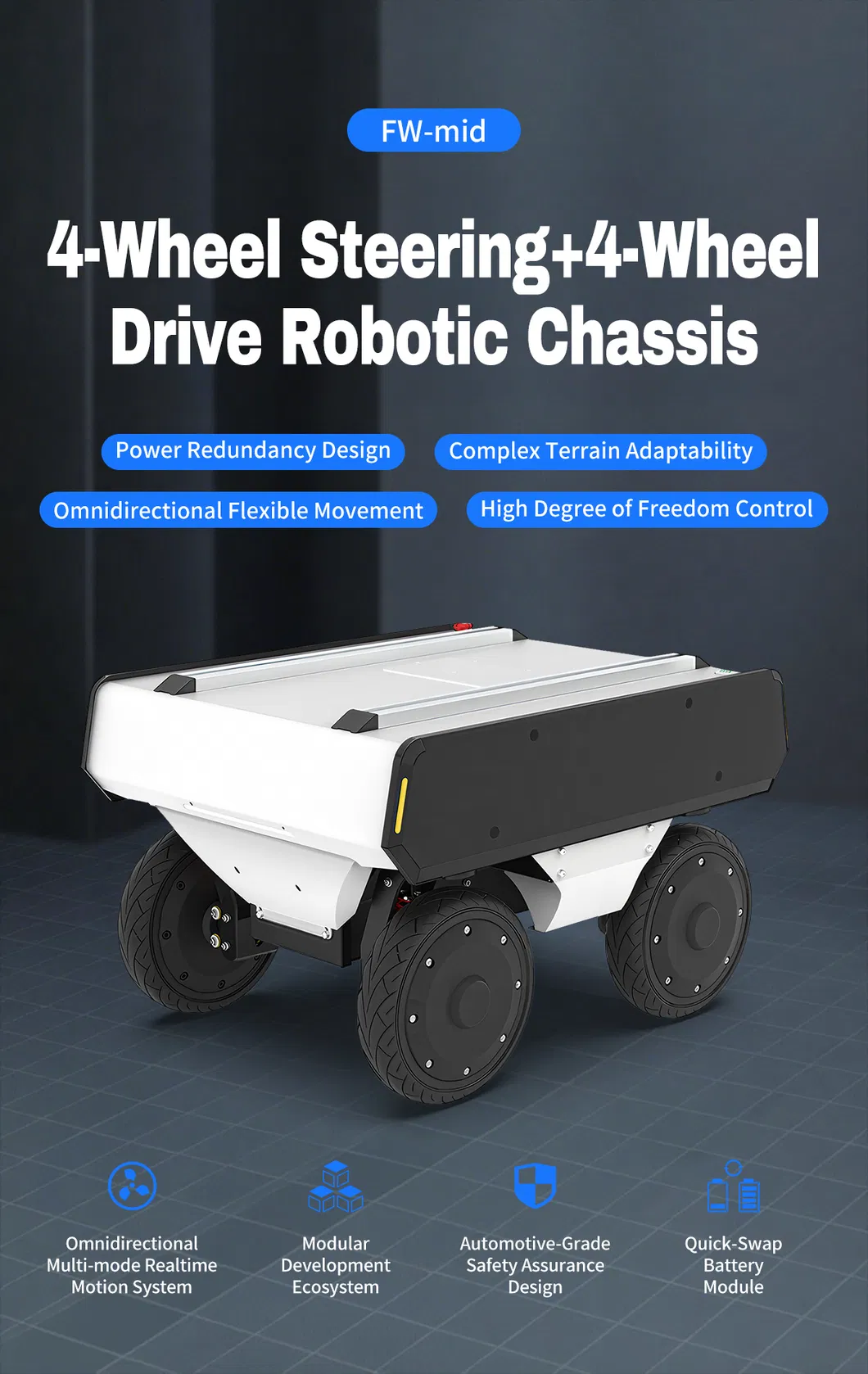

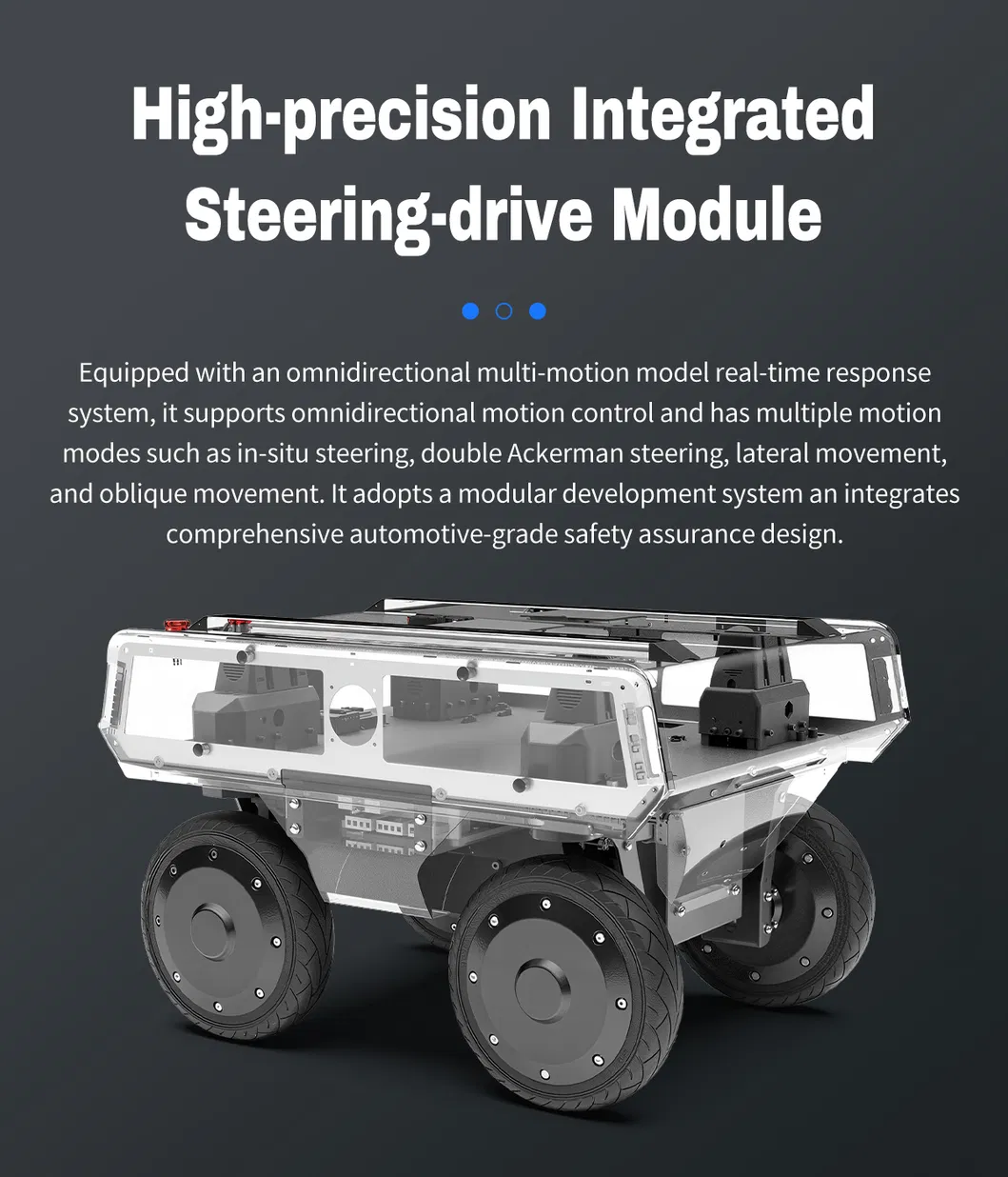

The FW-mid is a versatile wheeled robotic mobile chassis, embodying exceptional flexibility. Its four-wheel drive (4WD) structure, with independent four-wheel drive and steering, allows for precise control of chassis steering. The independent drive provides a strong driving force, superior maneuverability, and off-road performance. Its flexible control enables it to move laterally and on-site steering, and its excellent terrain adaptability makes it suitable for a variety of applications both indoors and outdoors. Its smooth, low-noise ride and tire-resistant design combine the advantages of both front-steering and differential systems, overcoming the steering shortcomings of four-wheel differentials.

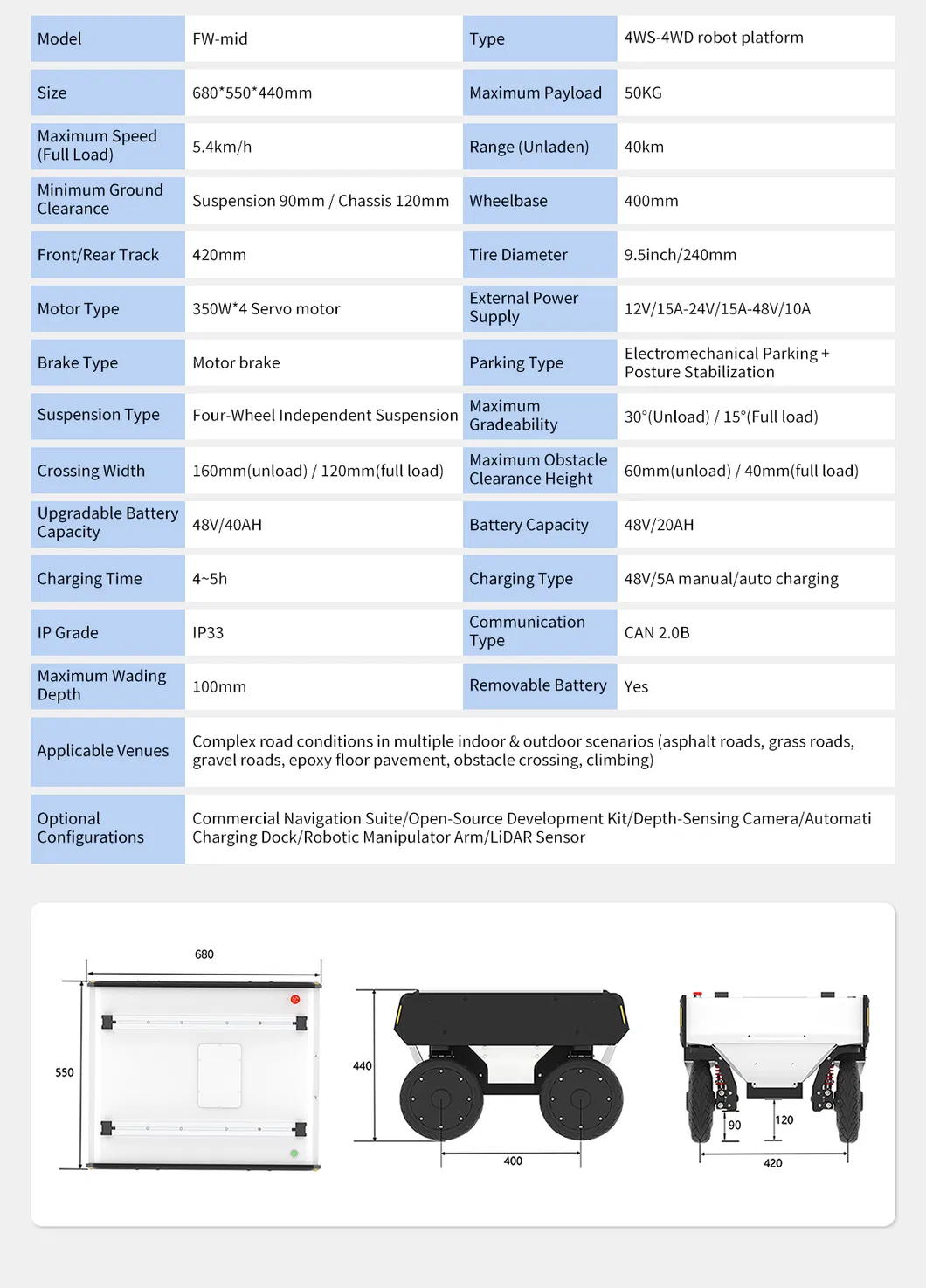

Type4WS-4WD robot platform
Drive Motor350W*4 Servo hub motor
SuspensionFour-Wheel Independent Suspension
Max Payload50KG
Max Speed5.4 km/h
Gradeability30° (Unload) / 15° (Full load)
ScenariosAsphalt, grass, gravel, epoxy floor, obstacle crossing

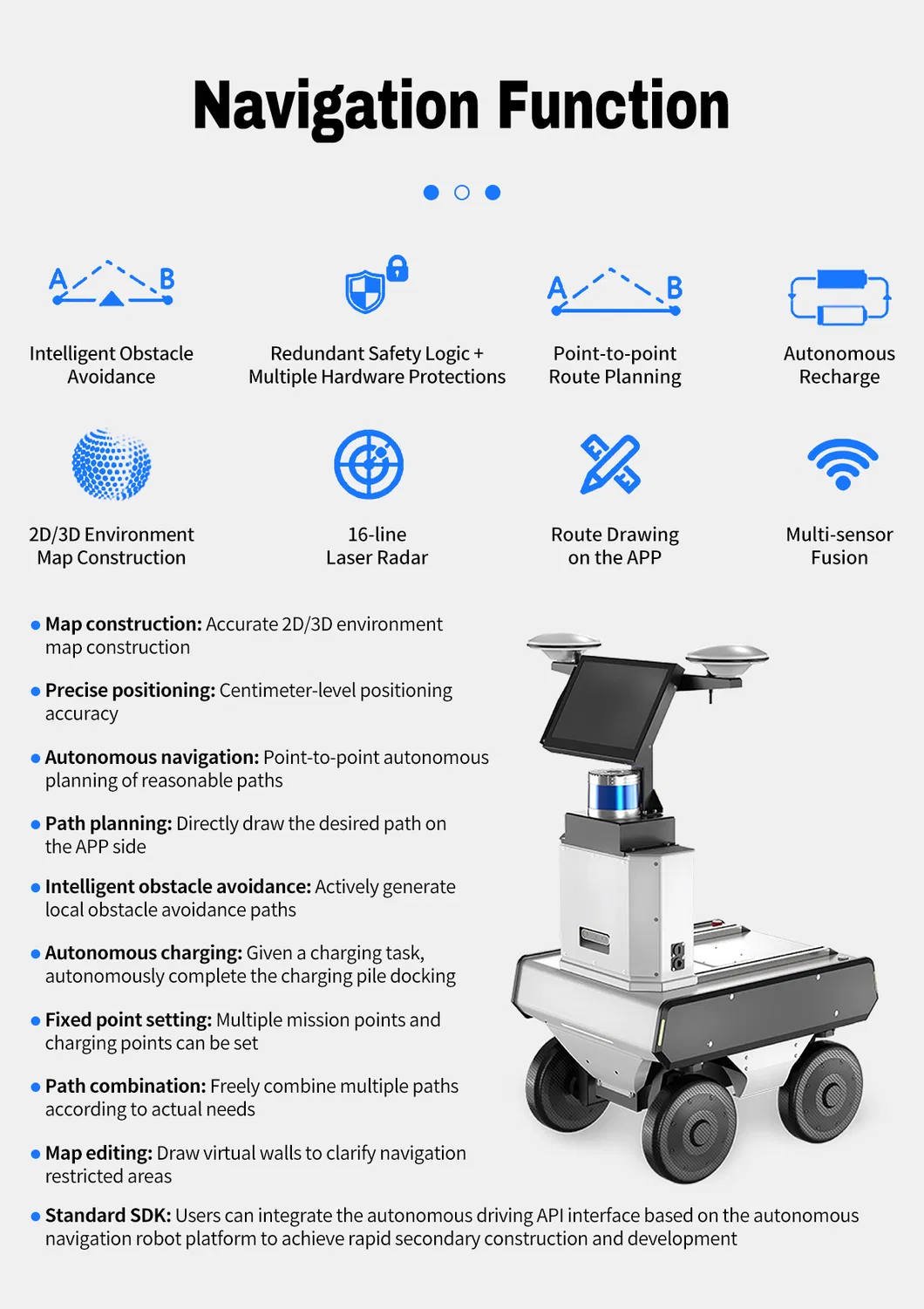

OptionsLiDAR, Depth Camera, Manipulator Arm, Auto Charging

Visual Overview

?

Frequently Asked Questions

What is the steering capability of this robot platform?

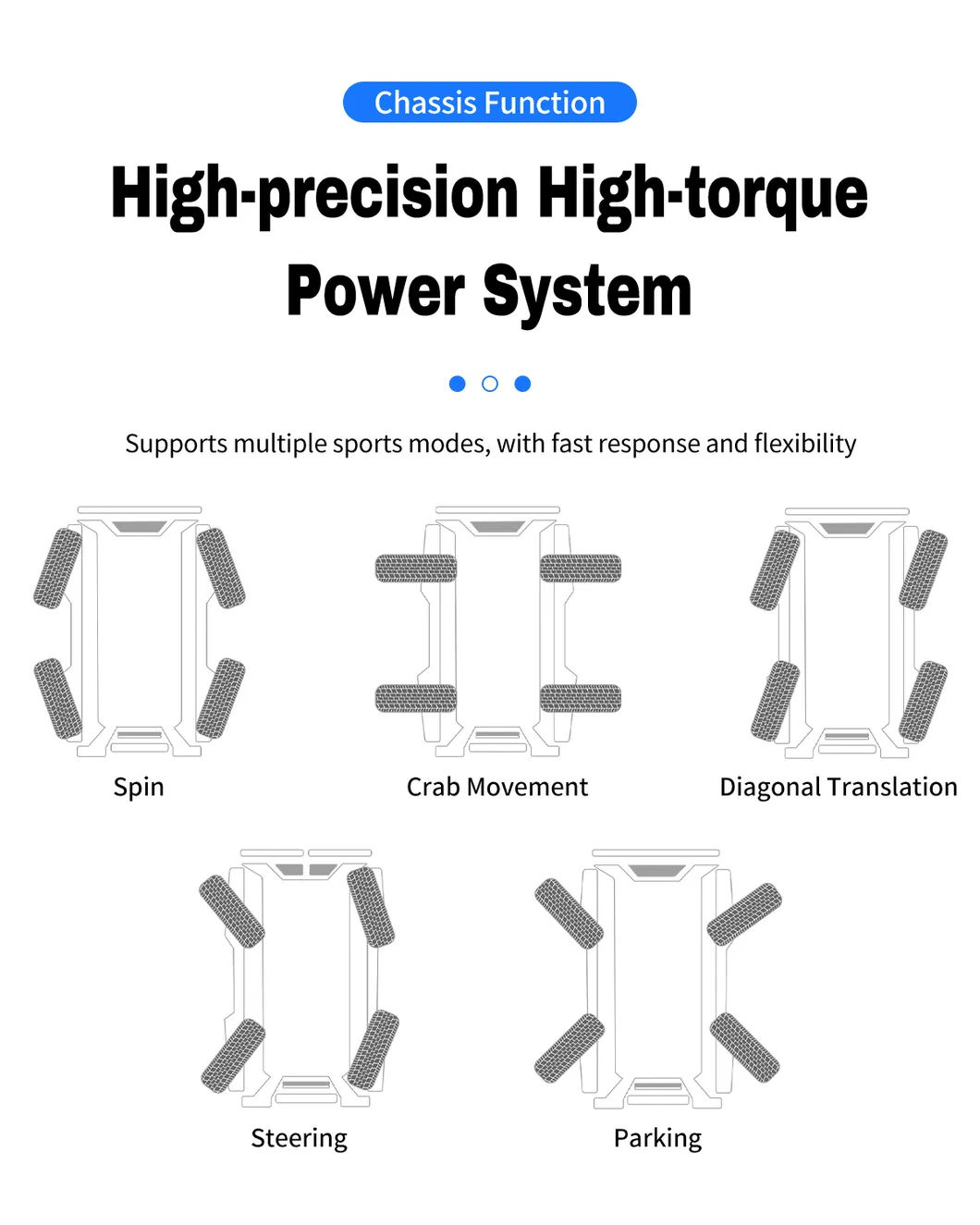

The platform features a 4WS-4WD (Four-Wheel Steering, Four-Wheel Drive) system, allowing for independent control of each wheel, enabling lateral movement and on-site steering.
What is the maximum load the UGV can carry?
The basic load capacity is rated up to 100 kg, with a vertical load capacity of 80 kg and a specific payload capacity of 50 kg for specialized transport tasks.

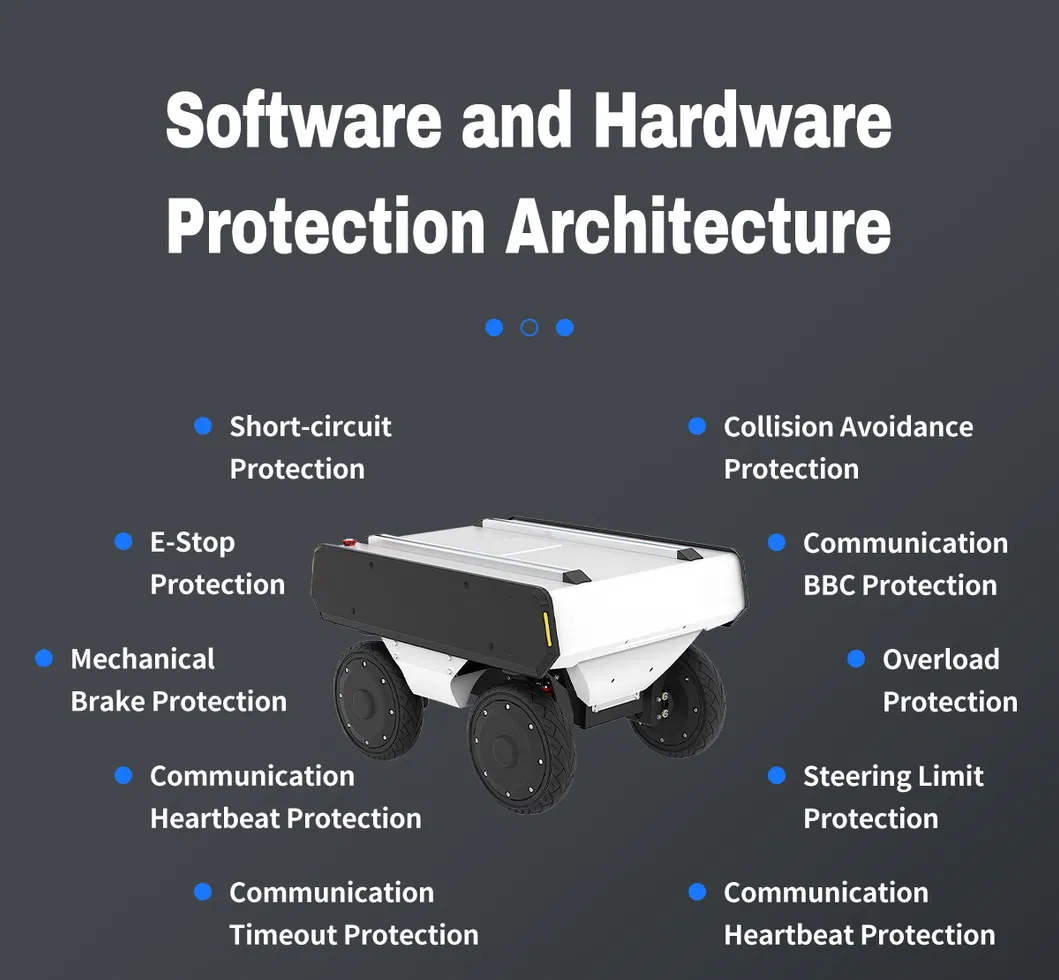

What safety sensors are integrated into the chassis?

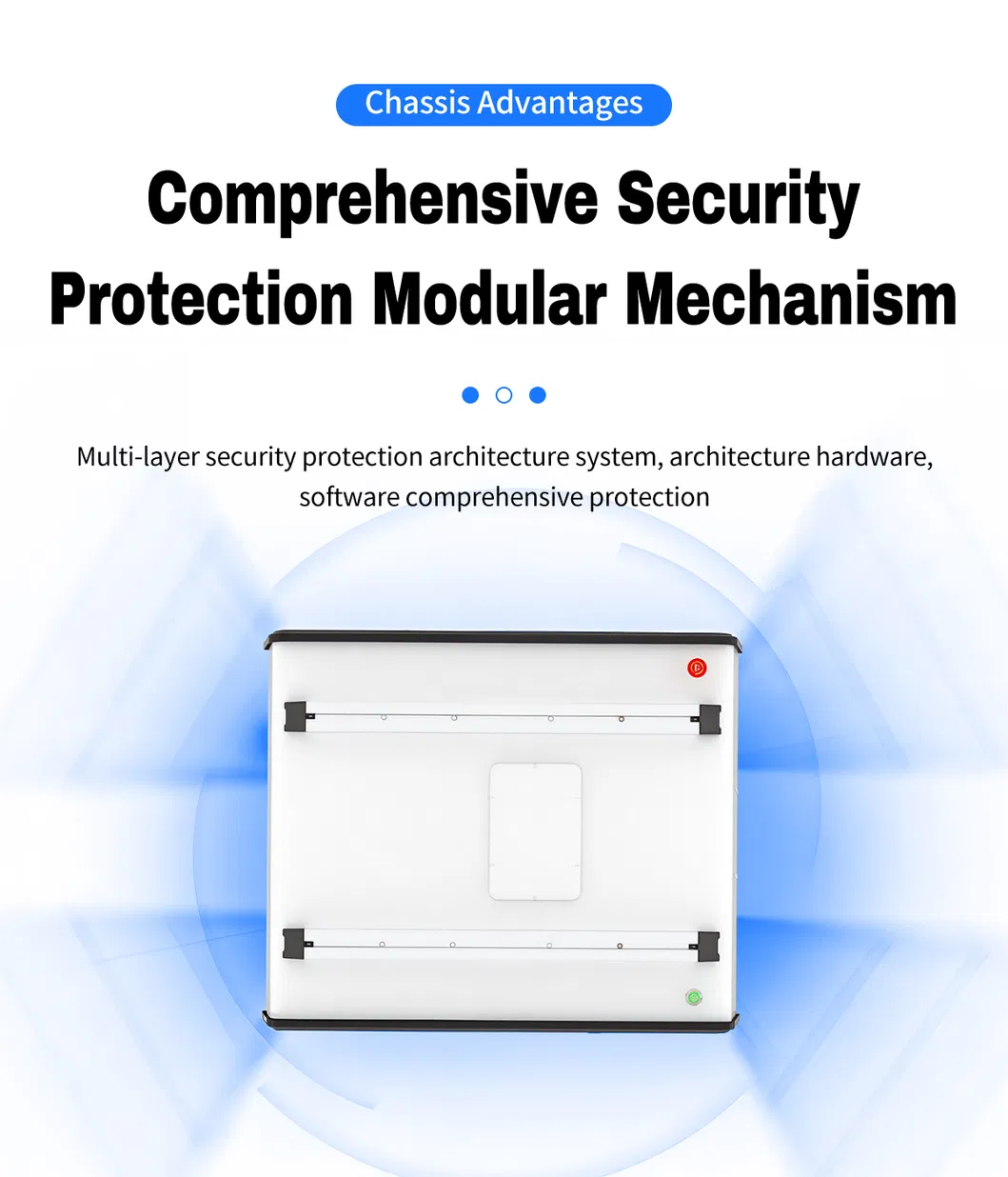

It is equipped with a comprehensive safety suite including a Collision Avoidance System, Emergency Stop Button, Obstacle Detection Sensors, and a Safety Laser Scanner.

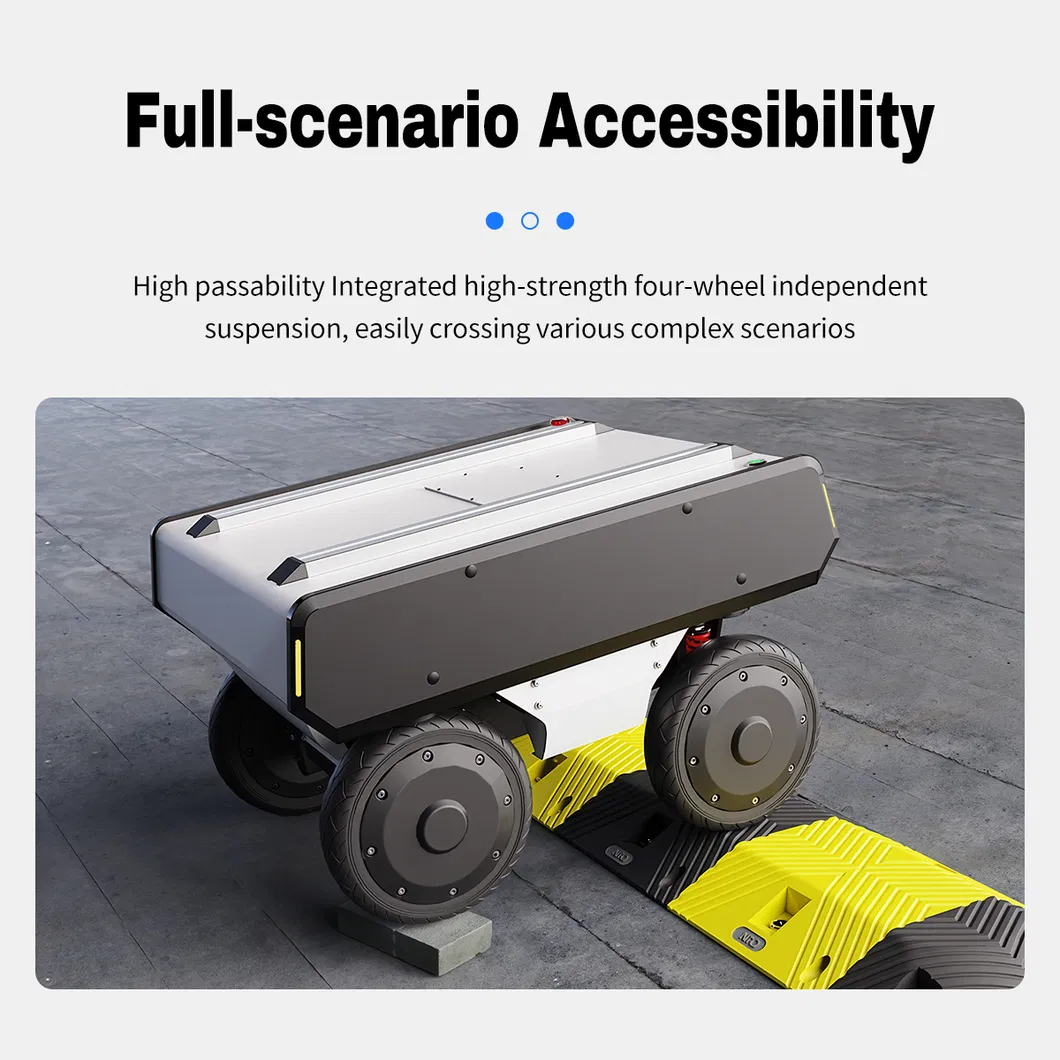

Can it handle outdoor terrains and inclines?
Yes, it is designed for complex road conditions including asphalt, grass, and gravel. It can climb angles up to 30° when unloaded and 15° when fully loaded.
What is the operational range and speed?
The UGV has a travel range of up to 40 km and reaches a running speed of 5.4 km/h.
Is the platform customizable for specific tasks?

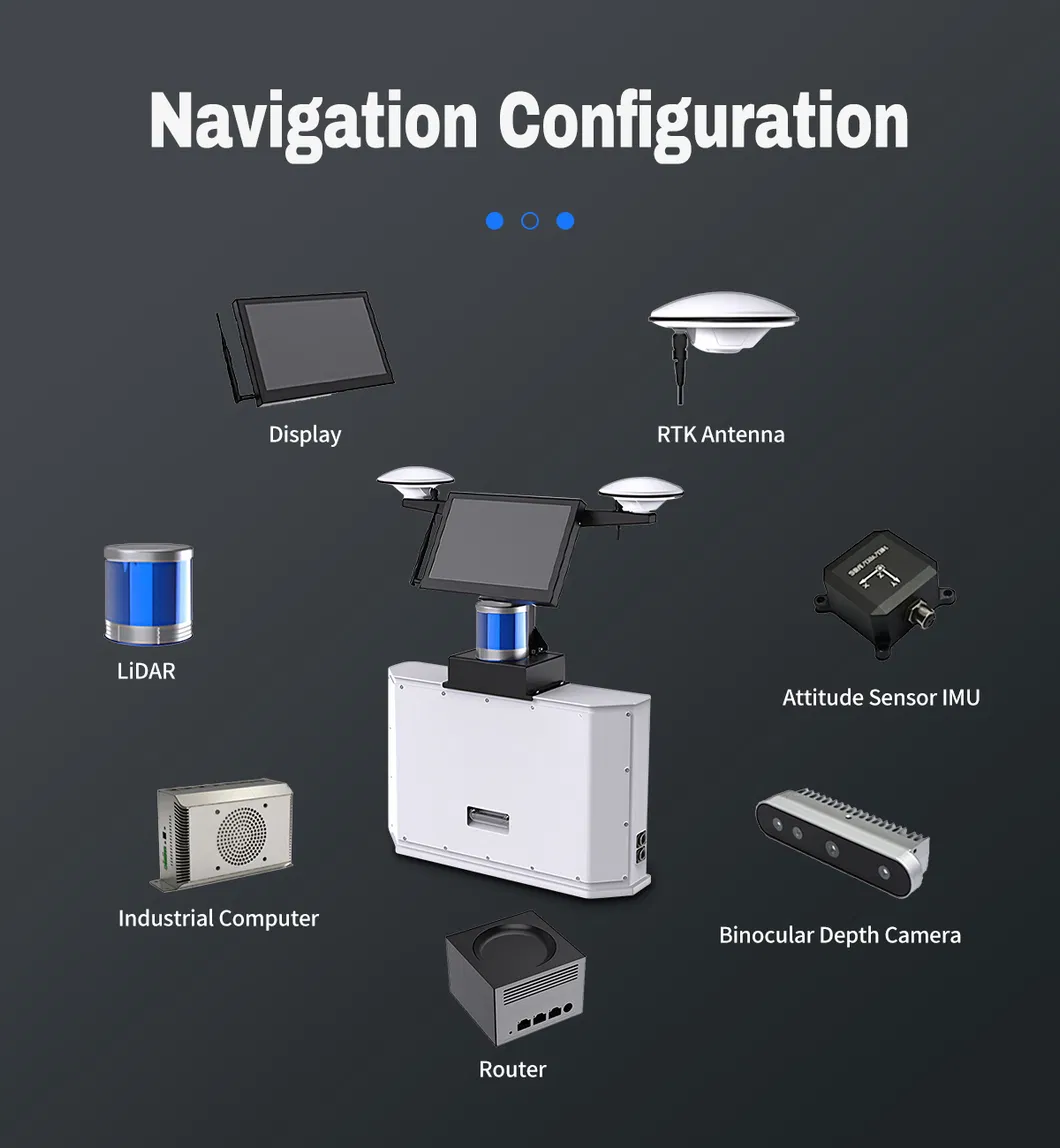

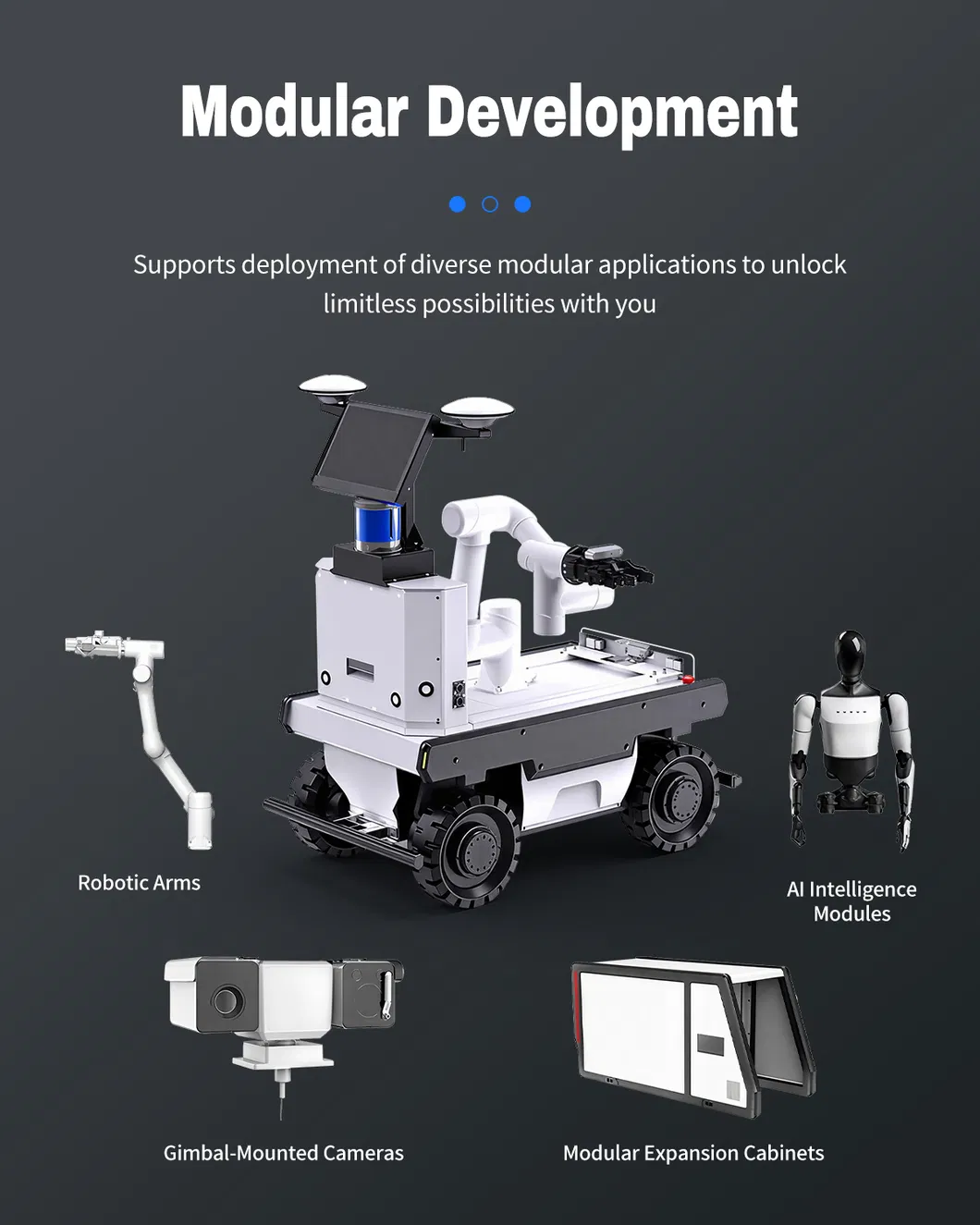

Absolutely. It can be equipped with optional configurations such as LiDAR sensors, depth-sensing cameras, robotic manipulator arms, and commercial navigation suites.
