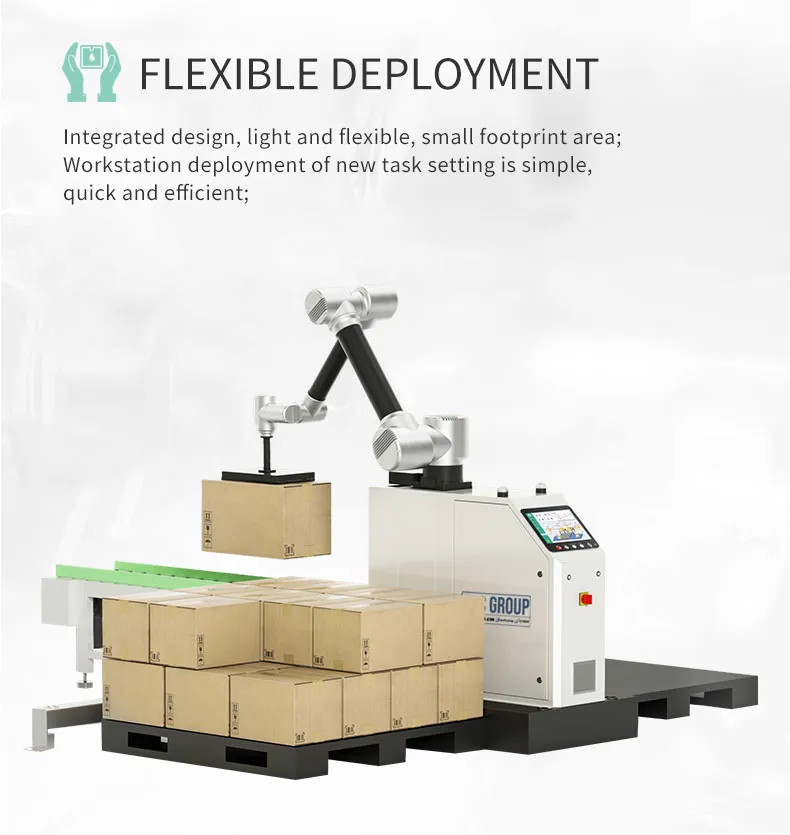

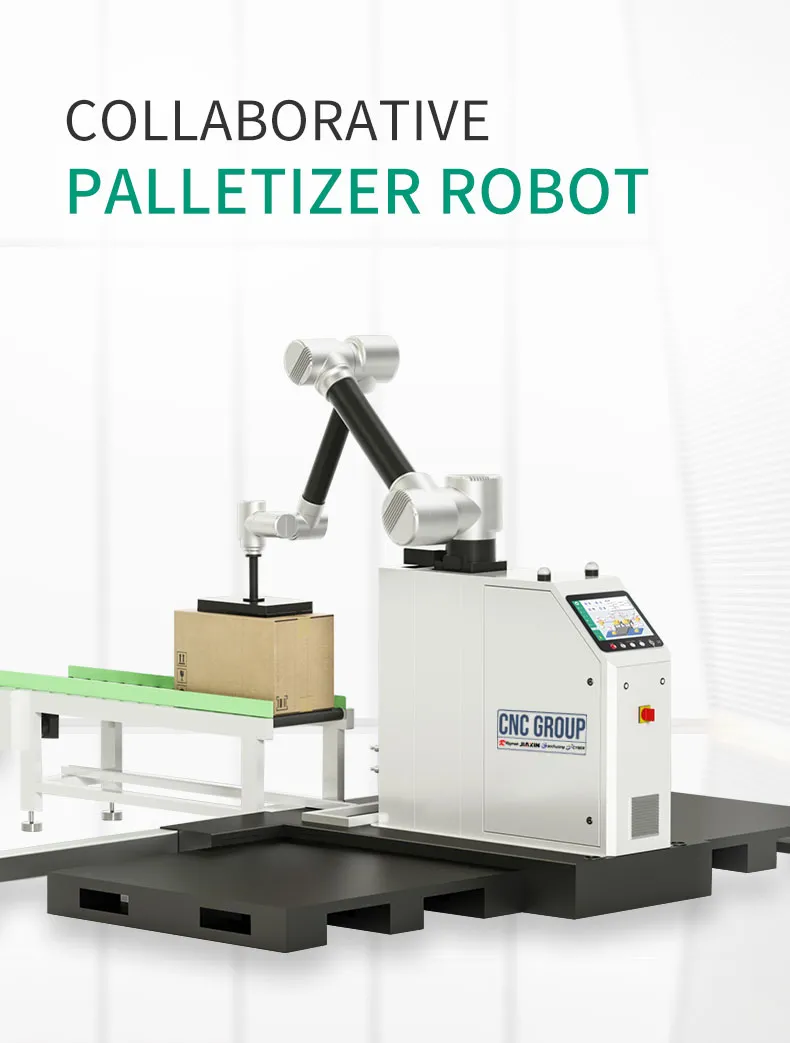

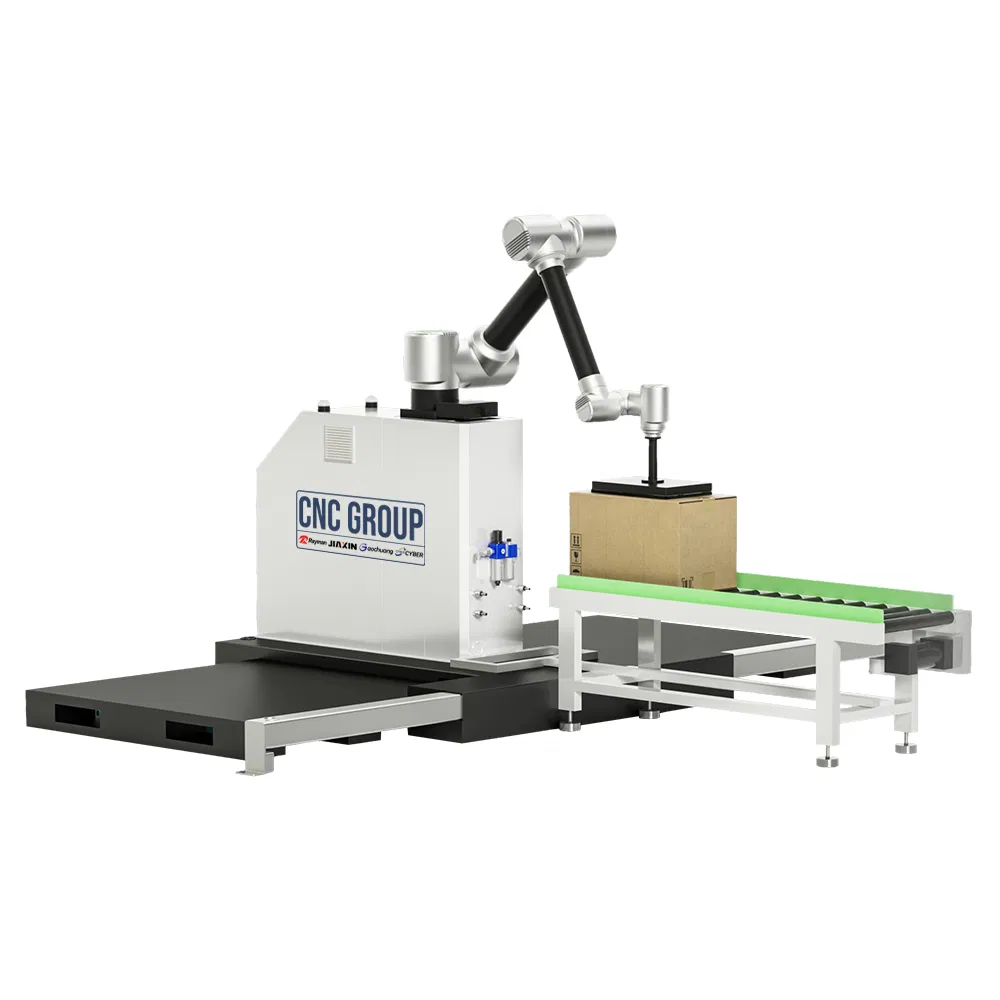

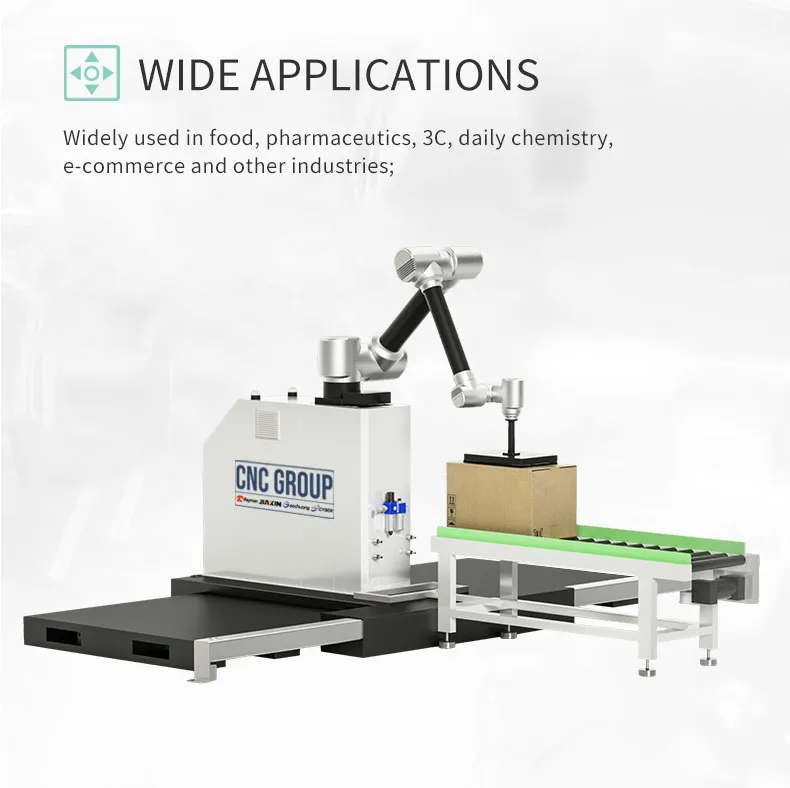

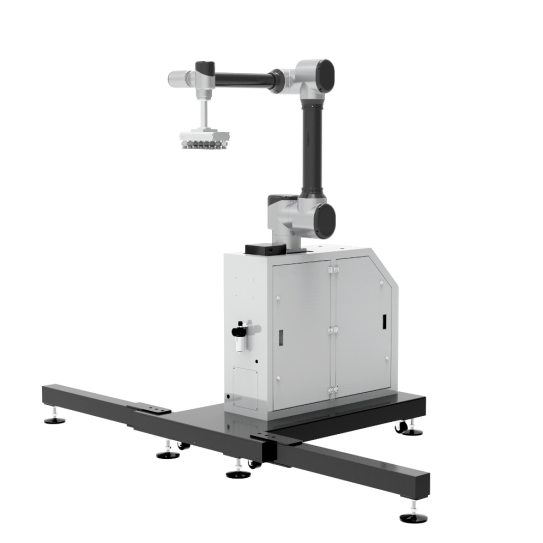

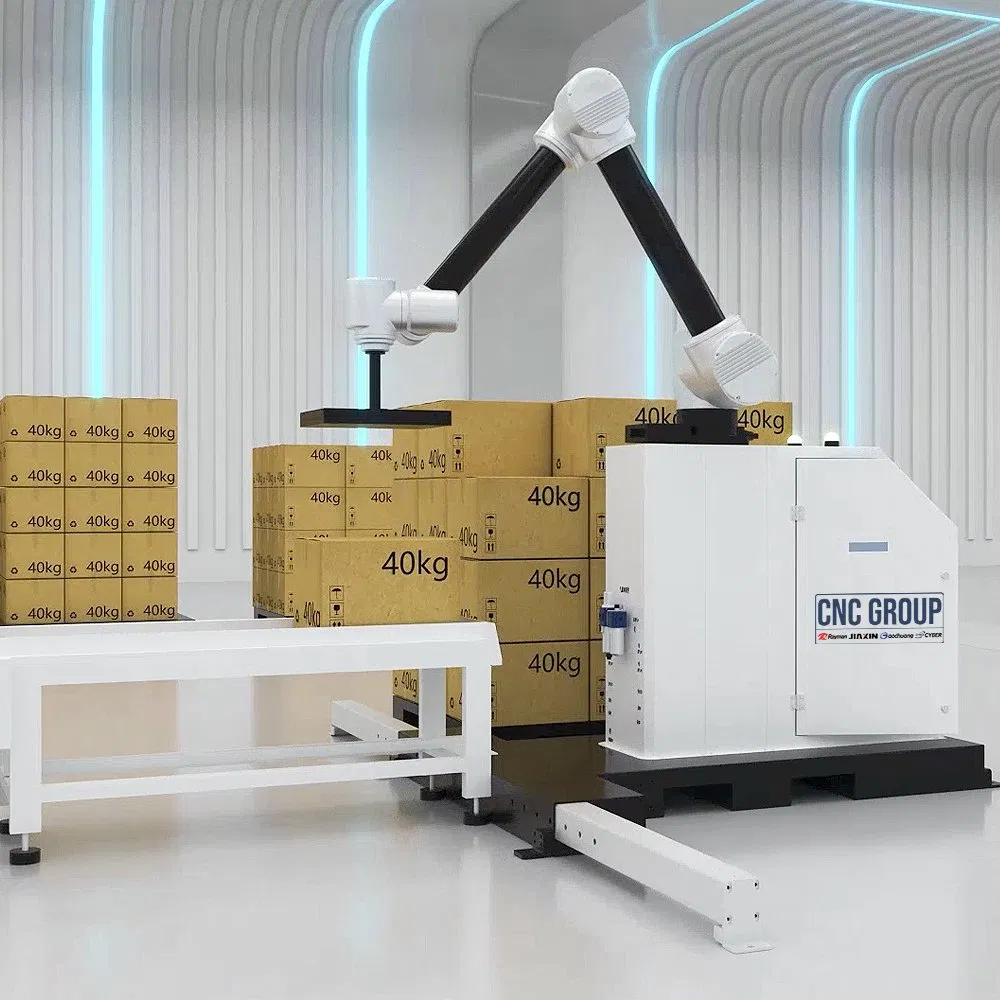

WP-40 Collaborative Palletizing Robot Workstation
🔹 Palletizing speed: 8~12 boxes/min
🔹 Pallet size: 1200mm (L) x 1200mm (W) x 150mm (H)
🔹 Pallet placement: Manual (one left and one right)

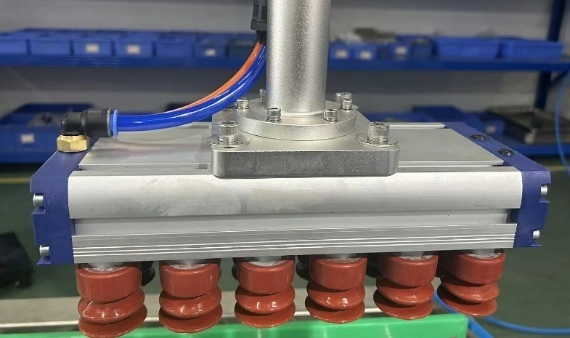

🔹 Robot load capacity: Maximum 30kg (including gripper)
🔹 Palletizing height: ≤ 2000 mm (lifting column 600mm)
🔹 Dimensions: 1700 × 3410 × 3100 mm
🔹 Air source requirements: 0.6~0.8Mpa; Consumption: 200L/min
🔹 Power supply: AC380V, 50Hz±5%; Control voltage: DC 24V
🔹 Total power: 4kw
🔹 Weight: Approx. 600kg
❓
Frequently Asked Questions
Q1: What is the maximum payload capacity of the WP-40 workstation?
The system supports a maximum load-bearing capacity of 30kg, which includes the weight of the gripper.
Q2: How fast can the robot perform palletizing tasks?
The palletizing speed ranges from 8 to 12 boxes per minute, depending on the specific application and box dimensions.
Q3: What are the standard pallet dimensions supported?
The workstation is designed for standard pallets with dimensions of 1200mm in length, 1200mm in width, and 150mm in height.
Q4: Does the system require an external air source?
Yes, a self-provided air source of 0.6~0.8Mpa is required, with an air consumption rate of approximately 200L/min.
Q5: What is the maximum stacking height achievable?
The maximum palletizing height is 2000 mm, facilitated by a 600mm lifting column.
Q6: What type of power supply is needed for operation?
The system requires a power supply of AC380V, 50Hz, with a total power consumption of approximately 4kw.
