High Speed Carton Transport Material Box Picking Warehouse AGV AMR Mobile Robot

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋

Overview & Basic Info

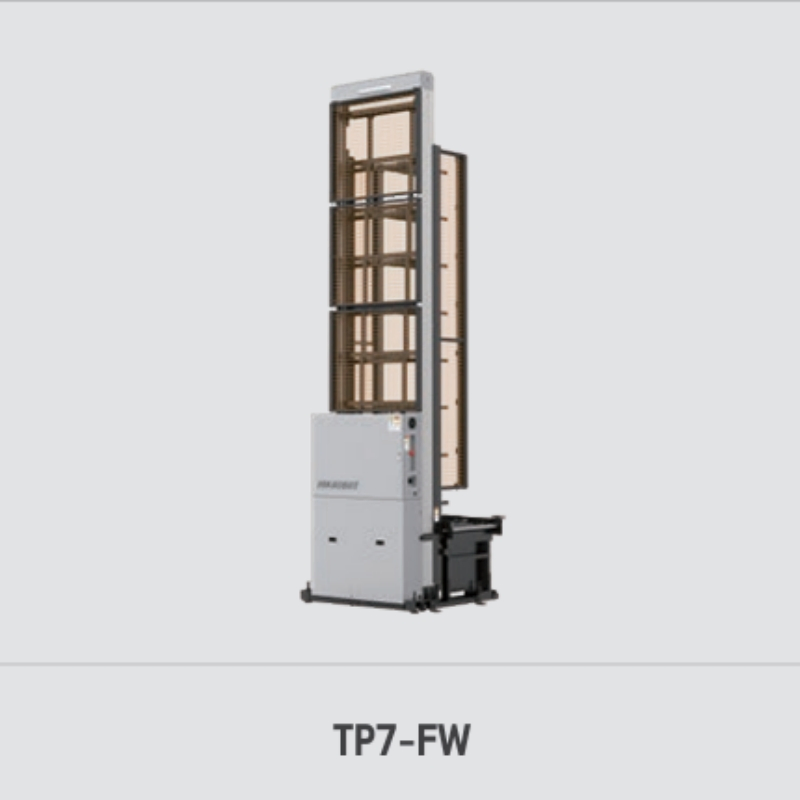

Model NO.

TP7-FW

Type

AMR (Autonomous Mobile Robot)

Load Capacity

50kg/ Layer

Efficiency

600-800 Boxes/H

Dimension (mm)

1940*1485*4825

Weight (Kg)

750

Layers

6 (Customizable to 8)

Safety Features

Collision Avoidance, Emergency Stop, Laser Scanner

🚀

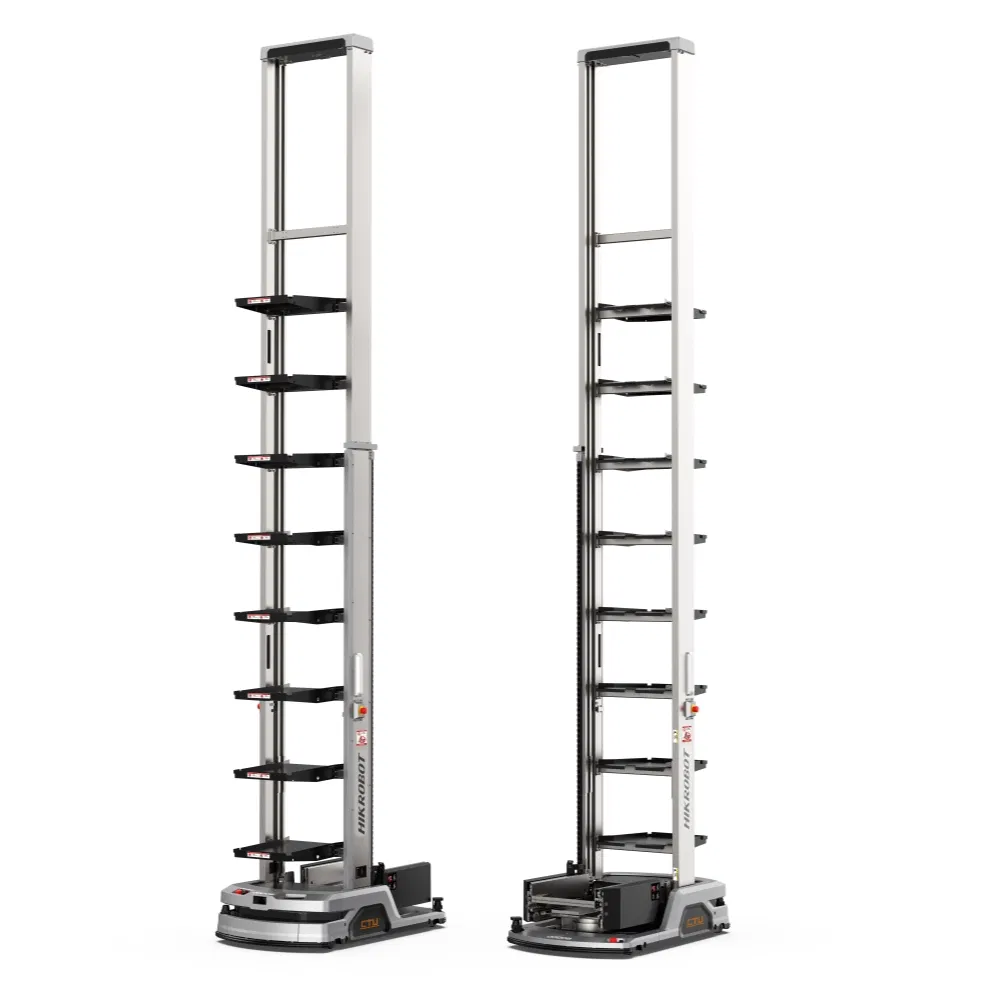

CTU-FlashStation ST Series

For high tempo material transferring scenes, the FlashStation products support carton transfer units (CTU) and can realize a single docking of 8 boxes, significantly improving the inbound and outbound efficiency of the system and reducing the cost of the program. Widely used in e-commerce logistics, shoes, clothing, automotive, and medical center warehouses.

Key Features

Innovative comb design with small footprint and flexible extension.
Supports customization of conveyor docking heights.
Pick and putaway within 2 seconds; efficiency up to 800 boxes per hour.
Single box load up to 50kg; total device load up to 300kg.
Intelligent switching of outbound/inbound modes on the same workstation.

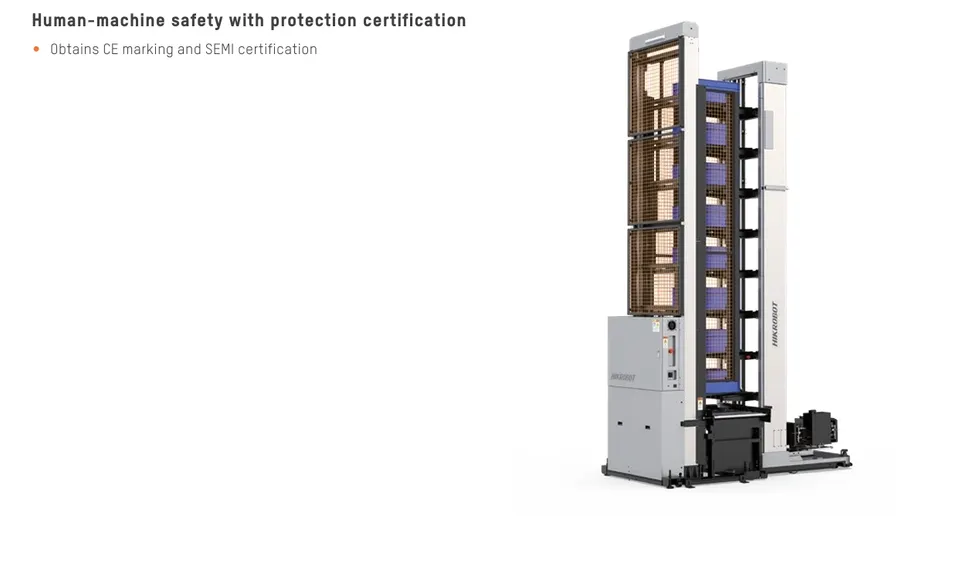

CE marking and SEMI certification for human-machine safety.

📍

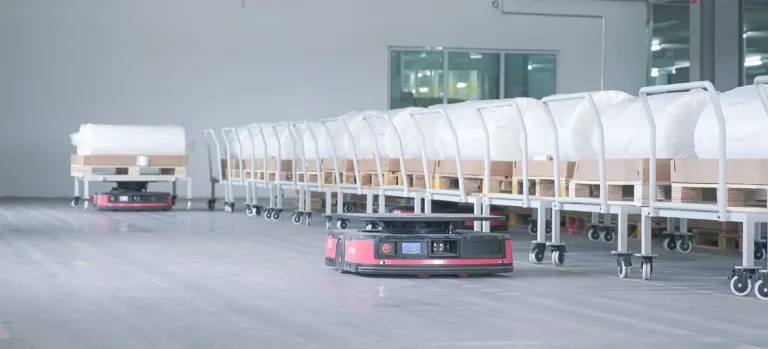

Application Scenarios

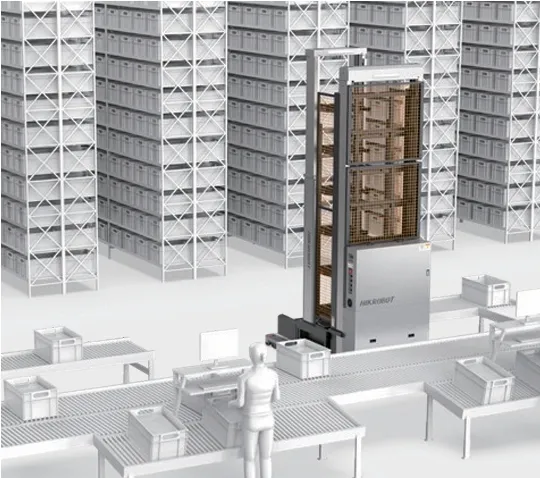

Sorting with circular conveyor

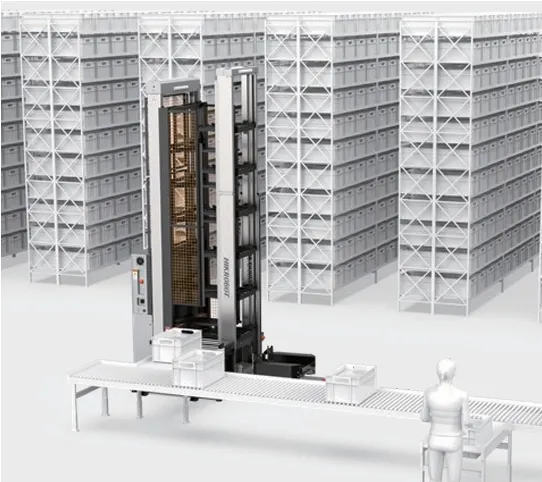

Whole tote in and out via conveyor

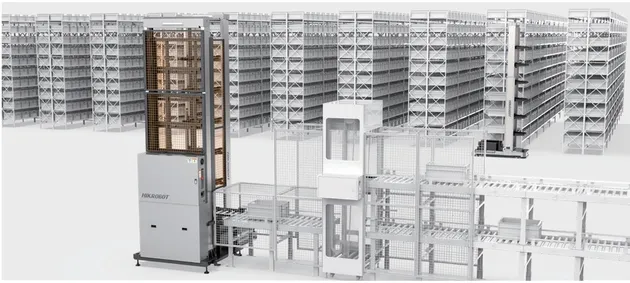

Flow rack delivery for production lines

📊

Technical Specifications

Model	TP7-FH	TP7-FW
Single layer loaded weight (kg)	≤ 50	≤ 50
Max. loaded weight (kg)	300	300
Rated power (kW)	3	3
Supply voltage (VAC)	220	220
Loading/unloading time (s)	≤ 2	≤ 2

🏢

Applications & Project Cases

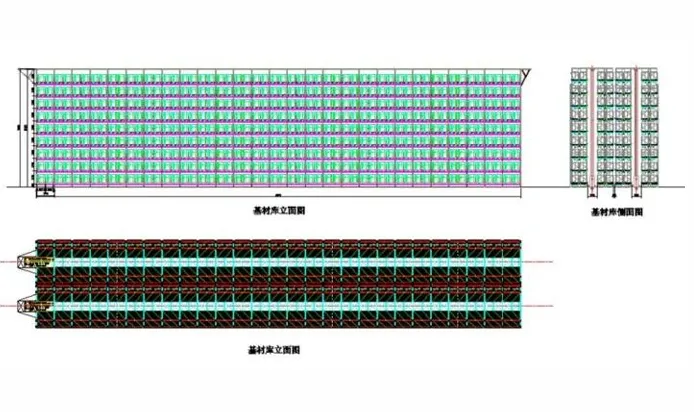

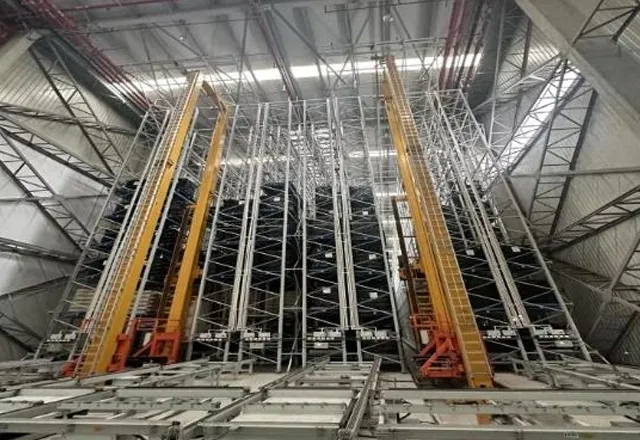

Case: Automated Storage System for Raw Material Warehouse

Project Scope:

2 stacker cranes, 4 sets of racks, 3,888 storage locations. Inbound/outbound flow rate of 92 pallets per hour (P/H).

Highlights:

79 days for engineering design. 200 days for automated warehouse construction and final delivery.

🛠️

Service & Support

Standard Warranty: 12 months or 2,000 operating hours.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation and maintenance training.

❓

Frequently Asked Questions

How do I select the right AGV for my facility?

We recommend selecting the AGV hardware based on actual operational requirements. Our technical team will propose the most suitable configuration based on your factory layout and pallet dimensions.

Is dedicated software required to operate the robots?

Yes. Dedicated robot dispatching and control software is required to work in conjunction with the AGV hardware to enable smooth operation.

Can we perform the AGV implementation ourselves?

AGV commissioning typically requires high professional expertise and experience. This work is handled by our expert team to ensure safety and efficiency.

Can different types of AGVs operate at the same site?

Absolutely. We support the simultaneous operation of multiple AGVs, including different models, at the same site to meet diverse material handling needs.

What information is needed to begin an AGV project?

In the early stages, we require the factory layout, pallet dimensions, and specific material details to provide an accurate proposal.

What is the typical implementation timeline?

The timeline varies by project scope, but in standard cases, deployment can be completed in as little as two weeks.
