Collision Avoidance System, Emergency Stop Button, Obstacle Detection Sensors, Safety Laser Scanner.

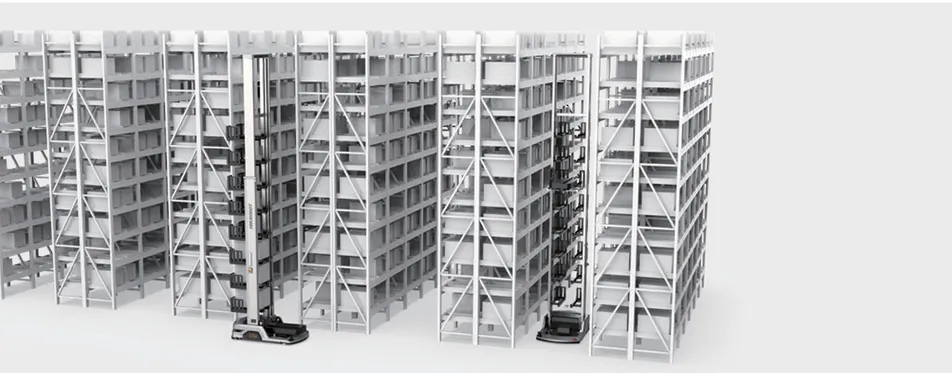

Carton Transfer Unit (CTU) --- Lifting T Series

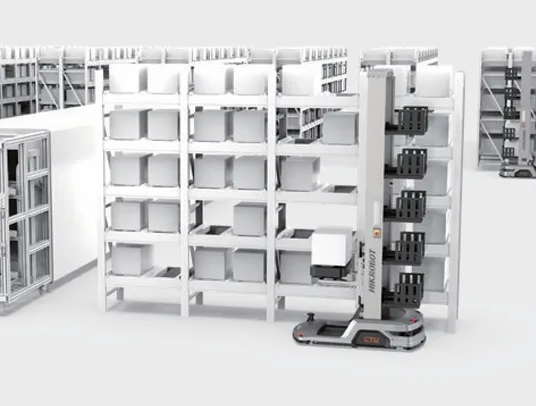

T series CTUs are suitable for all kinds of special carriers, such as trays in the 3C industry, lines and tools in the manufacturing industry, and battery magazines in the new energy industry, which can meet the scenarios needs of loading/unloading and lineside buffer for all kinds of machines. For human-machine mixed traffic scenarios, the T series CTUs are equipped with multiple safety protections to achieve dual safety for personnel and materials. Flexible customized fork plates are available to meet the storage needs of materials of all sizes, with loads up to 100kg per box.

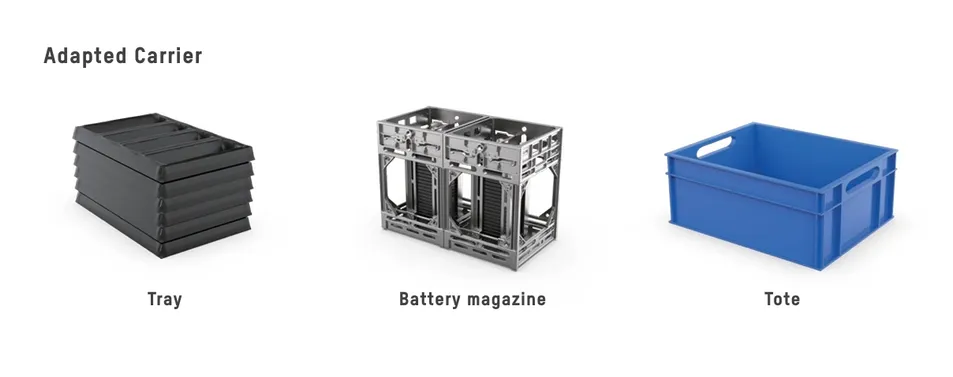

Flexibly adapts to typical carriers in various industries, covering all kinds of operational needs. Lifting and placing is frictionless, adapting to high cleanliness manufacturing scenarios.

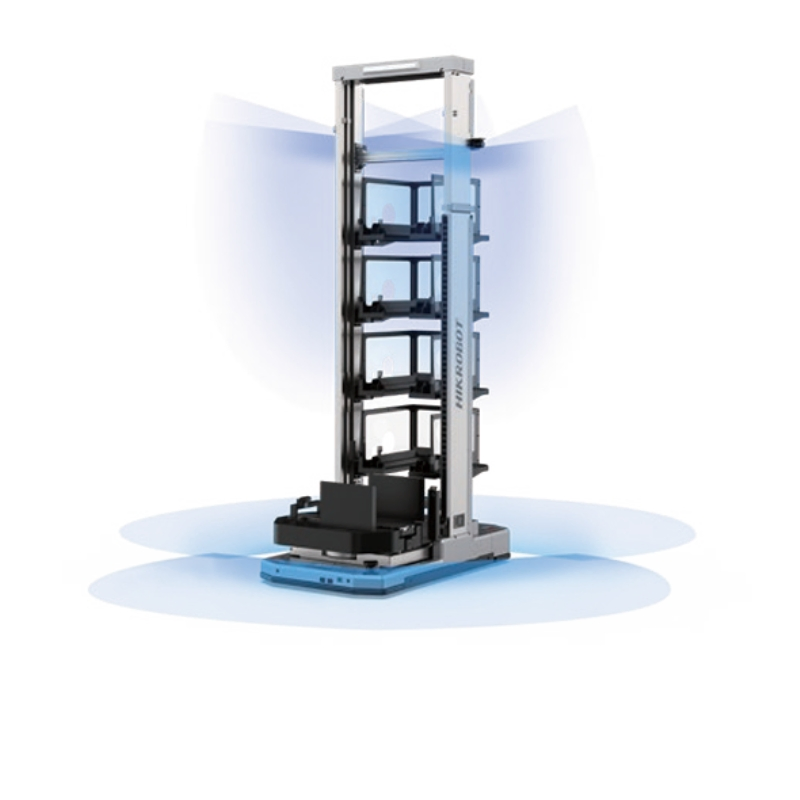

Telescopic obstacle avoidance detection, material deviation detection, material presence detection. Detection of low and suspended obstacles improves human-machine safety.

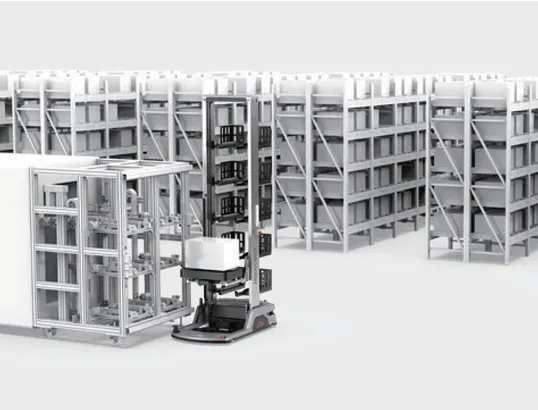

High outbound and inbound efficiency: the FlashStation docks 8 boxes at a time. Mixes clamping and centering function for high precision docking.

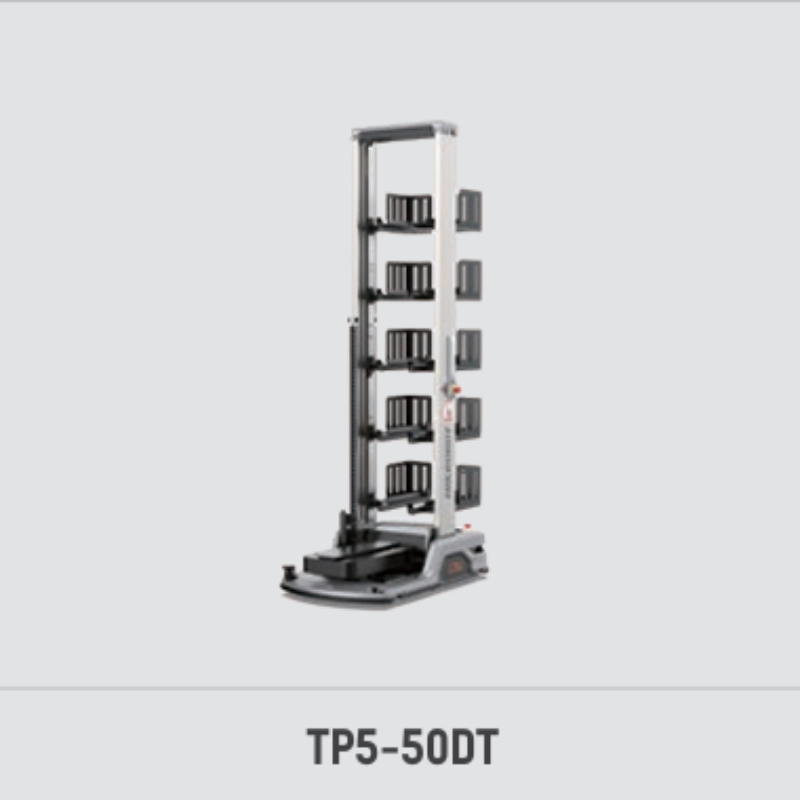

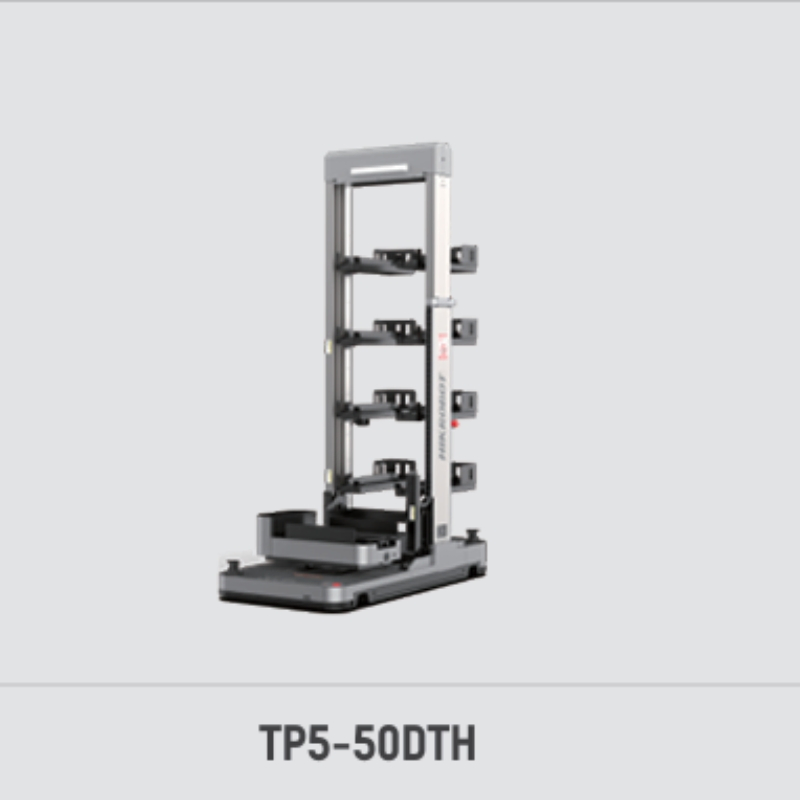

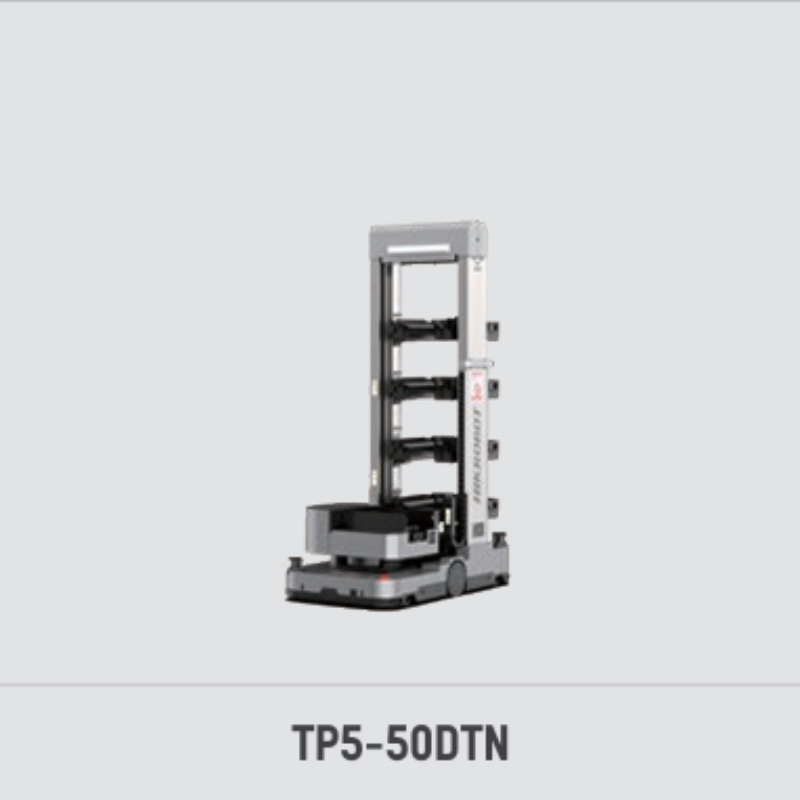

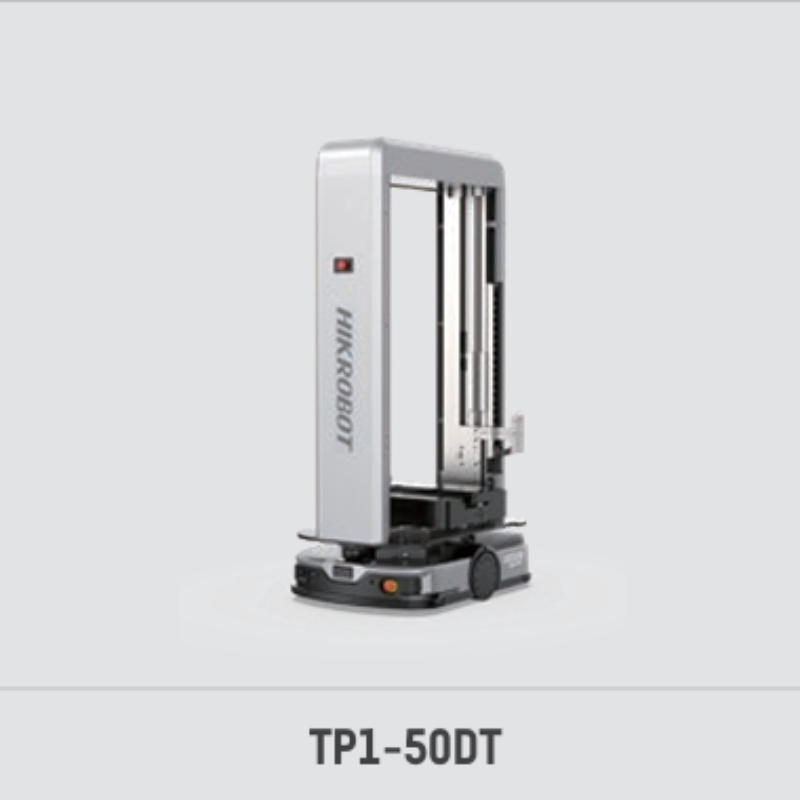

| Model | TP1-50DT | TP5-50DTN | TP5-50DT | TP5-50DTH |
|---|---|---|---|---|
| Rated running speed (m/s) | 1.8 | 1.8 | 1.6 | 1.8 |
| Travel stopping accuracy (mm)/(°) | ± 10 / ± 1 | ± 10 / ± 1 | ± 10 / ± 1 | ± 10 / ± 1 |
| Lifting stopping accuracy (mm) | ± 2 | ± 2 | ± 2 | ± 2 |
| Aisle width (mm) | 840 | 850 | 1050 | 1100 |
| Rotation diameter (mm) | 1000 | 1360 | 1600 | 1850 |
| Run time (h) | 6-8 | 6-8 | 6-8 | 6-8 |
| Charging time (h) | ≤ 1.5 | ≤ 1.5 | ≤ 2 | ≤ 2 |
| Navigation mode | V-SLAM / 2D barcode / L-SLAM | |||
| Safety Features | Laser obstacle avoidance, Bumper strip, Emergency stop, Sound & light alarm | |||
1. One-year warranty for all core components.
2. 24-hour online remote technical support.
3. On-site support within 48 hours after visa approval during warranty period.
