Basic Info.
Model NO.GC-20
Degrees of Freedom6-axis
Drive ModeElectric
Payload Capacity30kg
FunctionPalletizing
Load30kg
ColorCream Yellow
OperateSimple
After-SalesOne-Year Warranty
Transport PackageWooden Box
Specification3.4*1.7*3.1
OriginChina
HS Code8515809090
Production Capacity1000000

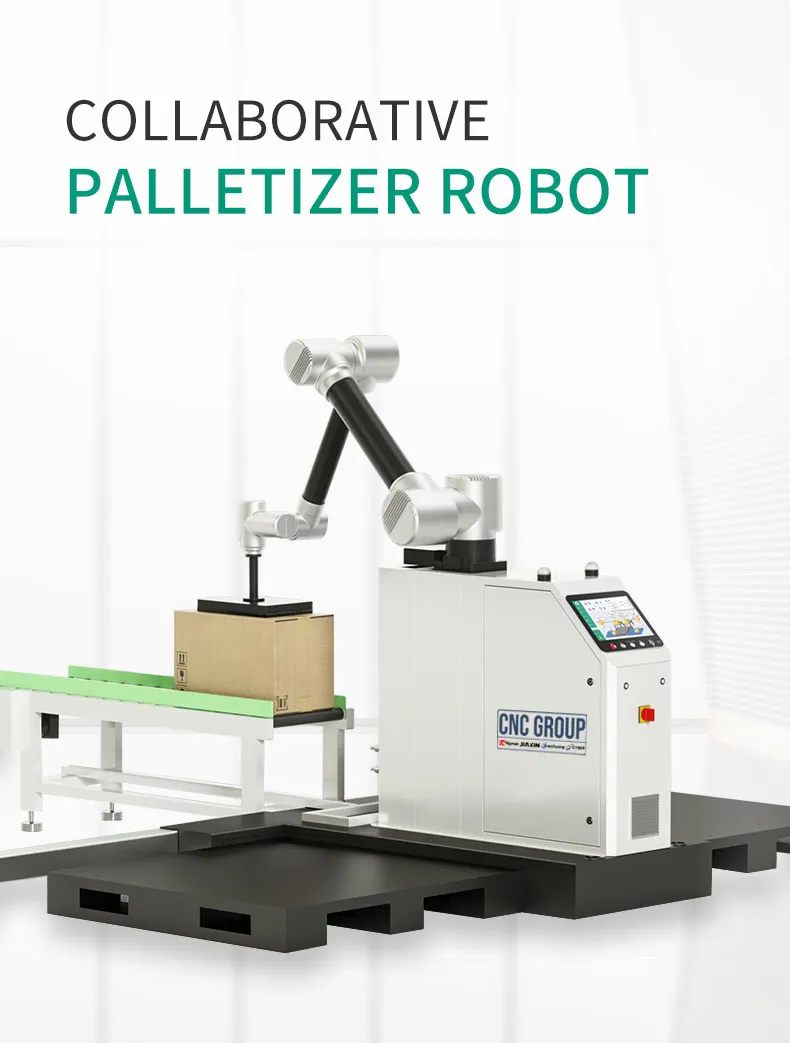

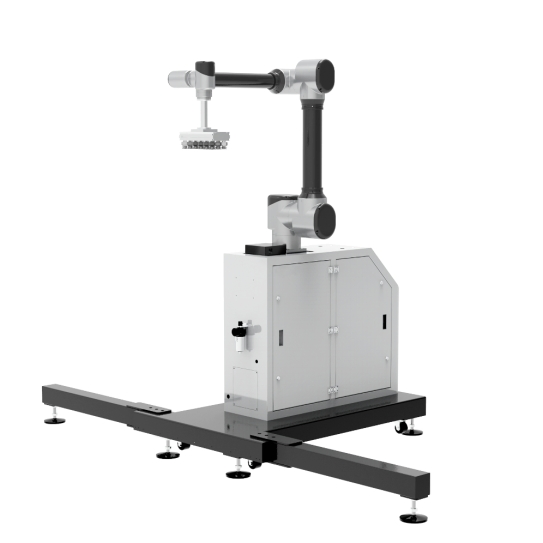

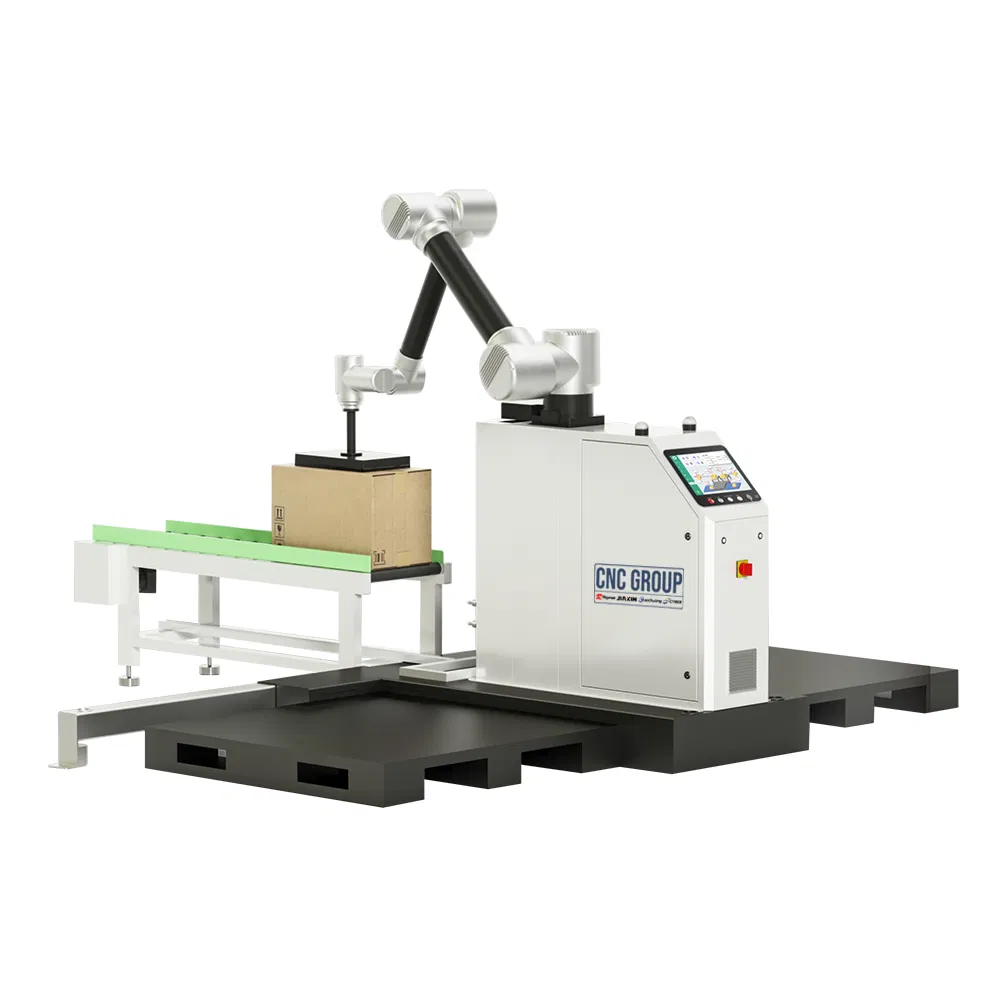

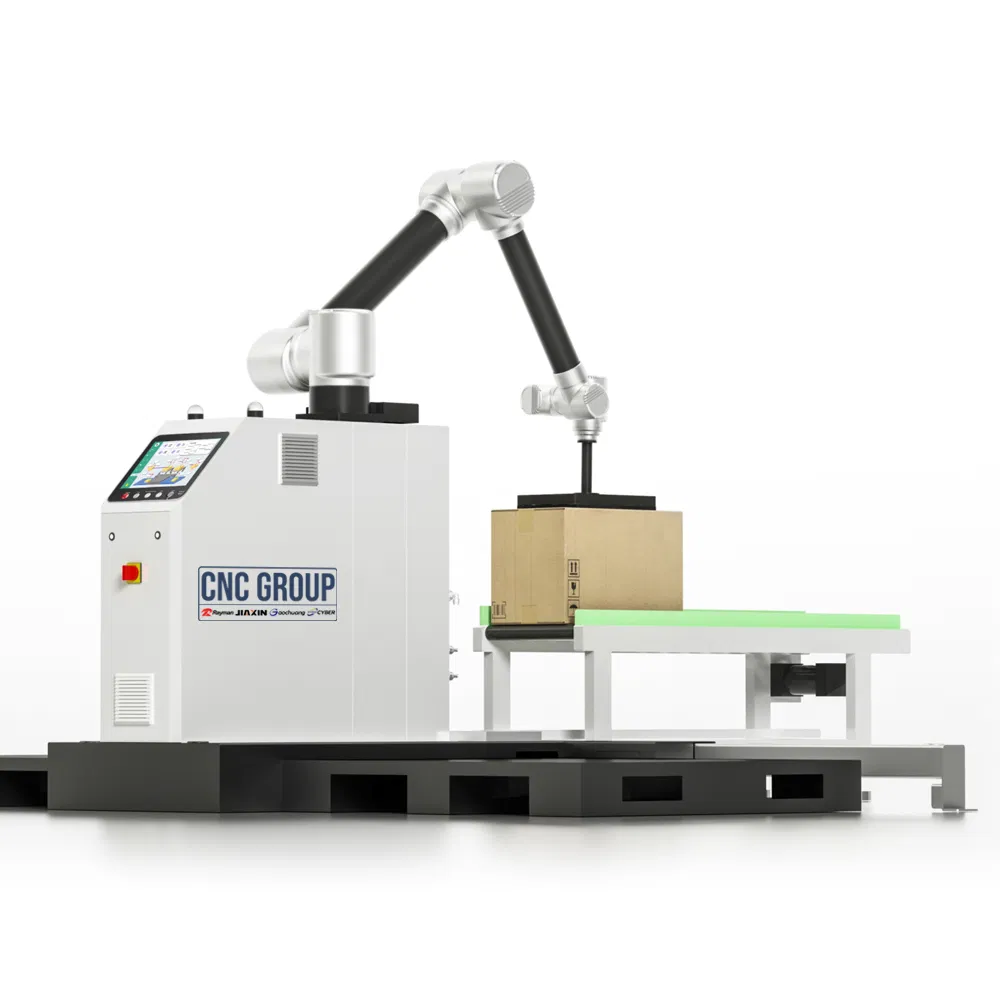

WP-40 Collaborative Palletizing Robot Workstation
⚡Palletizing Speed: 8~12 boxes/min
📏Pallet Size: 1200 x 1200 x 150 mm
🤖Load Capacity: Max 30kg (including gripper)
🏗️Palletizing Height: ≤ 2000 mm
⚙️Dimensions: 1700 × 3410 × 3100 mm
💨Air Source: 0.6~0.8Mpa (200L/min)
🔌Power: AC380V, 50Hz / Total Power 4kw
⚖️Weight: Approx. 600kg
Q1: What is the maximum payload capacity of the GC-20 robot?
A: The robot has a maximum payload capacity of 30kg, which includes the weight of the gripper.
Q2: How fast can the WP-40 workstation process boxes?
A: The palletizing speed ranges from 8 to 12 boxes per minute, depending on the specific application requirements.
Q3: What are the power requirements for this system?
A: The system requires an AC380V, 50Hz power supply, with a control voltage of DC 24V and a total power consumption of 4kw.
Q4: Does the robot come with a warranty?
A: Yes, the product includes a one-year warranty as part of our after-sales service.
Q5: What is the maximum height for palletizing?
A: The maximum palletizing height is ≤ 2000 mm, supported by a 600mm lifting column.
Q6: How is the equipment protected during transport?
A: The equipment is securely packed in a wooden box to ensure safety during international transport.
