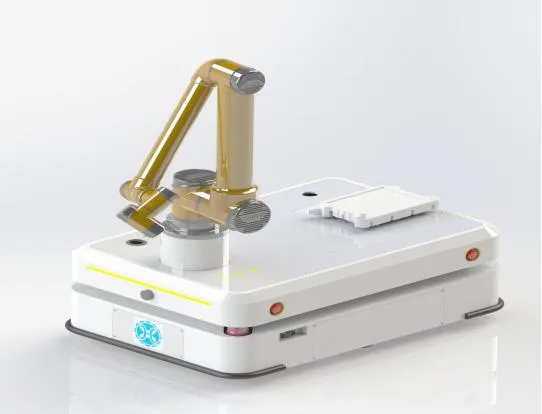

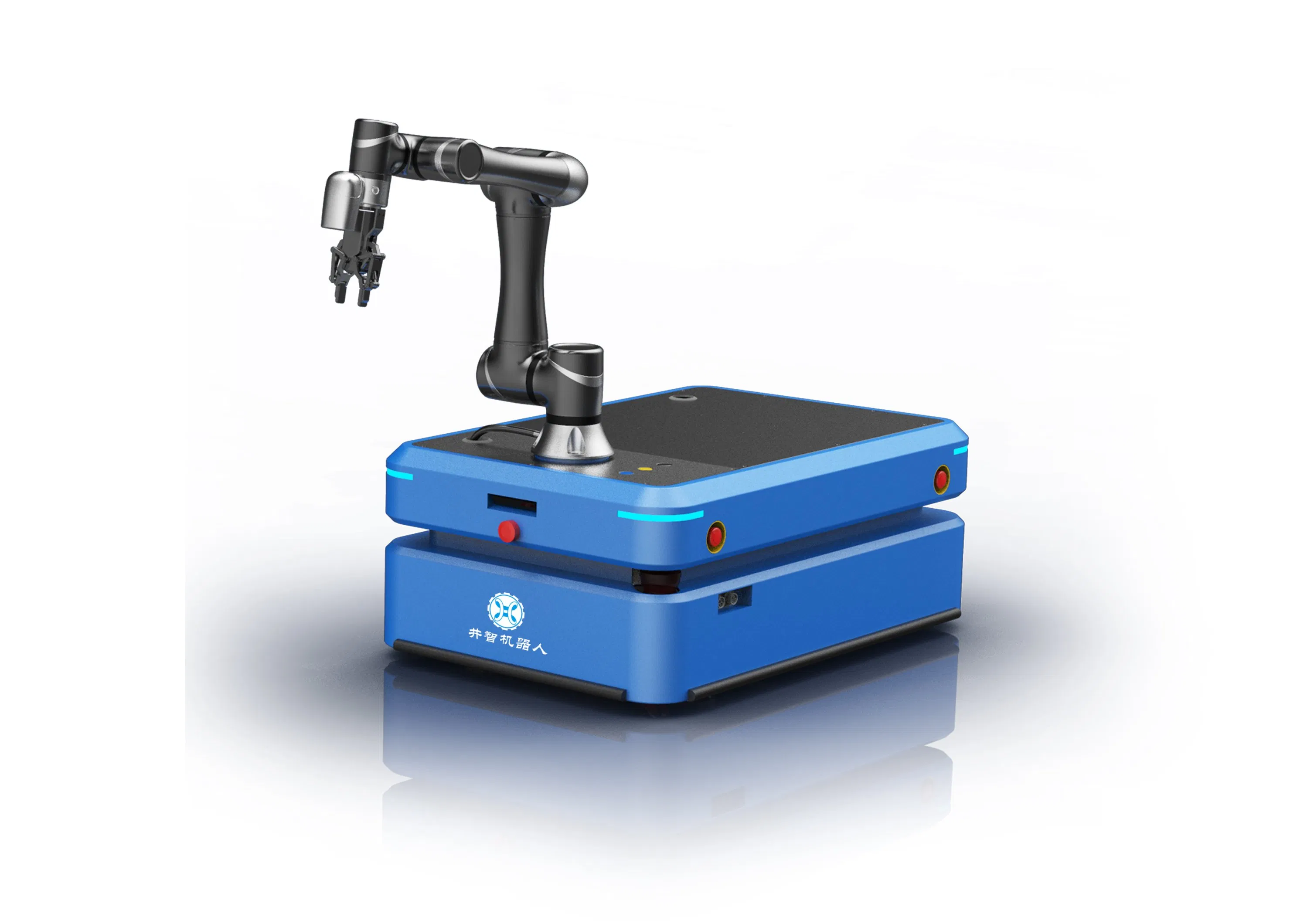

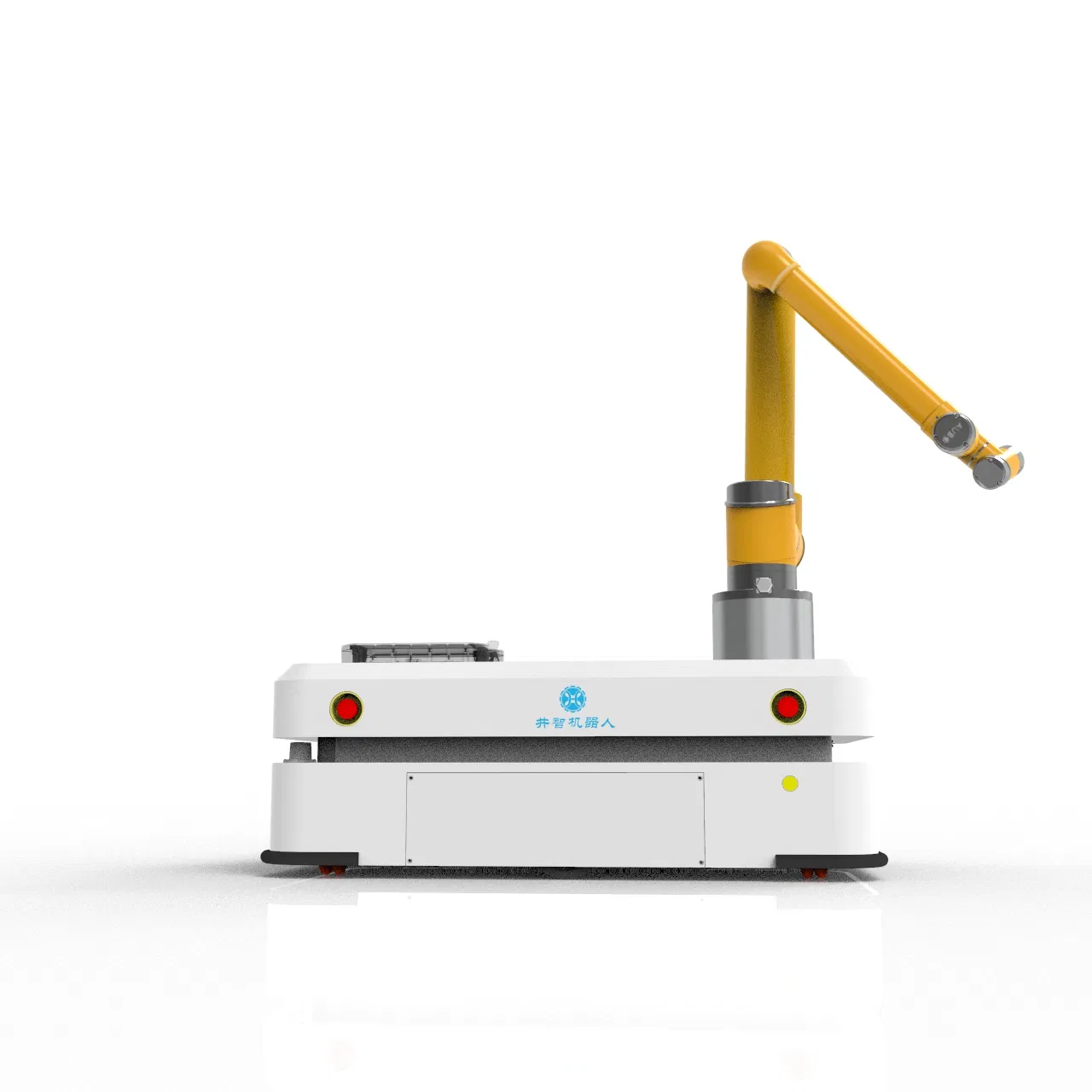

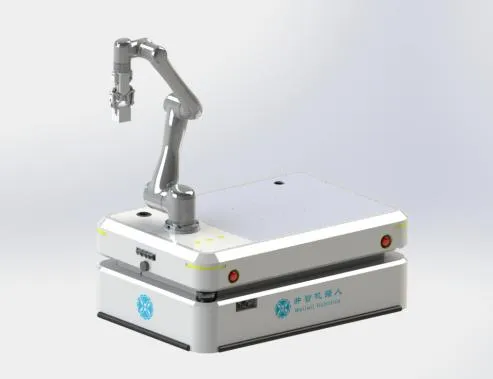

Composite Material Handing Agv Robot with Robot AMR

Customization:	Available
Application:	Picking and Placing, Loading, Warehouse, Logistic, 3D, Manufacture
Control Mode:	Automatic, Continuous Path Control

Send Inquiry

Product Description

📋 Basic Information

Model NO.

WAR100-QR

Degrees of Freedom

4-axis

Drive Mode

Electric

Payload Capacity

3 kg (Arm) / 100 kg (Base)

Navigation

QR Code / LiDAR SLAM

Positioning Accuracy

±10 mm

Battery Type

Lithium Iron Phosphate

Battery Endurance

≥5 H

Charging Time

≤1.5 H

Warranty

One Year

🤖 Product Overview

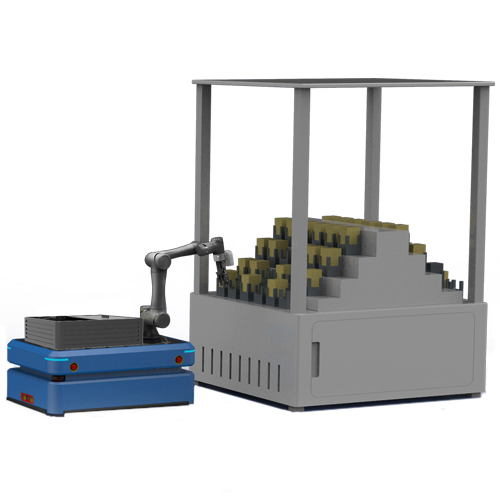

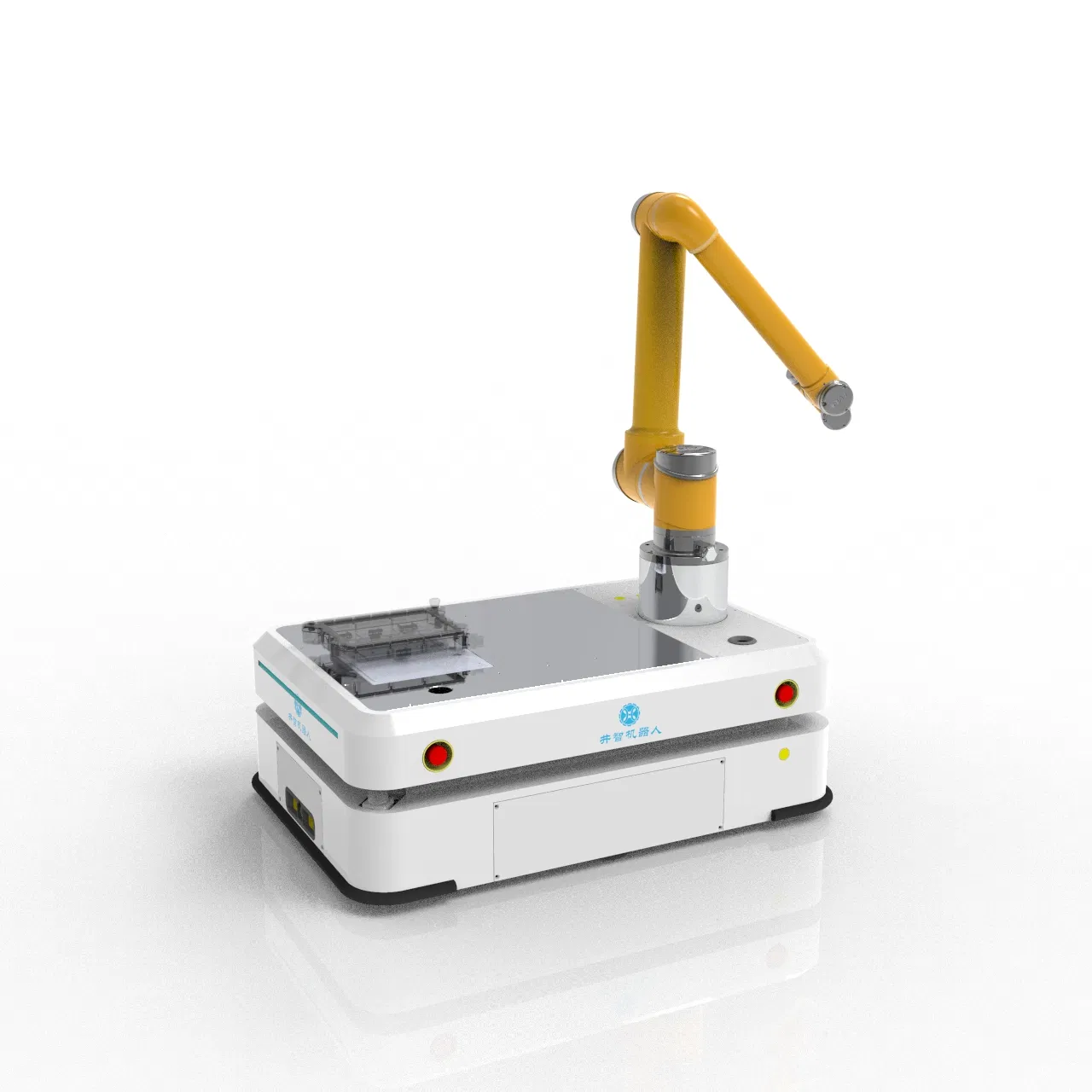

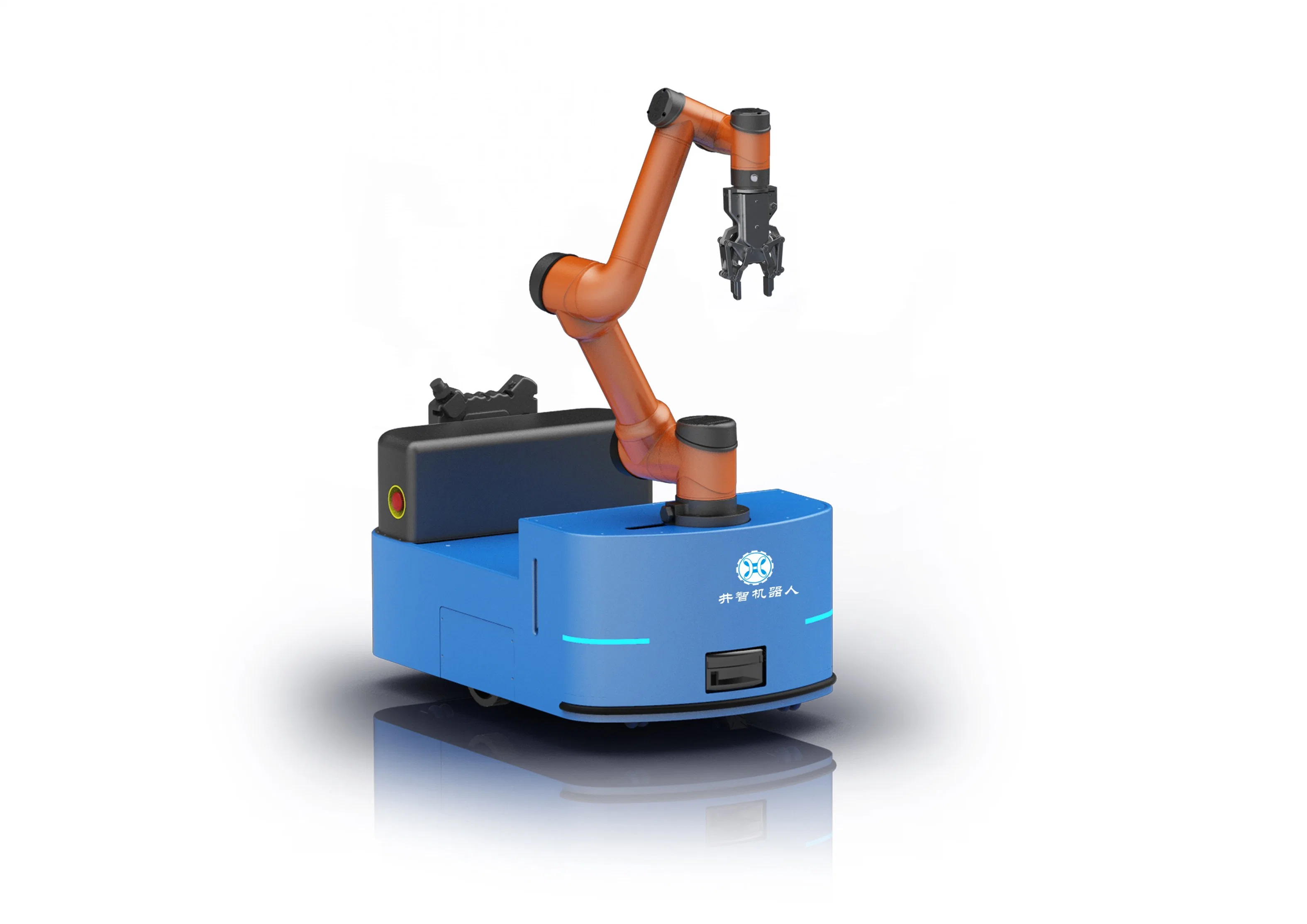

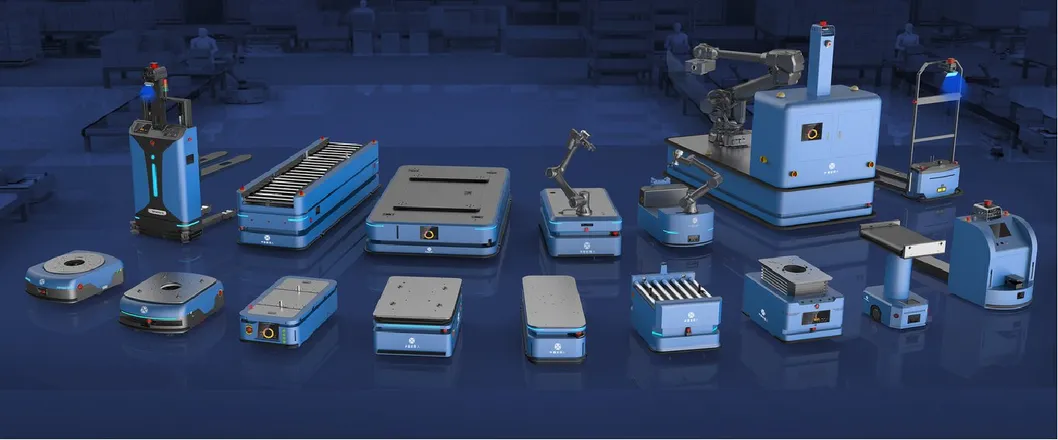

The series of Composite Robot

📊 Technical Specifications

Specification of Robot Base
Basic Spec	Payload (kg)	100 kg
	Weight (kg)	200 (±10KG)
	Size (LWH) mm	1200 * 800 * 475 mm
	Navigation Mode	LiDAR SLAM Navigation
Performance	Drive Mode	Quad-drive
	Form of Motion	Omnidirectional Movement
	Max Speed	1.25 m/s
Battery	Type	Lithium iron phosphate
	Endurance Time	≥5 h
	Charging Time	≤1.5 h
Safety	Anti-Collision	LiDAR obstacle avoidance & Bumper strips
Safety	Emergency Stop	Front and rear emergency stop buttons

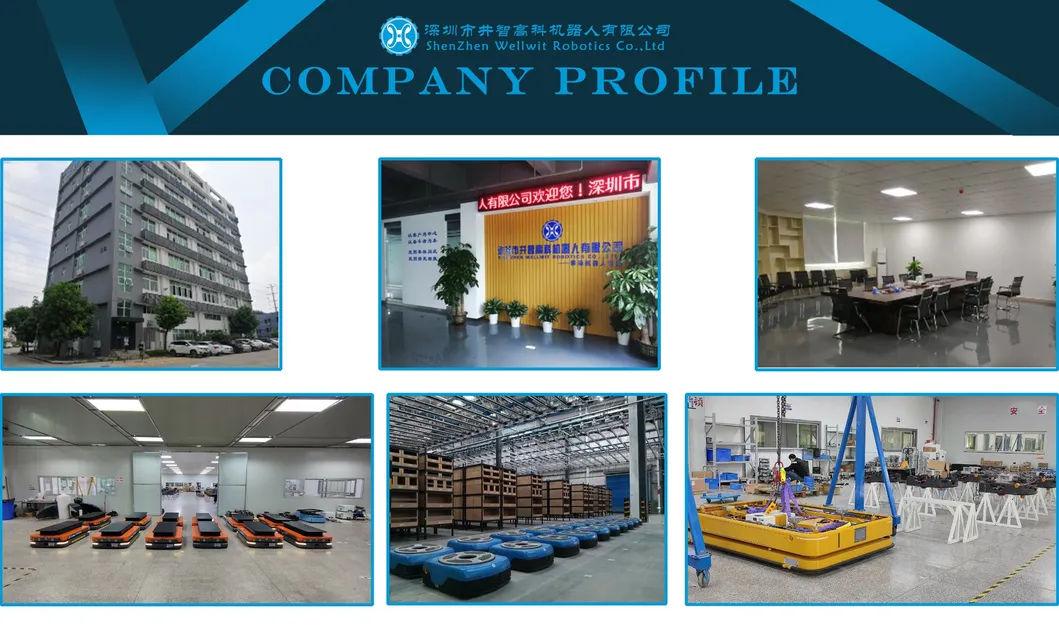

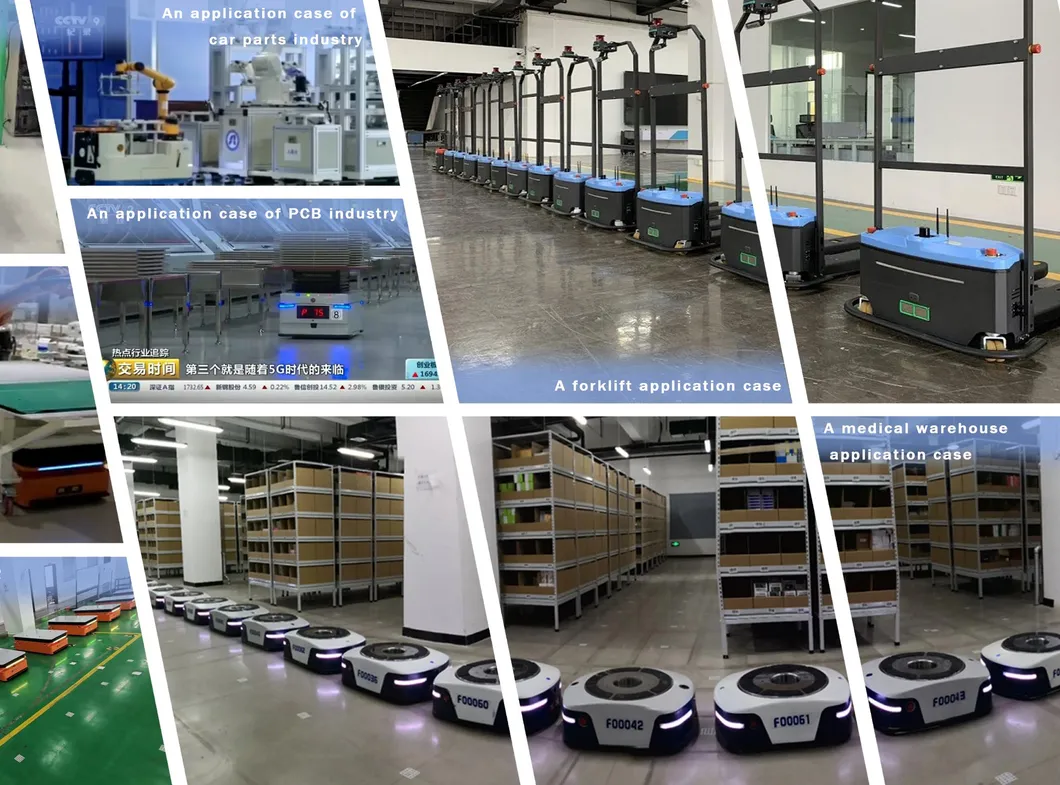

Our technology focuses on research and development of mobile robots, including embedded hardware, software, algorithms, and artificial intelligence. Currently, available products include moving robots, sorting robots, and auto-forklifts.

❓ Frequently Asked Questions

What navigation methods does the robot support?

The robot supports multiple navigation methods including QR code navigation, LiDAR SLAM navigation, Visual SLAM Navigation, and RTK navigation.

What is the payload capacity of this composite robot?

The base has a payload capacity of 100kg, while the integrated robotic arm has a capacity of 3kg.

How long does the battery last on a single charge?

The robot is equipped with a Lithium Iron Phosphate battery providing an endurance of ≥5 hours, with a fast charging time of ≤1.5 hours.

What safety features are integrated into the system?

Safety features include LiDAR-based obstacle avoidance, physical bumper strips around the chassis, and dual emergency stop buttons (front and rear).

Can the robot move in any direction?

Yes, the robot features an omnidirectional quad-drive system, allowing it to move flexibly in complex warehouse or factory environments.

What is the positioning accuracy of the robot?

The robot achieves a positioning accuracy of ±10 mm and an orientation accuracy of ±1°.
