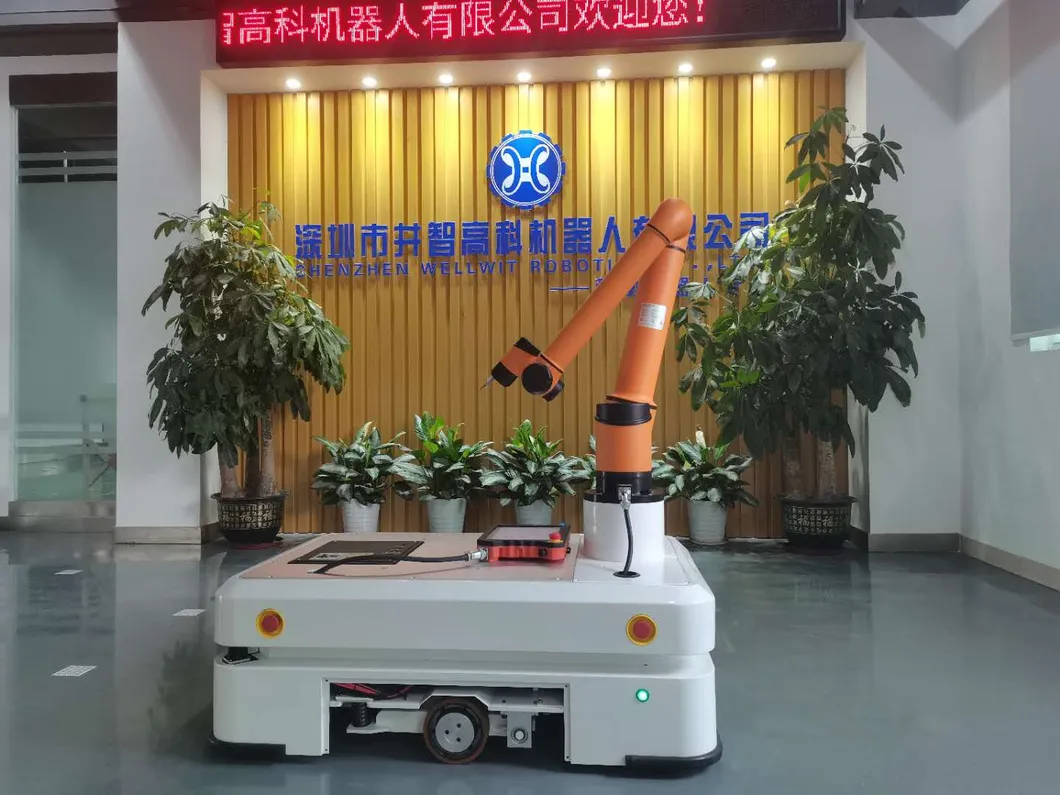

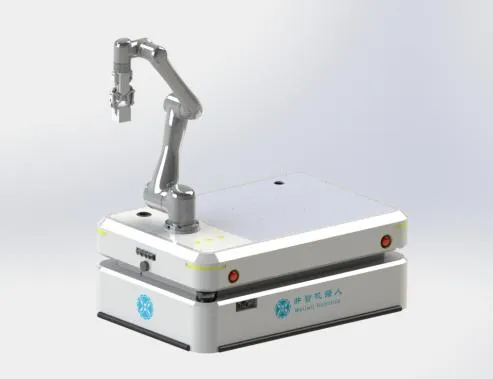

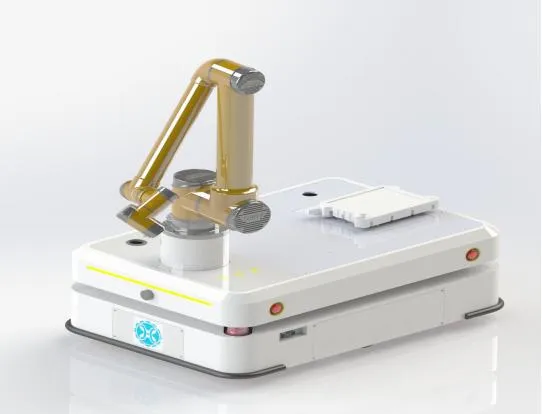

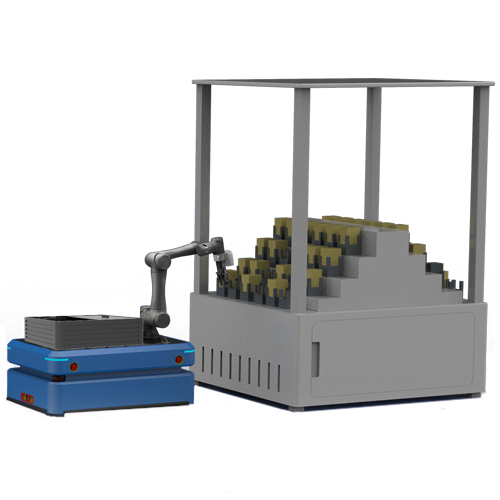

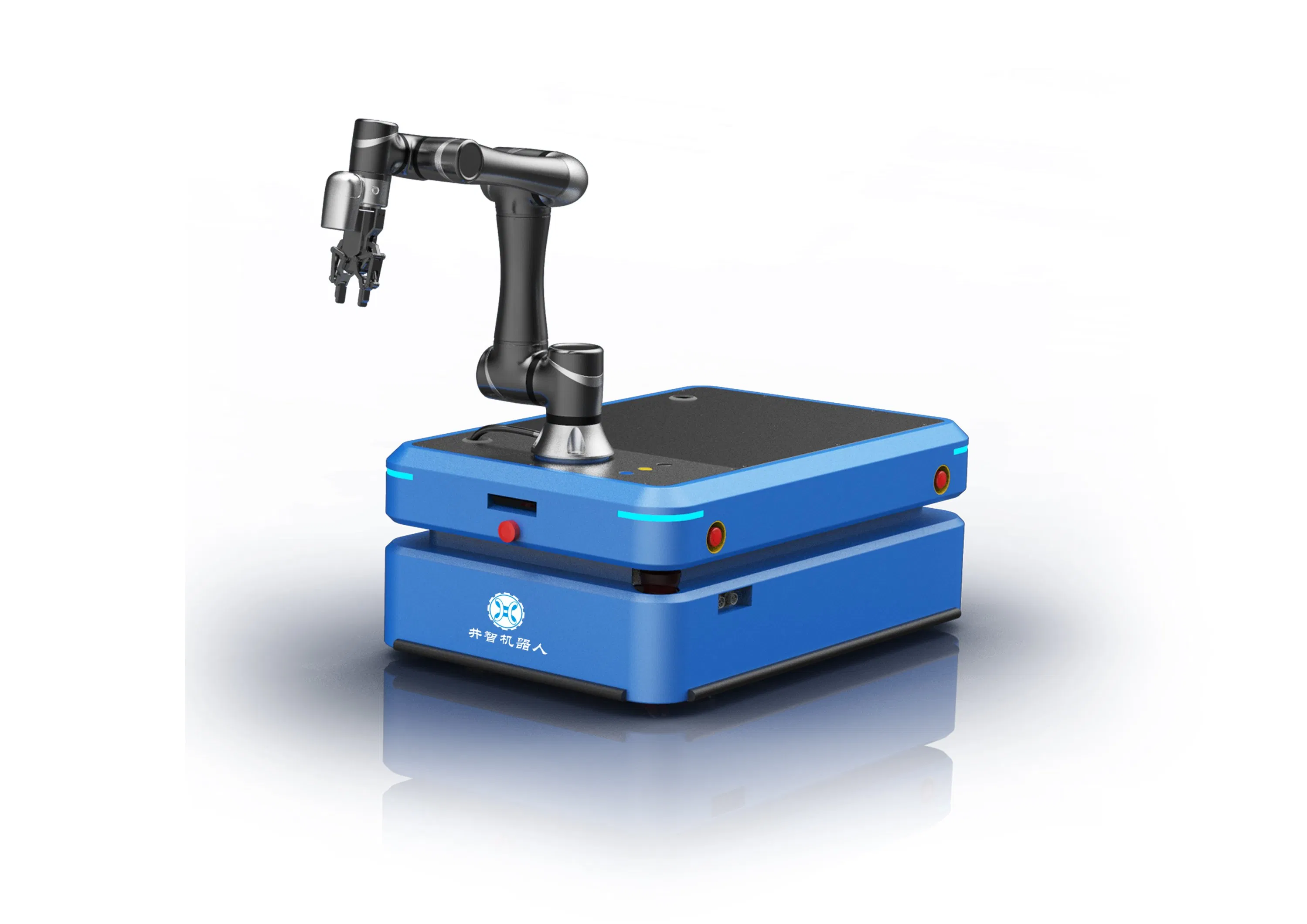

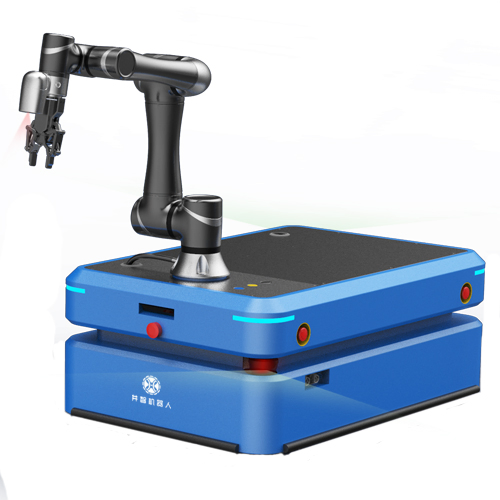

Lidar Slam Navigation Composite Agv Robot with Robot AMR

1 / 3

Lidar Slam Navigation Composite Agv Robot with Robot AMR

Customization:	Available
Application:	Picking and Placing, Loading, Warehouse, Logistic, 3D, Manufacture
Control Mode:	Automatic, Continuous Path Control

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

WAR100-DS

Degrees of Freedom

4-axis

Drive Mode

Electric

Payload Capacity

5 kg

Base Payload

100kg

Navigation

Lidar SLAM

Positioning Accuracy

±10 mm

Battery Type

Lithium Iron Phosphate

Battery Endurance

≥5 H

Charging Time

≤1.5 H

Dimensions

1200*800*475 mm

Mass

200 Kg(±10 Kg)

🤖

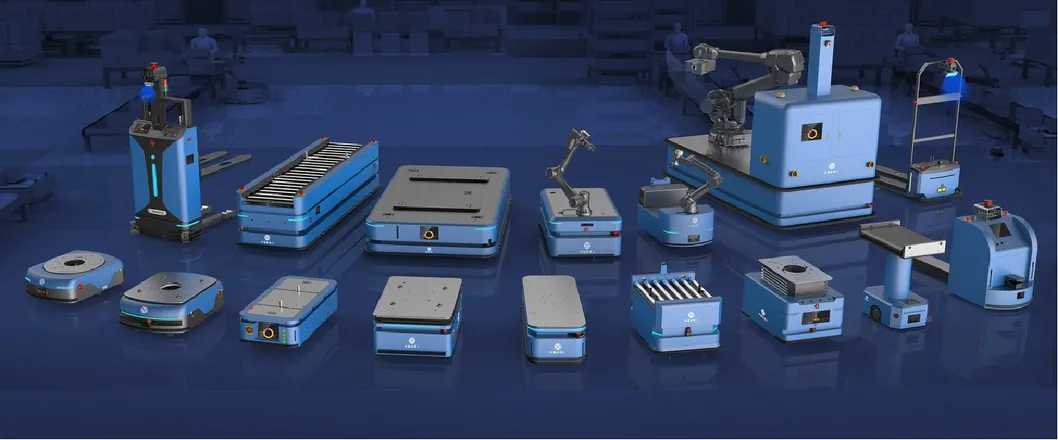

The Series of Composite Robot

📊

Detailed Robot Base Specifications

Category & Parameter		Details
Basic Specs	Type	WAR100-DS
	Payload	100 kg
	Position Accuracy	±10mm
	Navigation Mode	LiDAR SLAM
Performance	Drive Mode	Quad-drive
	Form of Motion	Omnidirectional Movement
	Max Speed	1.25m/s
Battery	Voltage & Capacity	DC48V / 40AH
	Cycle Life	1500 Cycles, Capacity ≥80%
	Charging	≤1.5h (Manual/Auto Optional)

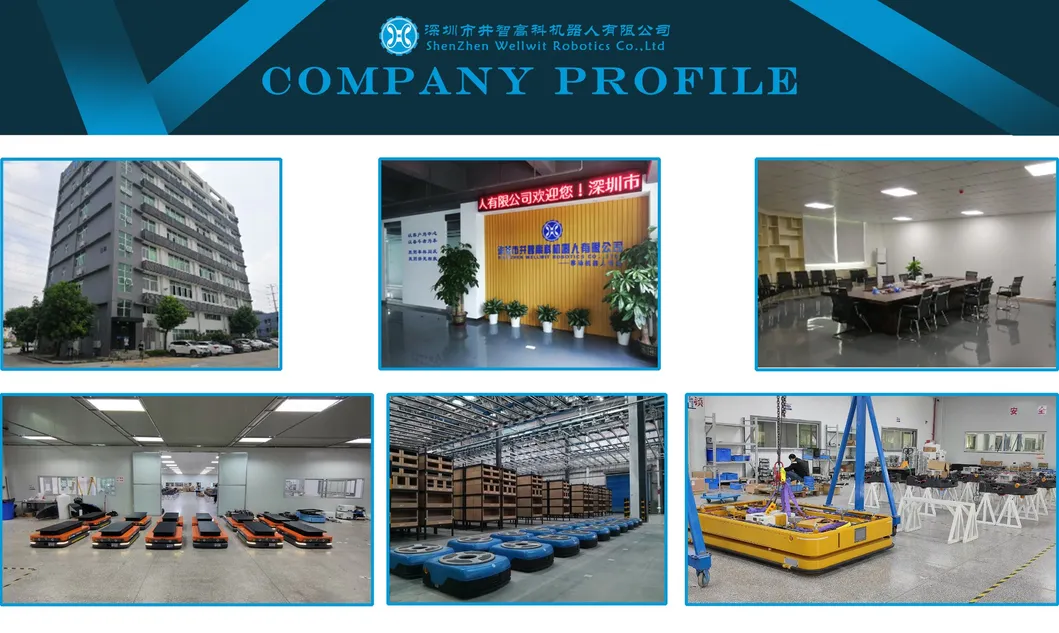

Our team focuses on the research and development of mobile robots. The R&D team consists of members experienced in the fields of robotics, embedded hardware, software, algorithms, and artificial intelligence.

Currently, available products include moving robots, sorting robots, and auto-forklifts. Navigation methods provided include QR code navigation, LiDAR SLAM navigation, Visual SLAM Navigation, and RTK navigation. We focus on providing custom logistic robots for integrators specializing in Intelligent Logistics and Intelligent Factories, offering ODM/OEM services for global clients.
