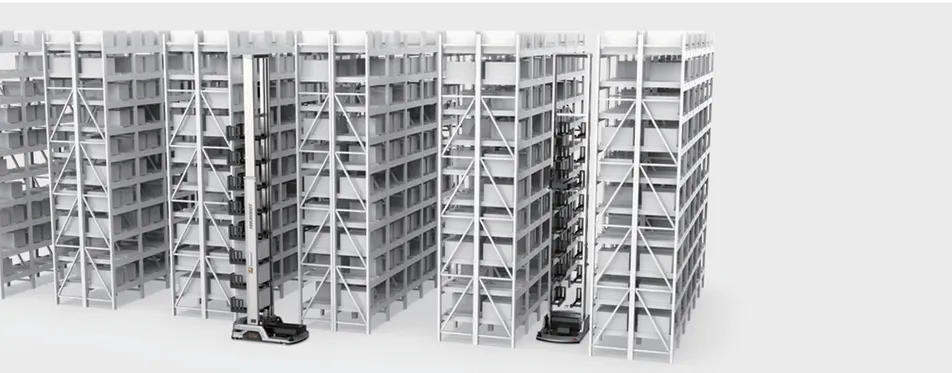

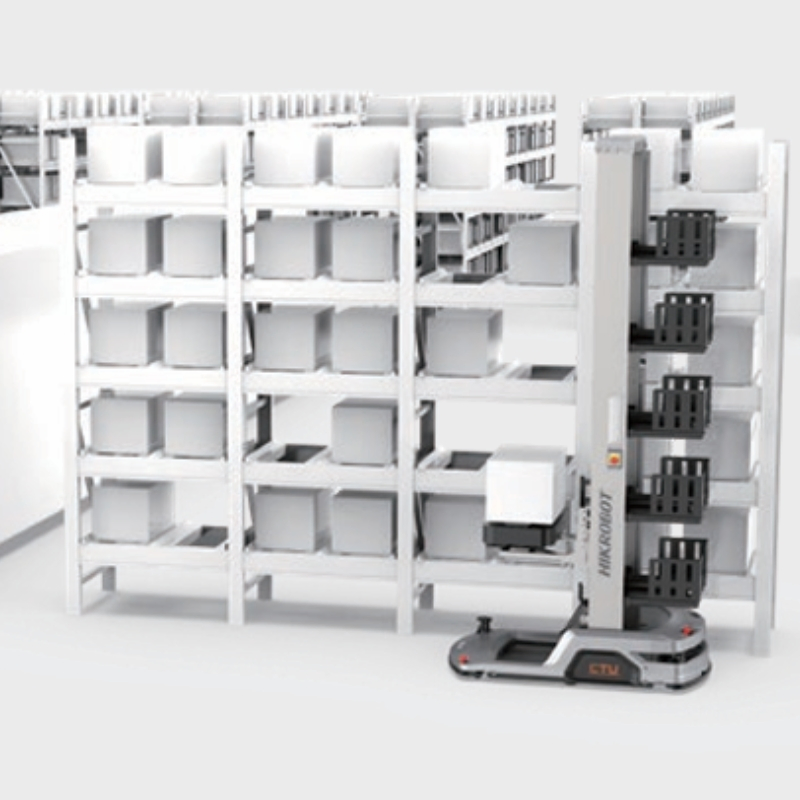

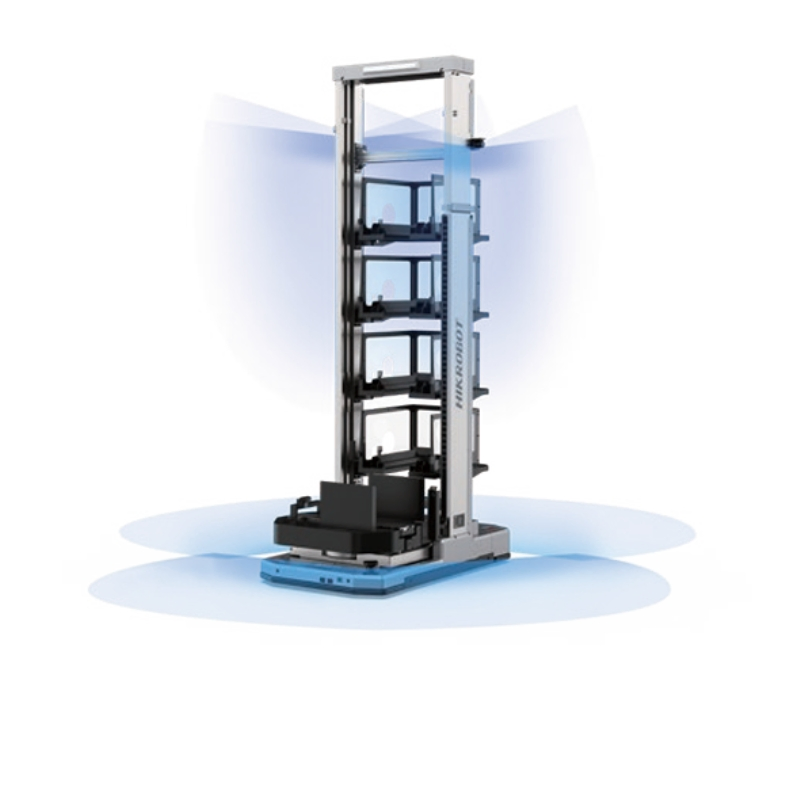

Carton Transfer Unit (CTU) --- Lifting T Series

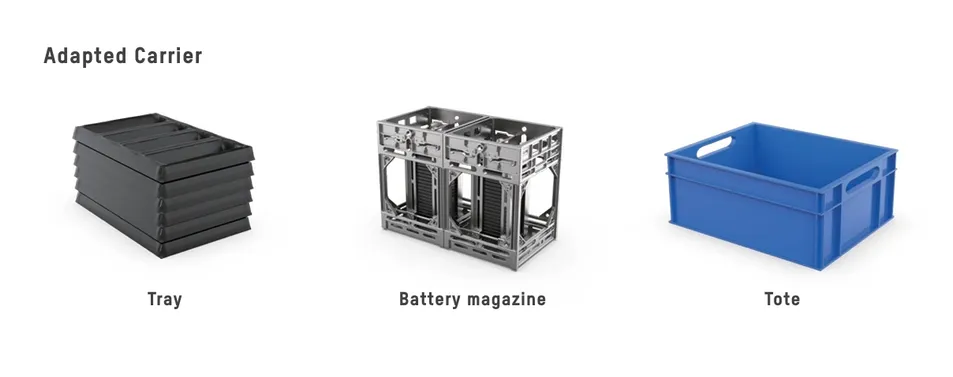

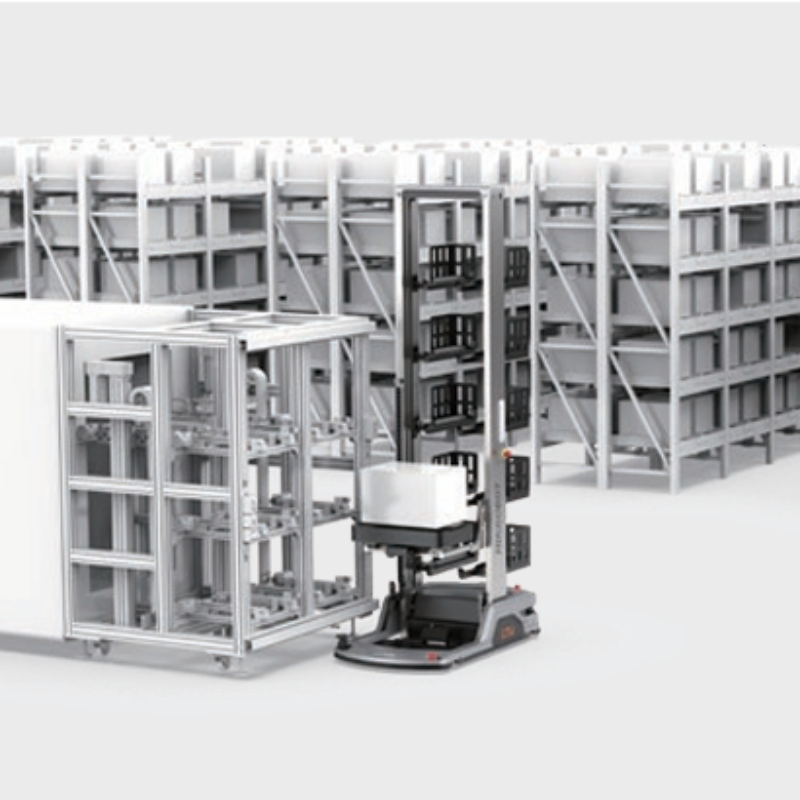

T series CTUs are suitable for all kinds of special carriers, such as trays in the 3C industry, lines and tools in the manufacturing industry, and battery magazines in the new energy industry, which can meet the scenarios needs of loading/unloading and lineside buffer for all kinds of machines. For human-machine mixed traffic scenarios, the T series CTUs are equipped with multiple safety protections to achieve dual safety for personnel and materials. Flexible customized fork plates are available to meet the storage needs of materials of all sizes, with loads up to 100kg per box.
Flexibly adapts to typical carriers in various industries, covering all operational needs. Frictionless lifting and placing for high cleanliness manufacturing.

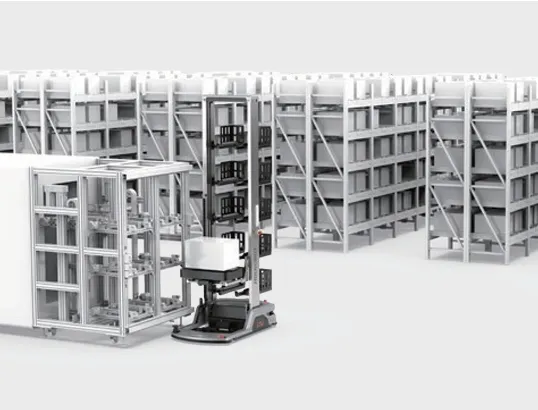

Features telescopic obstacle avoidance, material deviation detection, and presence detection. Low/suspended obstacle detection for human-machine traffic.

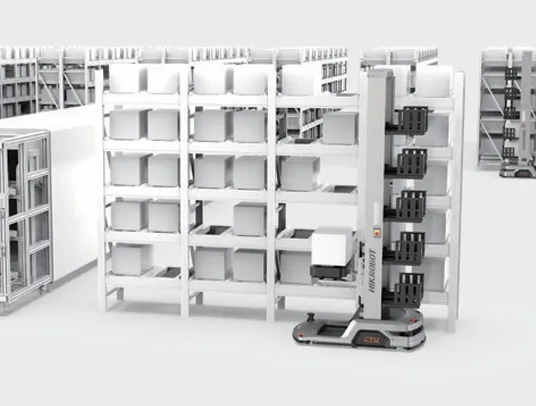

High outbound and inbound efficiency. Single box load is 50 kg as standard, with 100 kg optional. Clamping and centering for high precision.

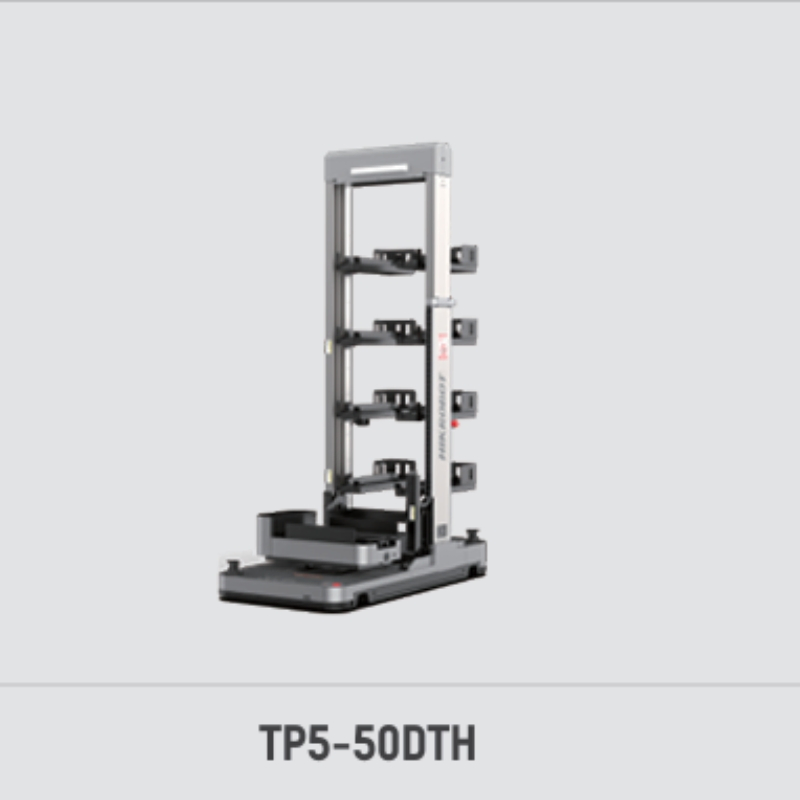

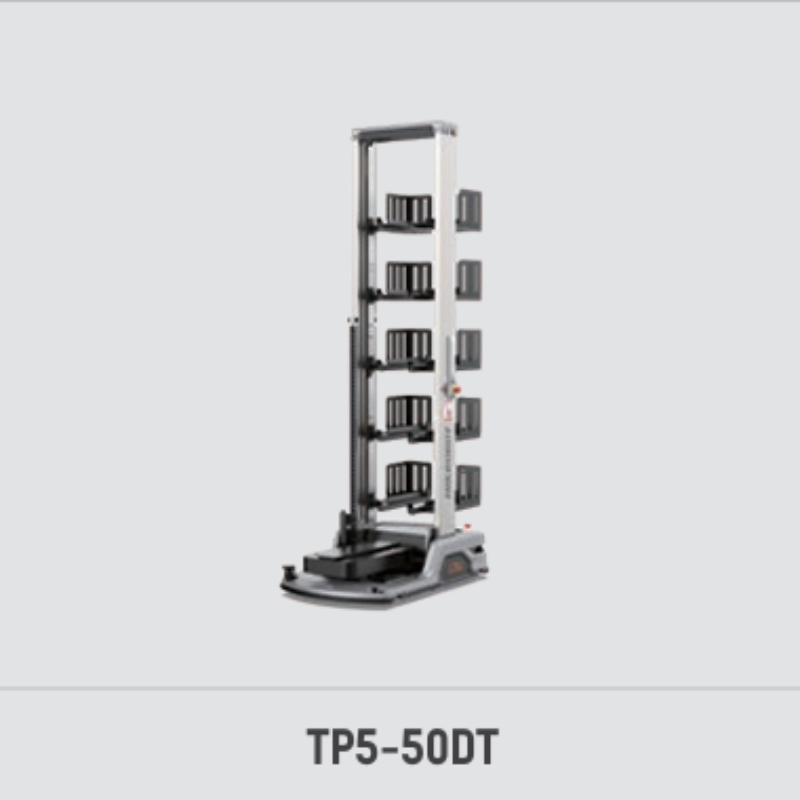

| Model | TP1-50DT | TP5-50DTN | TP5-50DT | TP5-50DTH |
|---|---|---|---|---|
| Rated running speed (m/s) | 1.8 | 1.8 | 1.6 | 1.8 |
| Travel stopping accuracy | ± 10 mm / ± 1° | ± 10 mm / ± 1° | ± 10 mm / ± 1° | ± 10 mm / ± 1° |
| Lifting accuracy | ± 2 mm | ± 2 mm | ± 2 mm | ± 2 mm |
| Aisle width (mm) | 840 | 850 | 1050 | 1100 |
| Rotation diameter (mm) | 1000 | 1360 | 1600 | 1850 |
| Run time (h) | 6-8 | 6-8 | 6-8 | 6-8 |
| Charging time (h) | ≤ 1.5 | ≤ 1.5 | ≤ 2 | ≤ 2 |
| Safety Sensors | Laser / Bumper | Laser / Bumper | Laser / Bumper | Laser / Bumper |
